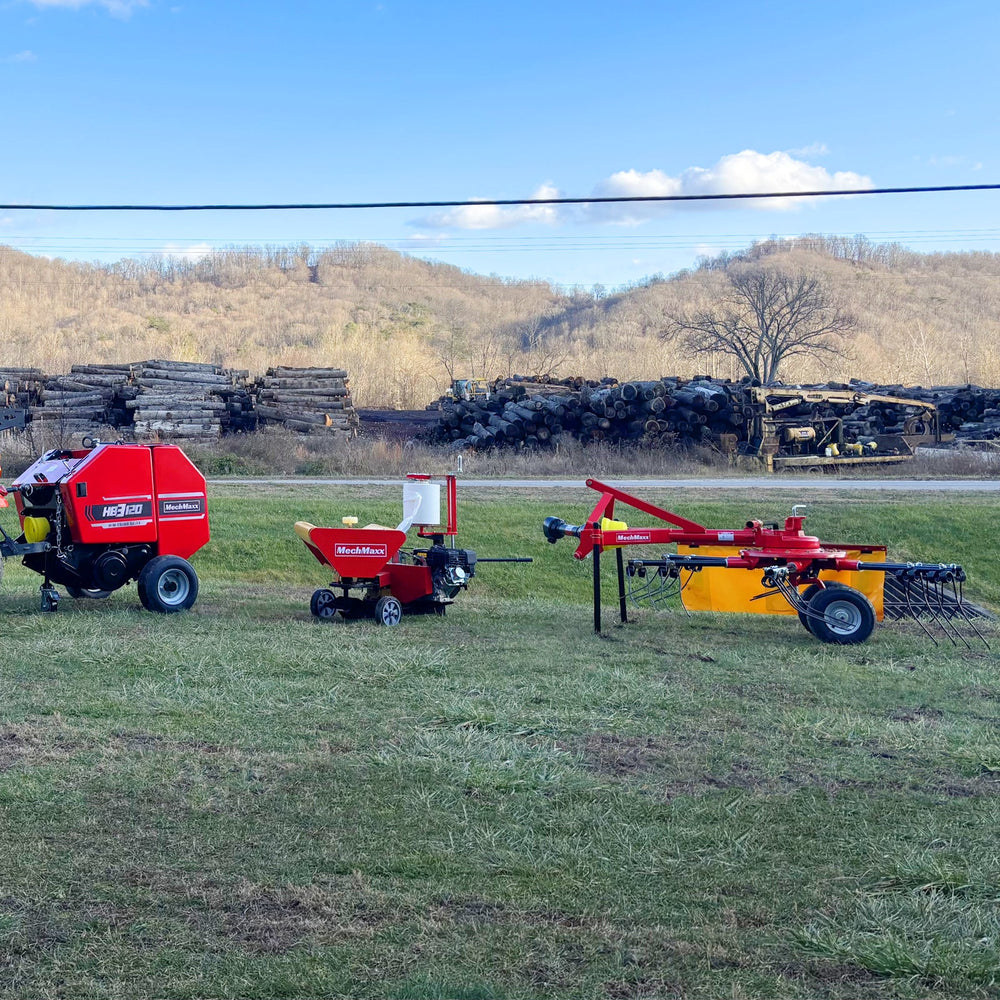

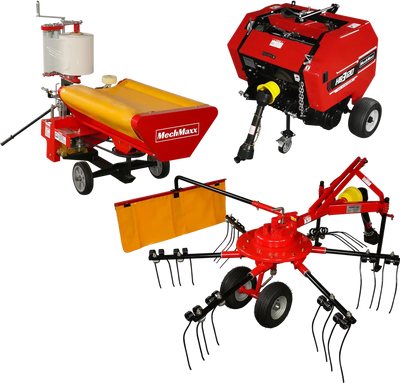

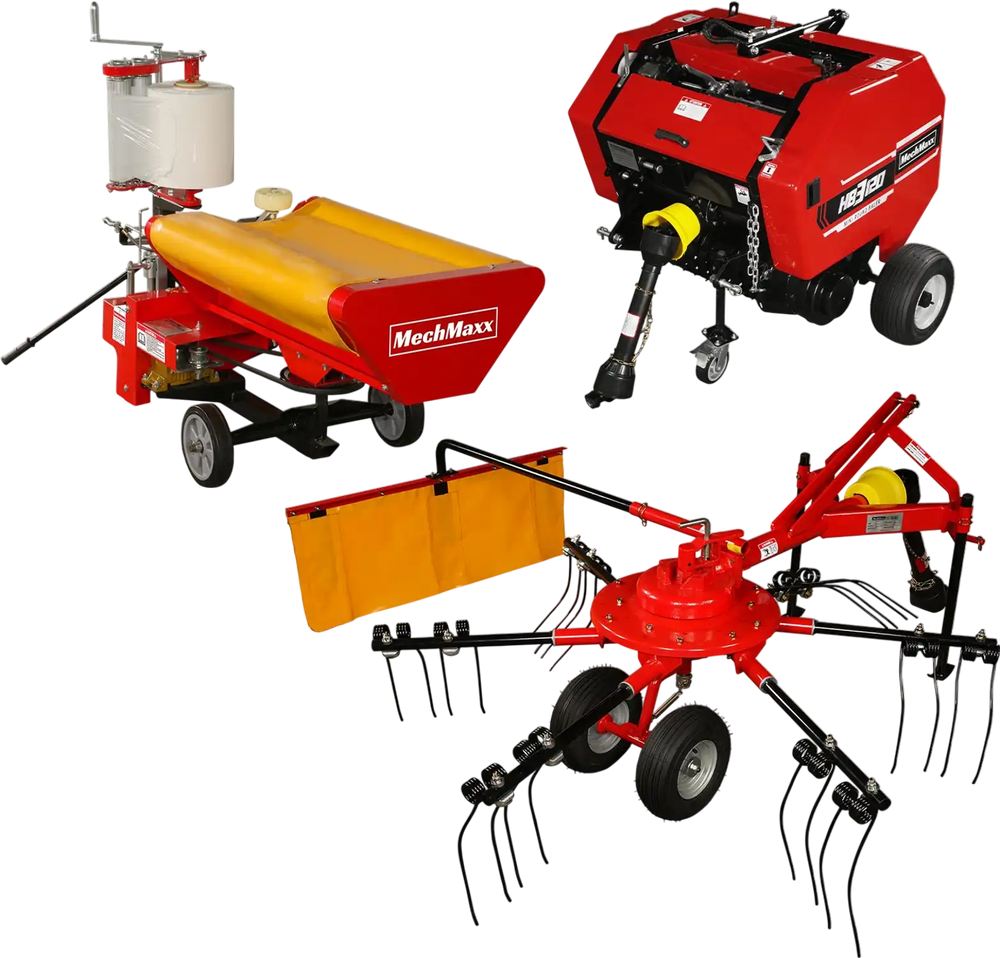

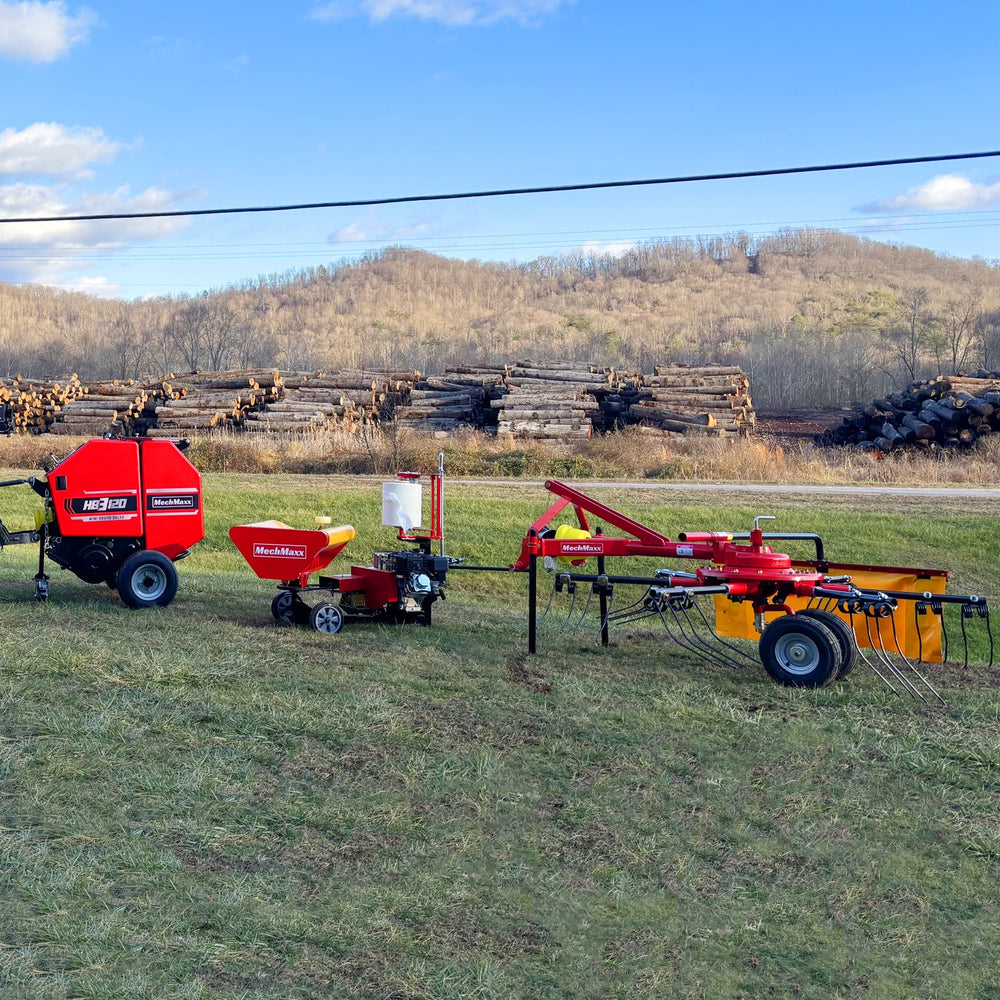

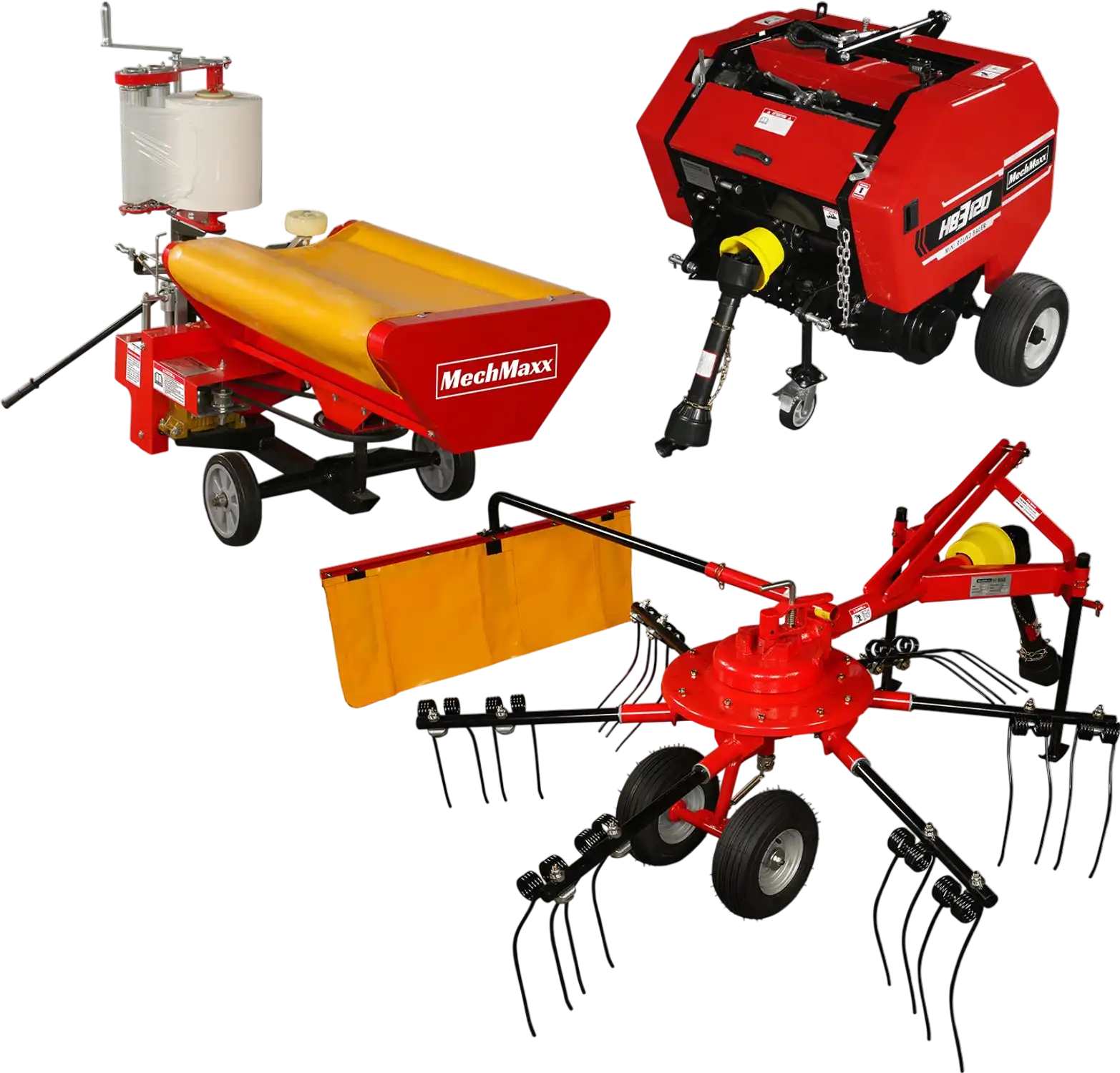

MechMaxx HB3120, HW20, HT100 Hay Equipment Bundles Hay Baler Hay Wrapper Hay Rake Tedder Bundle New
Product Overview

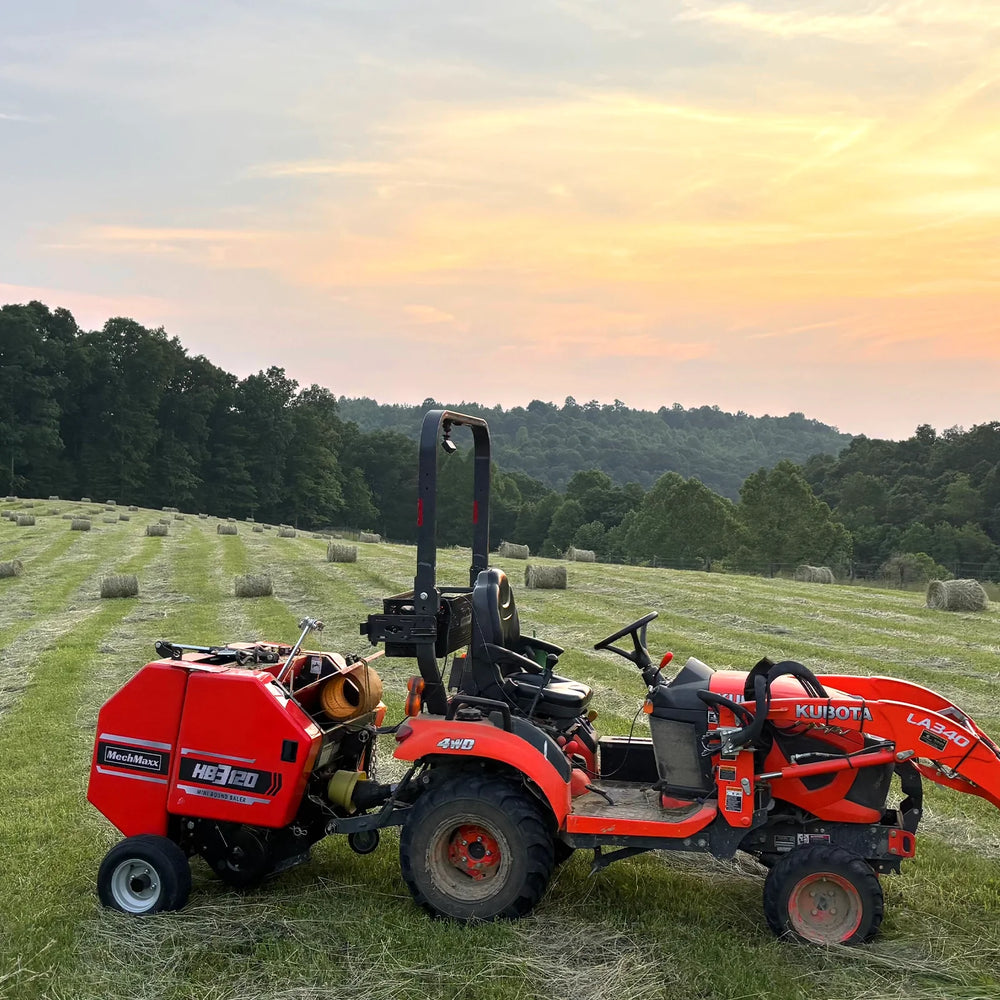

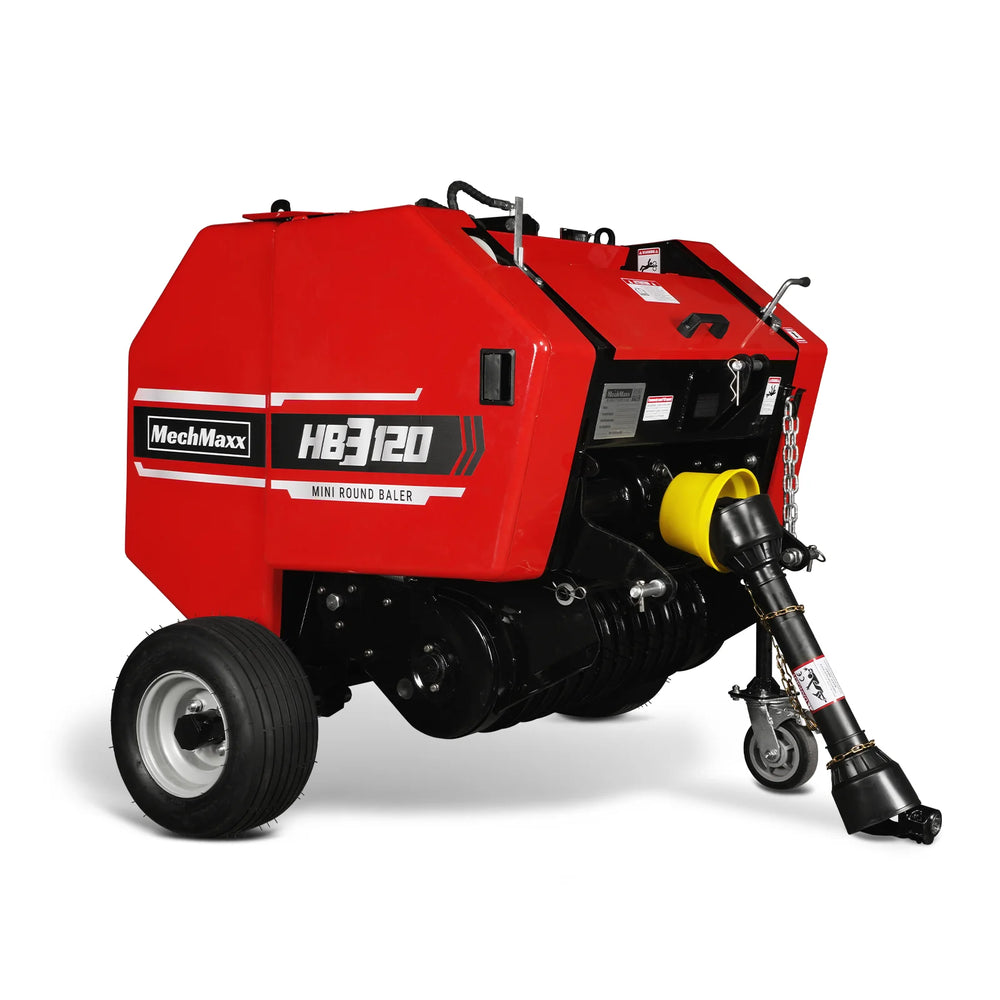

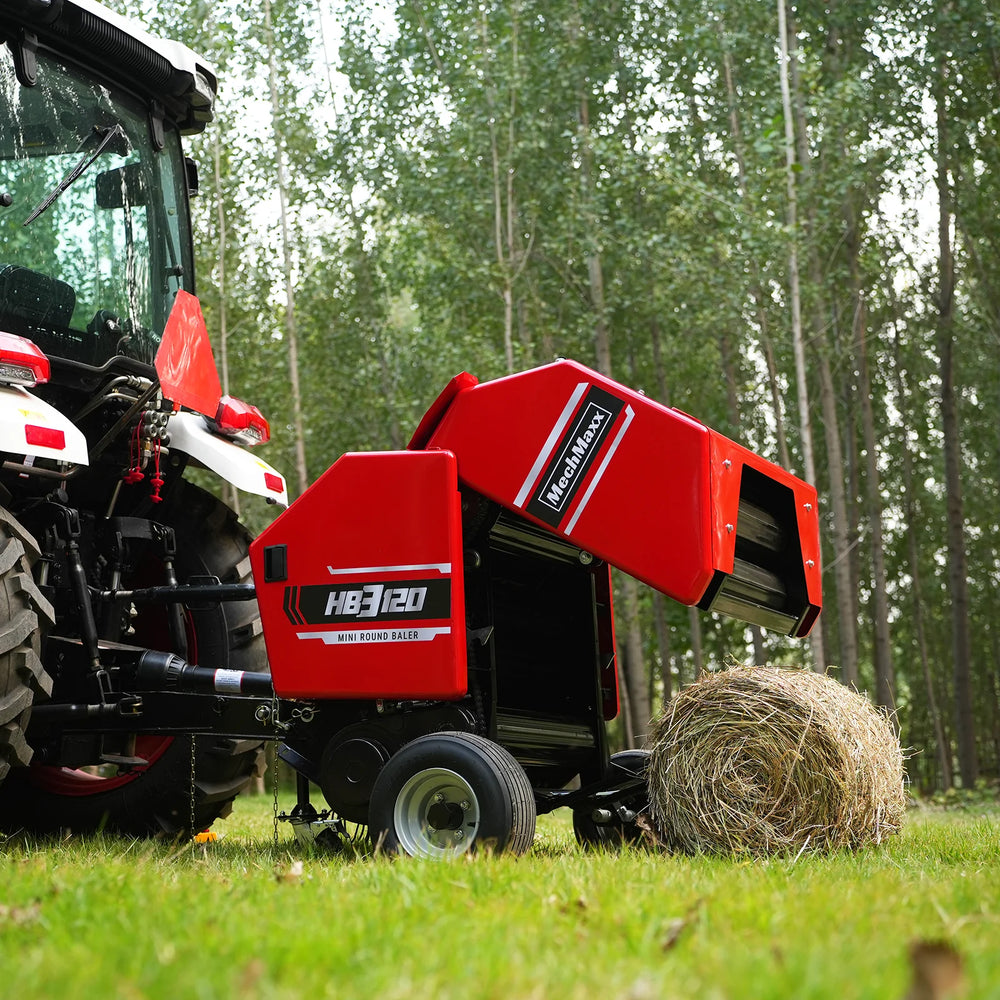

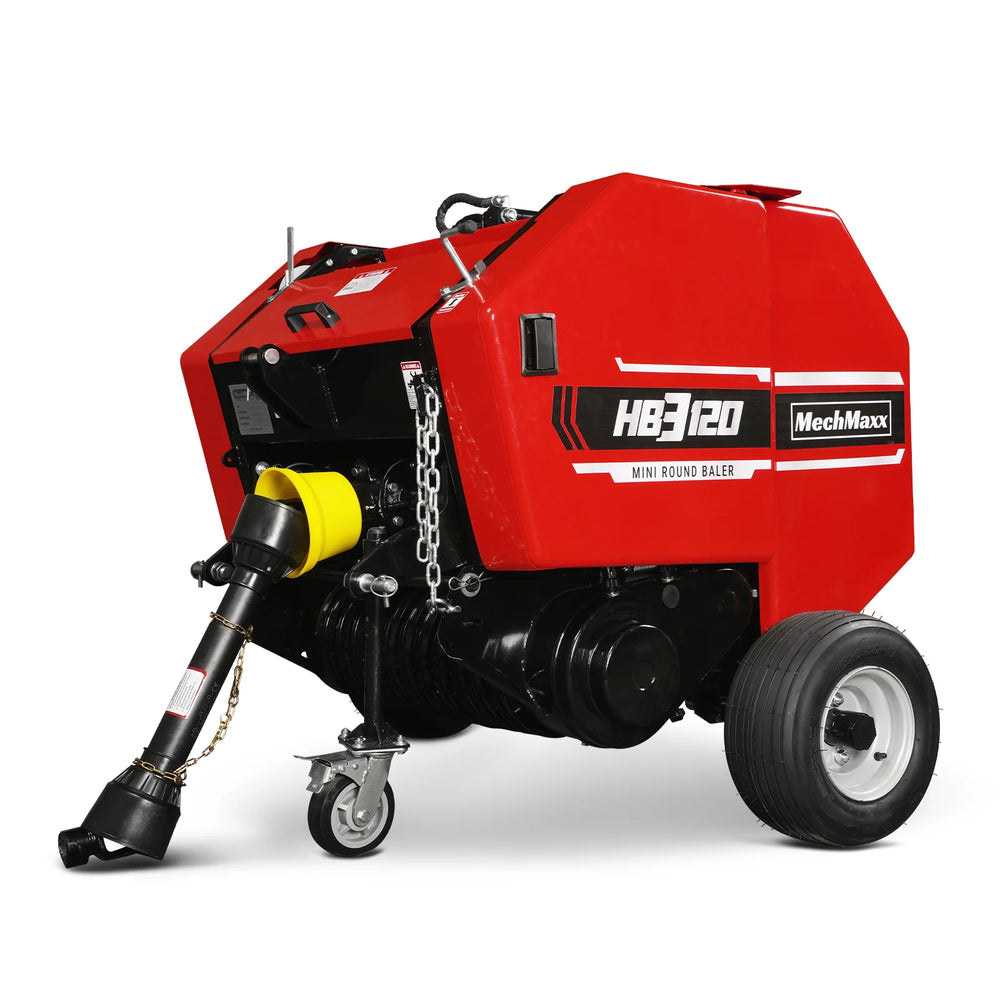

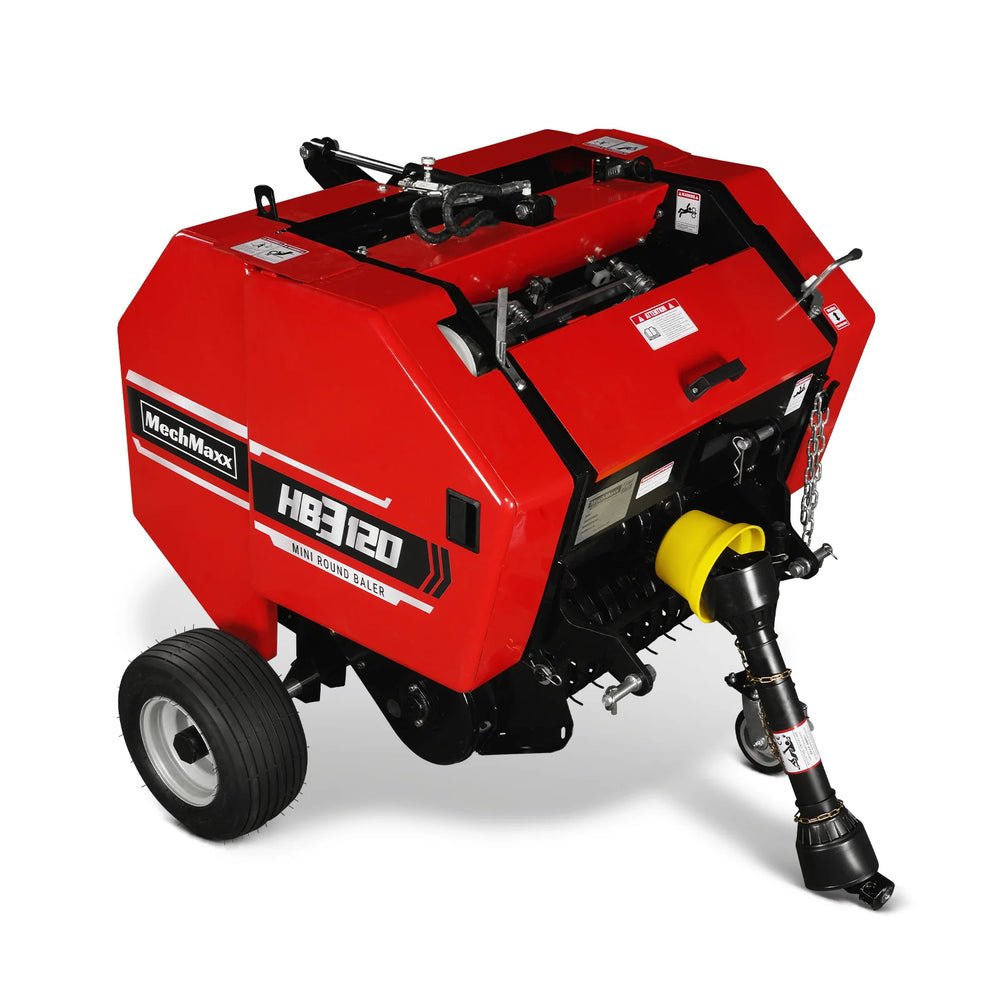

Hay Baler HB3120
- Twine auto binding system. Hydraulic bale ejection system. Simple mechanism, low maintenance. Bale counter, easy to know your bale quantity. Hydraulic lifting system for easy ridge crossing. Light and round straw bales convenient for transportation. Remote control easy to release the bale compare to pull the thread to release the bale.

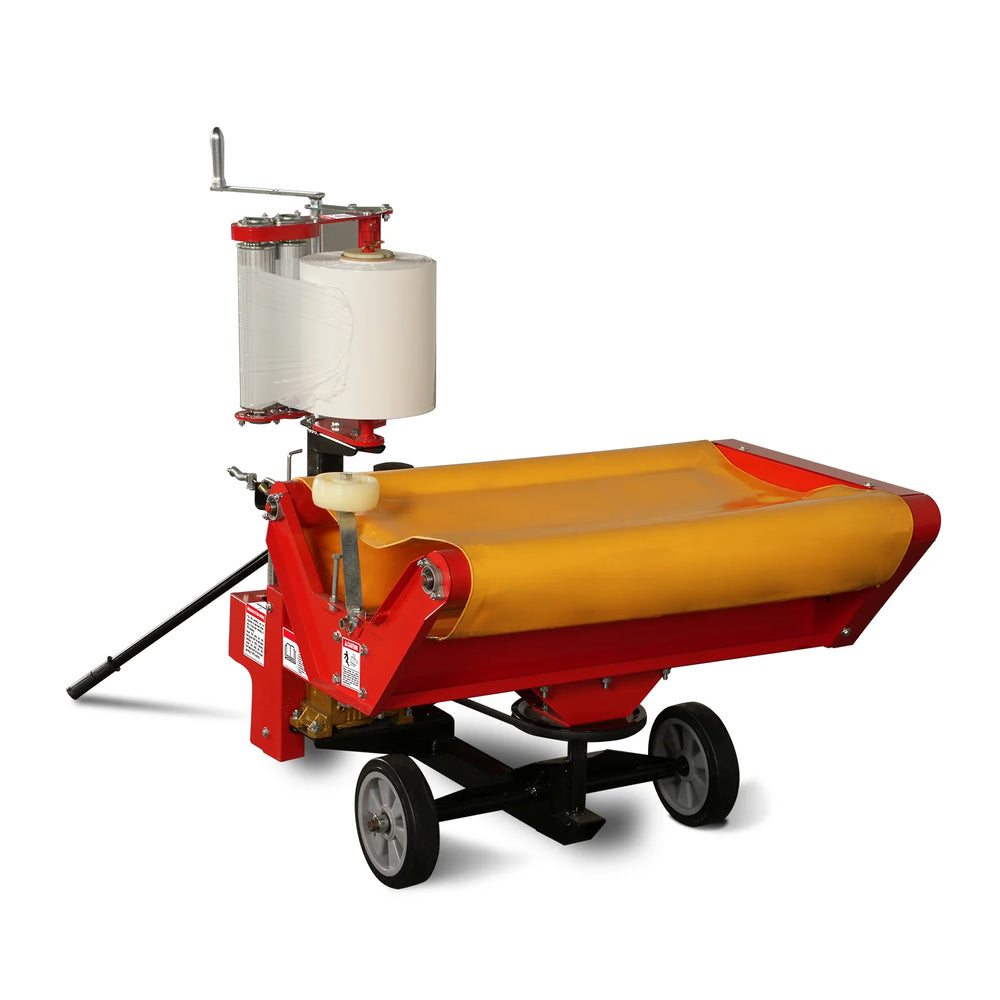

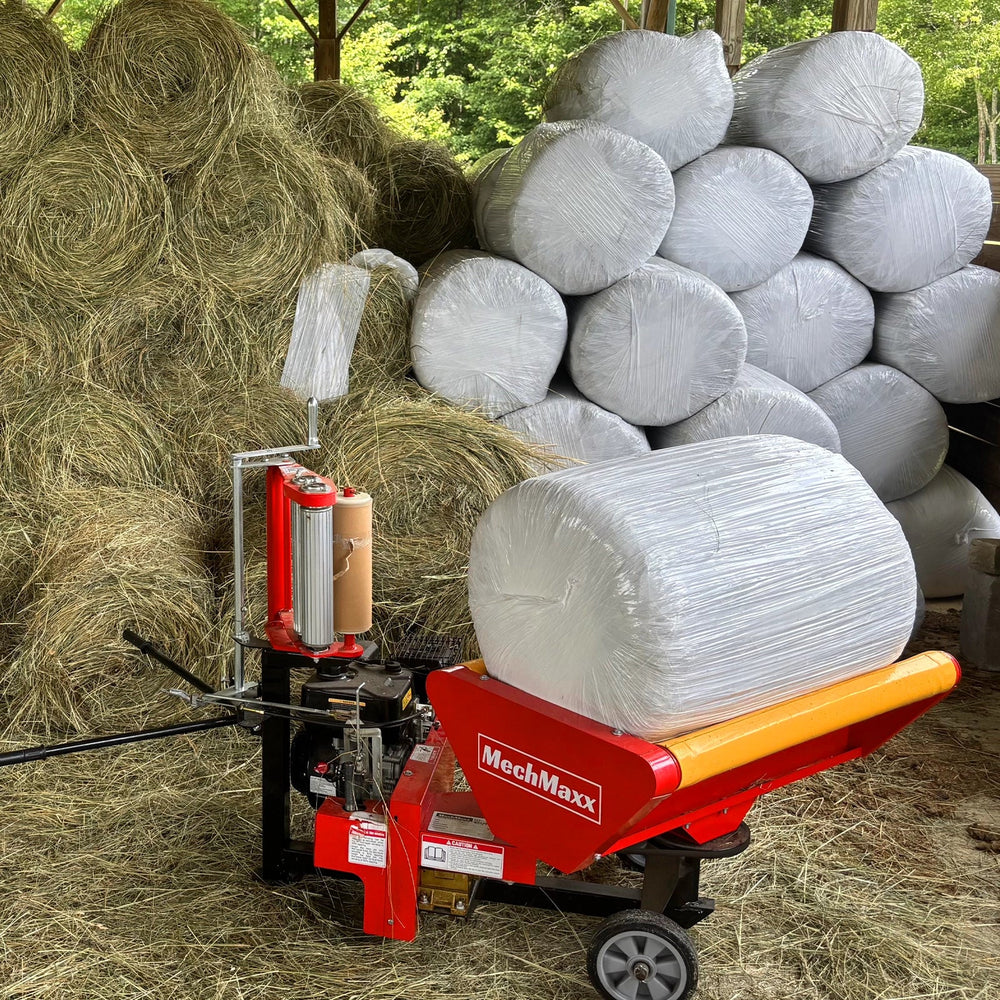

Baler Wrapper HW20
- A gasoline hay wrapper is a practical and efficient solution for farmers looking to preserve their hay bales. With its mobility, versatility, and automatic wrapping capabilities, it offers significant advantages over traditional methods. Whether you're operating on a small or large scale farms, a gasoline hay wrapper can help ensure that your forage materials remain fresh and usable throughout the year. Features automatic wrapping functionality, which simplifies the wrapping process and ensures that the hay bales are fully wrapped, providing better preservation. It come with a compact structure, making it easy to move around the farm. This portability is enhanced by the use of a gasoline engine, which does not require a power outlet. Can be used in various terrains, including farms, gardens, and even at home, making it a versatile tool for different environments. Using a gasoline engine as its power source, this type of hay wrapper offers mobility and efficiency, especially in areas where electric power may not be readily available.
Hay Tedder Combo HT100
- This 3-point hitch mounted, PTO-powered rotary hay rake tedder features a design that allows it to perform multiple tasks—spreading, turning, and raking hay—thereby reducing the need for multiple pieces of equipment. It is designed for compact and subcompact tractors for 15-50hp, making it ideal for tight spots and efficient hay harvesting. By effectively spreading and turning the hay, this tedder help ensure rapid and uniform drying, which is crucial for maintaining the nutritional value of the forage. Designed for easy towing and transportation, these tedders can be quickly moved from one location to another, enhancing operational flexibility.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

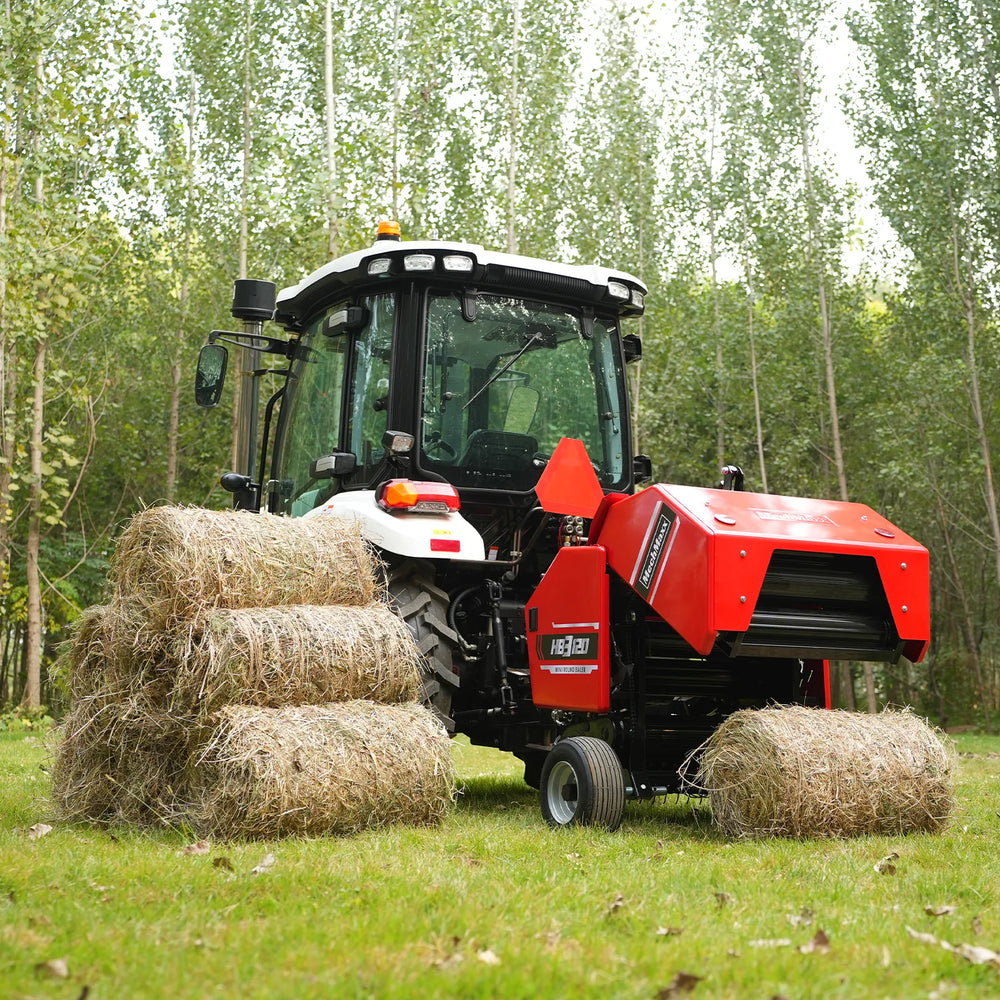

- Light And Compact Bales: The HB3120 balers makes ø20 x 28in bales, bale weight 30-50lbs, the bale weight differs from the material you bale, the compact bales are easy to carry and transport.
- Simple Mechanism: The HB3120 baler was driven by chains and gears, the simple mechanism structure makes the machine easy for maintenance.

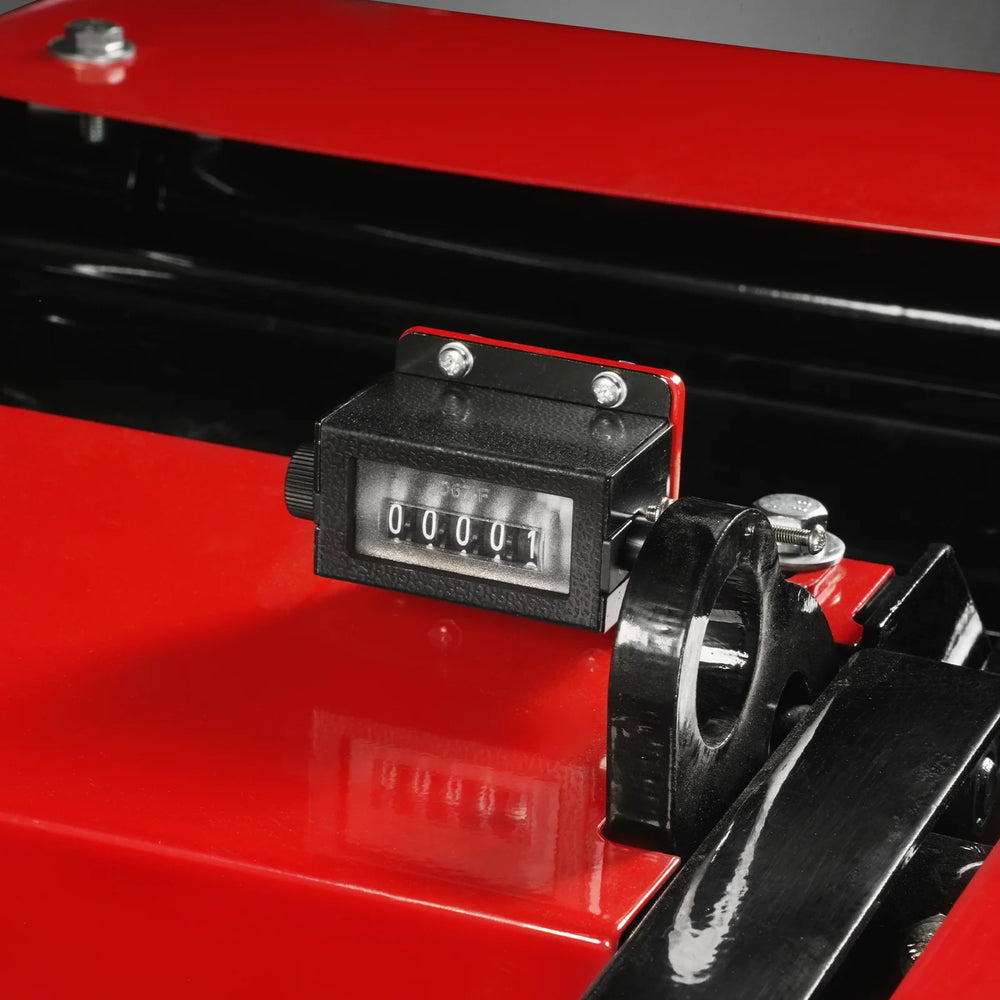

- Bale Counter: The HB3120 baler was installed with a simple bale counter, this makes you easily know how many bales you have, and it makes renting much easier.

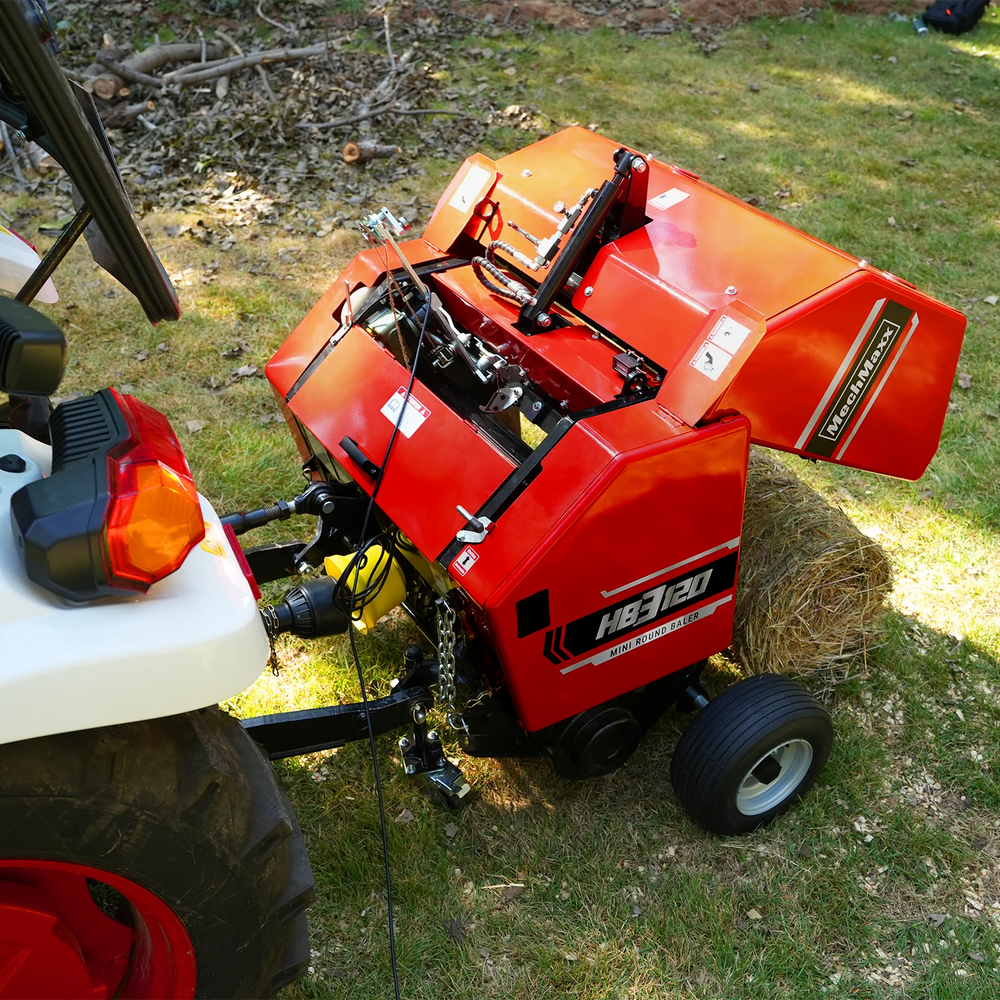

- Easy-Access Covers: The HB3120 comes with easy-access covers which makes opening the bale covers much easier compare the ones which use Star-Handles.
- Independent Power Unit: The HB3120 baler comes with an independent hydraulic pump station, thus this machine no need tractor hydraulics. Even the small horsepower tractors without hydraulics can use this machine.
- Heavy-duty Caster Stand: The HB3120 baler comes with a heavy-duty caster stand, the strong caster stand is able to rotate as a small wheel thus help move the machine in short distance.
- Extra Shear Bolts: The shear bolts act as an important role on the HB3120 baler, it breaks while the baler met big obstacles or bales too big, thus stop the mechanism parts to protect the main body of the machine. We designed an extra plate for holding the extra shear bolts, much convenient.
- 0.08in steel compress roller: The HB3120 use 10 pieces 0.08in integrated forming compress rollers, each roller with 6 reinforcing ribs, this makes the rollers much stronger.
- PTO Shaft( 1-3/8” Z6): The HB3120 balers use 27.5in 6 x 6 spline PTO shafts, the length is able to be adjusted according to your tractor.

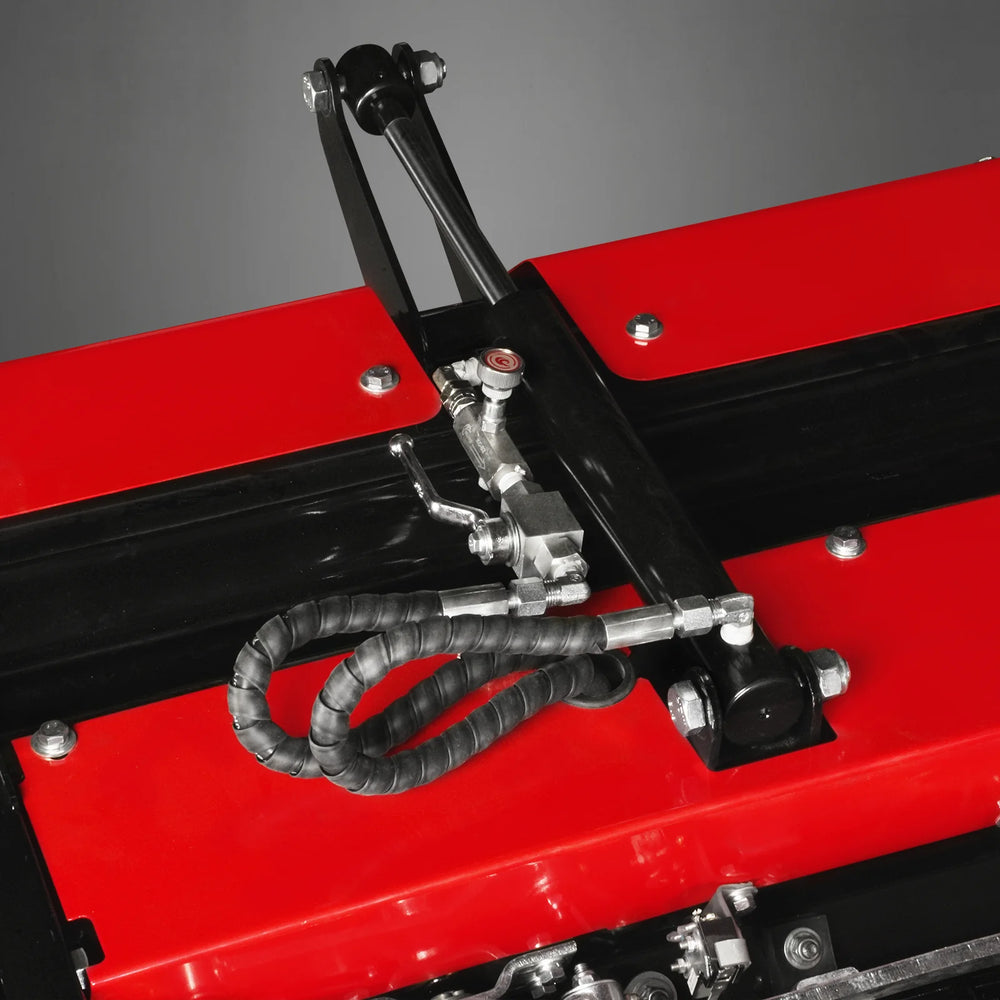

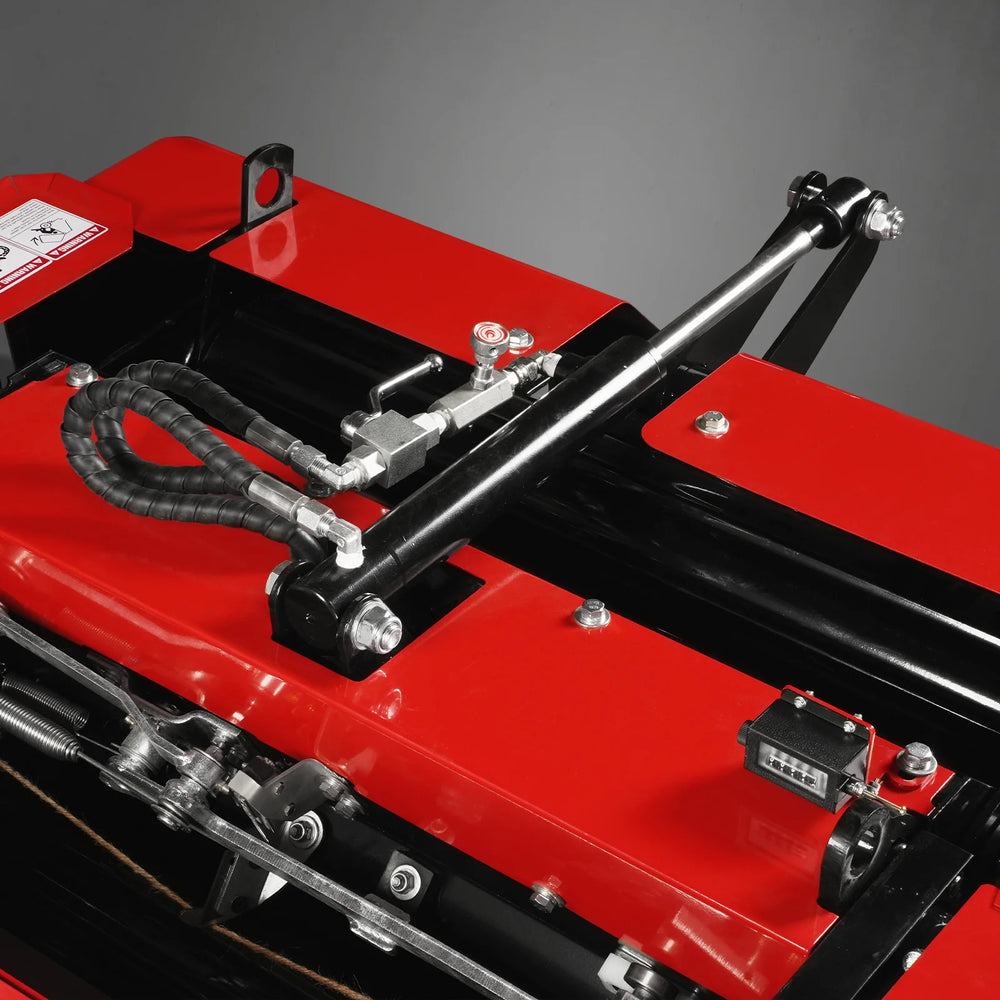

- Hydraulic Ejection System: The HB3120 baler releases the bales by hydraulic cylinder, you can adjust the tailgate closing speed by adjusting the throttle valve on the cylinder.
- Remote Control To Release The Bales: The HB3120 balers equipped with a remote control box, press the button to release the bale, you no need to pull a string to release the bale.
- Full Bale Chamber Alarm: The full chamber horn sounds when the bale cham-ber is full, after the twine arm drops and depresses the activation switch. This begins thetwine wrapping process.
- Compact Structure: The HW20 wrapper with compact structure which is only 220.5lbs, enable to pull or push it to it’s working place, easy to transport, and it can work at any working field, even rough terrain.
- Work Independently: The HW20 wrapper was powered by a 212cc 7hp gasoline engine which typically provide consistent power, enabling the machine to operate smoothly even in challenging conditions.
- Portability: Unlike electric-powered machines, gasoline engines do not require access to electrical outlets, making these wrappers highly portable.
- Efficiency: Efficiently wraps round bales from 20” to 24” in diameter in 40 seconds, Requires less effort and time than conventional wrapping methods.
- Reliability: The HW20 wrapper is film-layer adjustable, it applies plastic film evenly around the bale, ensuring good coverage and protection.
- User-Friendly Interface: The HW20 wrapper is easy to operate which makes the operator easier to use even for less experienced operators.
- Durability And Low Maintenance: The HT100 hay rake features durability and low maintenance design to reduce downtime and repair costs.these attachments are made from high-quality materials that ensure longevity and reliability
- Multi-functionality: The HT100 hay rake tedder can perform multiple tasks such as tedding, raking, and spreading without requiring additional tools for switching between functions, saving time and labor.
- Compatibility With Compact Tractors: The HT100 hay rake tedders are designed to be compatible with compact and subcompact tractors, making it ideal for small to medium-sized farming operations. It provides excellent performance, spreading wet crops evenly for faster drying.
Specifications
| Power Required | 15-50 Hp |
| Minimum Tractor Weight | 1500 lbs |
| Bale Size （Diameter X Width） | φ20 X 28 in |
| Bale Weight | 30 - 50 lbs |
| Overall (L x W x H) | 45 x 51 x 47 in |
| Pickup Width | 31.5 in |
| Efficiency | 1.24-3.11 mi/h |
| Capacity | 80 - 100 Bales / Hour |
| Bale Wrapping | Twine Wrap |
| Hydraulics | Independent Hydraulic Power Unit, No Need Tractor Hydraulics |
| Electrical | Aviation Plug, Easy To Connect With Tractor |
| Tire Size | 16 x 6.5 in |
| PTO Shaft Speed | 540 rpm |
| Spline End | 1.375in Z6 |
| 3-Point Hitch | CAT 1 |
| Gearbox Oil Type | 80W90 EP Gear Oil |
| Finish | Powder Coating |
| Shipping Box | 47 x 45 x 47 in |
| Weight (N.W./G.W.) | 970 /992 lbs |
| Engine | DUCAR DH212 |
| Suitable Bale Size | 20 x 28 in ; 24 x 28 in |
| Overall (L x W x H) | 59 x 34 x 40.5 in |
| Finish | Powder Coating |
| Shipping Box | 61 x 27 x 27 in |
| Weight (N.W./G.W.) | 220.5/298 lbs |
| Power Required | 15-50 hp |
| Minimum Tractor Weight | 1500 lbs |
| Working Width | 100 in |
| Rake Diameter | 79 in |
| Spreading With | 63 in |
| Overall (L x W x H) | 83 x 98 x 37 in |
| Arms No. | 6 |
| Spring Teeth No. | 12 |
| Working Speed | 2.5-5 mi/h |
| Picking Up Objects | Various Types Of Straw, Pasture |
| Tire Size | 13x5.0-6 |
| PTO Shaft Speed | 540 rpm |
| Spline End | 1.375in Z6 |
| 3-Point Hitch | CAT 1 |
| Gearbox Oil Type | 80W90 Gear Oil |
| Finish | Powder Coating |
| Shipping Box | 57 x 24 x 29 in |
| Weight (N.W./G.W.) | 357/405 lbs |
Warranty
This item comes with a 1 year factory warranty.
