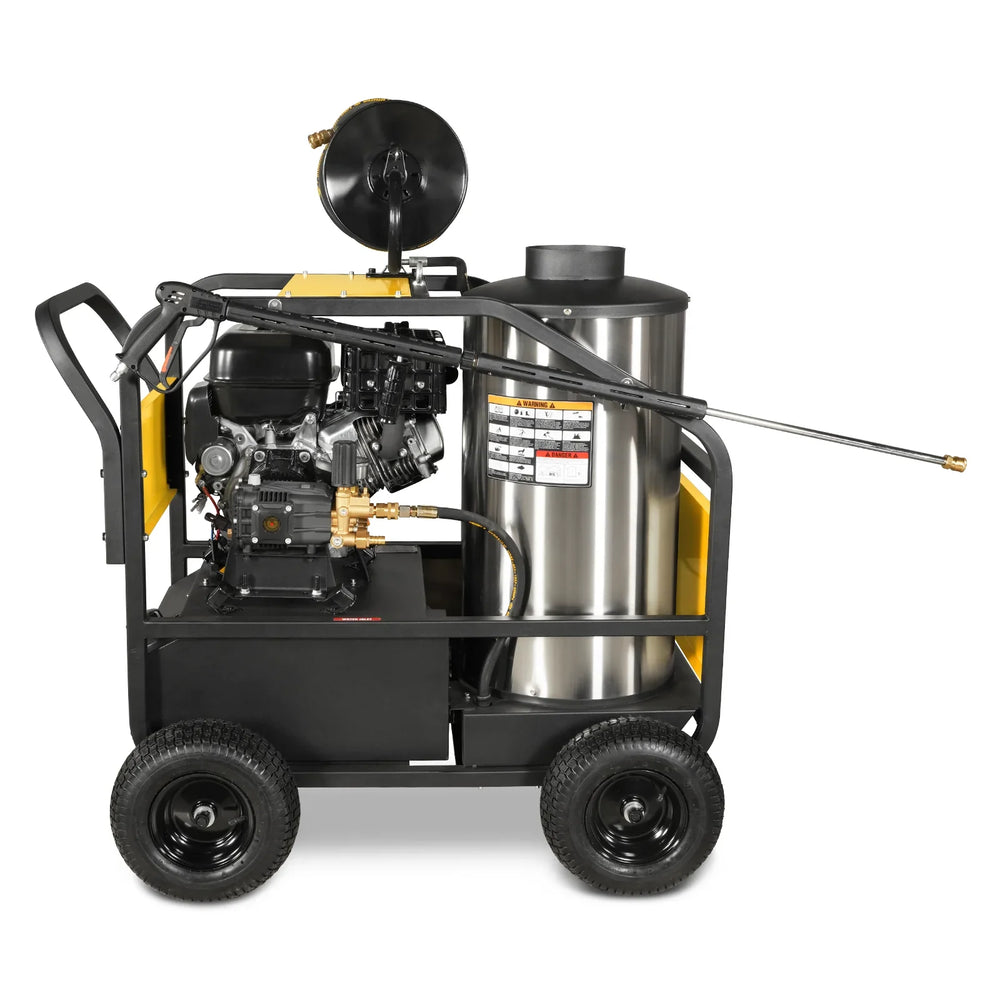

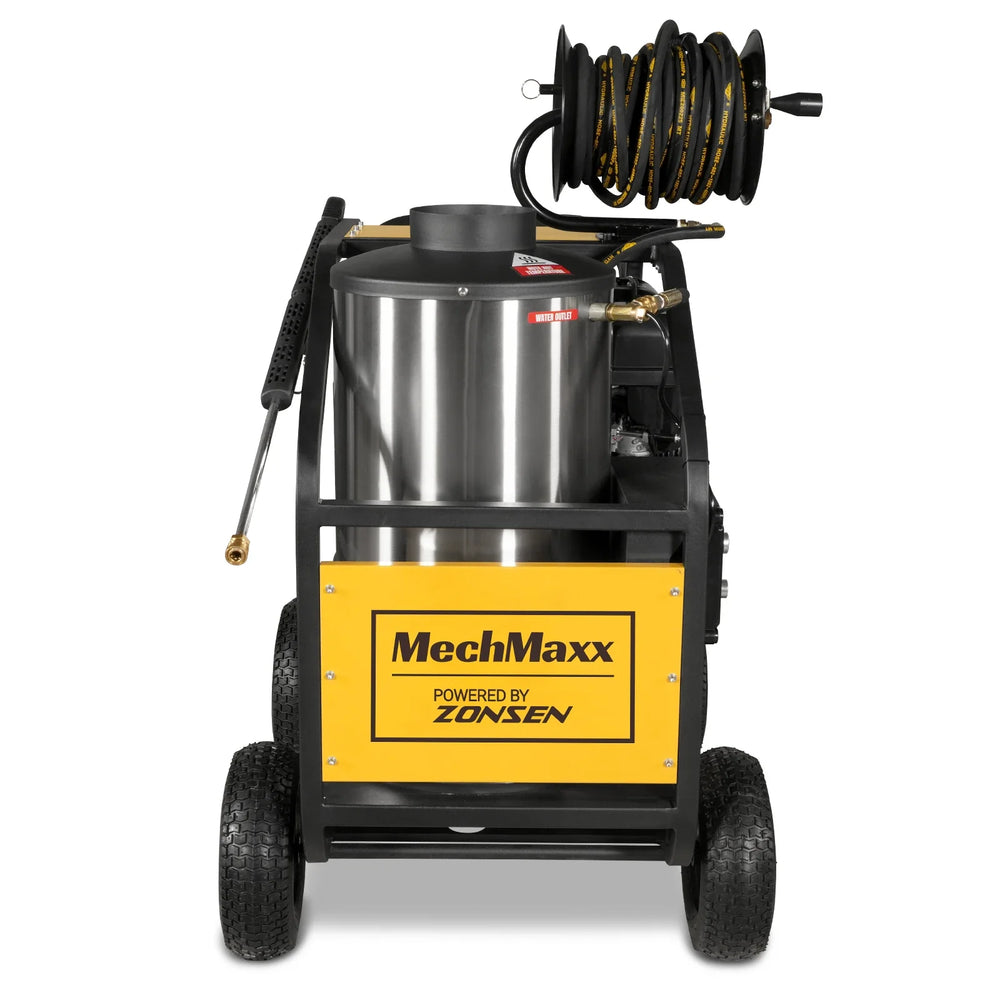

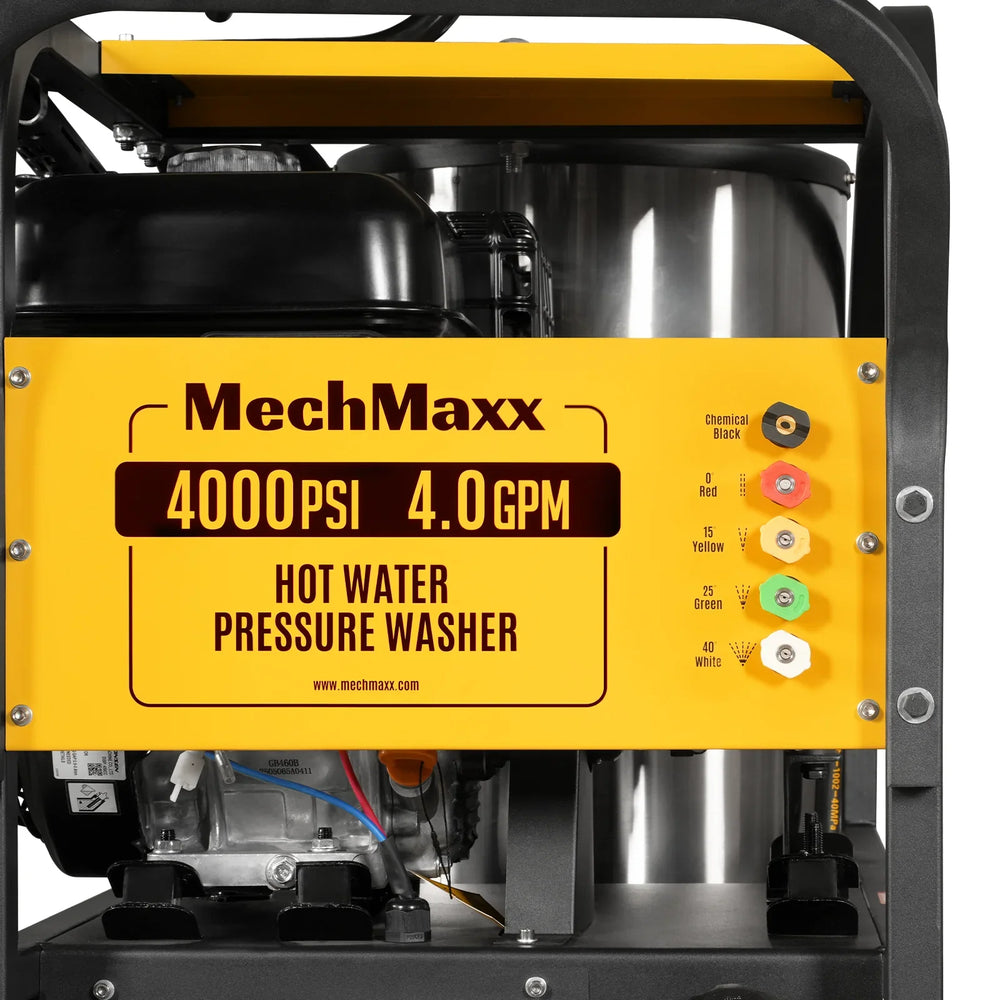

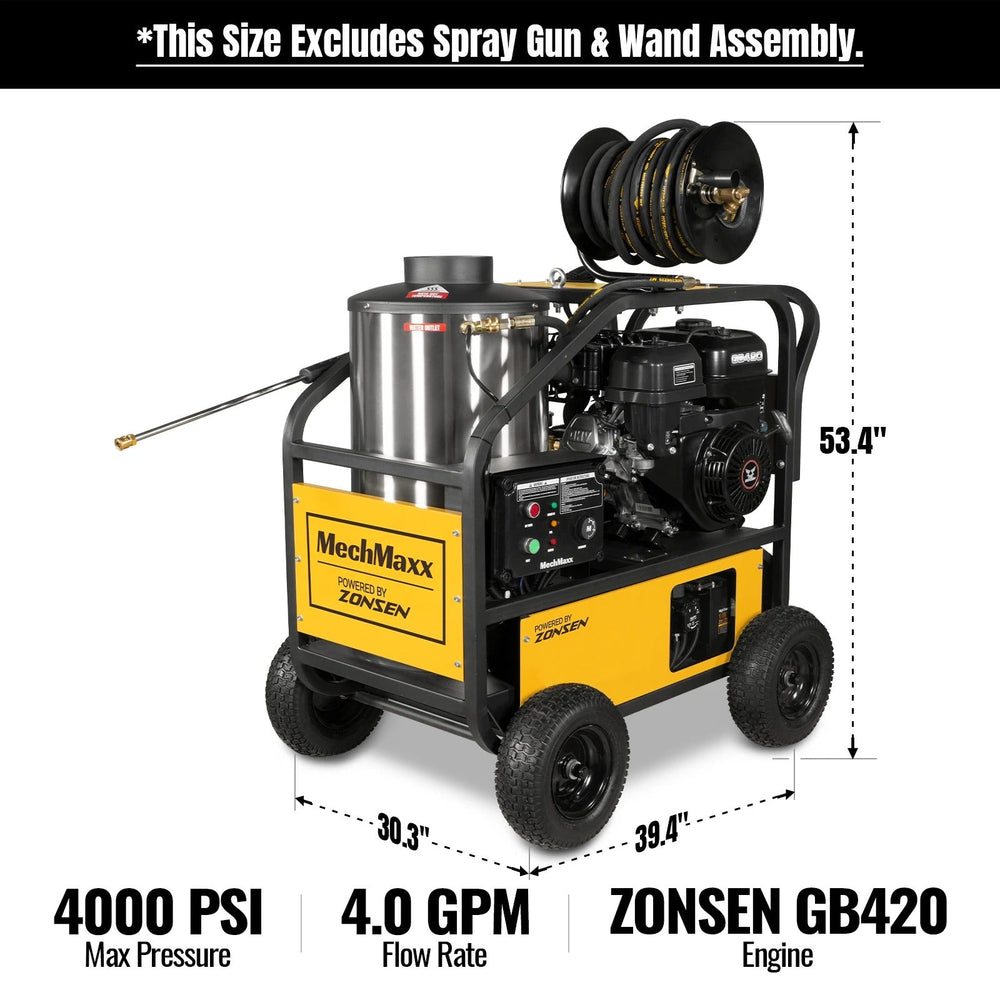

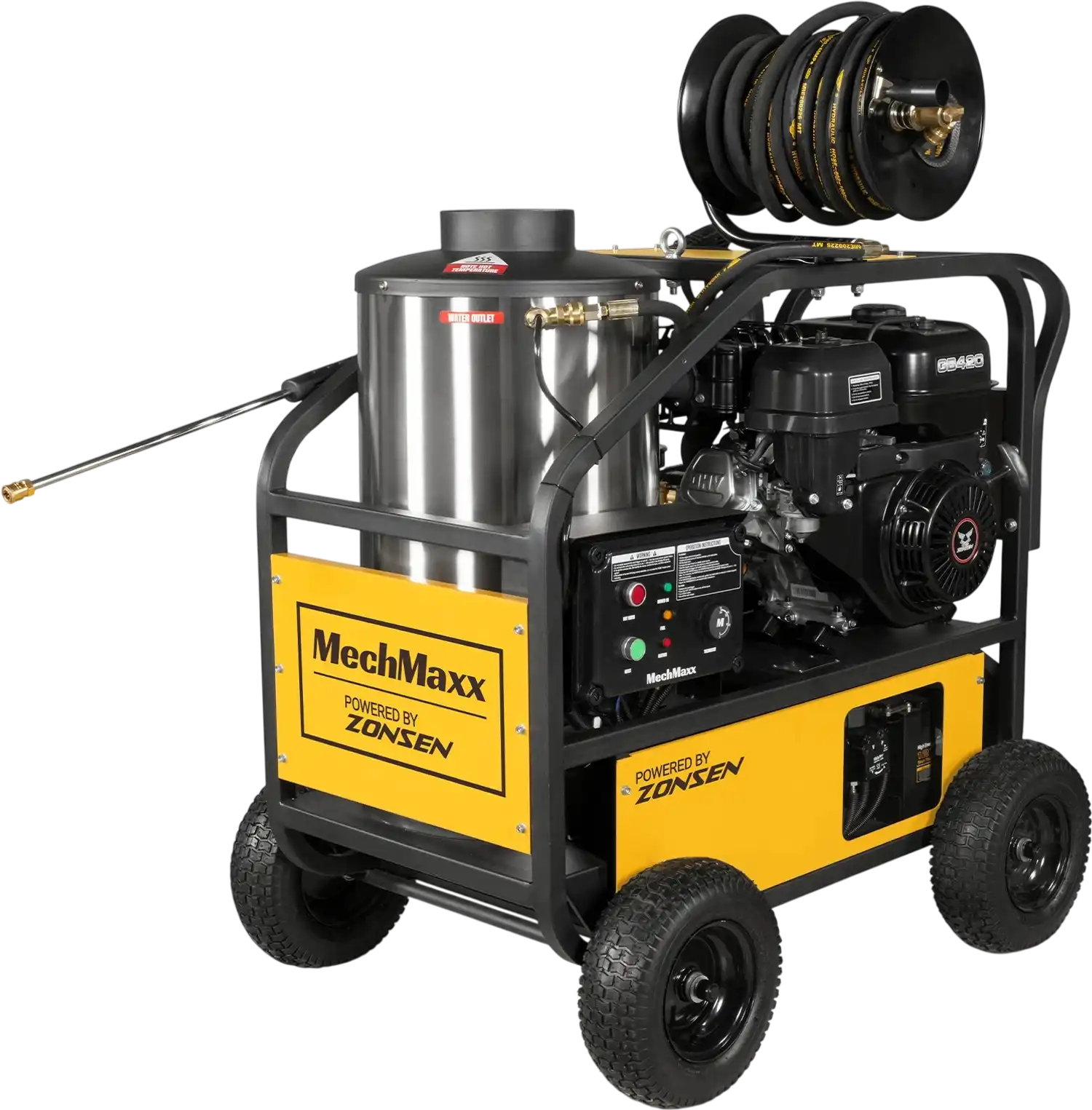

MechMaxx HPW40D Pressure Washer 4000 PSI 4 GPM Hot Water ZONSEN Electric Start Engine Hose Reel New
Manufacturer: MechMaxx
SKU: 204006
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 3,399.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
MechMaxx HPW40D Pressure Washer 4000 PSI 4 GPM Hot Water ZONSEN Electric Start Engine Hose Reel New
Product Overview
- Powered by a ZONSEN GB420 electric-start engine, the MechMaxx HPW40D Hot Water Pressure Washer delivers dependable power and strong hot water cleaning performance for demanding washdown jobs. With 3,500–4,000 PSI pressure, 4.0 GPM flow, and water temperature up to 200°F, it helps remove grease, oil, mud, grime, and heavy buildup more effectively than cold water alone.
- The unit is equipped with a triplex plunger pump, diesel-fired heating system, and integrated control panel for stable pressure output and convenient hot water operation. It is suitable for farm, construction, industrial, fleet, and equipment maintenance applications.

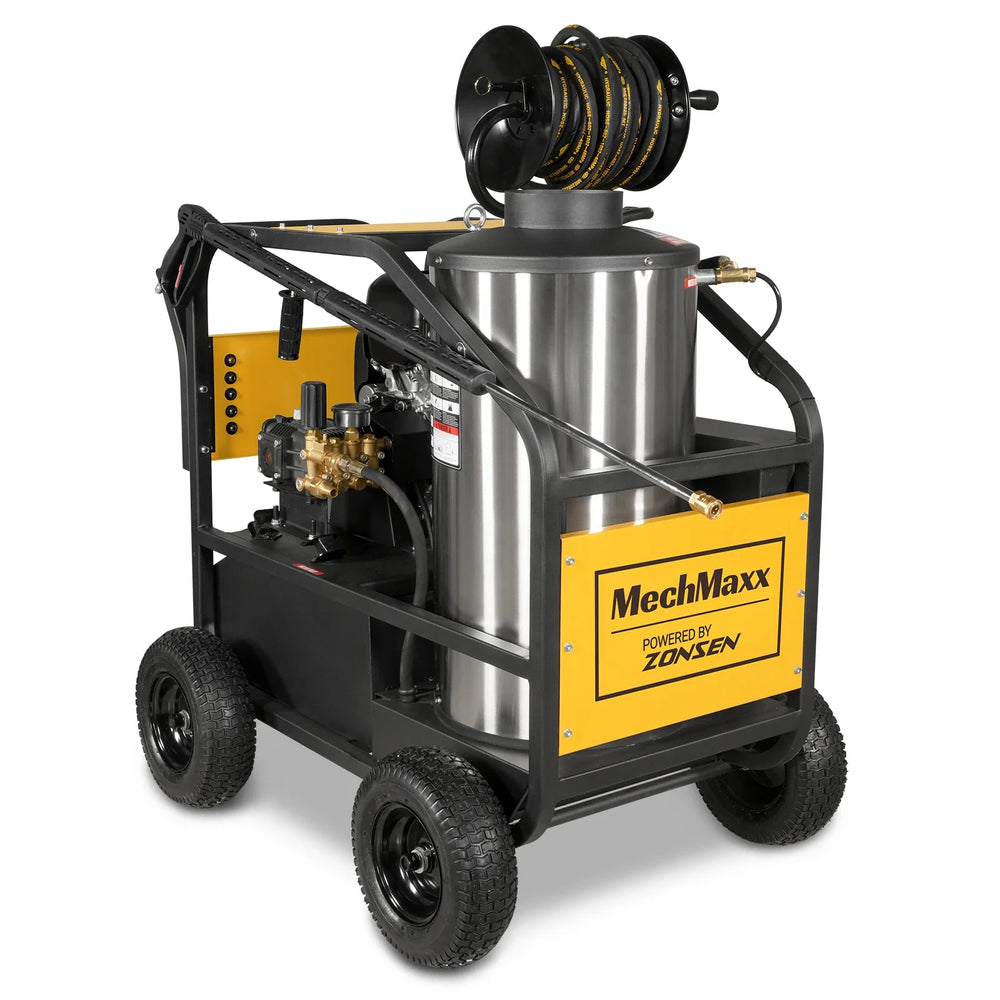

- Designed as a portable model, this pressure washer features a rugged powder-coated steel frame, 13" pneumatic tires, a handlebar, and a lift hook for easier movement, loading, and transport. Since it runs on gasoline, it can be used wherever a suitable water supply is available, with no external electrical power required.
NOTE! - This machine DOES NOT COME WITH OIL AND GASOLINE in the engine. Before starting, fill the engine with both oil and gasoline. Refer to the engine manual for details.
- Maximum pump pressure is 4000 PSI, with the factory working pressure preset to about 3500 PSI.
- Please read the PRODUCT MANUAL carefully and review all SAFETY WARNING LABELS on the machine before operation.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

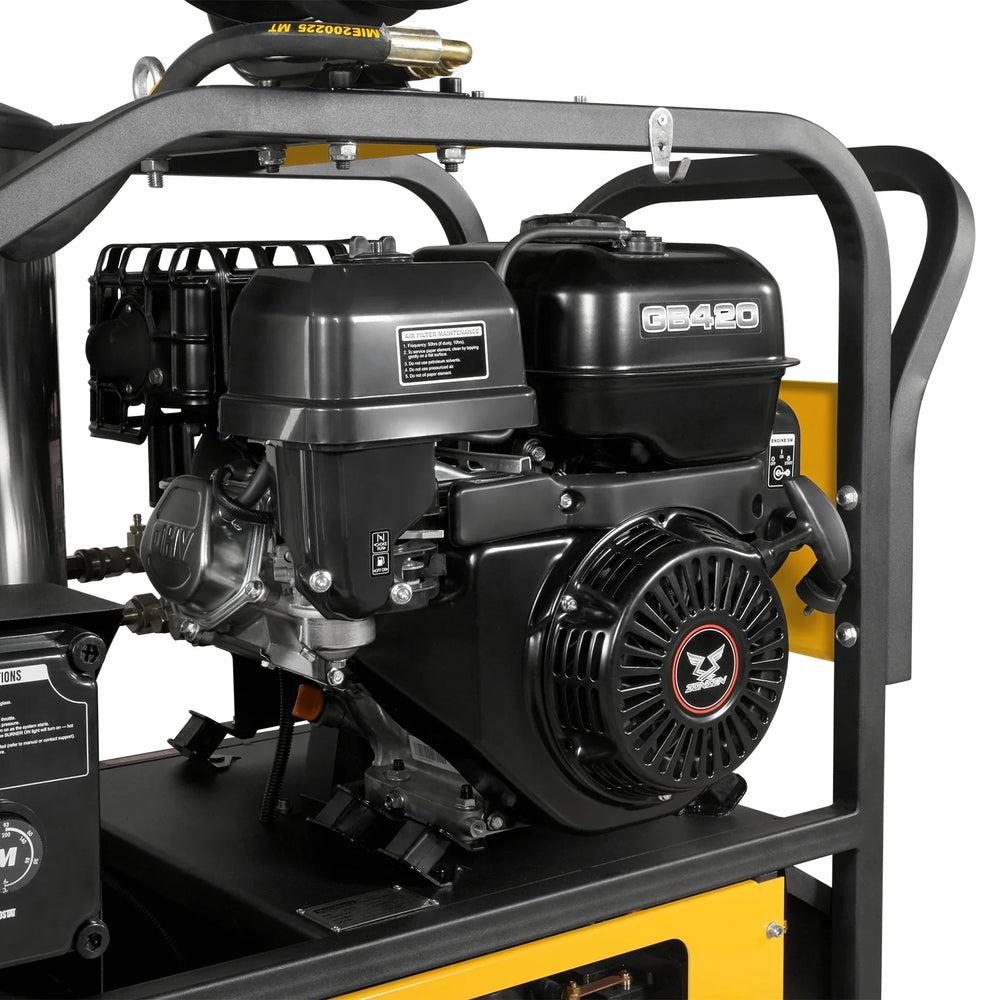

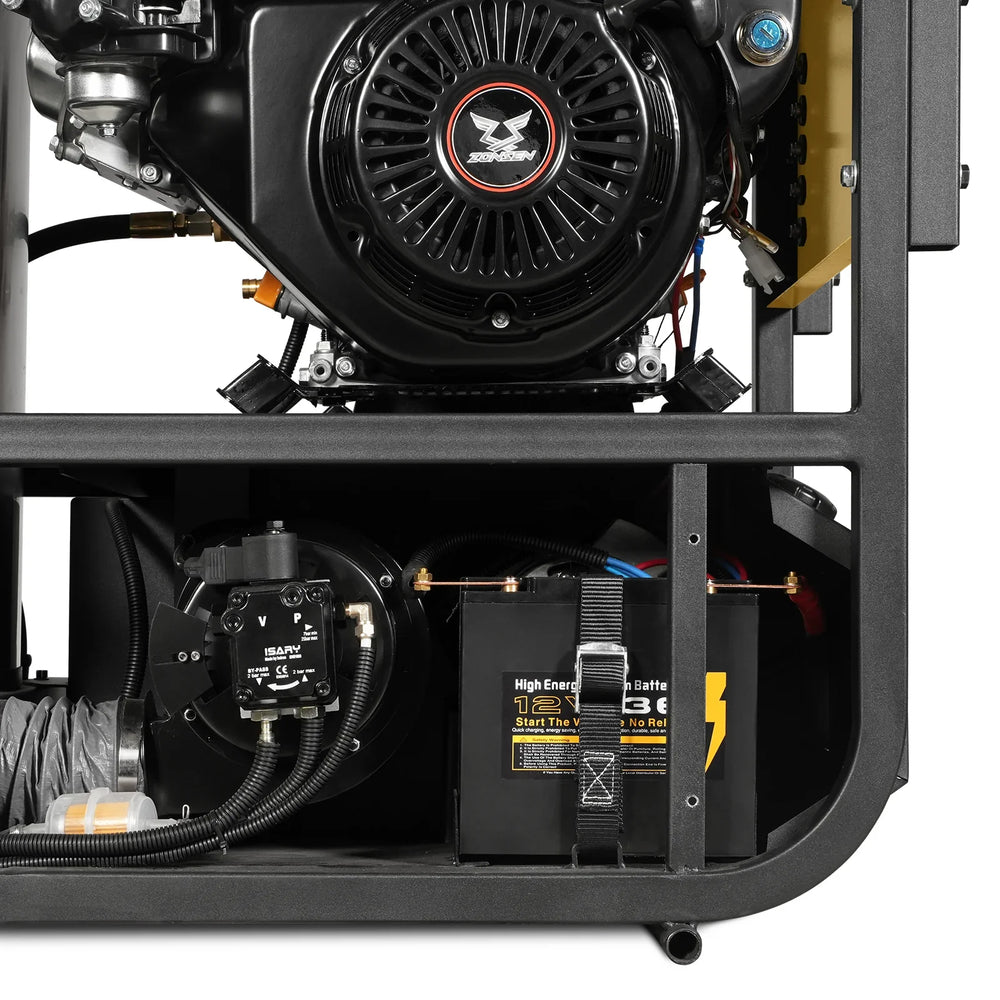

- Electric Start with Battery: Powered by a ZONSEN GB420 gasoline engine with electric start and a 12V battery, this unit provides easier starting and dependable power for demanding cleaning jobs.

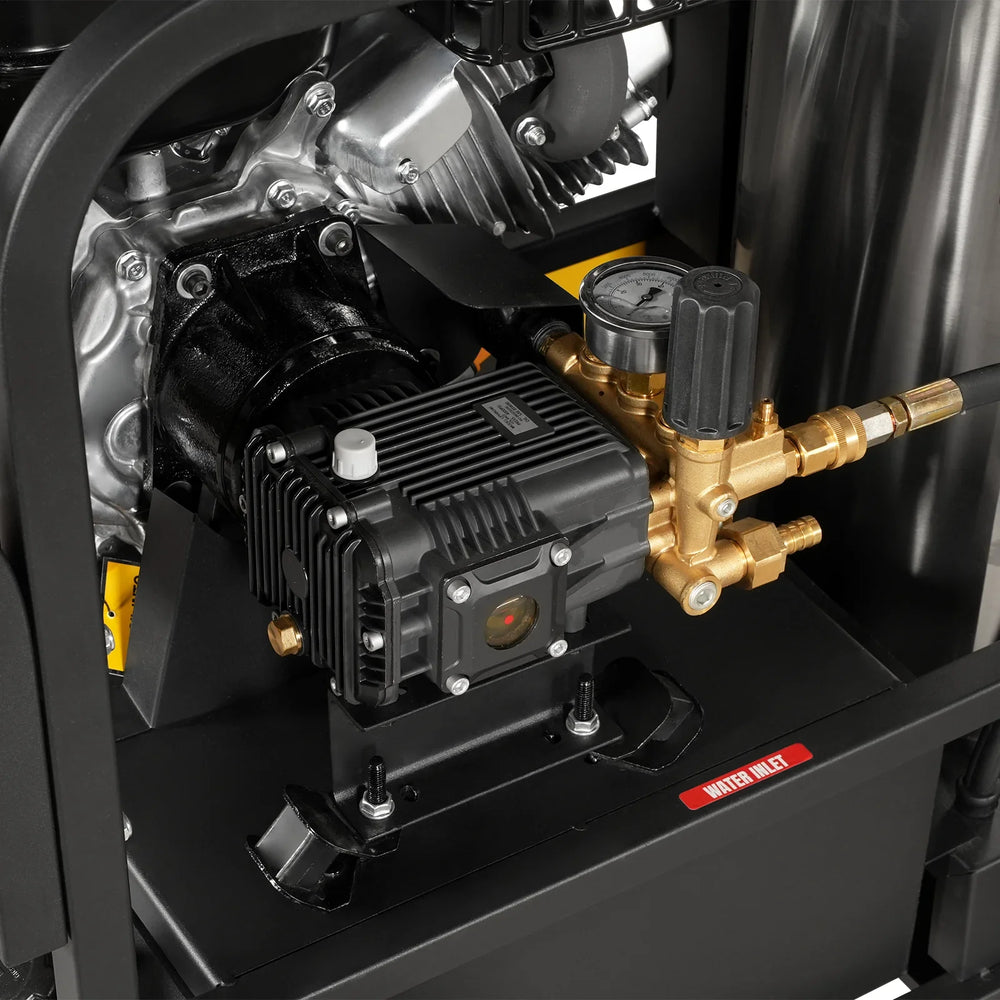

- Triplex Plunger Pump: Equipped with a triplex plunger pump, the unit delivers a 4.0 GPM flow rate for powerful cleaning performance. The downstream chemical injection system works with the soap nozzle for detergent application.

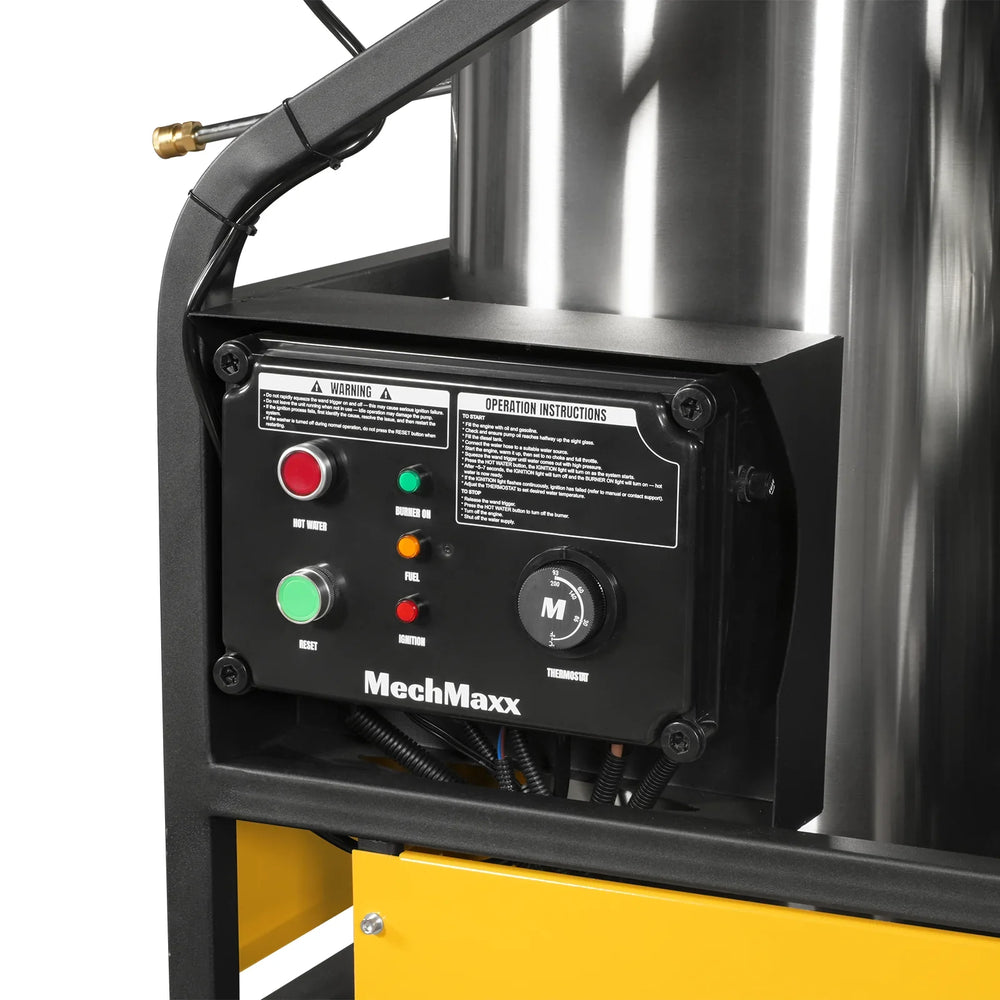

- Integrated Control Panel: The integrated control panel combines the hot water switch, reset button, indicator lights, and thermostat for convenient operation and temperature control.

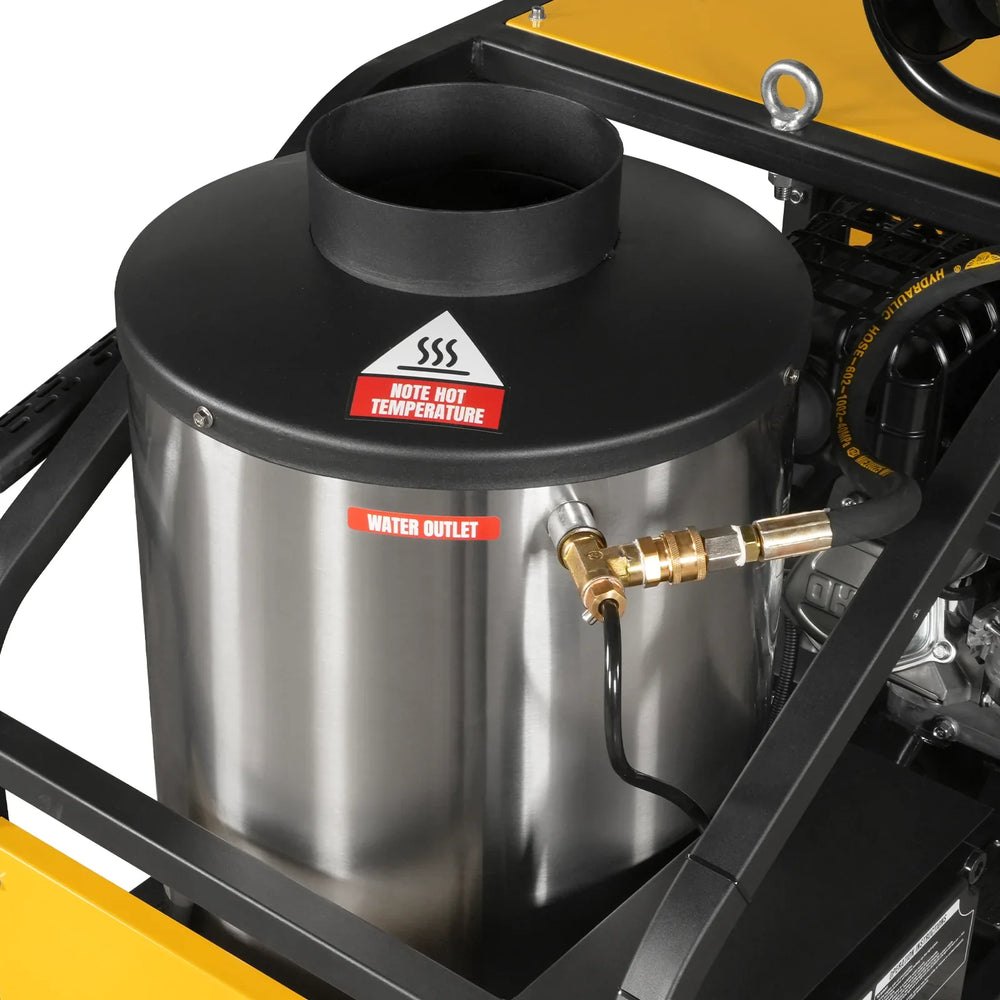

- Heating Coil: The heating coil crafted from 20mm diameter, 2.5mm thick seamless steel pipes, features a ceramic fiber insulation layer and a stainless steel shell. Ignited by a 12V DC diesel burner, it heats water to approx. 200°F in under 2 minutes. An intelligent temperature control system manages ignition and combustion for stable hot water output.
- Rugged Steel Frame: The unit features a rugged 1-1/4'' steel frame with a powder-coated finish for durability and corrosion resistance.

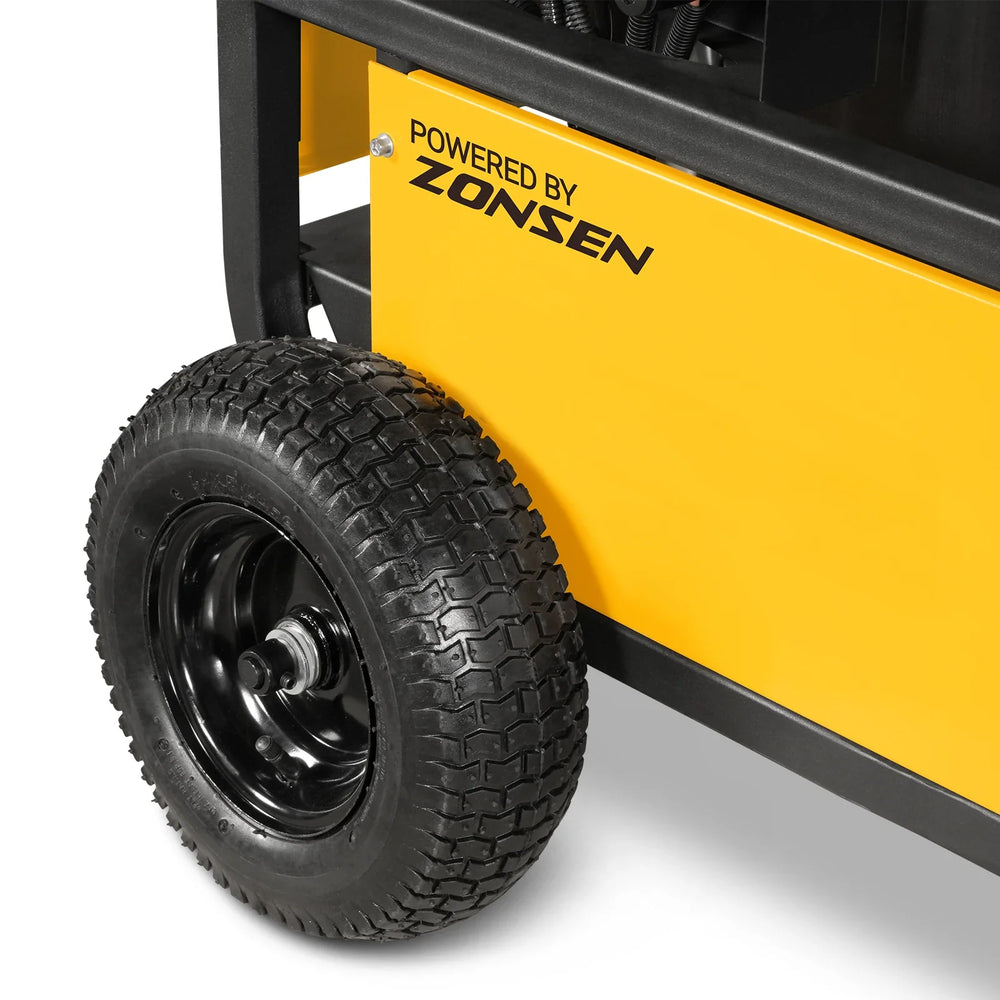

- Handlebar, Tires & Lift Hook: A sturdy handlebar, 13'' pneumatic tires, and lift hook make the unit easier to move, load, and transport across shops, farms, driveways, and construction sites.
- Rubber Anti-Vibration Pads: Six rubber pads help reduce vibration during operation and protect the frame and components from long-term wear.

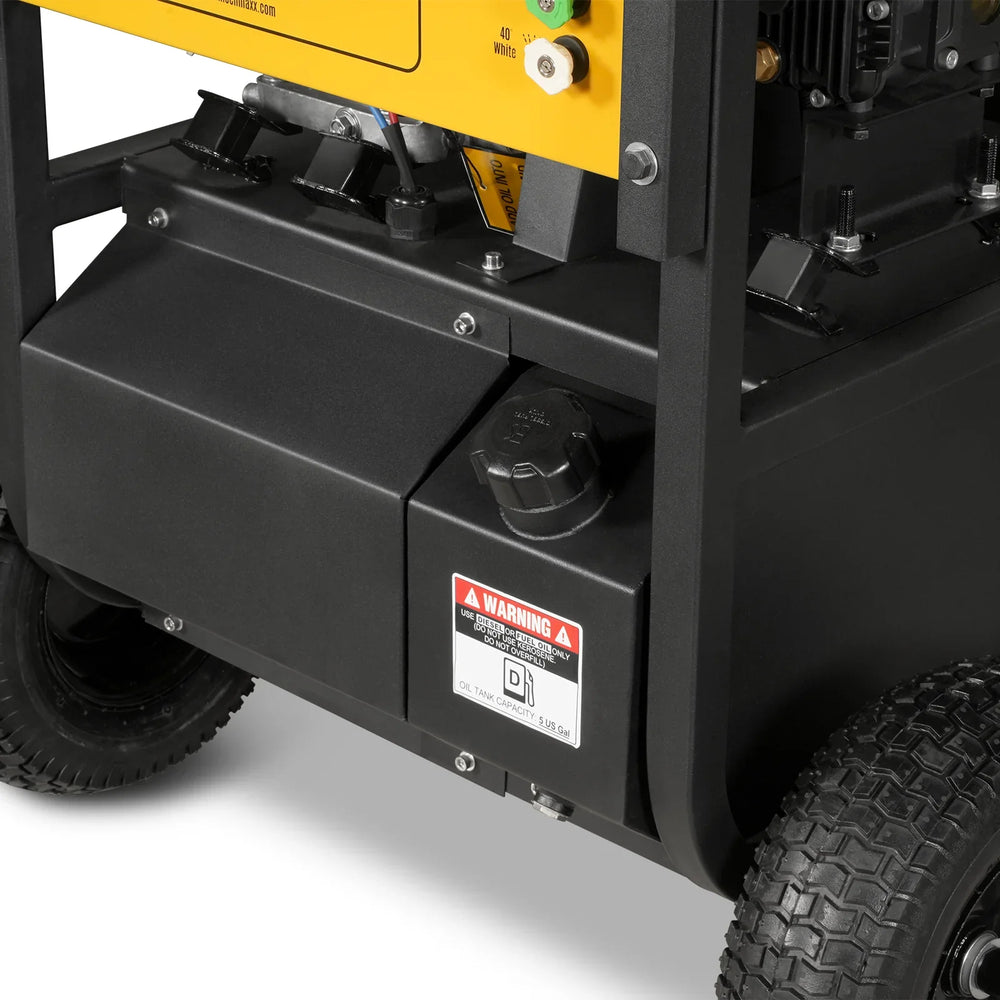

- Burner Fuel Tank: The onboard 5-gallon diesel burner fuel tank supports extended hot water operation without requiring an external fuel source for the heating system.

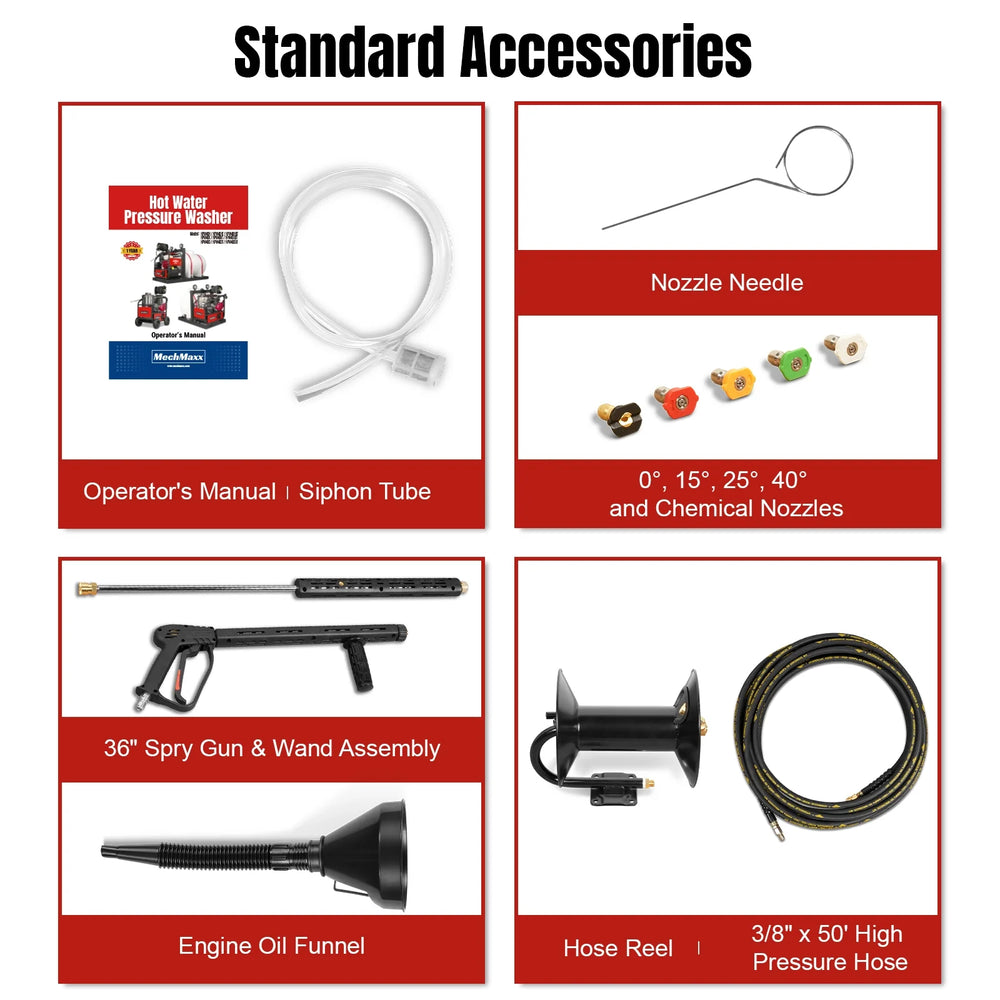

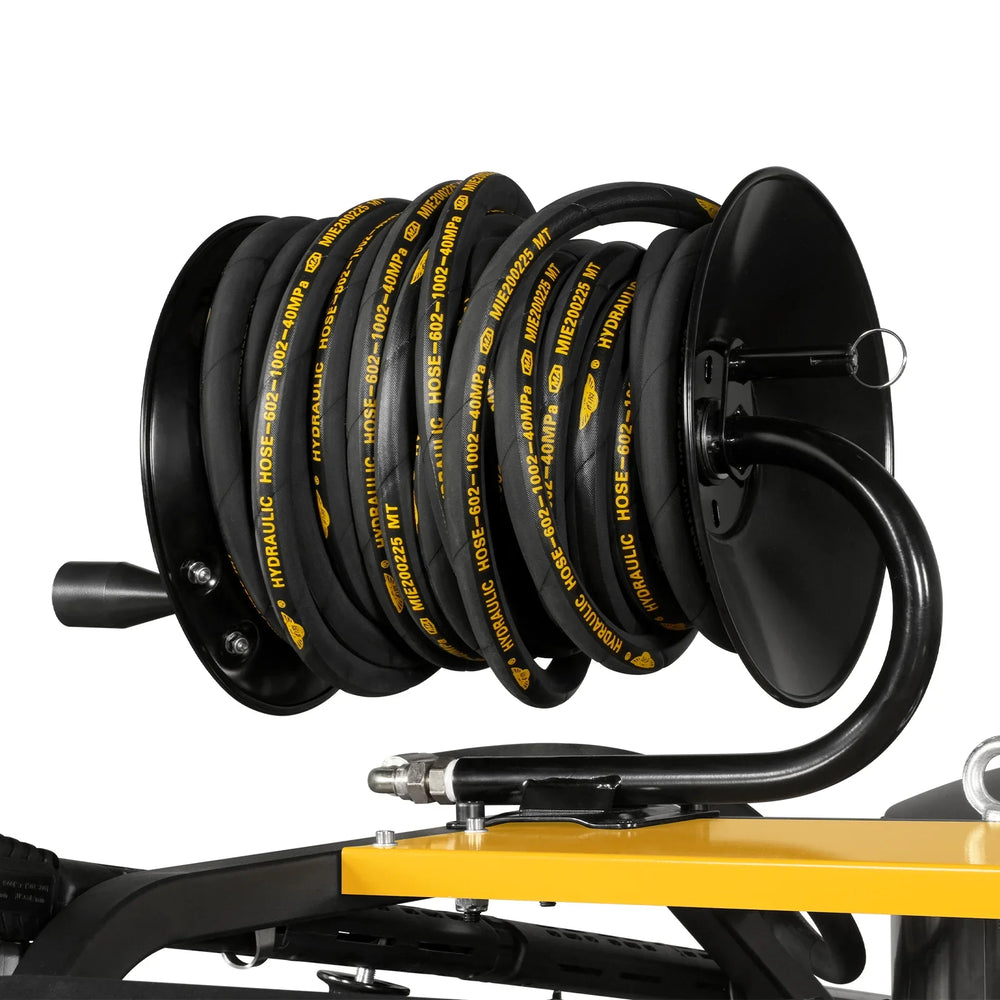

- Accessories Included: ☑3/8'' x 50' High Pressure Hose,☑0°, 15°, 25°, 40° and Chemical Nozzles,☑36’’ Spray Gun & Wand Assembly,☑Hose Reel,☑Siphon Tube.
Specifications
| Engine | ZONSEN GB420 |
| Max Temperature | 200℉ (93℃) |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
| Igniter | 12V |
| Displacement | 420 cc; 13.4 HP |
| Burner Fuel | 5 US gal (19L) Diesel |
| Start Type | Electric Start (battery included) |
| Drive | Direct |
| Engine Fuel | 1.6 US galClean, fresh, unleaded gasoline |
| Pump Type | Triplex Plunger Pump / Oil Bath Crankcase |
| Engine Oil | 0.3 US galSAE 10W-30 |
| Pump Oil | SAE 10W/30 or 15W/40 Non-detergent Oil |
| Machine Type | Portable with 13" Pneumatic Tires |
| Standard Accessories | 3/8" x 50' High Pressure Hose;0°, 15°, 25°, 40° and Chemical Nozzles;36" Spray Gun & Wand Assembly;Hose Reel;Siphon Tube |
| Pressure Range | 3500-4000 PSI |
| Package Method | Iron Frame |
| Flow Rate | 4.0 GPM |
| Packing Size | 43.7 x 25.6 x 49.8 in |
| BTU Per Hour | 350,700 BTU |
| Weight (N.W / G.W.) | 450 / 507 lbs |
Warranty
This item comes with a factory warranty.
