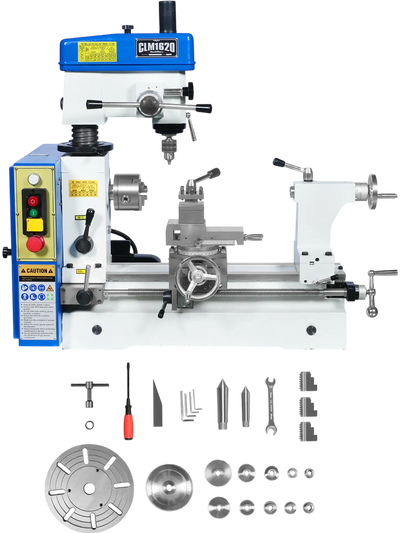

MechMaxx HQ400 Combination Lathe Milling Machine 1 HP 16x16" Multi-Function Metalworking Combo Lathe Drill Mill Head New
Product Overview
- Powerful Motor: The lathe motor is 1PH (750W), providing sufficient power for turning applications.
- Swing Over Bed: Offers a 16-8/15" (420mm) swing, allowing you to handle larger workpieces.
- Swing Over Cross Slide: Provides 11-1/2" (120mm) for efficient machining with increased clearance.
- Threading Capacity: Capable of cutting 8-120 TPI in inches and 0.2-3mm in metric, offering flexibility for various threading applications.
- Spindle Bore: With a 11/14" (20mm) spindle bore, this lathe can handle a variety of tool bits and workpieces.
- Carriage Travel: 15" (380mm) carriage travel ensures versatility when working on larger components.

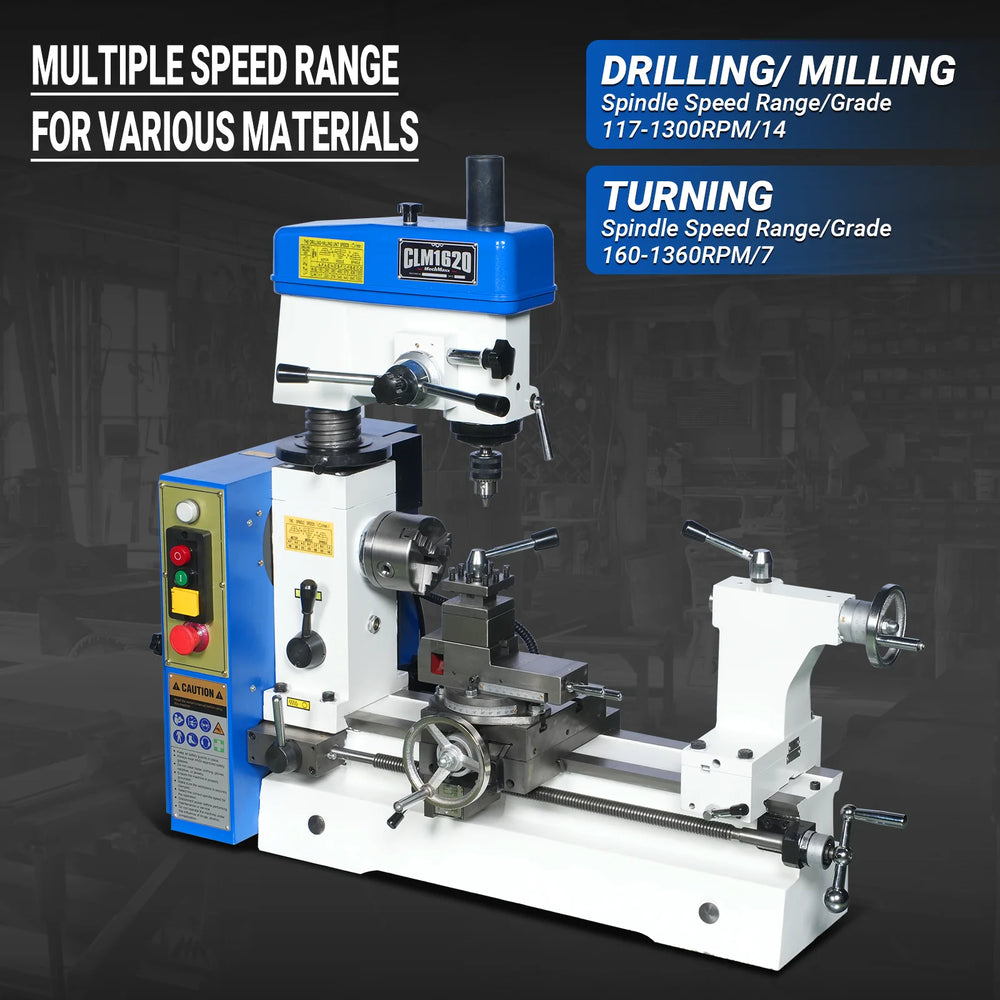

- High Precision: Equipped with a 7-speed spindle ranging from 160 to 1360 RPM, allowing precise speed adjustments for different turning tasks.
- Mill Head Powered by Lathe Motor: The mill head is powered directly by the lathe’s motor, providing integrated power for both milling and drilling.
- Wide Speed Range: Features a 14-step spindle speed range, including 117 to 1300 RPM, ensuring flexibility across different milling and drilling operations.
- Milling Capacity: The machine supports up to 25/32" (20mm) for end milling and 2-1/2" (63mm) for face milling, providing excellent material removal capacity.
- Drilling Capacity: The lathe is capable of drilling up to 19/32" (15mm), allowing for precise hole-making in various materials.
- Adjustable Head: With a 360° swivel angle and a 0° head tilt, the headstock can be adjusted for a wide range of milling and drilling tasks, increasing flexibility.
- Vertical Travel (Z-Axis): Provides 3-5/32" (80mm) vertical travel for better depth control during operations.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- 3-in-1 Versatility: Turning, Drilling & Milling: Save space without sacrificing capability. This multi-functional lathe integrates turning, drilling, and milling operations into a single compact machine—ideal for small workshops, DIY users, and repair jobs. Perfect for precision metalworking in tight spaces.

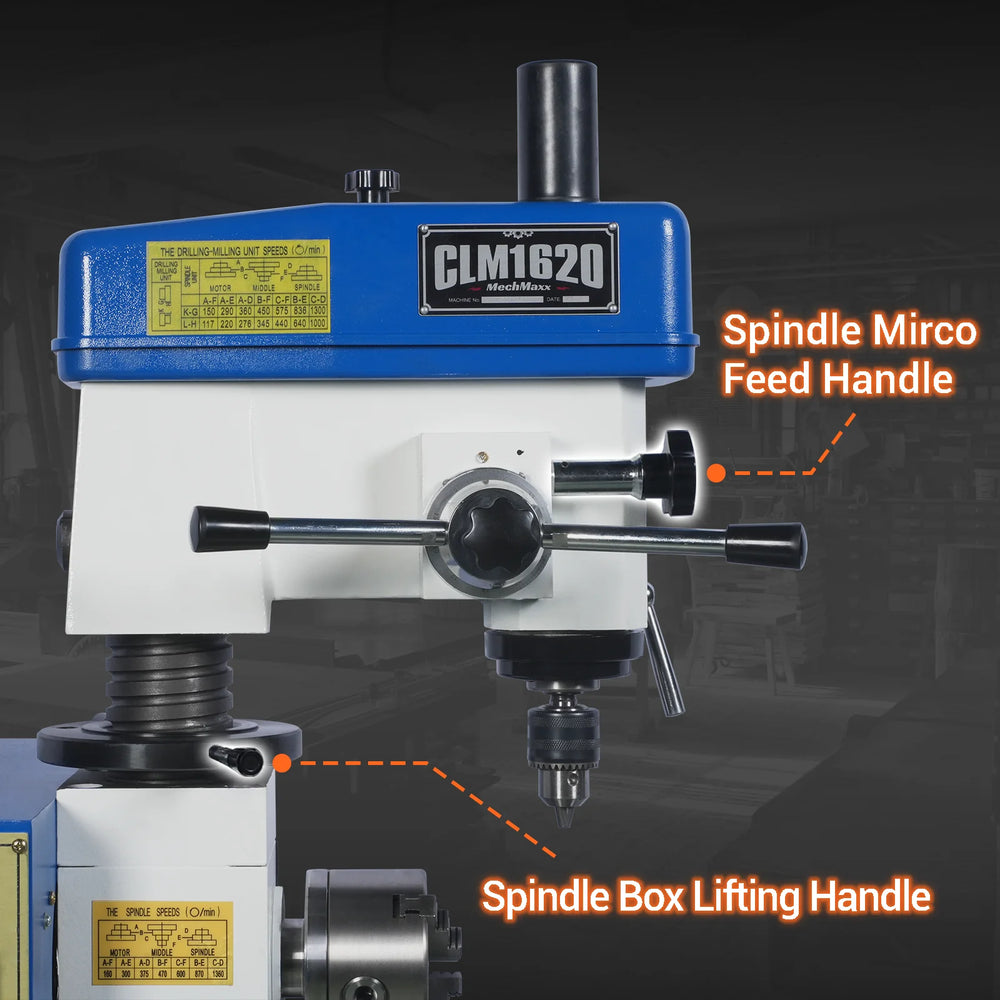

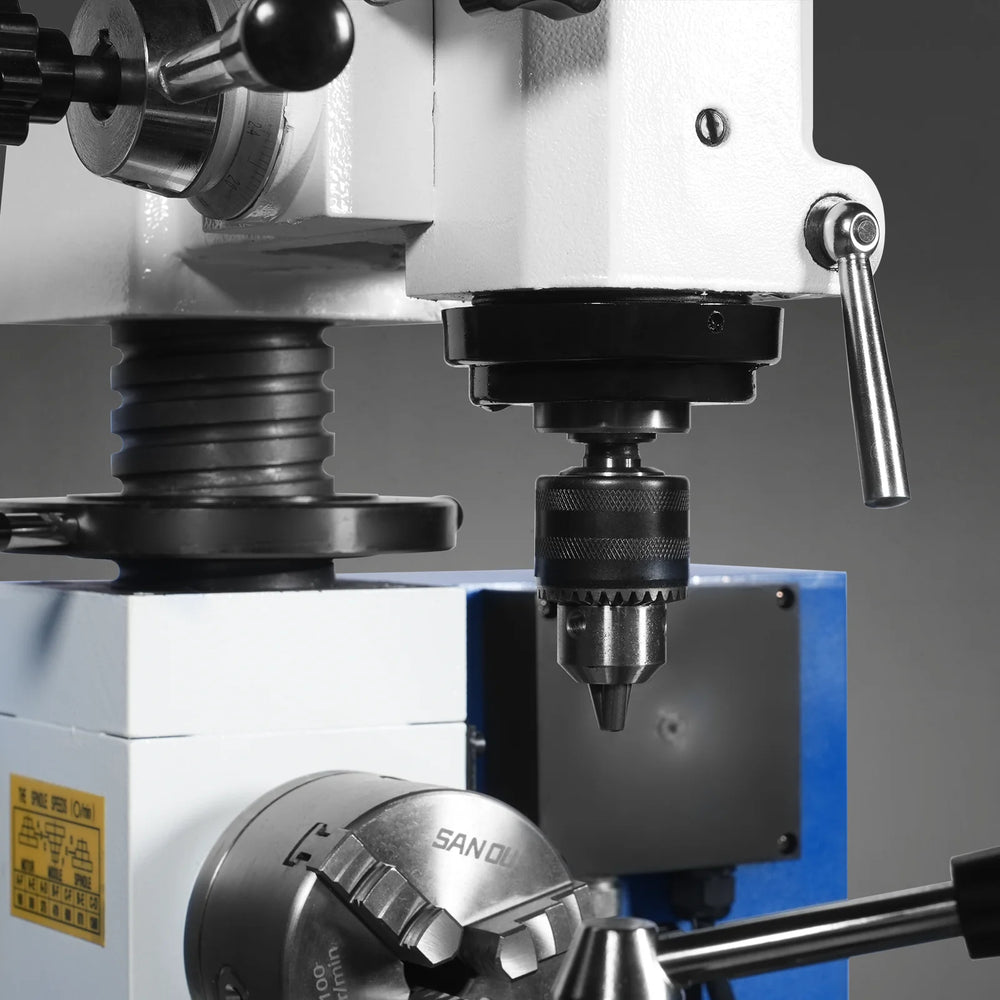

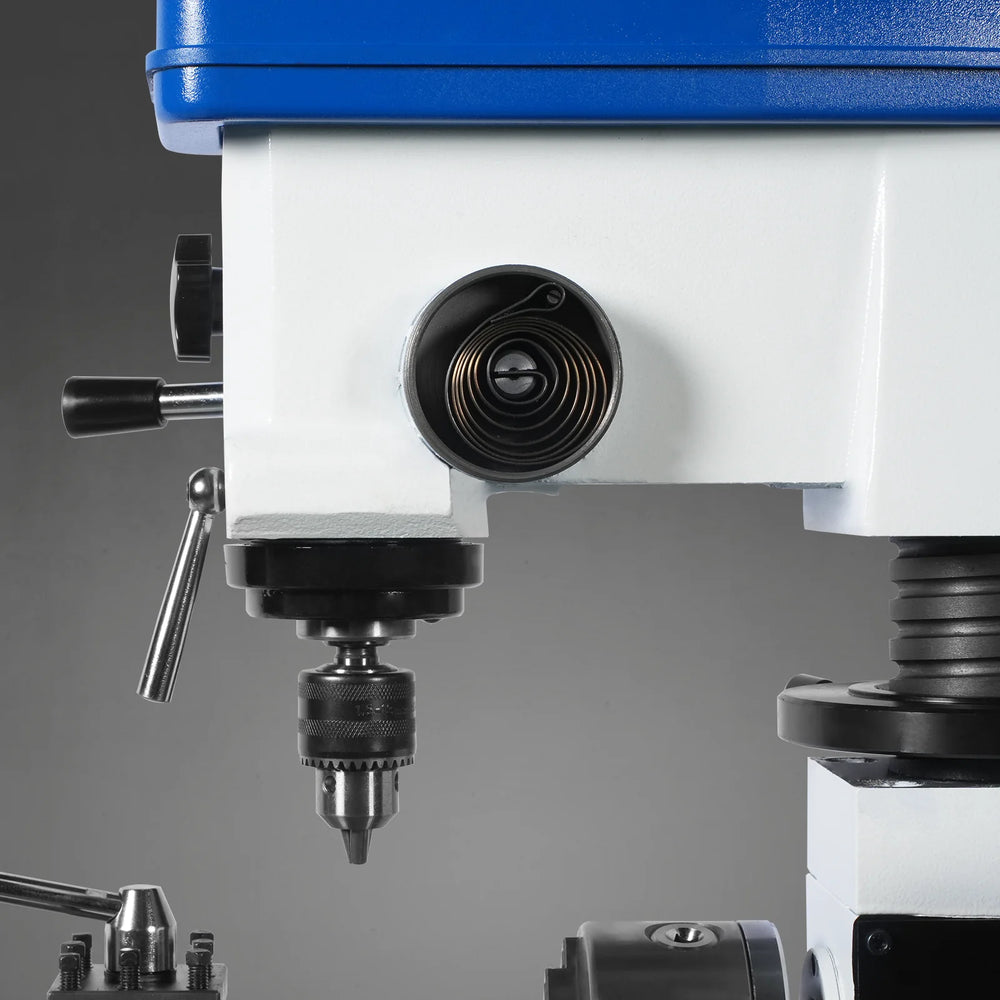

- Versatile Drilling & Milling Head: Perform accurate hole drilling, end milling, and face milling—all with one rigid, integrated head. Ideal for shaping slots, surfacing small plates, or adding bolt holes to your workpiece, this compact head adds serious capability to your home workshop.
- 5" 3-Jaw Chuck with 25/32" Spindle Bore: This machine comes equipped with a 5" precision 3-jaw chuck, offering internal and external clamping for workpieces ranging from 0.1" to 5". Paired with a 25/32" spindle bore, it allows through-passing of bar stock and long shafts—perfect for extended turning jobs and versatile garage machining.

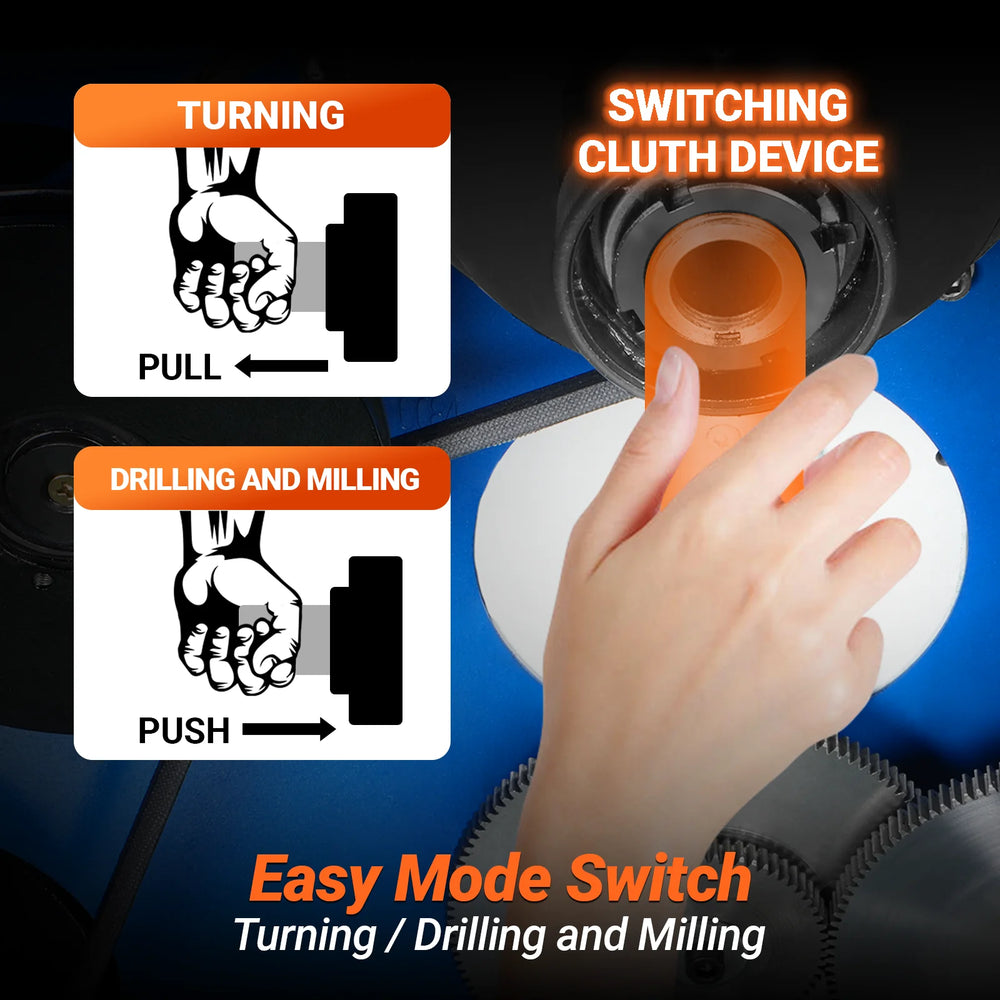

- Simple Shift Between Turning & Milling: Easily switch between lathe and drill/mill modes with a push or pull of the spindle selector—no tools required. This intuitive mechanism streamlines workflow, letting you go from precision turning to drilling or milling in seconds. Ideal for multitasking in compact workspaces.

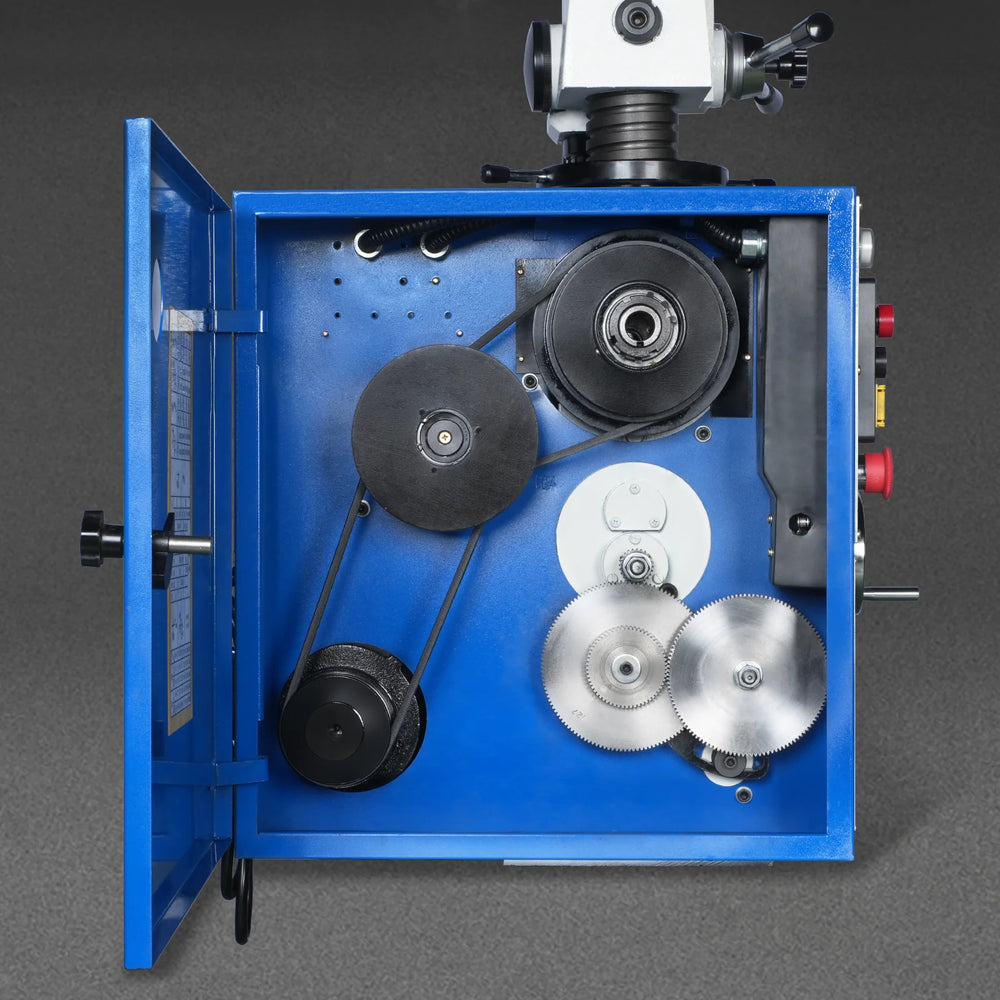

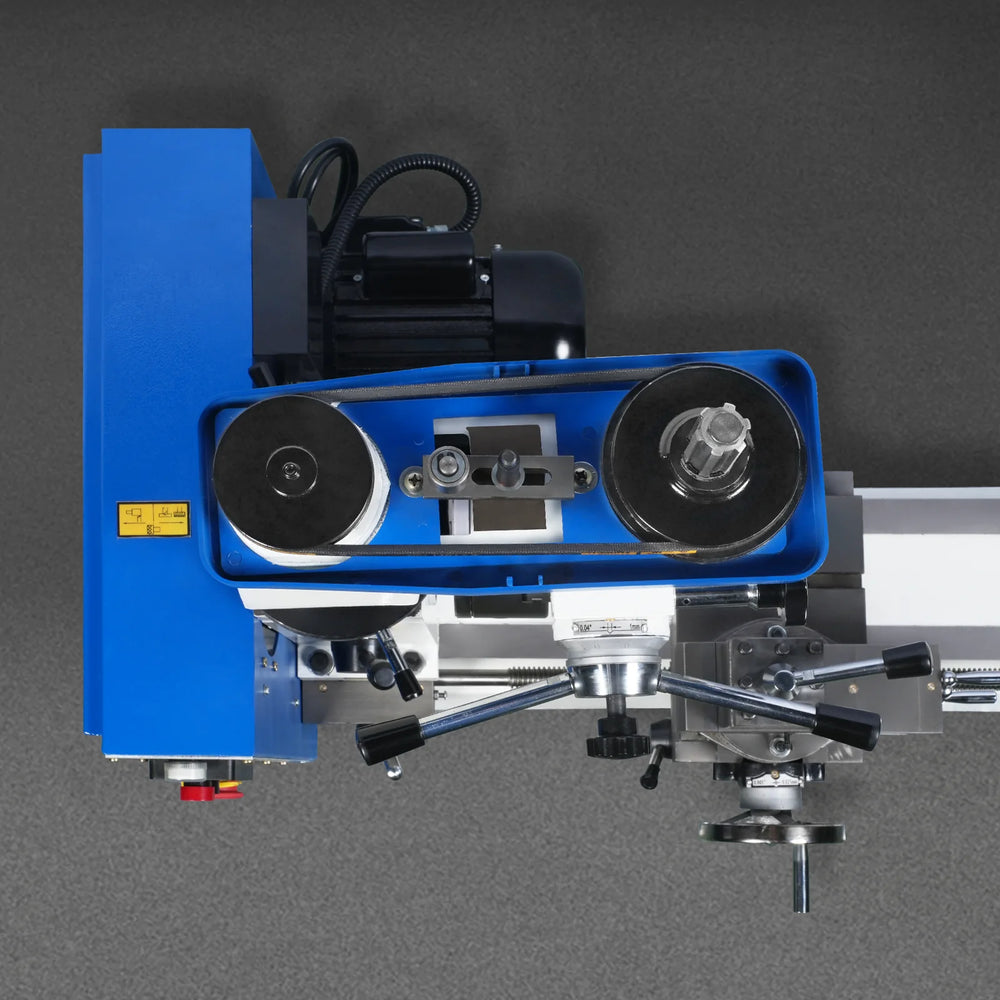

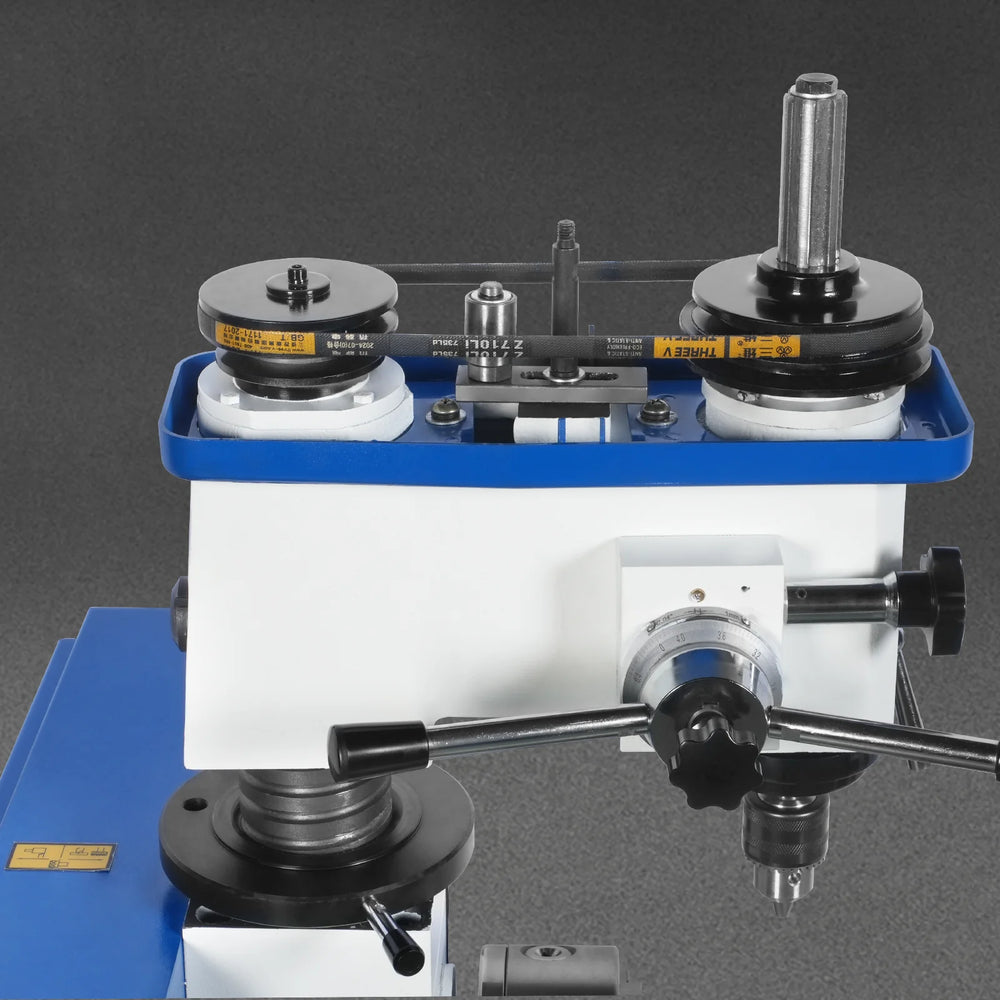

- Multi-Speed Belt Drive for Versatile Milling: This belt-driven system provides 14 spindle speed settings—from 117 to 1300 RPM—via easy pulley adjustments. The vibration-free, low-noise design ensures smooth transitions across drilling and milling tasks, giving you full control over cutting speed and torque for various materials.

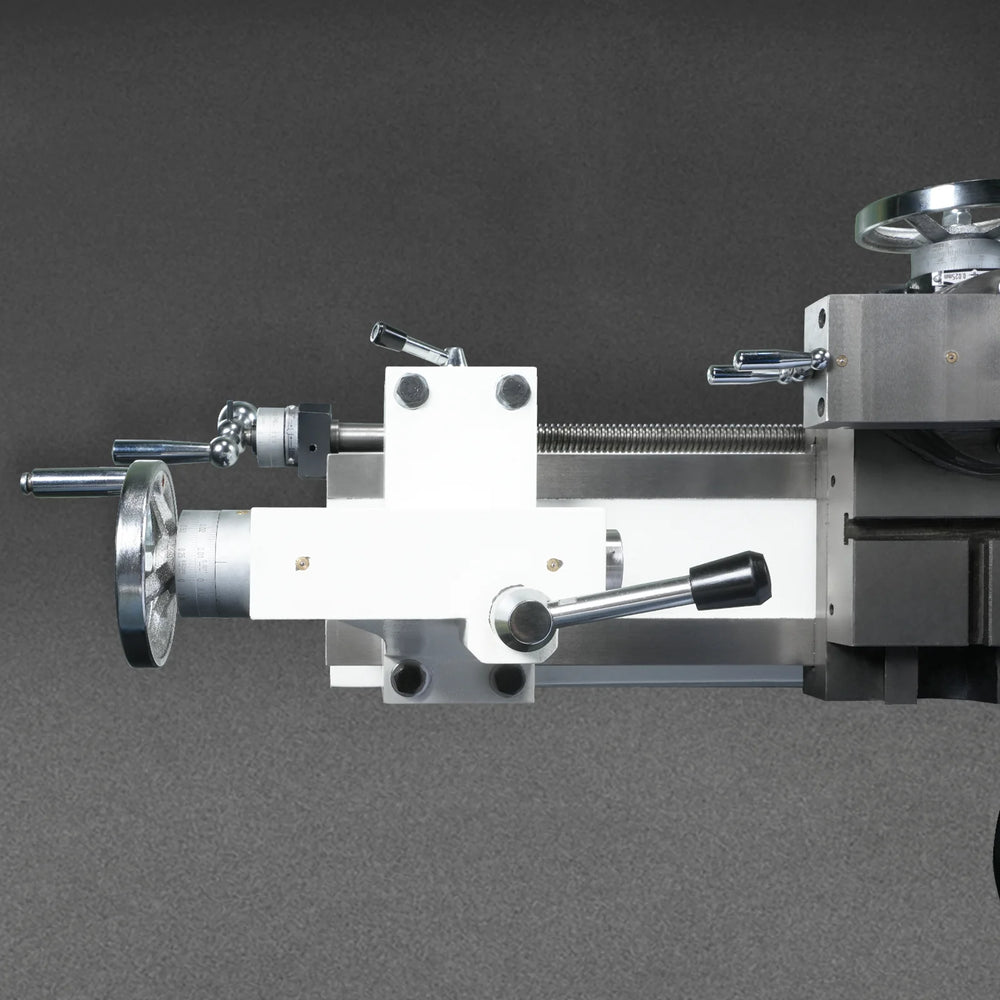

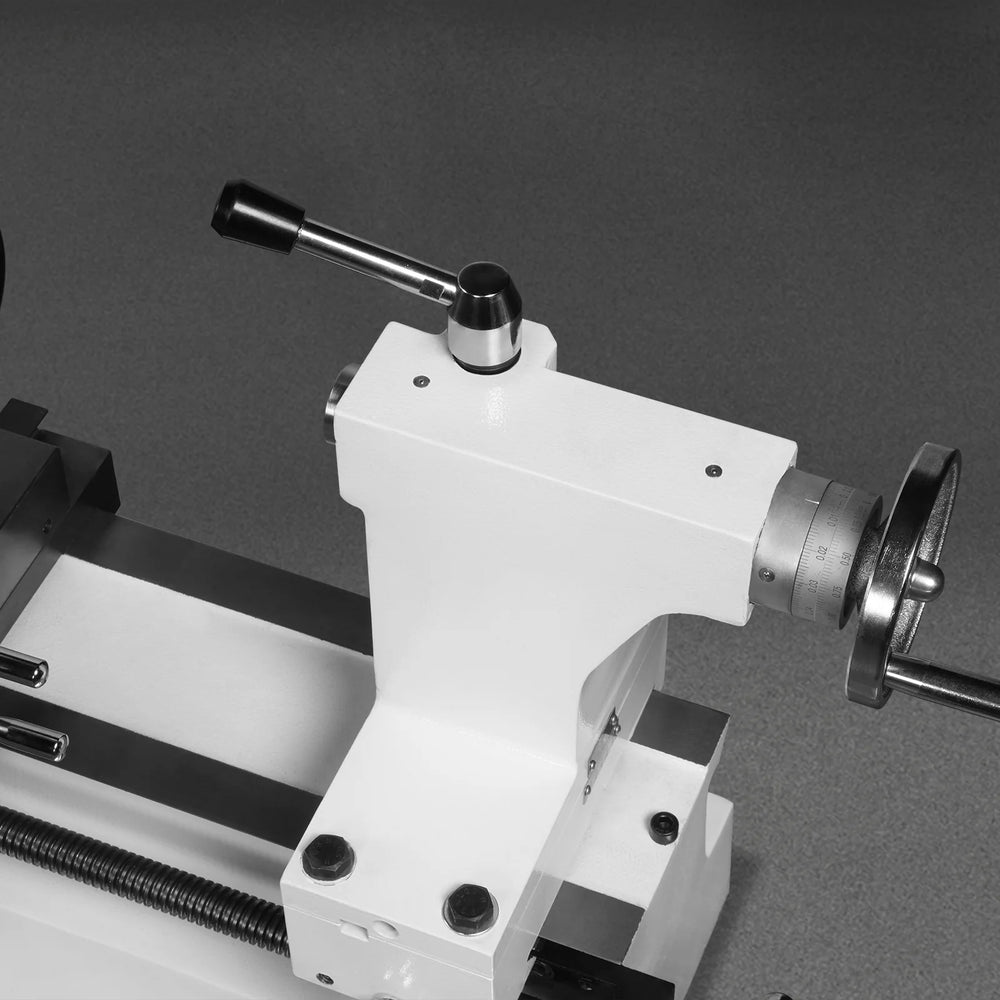

- Precision Tailstock with Fast-Action Lock: Designed for accuracy and convenience, the tailstock features 2-3/4" quill travel and an MT3 taper—perfect for drilling, centering, and support tasks. The quick-locking lever allows rapid repositioning without tools, boosting productivity and ensuring consistent alignment during turning operations.
- Auto Feed for Smooth Facing and Grooving: Engage automatic cross feed to power the tool slide laterally—ideal for facing, grooving, and contouring. Delivers consistent cut depth, improves surface finish, and frees your hands for better control during longer operations.

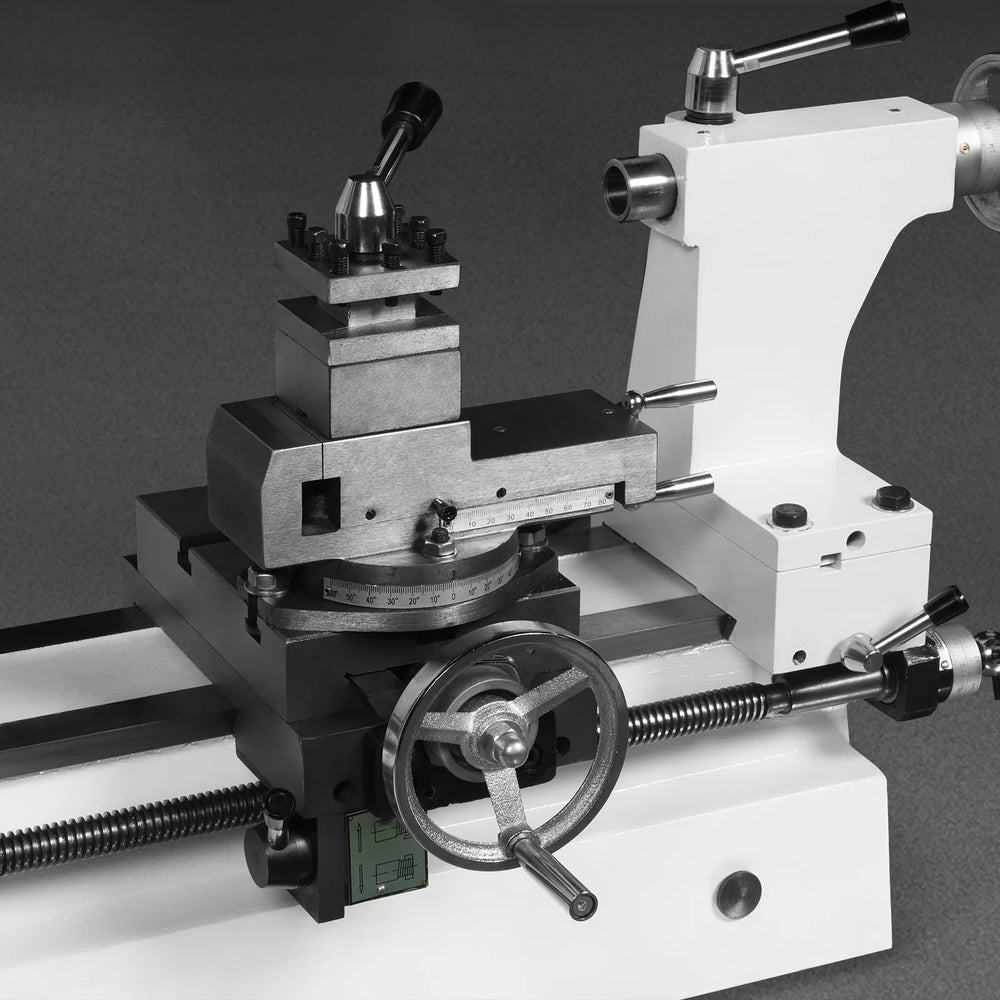

- Smooth Travel, Stable Cutting: Built for precision and control, the cross and compound slides ensure smooth tool movement and firm support during every cut. Whether you're facing, turning, or tapering, this rigid assembly provides the accuracy you need for professional-quality results in your garage or workshop.
- Clear Dials for Precise Manual Control: Every handwheel features engraved graduations for fine depth adjustment during turning, drilling, or milling. Whether you're threading or facing, precise dial feedback lets you make accurate cuts with confidence—perfect for hobbyists and professionals alike.
Specifications
| Motor Power (Lathe) | 1HP(750W), Single-Phase, 110V, 60HZ |
| Swing Over Bed | 16-8/15''(420mm) |
| Swing Over Cross Slide | 11-1/2"(120mm) |
| Distance Between Centers | 15-3/4''(400mm) |
| Bed Width | 5-5/16''(135mm) |
| Spindle Bore | 11/14''(20mm) |
| Spindle Mount | Flange mount |
| Spindle Type | Integrated Spindle |
| DIA of the chuck | 4''(100mm) |
| Spindle Taper | MT3 |
| Tailstock Taper | MT3 |
| Tailstock Quill Travel | 2-3/4''(70mm) |
| Carriage Travel | 15''(380mm) |
| Carriage Leadscrew Diameter | 25/32"(20mm) |
| Cross Slide Travel | 4-8/11''(120mm) |
| Compound Slide Travel | 3''(76.2mm) |
| Spindle Speed Range | 160-1360RPM |
| Number of Speed Ranges | 7 |
| Longitudinal Feed Rate | 0.002''-0.007'' in/r |
| Transverse Feed Rate | NO |
| Leadscrew Size & Pitch | 20mm 6TPI |
| Threading Capacity – Inch | 8-120TPI |
| Threading Capacity – Metric | 0.2-3mm |
| Thread Dial Indicator | NO |
| Maximum Tool Bit Size | 1/2''x1/2''(12x12mm) |
| Motor Power (Mill Head) | Powered by the lathe's motor |
| Mill Taper | MT3 |
| Spindle Speed Range | 117, 150, 220, 276, 290, 345, 360, 440, 450, 575, 640, 836, 1000, 1300 |
| Number of Speed Steps | 14 |
| Spindle Travel | 3-11/32"(85mm) |
| Drawbar Thread Size | 3/8''(9.52mm) |
| Drawbar Length | 10-3/4''(273mm) |
| Drawbar Thread Pitch | 16TPI |
| Drill Capacity | 19/32''(15mm) |
| End Milling Capacity | 25/32"(20mm) |
| Face Milling Capacity | 2-1/2"(63mm) |
| Vertical Travel (Z-Axis) | 3-5/32''(80mm) |
| Distance: Spindle to Table | 15-3/4''(400mm) |
| Distance: Spindle to Center Line | 9-3/4''(248mm) |
| Headstock Height | 3''(76.2mm) |
| Head Tilt Angle | 0° |
| Swivel angle of the headstock | 360° |
| Drive Type | Belt-driven AC Motor |
| Overall Dimensions | 41''x23''x43''(1050x580x1090mm) |
| N.W/G.W | 408/463lbs(180/210kg) |
Warranty
This item comes with a factory warranty.
