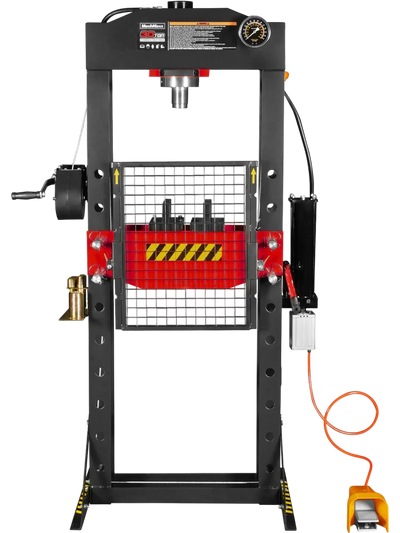

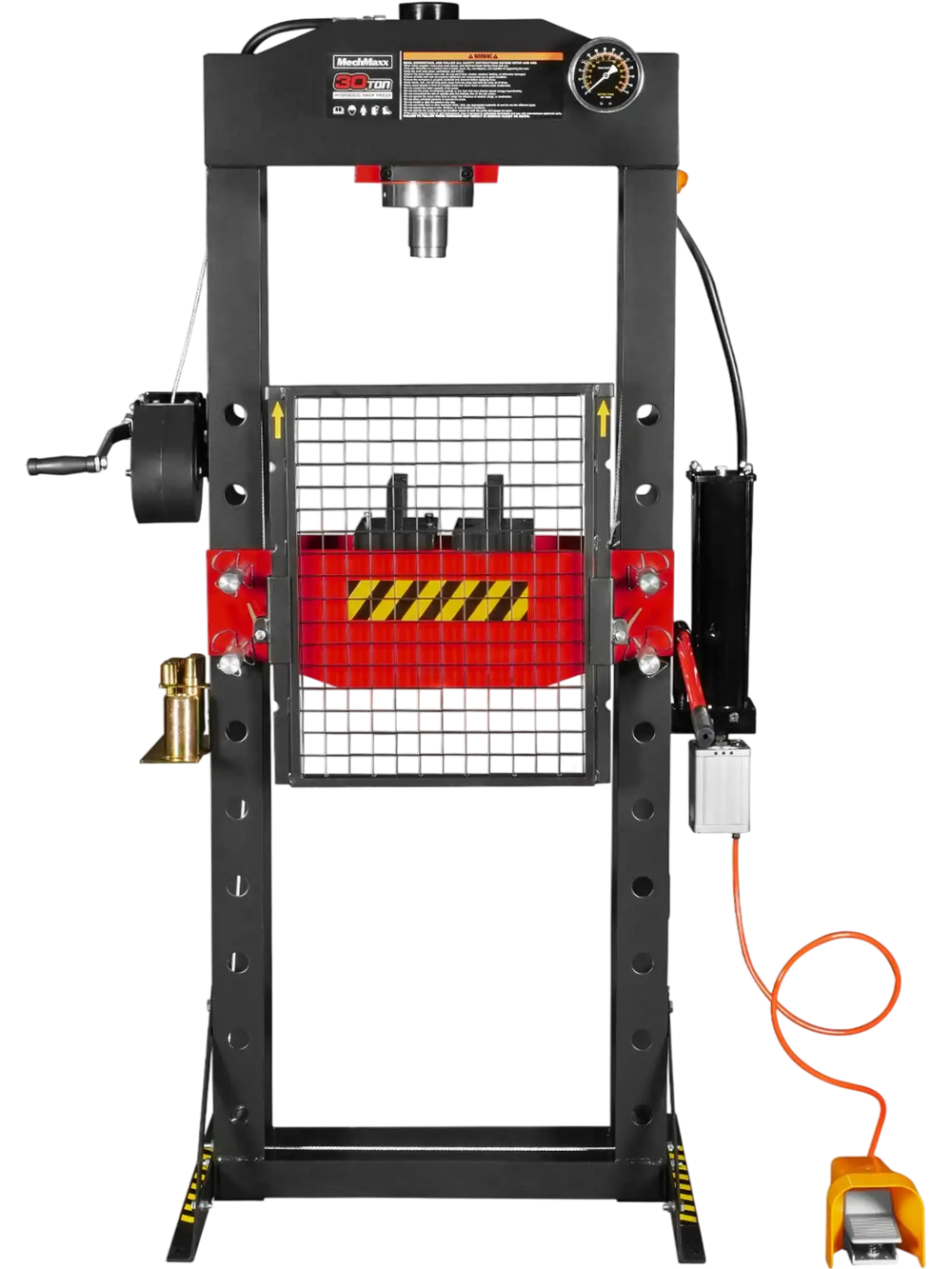

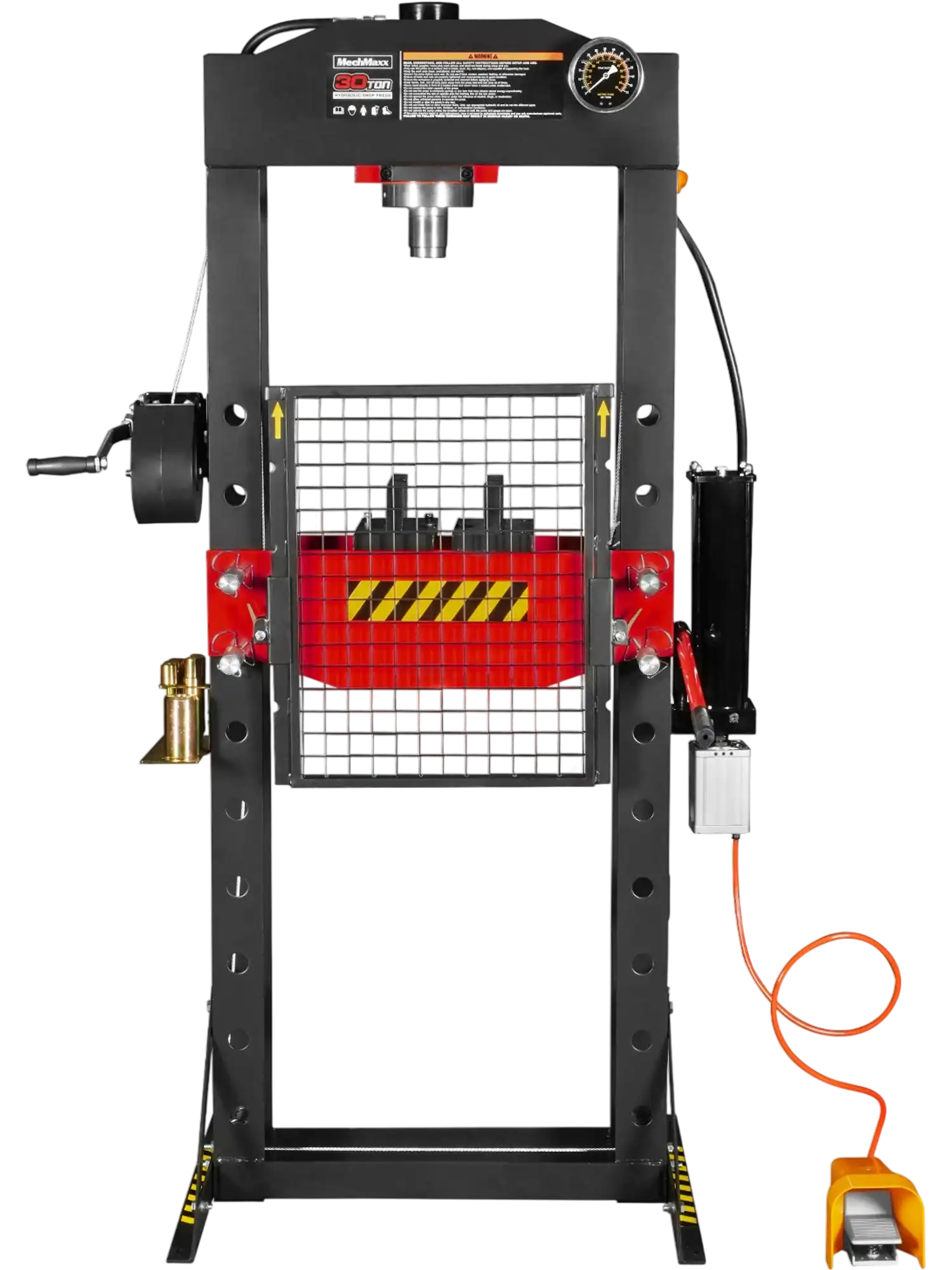

MechMaxx HSP30 Hydraulic Shop Press 30 Ton H-Frame Air/Hydraulic with Hand Winch Press Pin Kit Safety Guard Foot Pedal Control New
Product Overview
The MechMaxx 30-Ton Hydraulic Shop Press is built to deliver dependable pressing force and precise control for a wide range of pressing applications. Constructed with a fully welded heavy-duty H-frame, it provides the stability and strength required for demanding pressing, forming, straightening, assembly, and component service tasks in automotive repair, farm equipment maintenance, and general workshop environments.
Featuring an air-over-hydraulic system with manual backup operation, the press allows operators to select either pneumatic-assisted or manual operation based on application requirements. Pneumatic assistance helps reduce operator effort and improve workflow efficiency, while manual operation provides smooth ram movement and enhanced control for precision work. The adjustable press bed, assisted by a hand winch, accommodates various workpiece sizes and simplifies setup.

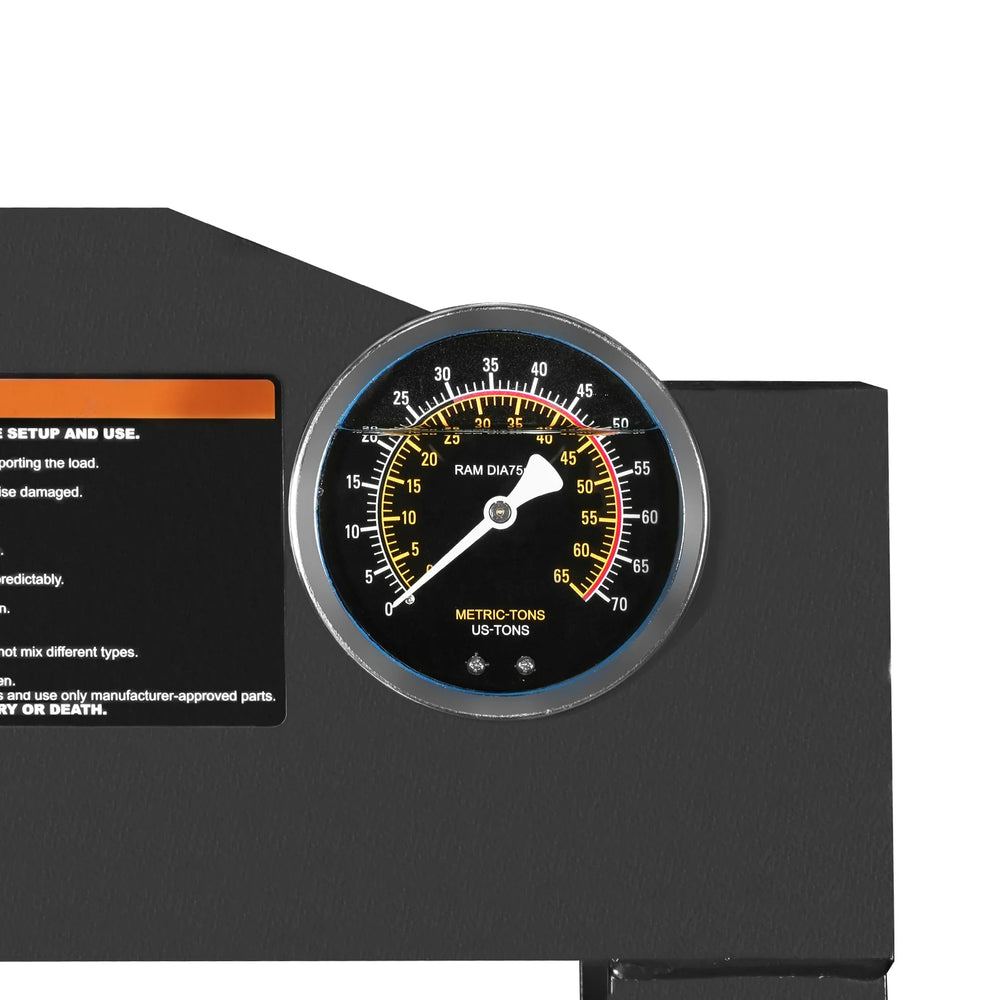

Designed with safety and usability in mind, the press includes a protective steel grid guard to help reduce the risk of debris ejection during pressing operations. An oil-filled pressure gauge provides accurate force monitoring.
-

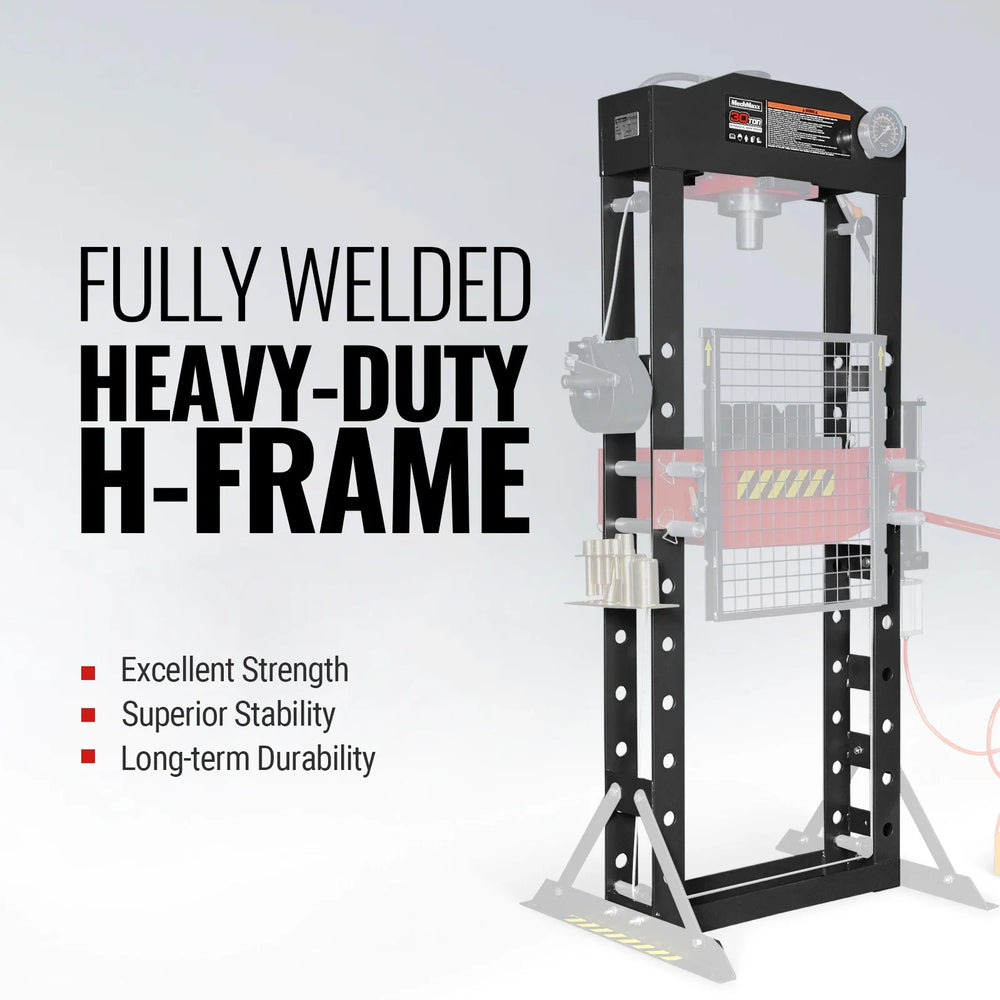

Fully Welded H-Frame: Heavy-duty steel construction delivers maximum strength, rigidity, and long-term durability under high pressure.
-
Foot Pedal Air Control: Hands-free pneumatic operation allows safe, effortless control of the press.
-

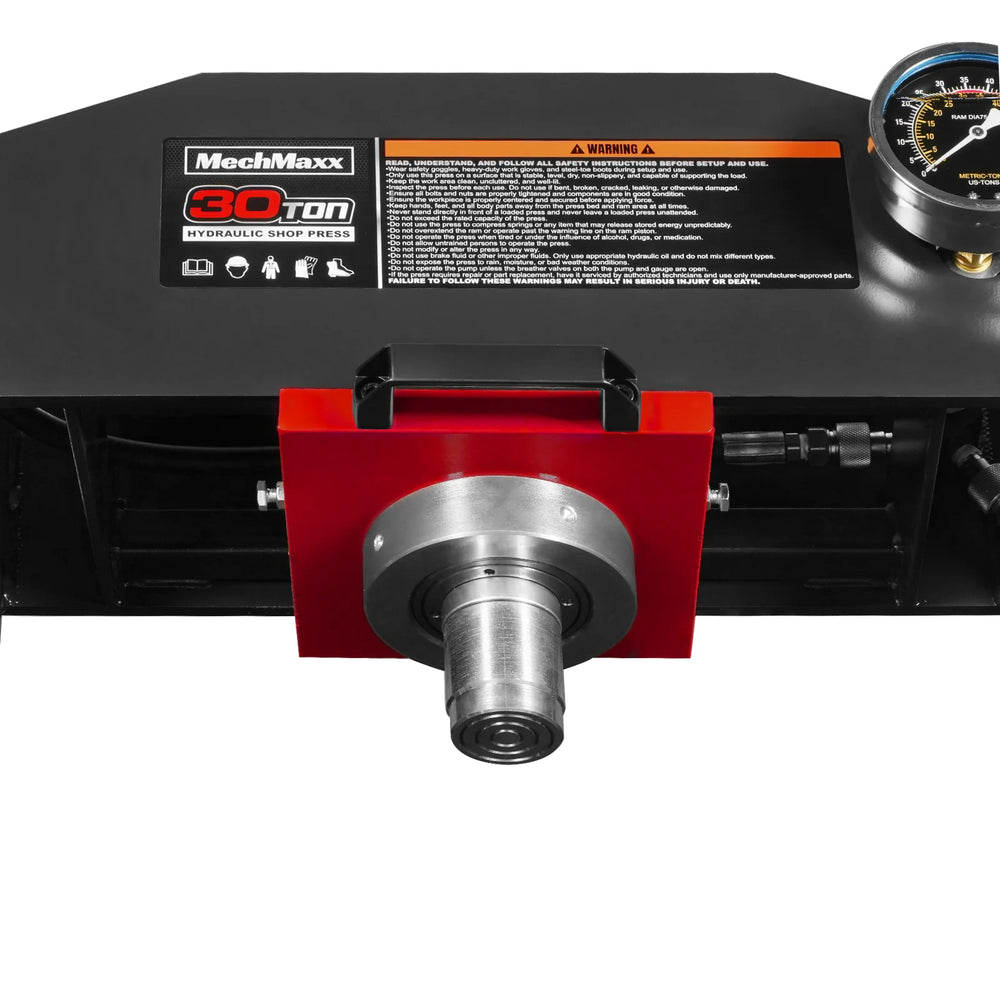

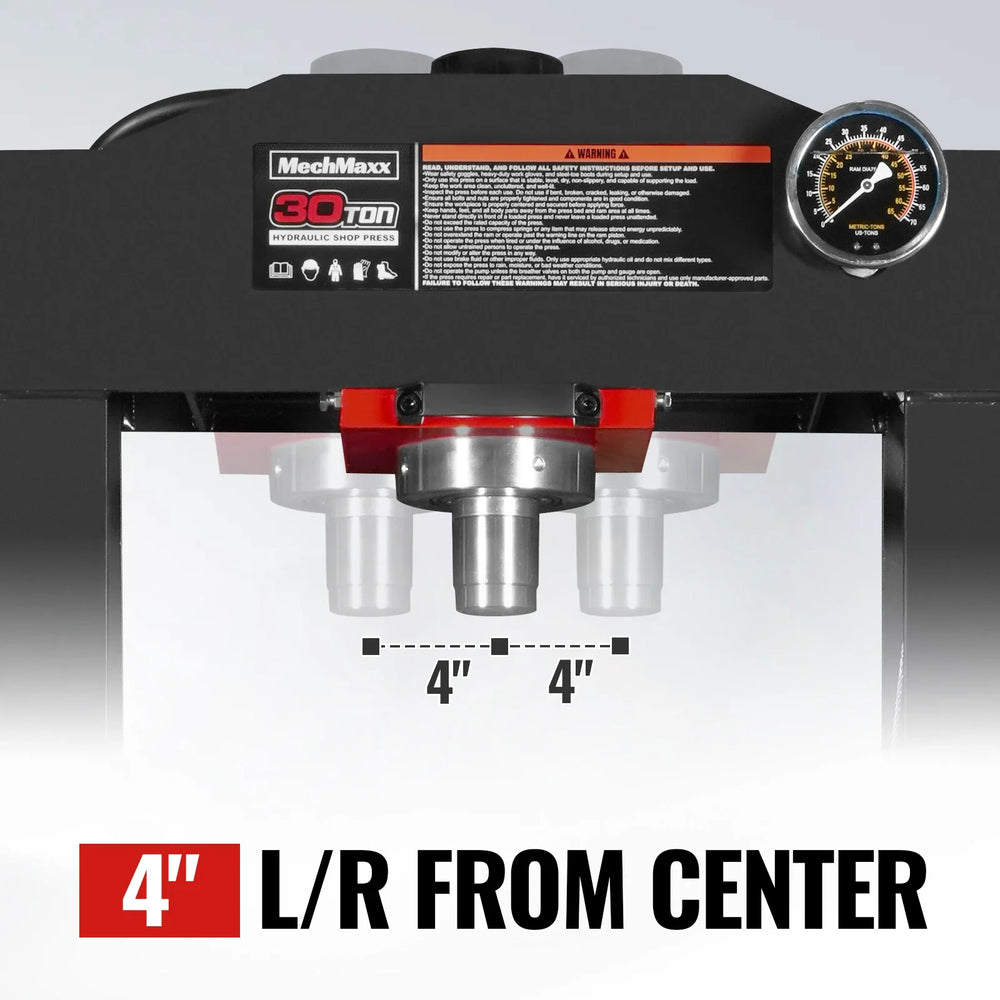

Movable Ram Head : Cylinder shifts 4" left or right from center, allowing precise off-center pressing and greater working flexibility.
-

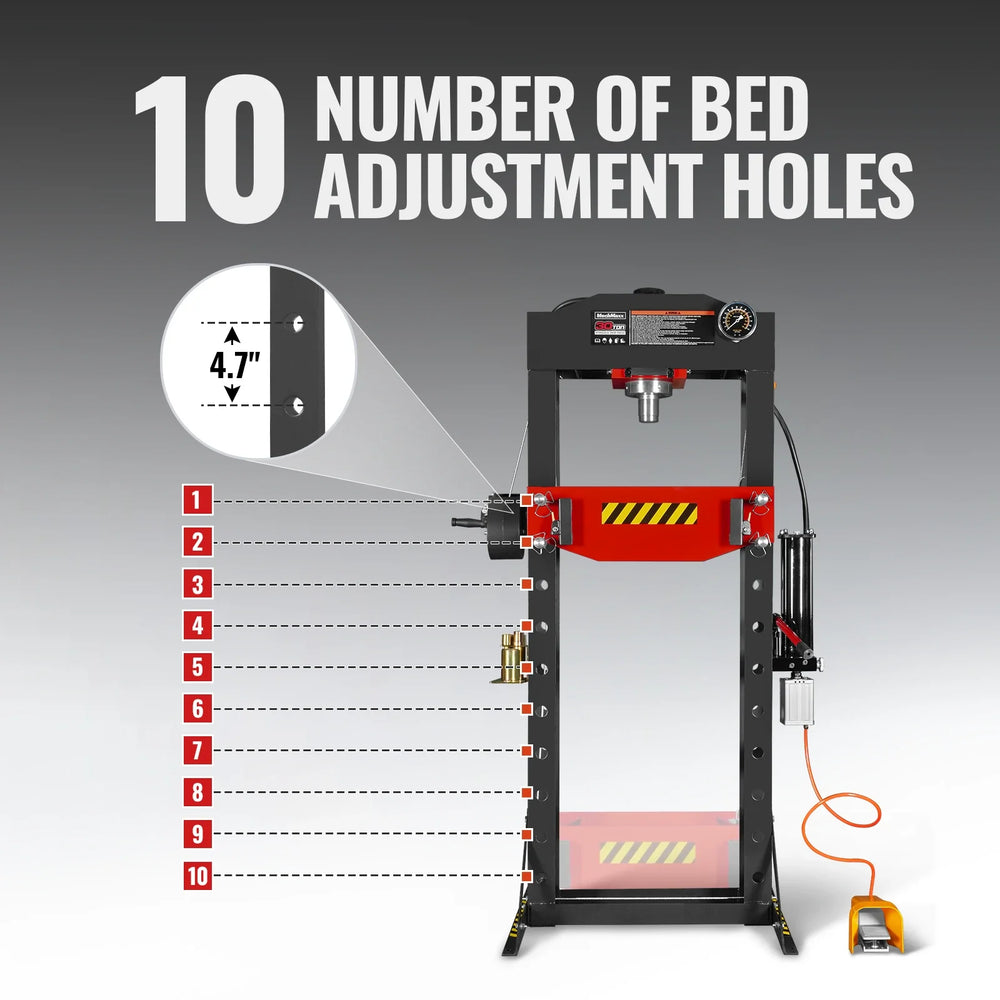

10 Position Adjustable Bed: Features 10 bed height settings with 4.7" hole spacing for precise work height adjustment and maximum versatility.
-

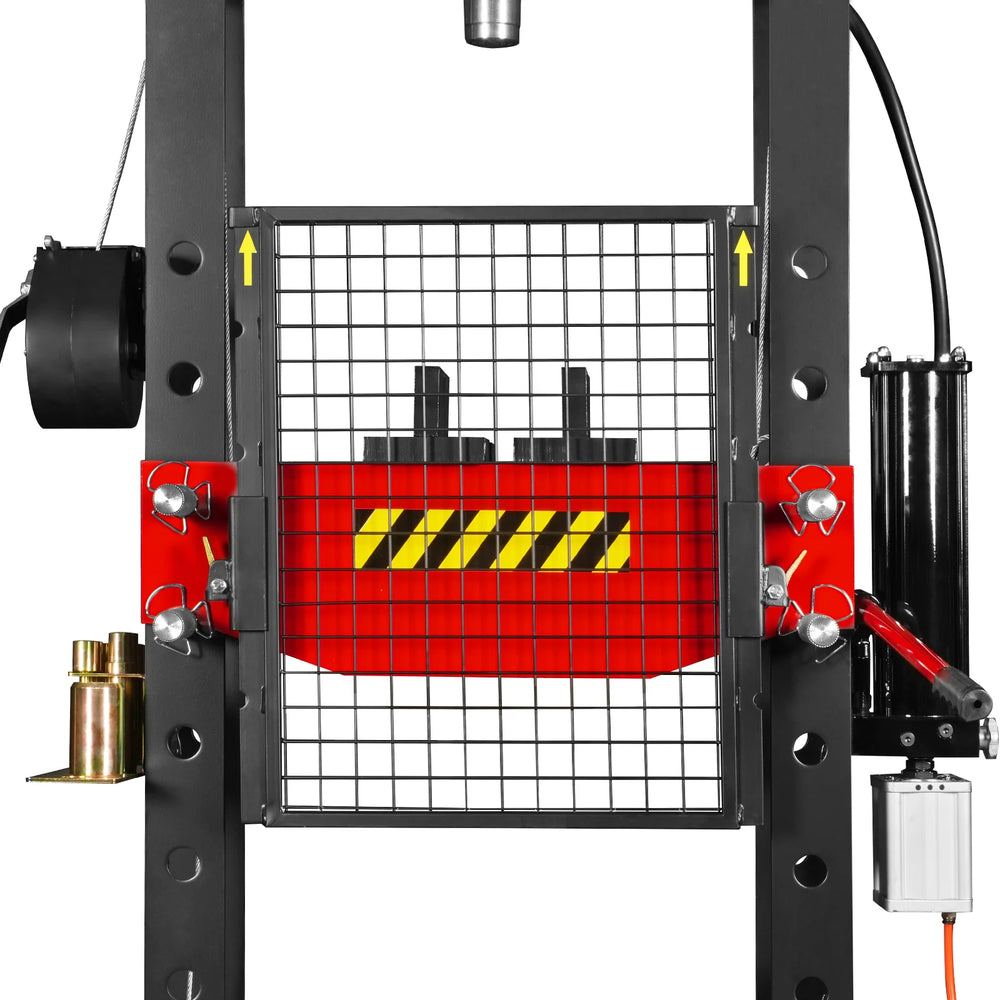

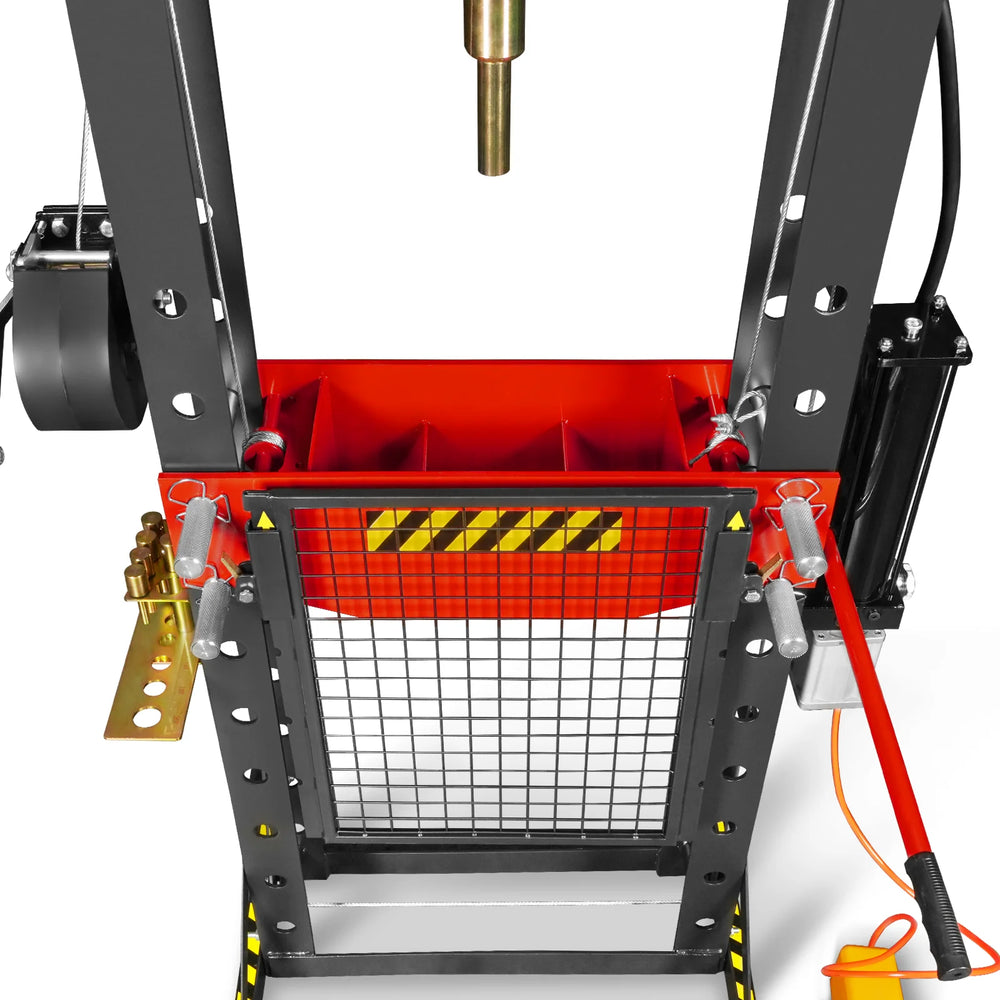

Protective Grid Guard: Steel safety screen helps shield the operator from debris and flying parts during pressing operations.
-

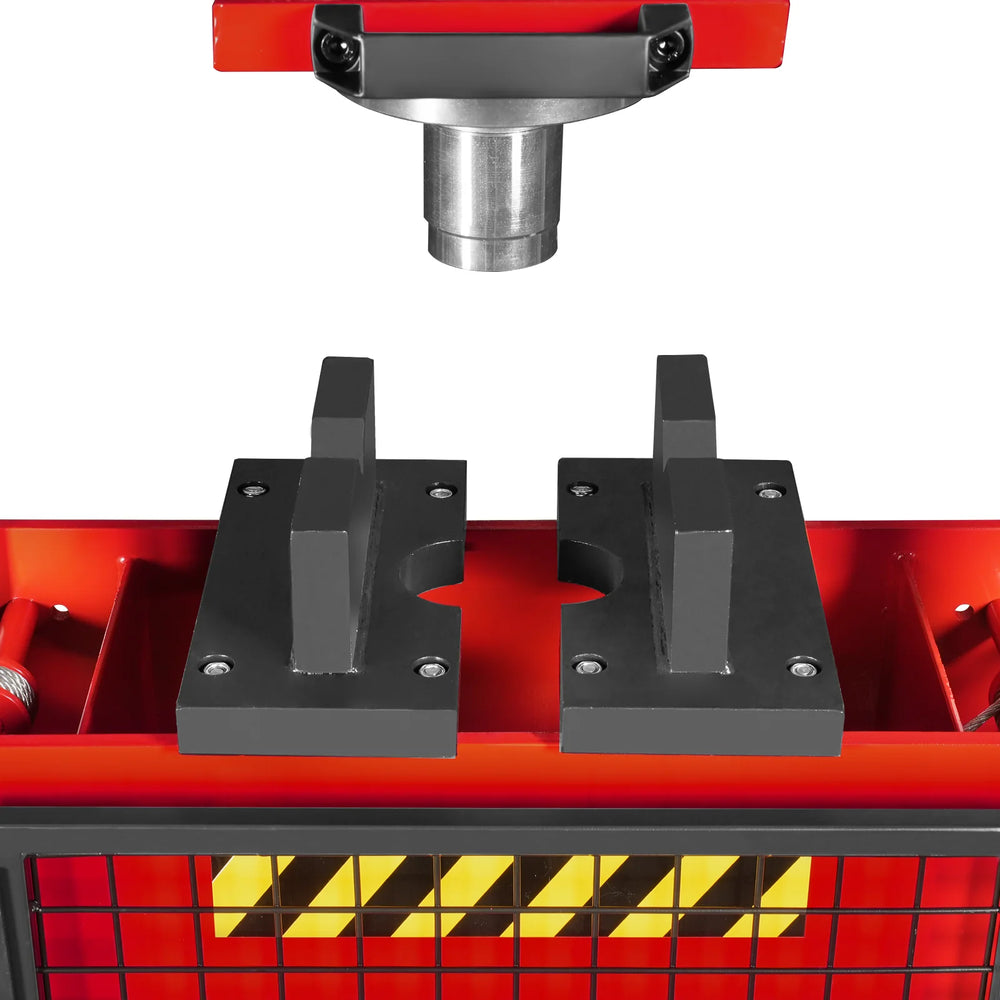

8 pc Press Pin Kit & 2 pc V-Blocks Included: Comes standard with 8 pc press pins and 2 pc V-blocks for versatile setups and precise support on a wide range of pressing jobs.
Note! - DO NOT overextend the ram beyond the marked red travel limit. Overextension causes cylinder damage and voids warranty.
- NEVER exceed the rated tonnage capacity.
- Use steel blocks in pairs only. Never operate with a single block.
- Not intended for continuous high-frequency operation. Allow cooling periods during extended use to prevent overload and cylinder damage.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

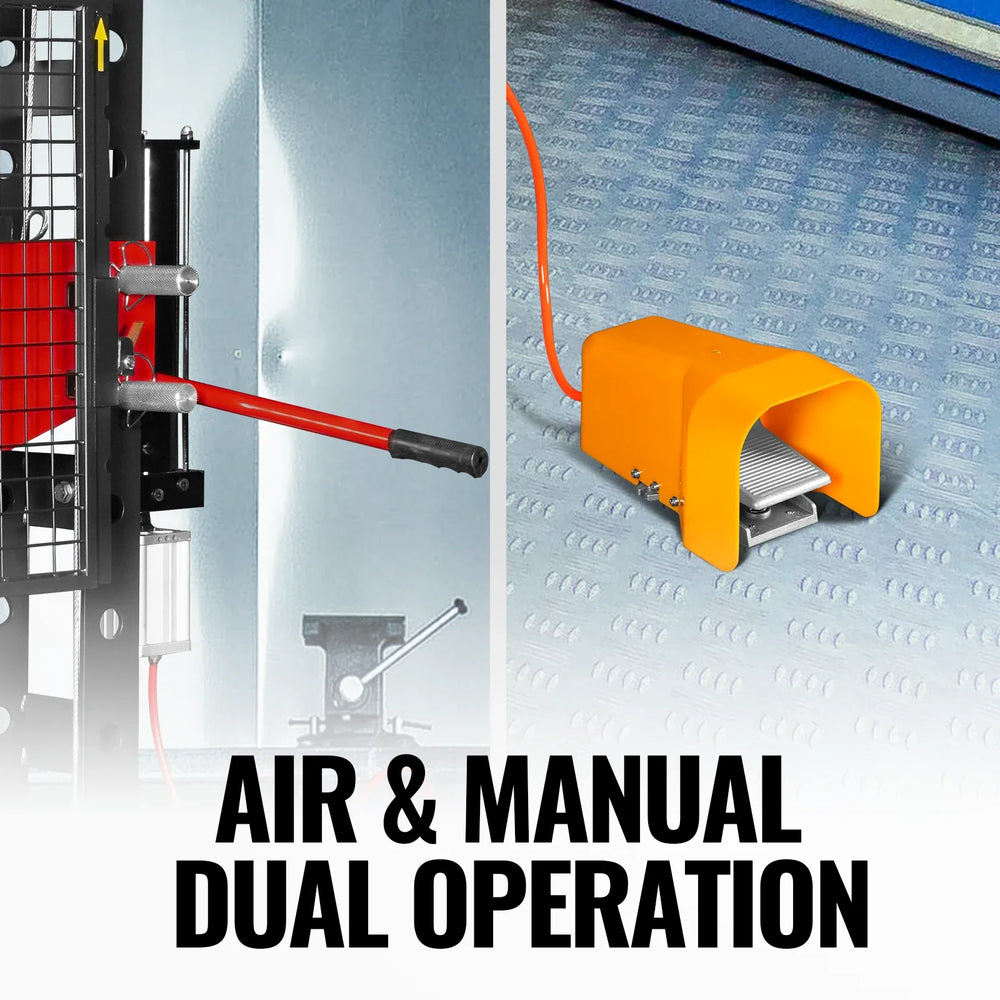

- Air & Manual Dual Operation: Supports both pneumatic and manual operation, allowing fast cycling with air assist and precise control when needed.
- Left-Right Sliding Ram: Ram can move 4 inches left or right from center, making it easier to handle off-center or uneven workpieces.
- Adjustable Multi-Position Press Bed: 10 bed adjustment positions with 4.7-inch spacing accommodate a wide range of workpiece sizes and setups.
- Fully Welded Heavy-Duty H-Frame: Rigid, fully welded steel H-frame construction delivers excellent strength, stability, and long-term durability.

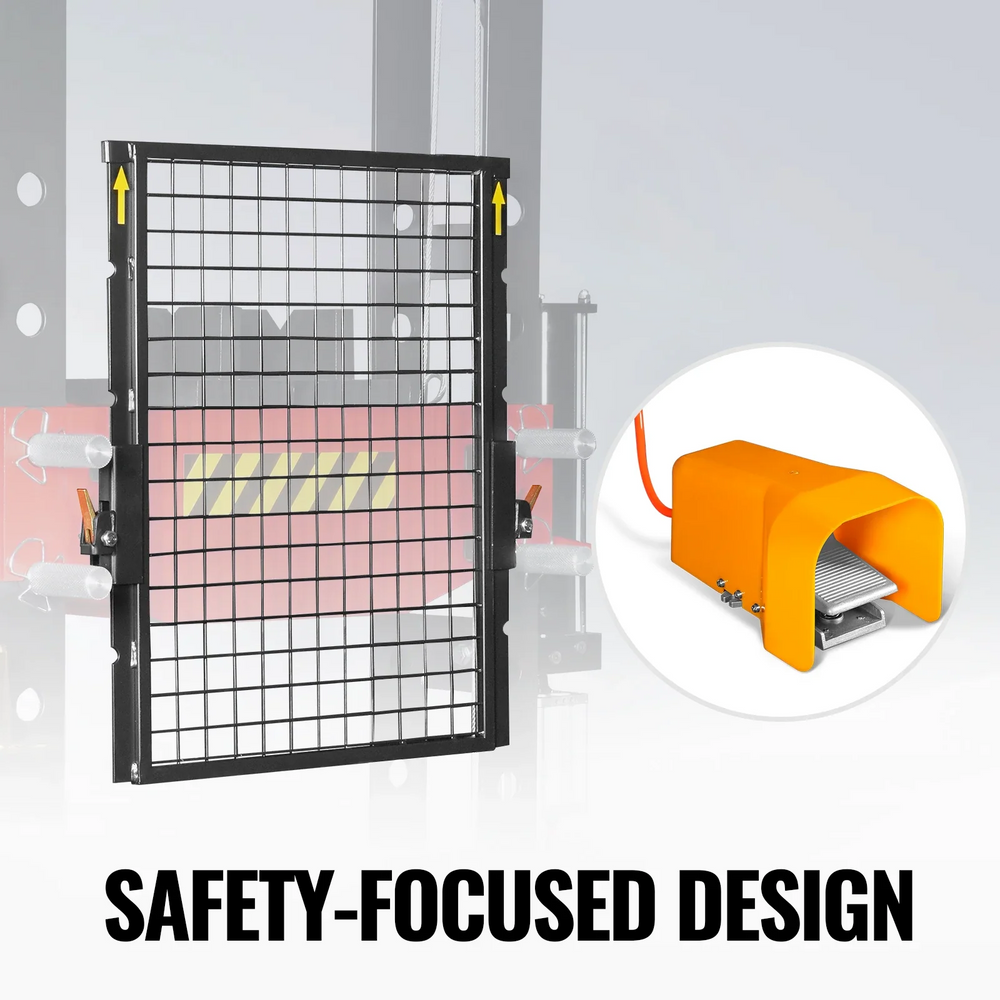

- Safety-Focused Design: Protective grid guard helps contain debris during high-pressure operations, reducing risk and improving operator safety.

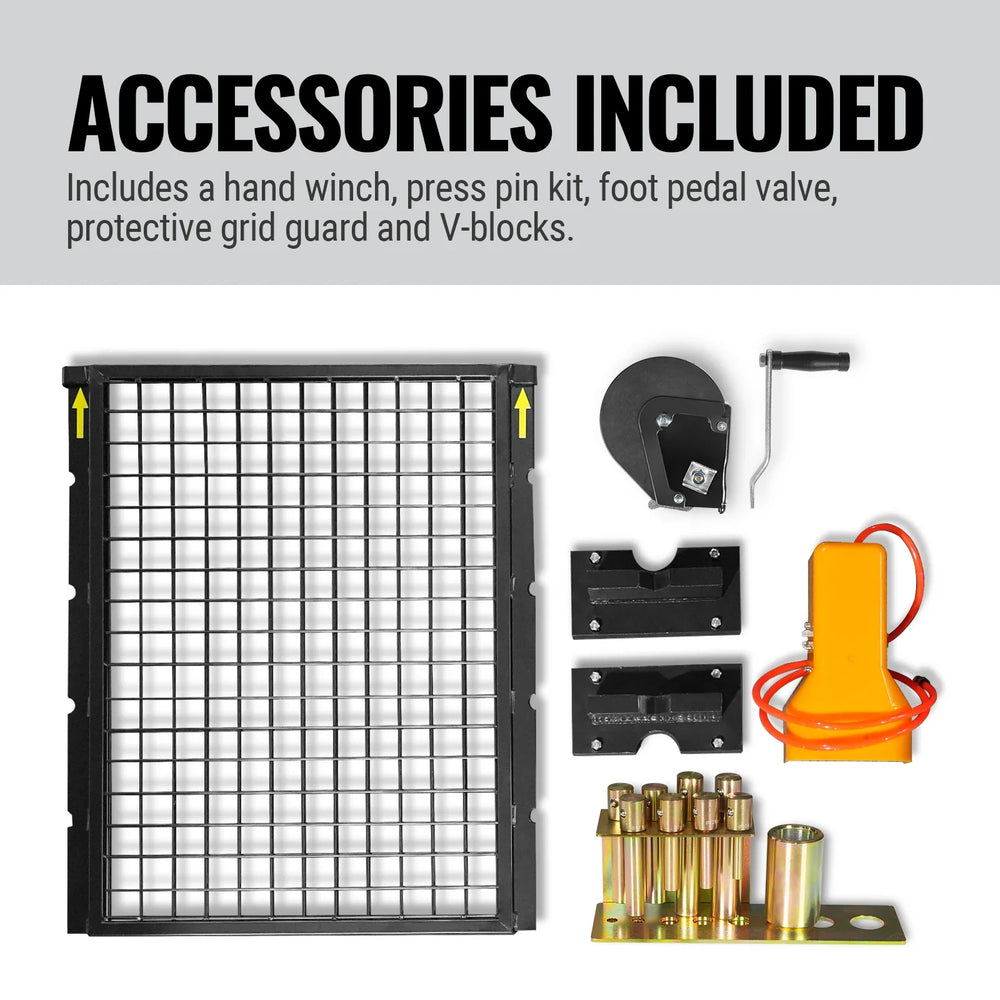

- Accessories Included: Includes a hand winch, press pin kit, foot pedal valve, protective grid guard and V-blocks, providing enhanced safety and reliable support for a wide range of pressing applications.
Specifications
| Rated Capacity | 30 Tons |
| Number of Bed Adjustment Holes | 10 |
| Operation Type | Air & Manual Dual Operation |
| Bed Adjustment Hole Spacing | 4.7 in |
| Air Pressure | 110-125 PSI |
| Frame Construction | Fully Welded Heavy-Duty H-Frame |
| Ram Stroke | 5.9 in |

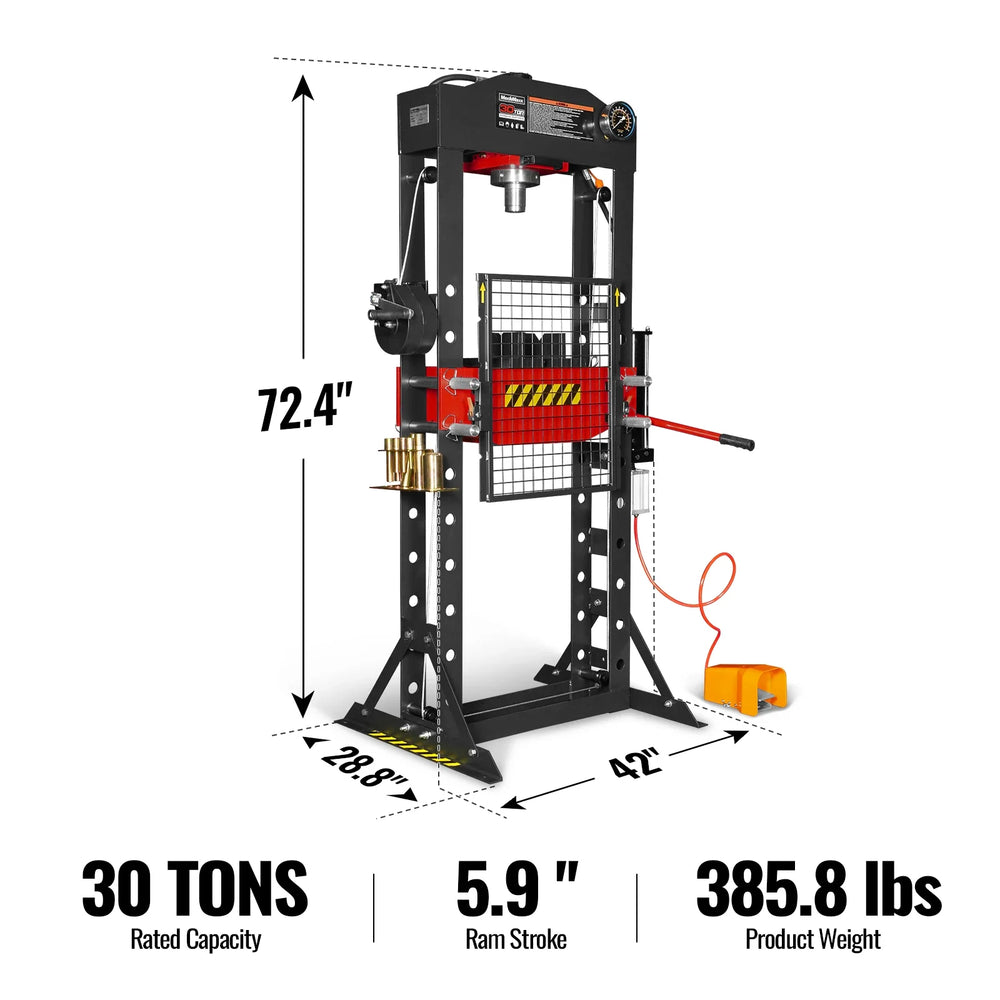

| Assembled Size (H x D x W) | 72.4 x 28.8 x 42 in |

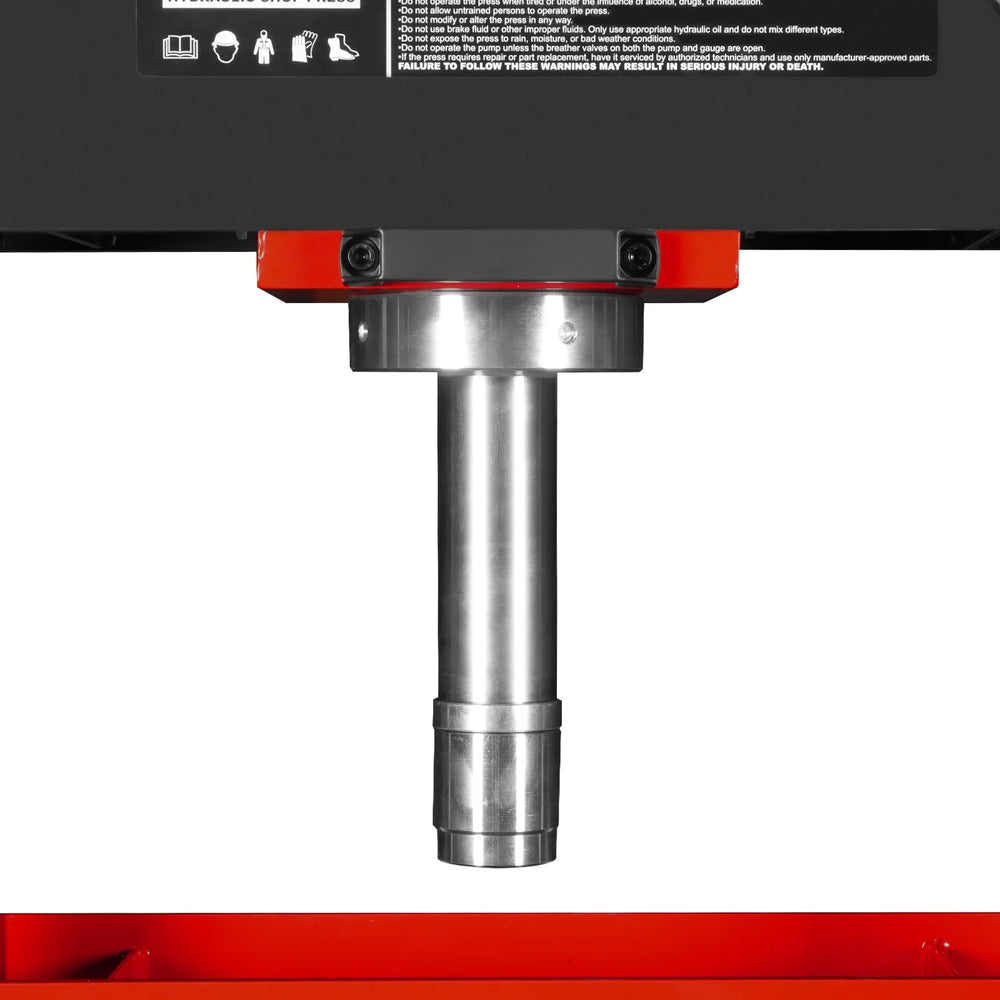

| Ram Diameter | 3 in |
| Internal Frame Width | 21.3 in |
| Cylinder Bore | 2.4 in |
| Protective Grid Guard Size | 24 x 20 in |
| Ram Range of Movement | 4 in Left / Right from Center |
| Recommended Hydraulic Oil | AW32 Hydraulic Oil |
| Bed Depth | 8 in |
| Recommended Oil Capacity | 0.4 Gallons |
| Bed Height | 8.3 in |
| Gauge Type | 4 in Oil-Filled Pressure Gauge |
| Minimum Ram to Bed | 6.5 in |
| Included Accessories | Press Pin Kit, Protective Grid Guard, Hand Winch, Foot Pedal Valve, V-Blocks |
| Maximum Ram to Bed | 44.3 in |
| Packing Size (LxWxH) | 74.4 x 29.5 x 13.0 in |
| Ram Retraction | Spring |
| Weight (N.W/G.W.) | 385.8 lbs / 432.1 lbs |
Warranty
This item comes with a factory warranty.
