MechMaxx IVB480 Wet Dry Vacuum Industrial HEPA Filter Continuous Duty 8.6 HP 364 CFM 26.4 Gallon 480V 3Phase New
Product Overview

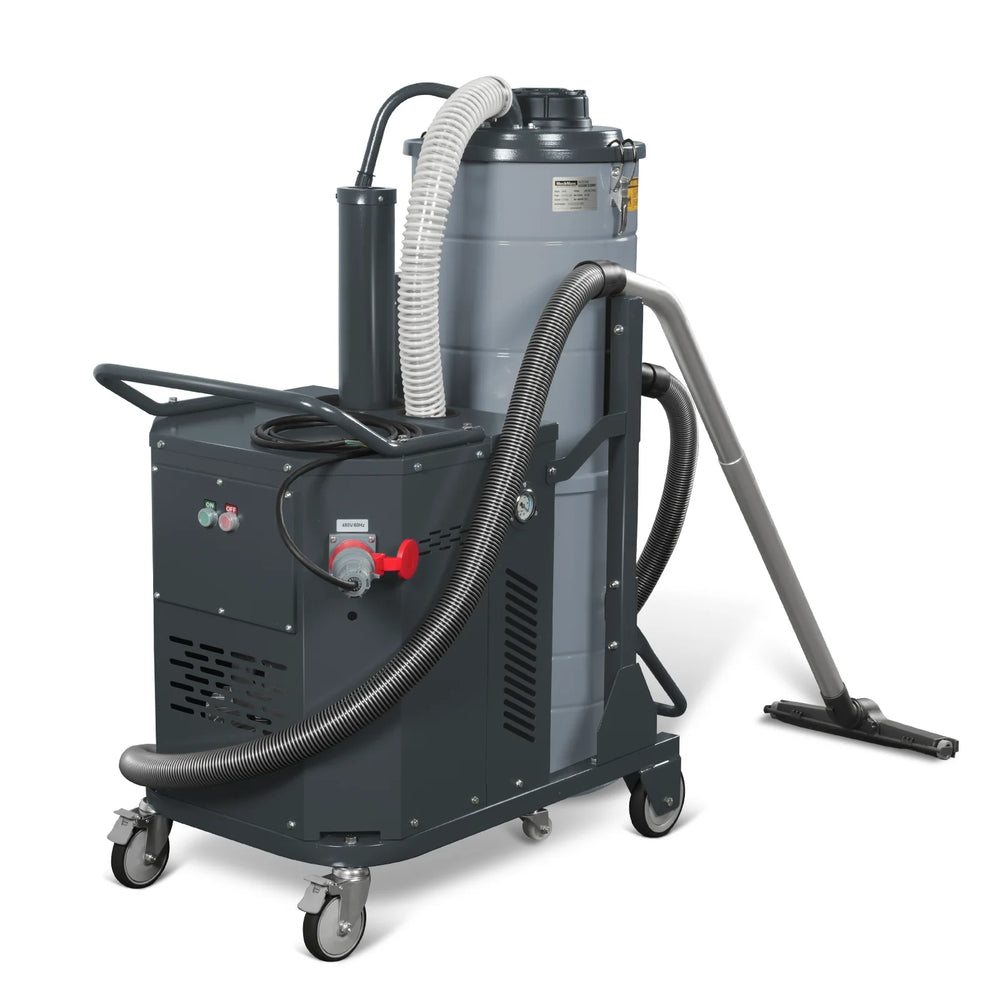

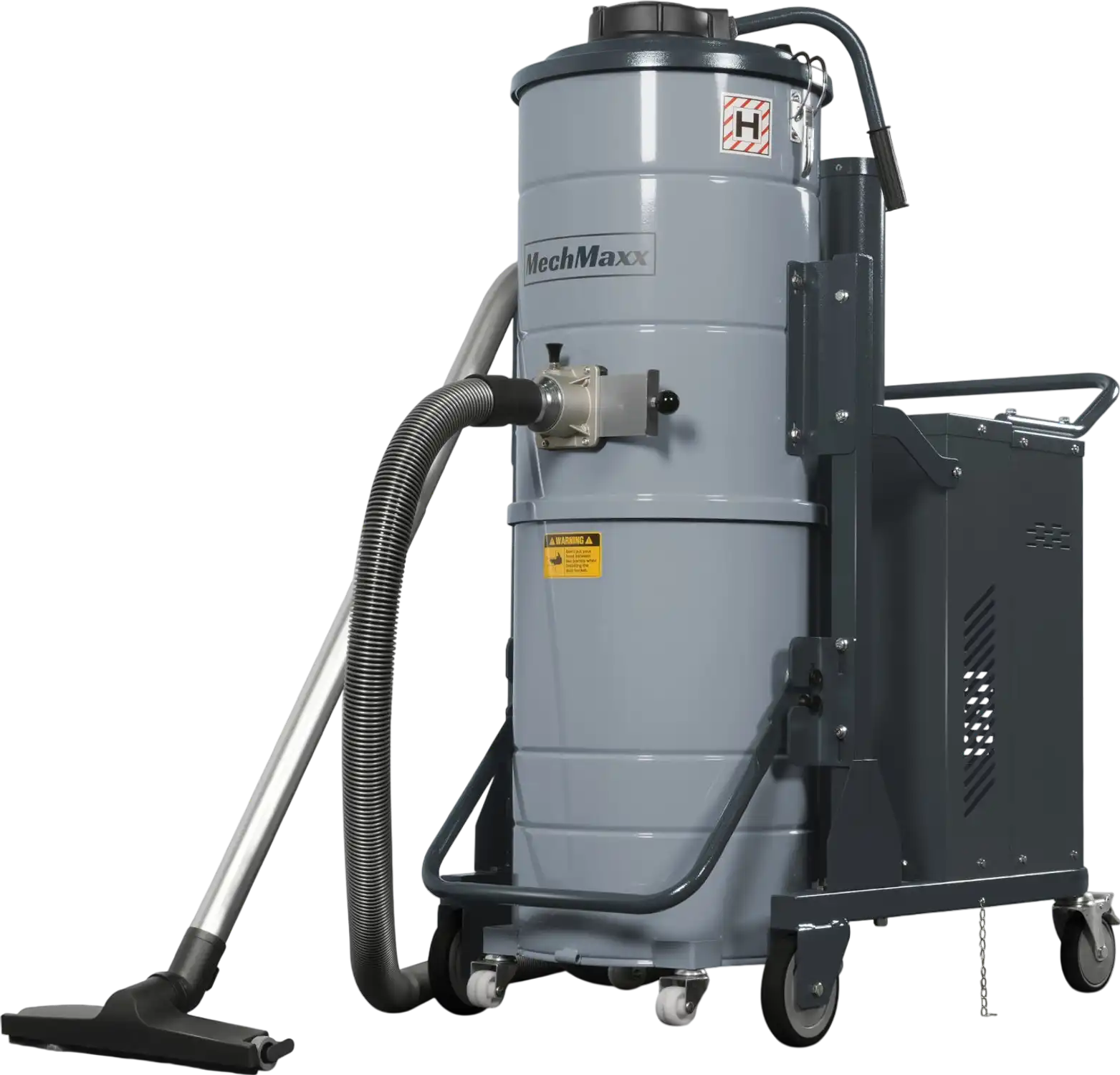

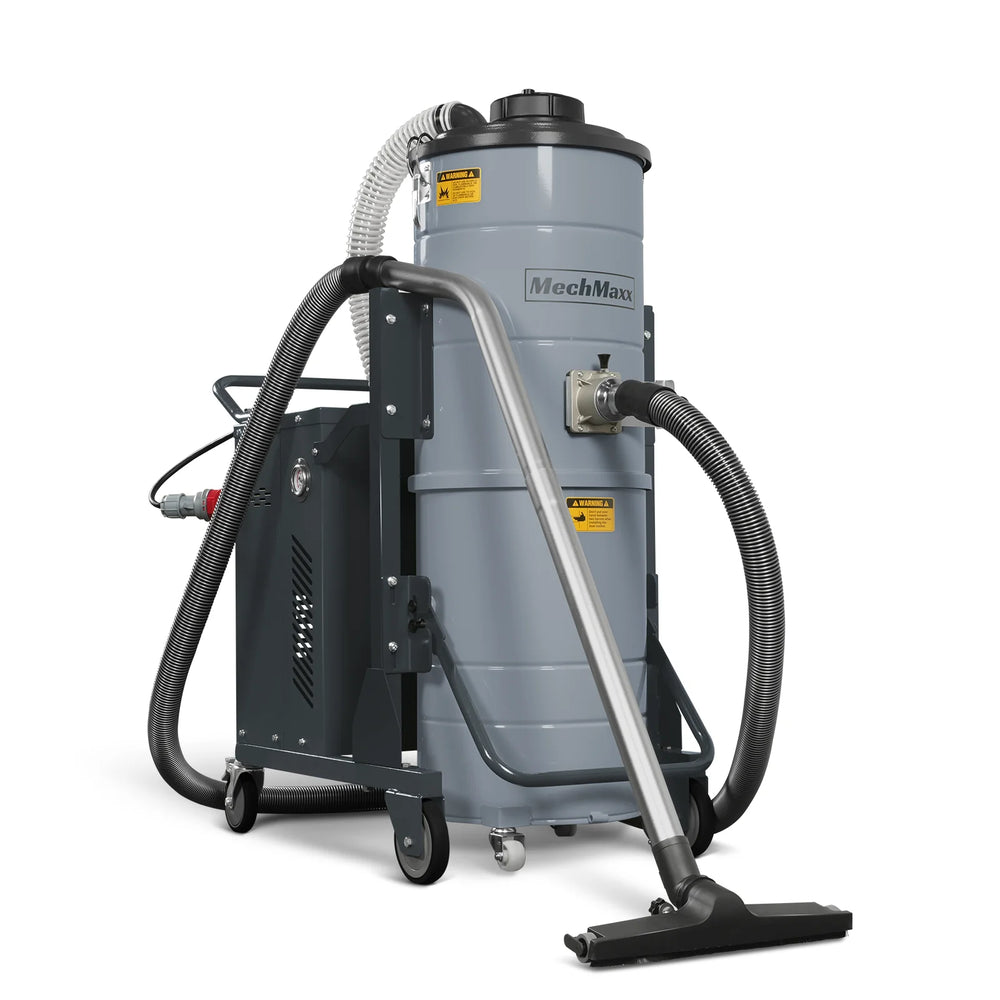

This industrial vacuum cleaner is conceived for continuous and heavy duty applications. The maintenance - free turbine motor is suitable for 24/7 continuous work. Three phase vacuum cleaners are the best solution to be integrated into production lines or for centralized vacuum system installations. This industrial vacuum can safely collect heavy media such as sand, chips, and large quantities of dust and dirt.

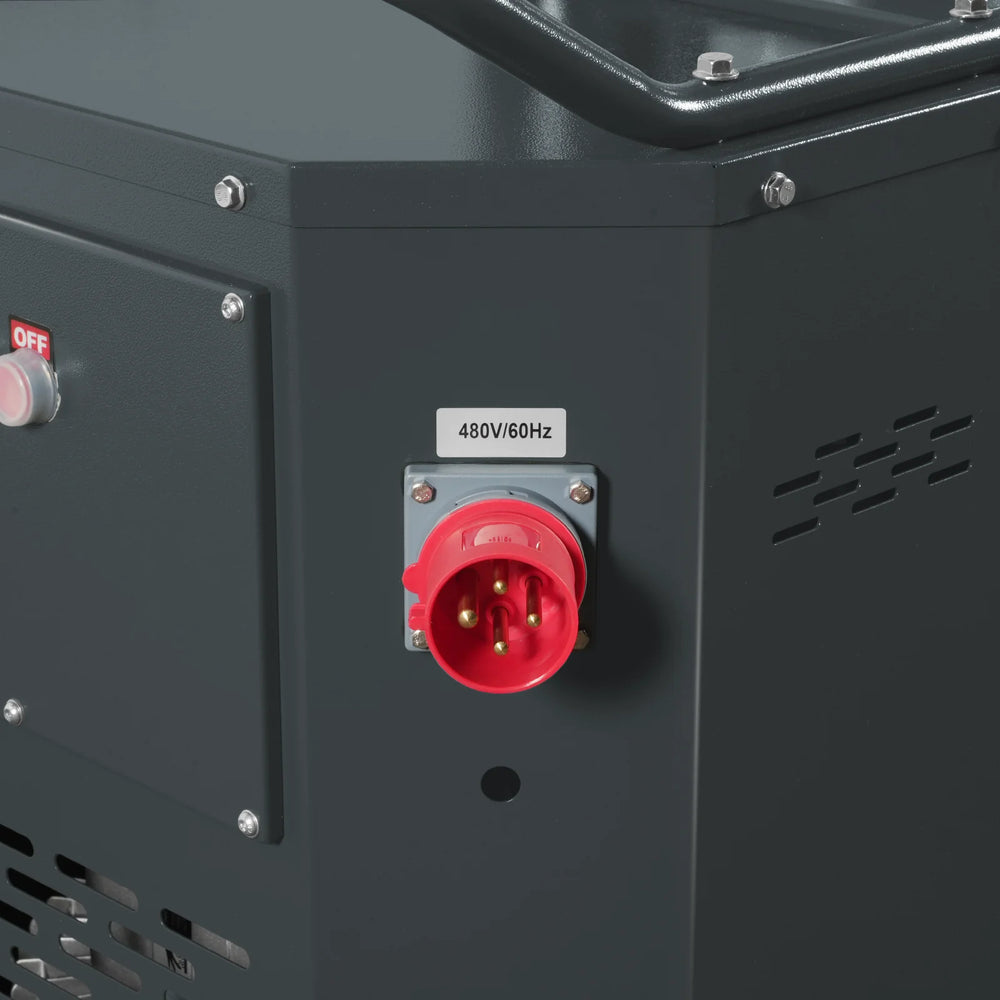

- Input Power 480V, 60Hz, 3 Phase, 12.9Amps.
- Heavy-duty turbine motor. 8.6 HP power. 24/7 continuous work.
- 364 CFM Airflow, 128 in waterlift.
- H-Class HEPA Filter, 32 ft² filter area, ＞99% efficiency @ 0.3 μm, superior filtration.
- External Jet Pulse Filter Cleaning System, keeps filter clear.
- 26.4 gallons detachable collection tank, easy dumping.
- 4 Casters (2 with Brakes), ensures smooth mobility and secure positioning.
Note! - Do not use in explosive, flammable, or combustible environments!
- Do not use to pick up flammable or explosive materials!
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

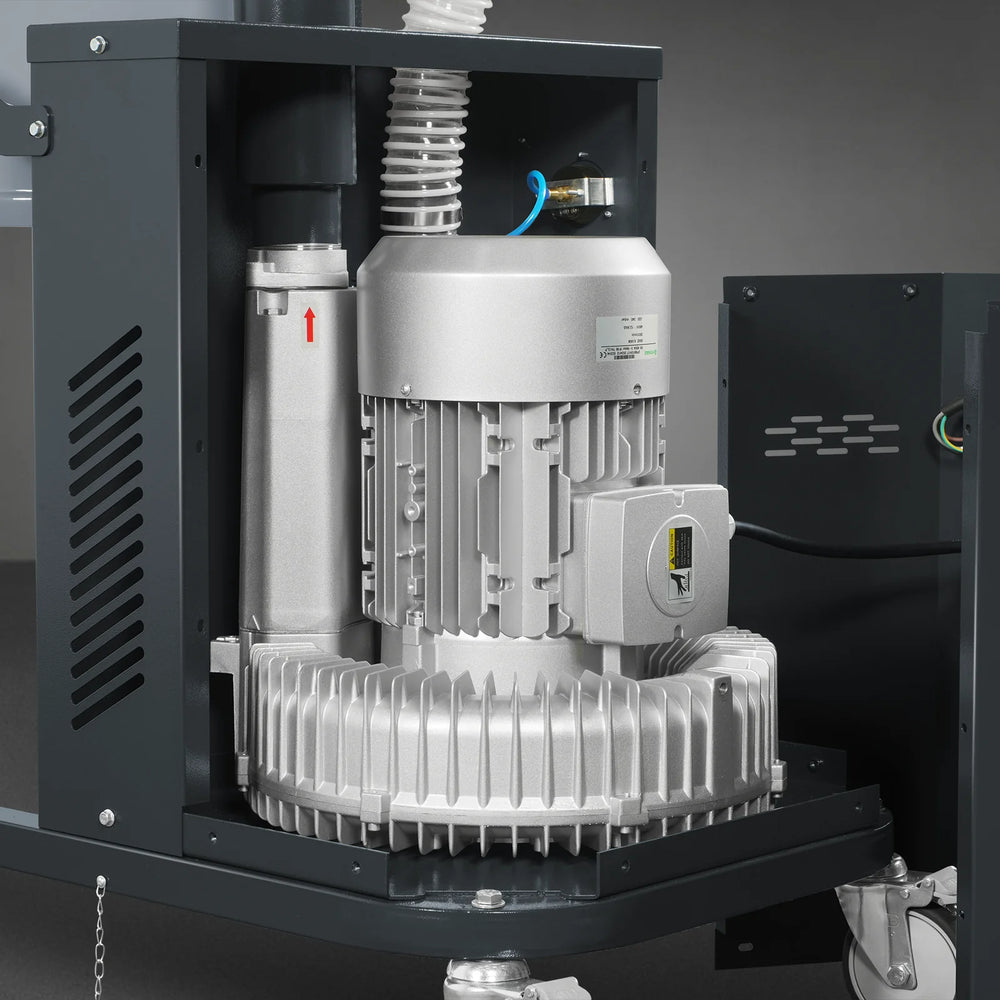

- Heavy-duty Turbine Motor: Equipped with a 6.3 KW 3-phase turbine, this vacuum cleaner delivers superior power, ensuring effective and consistent suction. It's maintenance free for continuous duty, allowing 24/7 use. The turbine motor has a metal silencer to keep noise levels low, making it ideal for industrial settings needing both performance and quiet operation.

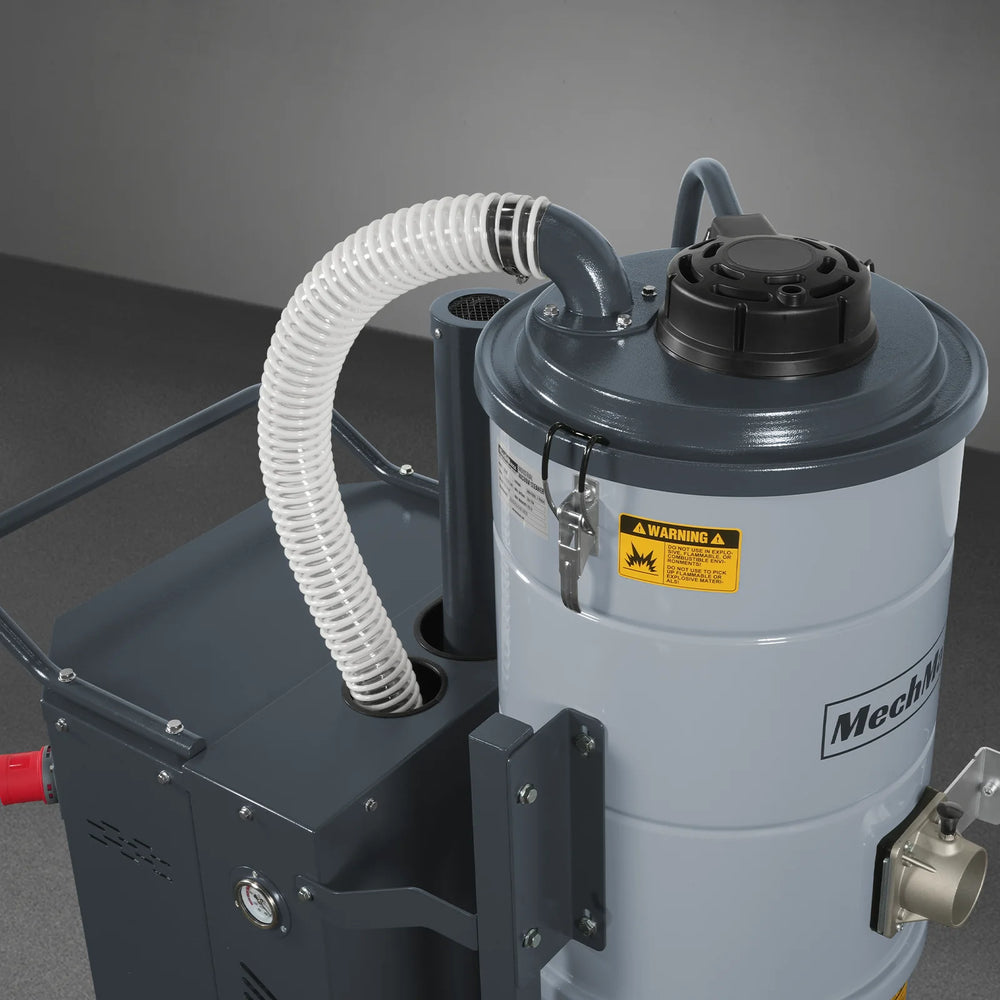

- Jet Pulse Filter Cleaning System: The vacuum cleaner is outfitted with a highly efficient Jet Pulse Filter Cleaning System. Leveraging the pressure differential between the exterior and interior of the vacuum cleaner, this system ingeniously generates an air flow. This air flow forcefully passes through the cartridge, effectively dislodging dust accumulated on the filter surface.
- H-Class HEPA Filter: Filtration is accomplished by a PTFE coated “TORAY” polyester H-class HEPA filter. The filter cartridge is engineered to maintain a large 32 ft² filter surface area within a compact space. The filtration system can trap particles as small as 0.3 microns. This design ensures that air can still pass through smoothly even when the filter gets dirty.

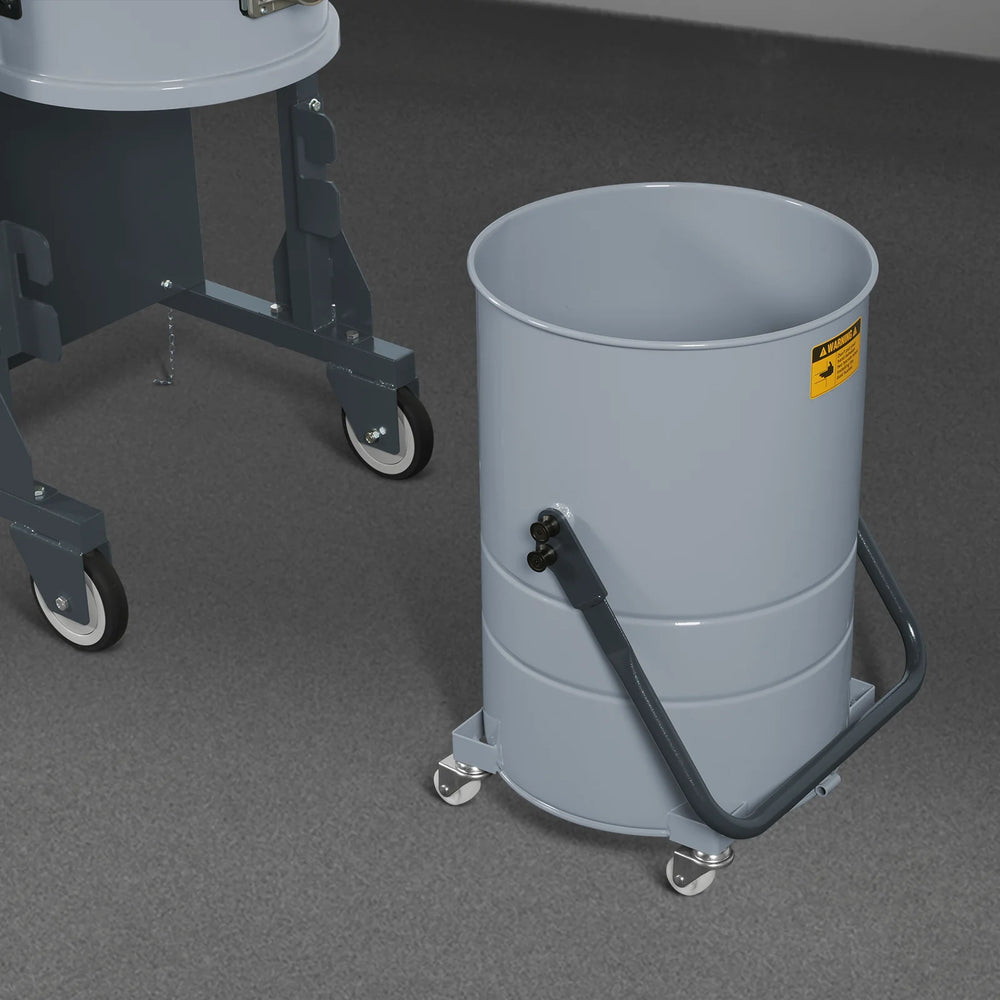

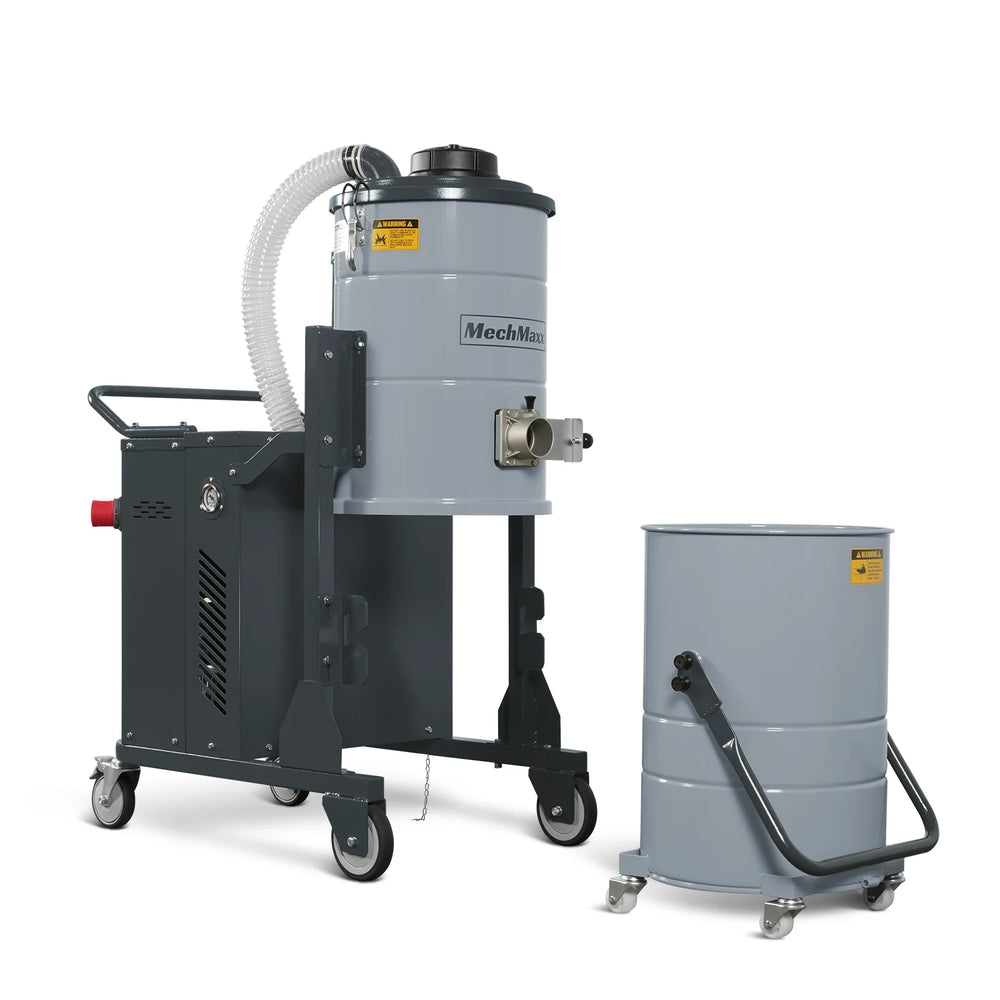

- 26.4 Gallon Detachable Tank: The debris is collected within a 26.4 gallon container equipped with a metal handle. Four robust pivoting wheels are attached to the container. These wheels allow for effortless mobility, making it simple to dispose of the collected material. Each wheel is reinforced to ensure optimal stability during transportation. This design renders the dust dumping process a breeze.

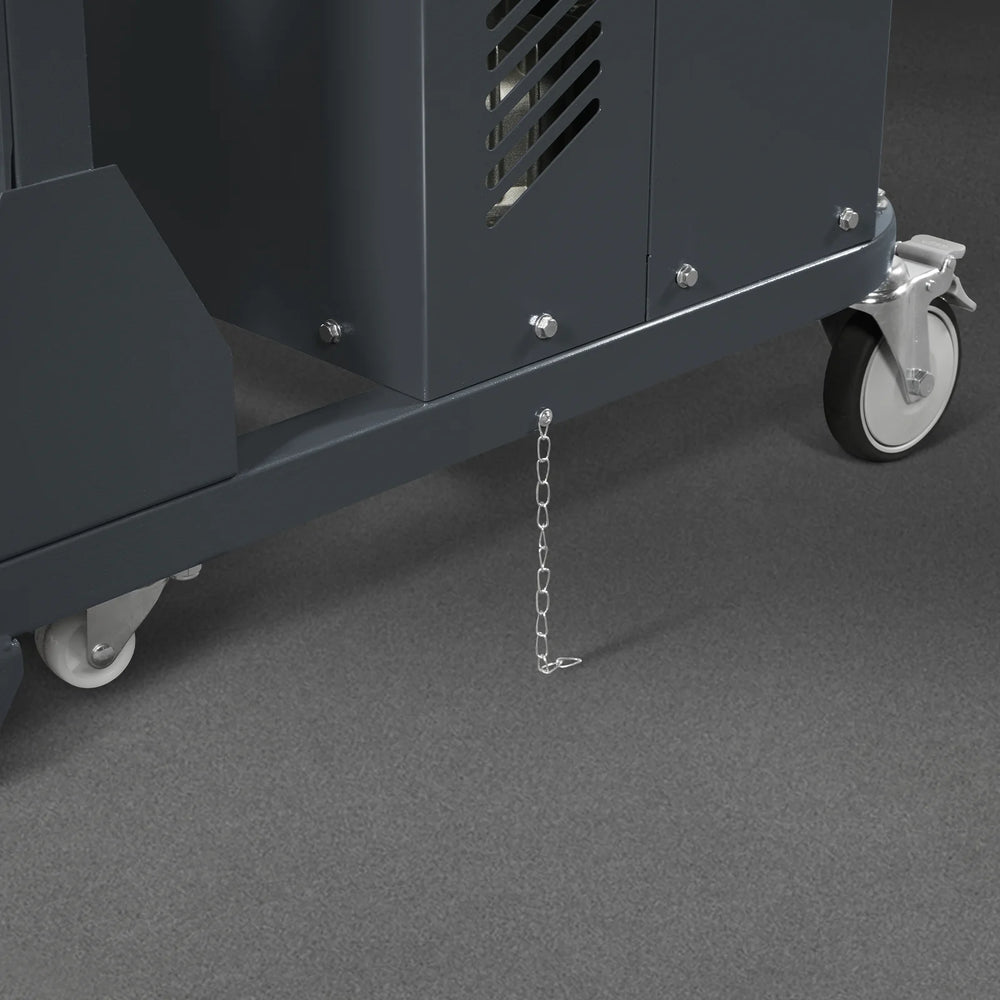

- Robust and Flexibility: This industrial vacuum cleaner is highly robust and flexible. Its sturdy construction guarantees stability during heavy - duty use. Equipped with 4 PU casters, it moves smoothly without scratching the floor. Notably, 2 of these casters have brakes, allowing for easy positioning and enhanced safety in diverse work areas.

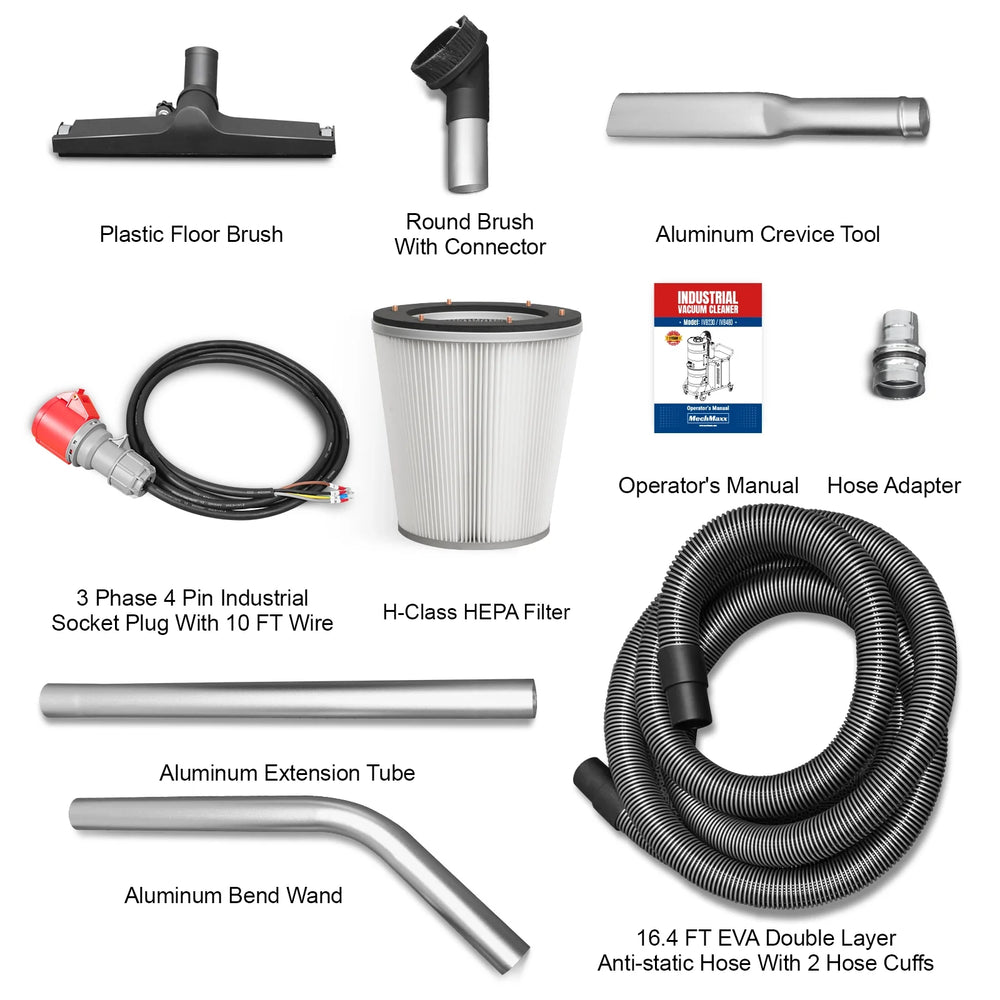

- Accessories Included: 16.4 FT EVA Double Layer Anti-static Hose with 2 Hose Cuffs,Hose Adapter,Round Brush with Connector,Plastic Floor Brush,Aluminum Crevice Tool,Aluminum Extension Tube,Aluminum Bend Wand

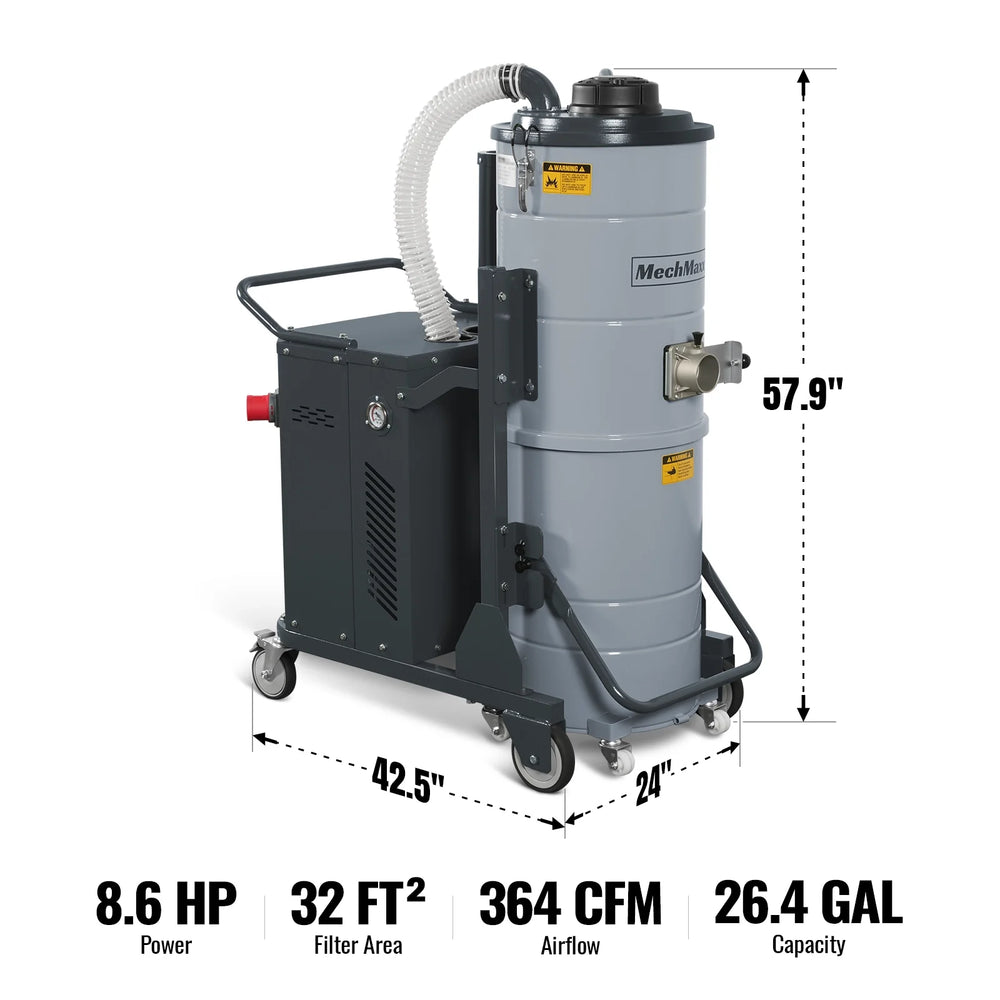

Specifications
| Model | IVB480 |
|---|---|
| Voltage | 480V, 60Hz, 3 Phase, 12.9Amps |
| Power | 8.6 HP (6.3 KW) |
| Airflow | 364 CFM |
| Waterlift | 128 in |
| Hose Diameter | 2 in |
| Filter Cleaning | Jet-pulse Filter Cleaning |
| Filter Type | H11 class HEPA filter, PTFE coated |
| Filter Area | 32 ft² |
|---|---|
| Filter Efficiency | Class H 11, ＞99% @ 0.3 μm |
| Tank Capacity | 26.4 gallons |
| Packing Size | 45 x 26 x 65 in |
| Weight (N.W / G.W.) | 304 / 386 lbs |
Warranty
This item comes with a 1 year factory warranty.
