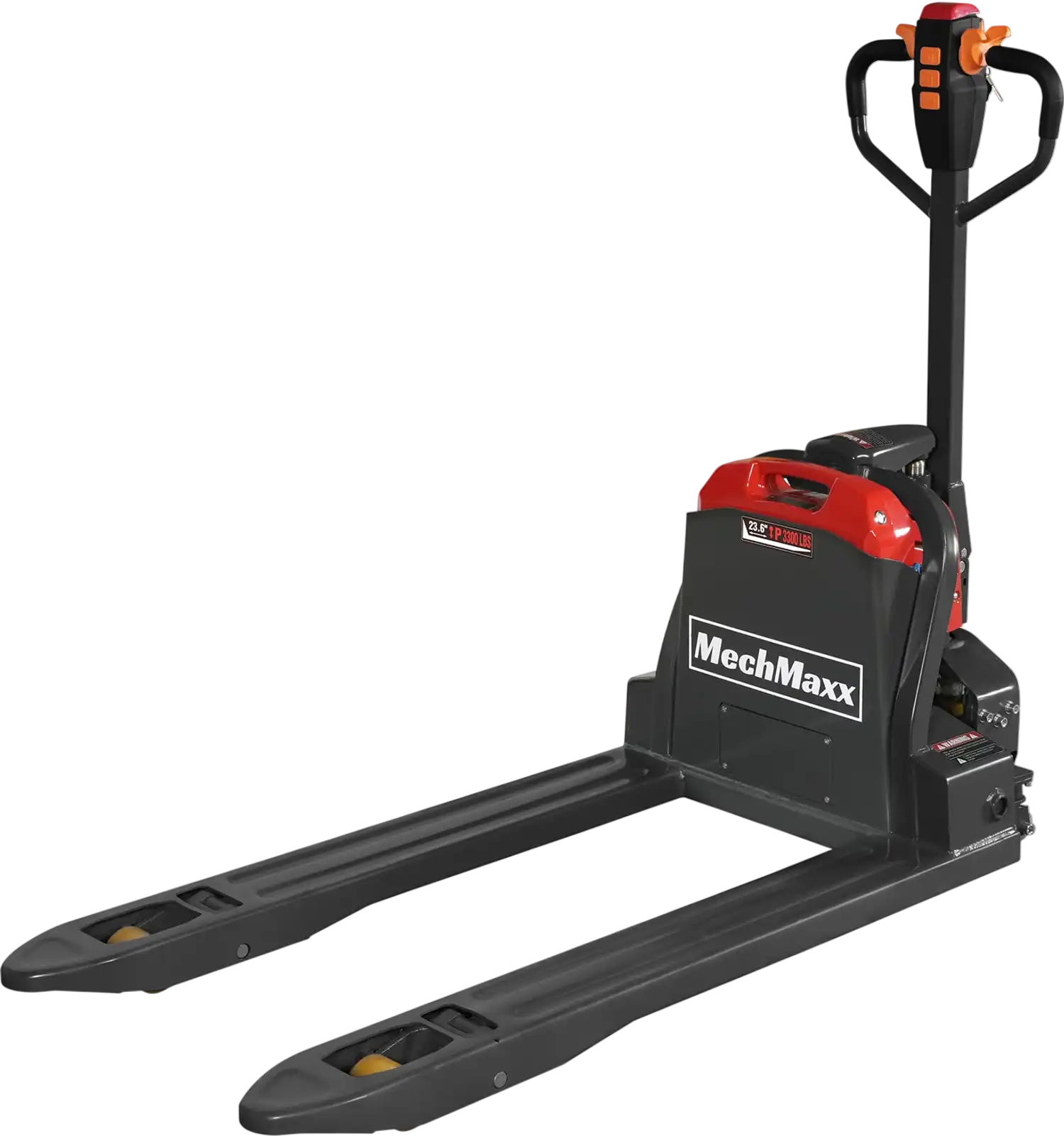

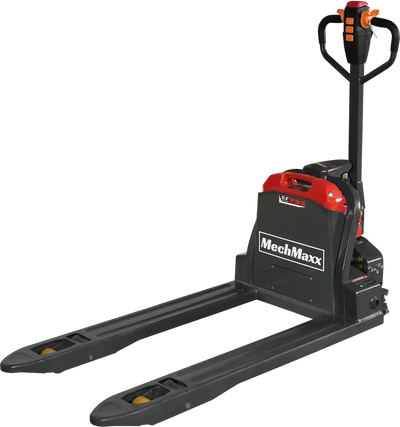

MechMaxx LPT33 Pallet Jack 3300 lbs Lithium-ion Electric 45x27" Fork 24V 40Ah Removable Battery Walkie Type New
Manufacturer: MechMaxx
SKU: 202001
QTY
or
(888) 999-1522
$ 1,999.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
MechMaxx LPT33 Pallet Jack 3300 lbs Lithium-ion Electric 45x27" Fork 24V 40Ah Removable Battery Walkie Type New
Product Overview
The MechMaxx LPT Series lithium-ion pallet jack is economical, whisper-quiet, ultra-smooth, and virtually maintenance-free. Its compact size, low weight, and tight turning radius make it ideal for loading docks, narrow aisles, trailers, and mezzanines. Designed for precise load positioning in light-duty tasks where lift-truck access is limited, it features intuitive controls, easy-exchange batteries, and an external charger. Transition from manual to powered pallet handling effortlessly and boost productivity in any confined space.
- The American Curtis Travel Controller offers accurate, high-efficiency and stable control performance.
- 24V/40Ah easy exchangeable lithium-ion battery reduces downtime.
- Portable external 24V/10A charger is provided standard.
- 3300 lbs load capacity with 45.3"L x 27"W forks for handling standard pallets.
- 7.5" raised fork height, 2.95" lowered fork height, for efficient lifting and stacking.
- 2.6 laden and 2.8 unladen mph travel speed.
- 55" turning radius with turtle mode ideal for narrow aisles.
- Fully electric drive and lift system enables effortless travel and load handling.
- Ergonomic handle designed for operating with either hand.

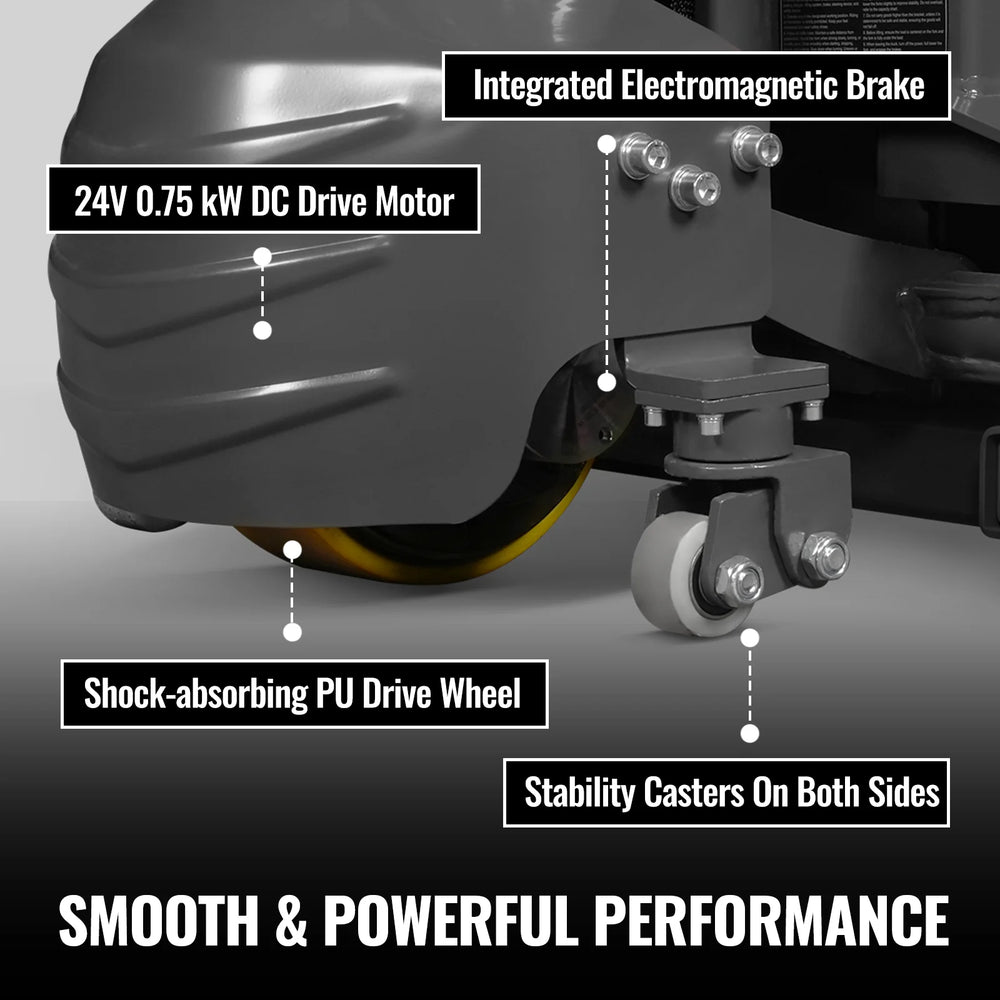

- Stability casters on both sides minimize lateral sway, enhancing truck stability and preventing floor damage.
- Equipped with polyurethane drive and load wheels, leave no scratches on the floor.
- Equipped with an emergency-reverse button, electromagnetic brake, and automatic safety-release braking system, it fully ensures operator safety.
IMPORTANT – Battery Charging & Maintenance - Always read the product manual and review all safety labels before operation.
- Fully charge the battery promptly after each use.
- Never overcharge or deeply discharge the battery.
- Charge the battery at least once a month, even when the truck is not in use.
- Store in a cool, dry place away from direct heat sources.
Proper battery maintenance extends battery life and ensures safe operation.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- American Curtis Travel Controller: Industry-proven precision and reliability. Delivers smooth acceleration, responsive control, and high energy efficiency, ensuring consistent performance and durability in demanding applications.

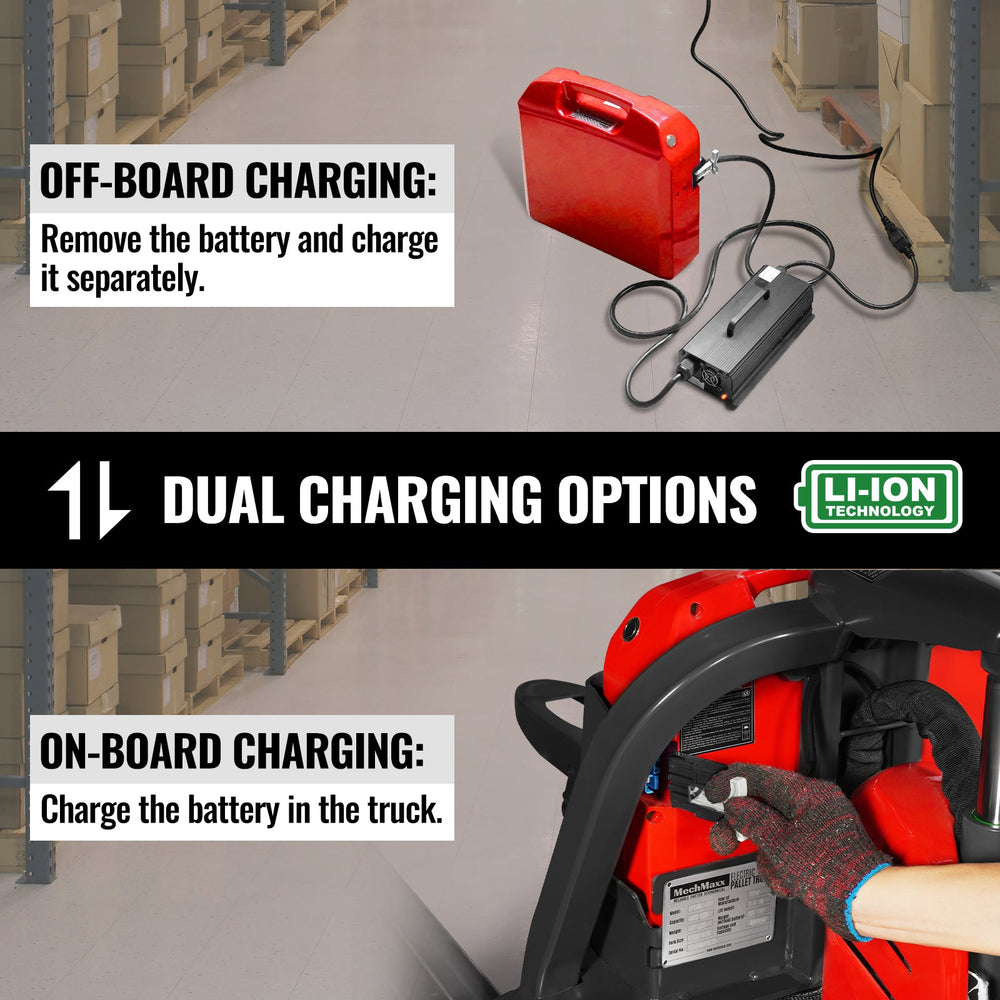

- Easy Exchange Lithium-ion Battery: It’s powered by a 24V/40Ah lithium-ion battery with a smart design that lets you exchange the pack in seconds—no tools required. Optional extra batteries (SKU: 462006) are available to extend runtime.
- Stability Casters & Tapered Fork Tips: Stability casters on both sides minimize lateral sway, enhancing truck stability and preventing floor damage. Tapered fork tips allow smooth entry and exit from pallets.
Specifications
| Load Capacity | 3300 lbs |
| Turing Radius | 55 in |
| Operator Position | Walkie |
| Driving Speed (laden/unladen) | 2.6/2.8 mph |
| Tire Type | Polyurethane |
| Gradeability (laden/unladen) | 5/10% |
| Overall Length | 63 in |
| Service Brake | electromagnetic |
| Overall Width | 27 in |
| Battery | 24V/40Ah Removable Li-ion Battery |
| Overall Height (handle raised) | 48 in |
| Charger | 24V/10A External |
| Fork Length | 45.3 in |
| Controller Brand | Curtis |
| Distance Between Forks | 15 in |
| Drive Motor | 0.75 kW DC |
| Load Center | 23.6 in |
| Lift Motor | 0.5 kW |
| Fork Height (raised) | 7.5 in |
| Packing Size (LxWxH) | 68 x 28 x 31 in |
| Fork Height (lowered) | 2.95 in |
| Weight with Battery (N.W/G.W.) | 331/441 lbs |
Warranty
This item comes with a factory warranty.
