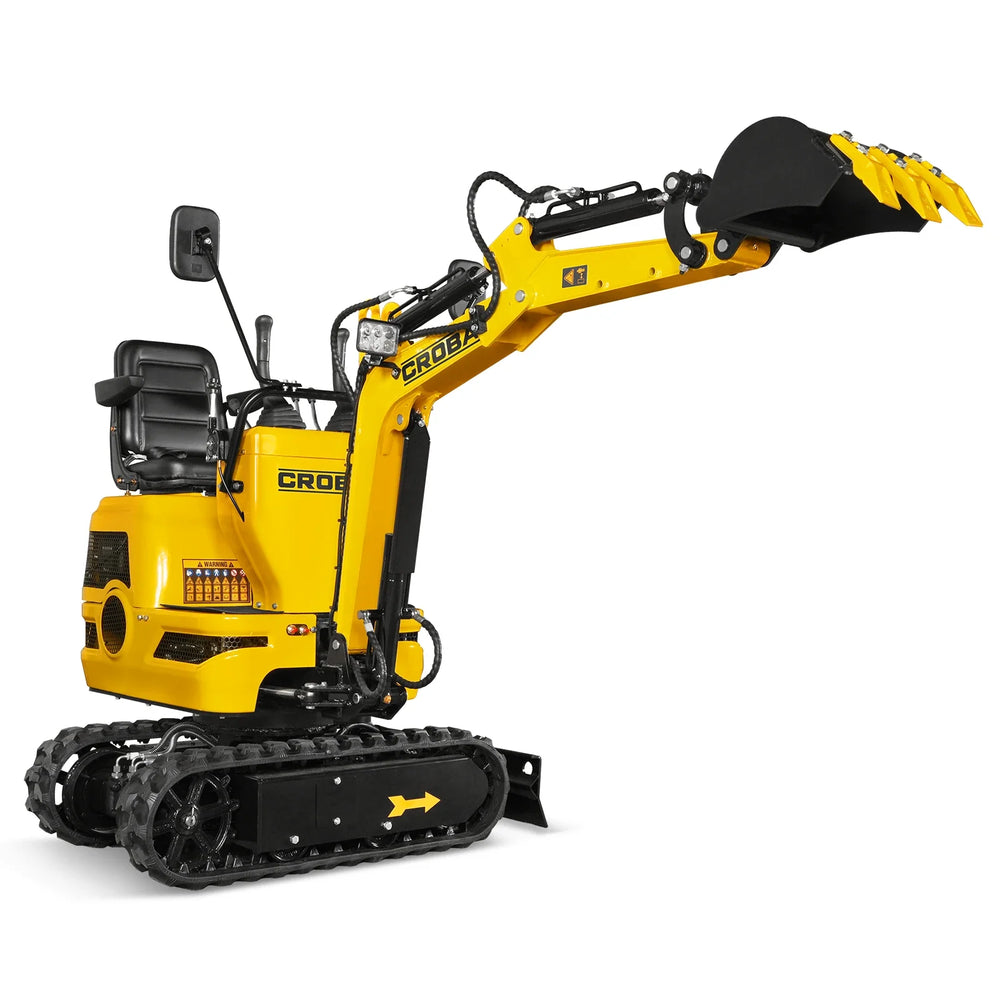

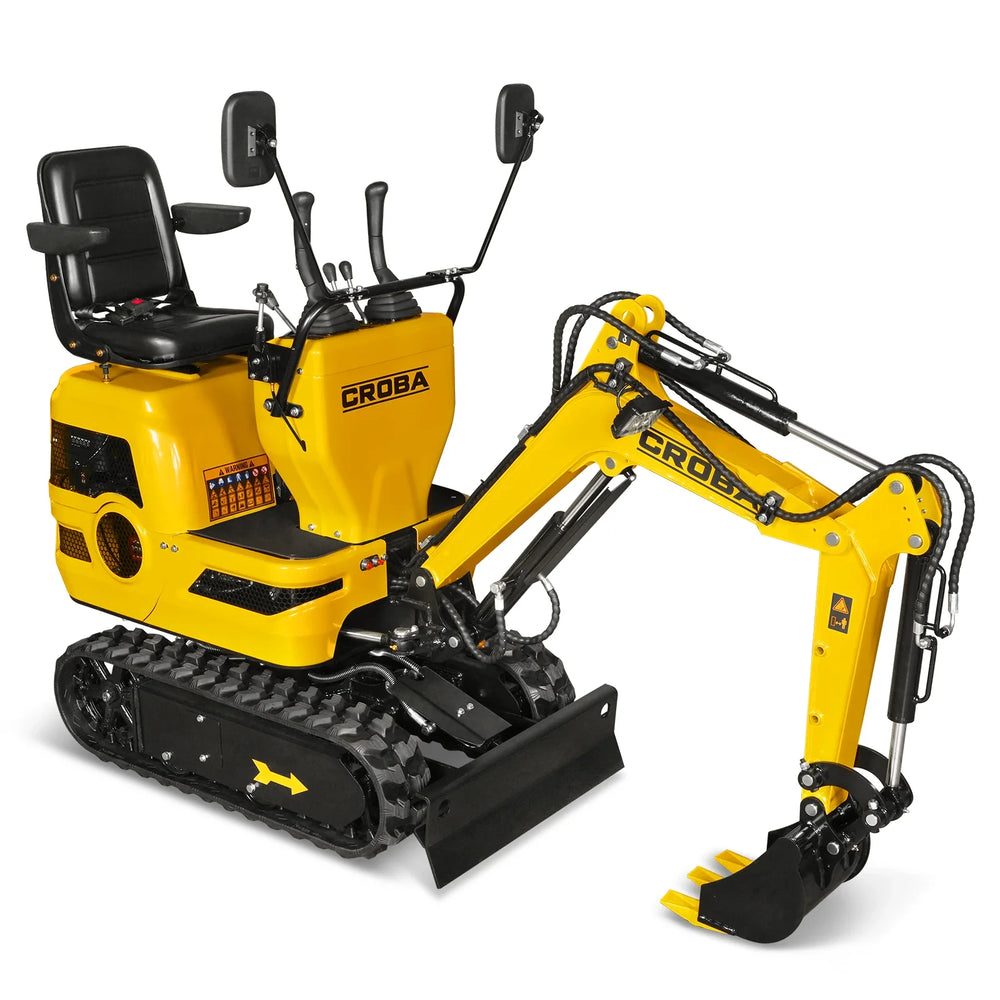

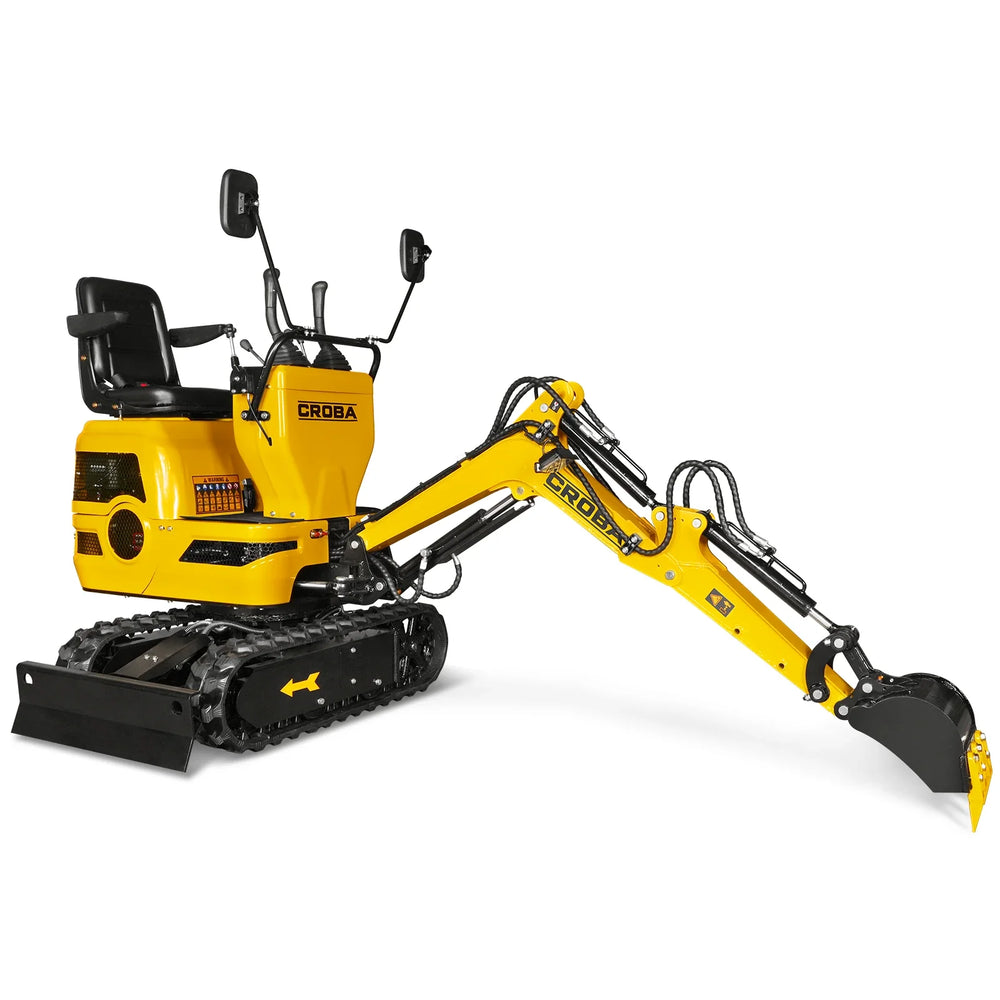

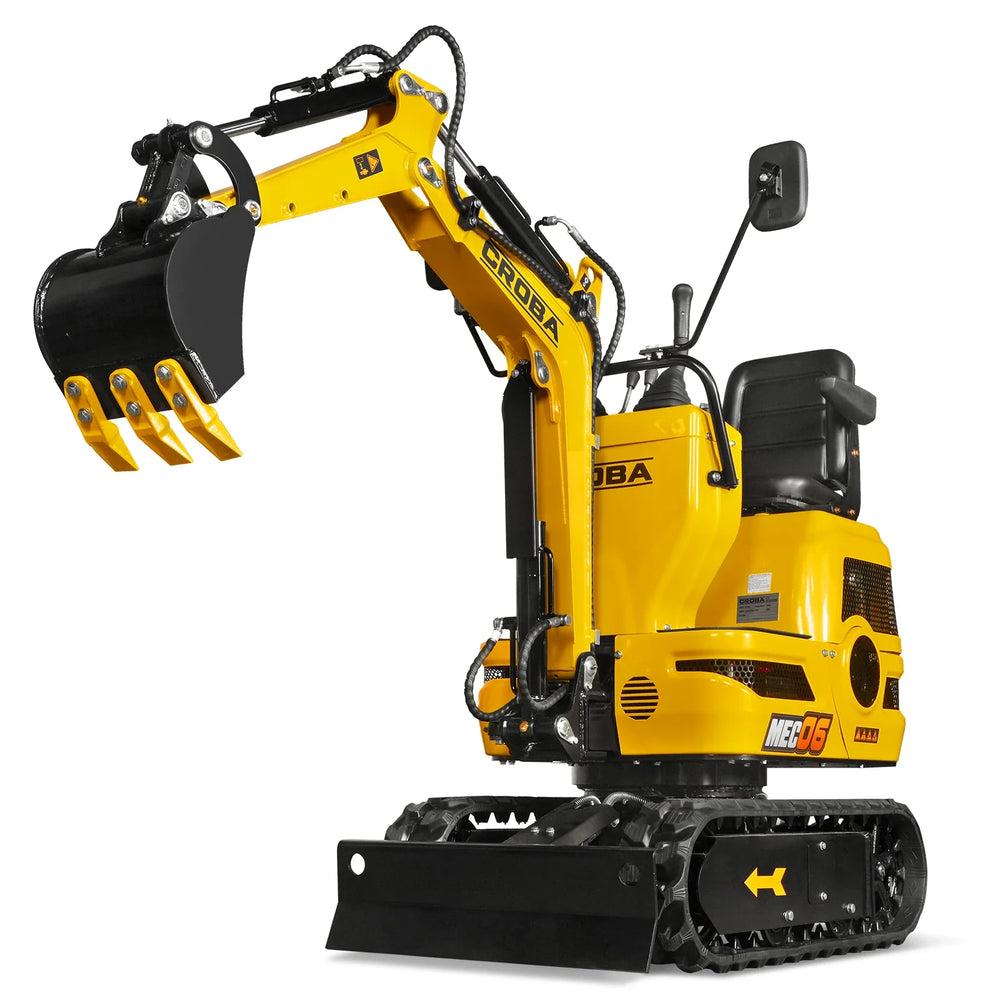

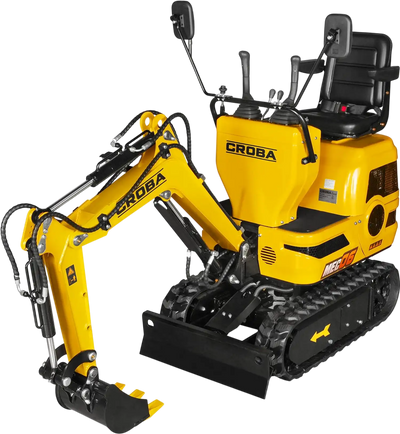

MechMaxx MEC06 Mini Excavator Compact 0.6 Ton Loncin 300cc 9HP Engine 43.3" Max Digging Depth 1345 lbs Operating Weight New
Manufacturer: MechMaxx
SKU: 150536
QTY
or
(888) 999-1522
$ 4,999.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

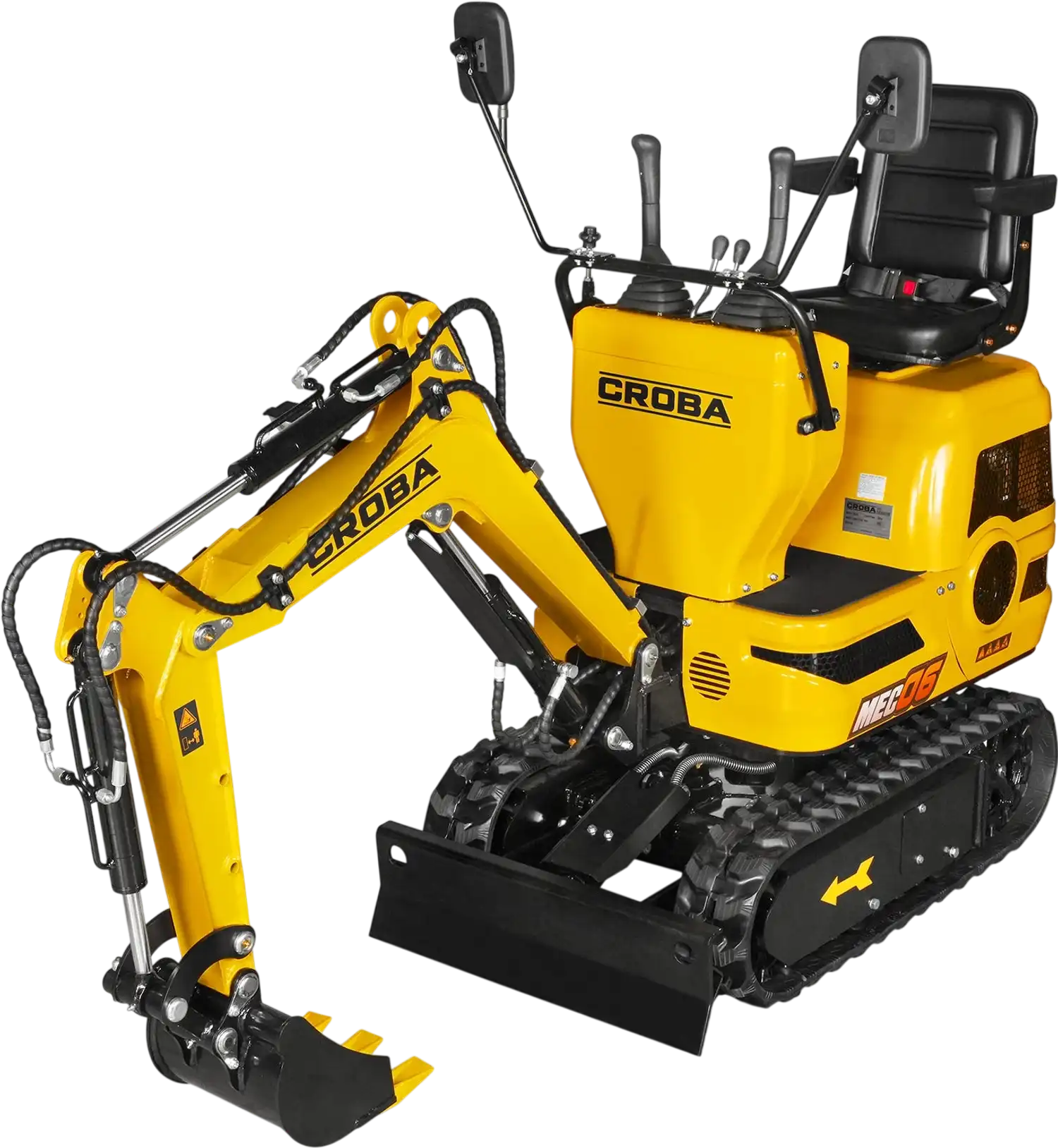

MechMaxx MEC06 Mini Excavator Compact 0.6 Ton Loncin 300cc 9HP Engine 43.3" Max Digging Depth 1345 lbs Operating Weight New
Product Overview
- MEC06 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.

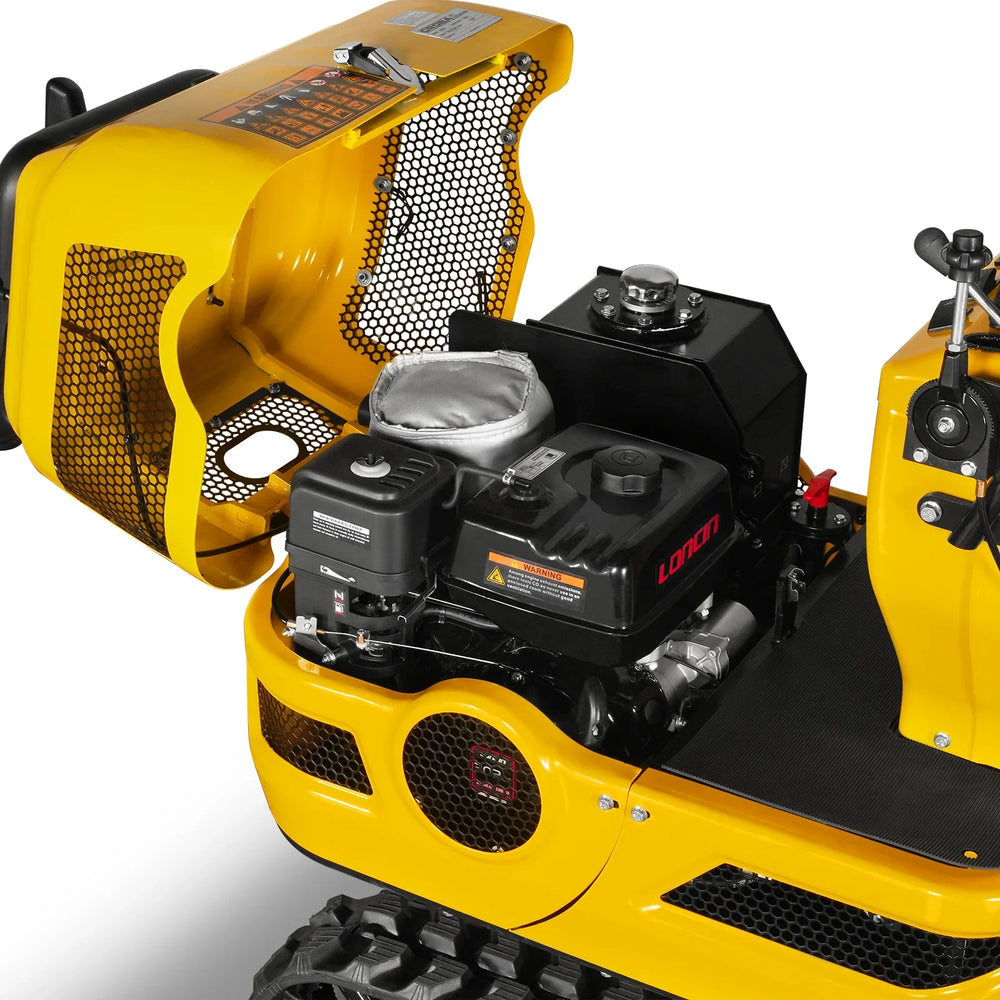

- Powered by Loncin G300FDA 300cc 9hp Engine, high compression ratio for better fuel efficiency.
- Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.

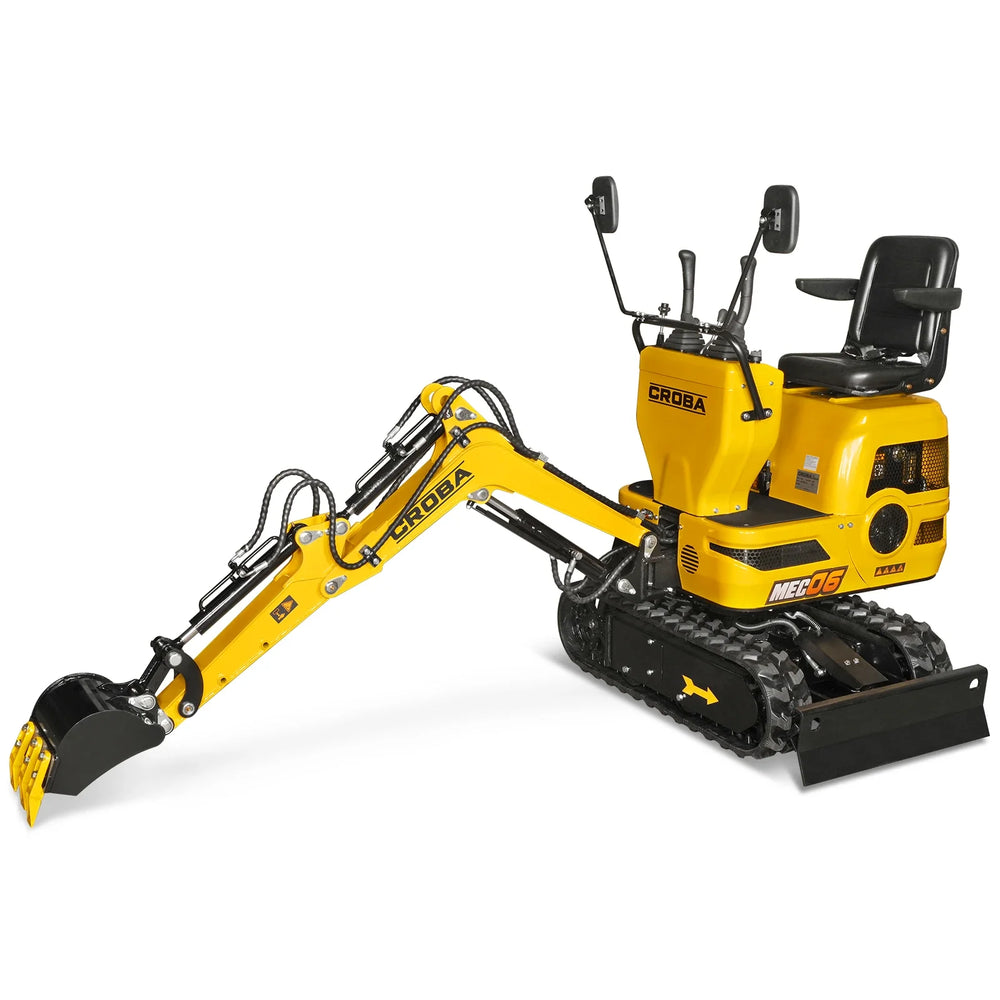

- 43.3-inch digging depth reach capability and a 82.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
- Can rotate 360 degrees.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- Chassis Width: At 28 in, its chassis width is much smaller than a standard excavator, making it ideal for working in backyards, narrow alleys, and other tight spaces.

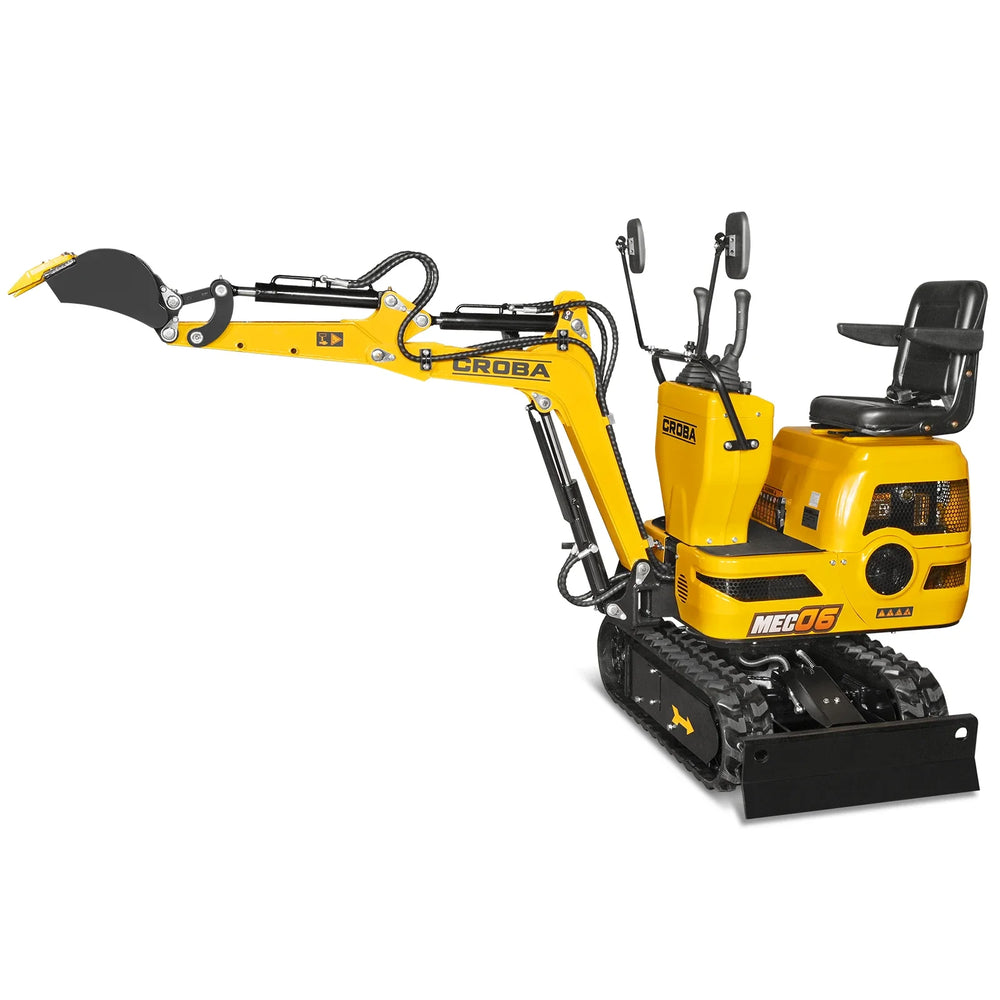

- Swing Arc: The digging arm can swing left and right, turn 55 degrees to the left and 65 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.
- Digging Depth: It features an all-around 43.3-inch digging depth reach capability and a 82.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
- Digging Performance: Generating an impressive 1,911 lbf of bucket digging force, this excavator easily tackles tough soil and demanding excavation tasks, maximizing productivity and job site efficiency.
- 360° Full-Rotation Capability: The excavator features a 360-degree rotating platform, allowing operators to work efficiently in any direction without repositioning the machine.

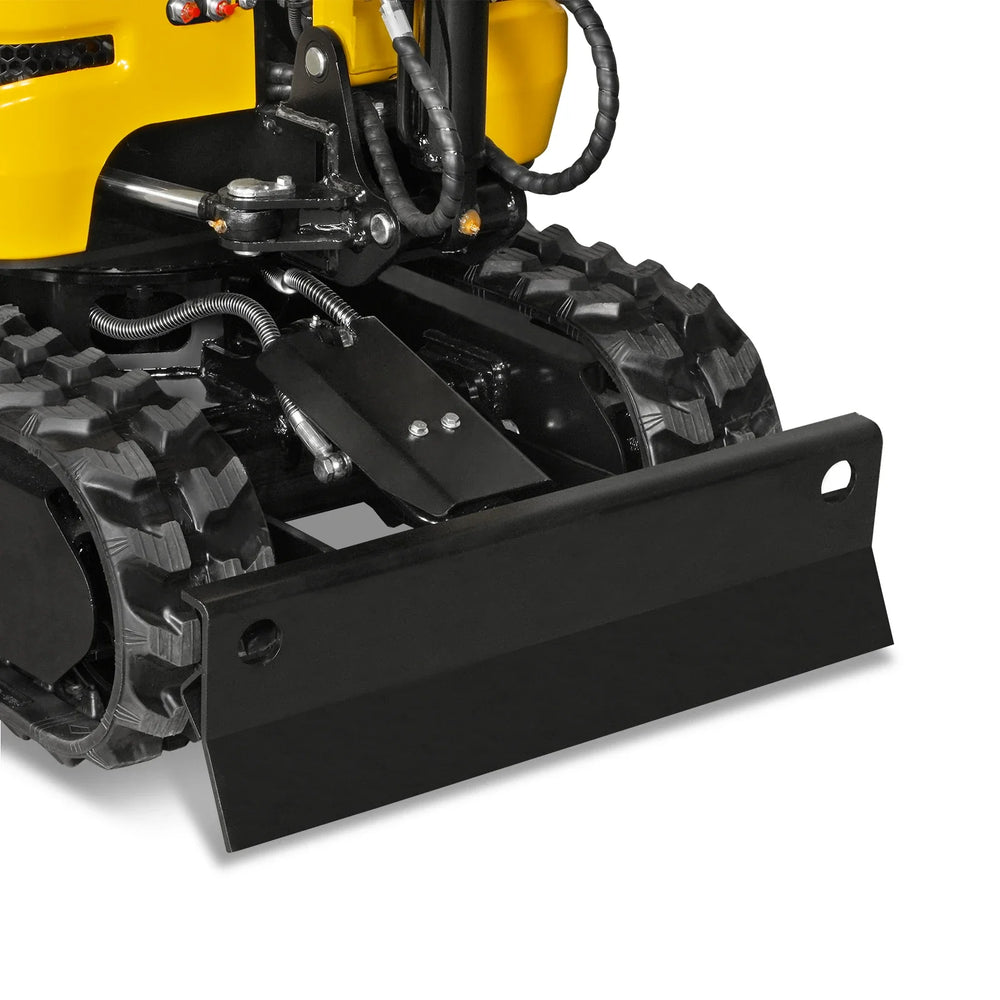

- Hydraulic Safety Locks: Hydraulic locks on both the boom and dozer blade prevent unintended movement or lowering, providing enhanced safety and peace of mind during operation.
Specifications
| Operating Weight | 1345 lb |
| Hydraulic Oil Tank Capacity | 2.64 gal |
| Standard Bucket Capacity | 0.53 ft³ |
| Auxiliary Std Flow | 4.76 gal/min |
| Standard Bucket Width | 11.4 in |
| Max. Tractive Force | 742 lbf |
| Max. Travel Speed | 1.12 mile/h |
| Arm Digging Force | 1012 lbf |
| Slewing Speed | 9.5 RPM |
| Bucket Digging Force | 1911 lbf |
| Max. Gradeability | 15° |
| Rated Lift Capacity | 330 lb |
| Track Ground Pressure | 3.84 psi |
| Lift Radius | 78.7 in |
| Max.Digging Radius On Ground | 82.7 in |
| Max. Vertical Digging Depth | 45.3 in |
| Max. Digging Depth | 43.3 in |
| Min. Turning Radius | 47.2 in |
| Overall Operating Height (Fully Raised) | 79.9 in |
| Max. Lifting Height Dozer Blade | 5.5 in |
| Max. Digging Radius | 90.6 in |
| Max. Depth Dozer Blade | 5.5 in |
| Max. Unloading Height | 67.3 in |
| Wheel Track | 31.5 in |
| Track Height | 12.6 in |
| Track Length | 43.3 in |
| Transportation Length | 83.4 in |
| Upper Chassis Ground Clearance | 4.5 in |
| Height Of Seat To Ground | 47.2 in |
| Counterweight Turning Radius | 23.6 in |
| Overall Height | 68.1 in |
| Chassis Width | 28 in |
| Boom Swing-Right | 65° |
| Track Width | 5.9 in |
| Boom Swing-Left | 55° |
| Model | Loncin G300FDA |
| Max. Net Torque | 20.3 N.m/2500 RPM |
| Displacement | 300 cc; 9 HP |
| Fuel Tank Capacity | 1.45 gal |
| Engine Type | 4-stroke, overhead valve, single cylinder |
| Engine Oil Capacity | 0.25 gal |
| Start Type | Electric start |
| Engine Oil Type | 10W-30 |
| Rated Power | 6.8 KW/3600 RPM |
| Package Method | Steel Frame Packaging |
| Package Size | 89x29x49 in |
| Warranty for Machine/Engine | 1 Year |
| Weight (N.W./G.W.) | 1345/1510 lb |
