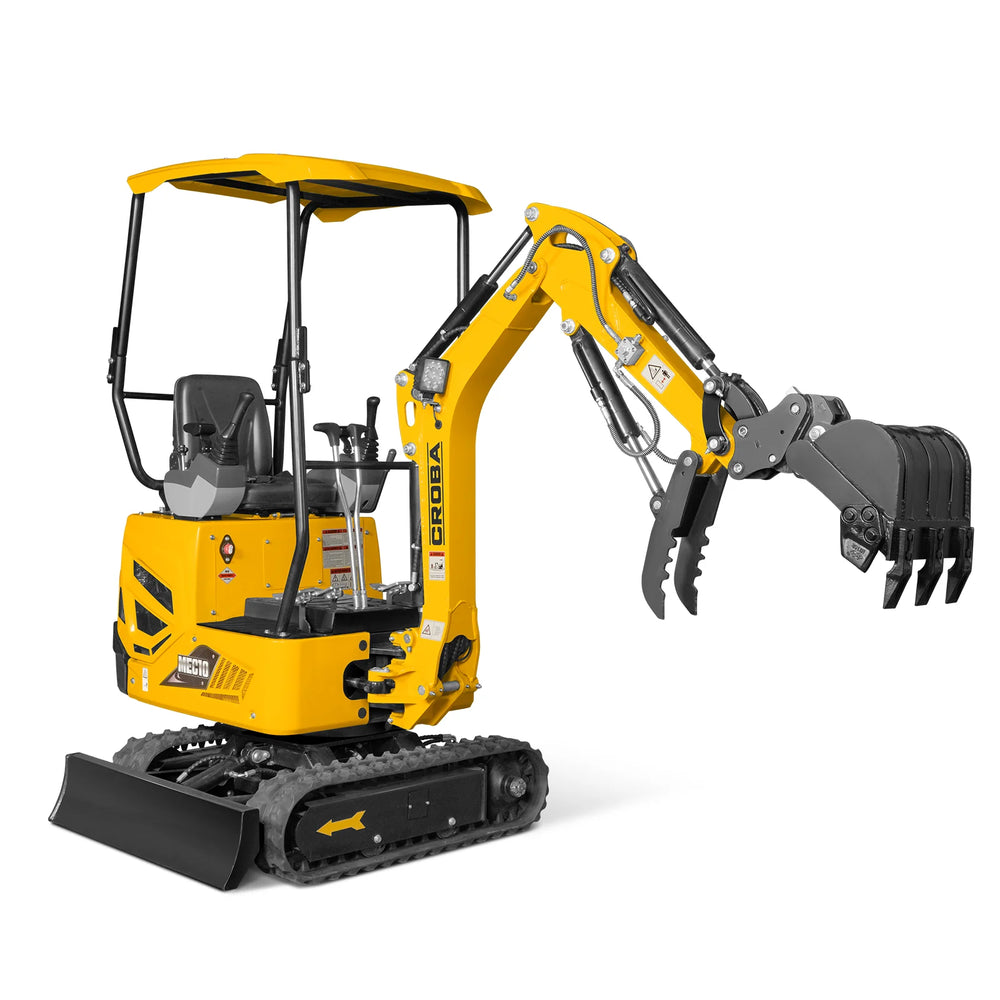

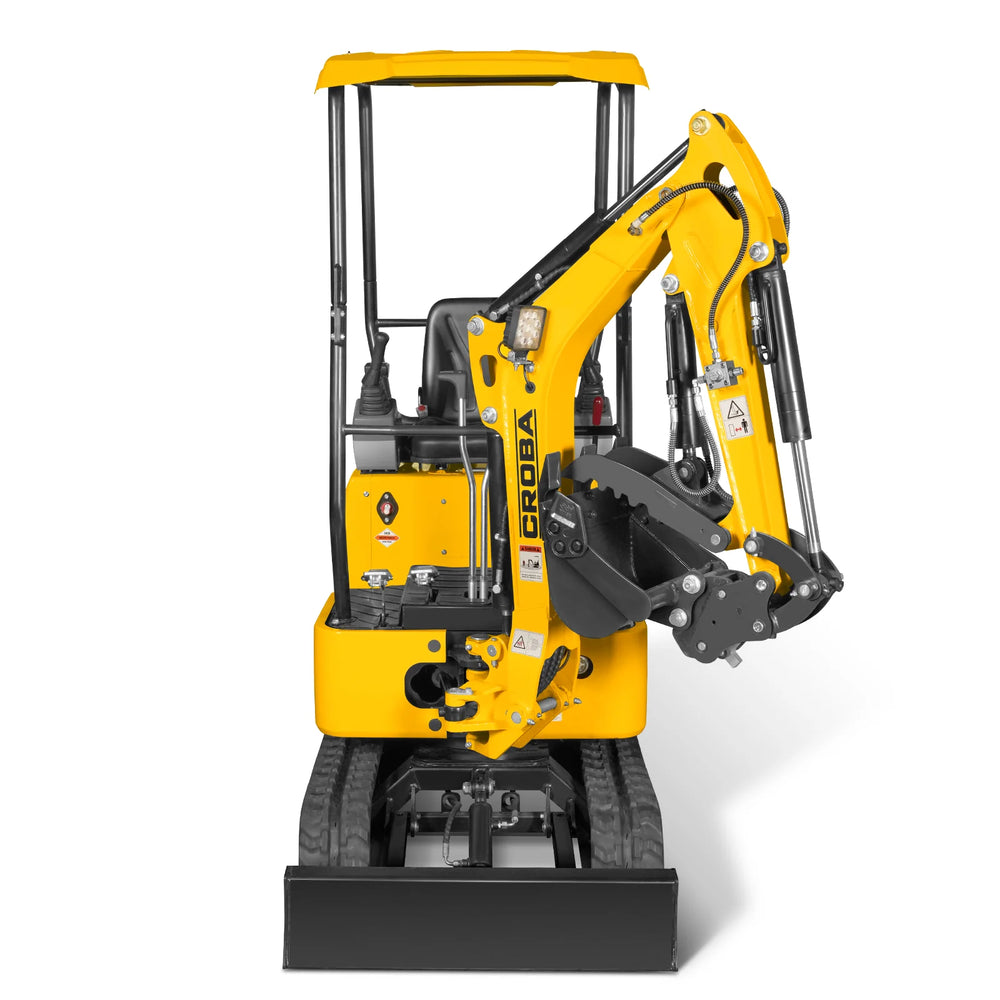

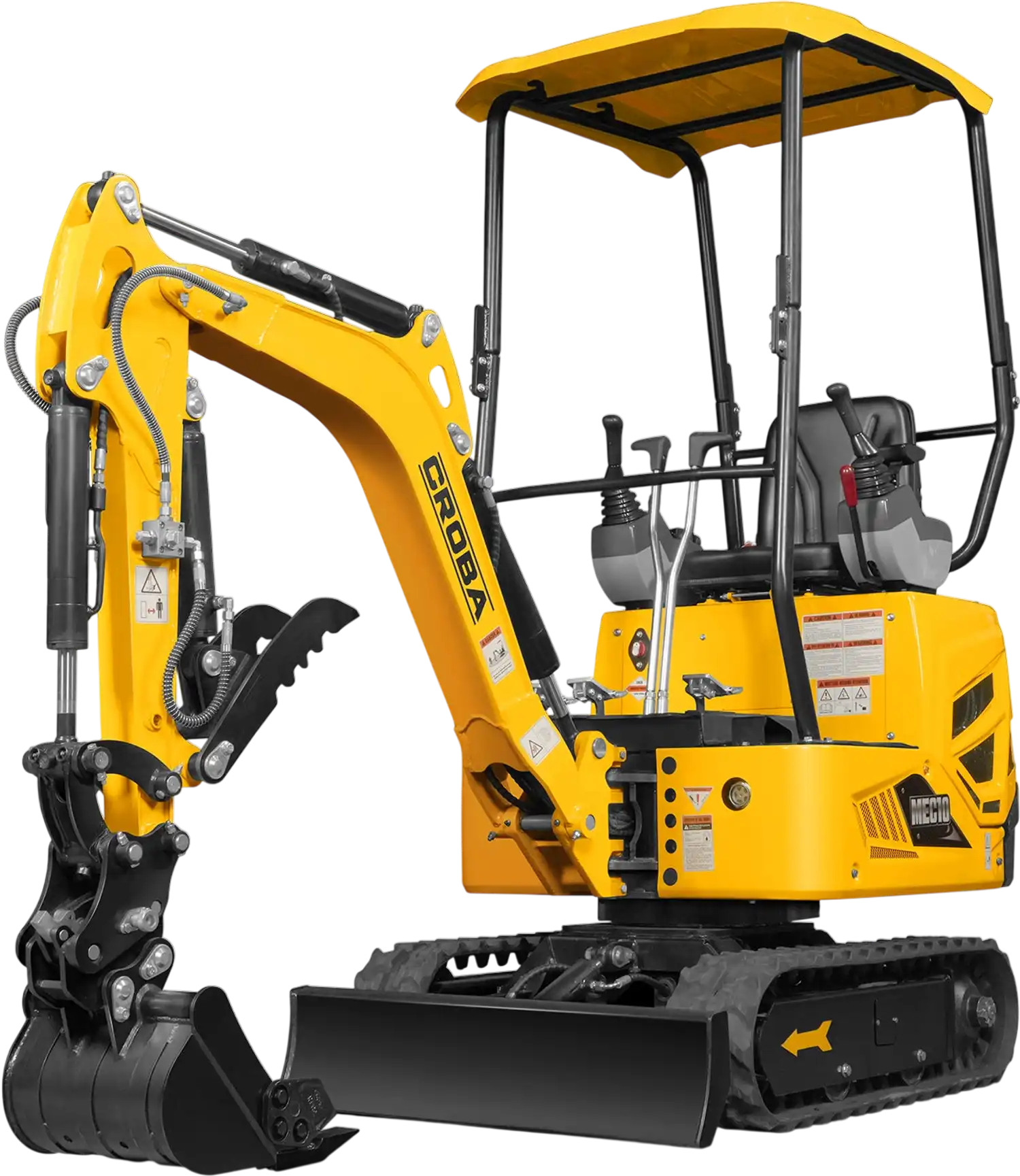

MechMaxx MEC10 Mini Excavator Compact B&S Vanguard 408cc 14HP Engine 65.7" Max Digging Depth 1 Ton 2370 lbs Operating Weight New
Product Overview
- MEC10 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.

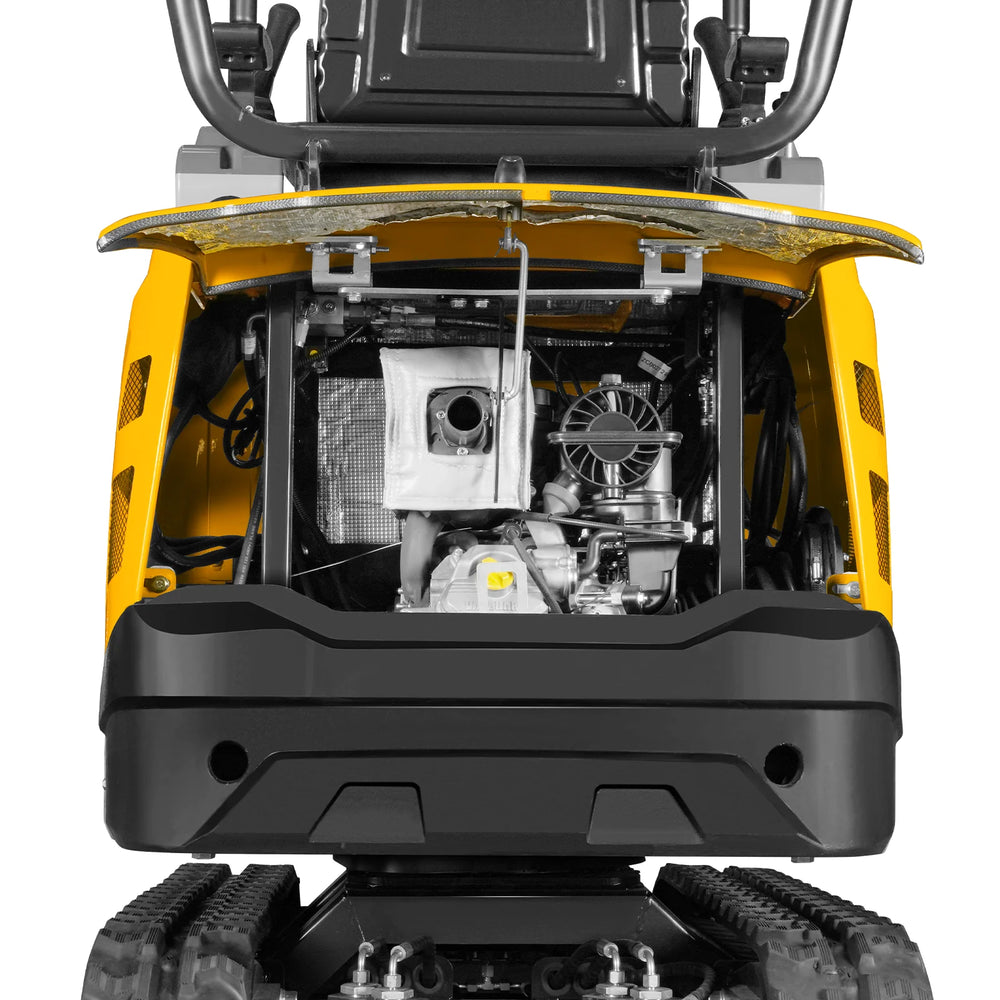

- Powered by B&S VANGUARD 408cc 14hp air-cooled engine, high compression ratio for better fuel efficiency.
- Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
- The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
- 65.7-inch digging depth reach capability and a 118.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
- Hydraulic thumb included, convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
- Can rotate 360 degrees.
Note！
- The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

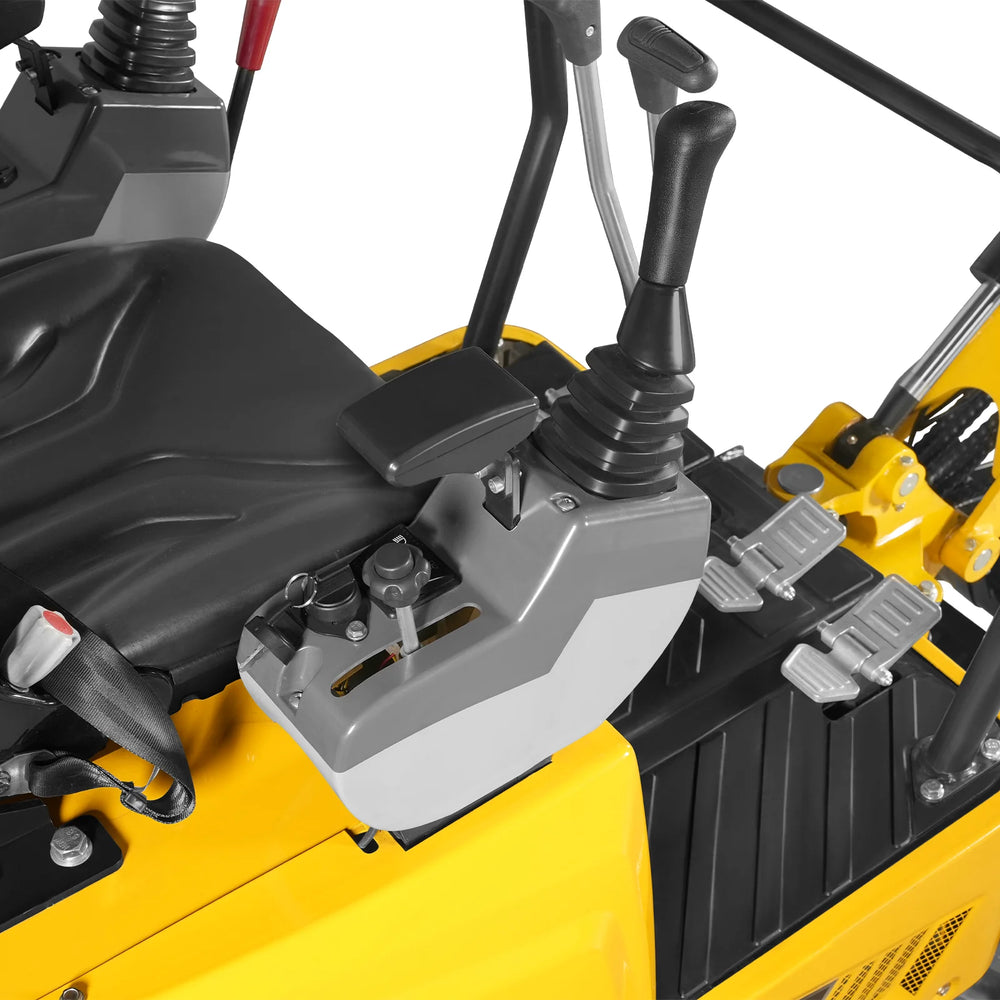

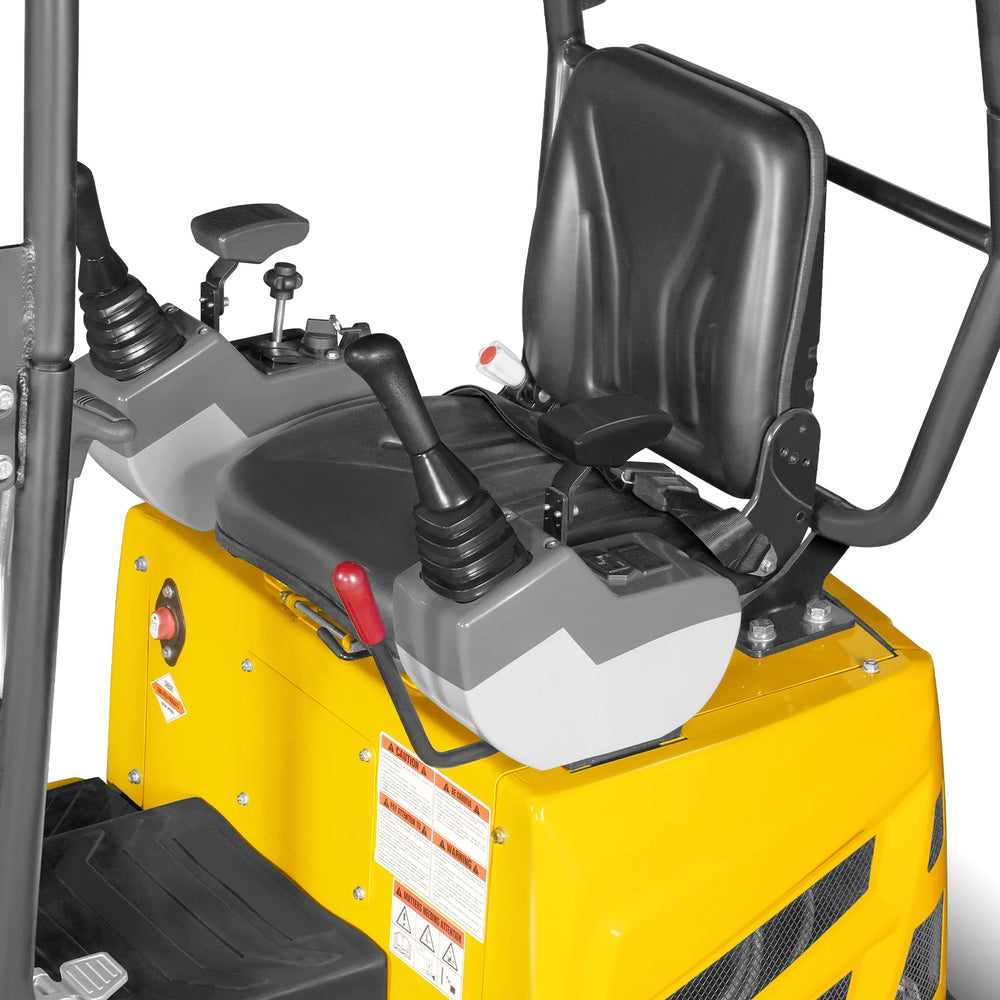

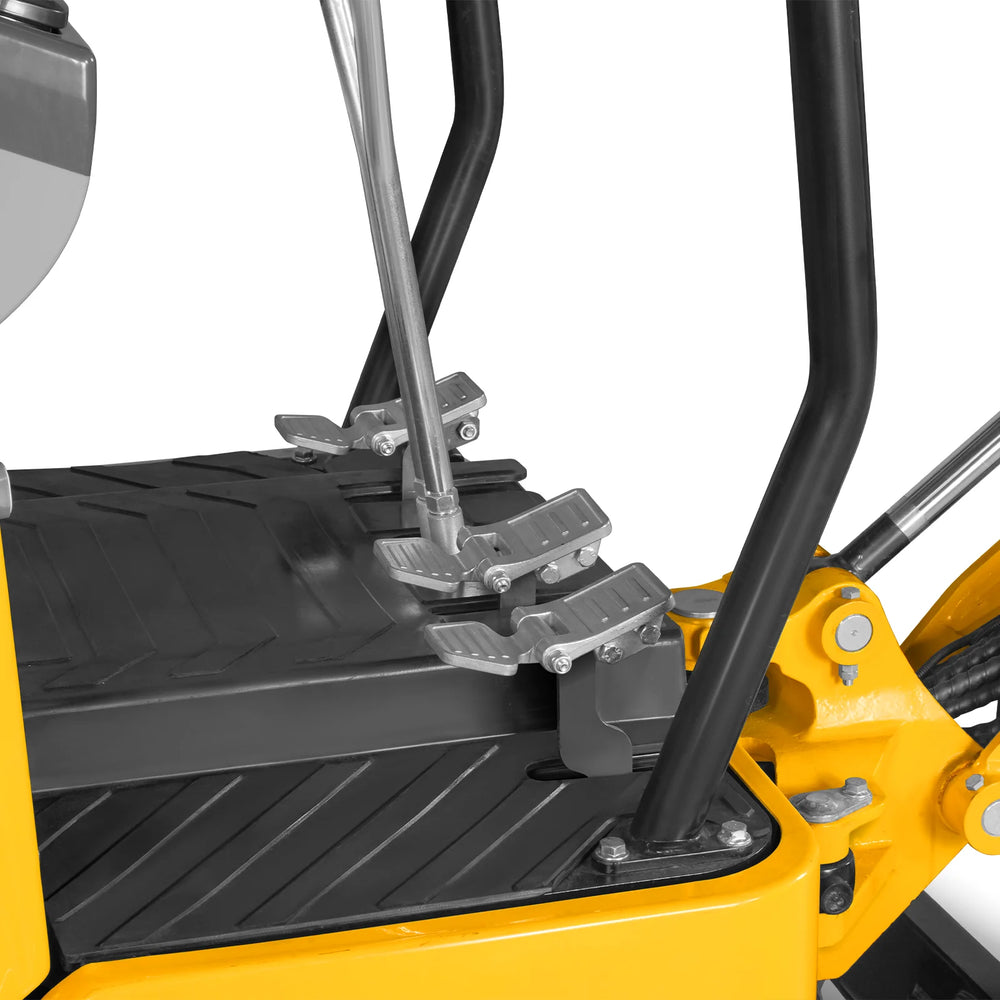

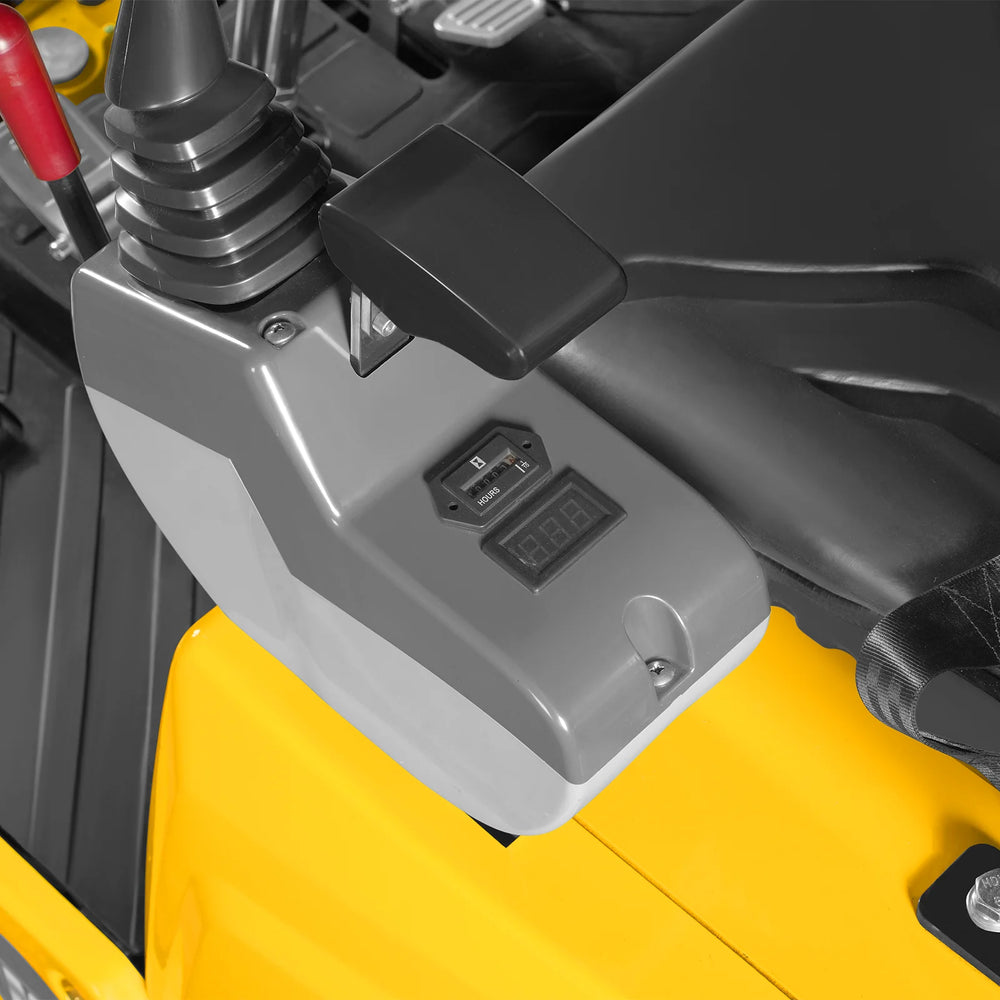

- Pilot-Operated Control: The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
- Swing Arc: The digging arm can swing left and right, turn 53 degrees to the left and 40 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.
- Digging Depth: It features an all-around 65.7-inch digging depth reach capability and a 118.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

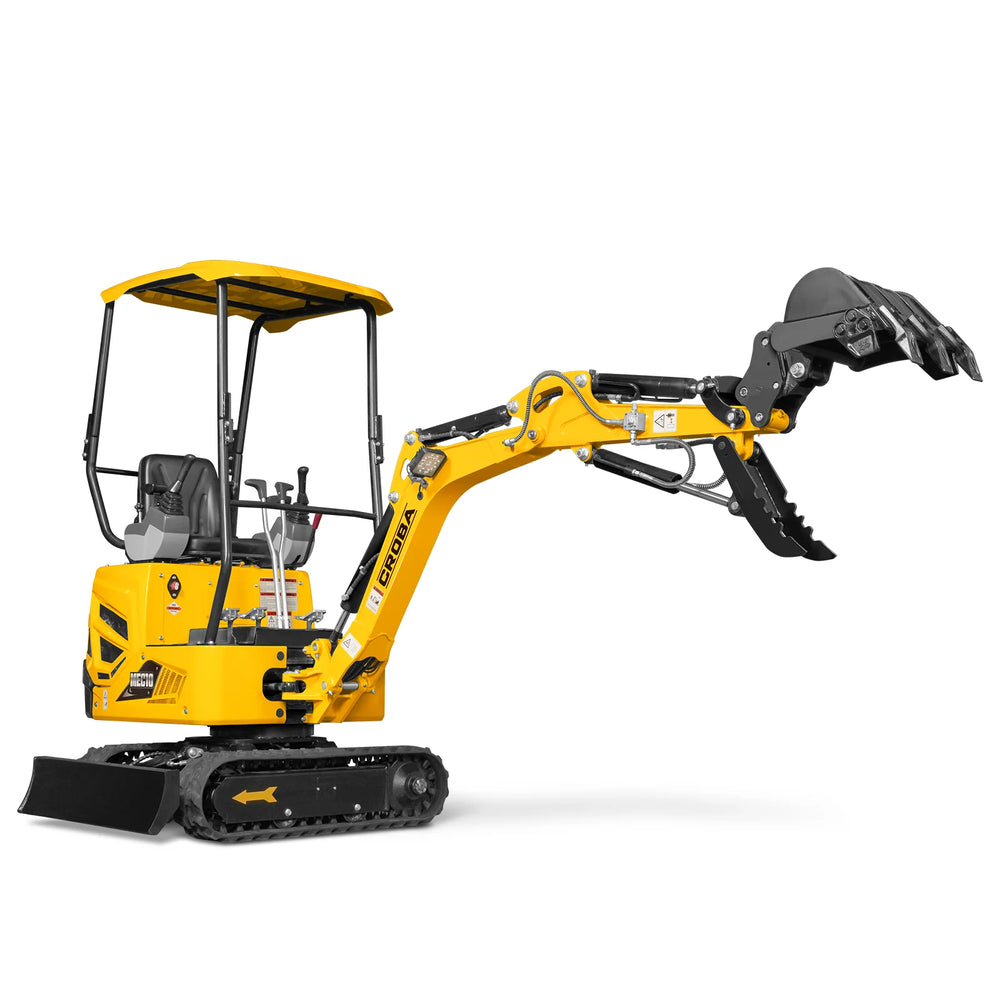

- Hydraulic Thumb: The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
- Semi-automatic Quick Hitch: The quick hitch is made of durable steel, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.
- Hydraulic Oil Radiator: Hydraulic oil radiator can cool the hydraulic oil, preventing overheating and ensuring proper system operation. It works by dissipating heat from the oil as it circulates through the system, can prevent damage to components and ensure the system's efficiency and longevity.
Specifications
| Model | Vanguard 25V000 |
| Displacement | 408cc |
| No.Of Cylinders | 1 |
| Engine Output | 14hp |
| Stroke | 2.638in |
| Warranty for Engine | 3-Year |
| Bore | 3.465in |
| Fuel Tank | 1.52 gal |
| Rated speed | 3600rpm |
| Engine Oil | 0.7gal |
| Max. Travel Speed | 0.75 mile/h |
| Ground Pressure | 5.1psi |
| Maximum Traction Force | 3035 lbf |
| Gradeability - Maximum | Maximum 30 degrees |
| Ground Clearance | 15.9in |
| Operating Weight | 2370lbs |

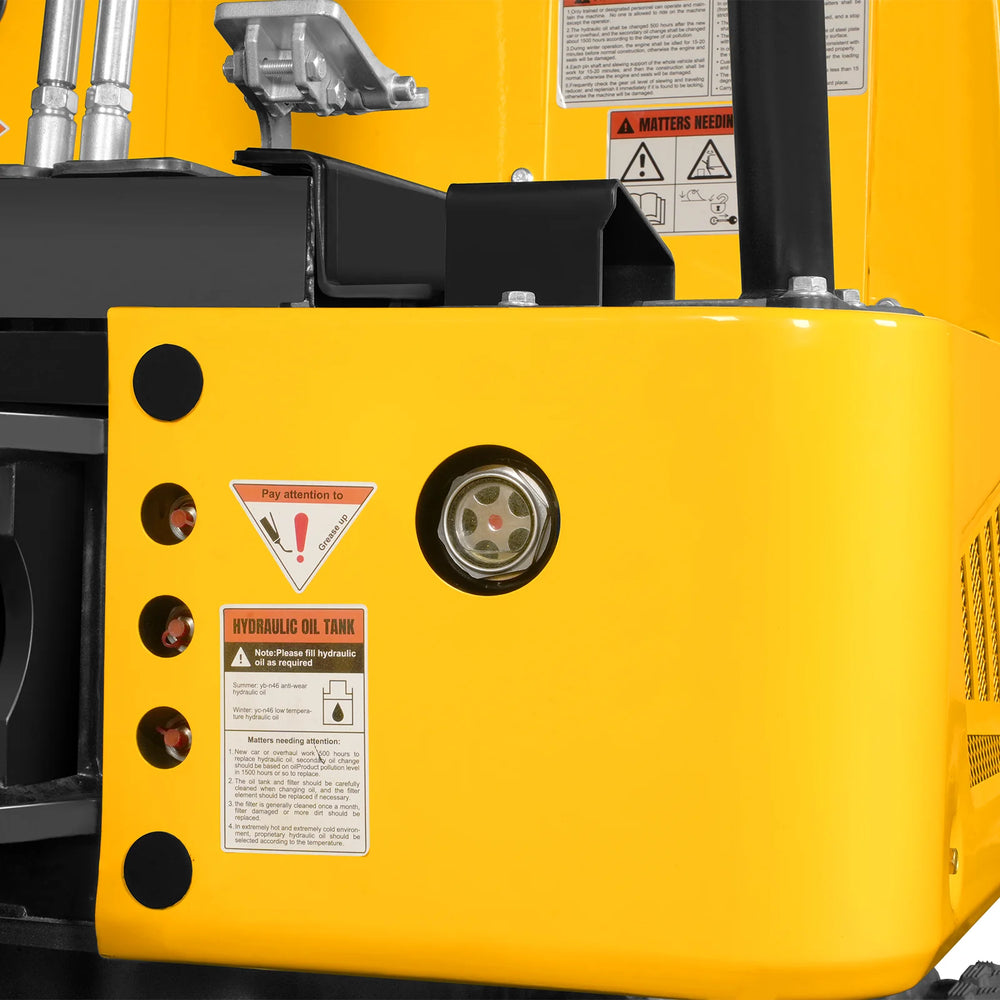

| Hydraulic Oil Tank | 3.96gal |
| Max.Discharge Flow | 4.65 gpm |
| Swing Speed | 8rpm |
| Tail Swing Radius | 32.6in |
| Bucket Digging Force | 1619 lbf |
| Arm Digging Force | 1191 lbf |
| Bucket Capacity | 0.7 ft³ |
| Bucket Width | 15 in |
| Max.Digging Height | 109 in |
| Min Turning Radius Of Working Device | 48.1in |
| Max.Dumping Height | 80 in |

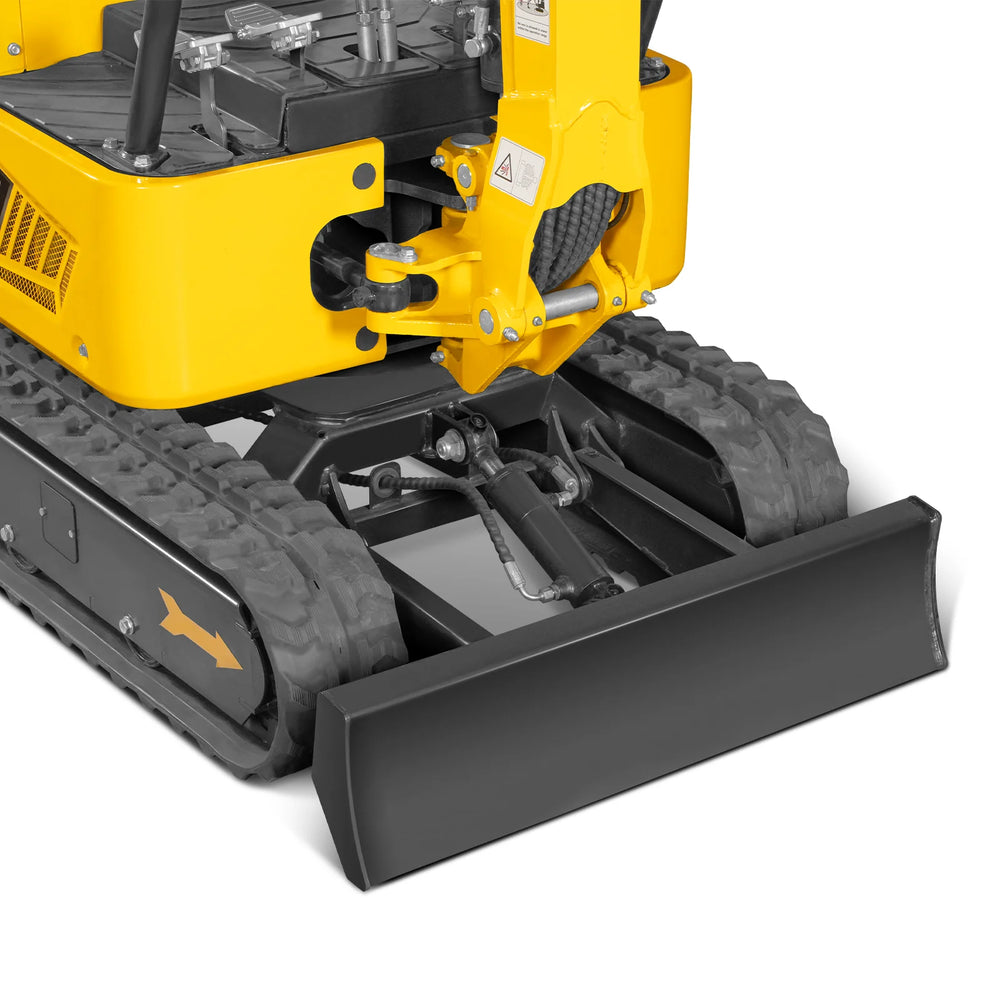

| Max. Lifting Height Dozer Blade | 5.9in |
| Max.Digging Depth | 65.7in |
| Max. Depth Dozer Blade | 7.4in |
| Max.Vertical Digging Depth | 62.6in |
| Boom Swing - Left | 53° |
| Max Digging Radius | 119in |
| Boom Swing - Right | 40° |
| Max.digging Radius At Ground Level | 118.7in |
| Transportation Length | 82in/115in |
| Crawler Wheel Base | 36in |
| Overall Width | 37in |
| Track Belt/Shoe Width | 7in |
| Overall Height（To Top Of Cab） | 88.5in |
| Track Length | 48.5in |
| Counter Weight Ground Clearance | 16in |
| Track Width | 37in |
| Package Method | Wood Case |
| Warranty for Machine | 1 Year |
| Packing Size | 91x40x98 in |
| Weight (N.W./G.W.) | 2180/2440 lbs |
