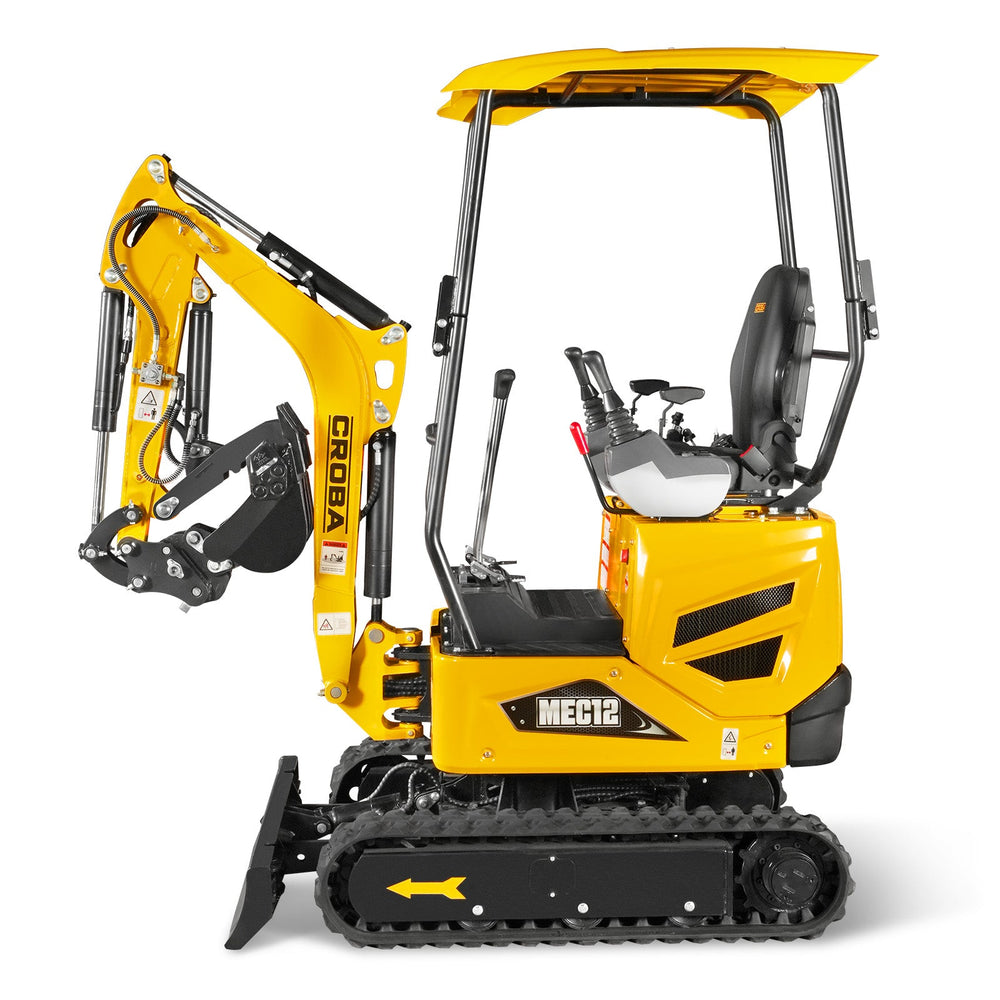

MechMaxx MEC12 Mini Excavator Kubota D722 Engine 65.7

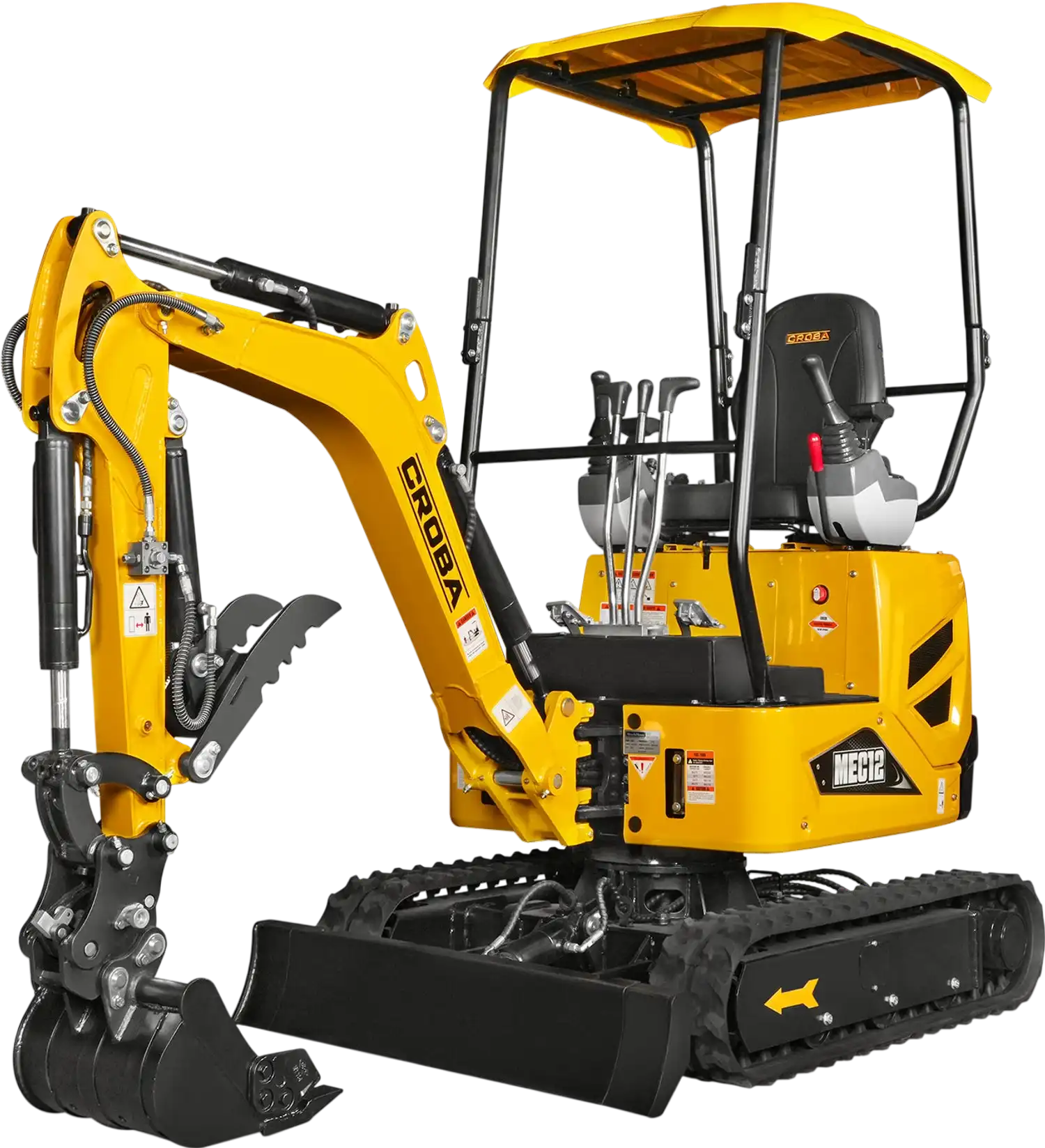

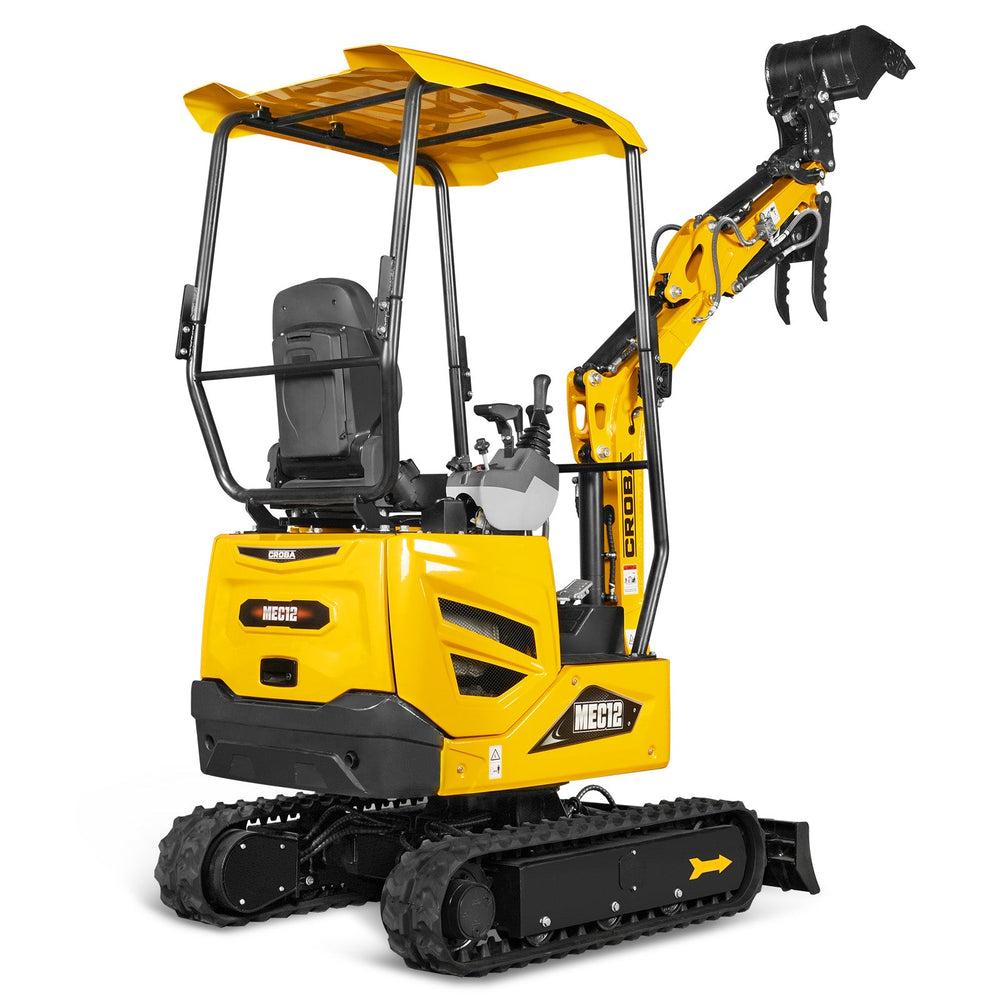

MechMaxx MEC12 Mini Excavator Kubota D722 Engine 65.7" Max Digging Depth 1.2 Ton 2700 lbs Operating Weight New

Product Overview

  • MEC12 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
  • Powered by Kubota D722 air-cooled engine, high compression ratio for better fuel efficiency.
  • Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
  • It features a retractable and extendable track system, allowing the operator to easily adjust the track width for enhanced stability on uneven terrain or to fit through narrow passages.
  • The excavator is equipped with two-speed travel modes (high and low speed), offering excellent maneuverability and productivity—whether you need precision control for delicate work or faster movement across the job site.
  • For operator comfort, it comes with a high-back seat that provides excellent support during long working hours, reducing fatigue and improving overall efficiency.
  • The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
  • 65.7-inch digging depth reach capability and a 118.7in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
  • Hydraulic thumb included, convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
  • Can rotate 360 degrees.




Note!

  • The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

Factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, IL, & TX

checkmark

Authorized MechMaxx dealer

Features

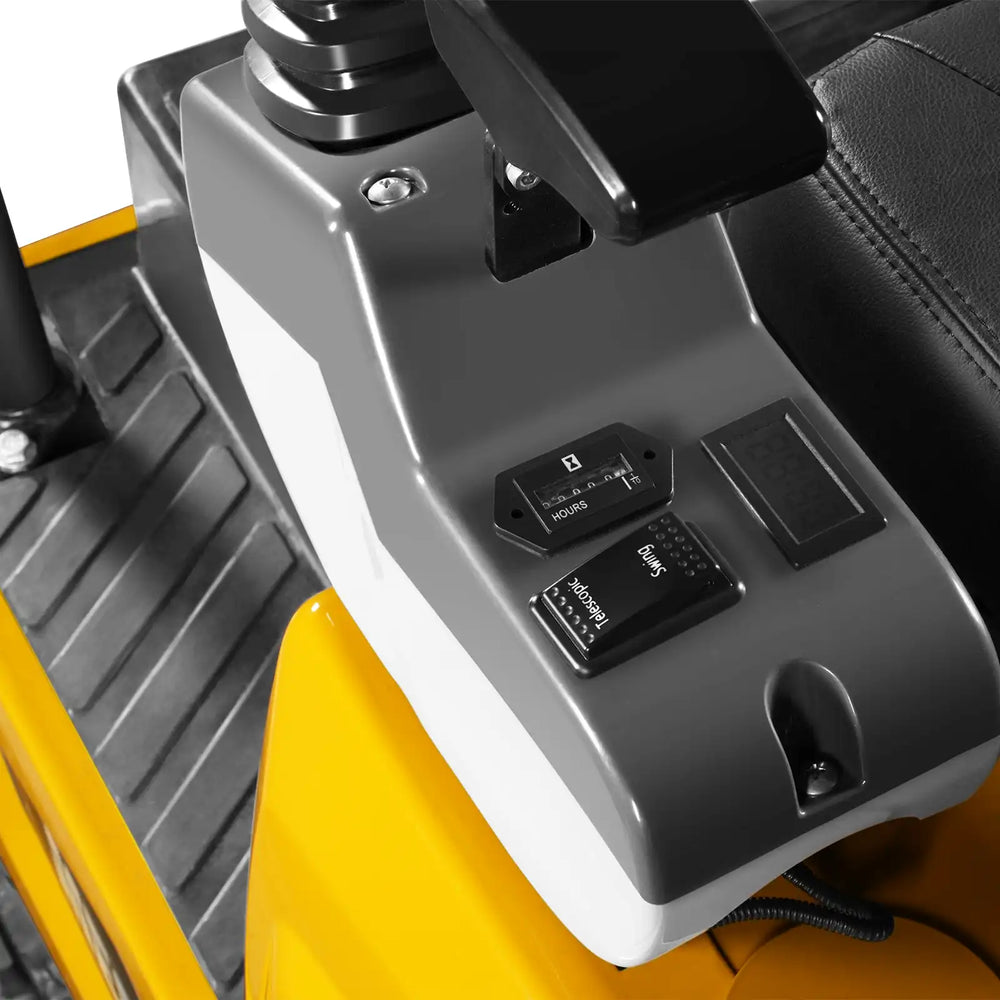

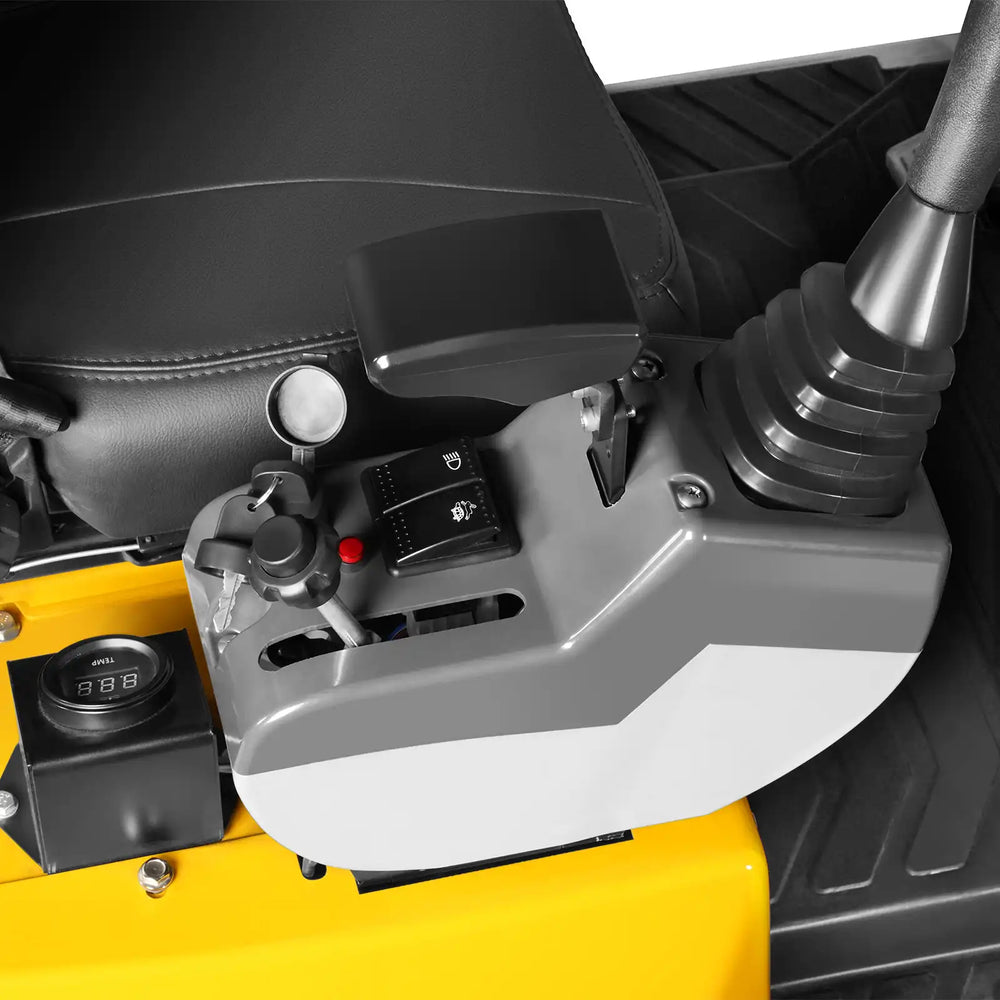

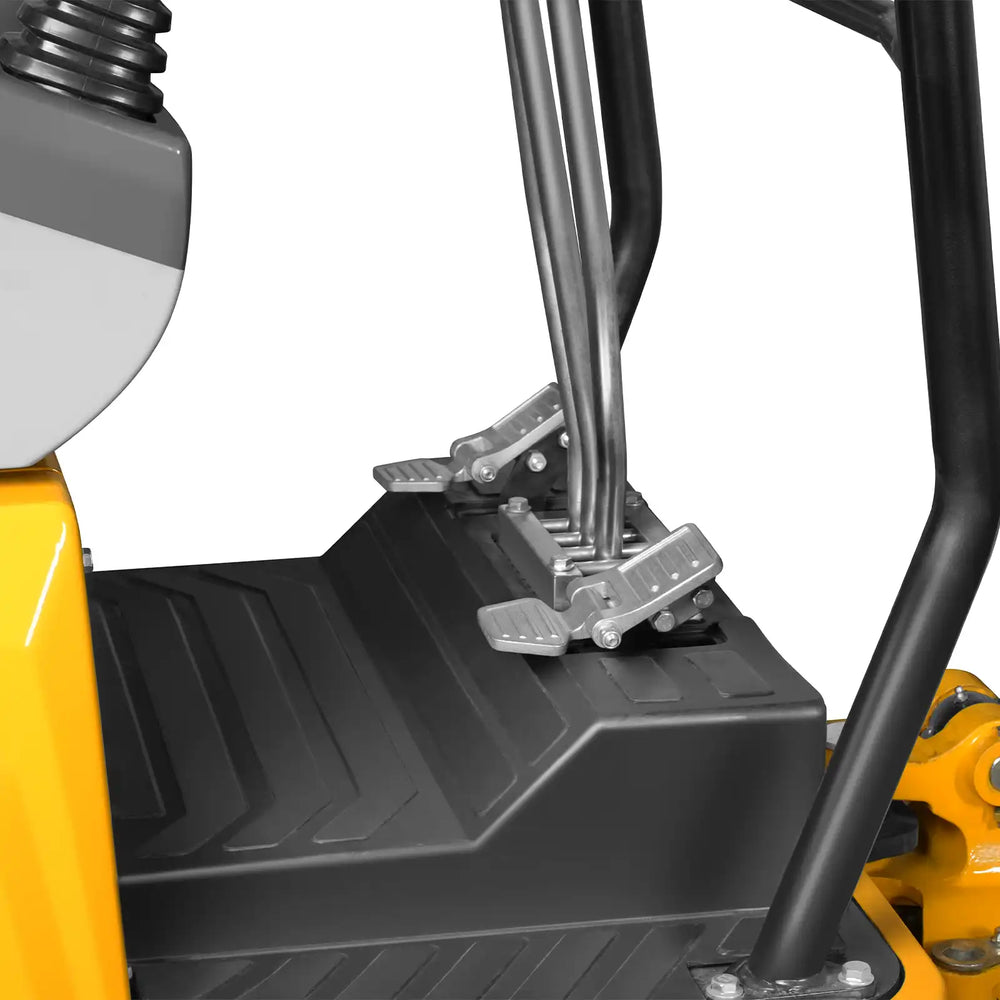

  • Pilot-Operated Control: The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
  • High and Low Speed: The excavator is equipped with two-speed travel modes (high and low speed), offering excellent maneuverability and productivity—whether you need precision control for delicate work or faster movement across the job site.
  • Swing Arc: The digging arm can swing left and right, turn 53 degrees to the left and 40 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.
  • Digging Depth: It features an all-around 65.7-inch digging depth reach capability and a 121.2-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

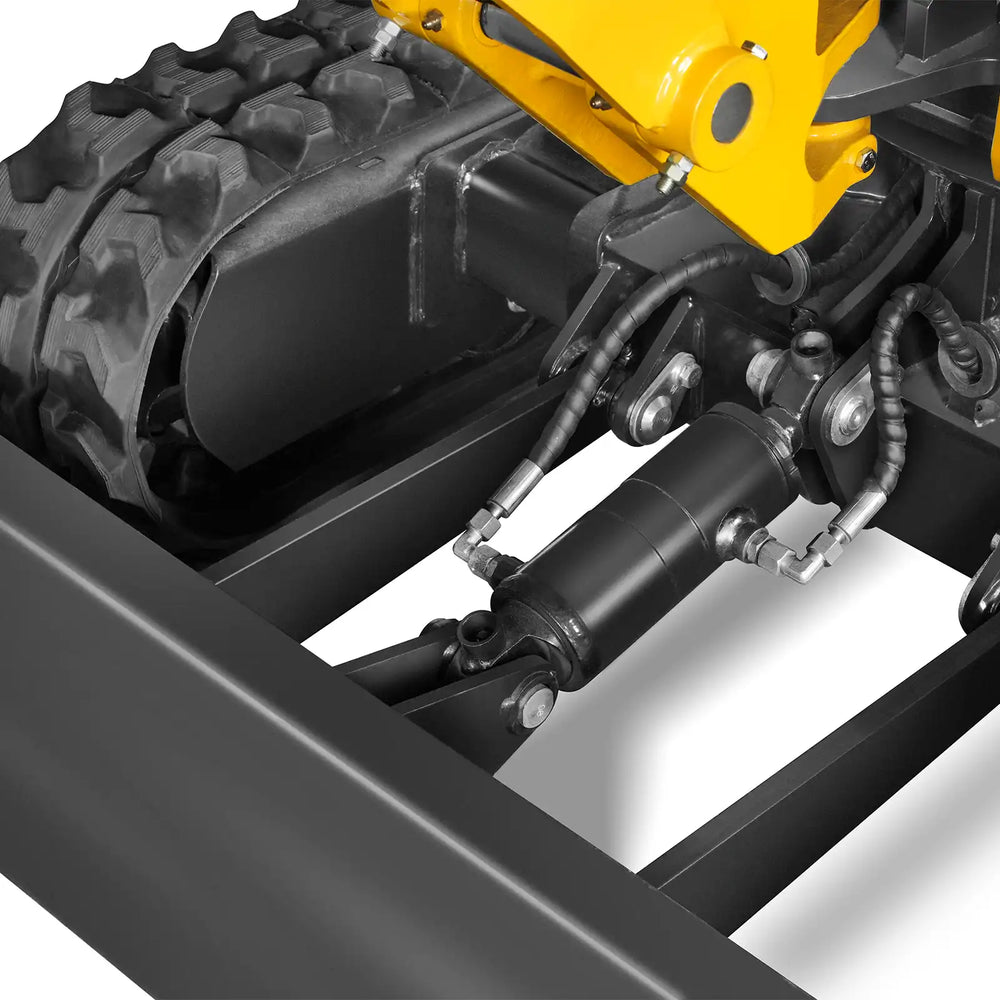

  • Track Retractable Function: It features a retractable and extendable track system, allowing the operator to easily adjust the track width for enhanced stability on uneven terrain or to fit through narrow passages.

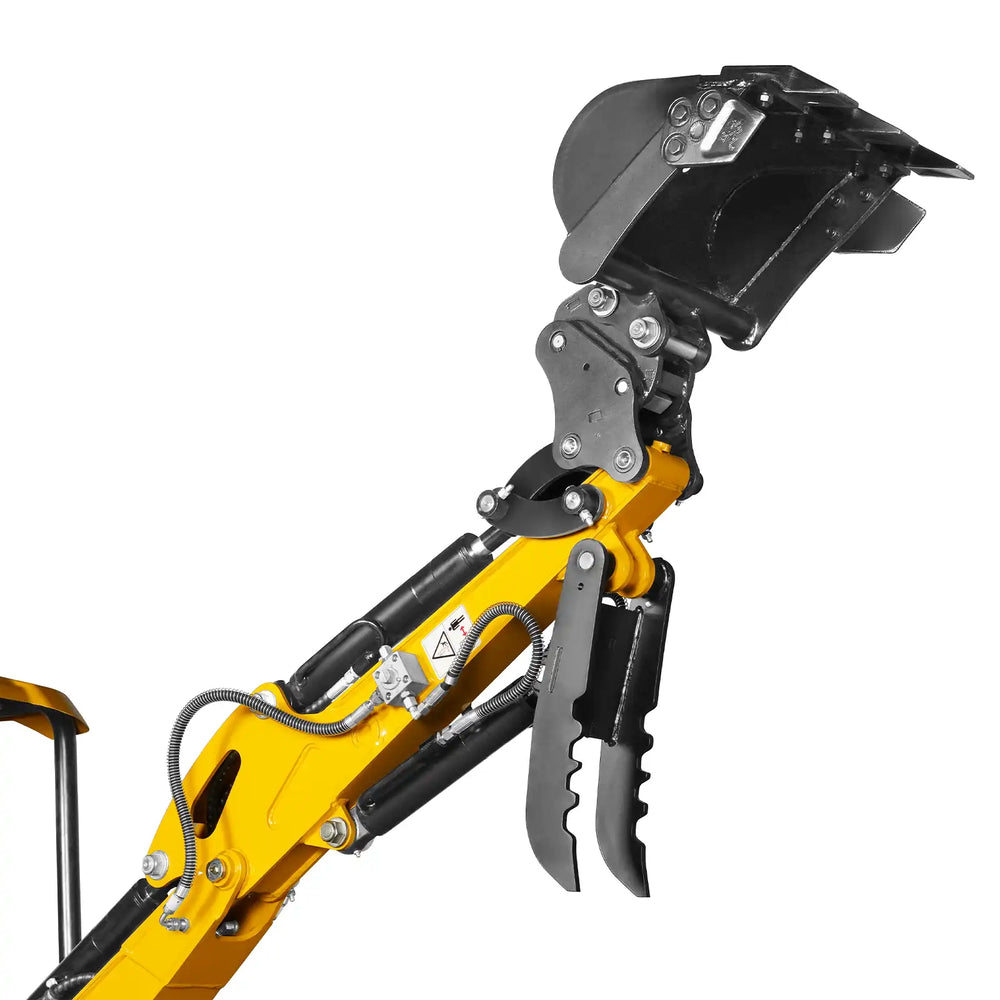

  • Hydraulic Thumb: The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.

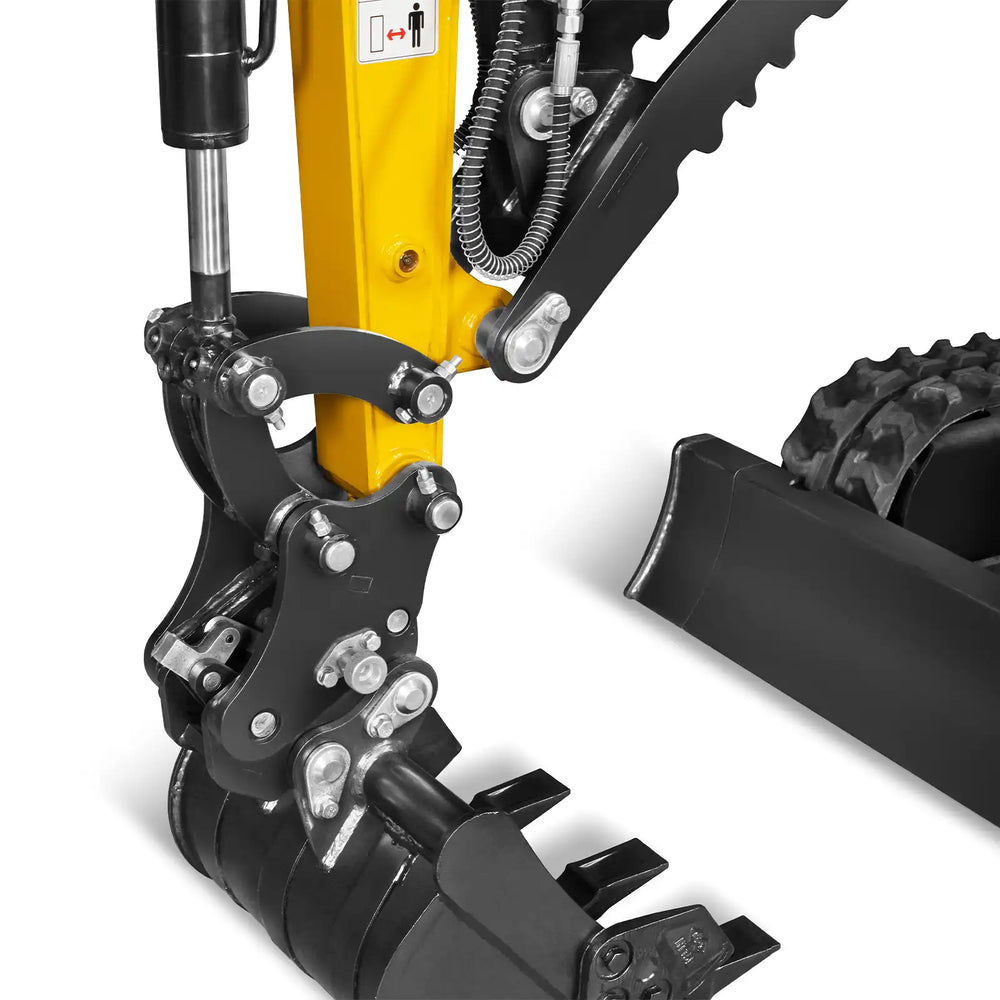

  • Semi-automatic Quick Hitch: The quick hitch is made of durable steel, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.
  • High-Back Seat: For operator comfort, it comes with a high-back seat that provides excellent support during long working hours, reducing fatigue and improving overall efficiency.

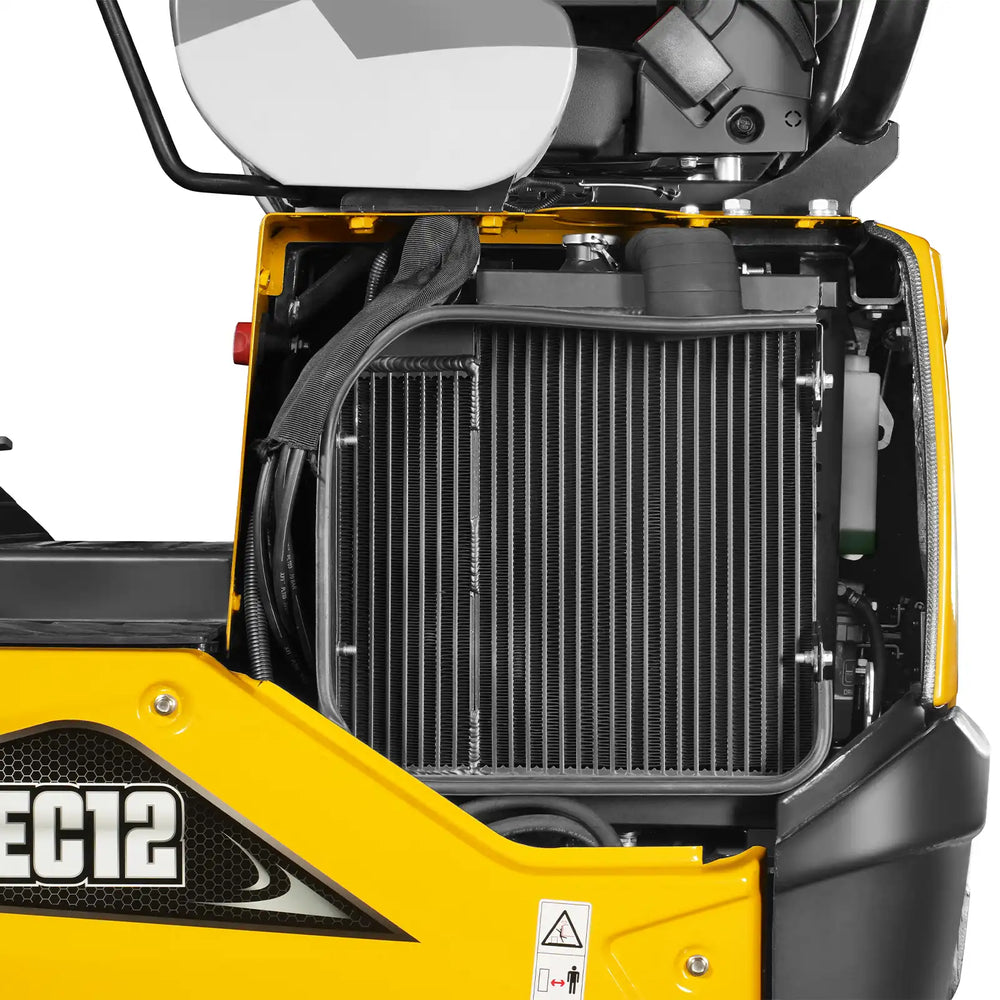

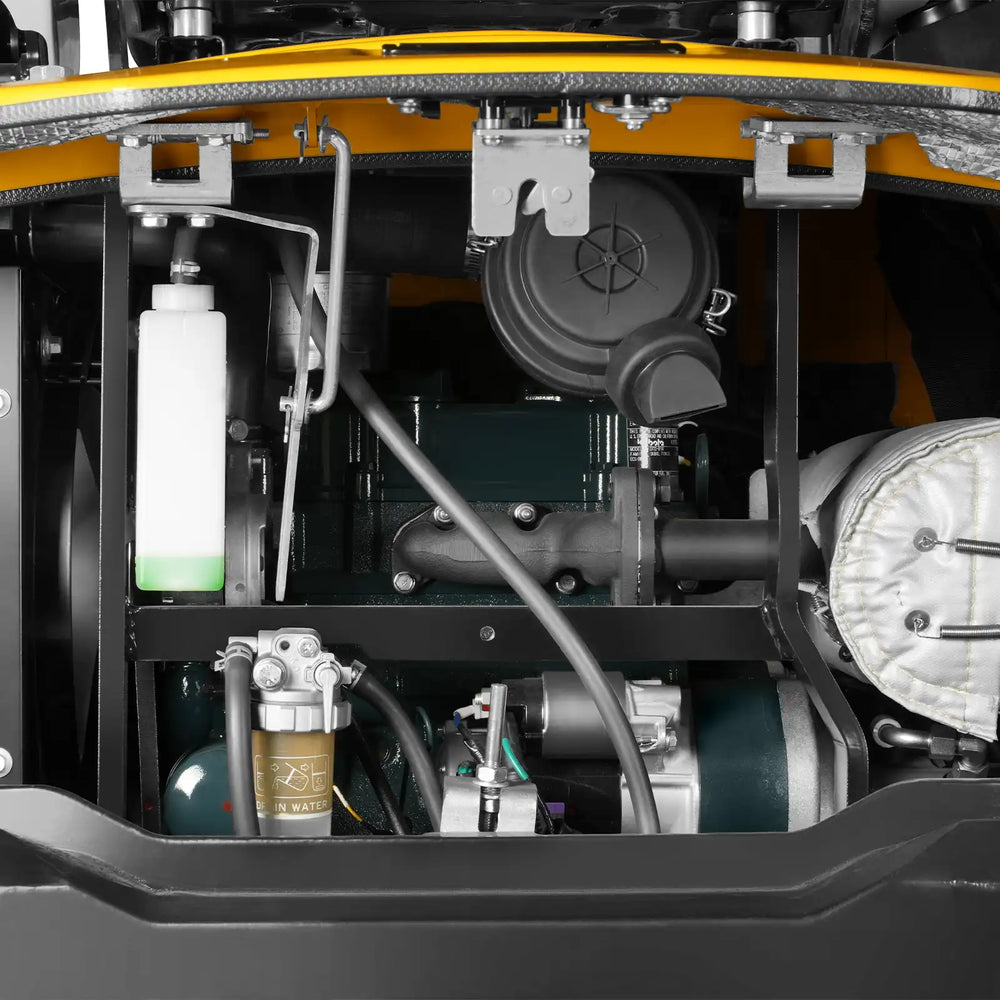

  • The Hydraulic Oil Radiator: Engine compartment design allows the operator to avoid noise during work. The hydraulic oil radiator and engine shaft end fan perfectly reduce the temperature of the console to within 104.0 °F.

Specifications

Model Kubota D722
Rated speed 2500rpm
No.Of Cylinders 3
Displacement 43.88in³
Stroke 2.68in
Engine Output 13.7hp
Bore 2.64in
Warranty for Engine 2-Year
Travel Speed - High 2.24 mile/h
Ground Clearance 15.9in
Travel Speed - Low 1.12 mile/h
Ground Pressure 5.1psi
Maximum Traction Force - Low Speed 2923lbf
Gradeability - Maximum Maximum 30 degrees
Operating Weight 2700lb
Type Load Sensing Hydraulics with Variable Displacement Piston Pump
Max.Discharge Flow 4.65 gpm
Swing Speed 8rpm
Tail Swing Radius 48.1in
Boom Length 52in
Bucket Digging Force 1960lbf
Arm length 35in
Arm Digging Force 875lbf
Fuel Tank 2.4gal
Hydraulic Oil Tank 3.2gal
Cooling System 1.1gal
System Capacity 4.8gal
Engine Oil 0.7gal
Bucket Capacity 0.7 ft³
Bucket Width 15 in
Max.Digging Height 111.2in
Min Turning Radius Of Working Device 48.1in
Max.Dumping Height 81.1in
Max. Lift Above Ground 5.5in
Max.Digging Depth 65.7in
Max. Drop Below Ground 8.9in
Max.Vertical Digging Depth 62.6in
Boom Swing - Left 53°
Max Digging Radius 119in
Boom Swing - Right 40°
Max.digging Radius At Ground Level 118.7in
Transportation Length 92.4in/114.8in
Crawler Wheel Base 42.5in
Overall Width (Retracted/Expanded) 42.7 in
Track Belt/Shoe Width 7in
Overall Height(To Top Of Cab) 89.5in
Track Length 55.5in
Counter Weight Ground Clearance 16.7in
Track Width(Retracted/Expanded) 34.6 in/42.7 in
Ground Clearance 15.9in
Package Method Wood Case
Warranty for Machine 1 Year
Packing Size 91x40x98 in
Weight (N.W./G.W.) 2700/2978 lb
