MechMaxx MEC17 Mini Excavator Compact Kubota D902 Engine 89

MechMaxx MEC17 Mini Excavator Compact Kubota D902 Engine 89" Max Digging Depth 1.7 Ton 4145 lbs Operating Weight New

Product Overview

  • MEC17 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
  • Powered by Kubota D902 engine, high compression ratio for better fuel efficiency.
  • Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
  • It features a retractable and extendable track system, allowing the operator to easily adjust the track width for enhanced stability on uneven terrain or to fit through narrow passages.
  • The excavator is equipped with two-speed travel modes (high and low speed), offering excellent maneuverability and productivity—whether you need precision control for delicate work or faster movement across the job site.
  • For operator comfort, it comes with a high-back seat that provides excellent support during long working hours, reducing fatigue and improving overall efficiency.
  • The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
  • 89.3in digging depth reach capability and 151.3in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
  • Hydraulic thumb included, convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
  • Can rotate 360 degrees.




Note!

  • The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

Factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, IL, & TX

checkmark

Authorized MechMaxx dealer

Features

  • Pilot-Operated Control: The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
  • Zero-Tail Swing: With zero-tail swing, adjustable undercarriage, and boom swing function, this mini excavator delivers unmatched maneuverability and precision — even in the most confined job sites.
  • High and Low Speed: The excavator is equipped with two-speed travel modes (high and low speed), offering excellent maneuverability and productivity—whether you need precision control for delicate work or faster movement across the job site.
  • Swing Arc: The digging arm can swing left and right, turn 65 degrees to the left and 50 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.
  • Digging Depth: It features an all-around 89-inch digging depth reach capability and a 154-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
  • Track Retractable Function: It features a retractable and extendable track system, allowing the operator to easily adjust the track width for enhanced stability on uneven terrain or to fit through narrow passages.
  • Hydraulic Thumb: The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.

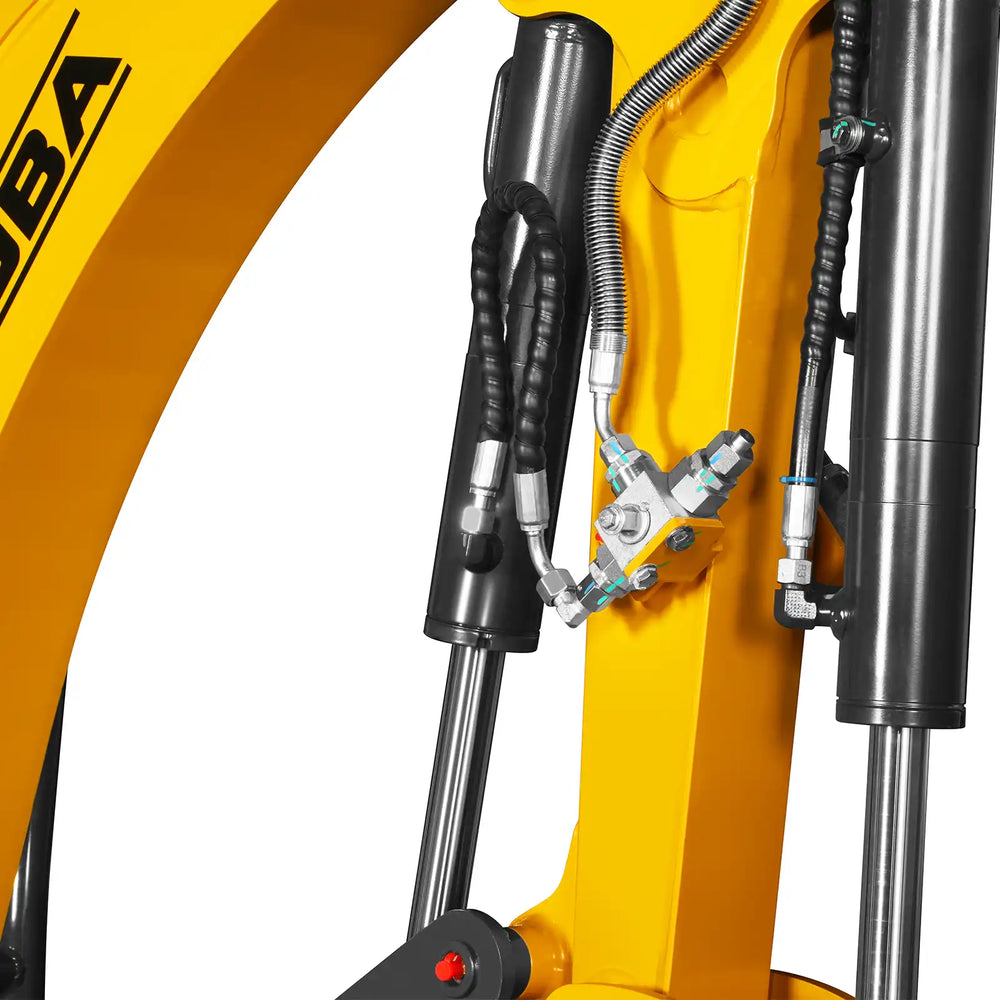

  • Gates Hydraulic Hoses &Protected Hydraulic System: Equipped with high-quality, Gates hoses for exceptional durability, reliability, and long-lasting performance. Built-in hydraulic hoses are safely enclosed to prevent damage during tough construction work — keeping your projects running smoothly.
  • Control Switch: Designed with left-handed operators in mind — simply twist the knob to reverse joystick controls, allowing seamless left- or right-hand operation with ease and comfort.
  • Semi-Automatic Quick Hitch: The quick hitch is made of durable steel, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.
  • High-Back Seat: For operator comfort, it comes with a high-back seat that provides excellent support during long working hours, reducing fatigue and improving overall efficiency.
  • Smart LCD Display: Stay in control with an intuitive LCD screen that makes operation simpler, smarter, and more efficient.

Specifications

Model Kubota D902
Rated speed 2300rpm
No.of Cylinders 3
Displacement 54.8in
Stroke 2.9in
Engine Output - Net 15.8hp
Bore 2.83in
Warranty For Engine 2-Year or 2,000-Hour Warranty, Whichever Comes First.
Track Roller Qty 6
Maximum Traction Force - Low Speed 4047lbf
Type of tracks Rubber
Ground Clearance 5.7in
Travel Speed - High 2.67 mile/h
Ground Pressure 4.2psi
Travel Speed - Low 1.37 mile/h
Gradeability - Maximum Maximum 30 degrees
Operating Weight 4145lb
Pump Flow at 2,300 rpm 17gpm
Auxiliary Circuit - Primary - Flow 9.1gpm
Swing Motor Danfoss
Swing Speed 9.5rpm
Swing Motor Type SW2.5K
Tail Swing Radius 25.6in
Boom Length 72in
Bucket Digging Force 3597lbf
Arm length 37.4in
Arm Digging Force 2136lbf
Fuel Tank 5gal
Hydraulic Oil Tank 3.6gal
Engine Oil 1gal
System Capacity 5.7gal
Bucket Capacity 1.4ft³
Bucket Width 17.7in
Max.Digging Height 141in
Min Turning Radius Of Working Device 57in
Max.Dumping Height 98in
Max. Lift Above Ground 11in
Max.Digging Depth 89in
Max. Drop Below Ground 7.5in
Max.Vertical Digging Depth 75in
Boom Swing - Left 65°
Max Digging Radius 154in
Boom Swing - Right 50°
Max.digging Radius At Ground Level 151in
Overall Length 133in
Blade Height 11.8in
Ground Contact Length (Transportation) 96in
Crawler Wheel Base 48.4in
Overall Width (Retracted/Expanded) 39/51in
Shoe Width 9.1in
Overall Height(To Top Of Cab) 94.7in
Track Length 62.7in
Counter Weight Ground Clearance 18in
Track Gauge(Retracted/Expanded) 30/42in
Ground Clearance 5.7in
Track Width(Retracted/Expanded) 39/51in
Blade Width(Retracted/Expanded) 39/51in
Package Method Wood Case
Warranty For Machine 1 Year
Packing Size 112.6x43.7x99.2 in
Weight (N.W./G.W.) 3968/4508lb
