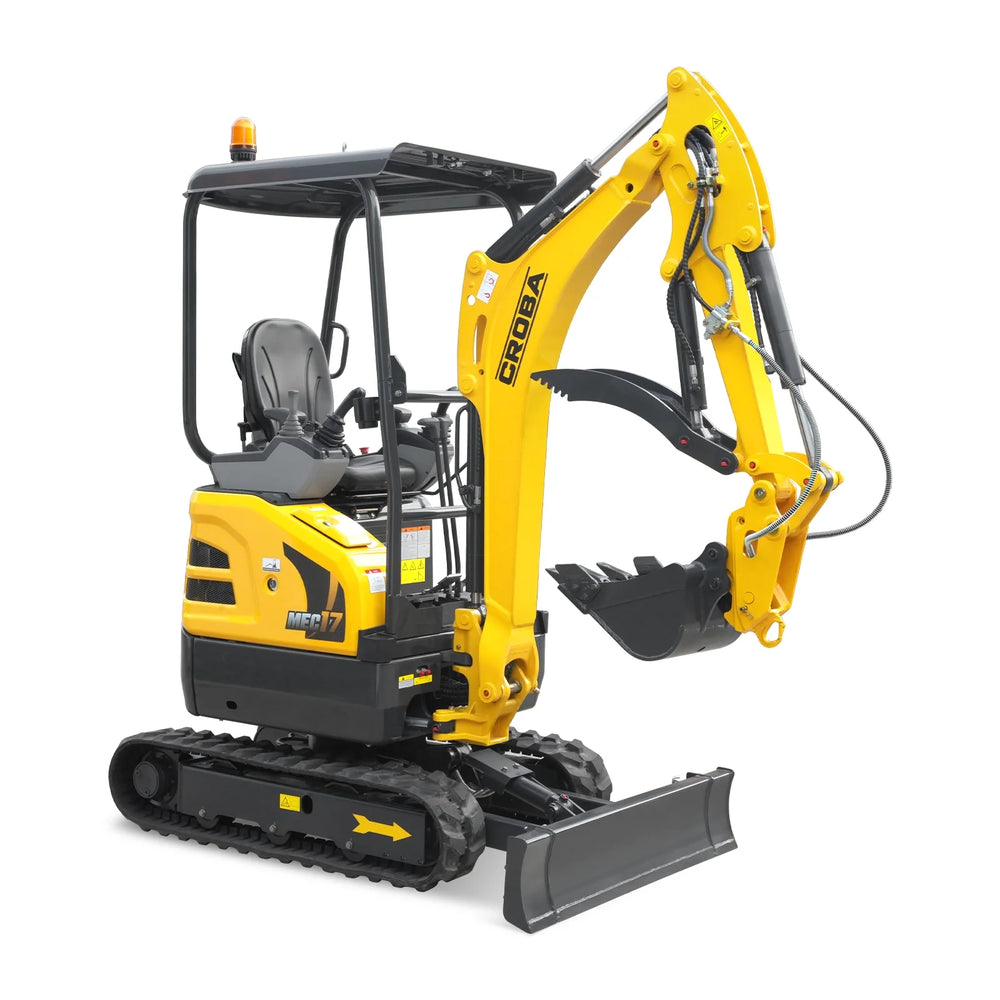

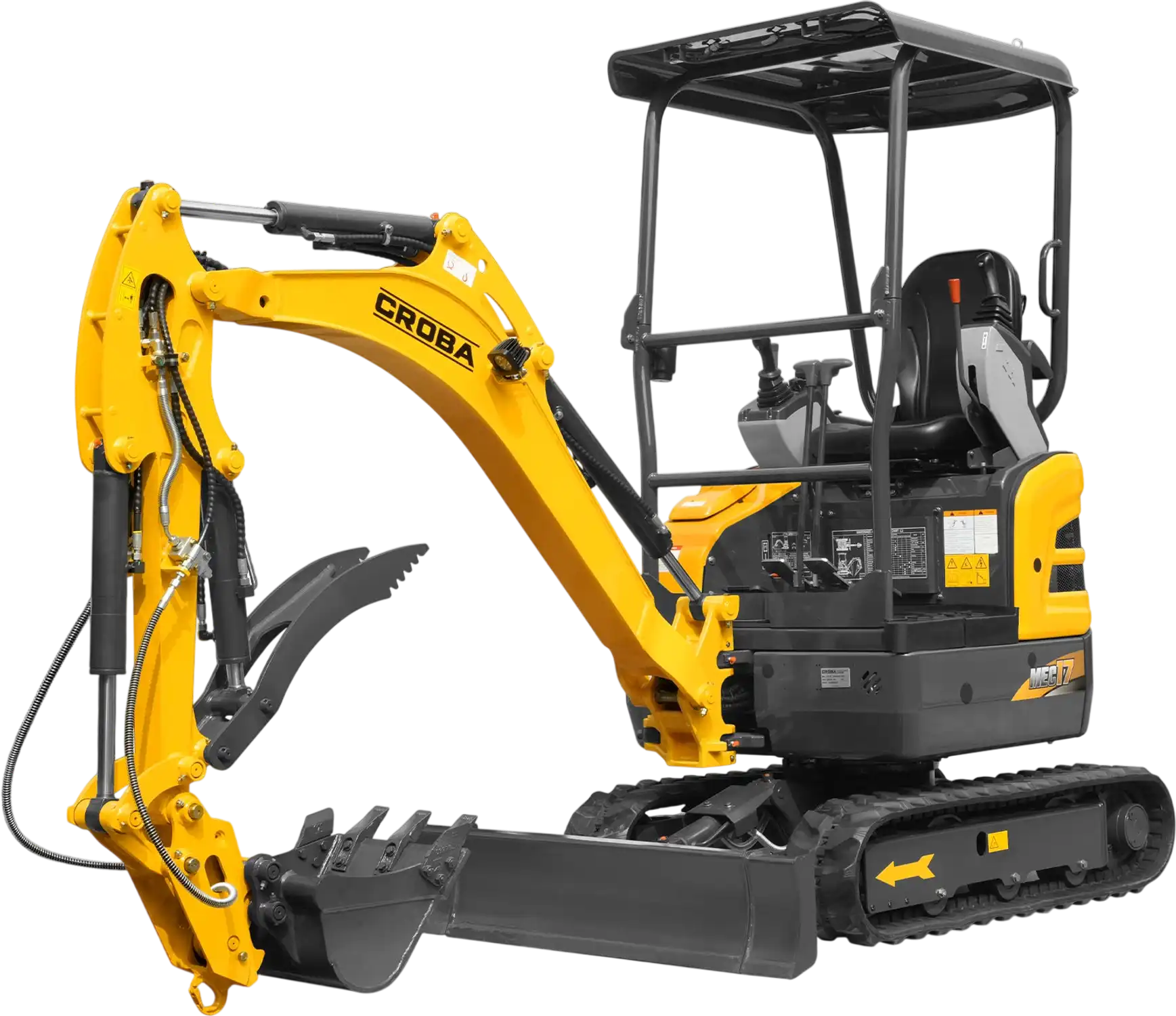

MechMaxx MEC17 Mini Excavator Compact Kubota D902 Engine 95" Max Digging Depth 1.7 Ton 4190 lbs Operating Weight New
Manufacturer: MechMaxx
SKU: 150534
Model Options
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 29,999.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Exceptional Customer Service
Authorized Dealer

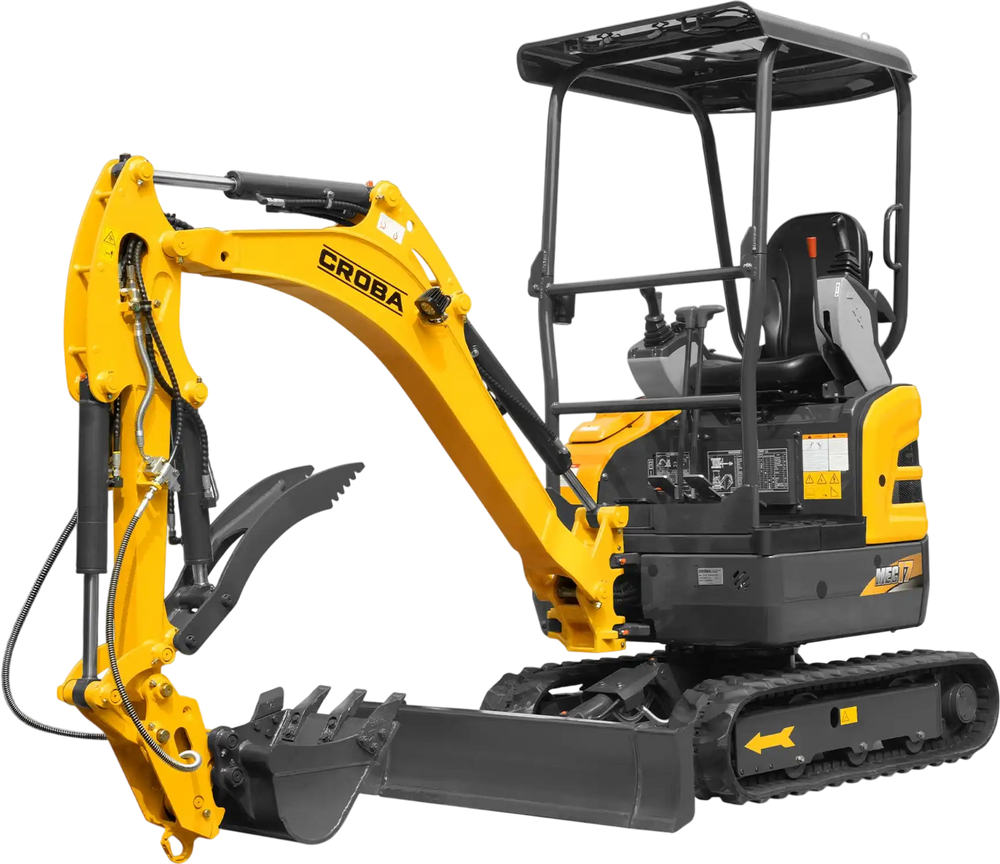

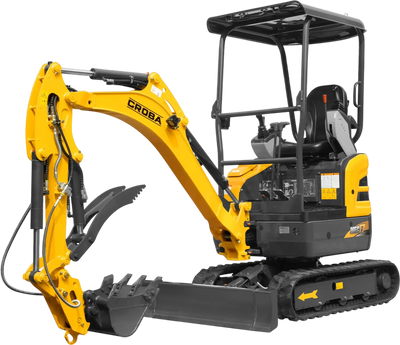

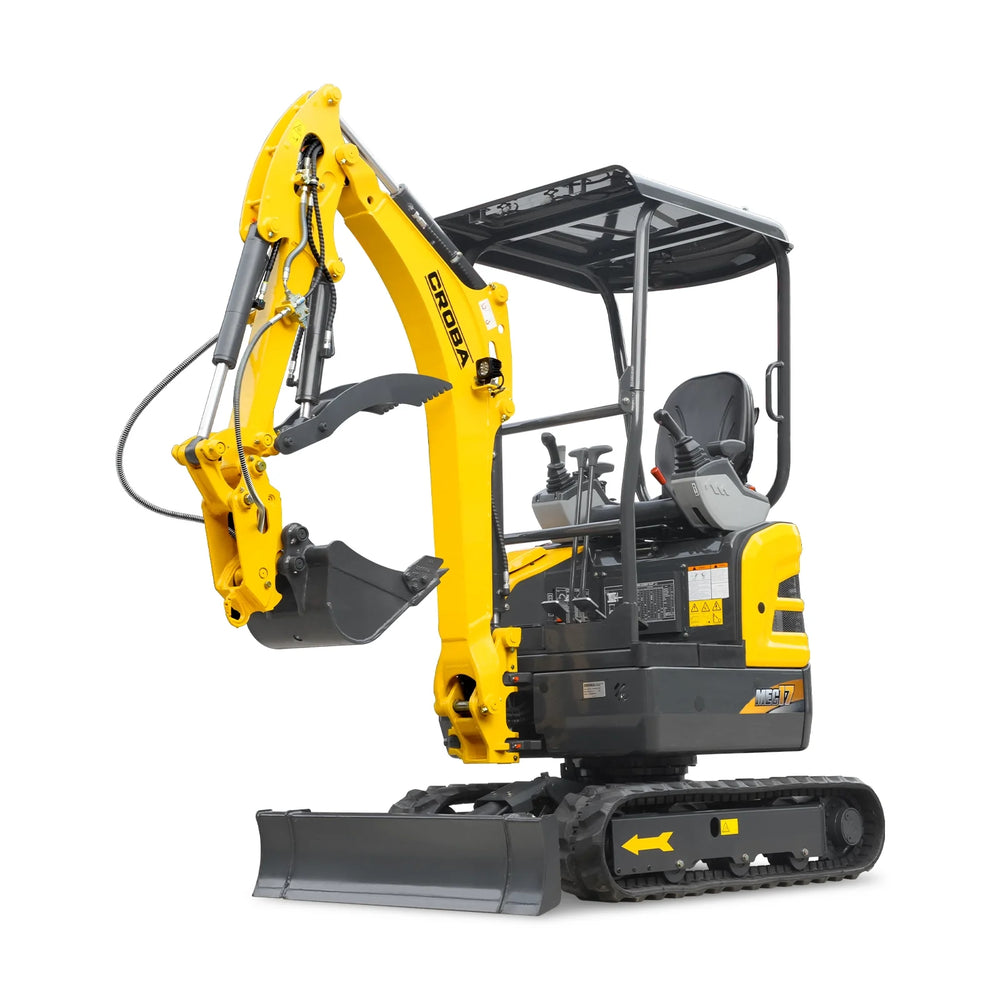

MechMaxx MEC17 Mini Excavator Compact Kubota D902 Engine 95" Max Digging Depth 1.7 Ton 4190 lbs Operating Weight New
Product Overview
- MEC17PRO is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.

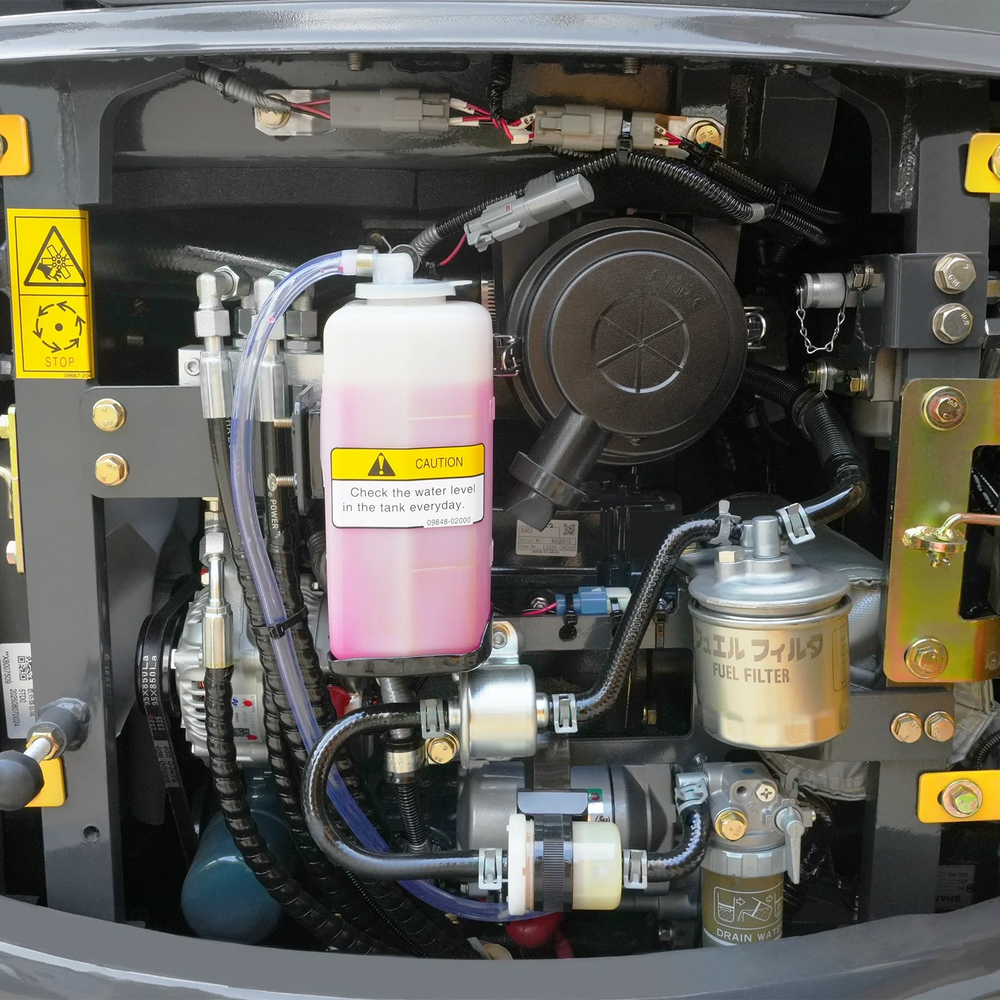

- Powered by Kubota D902 engine, high compression ratio for better fuel efficiency.
- Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
- It features a retractable and extendable track system, allowing the operator to easily adjust the track width for enhanced stability on uneven terrain or to fit through narrow passages.
- The excavator is equipped with two-speed travel modes (high and low speed), offering excellent maneuverability and productivity—whether you need precision control for delicate work or faster movement across the job site.
- For operator comfort, it comes with a high-back seat that provides excellent support during long working hours, reducing fatigue and improving overall efficiency.
- The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
- Zero-tail swing design with adjustable undercarriage and boom swing function ensures excellent maneuverability and full coverage in confined spaces.
- Equipped with an LCD display for easy operation and real-time monitoring.
- Built-in hydraulic hoses effectively prevent damage from impacts during construction.
- Features durable, Gates hydraulic hoses for reliable performance and long service life.
- 90in digging depth reach capability and 157in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
- Hydraulic thumb included, convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
- Can rotate 360 degrees.
Note！
- The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

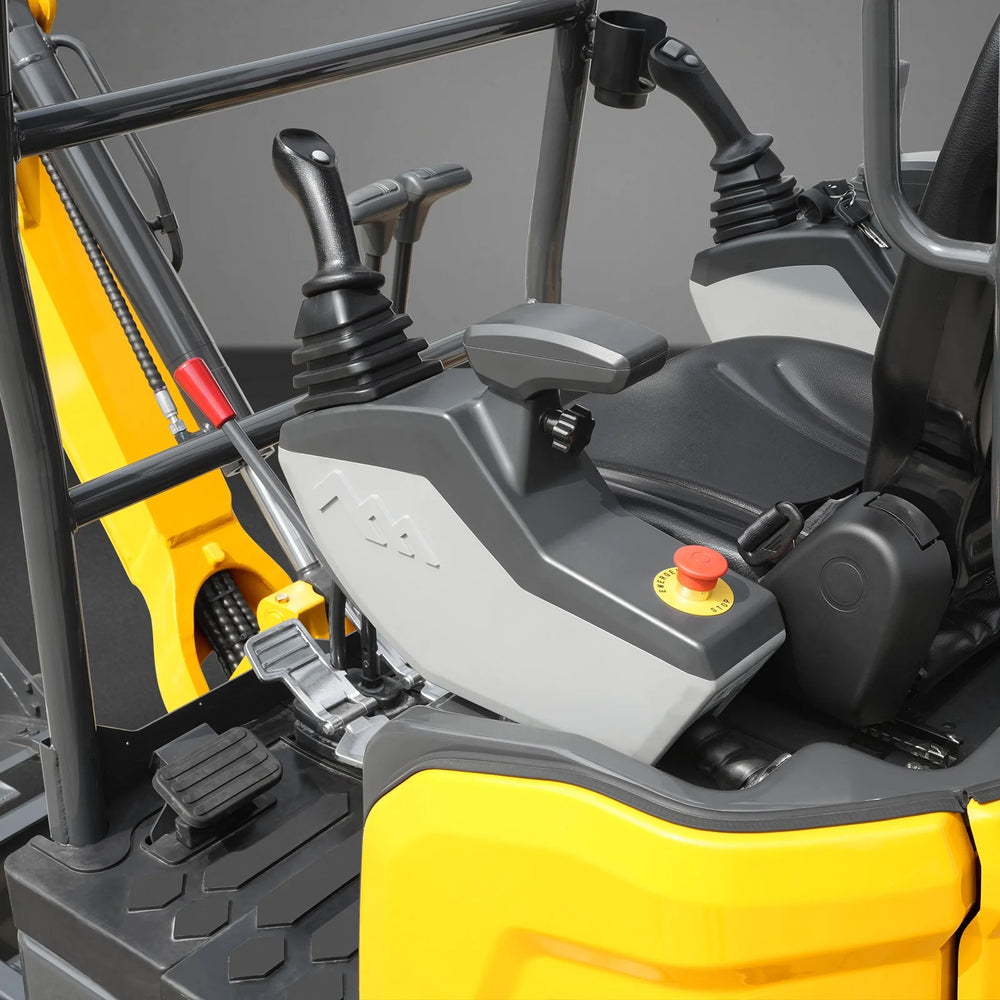

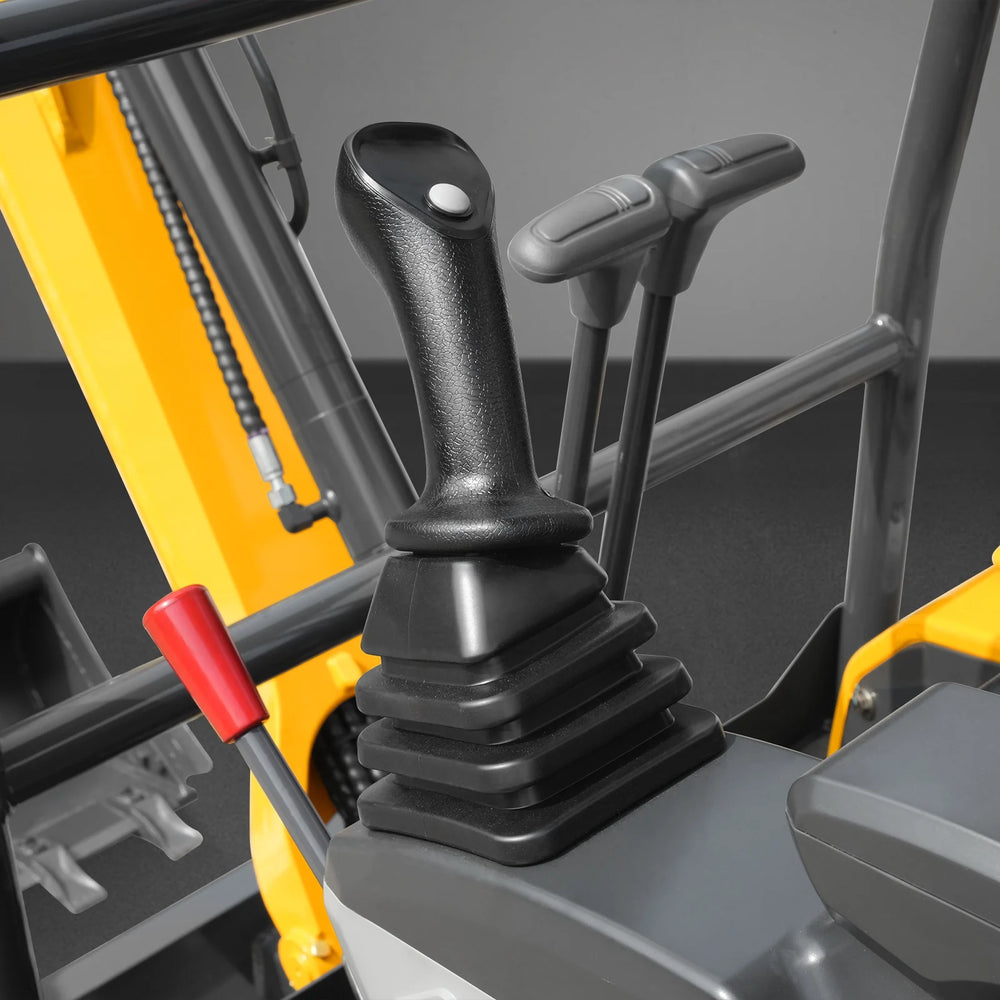

- Pilot-Operated Control: The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods. The pulsator handle is a vital control component designed to regulate hydraulic flow and manage precise machine operations.
- Zero-Tail Swing: With zero-tail swing, adjustable undercarriage, and boom swing function, this mini excavator delivers unmatched maneuverability and precision — even in the most confined job sites.
- High and Low Speed: The excavator is equipped with two-speed travel modes (high and low speed), offering excellent maneuverability and productivity—whether you need precision control for delicate work or faster movement across the job site.

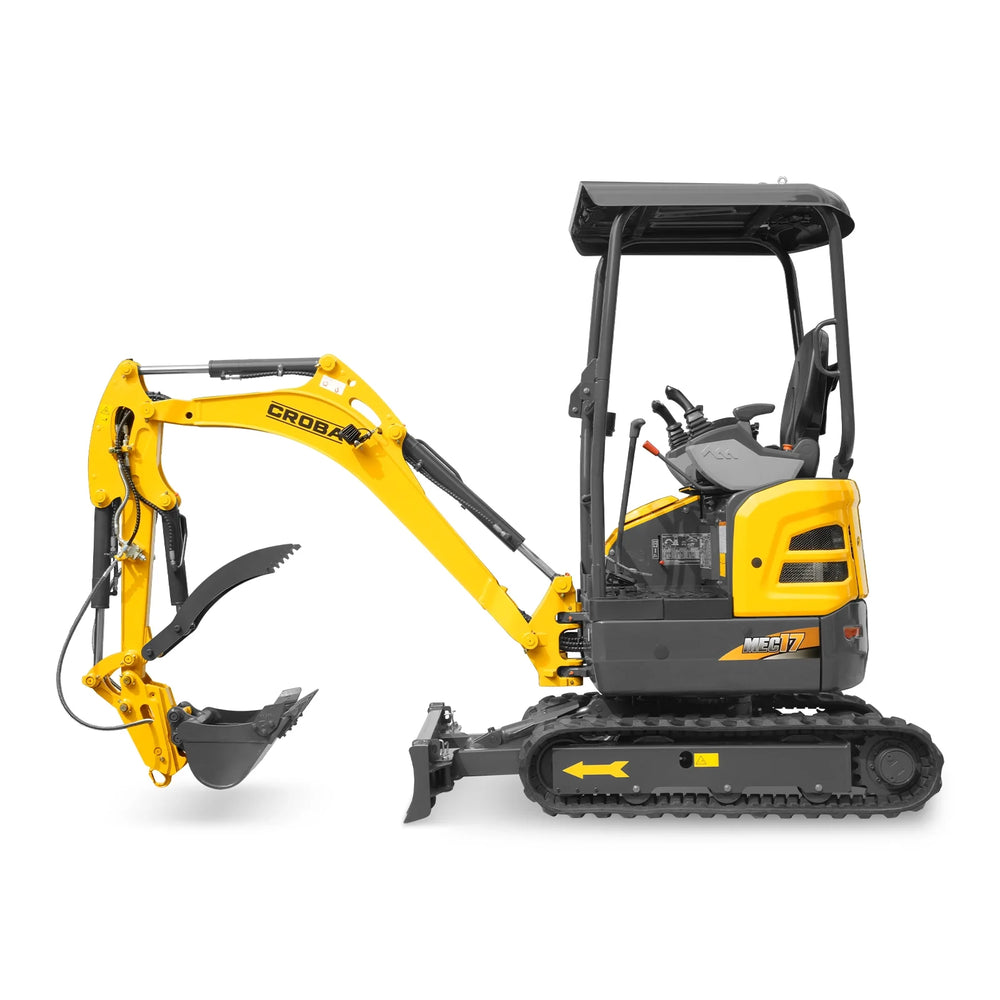

- Swing Arc: The digging arm can swing left and right, turn 65 degrees to the left and 50 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.

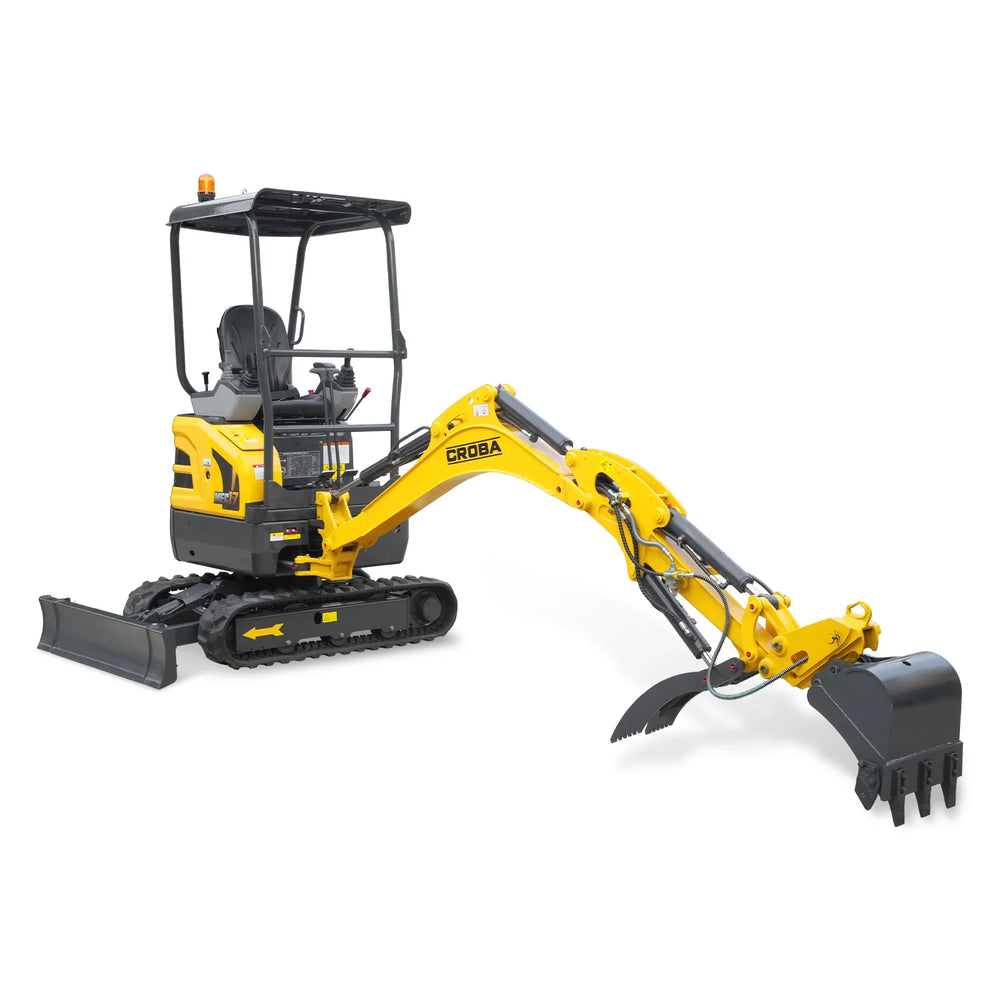

- Digging Depth: It features an all-around 95-inch digging depth reach capability and a 160-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

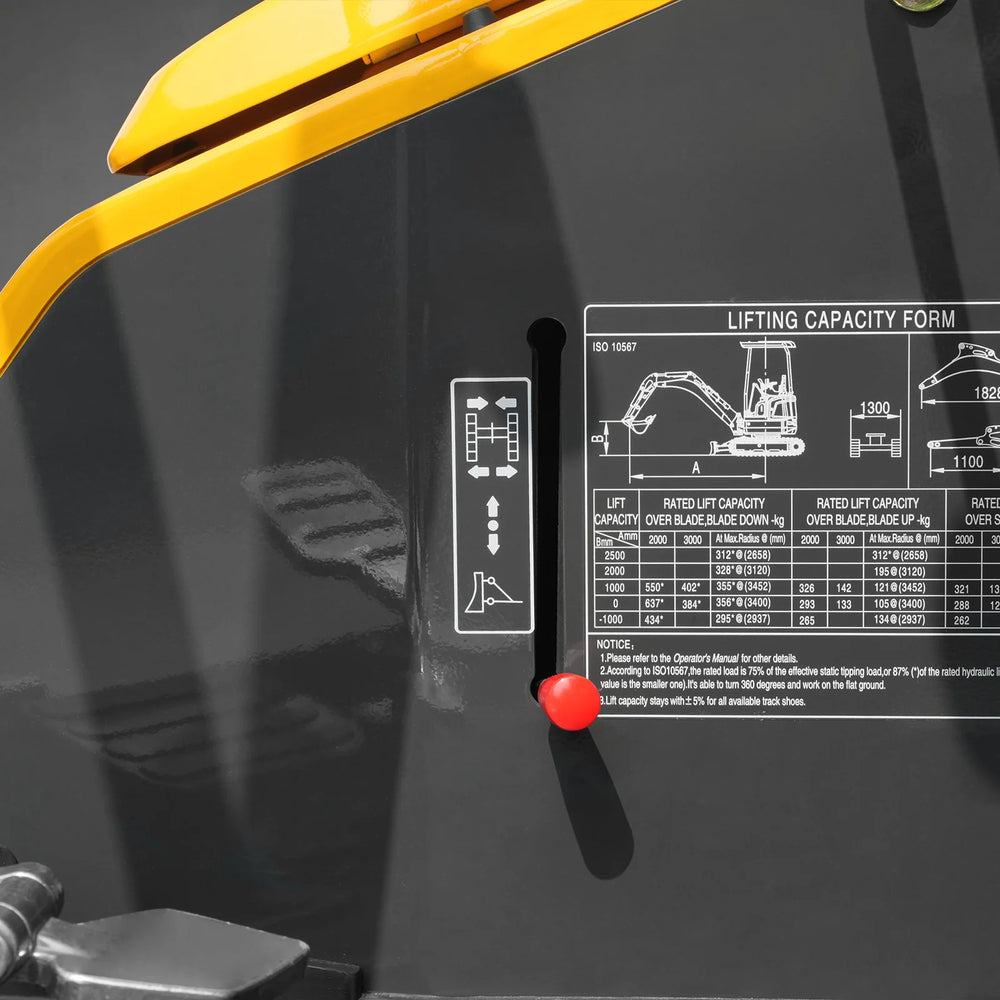

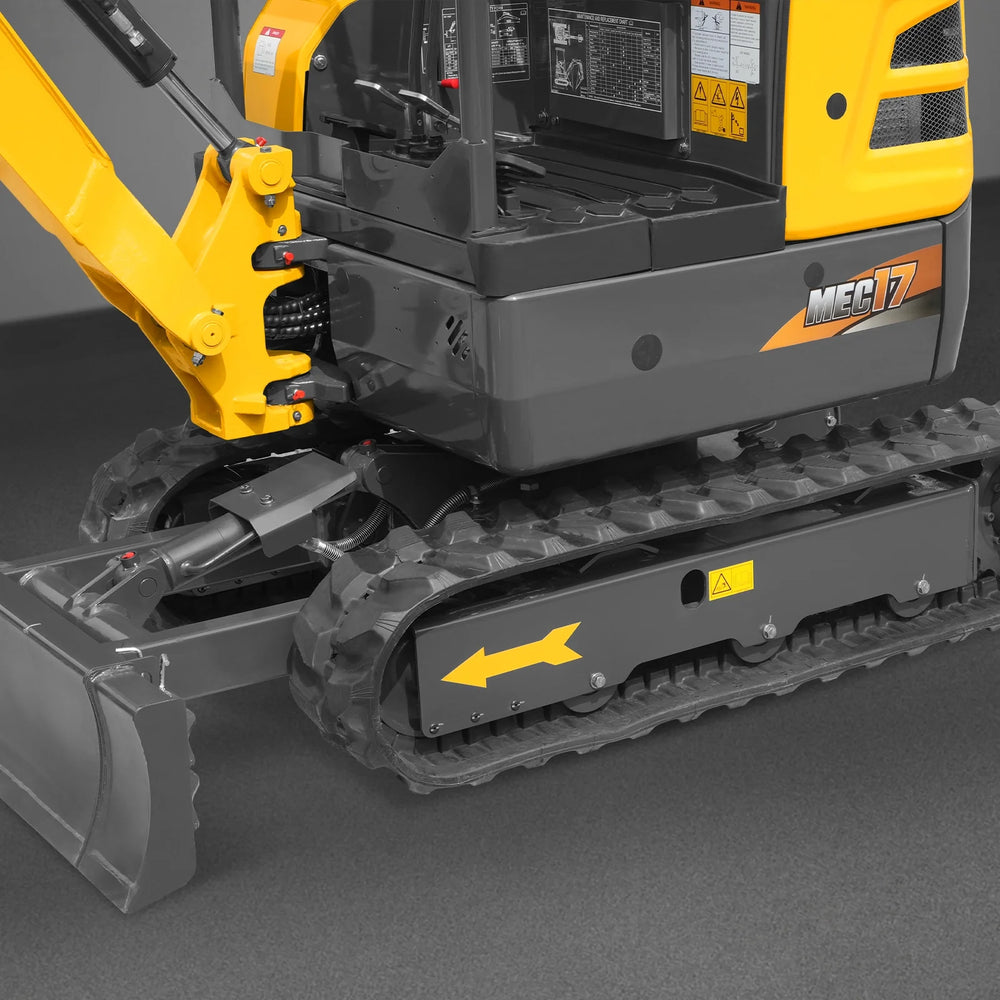

- Track Retractable Function: It features a retractable and extendable track system, allowing the operator to easily adjust the track width for enhanced stability on uneven terrain or to fit through narrow passages.

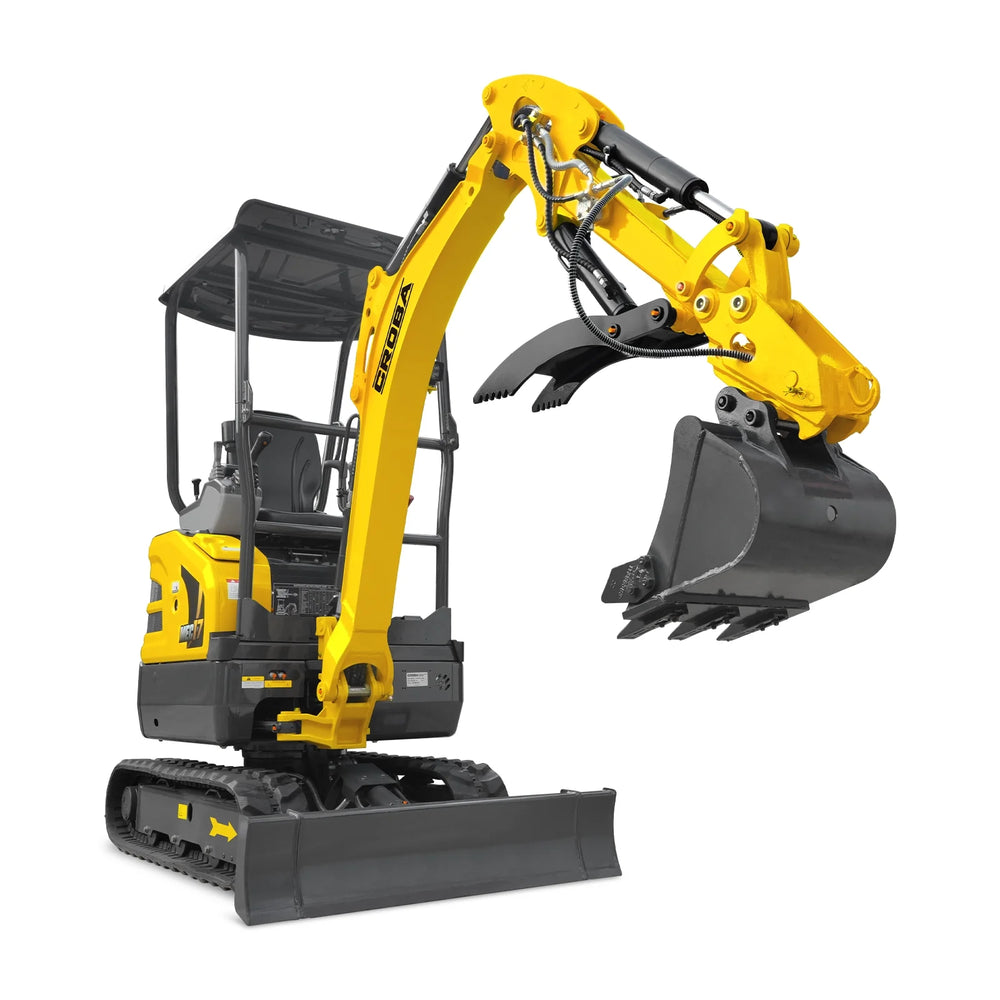

- Hydraulic Thumb: The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
- Gates Hydraulic Hoses &Protected Hydraulic System: Equipped with high-quality, Gates hoses for exceptional durability, reliability, and long-lasting performance. Built-in hydraulic hoses are safely enclosed to prevent damage during tough construction work — keeping your projects running smoothly.

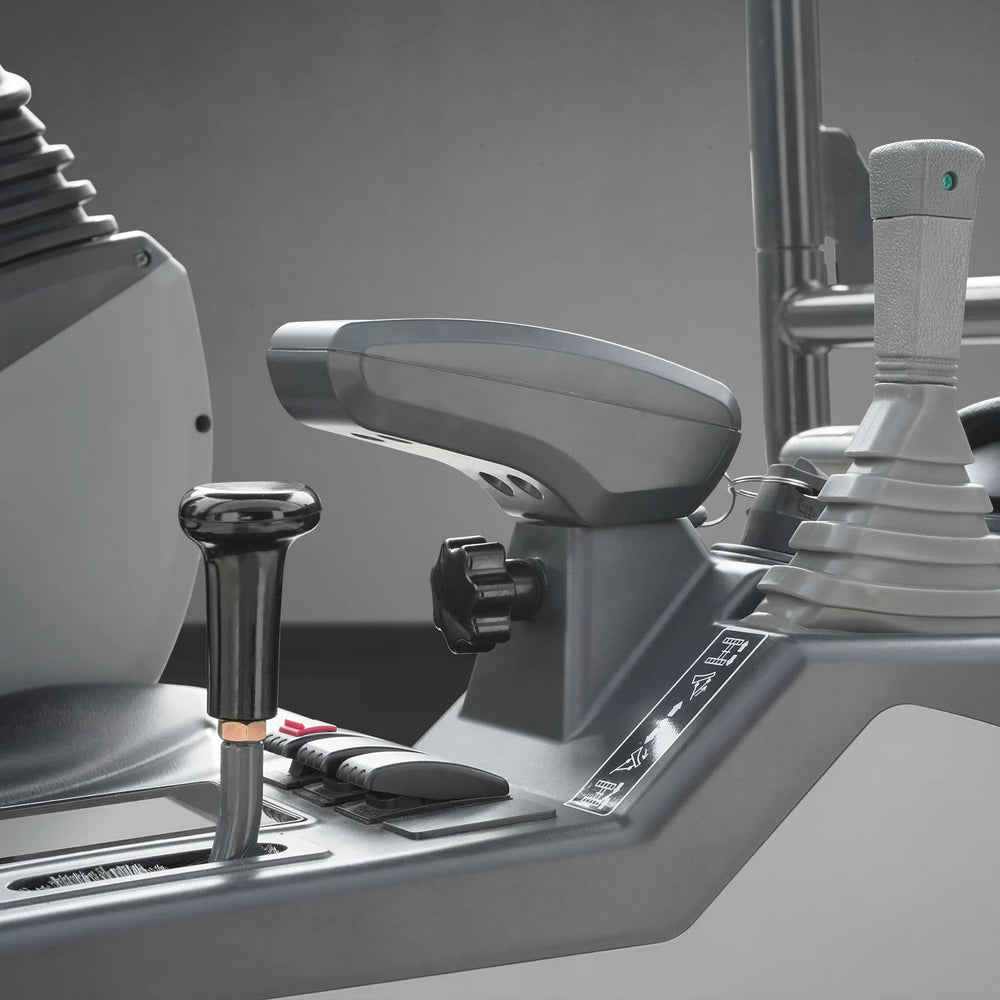

- Control Switch: Designed with left-handed operators in mind — simply twist the knob to reverse joystick controls, allowing seamless left- or right-hand operation with ease and comfort.
- Hydraulic Semi-Automatic Quick Hitch: The hydraulic quick hitch is made of durable steel, controlled by the pulsator handle, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.

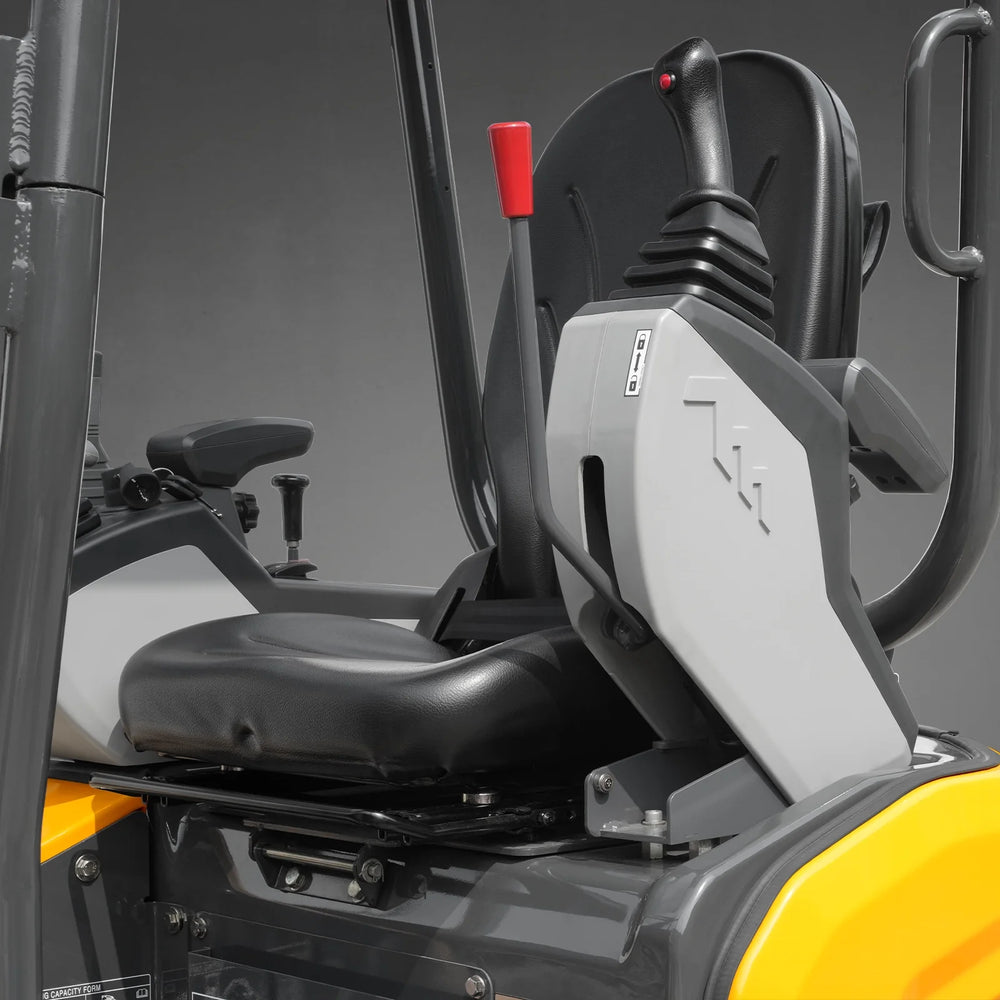

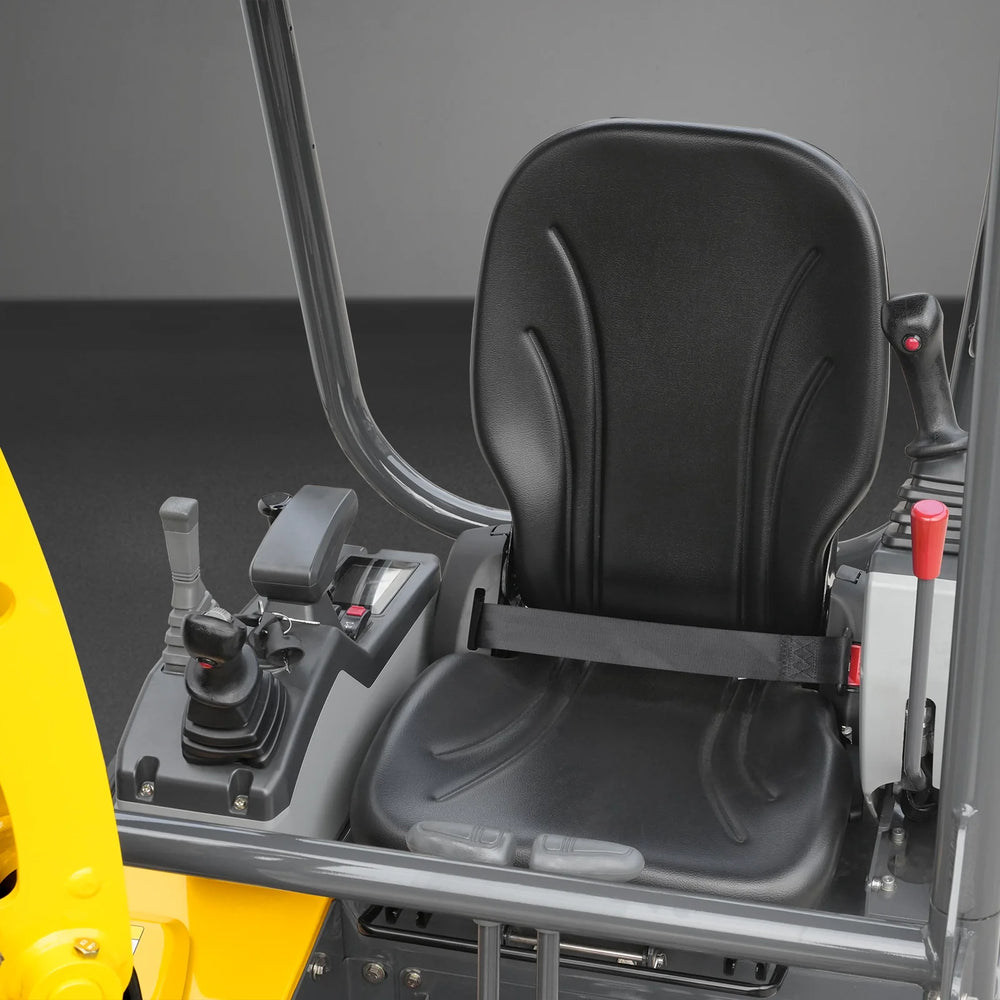

- High-Back Seat: For operator comfort, it comes with a high-back seat that provides excellent support during long working hours, reducing fatigue and improving overall efficiency.
- Smart LCD Display: Stay in control with an intuitive LCD screen that makes operation simpler, smarter, and more efficient.
Specifications
| Model | Kubota D902 |
| Rated speed | 2300rpm |
| No.Of Cylinders | 3 |
| Displacement | 54.8in³ |
| Stroke | 2.9in |
| Engine Output - Net | 15.8hp |
| Bore | 2.83in |
| Warranty For Engine | 2-Year or 2,000-Hour Warranty, Whichever Comes First. |
| Track Roller Qty | 6 |
| Maximum Traction Force - Low Speed | 4047lbf |
| Type of tracks | Rubber |
| Ground Clearance | 5.7in |
| Travel Speed - High | 2.67 mile/h |
| Ground Pressure | 4.2psi |
| Travel Speed - Low | 1.37 mile/h |
| Gradeability - Maximum | Maximum 30 degrees |
| Operating Weight | 4190lb |
| Pump Flow at 2,300 rpm | 17gpm |
| Auxiliary Circuit - Secondary - Flow | 2.6gpm |
| Auxiliary Circuit - Primary - Flow | 9.1gpm |
| Swing Motor | Danfoss |
| Swing Speed | 9.5rpm |
| Swing Motor Type | SW2.5K |
| Tail Swing Radius | 25.6in |
| Boom Length | 72in |
| Bucket Digging Force | 3597lbf |
| Arm length | 43.3in |
| Arm Digging Force | 2136lbf |
| Fuel Tank | 5gal |
| Hydraulic Oil Tank | 3.6gal |
| Engine Oil | 1gal |
| System Capacity | 5.7gal |
| Bucket Capacity | 1.4ft³ |
| Bucket Width | 17.7in |
| Max.Digging Height | 147in |
| Min Turning Radius Of Working Device | 57in |
| Max.Dumping Height | 104in |
| Max. Lift Above Ground | 11in |
| Max.Digging Depth | 95in |
| Max. Drop Below Ground | 7.5in |
| Max.Vertical Digging Depth | 81in |
| Boom Swing - Left | 65° |
| Max Digging Radius | 160in |
| Boom Swing - Right | 50° |
| Max.digging Radius At Ground Level | 157in |
| Overall Length | 133in |
| Blade Height | 11.8in |
| Ground Contact Length （Transportation） | 96in |
| Crawler Wheel Base | 48.4in |
| Overall Width （Retracted/Expanded) | 39/51in |
| Shoe Width | 9.1in |
| Overall Height（To Top Of Cab） | 94.7in |
| Track Length | 62.7in |
| Counter Weight Ground Clearance | 18in |
| Track Gauge（Retracted/Expanded) | 30/42in |
| Ground Clearance | 5.7in |
| Track Width（Retracted/Expanded) | 39/51in |
| Blade Width（Retracted/Expanded) | 39/51in |
| Package Method | Wood Case |
| Warranty For Machine | 1 Year |
| Packing Size | 112.6x43.7x99.2 in |
| Weight (N.W./G.W.) | 4012/4580lb |
Warranty
This item comes with a factory warranty.
