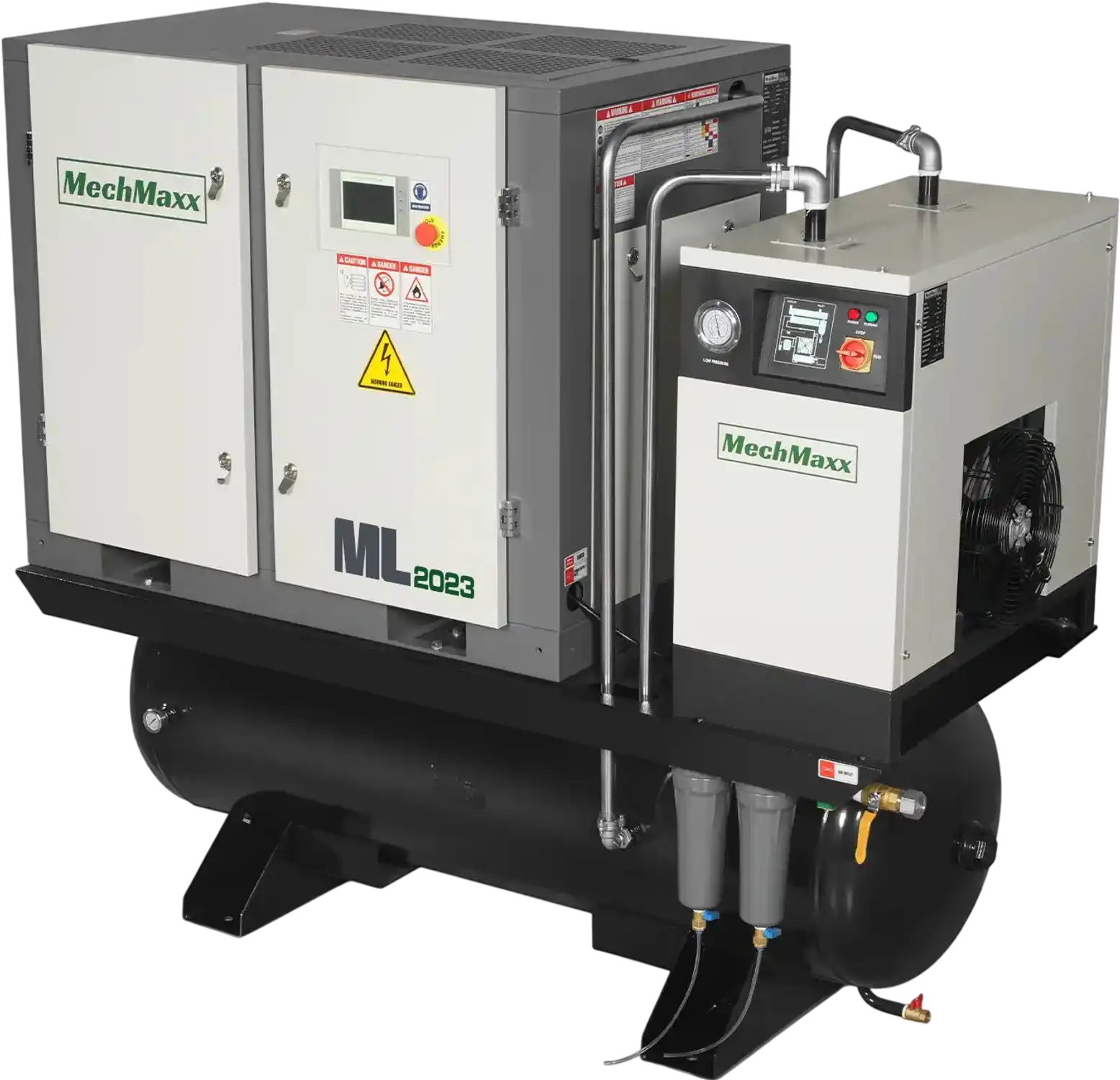

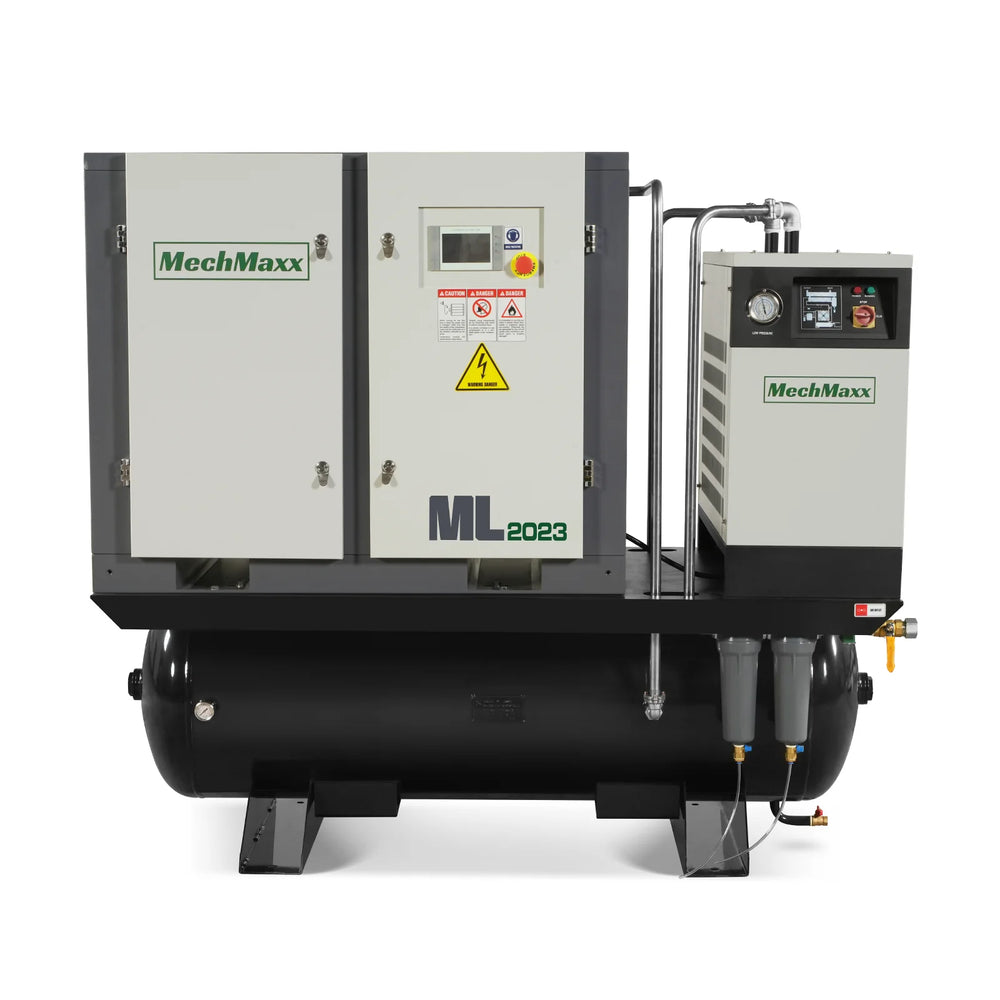

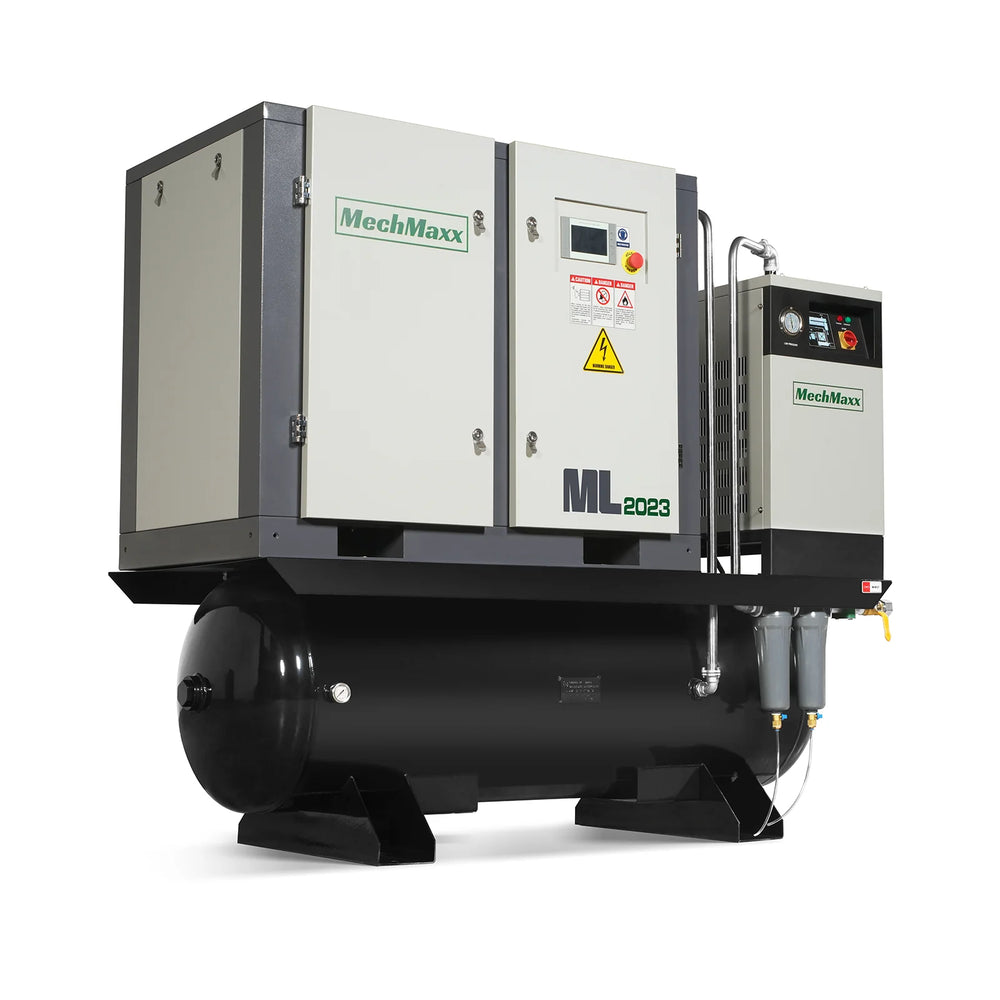

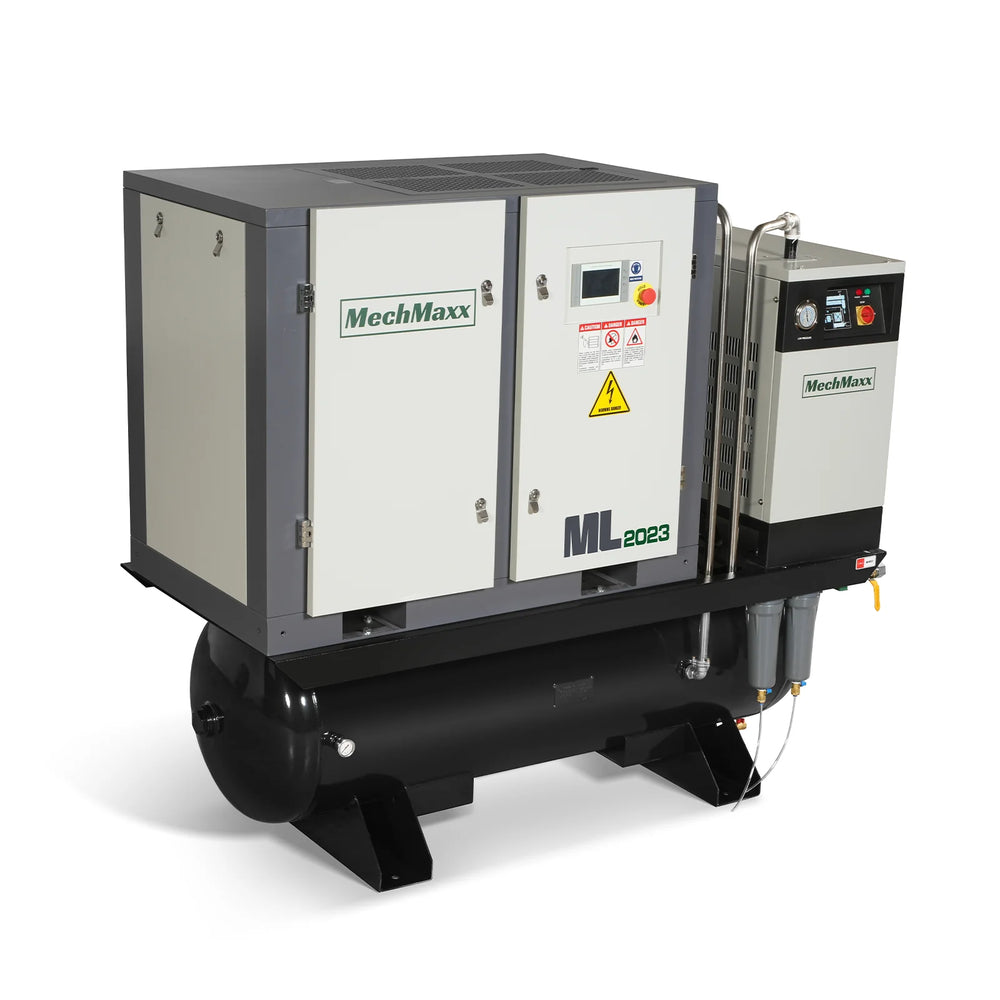

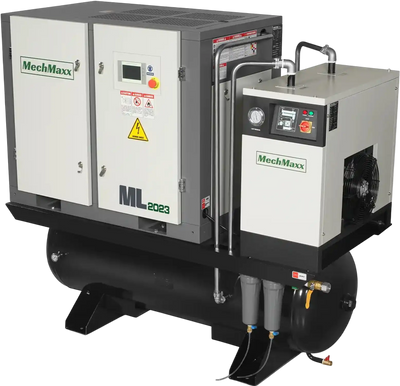

MechMaxx ML20 Air Compressor 20HP Combined Rotary Screw with Dryer 105-Gal ASME Tank 78 CFM 116 PSI 230V 3-Phase Industrial Grade New
Product Overview

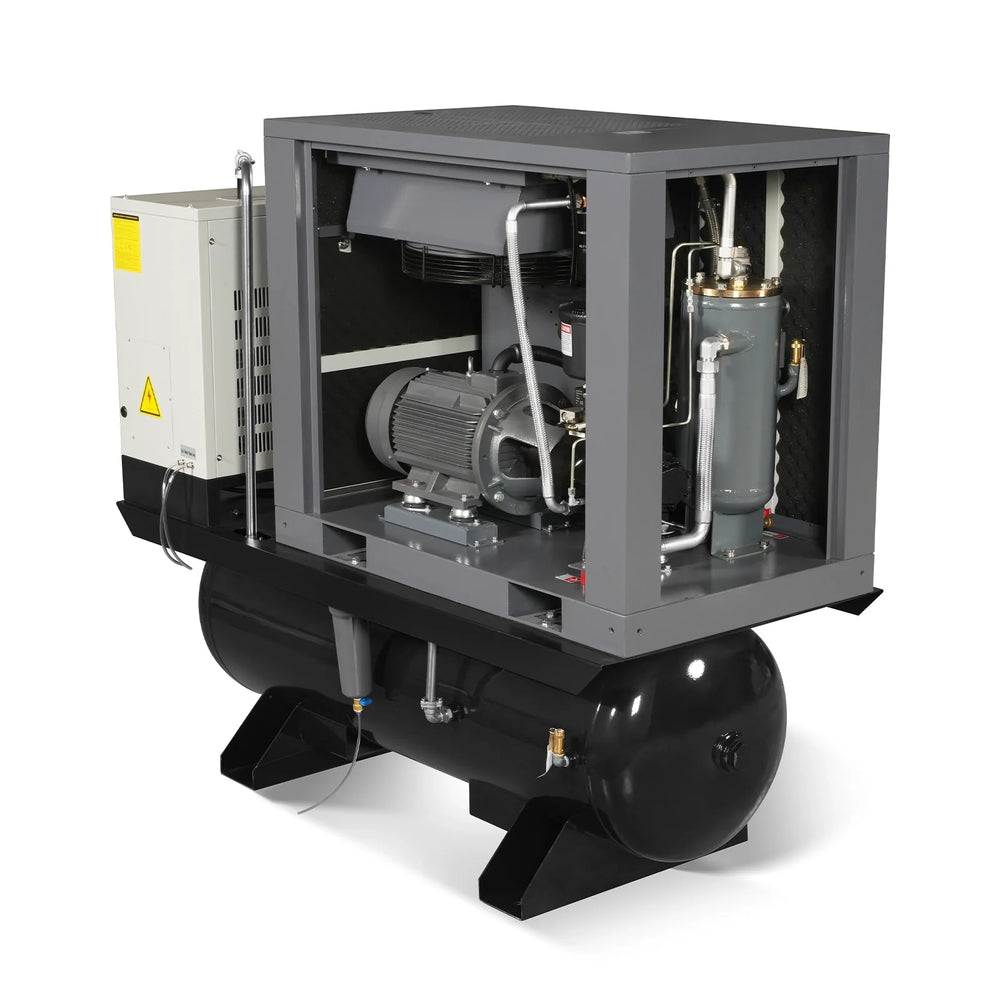

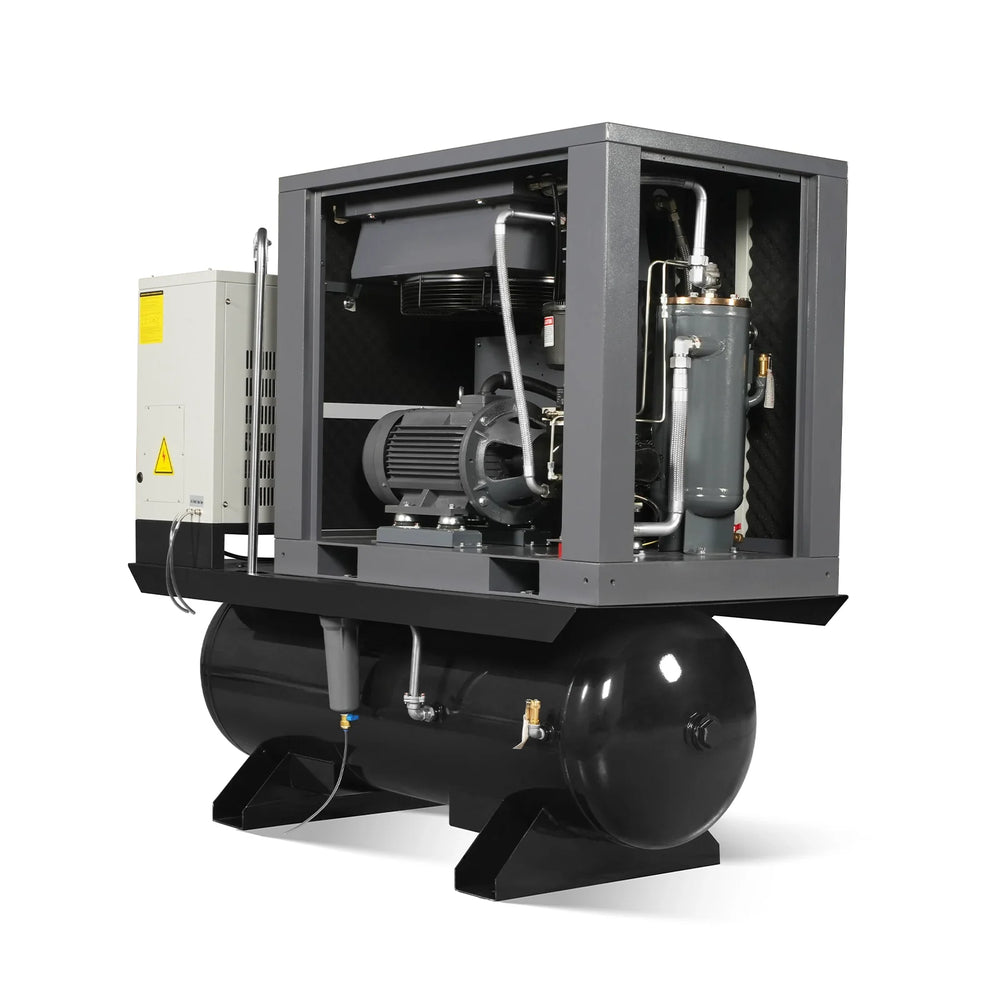

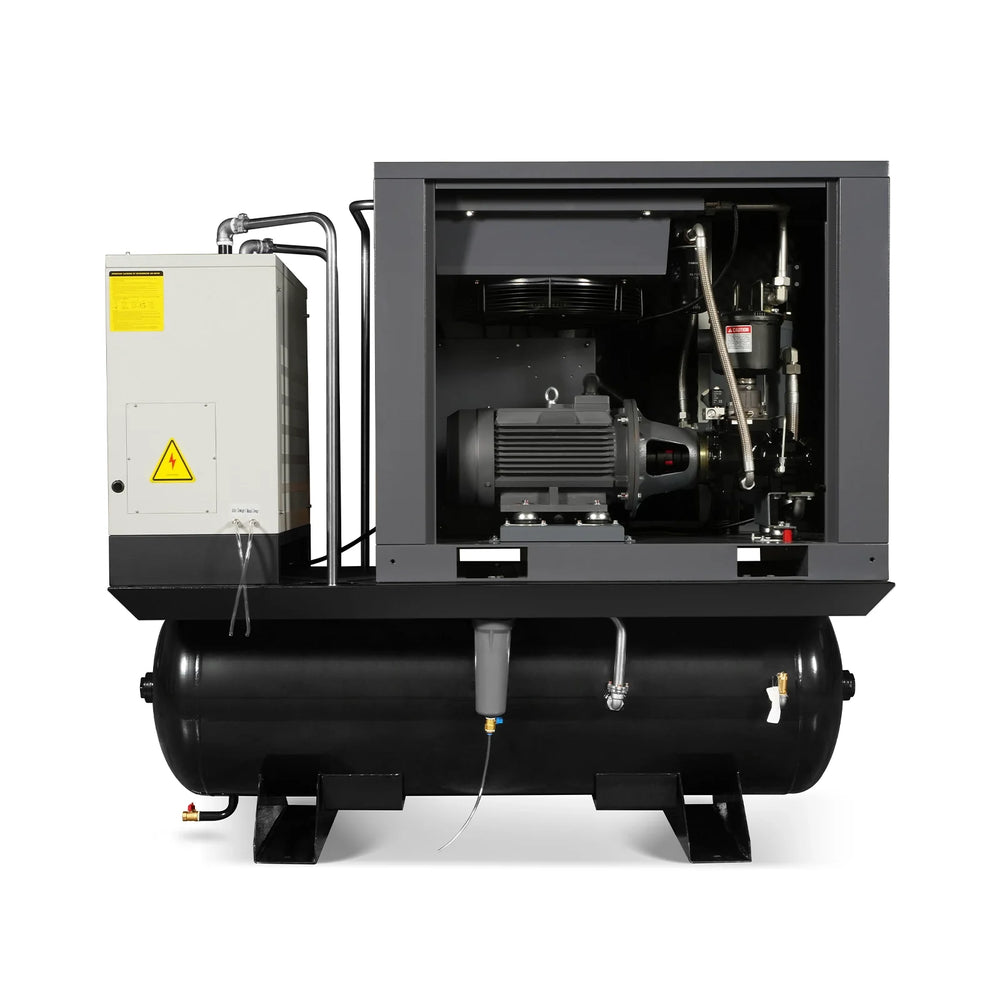

1.Equipped with a high-performance, motor with IP54 protection grade and fully enclosed dust-proof F insulation grade, paired with SKF heavy-duty bearings. It features high starting torque, high-temperature resistance, and long service life.
2.Outstanding airend design.Manufactured by a technologically advanced airend producer, the design controls manufacturing errors to within microns, ensuring reliability and long service life.
3.The efficient oil-gas separation system consists of a specially designed cylinder, concentrated separation element, and oil return device, ensuring that the oil content in the discharged compressed air is below 3ppm.
4.The intelligent control system ensures fully automatic and intelligent operation, with the ability to quickly diagnose various site faults during operation, maximizing the reliability of the air compressor and extending its service life.
5.The product uses an EPC intelligent control system and fully automatic load/unload regulation, ensuring that the air compressor operates according to the demand for compressed air. The machine automatically shuts down when no air is needed, eliminating waste, reducing energy consumption, and significantly lowering operating costs.
Note！

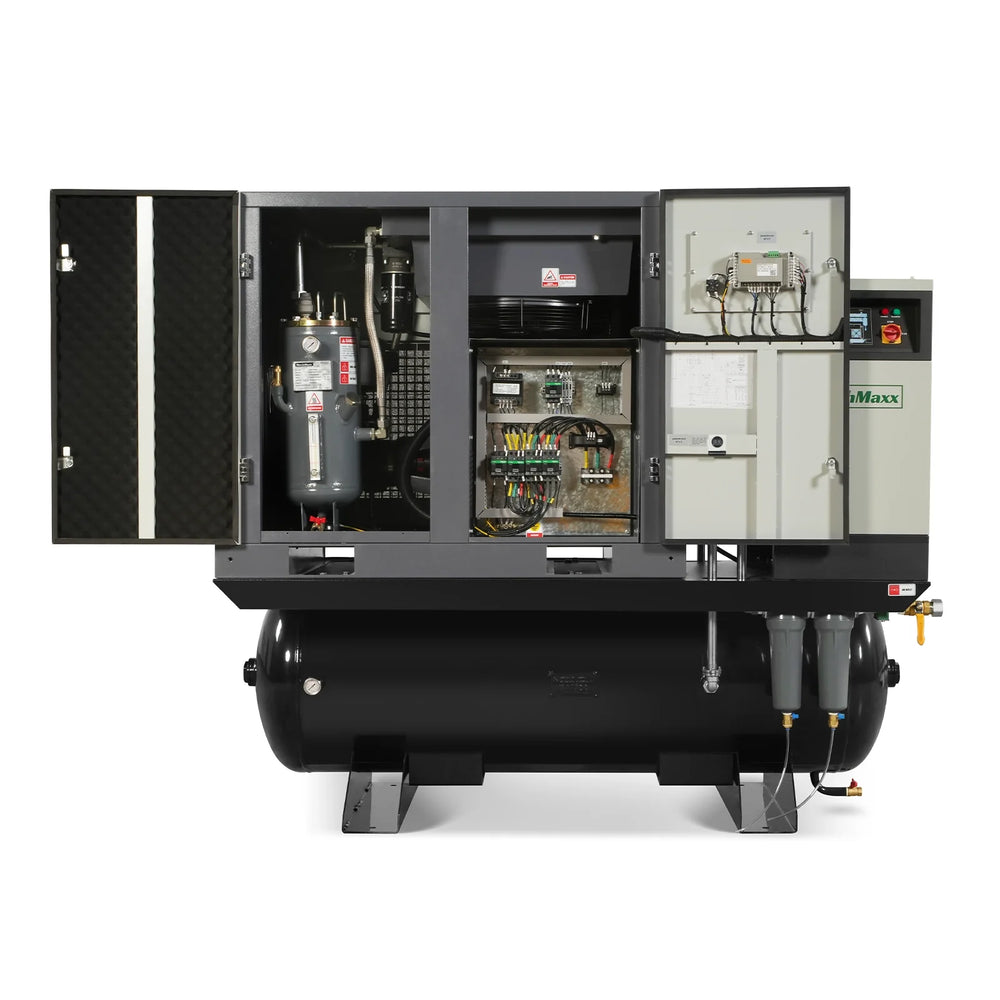

Please open the rear panel and remove the shockproof bolt before using the machine for the first time.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- PLC Controller: Monitors maintenance, temperature readings,,pressure settings,oil level, filtration & hours ,also monitors remote start / stop.

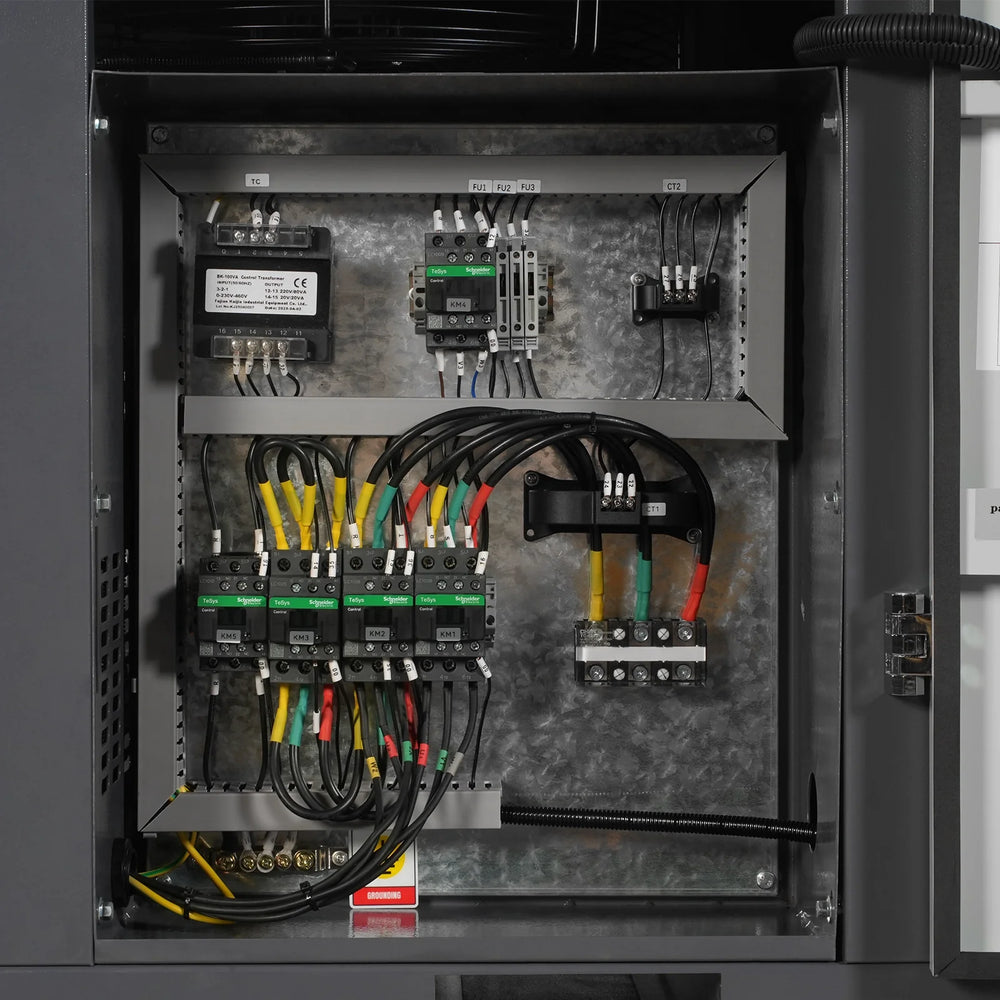

- Safe And Reliable Electrical Components: Adoption of Schneider brand electrical components.
- Top And Right Side Vent Heat Dissipation: Please leave enough space on the top and right side of the machine for heat dissipation and exhaust.
- Easy Replacement Air Filter: Large ash capacity, low initial pressure drop, reduce compressor energy consumption.It can remove the particles over 3microns and ensure the compressor unit to operate stably in harsh environment.
- Easy Replacement High Precision Oil Filter: With multi-layer filter material, the high precision oil filter can ensure high filtration accuracy and unfailingly filter out impurities in lubricating oil, highly resistant to damage and able to operate reliably at high temperatures.
- Easy Replacement Oil-air Separator Filter: Professional filter material with enlarged area, high precision filtration.Three stage separation system can remove lubricants and deliver high quality air, protecting downstream equipment.Optimized air-oil separation structure, very low pressure drop, reduce power consumption.

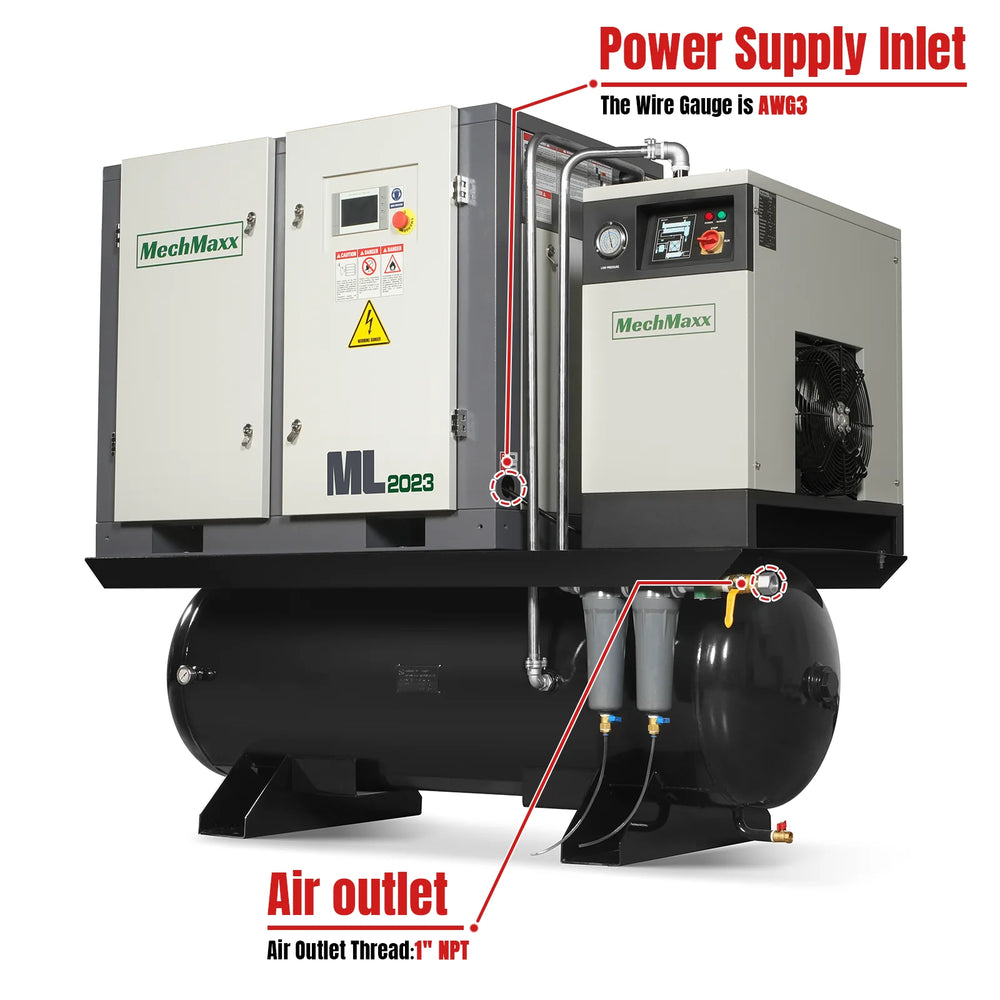

- Standard Threads And Wires Gauge: Wire Gauge:AWG3Air Outlet Thread:1’’NPTVoltage:230V 3PH 60HZ
- Strip Oil Label: Clear indication of oil level.
- Maintenance Schedule Reminders: Please refer to the maintenance schedule for maintenance.
Specifications
| Voltage | 230V 3PH 60HZ（L1+L2+L3,G） |
| Air Flow Capacity | 78CFM |
| Wire Gauge | AWG3 |

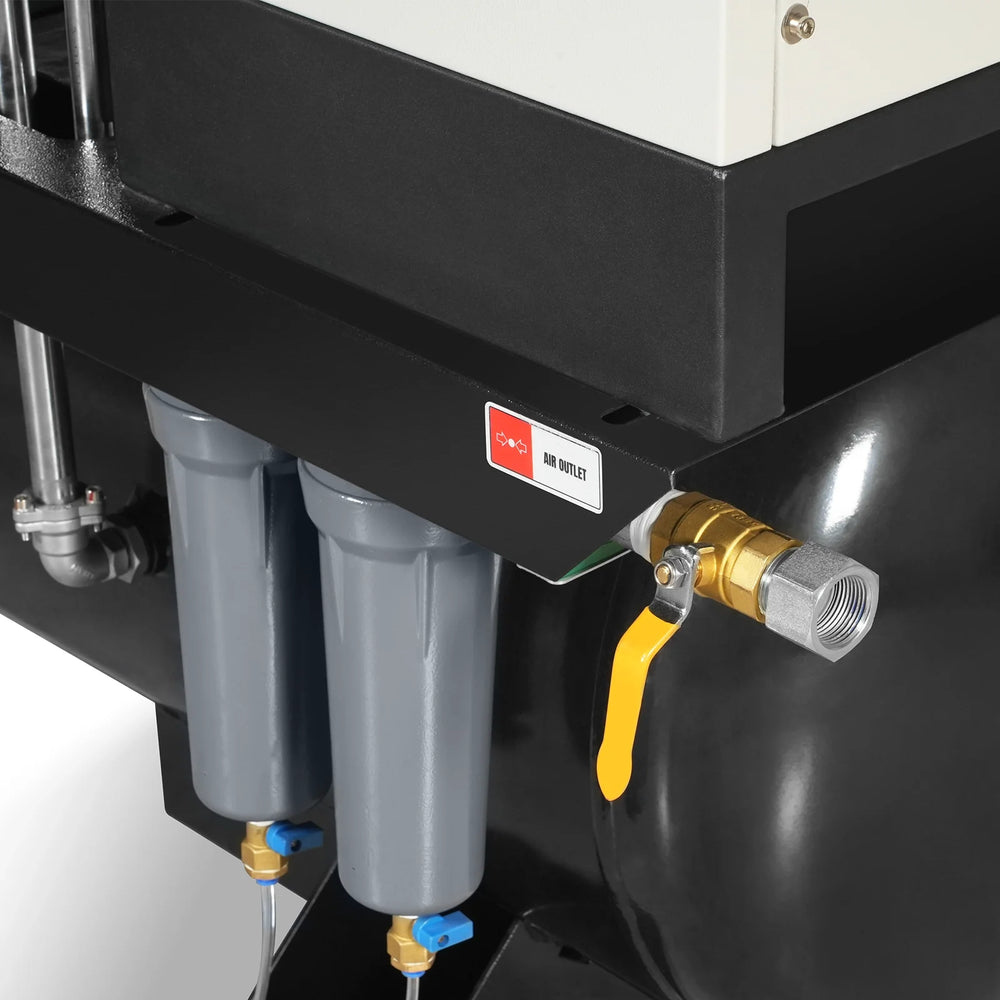

| Air Outlet Thread | 1"NPT |
| Oil Tank Capacity | 2.64Gal (10L) |
| Rated Power | 20HP |
| Starting Method | Star-Delta (Wye-Delta) Start |
| Rated Pressure | 116 PSI (0.8 MPa) |
| Noise Level | 70dba |
| Motor Speed | 3515RPM |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Recommended Oil Grade | S3R46 |
| Oil Sight Glass | Yes |
| Pump Drive | Belt Drive |
| Working Pressure | ≤145PSI/1.0MPa |
| Design Pressure | 145PSI/1.0MPa |
| Max Allowable Working Pressure | 145PSI/1.0MPa |
| Working Temprerature | ≤302℉/150℃ |
| Design Temprerature | 302℉/150℃ |
| Maximum Design Metal Temperature | 17.6℉/-8℃ |
| Air Tank Capacity | 400L / 105.6GAL |
| Air Dryer Capacity Flow | 100CFM |
| Machine Size | :72.8" x 33.5" x 66.1" |
| Packing Size | :75.5" x 38" x 72.8" |
| N.W.:/ G.W. | :1235 lbs/ 1474 lbs |
Warranty
This item comes with a factory warranty.
