MechMaxx MRT72 Rotary Tiller 72" 3 Point Hitch Cat 1 & 2 Gear Drive PTO Shaft Included Slip Clutch 35-70 HP New
Product Overview
The MechMaxx MRT Series rotary tiller is designed for users who need stronger performance and durability for regular soil preparation. Compatible with Category 1 and Category 2 three-point hitch tractors, this medium-duty tiller features a fully gear-driven transmission that delivers higher torque and deeper, more consistent tillage than light-duty models. Equipped with a slip-clutch protected PTO driveline, the MRT Series helps protect both the tractor and tiller when operating in tougher soil conditions. Its heavier construction and efficient tine layout make it well suited for medium-sized gardens, food plots, fields, and small acreage applications where reliable, repeatable results are required.
-
72" Working Width – Covers more ground per pass while maintaining good maneuverability on mid-sized plots and large gardens.
-
Fully Gear-Driven Transmission – Heavy-duty sealed gear drive provides superior torque, smooth power transfer, and reduced maintenance compared to chain-driven tillers.
-
Hardened Steel Tines & Depth Control – Replaceable C-shaped steel tines mounted on multiple flanges penetrate tough soil and mix organic material. Adjustable side skids allow consistent depth control.
-
Category 1 & Category 2 + Quick Hitch Compatible – Broad tractor compatibility with fast, secure attachment.
-
PTO Shaft Included with Slip Clutch – Slip clutch driveline protection helps safeguard the tiller and tractor under varying load conditions.
-
Rugged, Field-Ready Construction – Heavy-gauge steel frame and durable powder-coated finish designed to withstand regular field use.
NOTE – SHIPPED WITHOUT OIL!
Before use, grease all grease fittings and fill the gearboxes with SAE 80W-90 gear oil:
• Central gearbox: Approx. 1 L (1.06 qt)
• Side gearbox: Approx. 2 L (2.11 qt)
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

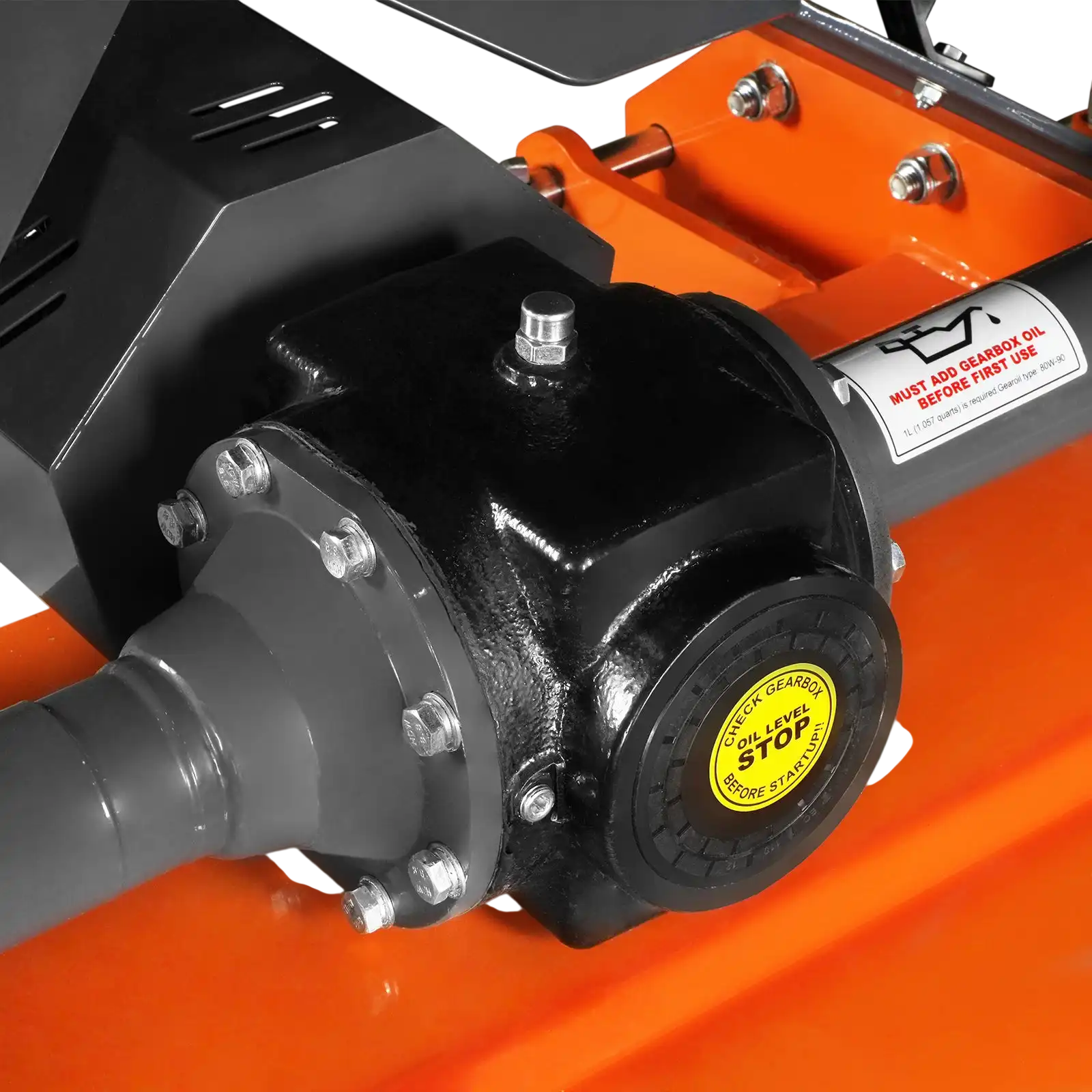

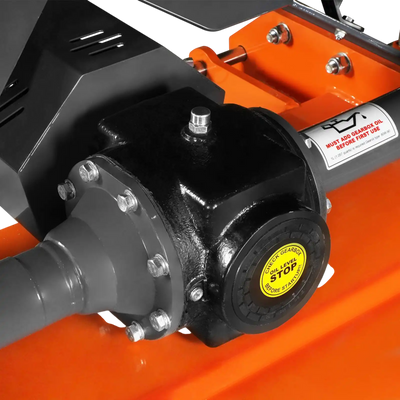

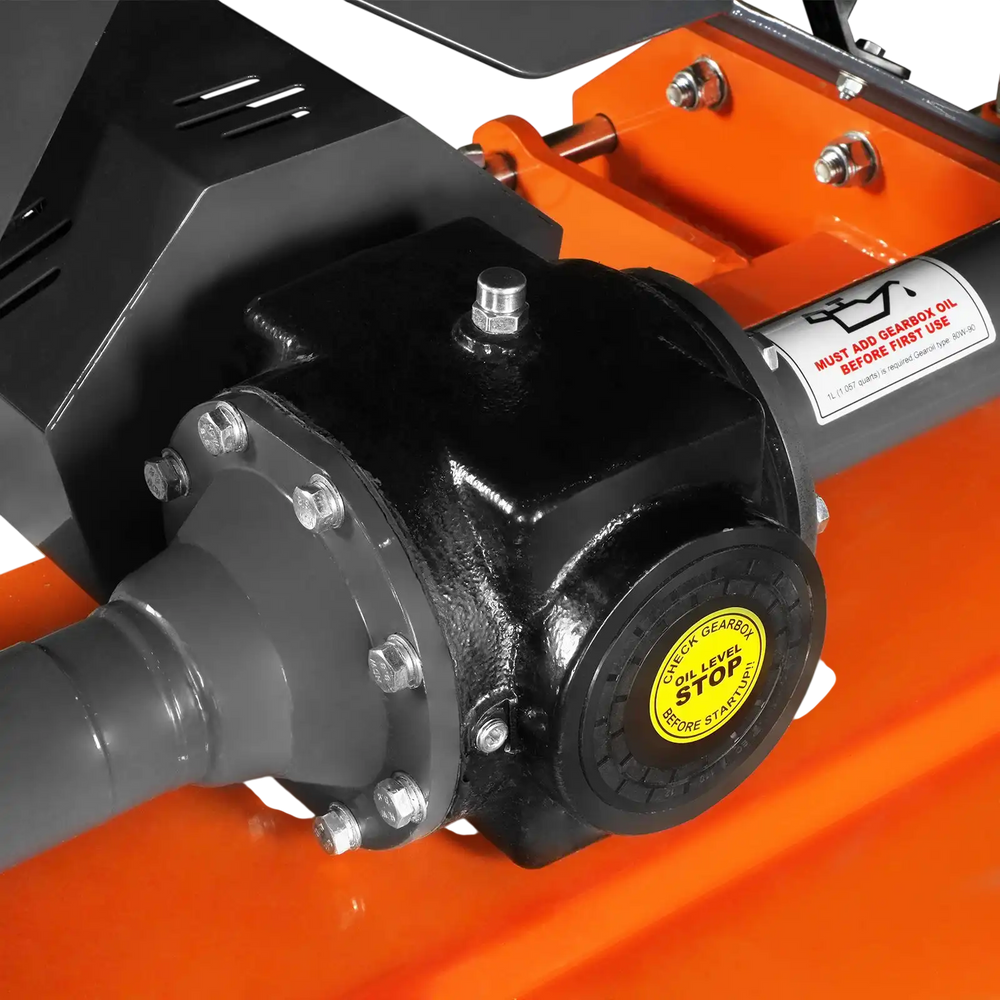

- Cast Iron Gearbox + Fully Gear-Driven Transmission: Oil-bath cast iron gearbox and all-gear side drive deliver smooth power transfer, high torque, reduced maintenance, and long service life in tough tillage conditions.
- 48 Heat-Treated C-Shaped Blades: Equipped with 48 heavy-duty 60Si2Mn spring steel tines, heat-treated for strength and wear resistance. The multi-flange layout ensures aggressive cutting and uniform soil mixing.
- Spring-Loaded Rear Deflector: The spring-loaded rear deflector keeps soil inside the housing longer for improved pulverization before releasing it evenly across the ground. This helps create a smoother, more level surface and a consistent, plant-ready seedbed.
- Slip Clutch PTO Shaft Included: Comes with a Series 5 PTO driveline featuring slip clutch protection, helping protect both tractor and tiller from sudden shock loads caused by rocks or buried debris.
- Adjustable Skid Shoes: Heavy-duty adjustable skid shoes allow you to fine-tune working depth up to 7", helping you adapt to different soil conditions — from light garden prep to deeper ground reworking.
- NSK Bearing: We use NSK bearings made in Japan. NSK is one of the best quality bearings on the market today. We believe that high-quality bearings of this type are required in applications with high loads and dynamic forces. These bearings run smoothly, quietly, and coolly, which is something not to be overlooked when purchasing a rotary tiller.
Specifications
| Working Width | 72 in |
| Number of Flanges | 9 |
| Overall Dimensions (L×W×H) | 79 x 40.7 x 37.6 in |
| Number of Blades | 48 |
| Max Working Depth | 7 in |
| Blade Arrangement | 7 Center Flanges × 6 Blades2 End Flanges × 3 Blades |
| Offset Capability | N/A |
| Blade Type | Heat-Treated 60Si2Mn Steel “C”-Shaped |
| Skid Shoes | Adjustable Depth Control |
| PTO Shaft Included | Yes |
| Rotor Bearing | NSK Bearing |
| PTO Shaft | Series 5 PTO Shaft with Slip Clutch, 1-3/8" × 6-Spline (Both Ends), Length: 35-40 in |
| Rotor Rotation | Forward |
| Tractor PTO Speed | 540 RPM |
| Rotor Speed @ 540 PTO RPM | 205 RPM |
| Recommended PTO HP | 35-70 HP |
| Rotor Diameter | 3 in |
| 3 Point Hitch | Cat.1 & 2 |
| Rotor Swing Diameter | 18.7 in |
| Quick Hitch Compatibility | Cat.1 & 2 Quick Hitch Compatible |
| Side Drive Type | Gear Driven |
| Rear Deflector | Double Spring |
| Side Box Lubrication | SAE 80W-90, Approx. 2 L (2.11 qt)NOTE: SHIPPED WITHOUT OIL. |
| Parking Stand Included | Yes |
| Main Gearbox | Cast Iron Oil-Bath Gearbox, Gear Ratio 1.69:1 |
| Packing Size (L×W×H) | 85.43 x 34.25 x 32.28 in |
| Gearbox Lubrication | SAE 80W-90, Approx. 1 L (1.06 qt)NOTE: SHIPPED WITHOUT OIL. |
| Weight (N.W/G.W.) | 888.45/1043.51 lbs |
Warranty
This item comes with a factory warranty.
