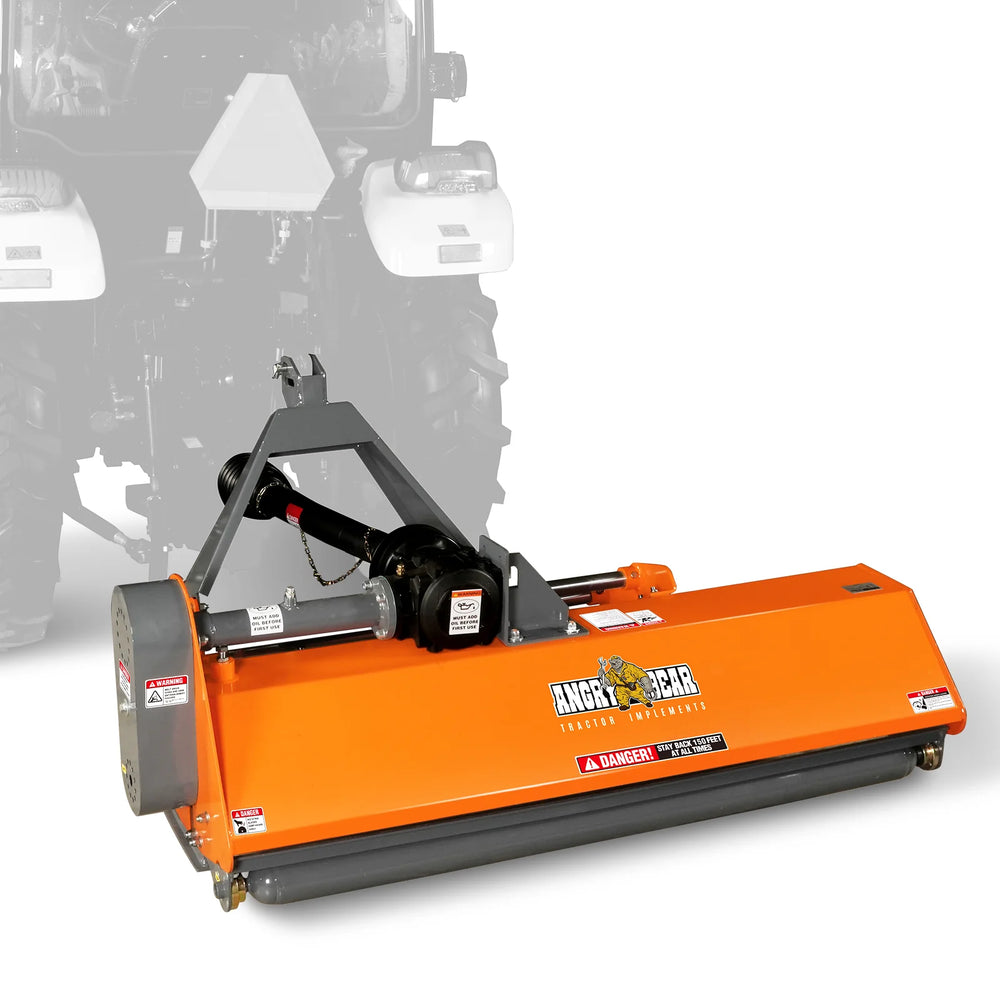

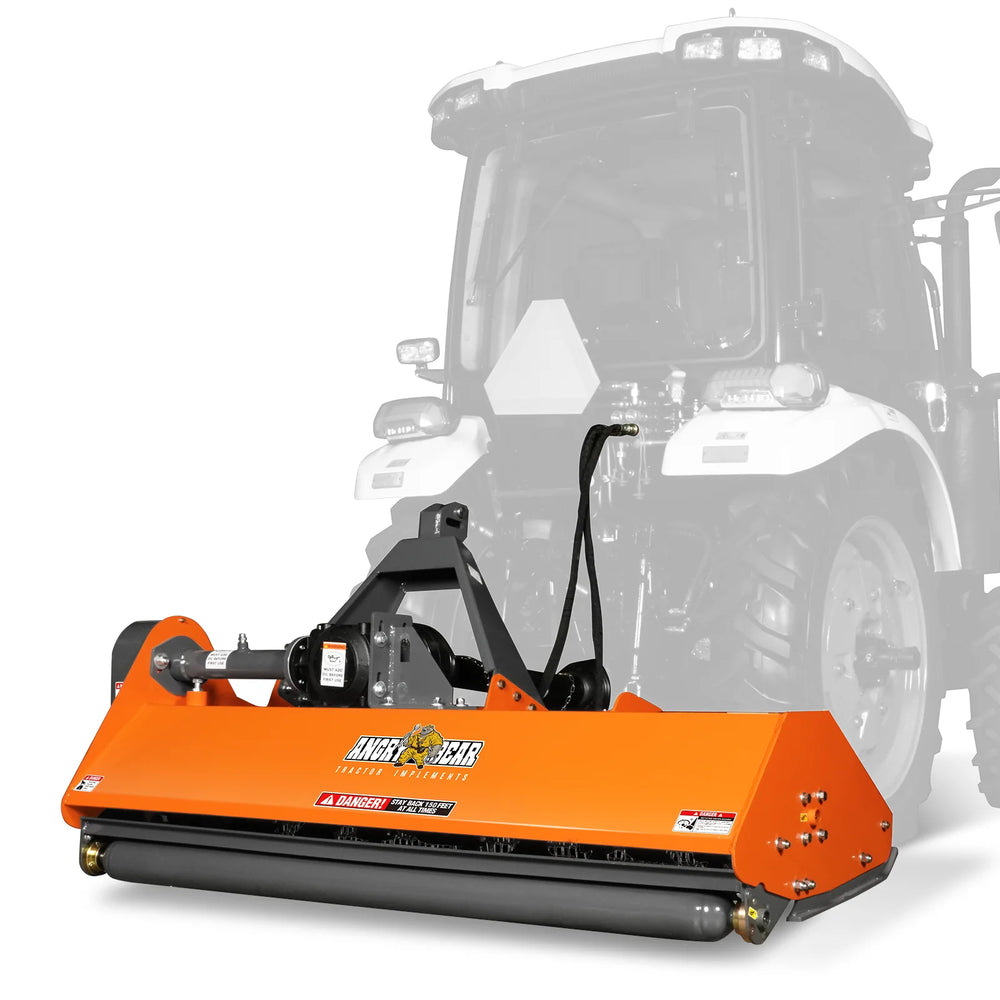

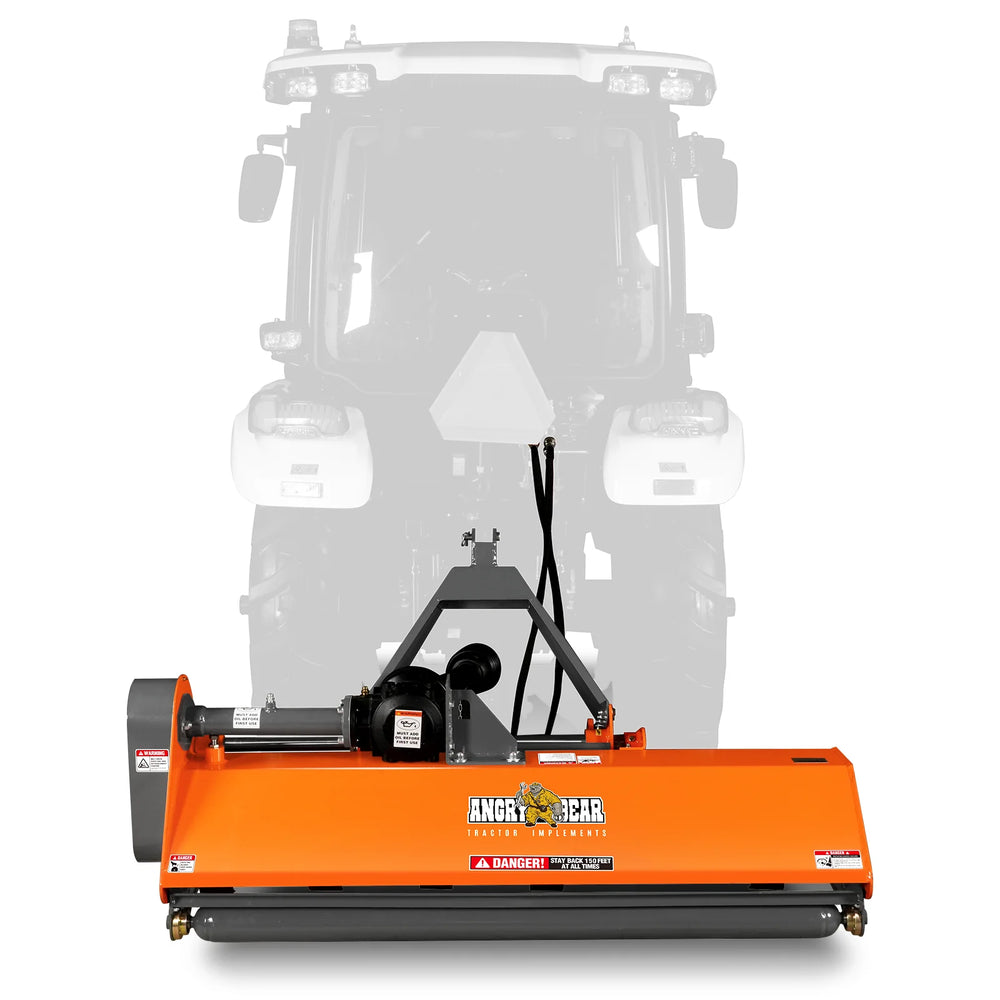

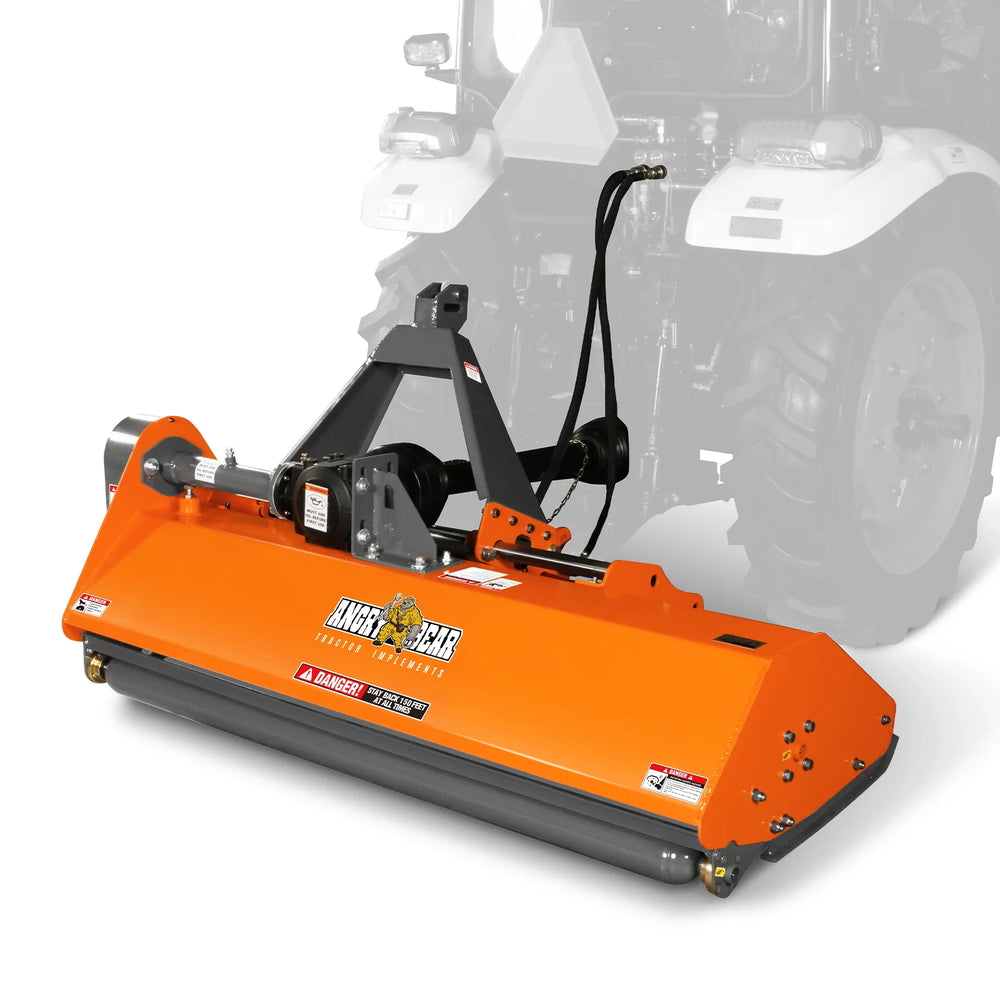

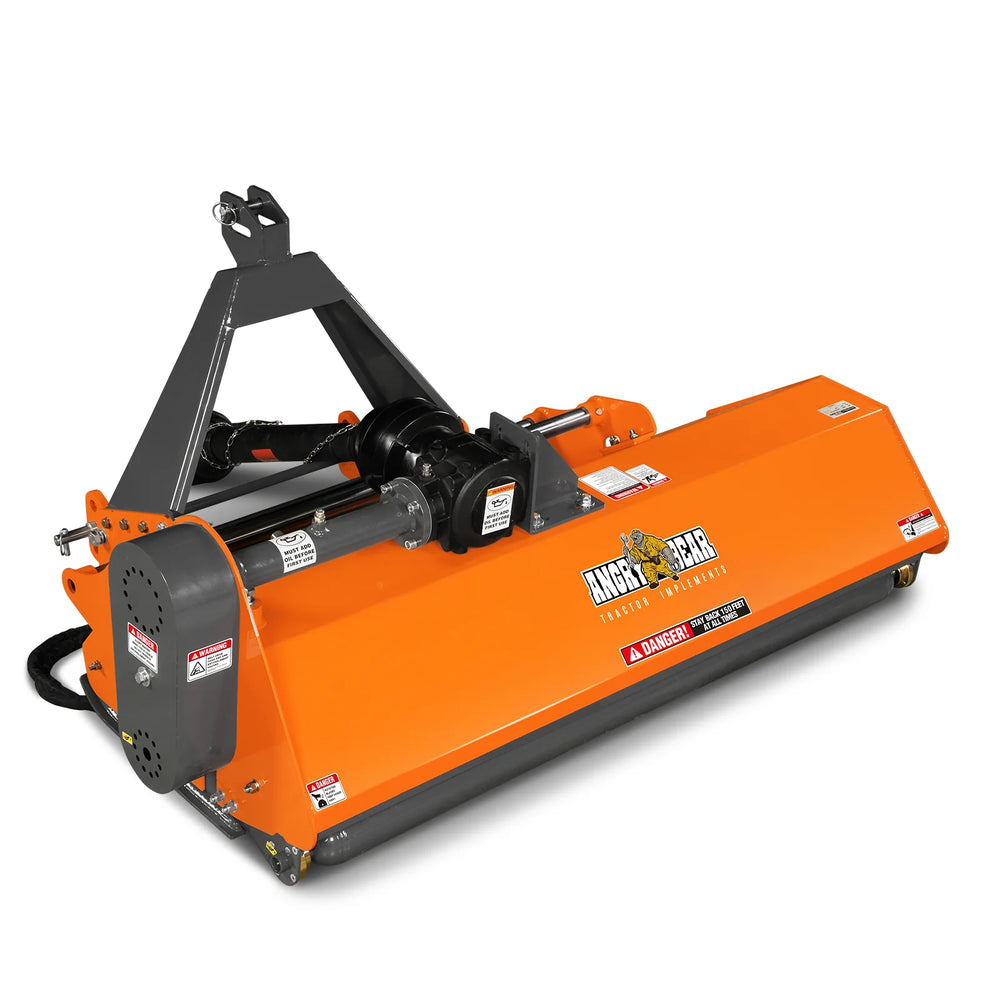

MechMaxx NAM 68H Flail Mower 68" PTO Hydraulic Side Shift 3 Point 30-60 HP New
Manufacturer: MechMaxx
SKU: 150141
Model Options
QTY
or
(888) 999-1522
$ 2,799.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

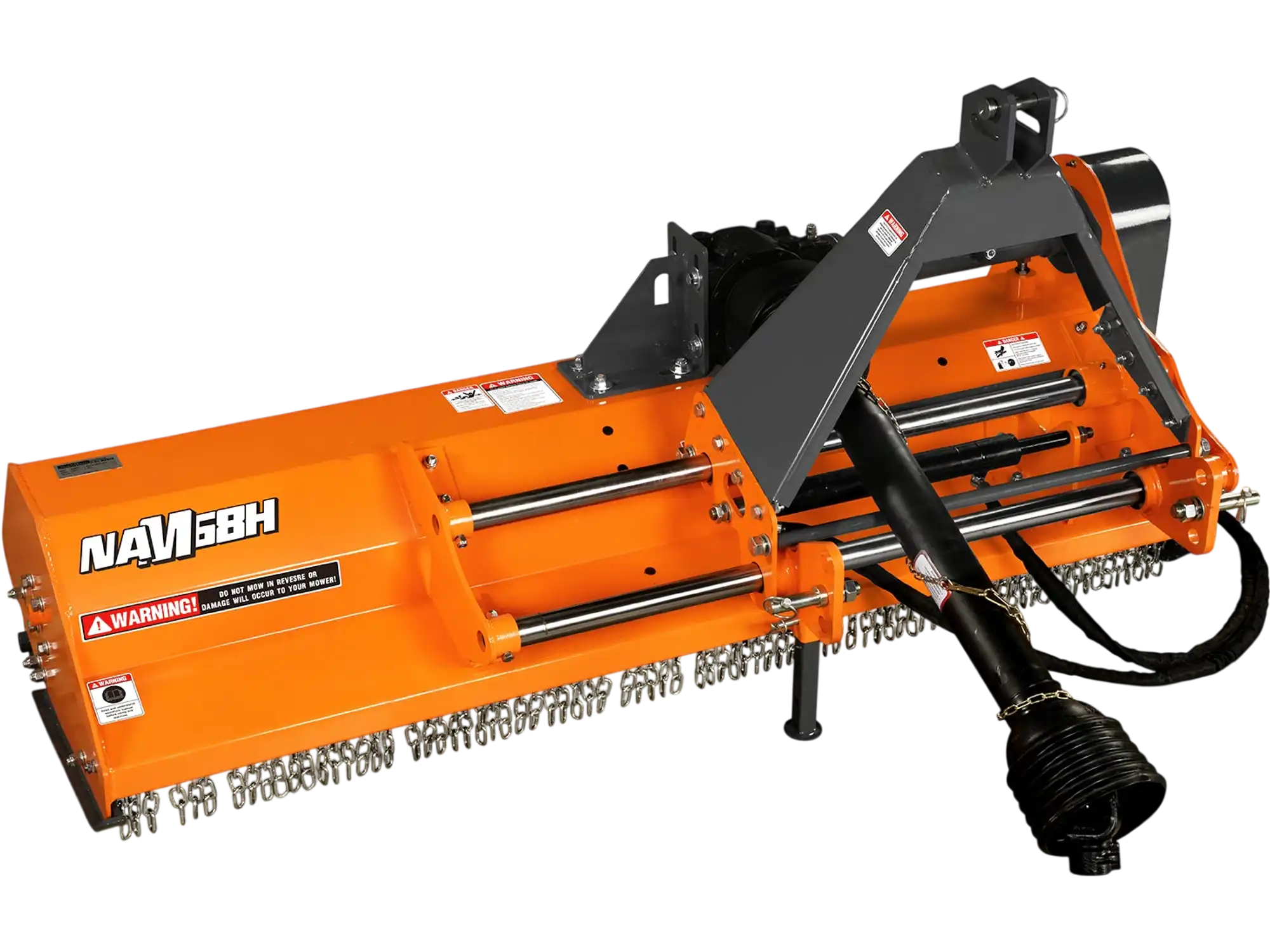

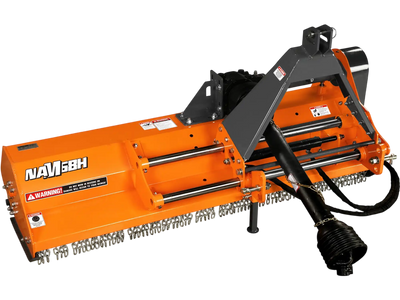

MechMaxx NAM 68H Flail Mower 68" PTO Hydraulic Side Shift 3 Point 30-60 HP New
Product Overview

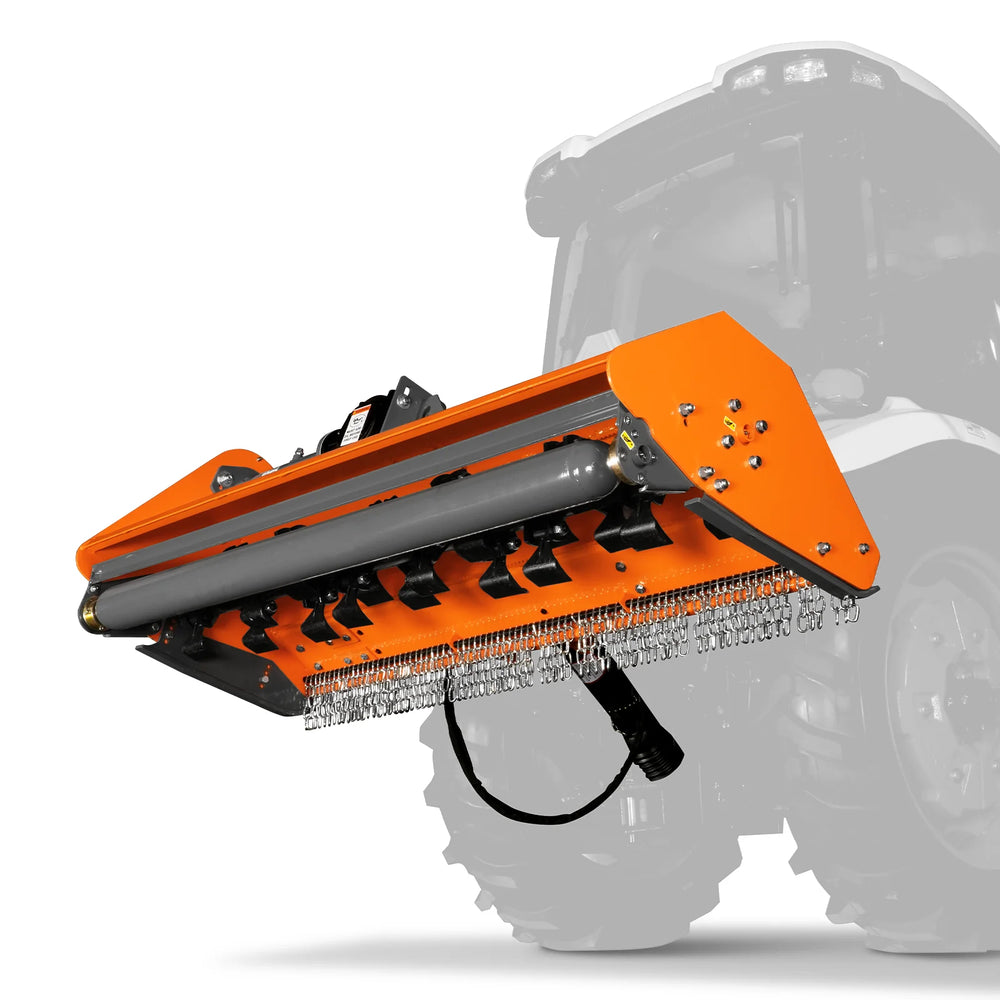

- It can save time and cost-effectively cut plants in larger areas. It has 16in of side shift capability to support working around perimeters, fence lines, tree wells, etc.
- The attachment has a forged flail hammer to help the mower push through dense debris.

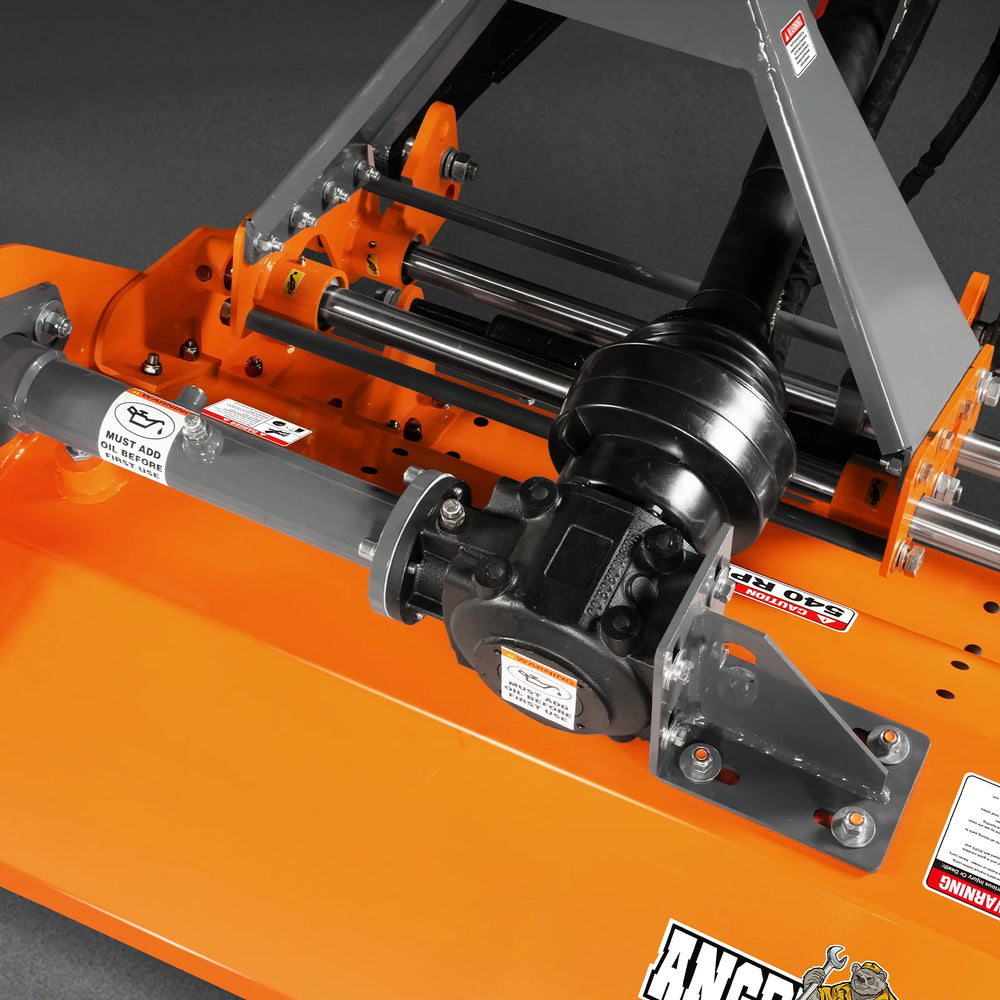

- The included PTO drive shaft easily connects to your tractor and the belt drive allows for efficient power transfer.
- Offset category 1, 3 point knot
- It is recommended for 30-60 HP tractors, capable of covering material up to 3in diameter.
- Front safety chains keep out debris, sealed tapered roller bearings, and have brackets for easy storage when not in use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- Max Cutting Diameter: This NAM mower has its 68’’ working width and blade ground clearance efficiency range to 0.6-2in.

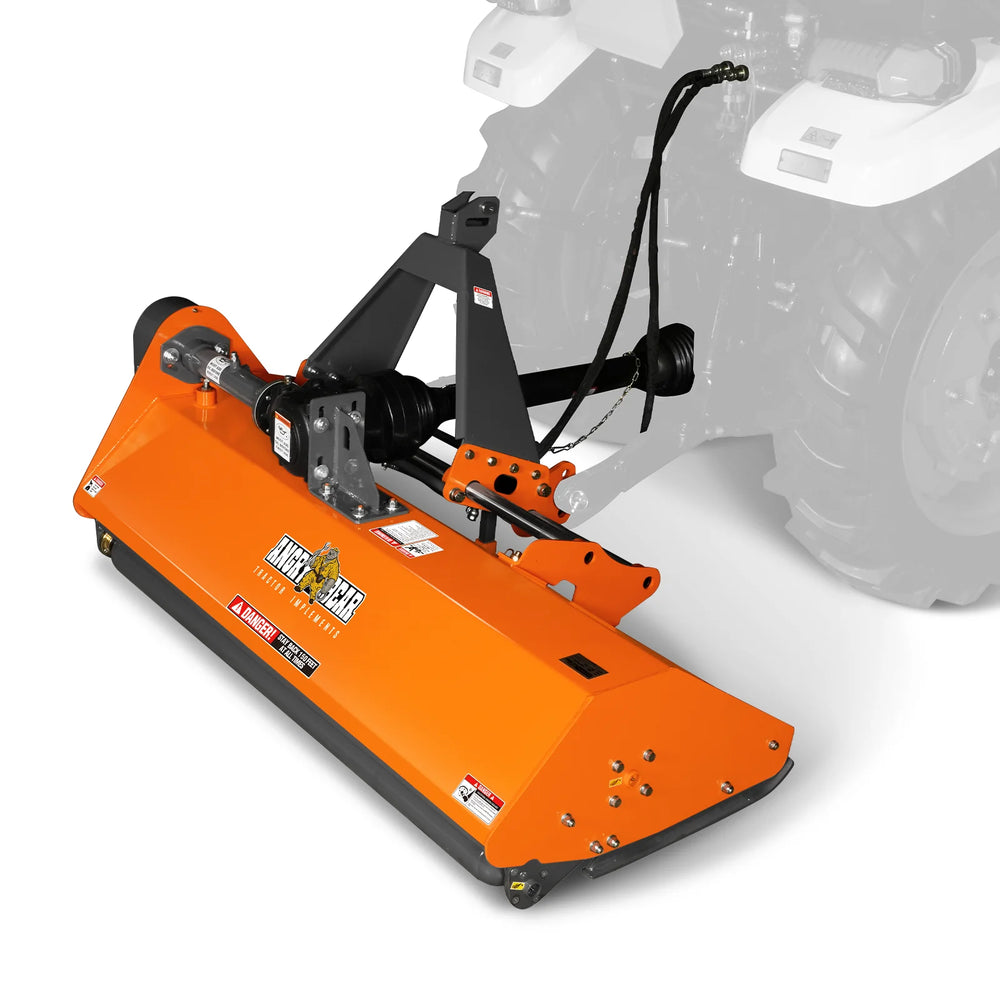

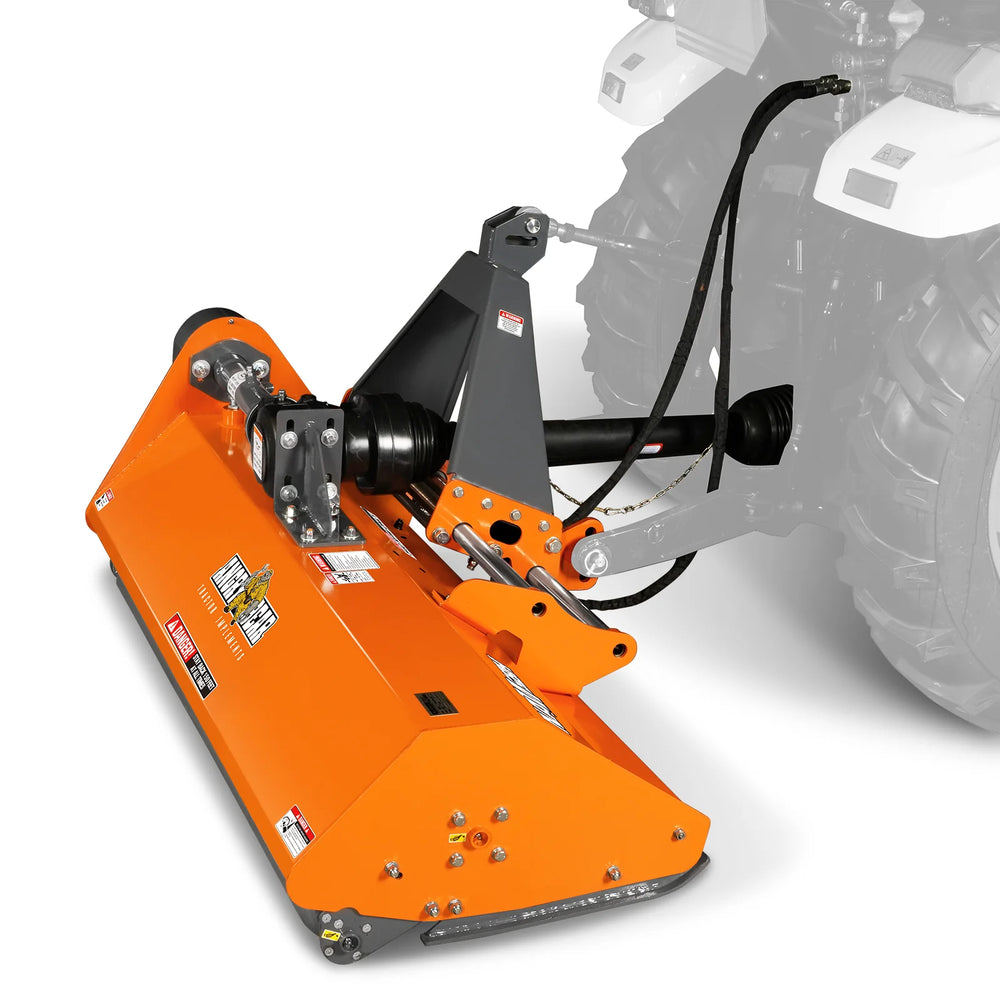

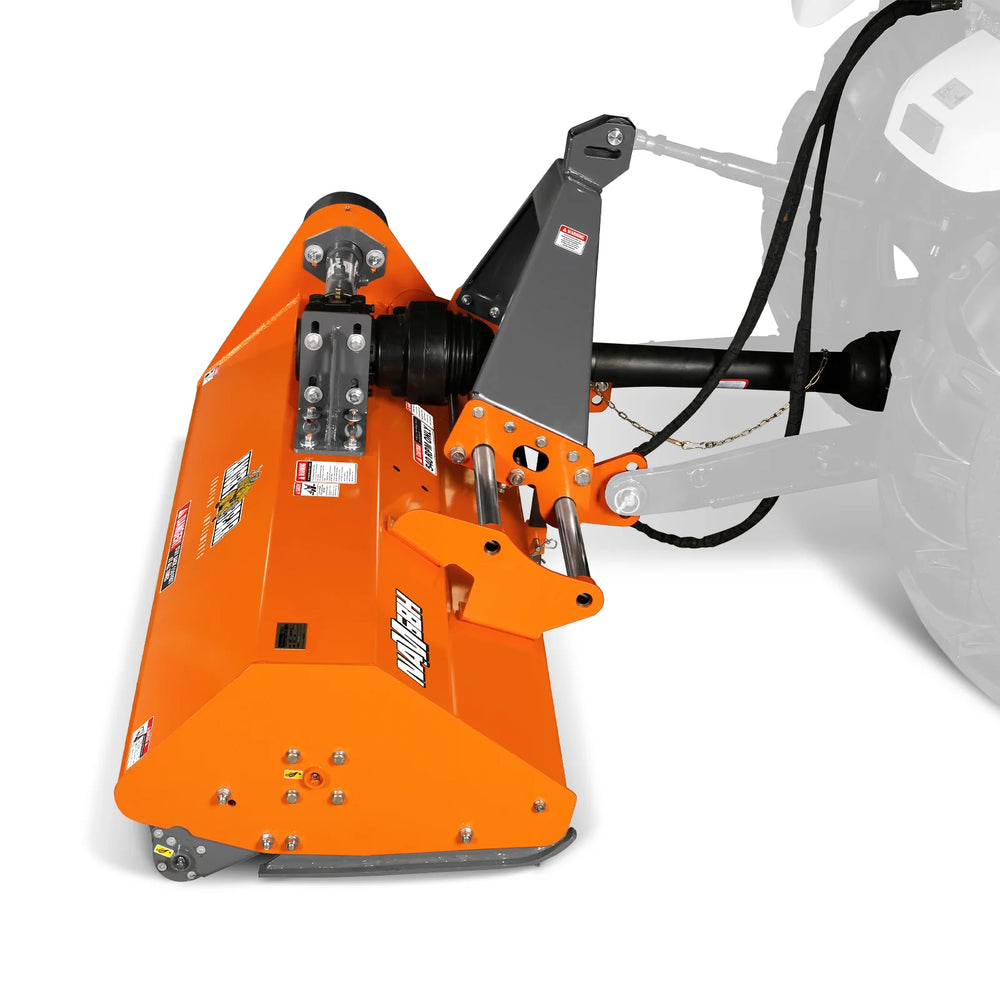

- Hydraulic Side Shift: This mower has a side shift capability of 8 inches to the left and right, with a total length of 16 inches, to expand the mowing range.
- PTO shaft(1- 3/8’’Z6): Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T6-LF-39’’with shear bolt ; 39''-49’’
- PTO Required: Extremely sturdy flail mower engineered to provide optimal performance when used with tractors with PTO power of 30-60HP.
- Adjustable Height Roller Bar: Adjustable Height Roller Bar adjusts to raise or lower the cutting height to your desired need.

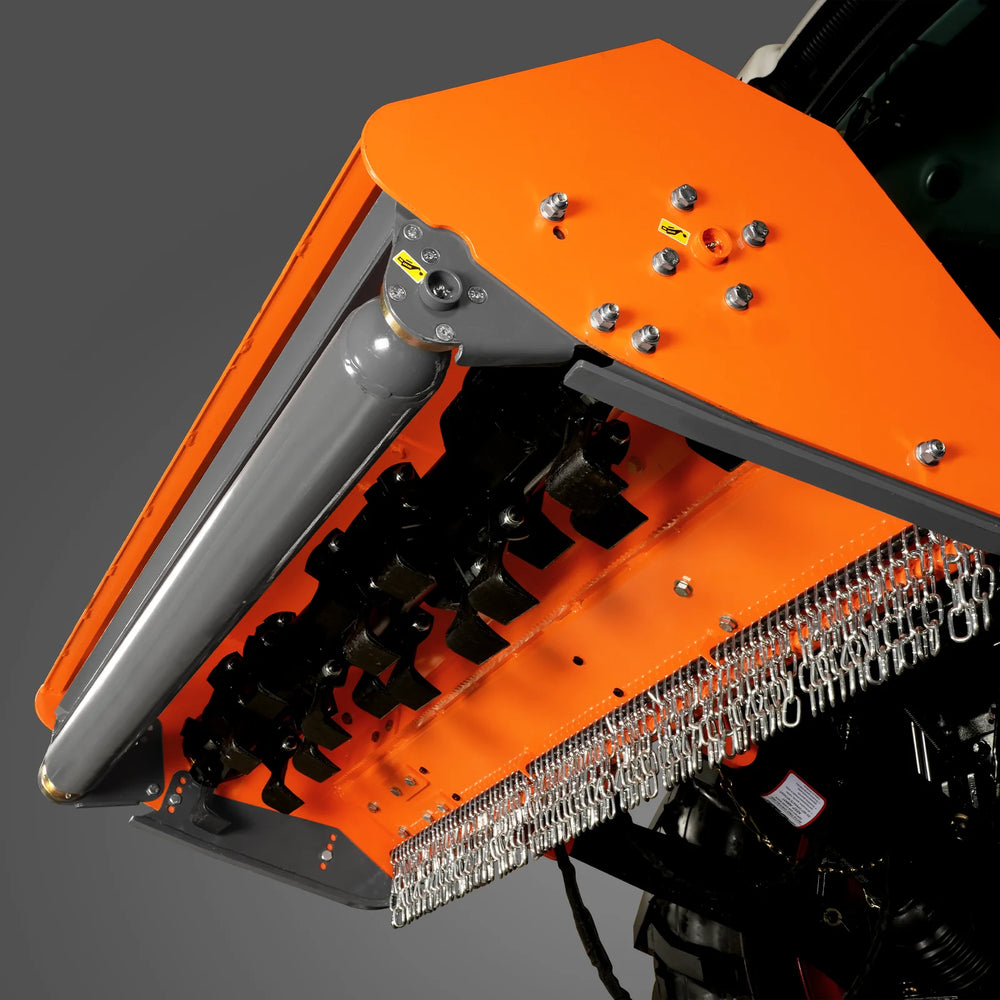

- Hammers: 28 long lasting and durable forged flail hammers grind through tough matted grass, weeds and other overgrown vegetation with ease.
Specifications
| Engine Power Required | 30-60HP |
| Number Of Belts | 4 |
| Working Width | 68in |
| Belt Size | V Belt 17 X 991 |
| Hydraulic Side Shift | 8in (Left Or Right) |
| Drive Belt Tensioner | Yes |
| Overall Width | 74in |
| Deck Thickness | 0.16in |
| Blade Ground Clearance | 0.6in-2in |
| Side Plate Thickness | 0.25in |
| Max. Cutting Diameter | Depends On The Type Of Grass |
| PTO Shaft RPM | 540 RPM |
| Number Of Blades | 28 |
| Driveline Shaft Length | T6-LF-39" with shear bolt ;39"-49" |
| Blade Type | Hammer |
| Spline End | 1 3/8" Z6 |
| Blade Weight | 1.8lbs |
| 3-Point Hitch | CAT 1 |
| Blade （Tines）Material | Cast Steel |

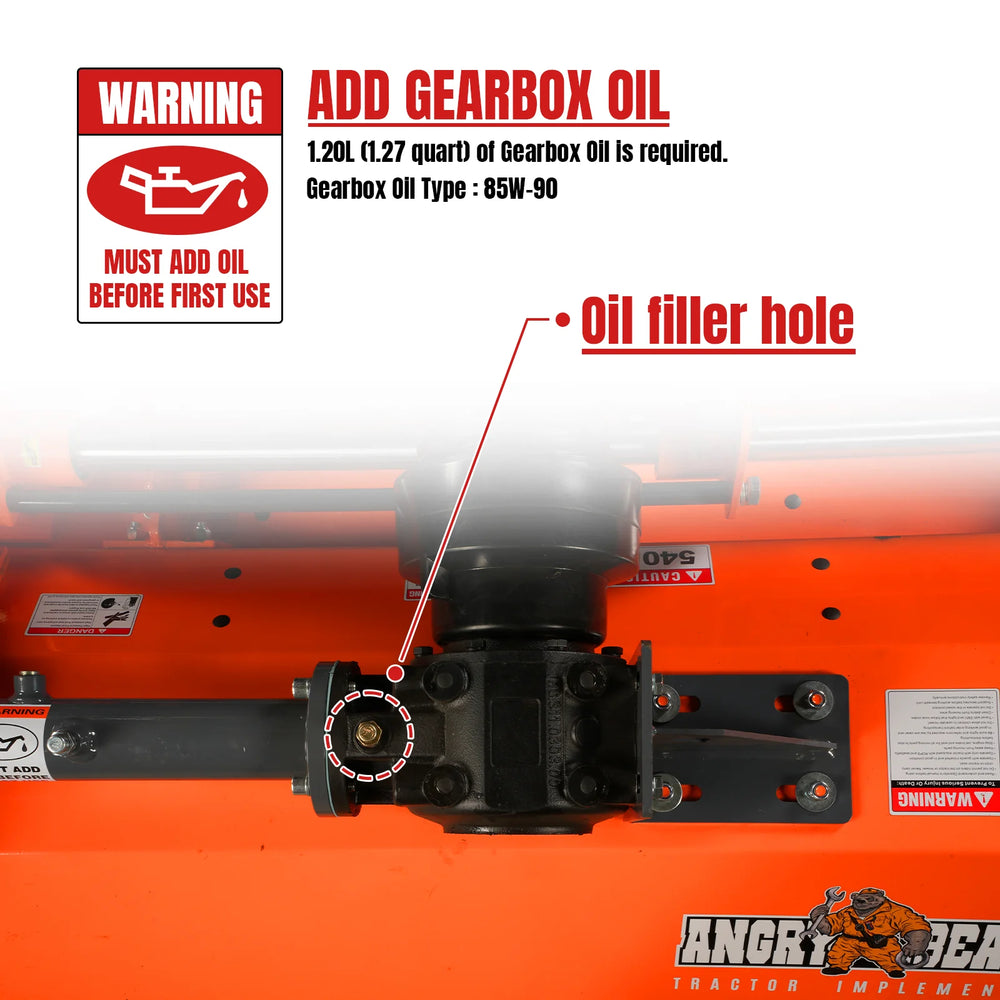

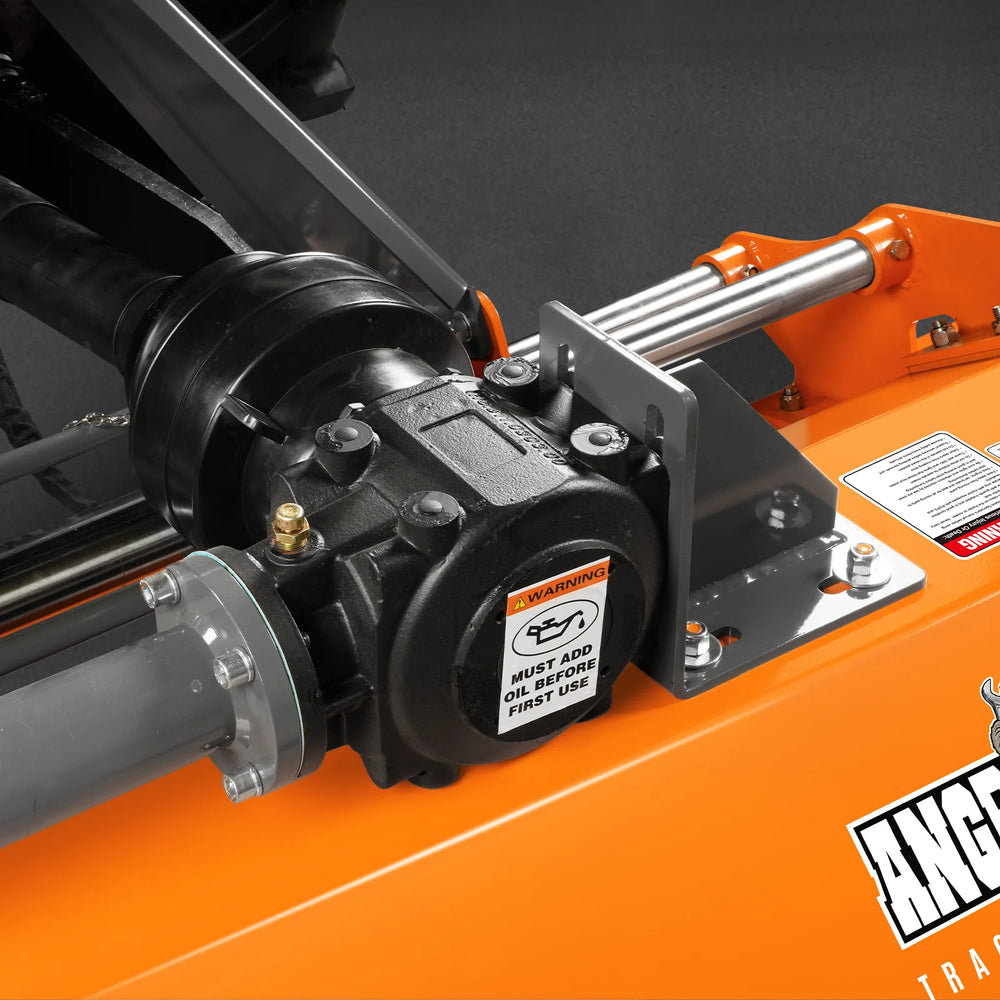

| Gearbox Oil Type | 85W-90 |
| Rotor Bearing | SKF bearing |
| Dimensions (L x W x H) | 78 x 34 x 26in |
| Roller Diameter | 4in |
| Finsh | Powder Coat Paint Galvanized Steel |
| Rotor Diameter | 5in |
| Rotor Swing Diameter | 14in |
| Weight (N.W./G.W.) | 732/820 lbs |
| Drive Type | Belt drive |
Warranty
This item comes with a 1 year factory warranty.
