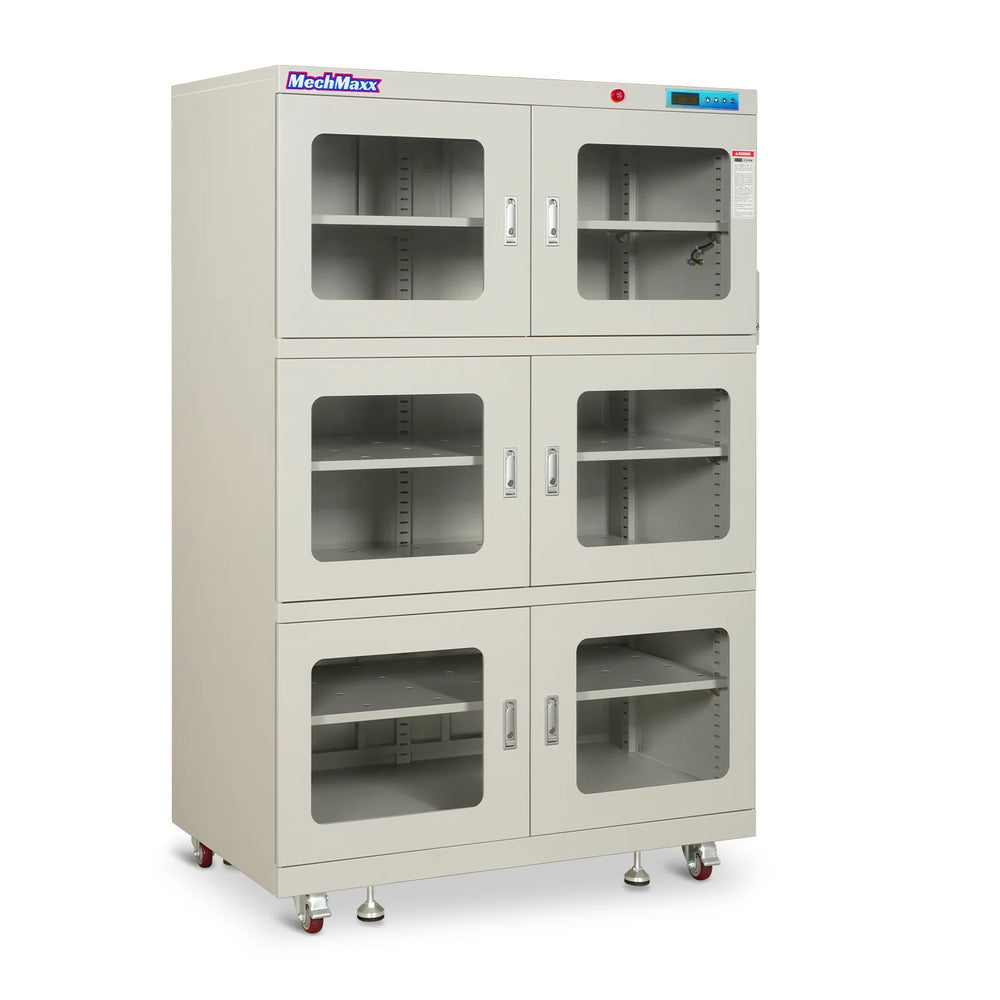

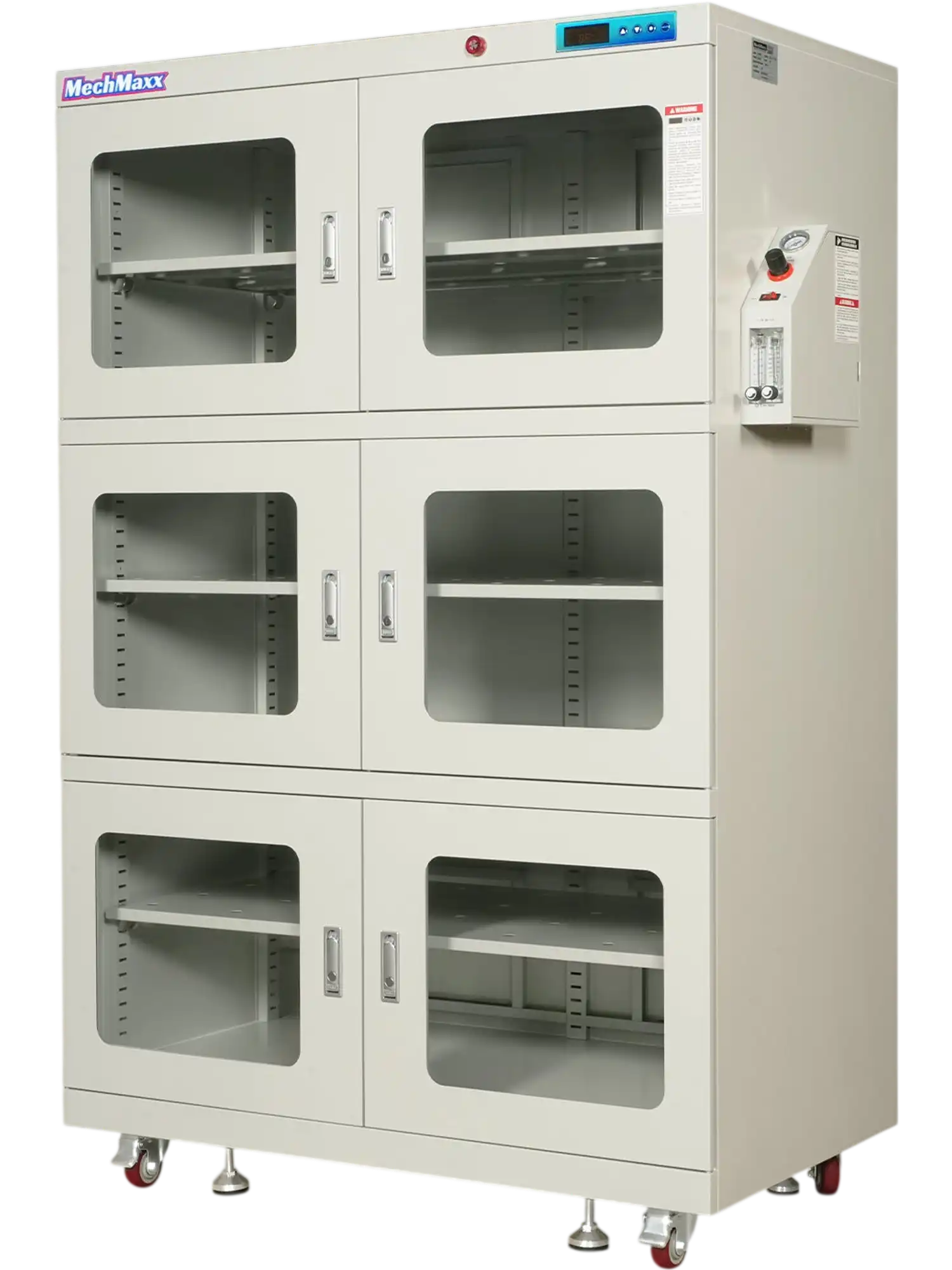

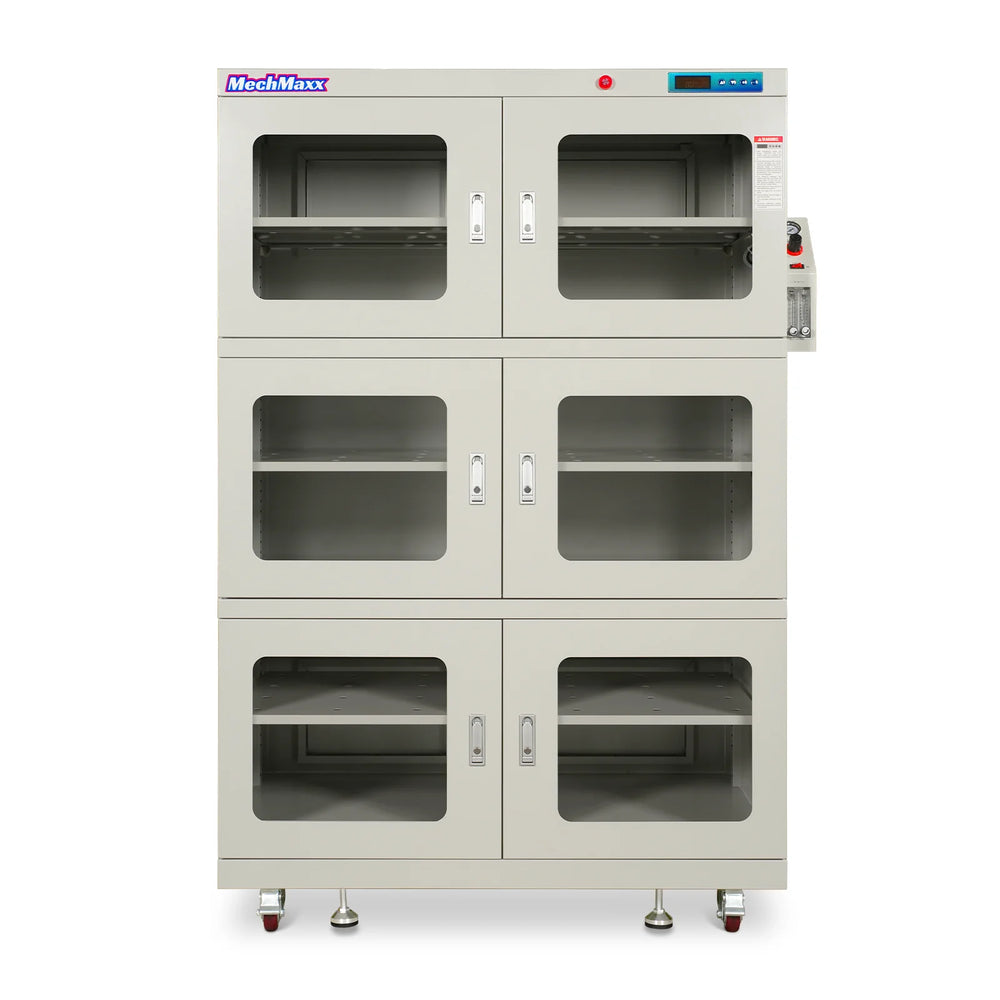

MechMaxx NC1430BW-6 Desiccator Cabinet 1-60% RH Nitrogen Dry 1430L ESD Low Humidity Storage White New
Manufacturer: MechMaxx
SKU: 203009W
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 3,899.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

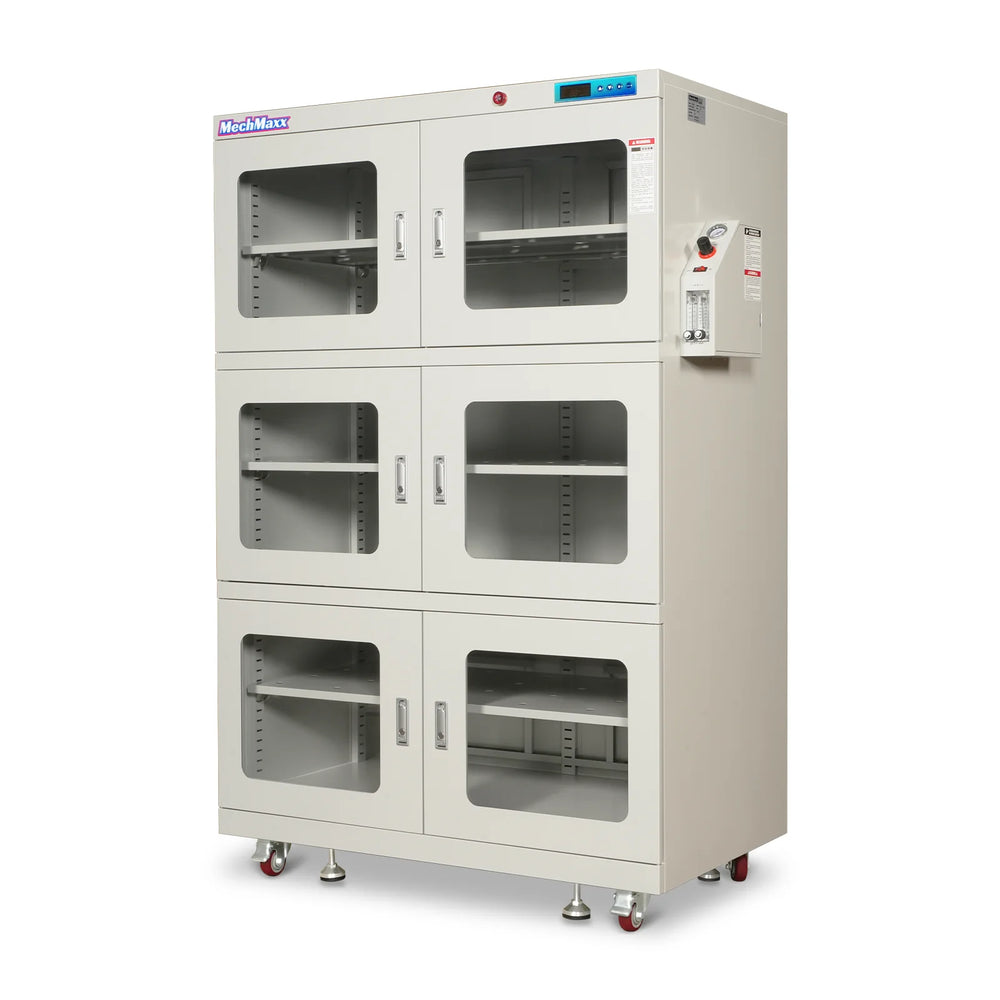

MechMaxx NC1430BW-6 Desiccator Cabinet 1-60% RH Nitrogen Dry 1430L ESD Low Humidity Storage White New
Product Overview
The Smart Nitrogen Dry Cabinet offers precise humidity control from 1% to 60% RH, using nitrogen or inert gases to create a stable, ultra-dry environment. Designed for fast recovery and optimal protection, it safeguards moisture-sensitive components such as semiconductors, optical devices, PCB assemblies, and lab materials. By minimizing oxygen exposure and preventing oxidation, microcracking, and delamination, it ensures the highest standards of material integrity, reliability, and long-term performance.

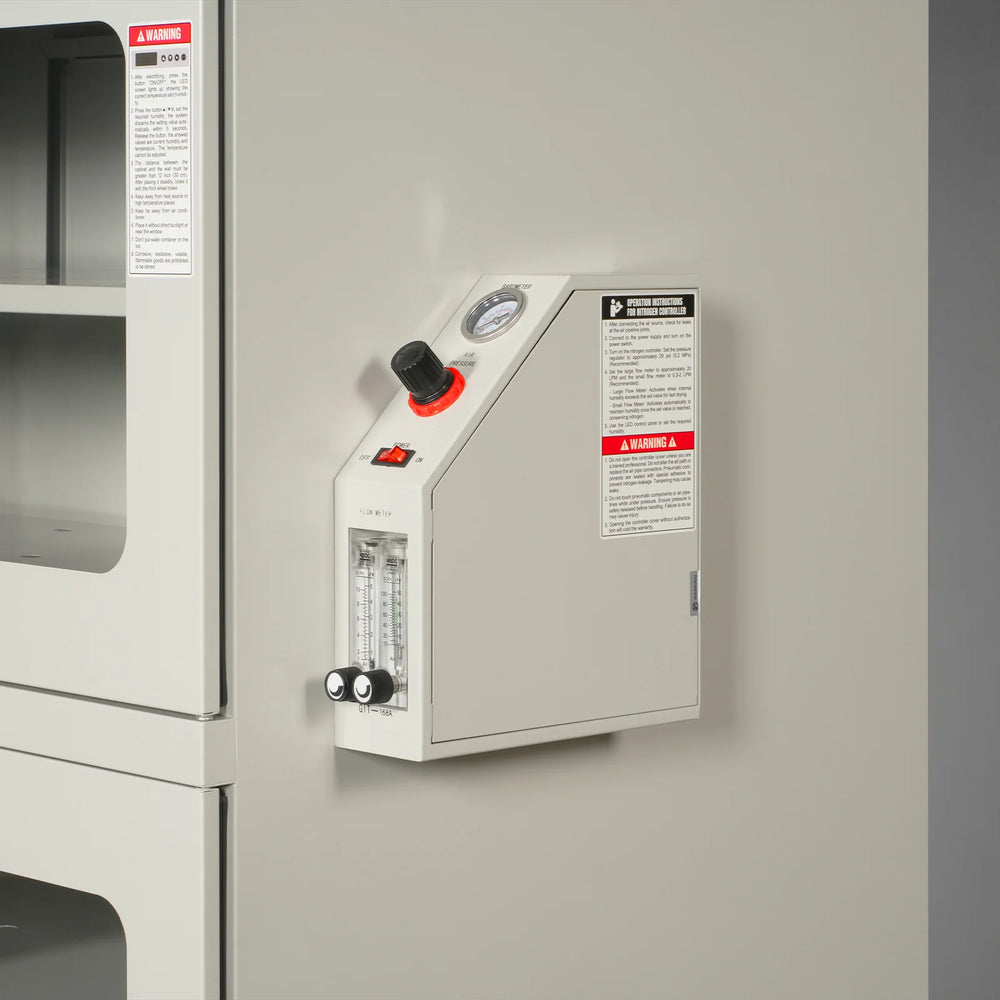

- Smart High-low Flow Control: Smart dual-flow control ensures rapid dehumidification and nitrogen savings. Cuts nitrogen use by 50%. High-flow prevents moisture during door openings, low-flow maintains set humidity. Microcomputer auto-switching ensures rapid dehumidification, energy efficiency, no manual operation needed.
- Modular & Flexible Design: The integrated nitrogen controller streamlines maintenance, reduces failure risks. Add additional modules as your needs grow, providing a future-proof solution.
- Robust Structure: Built with durable materials like powder-coated steel and tempered glass for long-lasting performance. Designed to withstand frequent access without compromising the storage environment.
- Anti-Static Protection: ESD-safe features include anti-static coatings (body and shelves), anti-static casters, and 1 MΩ ground wire, protecting electronic components from electrostatic discharge.
- Intelligent Digital Control: The intelligent microcomputer control system precisely regulates humidity and monitors temperature in real time. Equipped with a high-precision Honeywell humidity sensor, it ensures stable and reliable dehumidification performance. The humidity settings feature a memory function, so there’s no need to reset after power loss.
- Large Capacity Options: Available in a variety of sizes, from compact units for laboratories to large cabinets for high-volume production environments.
- Special Custom Made (Please call for price and lead time): Custom sizes, white coating, baking system, stainless steel construction, humidity/temperature alarm system with buzzer or light tower, door open alarm, internal LED lights, data logger, network monitoring system, touch screen control panel, and more.
Note！
- Please read the PRODUCT MANUAL carefully before operation.
- This dry cabinet can only REMOVE moisture from the air according to the desired RH level set, but it cannot ADD moisture into the cabinet.
- This dry cabinet performs best when ambient temperature is below 30°C and RH is under 60% RH.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- High-precision Honeywell Sensor: The device uses high-precision Honeywell sensor made in the USA, with humidity accuracy of ±3% RH, annual drift of +0.3%, and temperature accuracy of ±1%, offering high precision and stability.

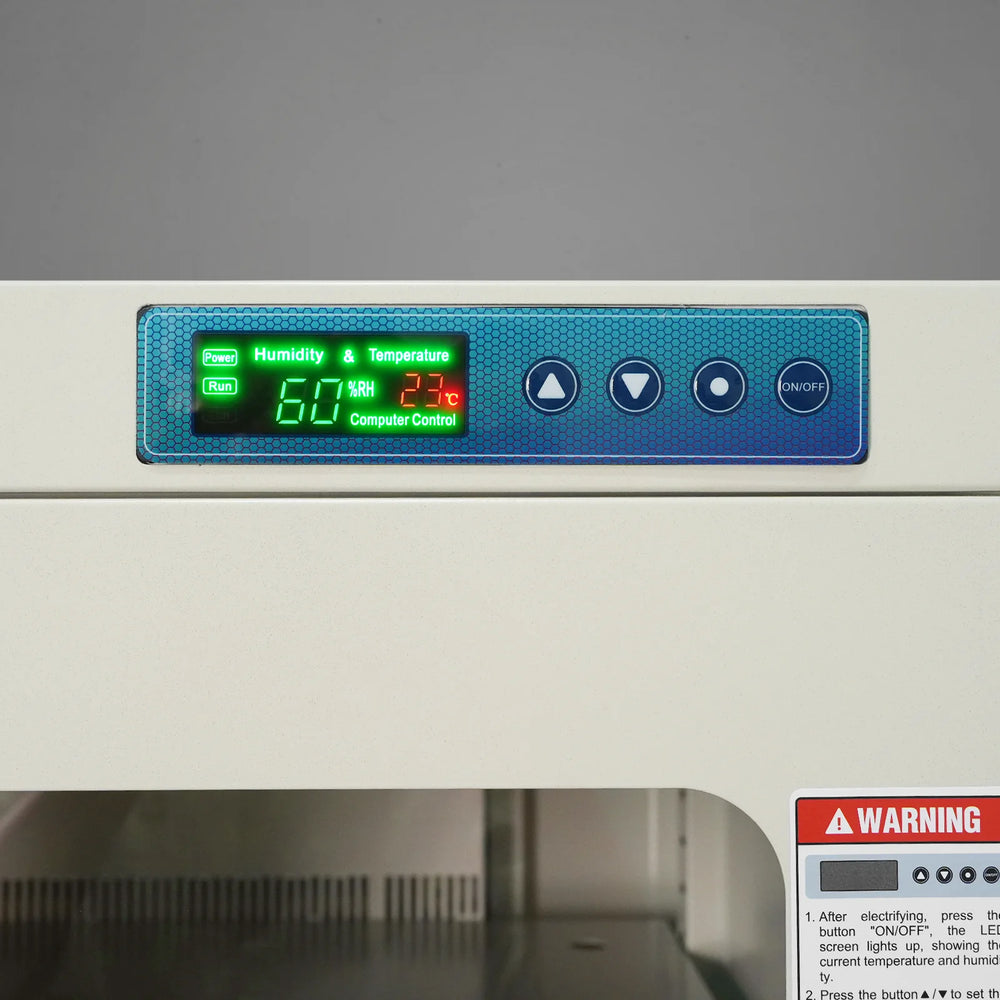

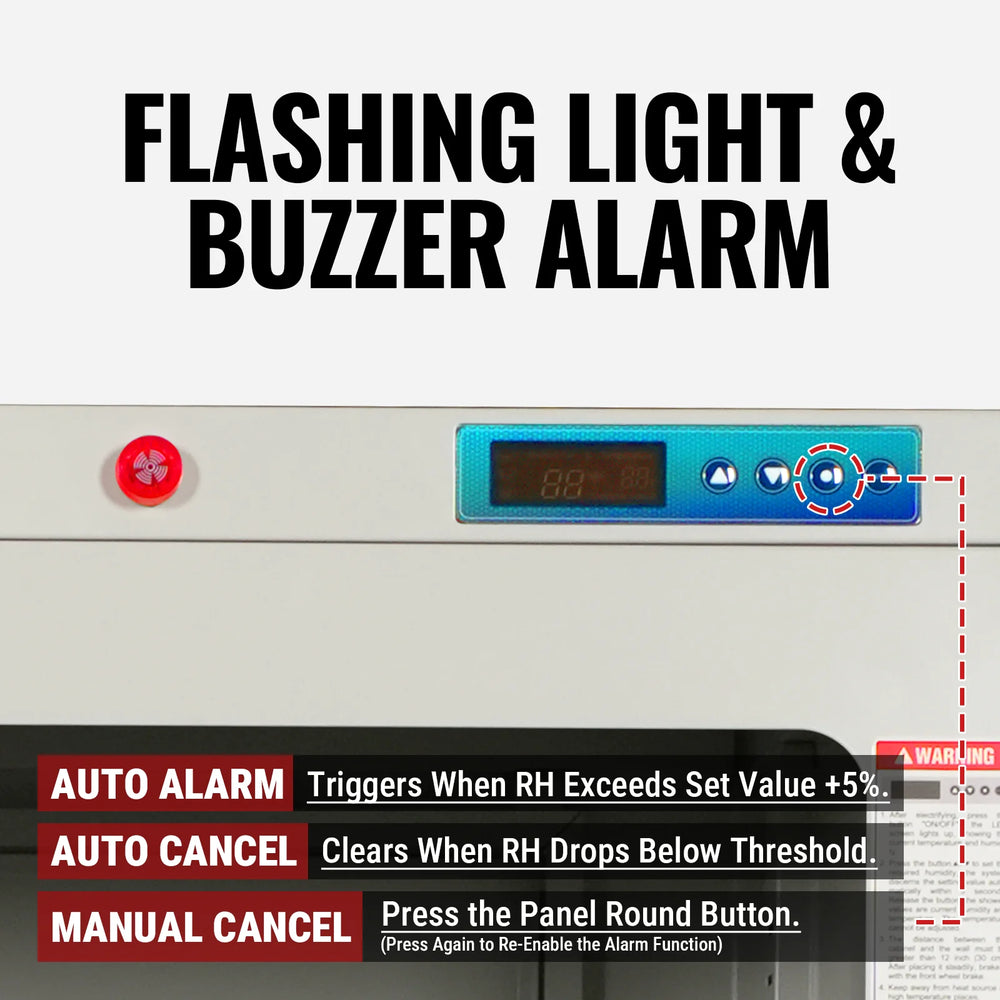

- LED Display Control Panel: The LED panel displays status indicators for easy troubleshooting. With automatic memory, no reset is needed after a power outage. The cabinet can be set to maintain any humidity level between 1% and 60%.
- Smart High-low Flow Control: Smart dual-flow control ensures rapid dehumidification and nitrogen savings. Cuts nitrogen use by 50%. High-flow prevents moisture during door openings, low-flow maintains set humidity. Microcomputer auto-switching ensures rapid dehumidification, energy efficiency, no manual operation needed.
- ESD Safe Design: All cabinets are equipped with ESD safety features, include anti-static coatings (body and shelves), anti-static casters, and 1 MΩ ground wire, protecting electronic components from electrostatic discharge.
- Specially Designed Robust Structure: The entire cabinet is constructed from high-grade 1-1.2mm steel with a specially designed structure for excellent airtightness. The door features a 5mm explosion-proof tempered glass window and an integrated flat handle with anti-theft protection.

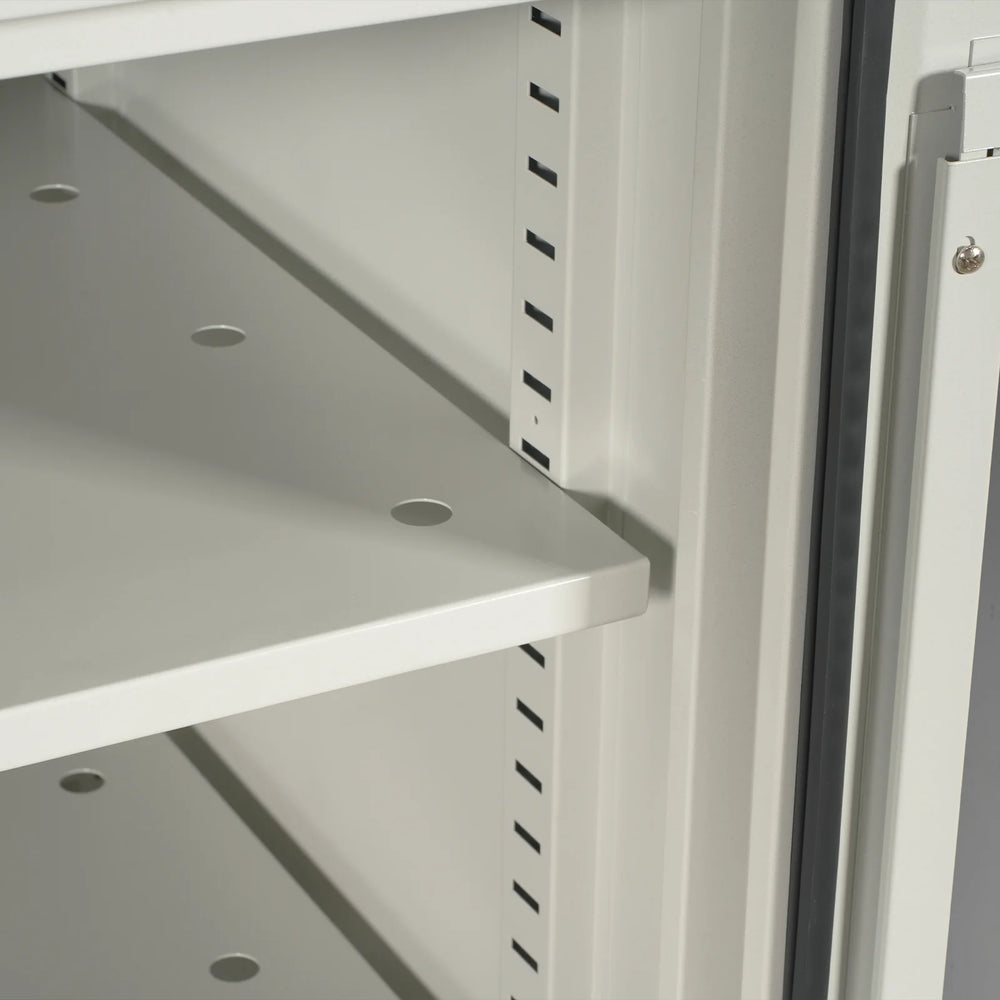

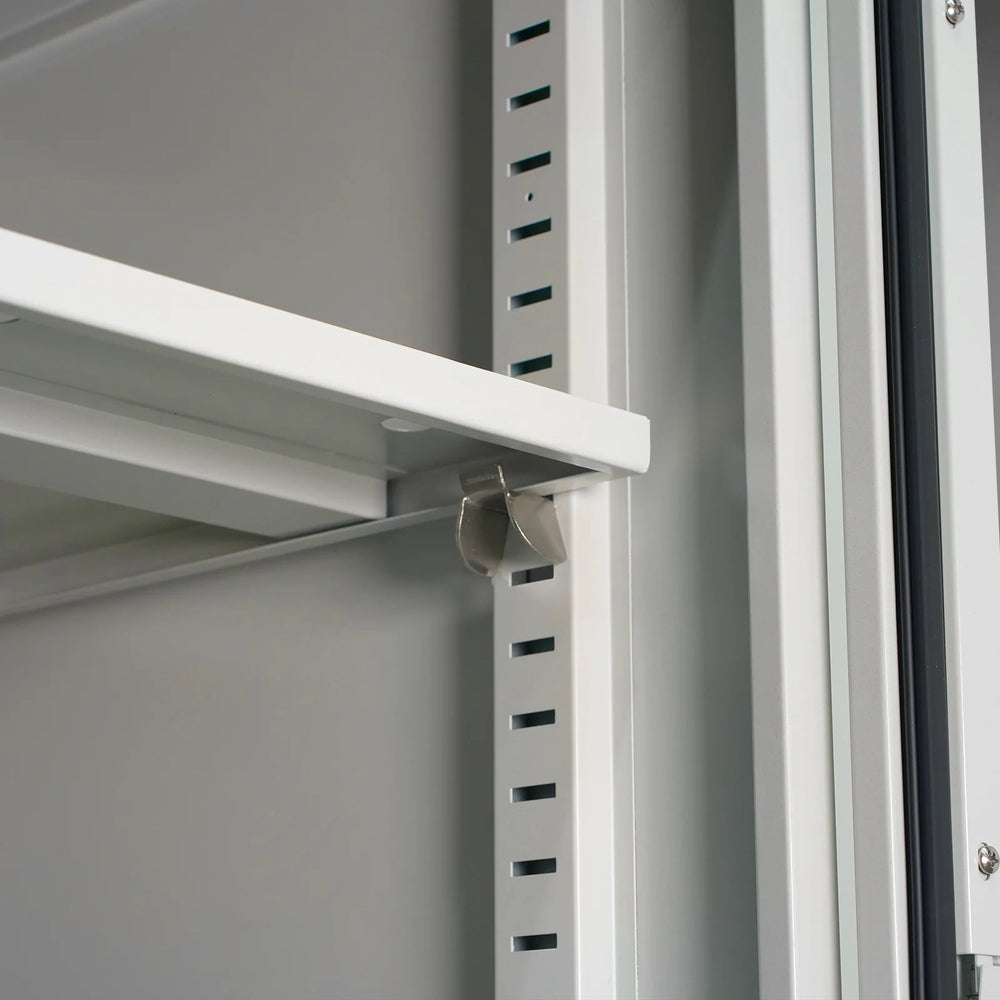

- Adjustable Shelves: The distance between shelves is adjustable, allowing you to add or remove shelves as needed. With a perforated design for optimal air circulation. The uniform load capacity of each shelf can reach up to 220 pounds.
Specifications
| Humidity Range | 1-60% RH |
| Humidity and Temperature Accuracy | ±3% RH, ±1℃ |
| Voltage | 110V 60Hz |
| Power | 12W |
| Capacity | 50.5 cu. ft. (1430L) |

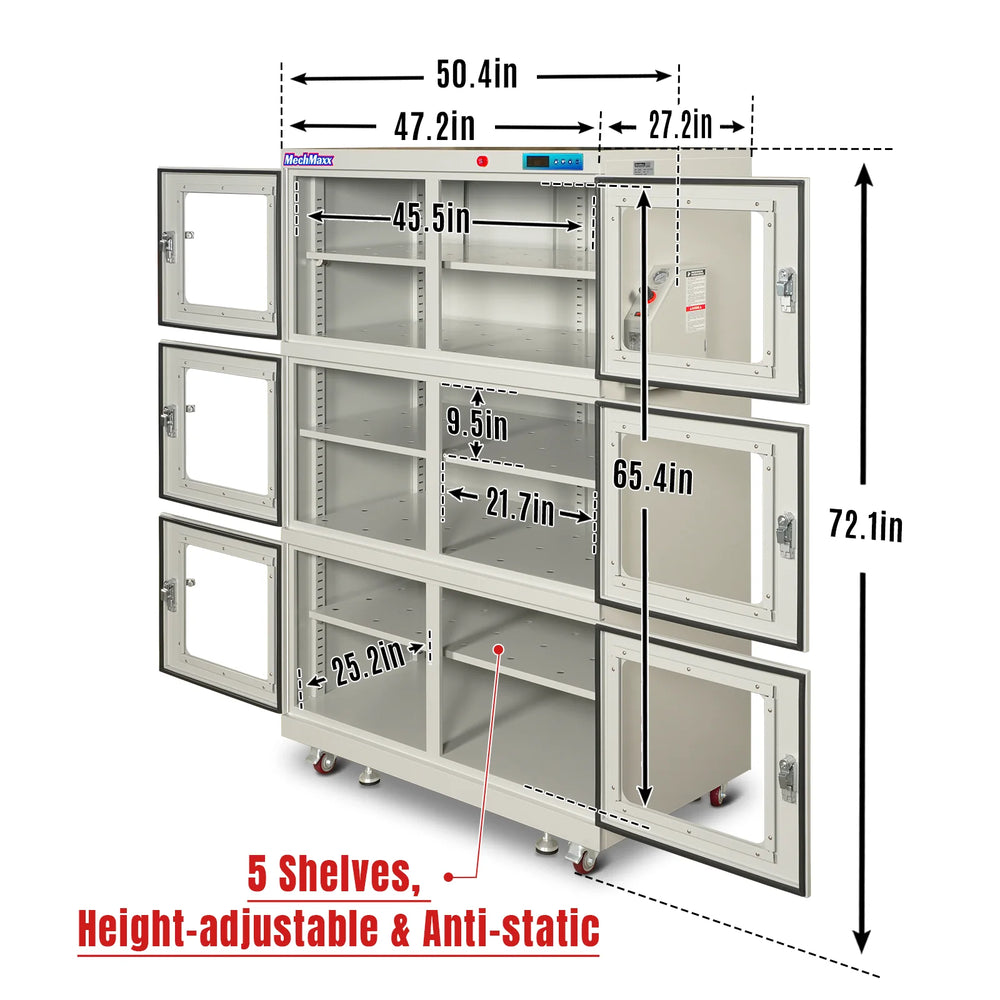

| External Size (WxDxH) | 50.4 x 27.2 x 72.1 in |
| Internal Size (WxDxH) | 45.5 x 25.2 x 65.4 in |
| Structure | 1-1.2 mm High-grade Steel with ESD Coating |
| Flowmeter | Dual Flowmeter Auto Control0.5-5 LPM & 5-50 LPM |
| Shelves (pcs) | 5 Shelves, Height-adjustable & Anti-static |
| Doors (pcs) | 6 Doors with 5 mm Tempered Glass Windows and Compression Handles |

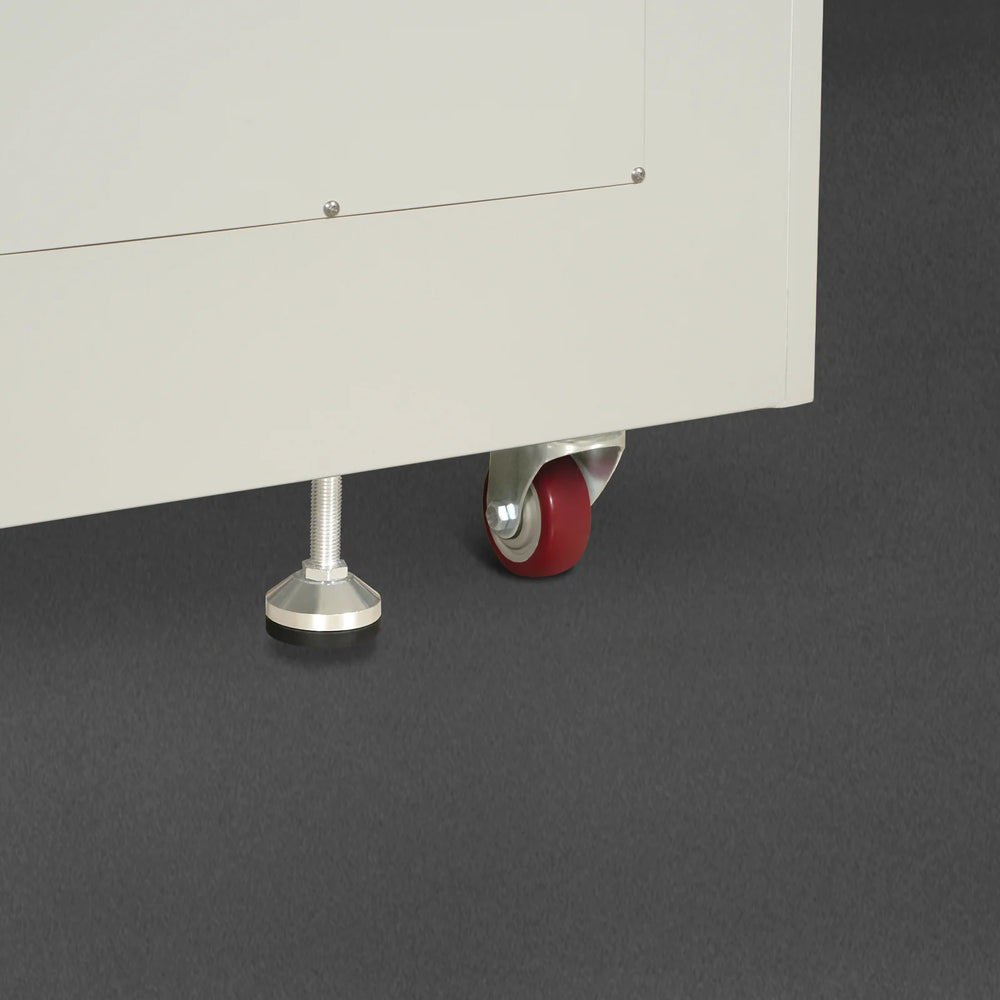

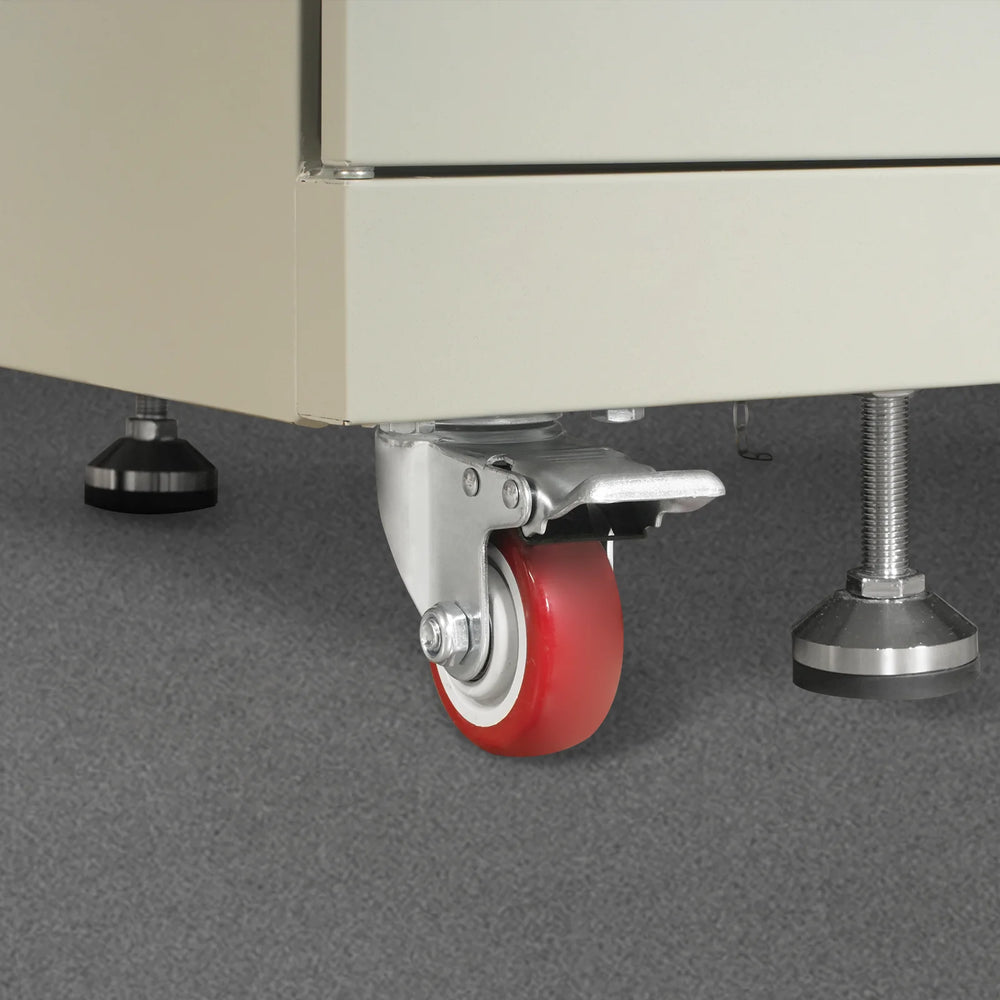

| Casters (pcs) | 4 Anti-static (2 with Brakes) |
| ESD Protection | 106~109 Ω (Surface Resistance) |

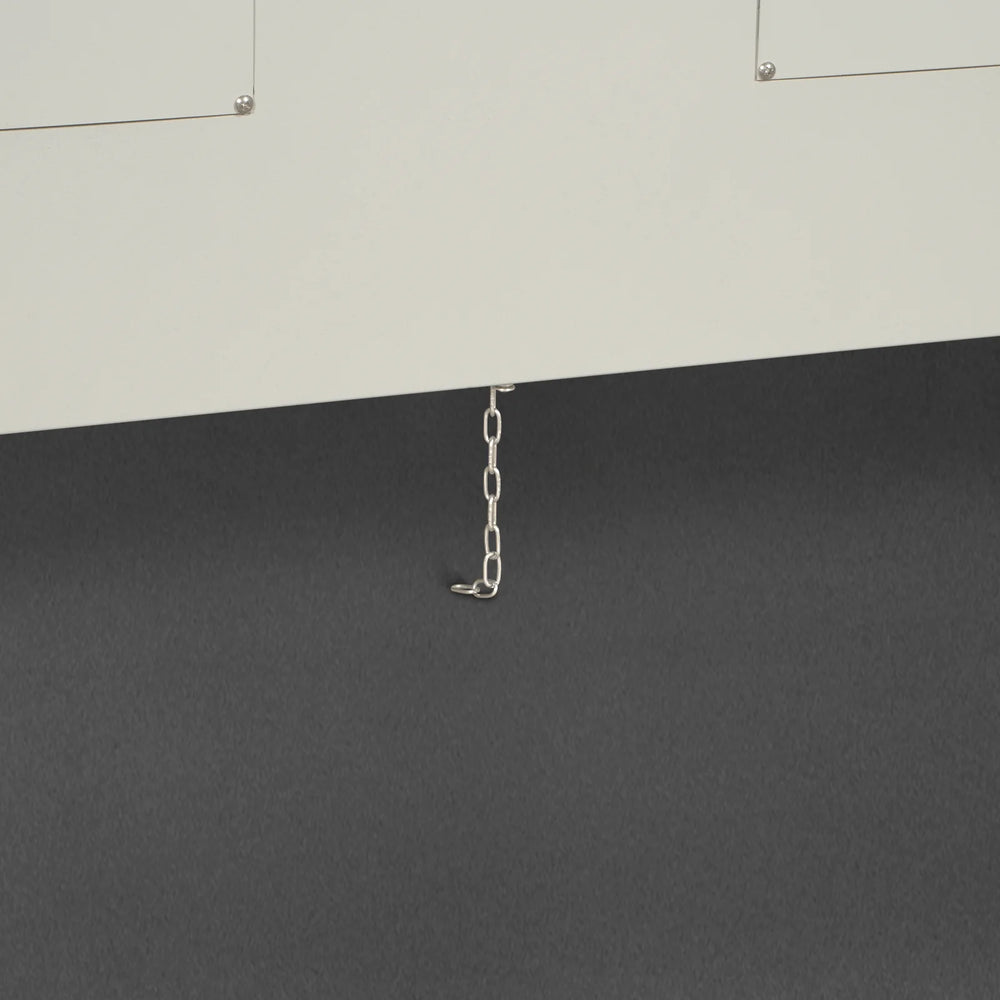

| Grounding Wire | 1MΩ. |
| Packing Size (LxWxH) | 55 x 31 x 80 in |
| Weight (N.W/G.W.) | 328/548 lbs |
Warranty
This item comes with a factory warranty.
