MechMaxx PT22Z Power Trowel 5.8 HP 23" Walk-Behind Concrete with Blades and Float Pan New
Product Overview

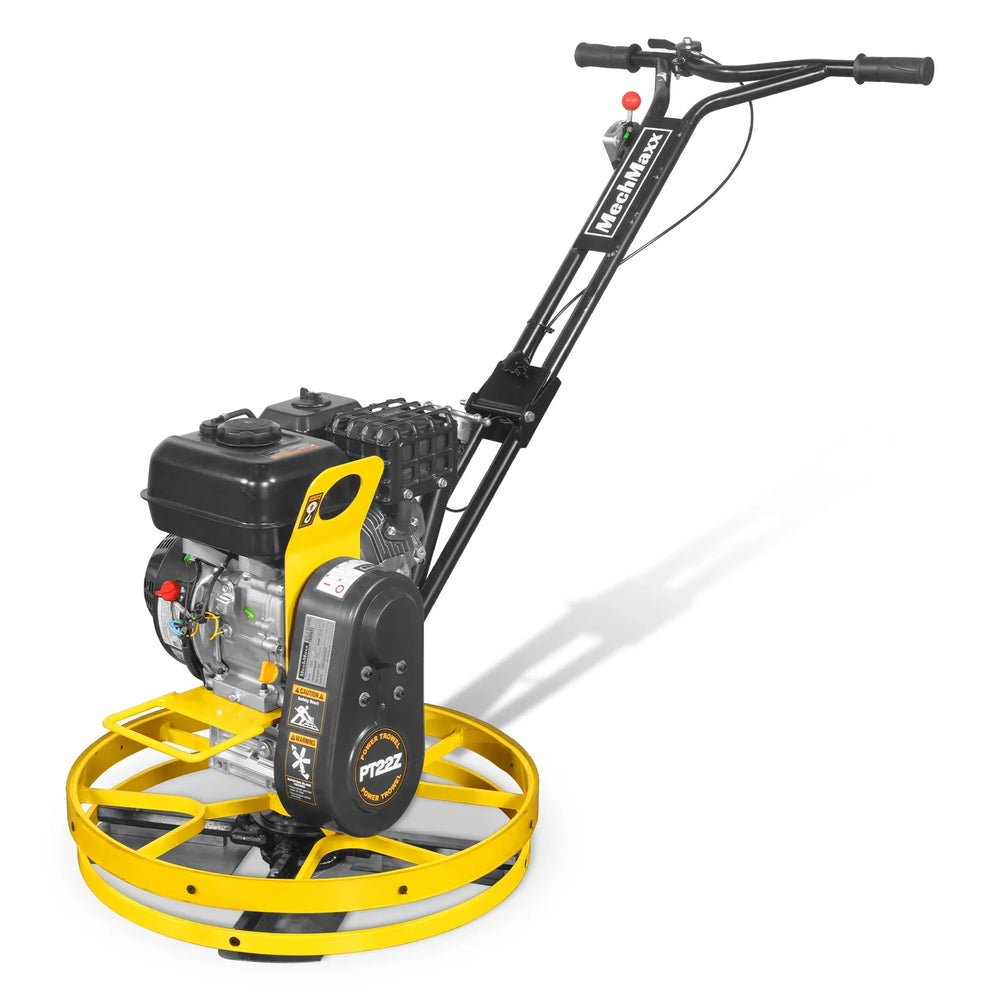

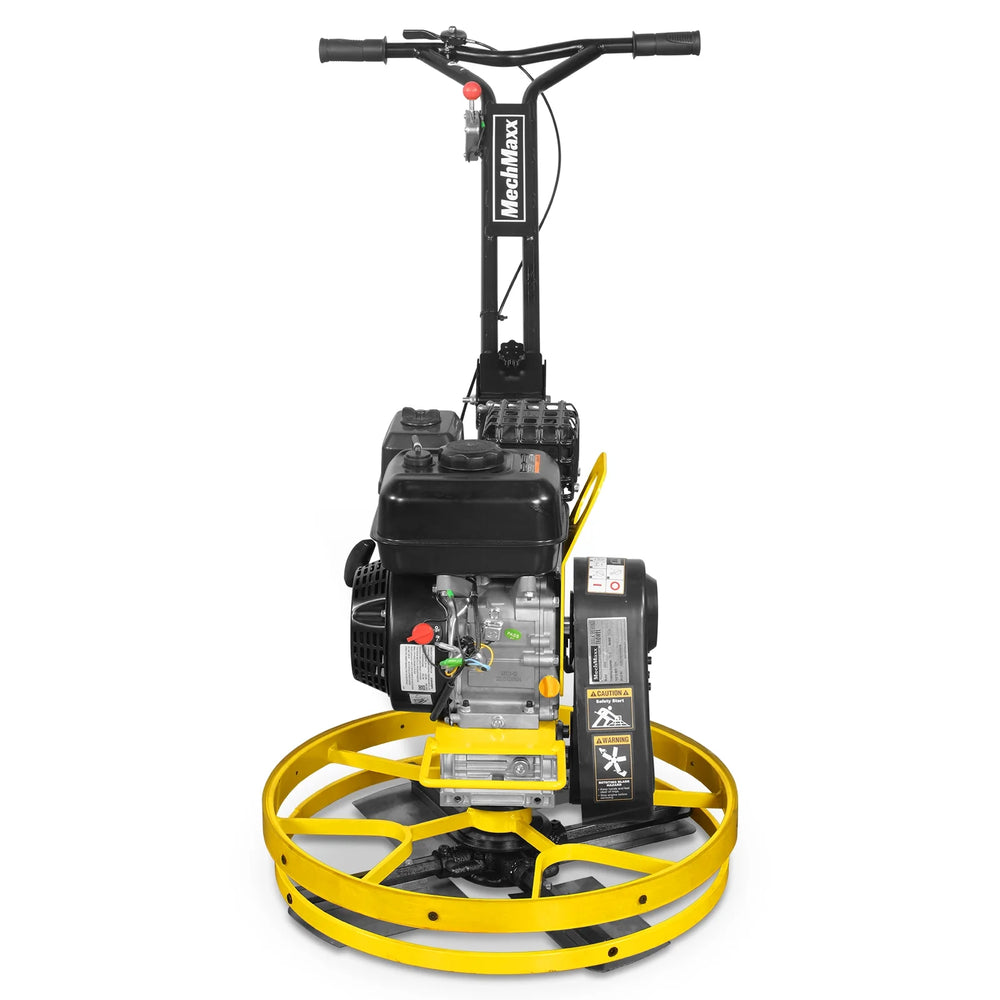

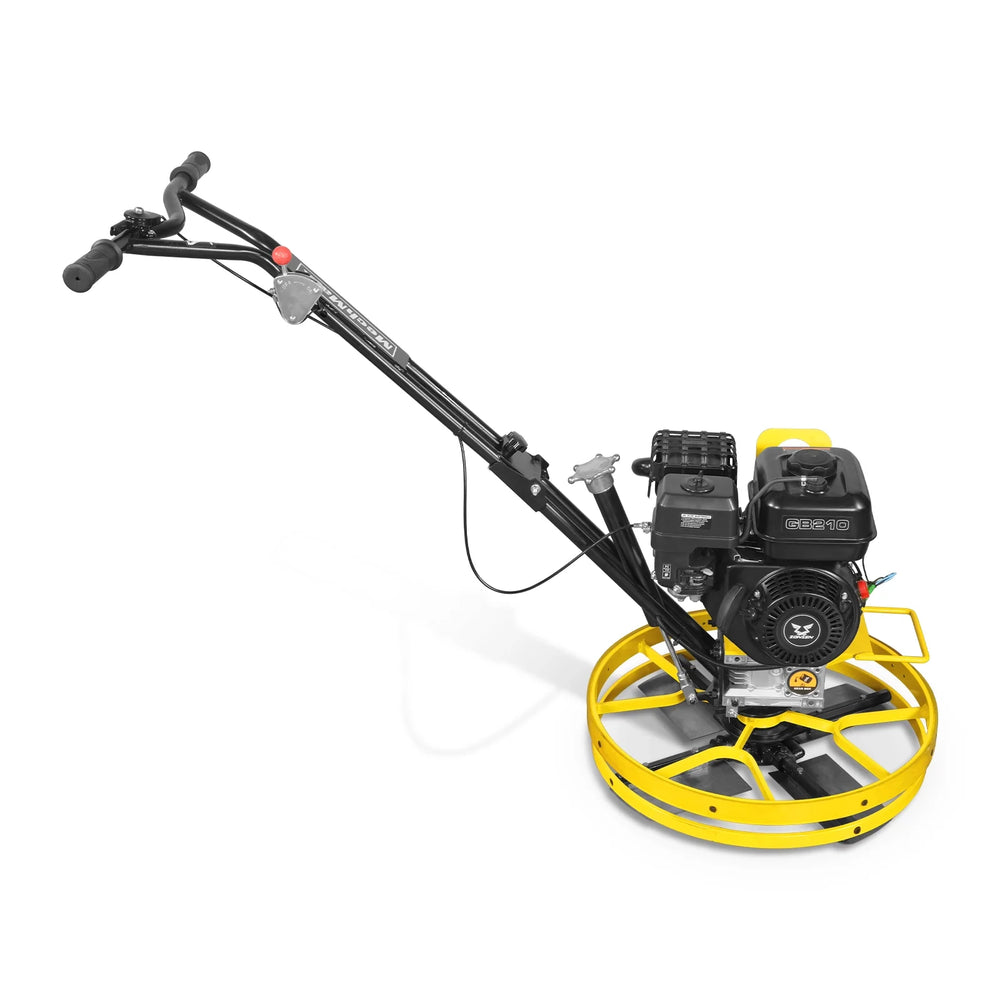

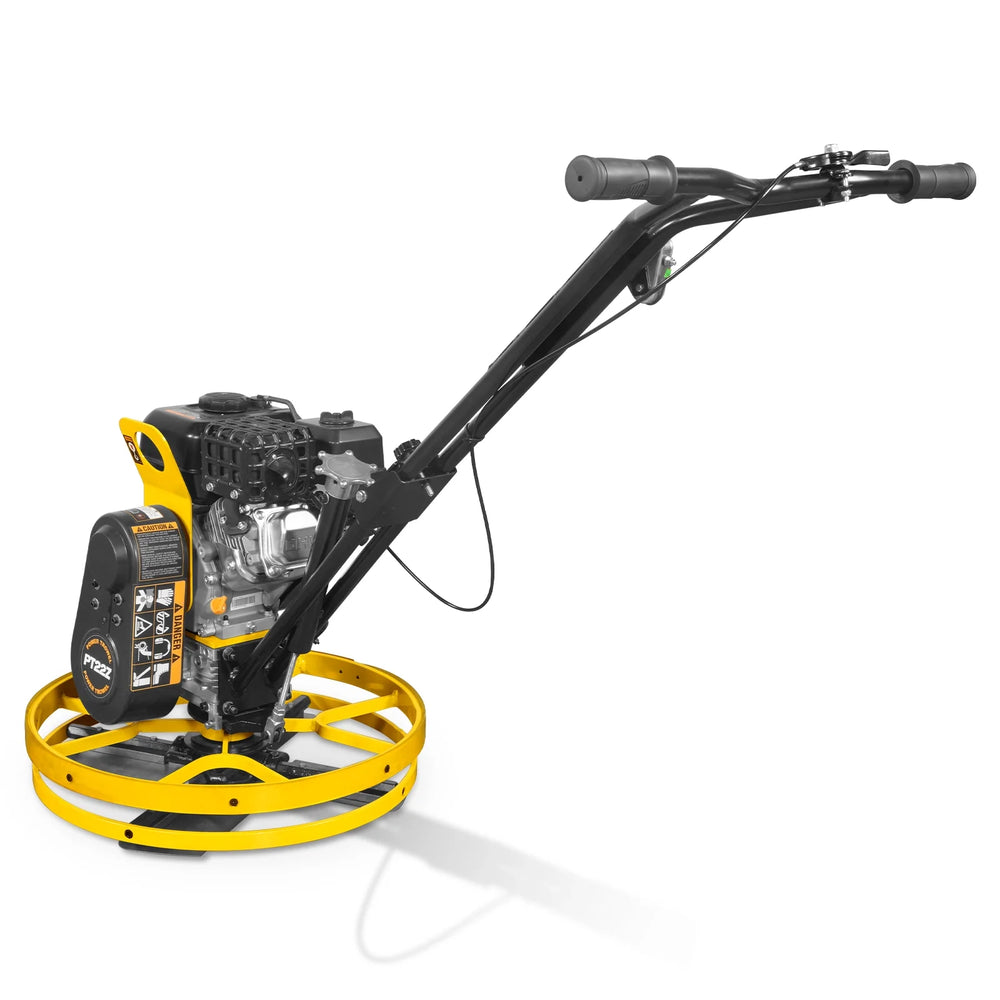

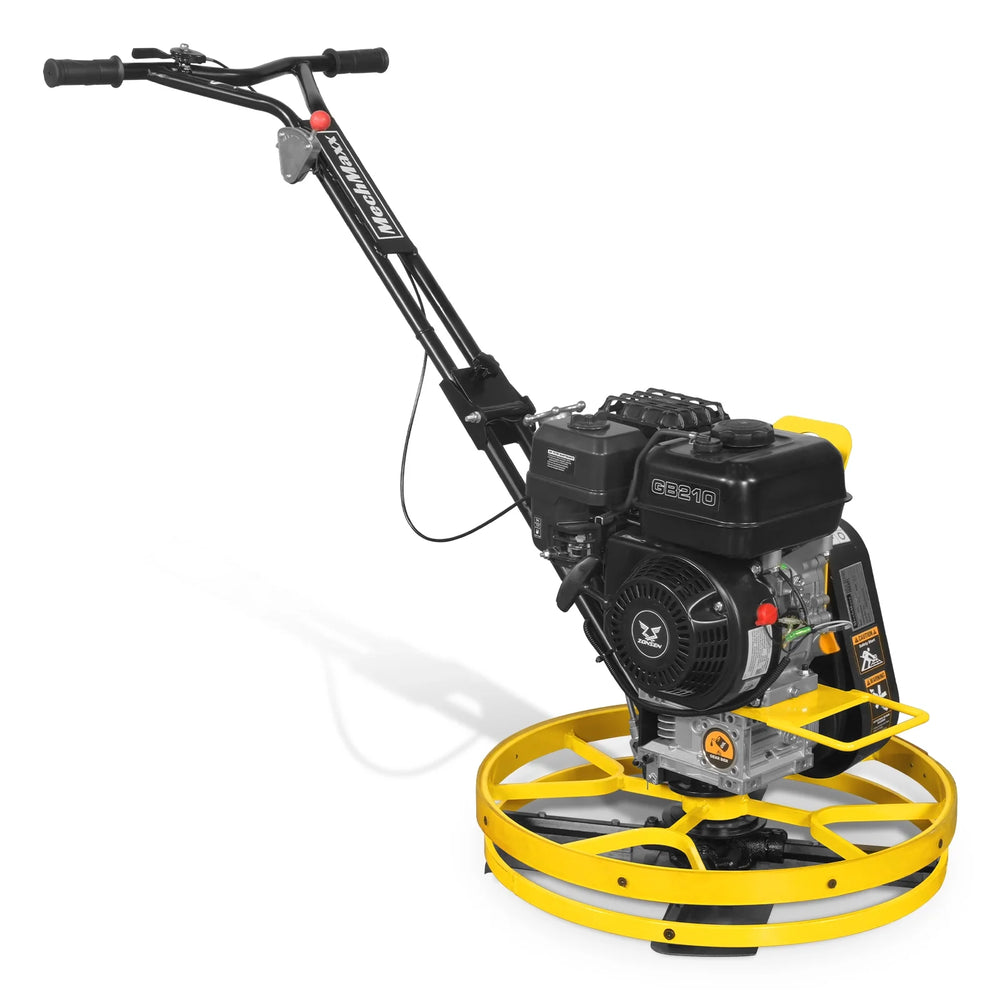

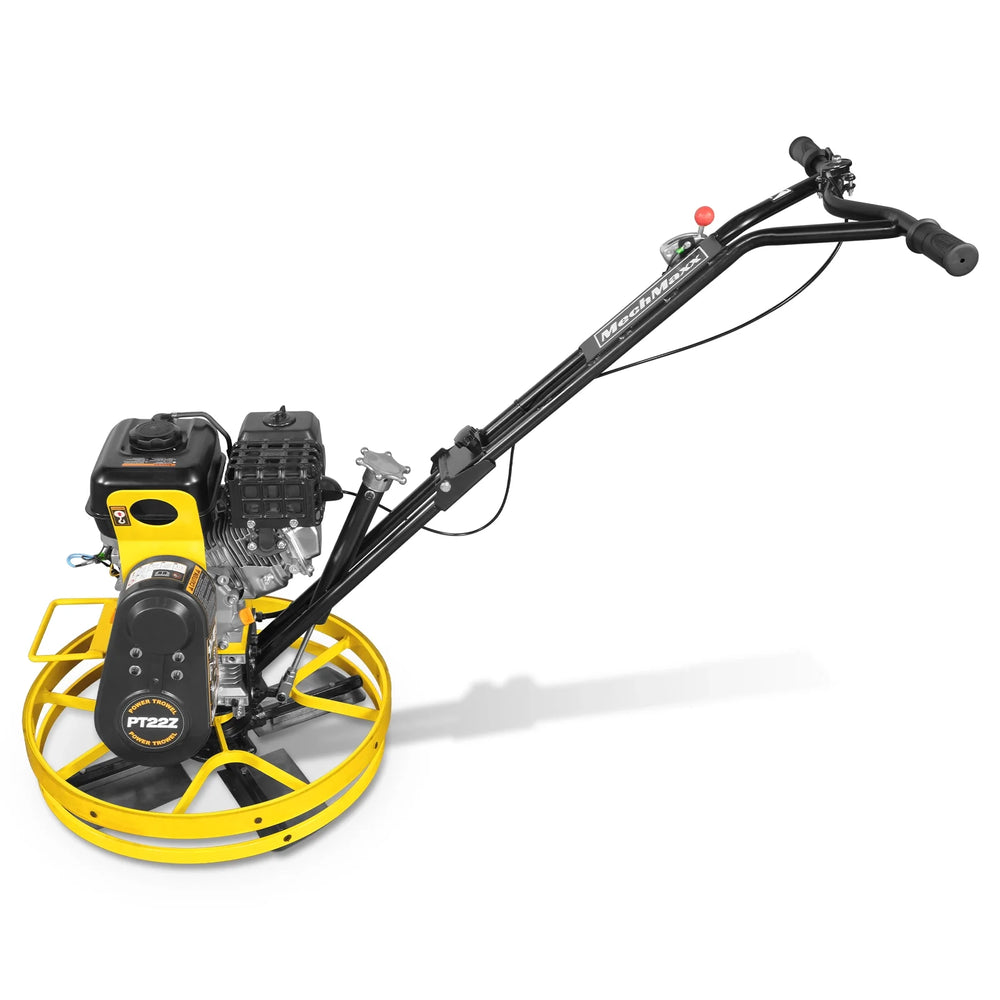

The MechMaxx PT22Z Walk-Behind Concrete Power Trowel is designed for smooth, consistent finishing on concrete slabs, floors, and other flatwork applications. Powered by a Zonsen GB210 engine, it provides reliable performance for floating and finishing concrete surfaces. A durable gearbox, adjustable blade pitch, free-rotating guard ring with clear polyurethane edge, included blades and float pan, centrifugal safety switch, foldable handle, lifting hook, and front carry handles help improve finishing control, edge-work capability, operator safety, durability, and jobsite handling.

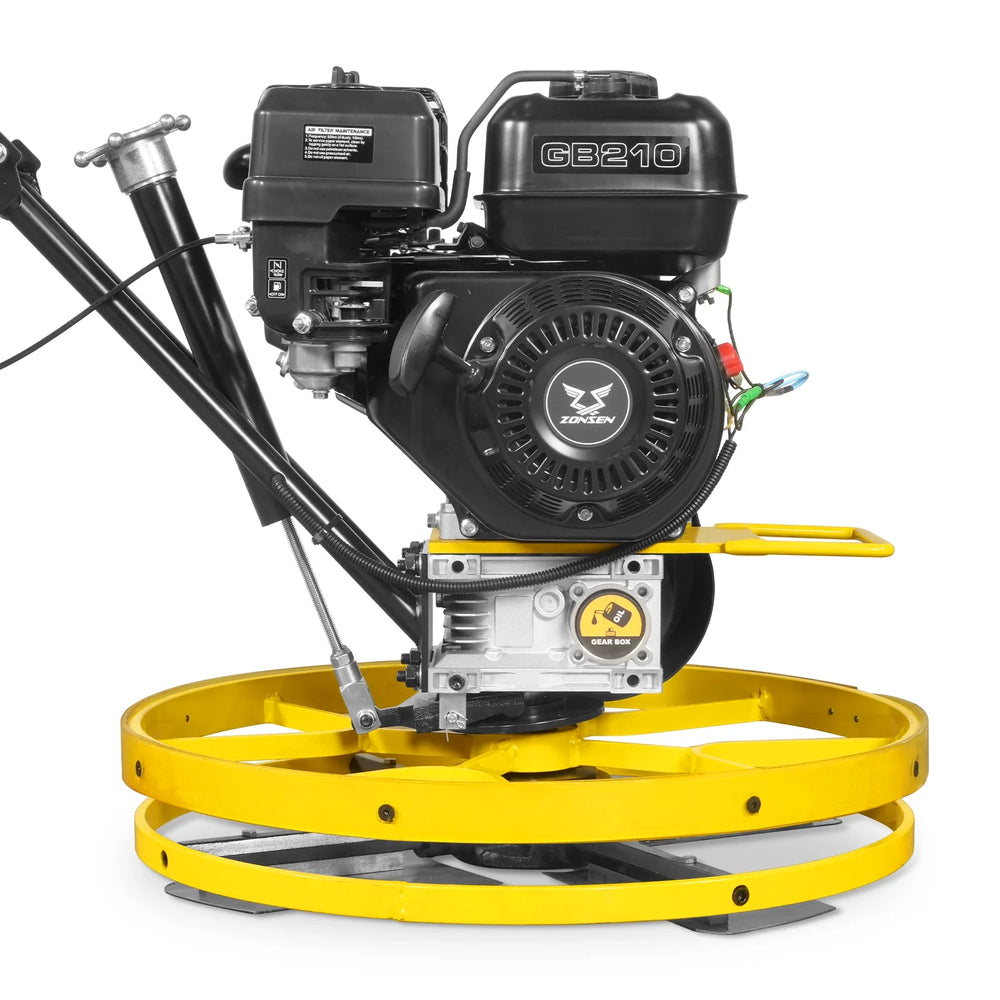

- Reliable Zonsen GB210 Engine: Powered by a Zonsen GB210 5.8 HP engine, this walk-behind concrete power trowel provides dependable starting, stable operation, and consistent power for concrete finishing applications.
- 23 in Troweling Diameter and Adjustable Blade Pitch: The PT22Z features a 23 in troweling diameter, 4 blades, and adjustable 0–15° blade pitch for floating and finishing concrete surfaces.

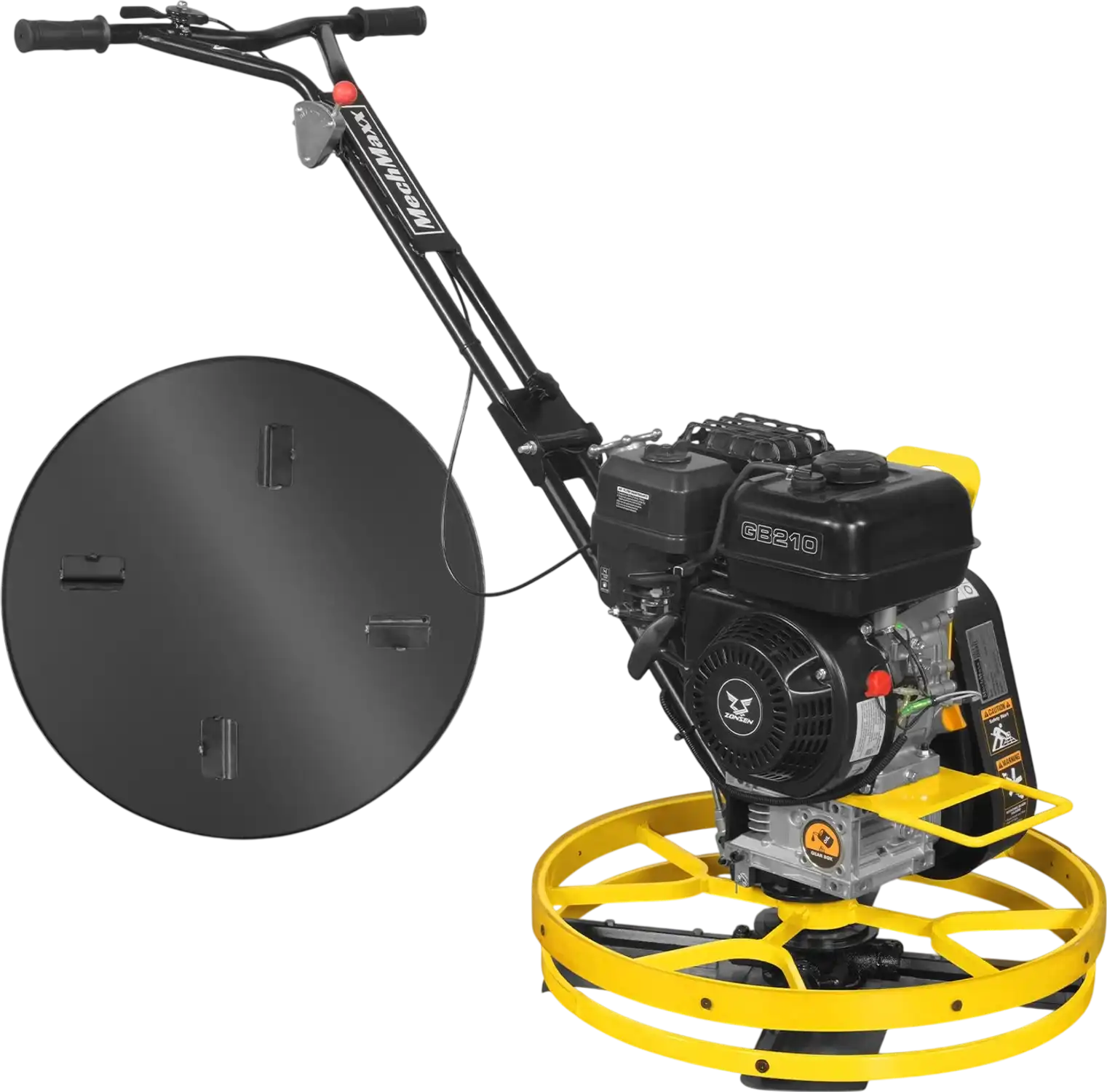

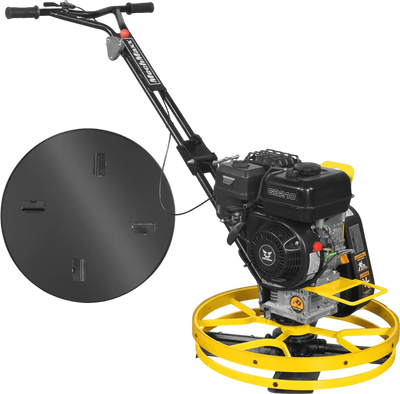

- Included Blades and Float Pan: The included blades and float pan support both floating and finishing work, helping operators achieve smoother concrete surfaces with improved jobsite efficiency.
- Centrifugal Safety Switch: The centrifugal safety switch helps stop the machine when operator control is released, supporting safer operation on the jobsite.

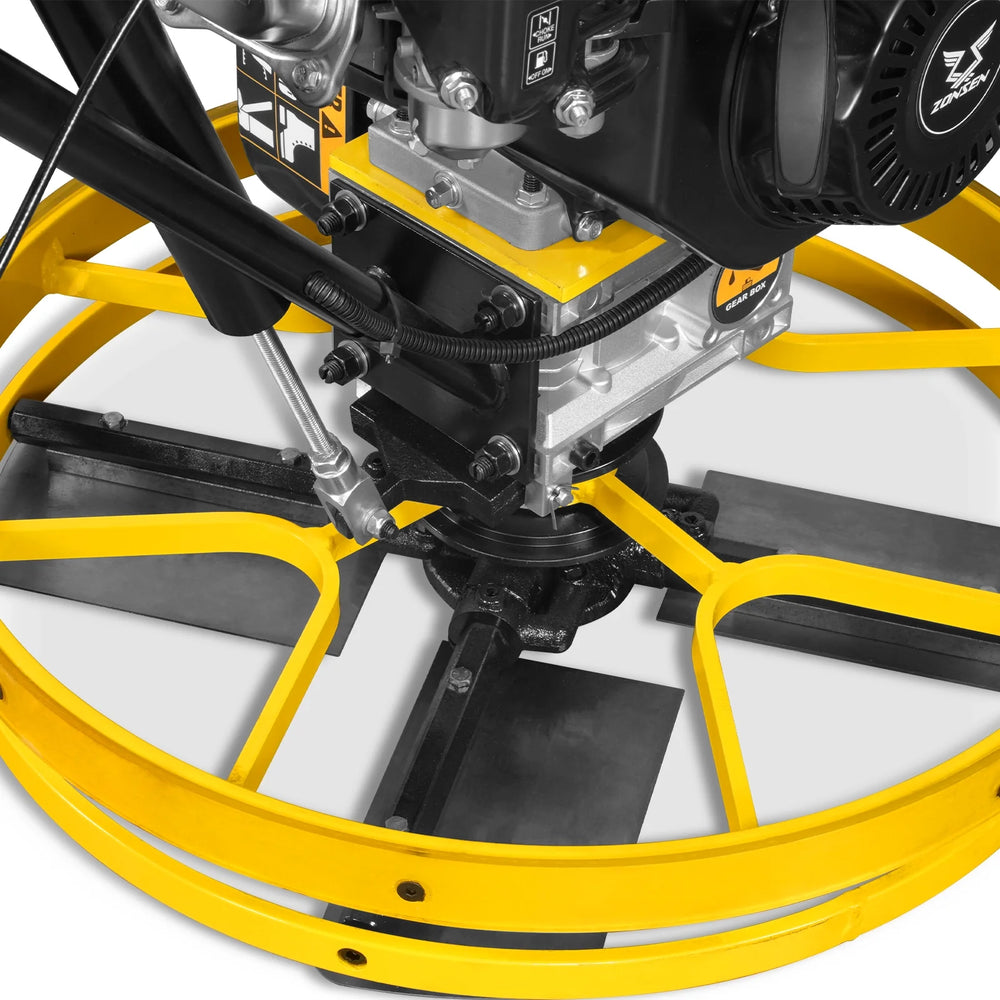

- Free-Rotating Guard Ring with Clear Polyurethane Edge: The free-rotating guard ring with a clear polyurethane edge helps improve control during close-to-edge finishing near walls and obstacles while helping reduce surface scuffing and equipment wear.

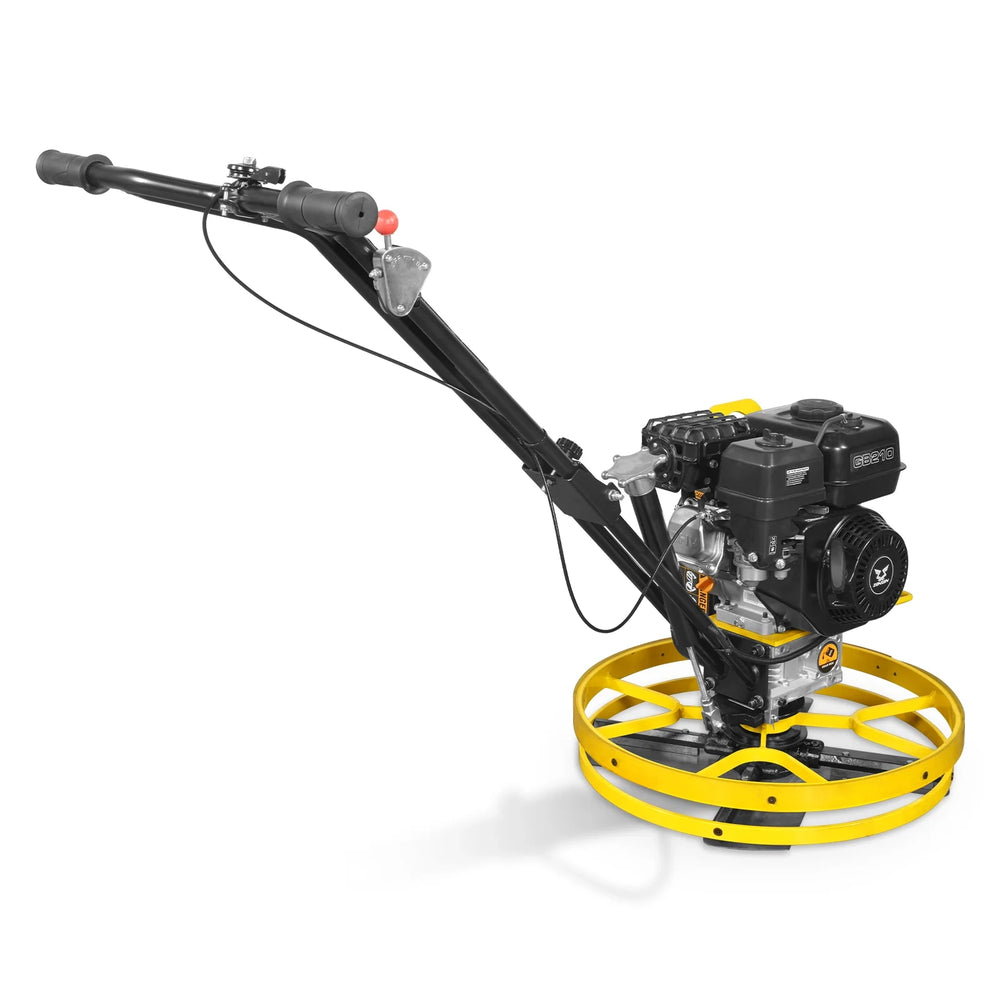

- Easy Transport and Storage: The foldable handle, integrated lifting hook, and front carry handles make lifting, transportation, and compact storage easier on the jobsite.
NOTE!
- This machine DOES NOT COME WITH OIL AND GASOLINE in the engine. Before starting, fill the engine with both oil and gasoline. Refer to the engine manual for details.
- Please read the PRODUCT MANUAL carefully and review all SAFETY WARNING LABELS on the machine before operation.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- 23" Troweling Diameter: 23" working diameter provides efficient coverage for concrete floating and finishing applications.
- Protected Guard Ring: Built with a durable rubber bumper strip around the guard ring, allowing operation close to walls, columns, and obstacles while helping prevent surface damage, scratches, and equipment wear.
- Adjustable Blade Pitch: Blade pitch adjusts from 0–15° for improved finishing control and surface leveling.

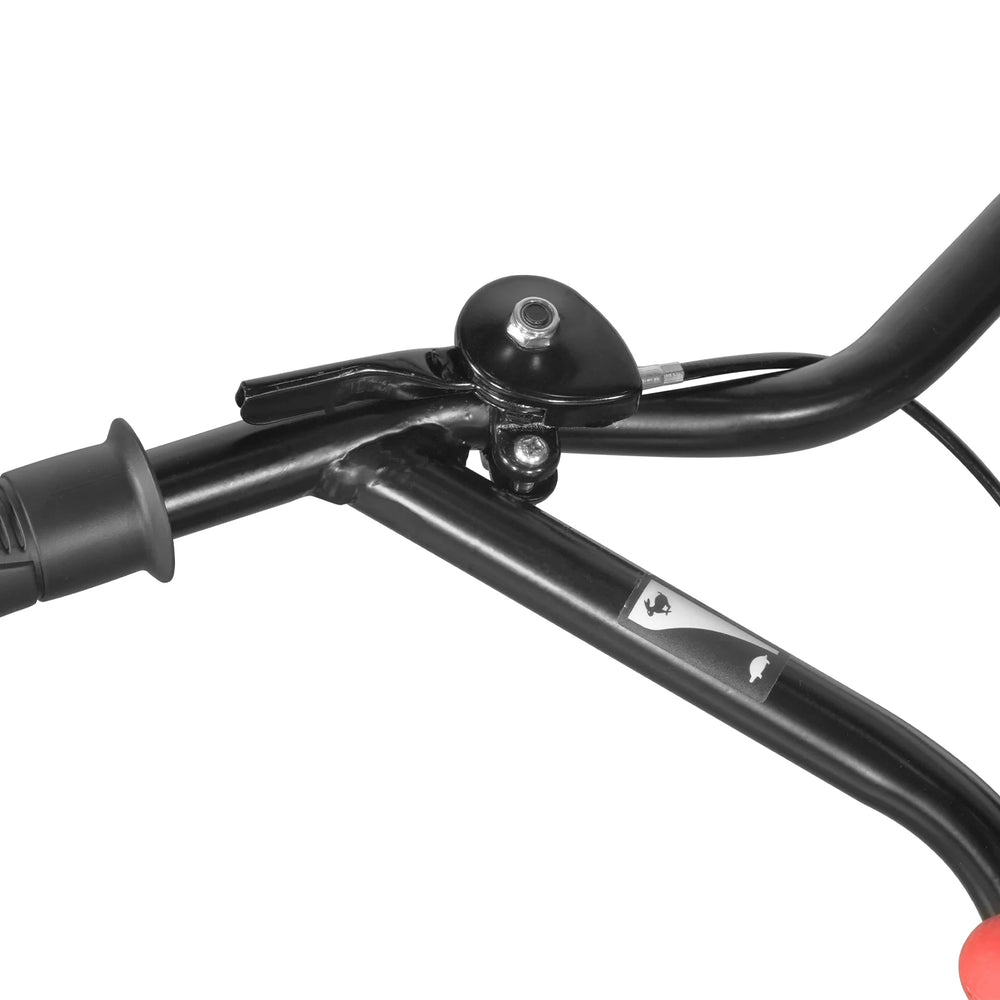

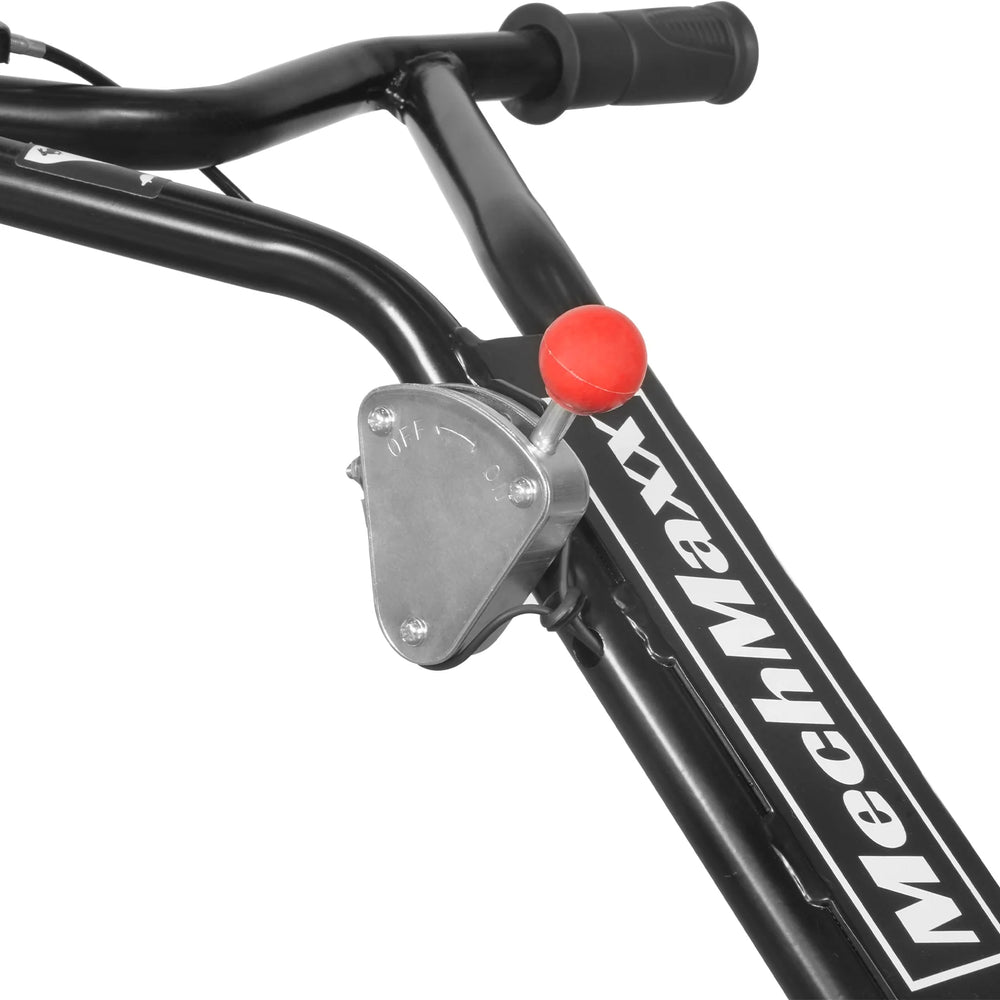

- Emergency Stop Lever: Emergency stop lever improves operation safety and machine control during use.

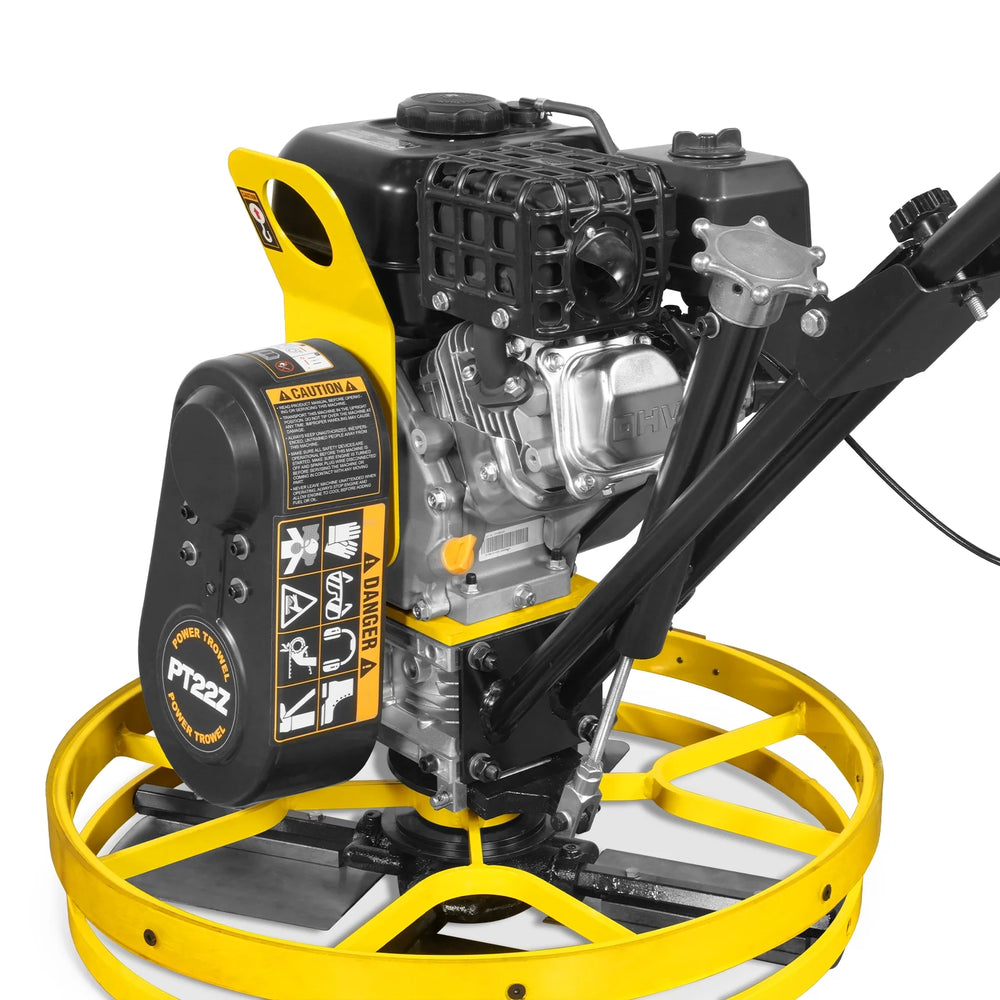

- Reliable Gearbox Design: Heavy-duty gearbox comes factory pre-filled with gear oil and features a built-in sight glass for quick oil level inspection. Designed for reliable power transmission, reduced maintenance, and extended service life.

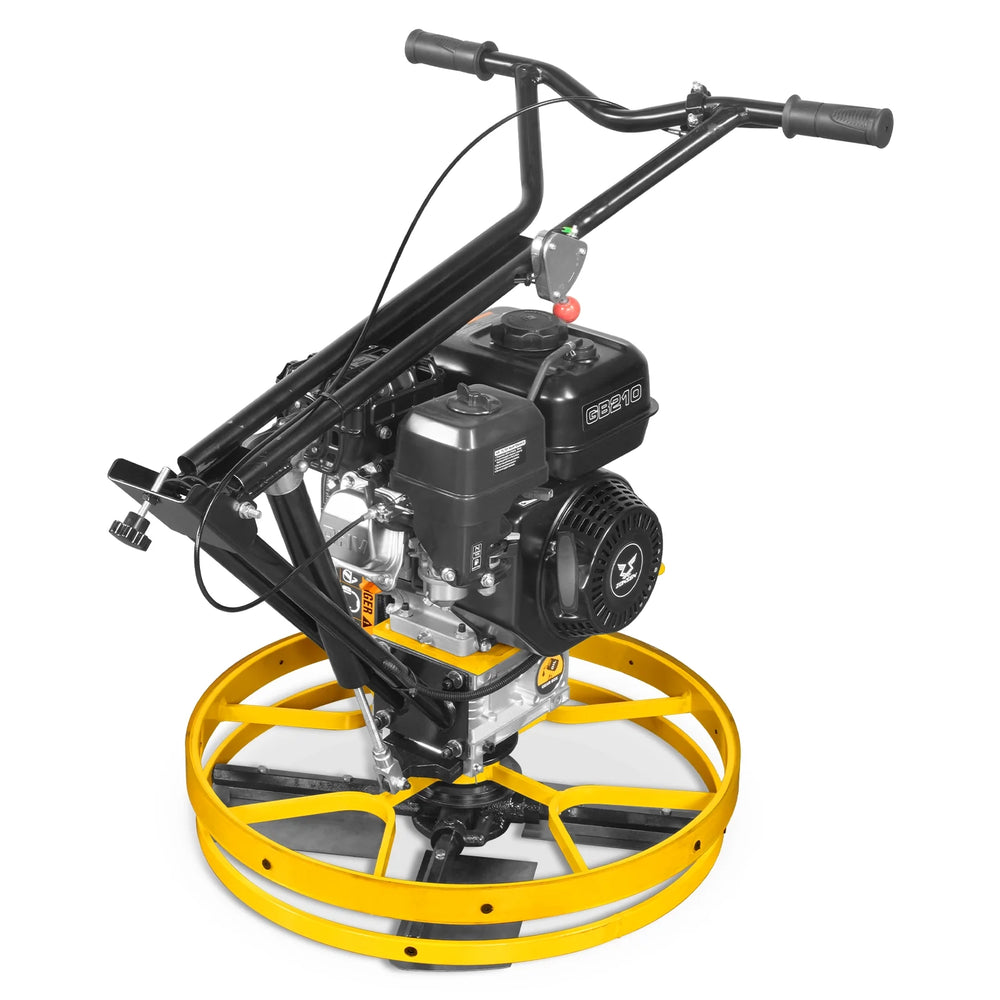

- Easy Transport Design: Foldable handle, integrated lifting hook, and front carry handles provide convenient transportation, lifting, loading, and storage between jobsites.
Specifications
| Engine | Zonsen GB210 |
| Engine Type | Single-Cylinder, 4-Stroke, Air-Cooled, OHV Gasoline Engine |
| Engine Displacement | 208 cc |
| Horsepower | 5.8 HP (4.3kW) @ 3600 RPM |
| Start System | Recoil |
| Fuel Tank Capacity | 2.8 US qt (2.6L) |
| Engine Oil Capacity | 0.61 US qt (0.6L) |
| Gear Box Oil | 0.35L SAE10W-30 |
| Troweling Diameter | 23 in |
| Rotor Speed | 60 - 125 RPM |
| No. of Blades | 4 |
| Blade Pitch | 0 - 15° |
| Overall Dimension (LxWxH) | 33 x 24 x 23 in |
| Packing Size (LxWxH) | 35 x 26 x 29 in |
| Weight (N.W / G.W.) | 126/180 lbs |
