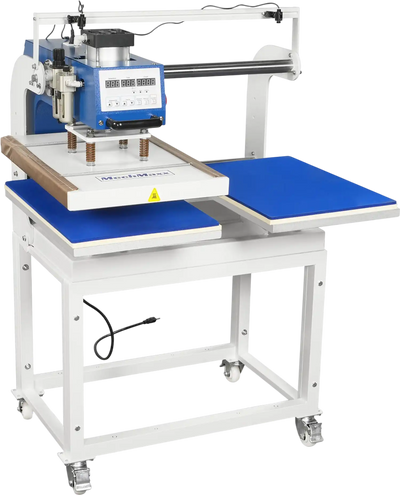

MechMaxx PUD1624-L Heat Press 16x24" Commercial Pneumatic Dual Platen Infrared Positioning Auto Lift Sublimation Transfer Machine Digital LCD Control 110V 2.2HP New
Manufacturer: MechMaxx
SKU: 501002
QTY
or
(888) 999-1522
$ 1,799.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
MechMaxx PUD1624-L Heat Press 16x24" Commercial Pneumatic Dual Platen Infrared Positioning Auto Lift Sublimation Transfer Machine Digital LCD Control 110V 2.2HP New
Product Overview

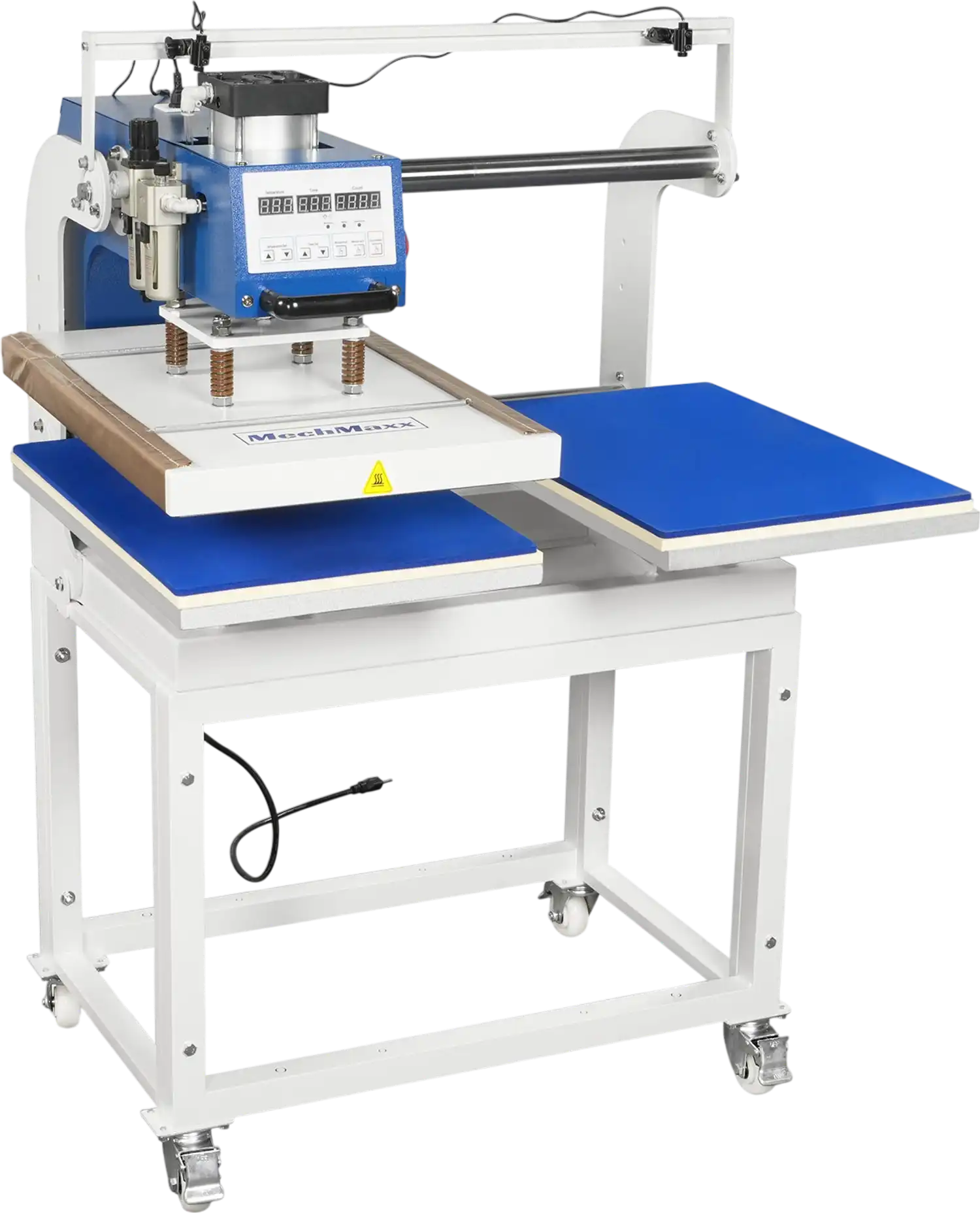

16x24 Inch Dual Platen Up-Sliding Design: Large format heat press with dual stations and up-slide mechanism, enabling simultaneous processing for high-volume sublimation printing—saves time for small businesses and industrial workflows.
Full Touch LCD Screen Precision: Intuitive full-touch digital display for easy temperature (32-750°F/0-399°C) and time adjustment; supports Fahrenheit/Celsius switch and auto-count function, ensuring consistent heat transfer results. Auto-count function tracks production, streamlining workflow for repetitive sublimation tasks.

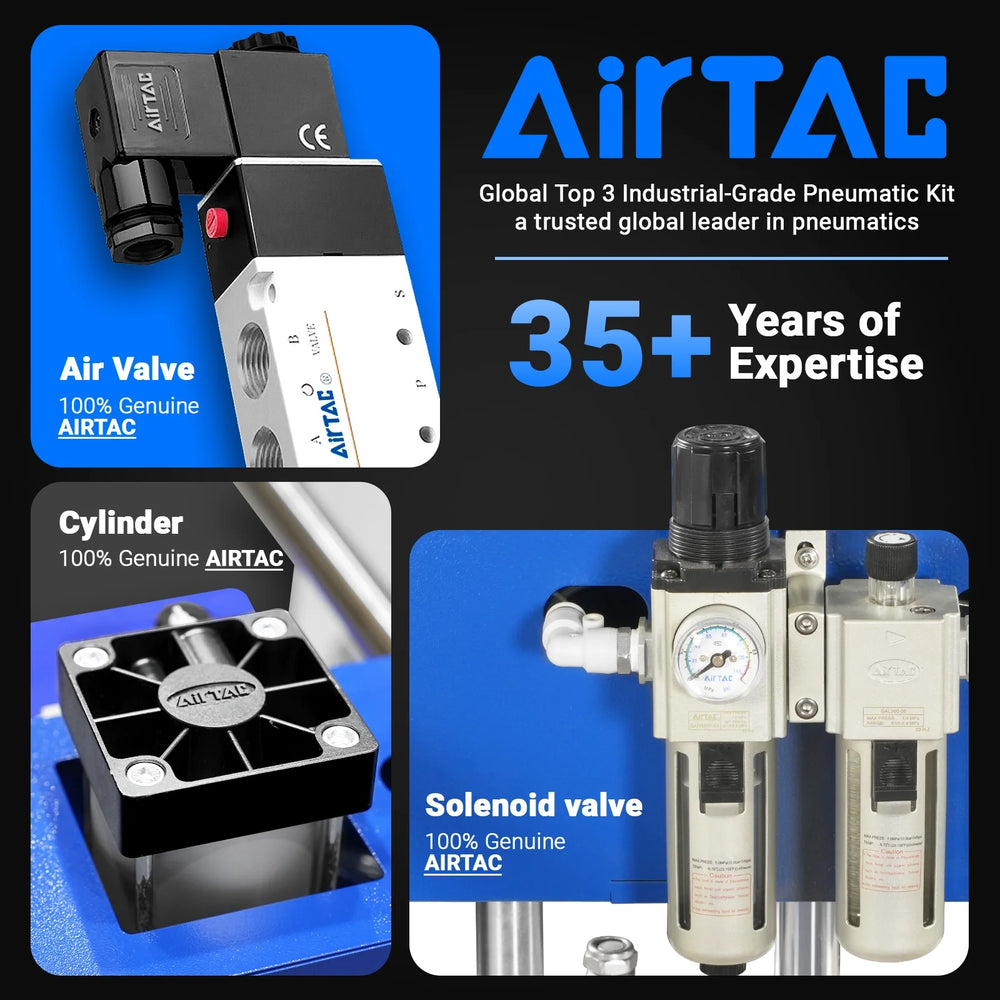

AIRTAC Pneumatic Components: Features AIRTAC air cylinder, air valve, and solenoid valve for reliable pressure control; compatible with standard pneumatic parts, simplifying future maintenance and upgrades.
Adjustable Pressure & Even Heating: Heavy-duty commercial heat transfer machine with adjustable pressure (58-87 PSI) and integrated oil-water separator; enlarged thickened cast aluminum heating board ensures uniform heat distribution.

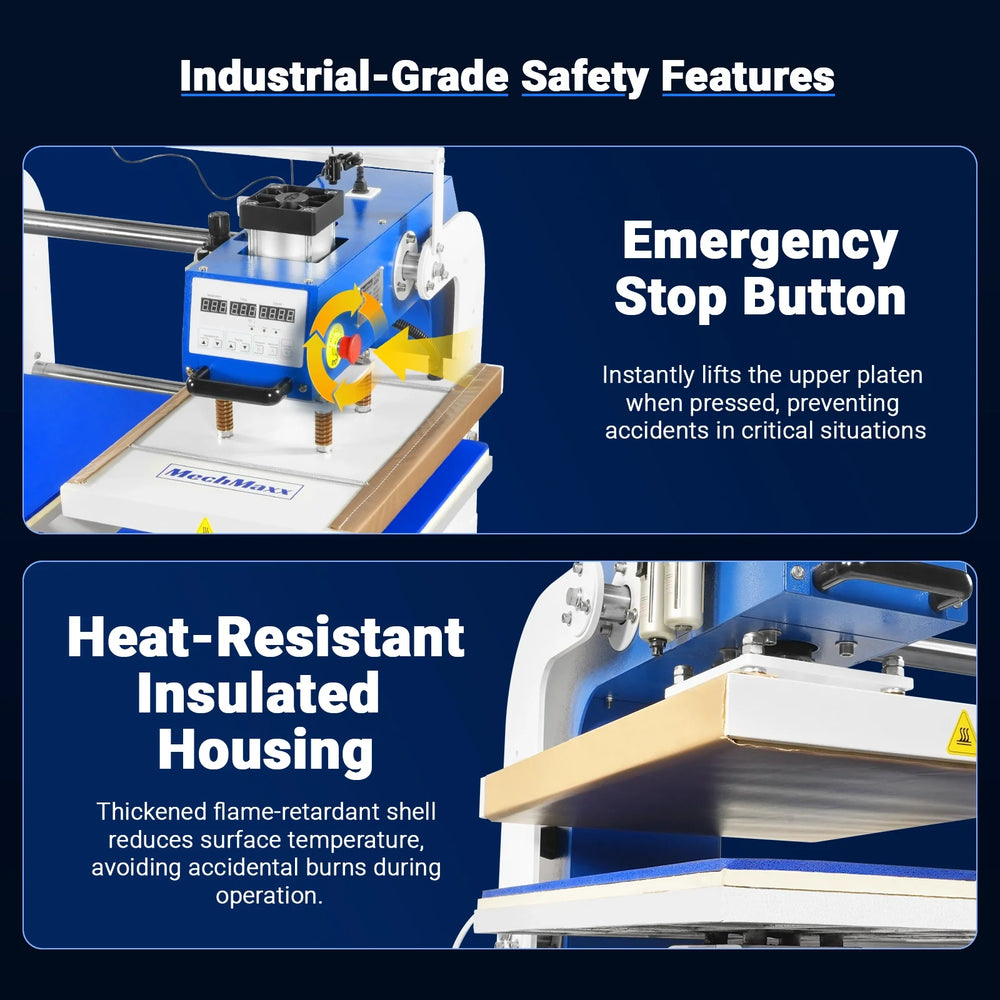

CE/RoHS Certified Safety & Durability: Heat-retardant materials, two-hand operation, and emergency stop button meet German safety standards; built to withstand heavy use for long-term industrial applications.
Mobile & Easy to Maintain: Stable base with stand for secure operation; requires regular lubrication of joints (as outlined in manual); clean with soft cloth and mild cleaner to preserve heat platen performance.
Versatile Material Compatibility: Ideal sublimation heat press for cotton, polyester, nylon, ceramics, metals, and more—perfect for custom apparel, home decor, and high-volume orders with 10-15 minute quick heating.

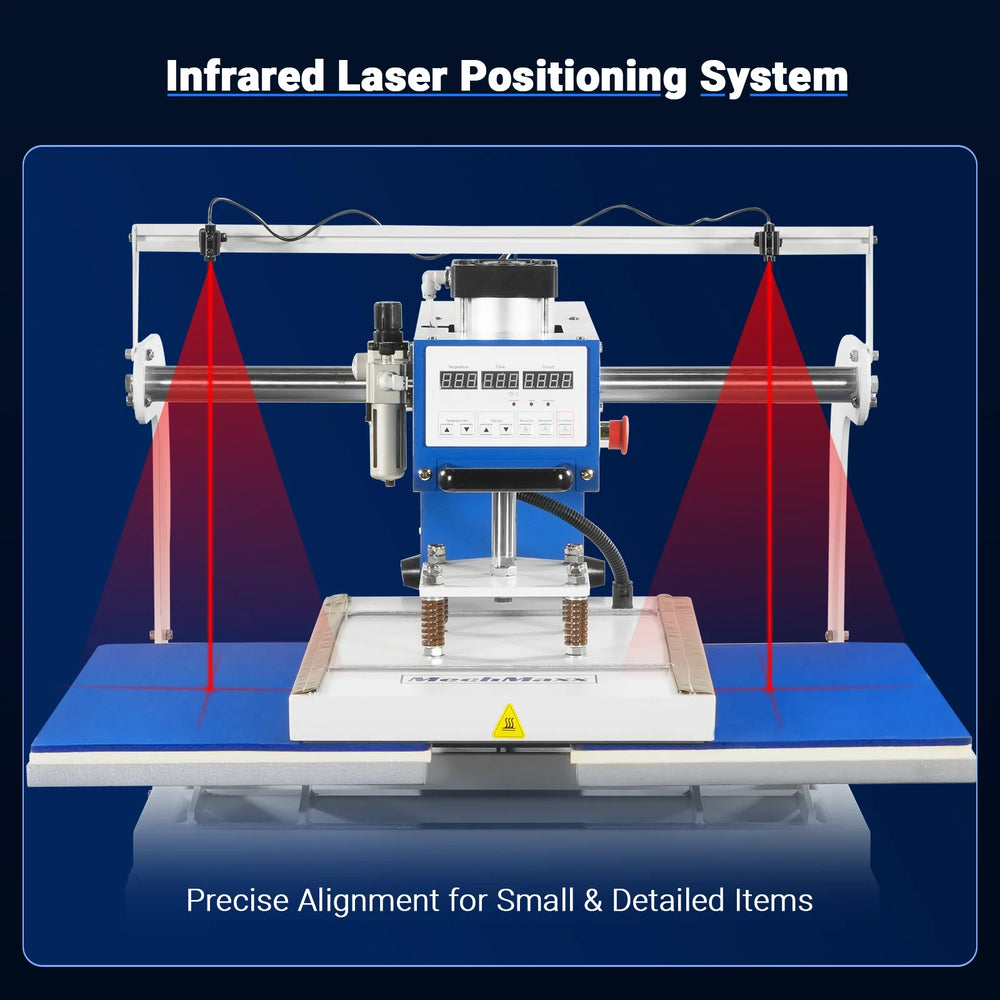

Infrared Laser Positioning Precision: Built-in infrared positioning heat press system ensures flawless alignment for small items (sleeves, collars) and detailed designs, eliminating misprints in custom apparel, metal pendants, ceramics, and mouse pads.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

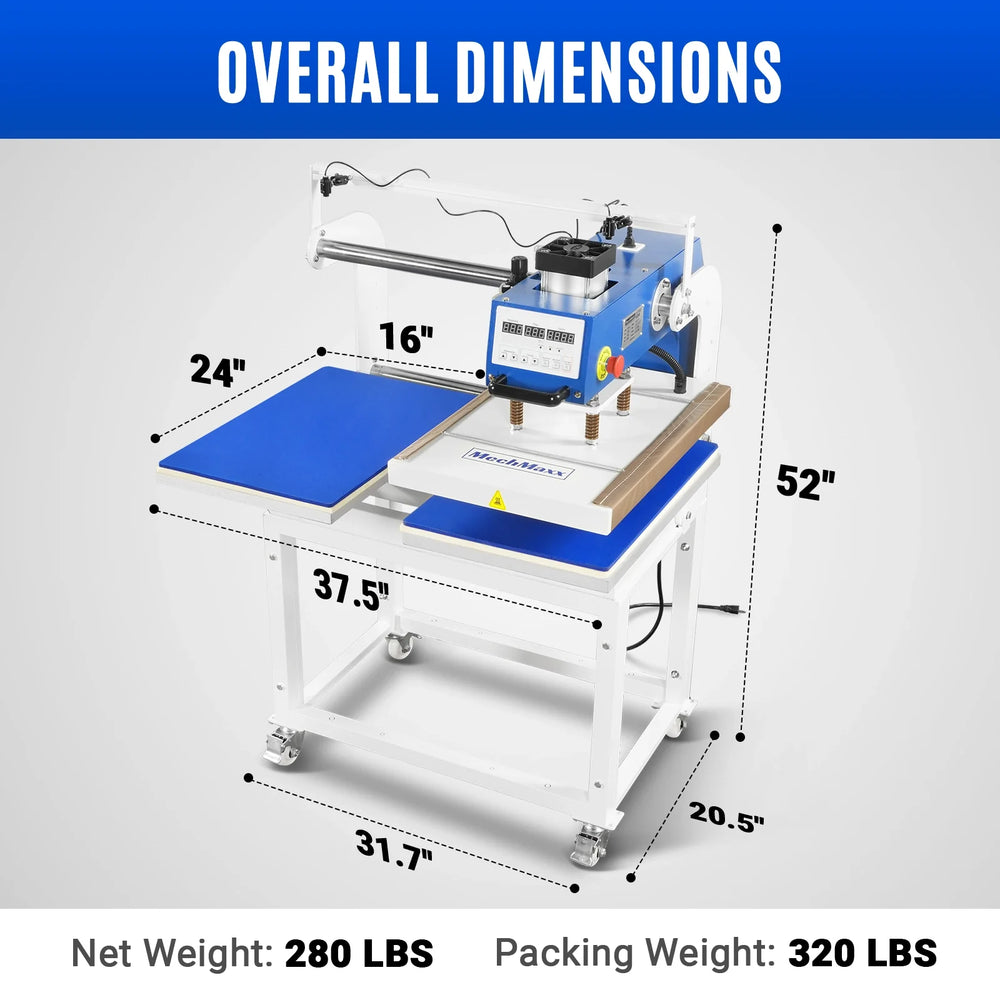

- Overall Dimensions: Stands at 52 inch (132.08 cm) tall, 37.5 inch (95.25 cm) deep, and 20.5 inch (52.07 cm) wide—designed to fit into compact U.S. workshop spaces while leaving room for workflow. Weighs 280 lbs (127.01 kg) net (320 lbs (145.15 kg) packed), with a wheeled base for easy repositioning within busy production areas; compatible with standard U.S. freight shipping dimensions.
- Core Specifications (Model PUD1624): Configured for 110V/60Hz (U.S. household/commercial standard power), drawing 1650W (2.21HP) to reach a 32–750°F (0–398.89°C) temperature range in 10–15 minutes. Its 16 in * 24 in (40.64 cm*60.96 cm) work surface accommodates large sublimation blanks (e.g., oversized apparel, signage), while 1–999 second timing flexibility suits diverse material needs (fabrics, metals, plastics) common in U.S. custom goods markets.
- Airtac Pneumatic System: Equipped with 100% genuine Airtac pneumatic components (valves, cylinders, solenoids)—a brand widely stocked and serviced in the U.S. The system delivers a minimum 85 PSI (6kg/cm²) output pressure, ensuring uniform, consistent pressing force across the entire platen; critical for high-quality transfers on thick or uneven substrates.

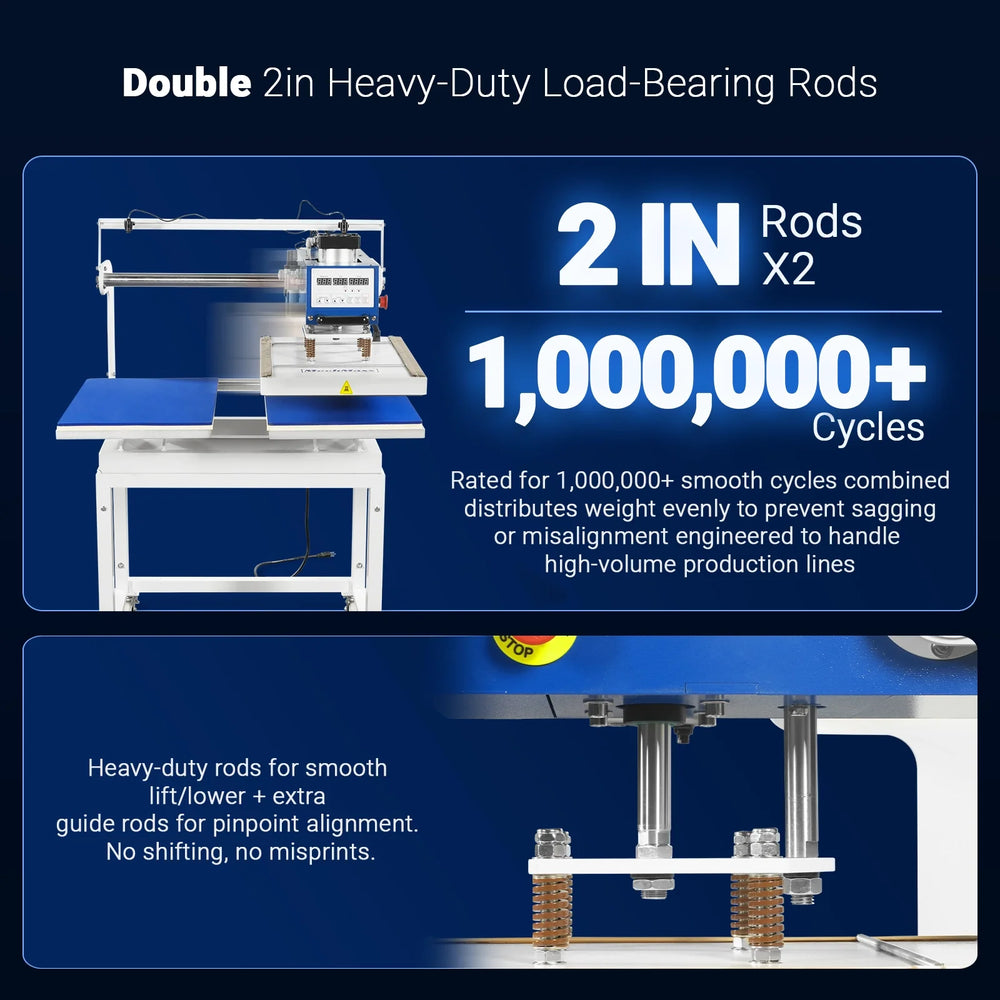

- Heavy-Duty Load-Bearing Rods: Features dual 2-inch (5.08 cm) diameter steel load-bearing rods, engineered to handle 1,000,000+ press cycles without sagging or misalignment. Extra guide rods enhance platen precision, eliminating ghosting or misprints—ideal for U.S. businesses focused on bulk order consistency (e.g., apparel decorators, promotional product makers).

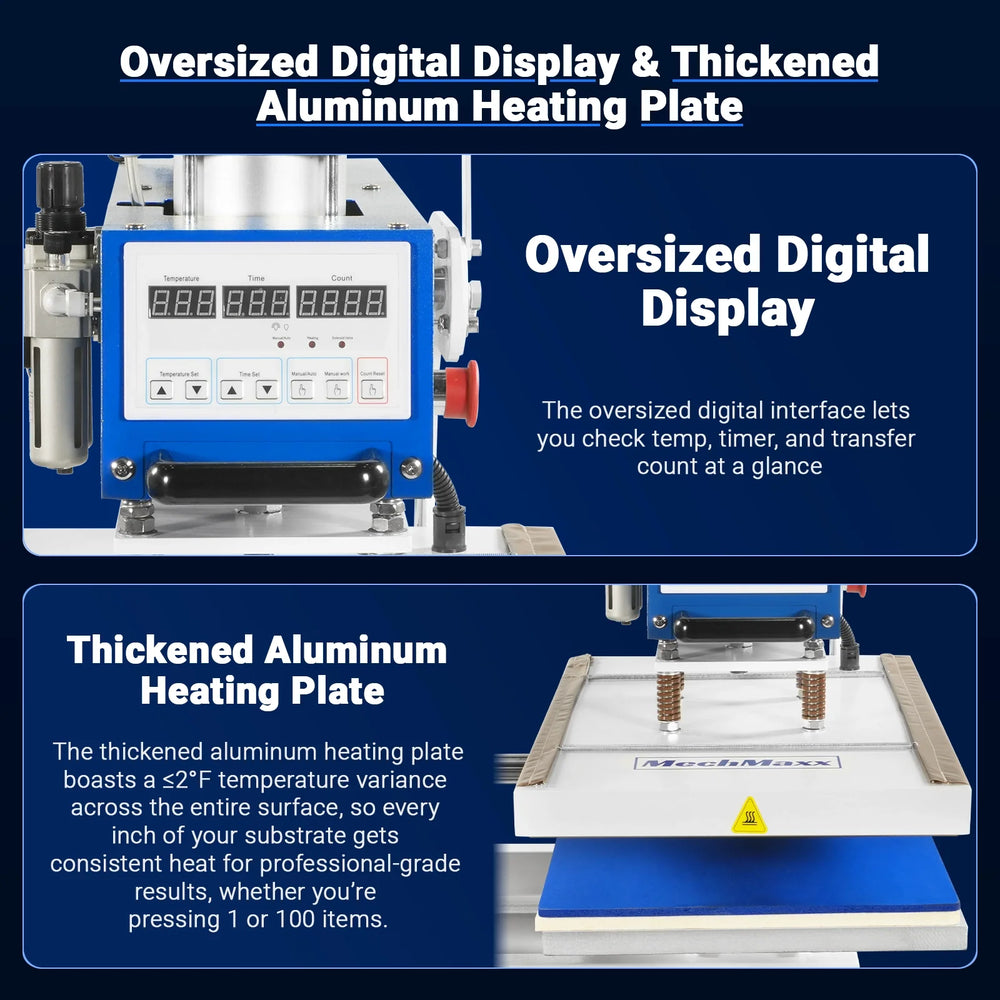

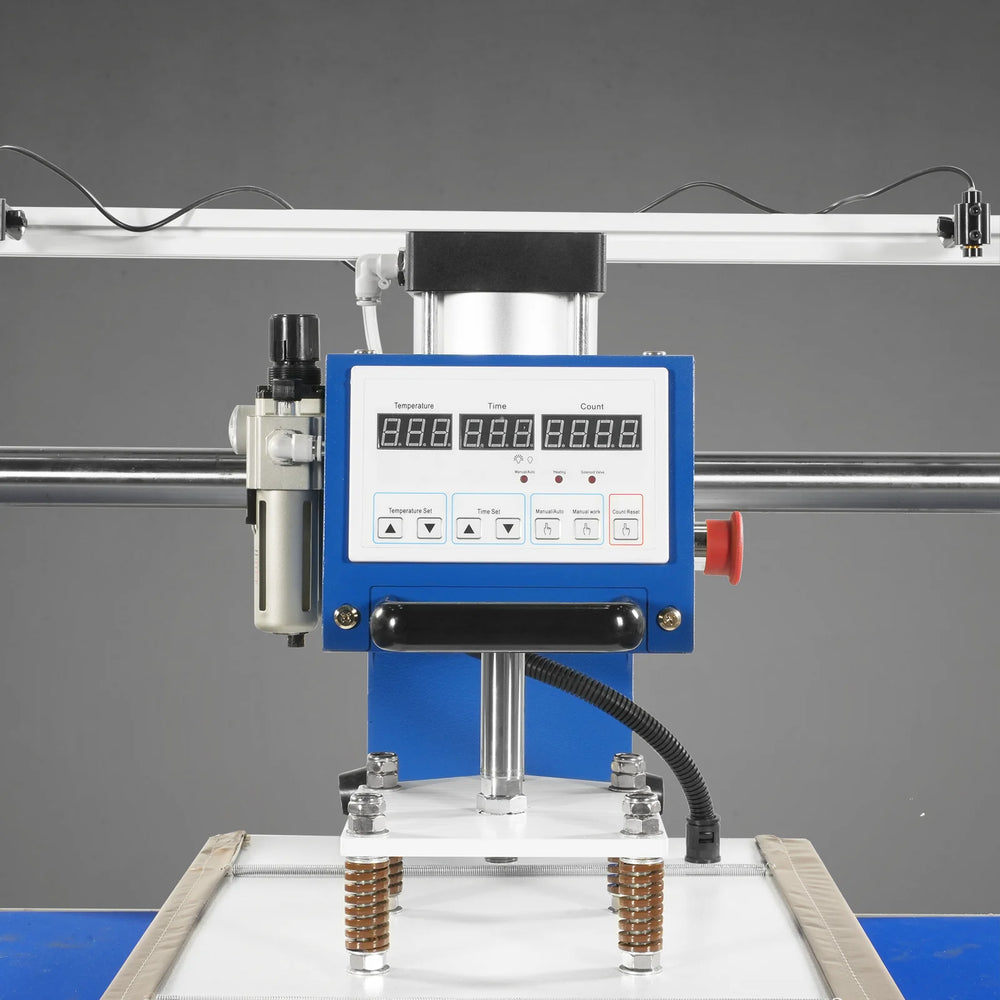

- Digital Control & Heating Plate: Oversized LED digital display (with large, high-contrast digits) lets operators monitor temperature, timer, and press count at a glance—even in dim workshop lighting. The thickened aluminum heating plate maintains ≤2°F (1.11°C) temperature variance across its surface, ensuring every inch of a substrate (from small patches to full-size sheets) receives identical heat for professional-grade results.

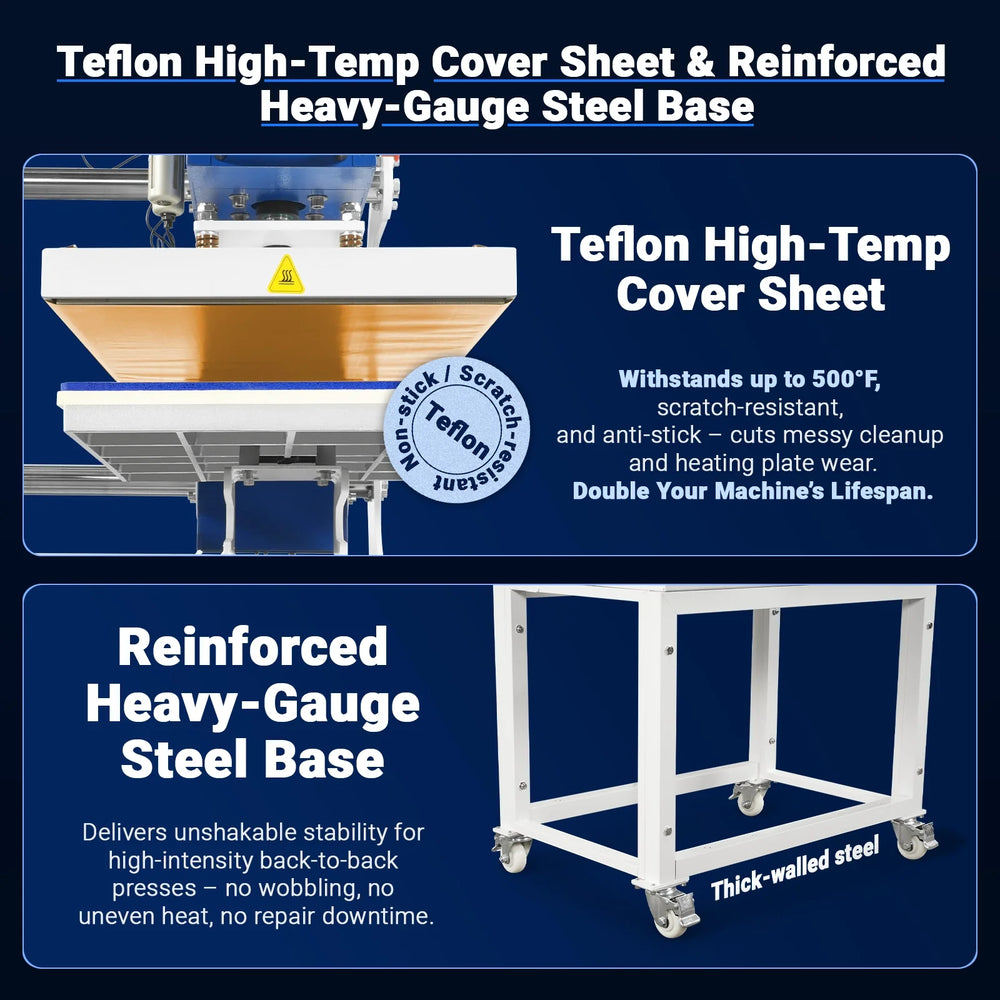

- Durable Surface & Base: The platen is covered with a 500°F (260°C)-resistant Teflon sheet: non-stick, scratch-proof, and easy to wipe clean, reducing downtime between presses. The reinforced heavy-gauge steel base (with thick-walled framing) stays stable during rapid, back-to-back cycles—no wobbling, no uneven pressure—built to endure the fast-paced demands of U.S. small-batch or high-volume production.

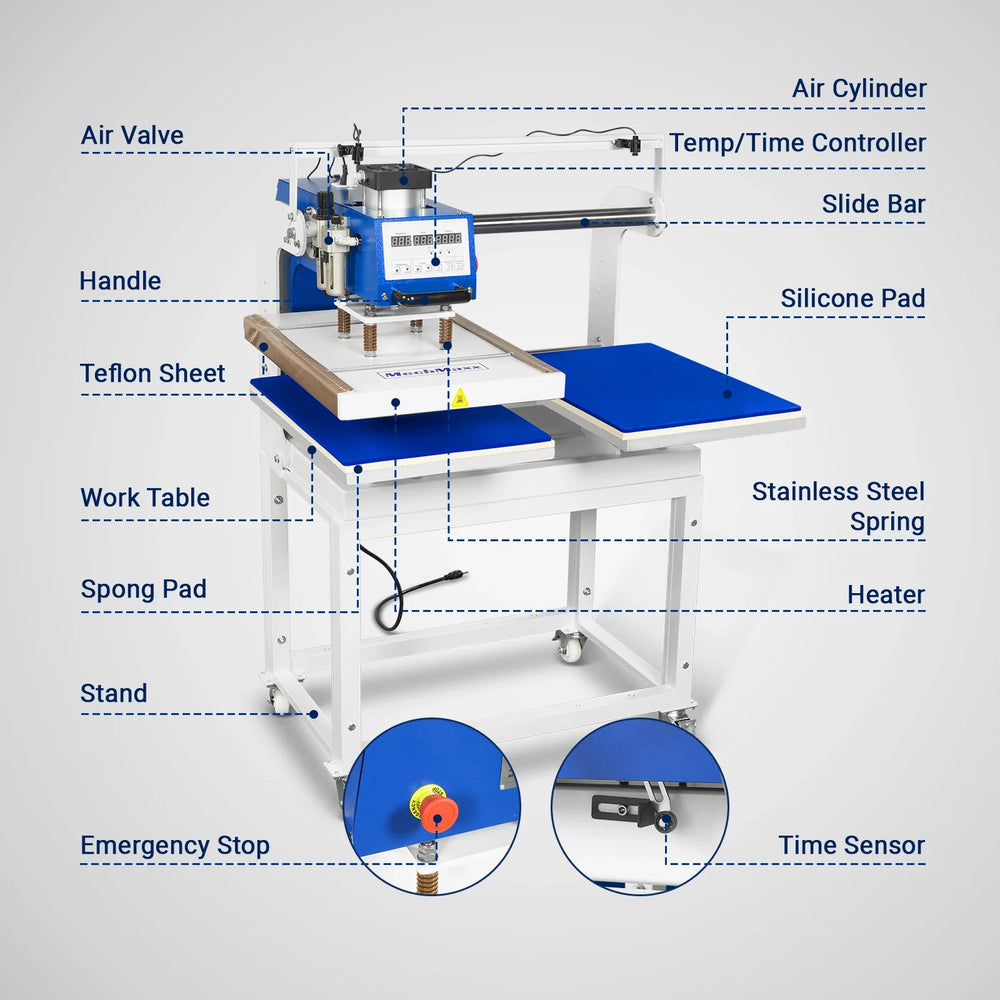

- Key Component Labeling: Clear, English-language labeling identifies every critical part: air valve (for pressure regulation), silicone pad (shock-absorbent, heat-resistant), time sensor (triggers auto-lift), heating plate, and control panel. This simplifies onboarding for new staff and makes troubleshooting straightforward for U.S. operators without specialized technical training.

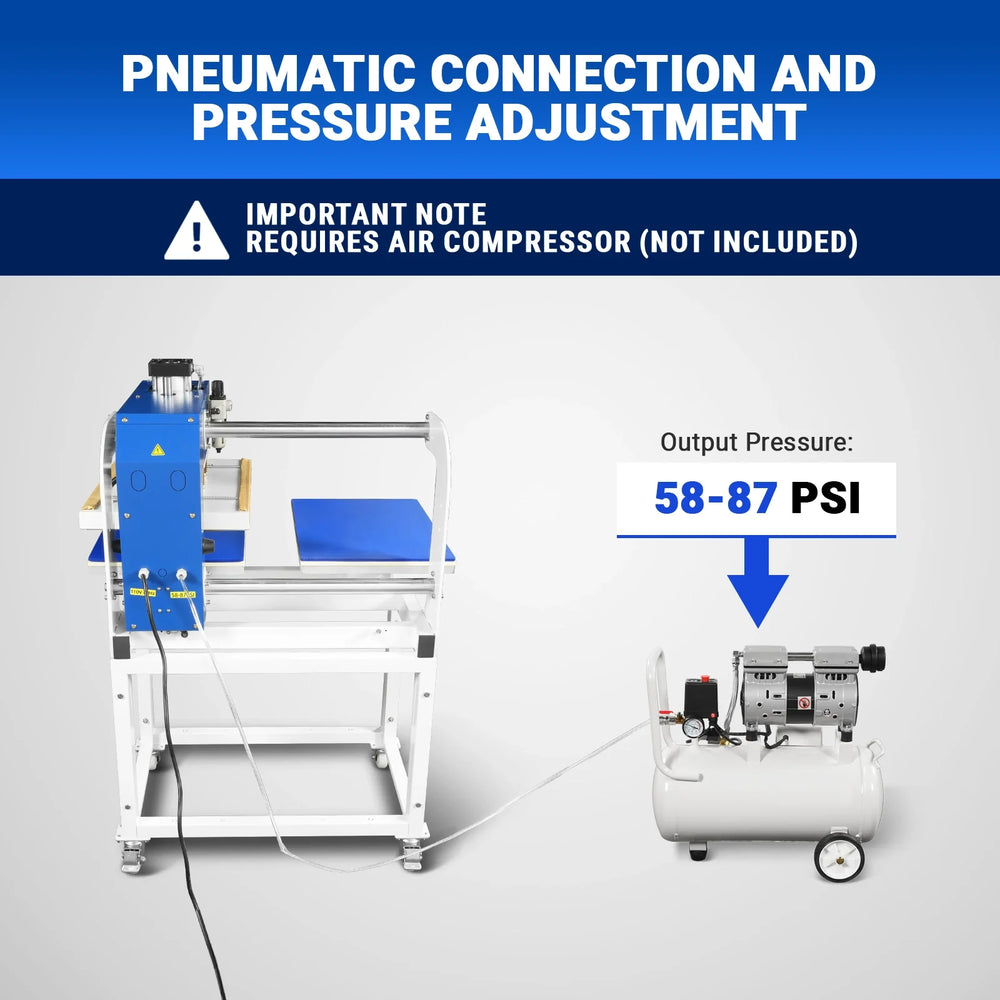

- Pneumatic Setup Requirement: Requires an external air compressor (not included) with 58–87 PSI input capacity—compatible with the small, portable compressors commonly used in U.S. home studios and small workshops. A quick-connect air fitting (standard in U.S. industrial setups) ensures fast, secure connection..

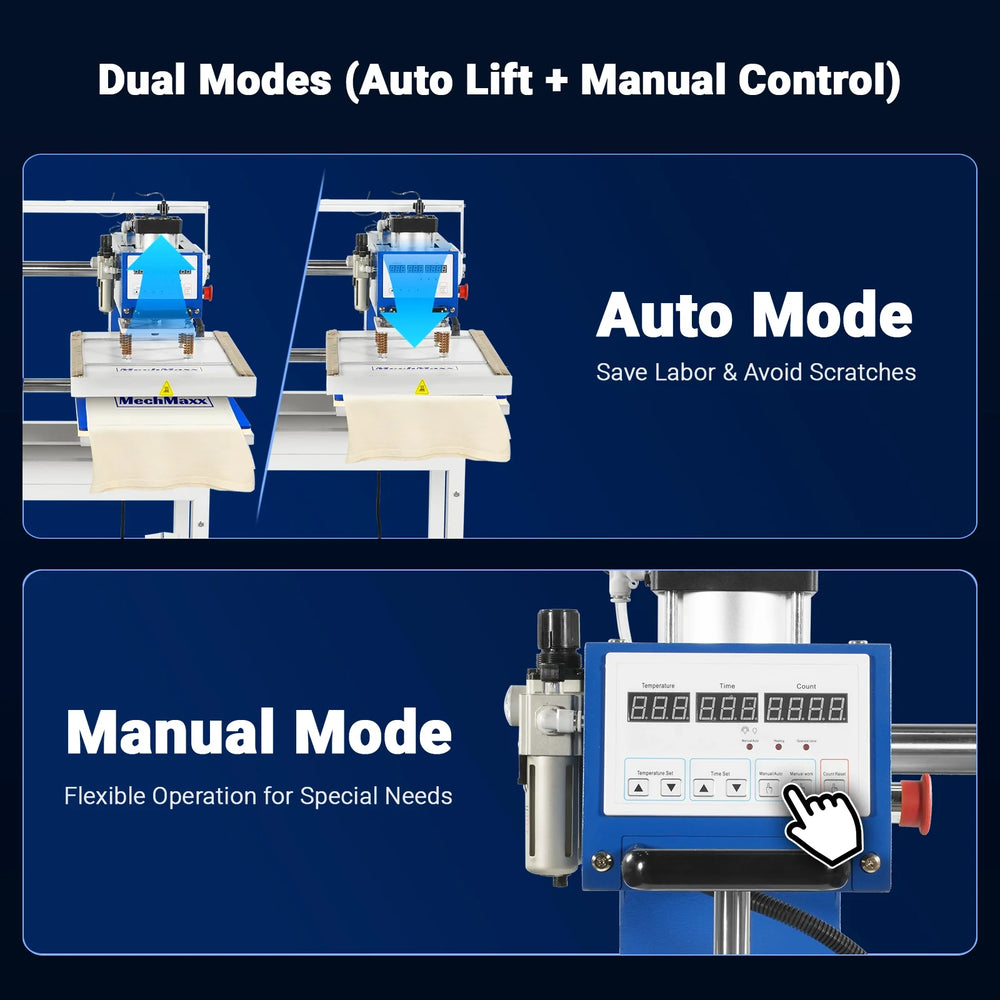

- Dual Operation Modes: Auto-lift mode: After the timer elapses, the platen raises automatically—saving labor (no manual lifting) and preventing accidental scratches on delicate substrates (e.g., custom phone cases). Manual control mode: Lets operators adjust press speed/force for unique projects (e.g., thick foam materials)—flexible enough for both mass production and one-off custom jobs popular in U.S. retail markets.

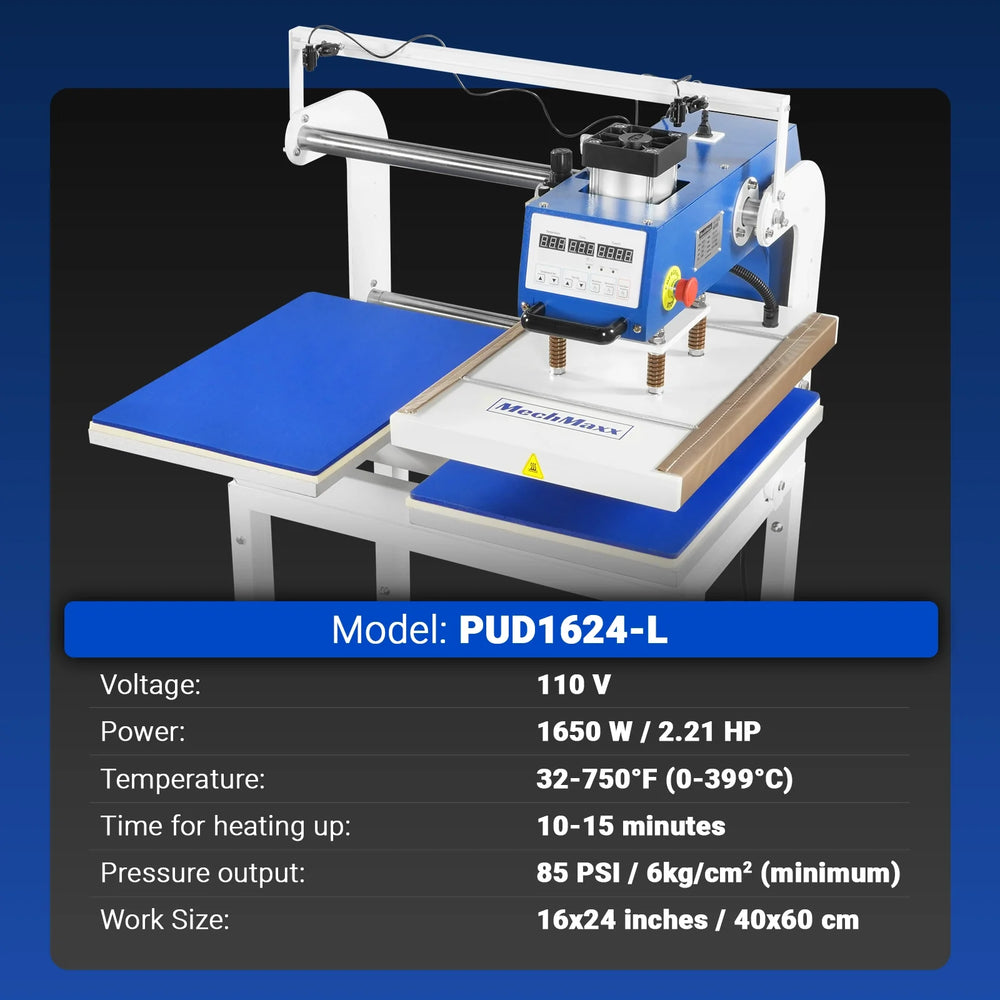

Specifications
| Model | PUD1624-L |
| Voltage | 110V |
| Power | 1650W/2.21HP |
| Temperature | 32-750℉(0-399℃) |
| Time for heating up | 10-15 minutes |
| Pressure output | 85 PSI / 6kg/cm²(minimum) |
| Work Size | 16x24 inches / 40x60cm |
Warranty
This item comes with a factory warranty.
