MechMaxx STL1000 Skid Steer Loader Mini Stand-On Compact Track Loader 25HP Kubota Diesel Engine 4"-1 Bucket CII New
Manufacturer: MechMaxx
SKU: 101000
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 22,999.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Exceptional Customer Service
Authorized Dealer

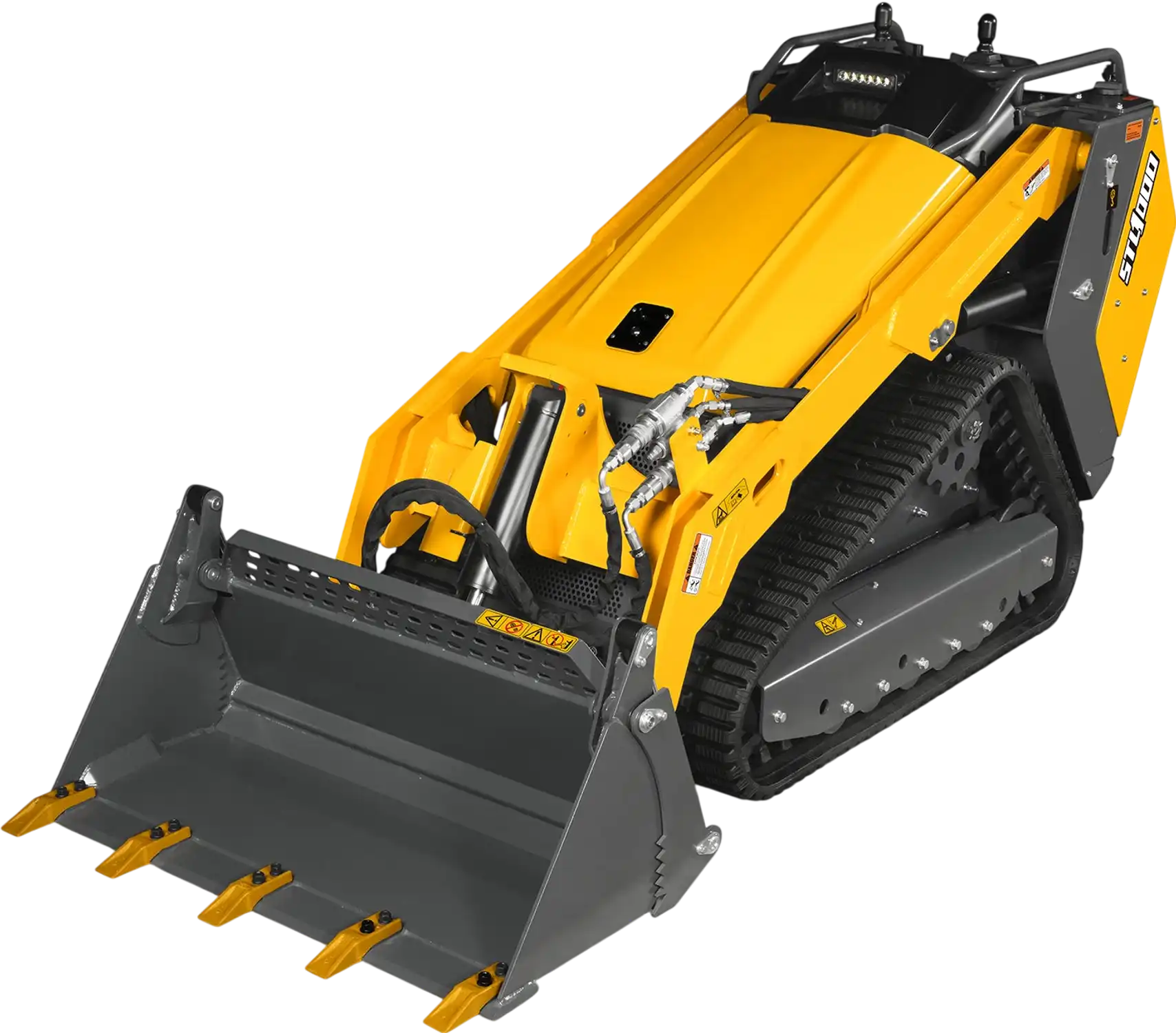

MechMaxx STL1000 Skid Steer Loader Mini Stand-On Compact Track Loader 25HP Kubota Diesel Engine 4"-1 Bucket CII New
Product Overview

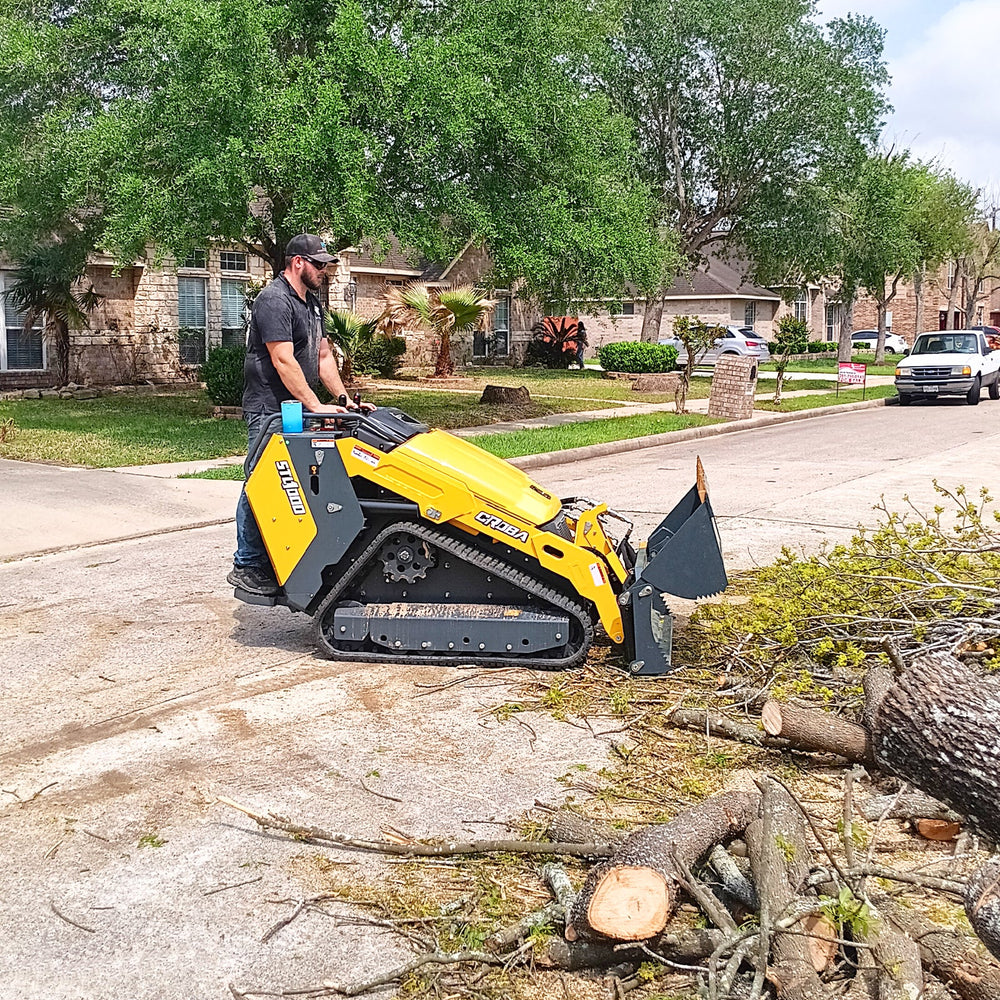

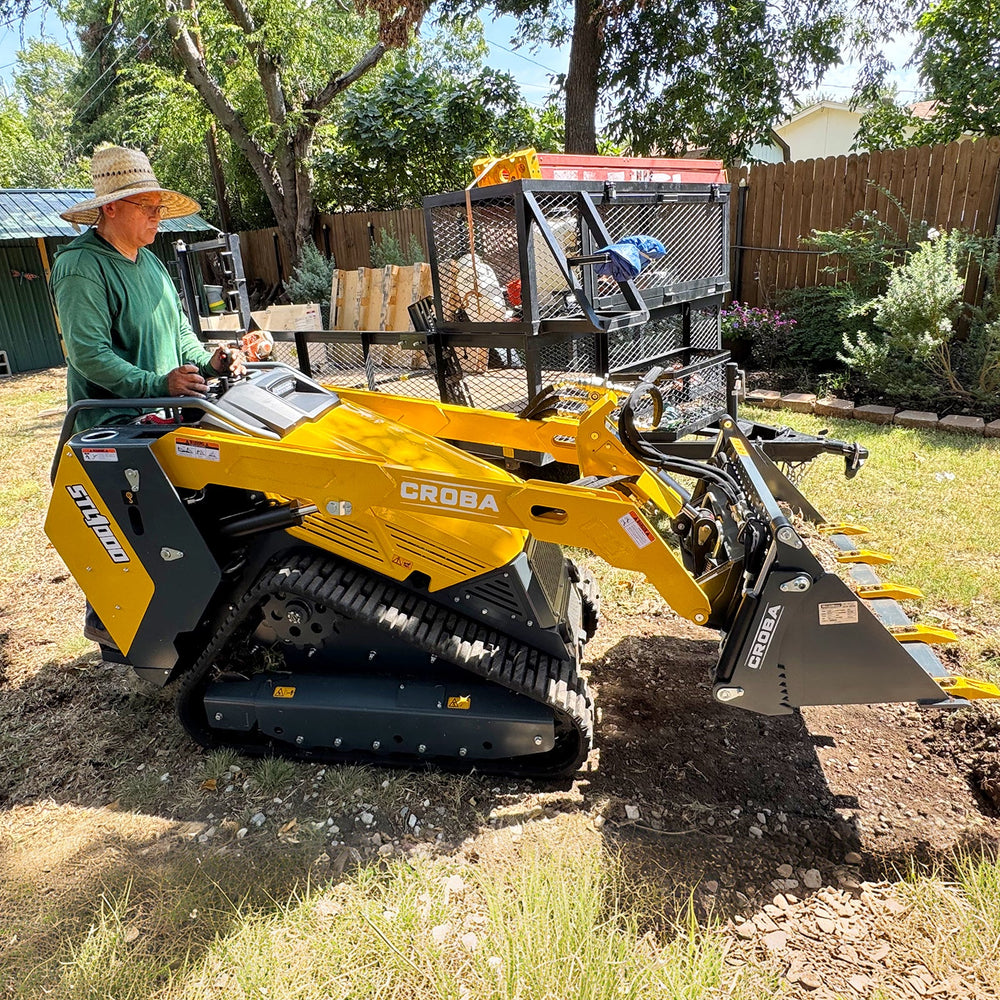

- CROBA STL1000 is a versatile, compact machine designed for a variety of tasks in construction, landscaping, and agricultural settings. It can easily fit through gates, doorways, and tight spaces.
- It packs a punch with a 1,000 lbs operating capacity rating, strong breakout force, and impressive lift height.
- This compact and powerful new stand-on loader conquers the toughest of tasks
- Compatible with numerous attachments; buckets, augers, trenchers, and pallet forks.
- Simple, easy to use controls for any operator.
- Built with heavy-duty materials to withstand the toughest of jobs.
- Engineered to minimize fuel consumption while maximizing performance.
Note！

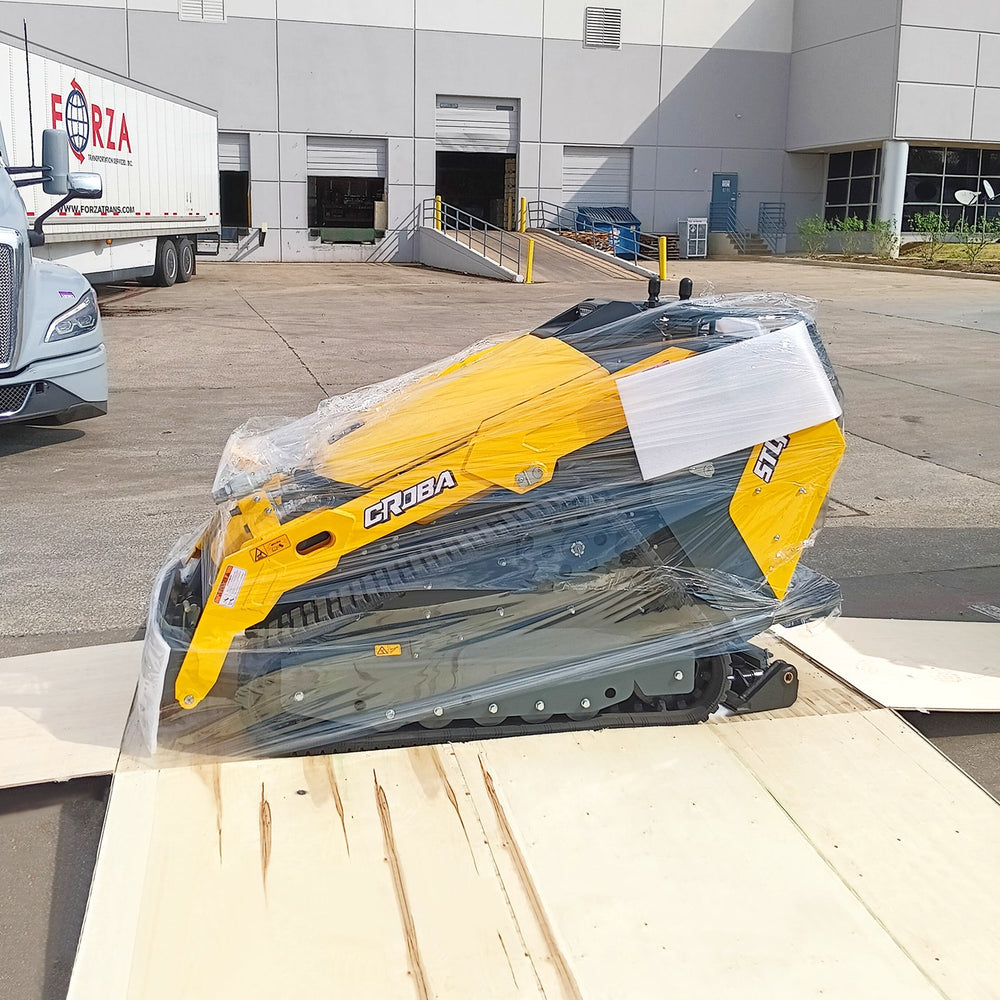

- The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
- The LCD monitor is equipped with a waterproof cover. Please don't remove the cover to avoid compromising its seal, which may result in water damage to the screen.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer

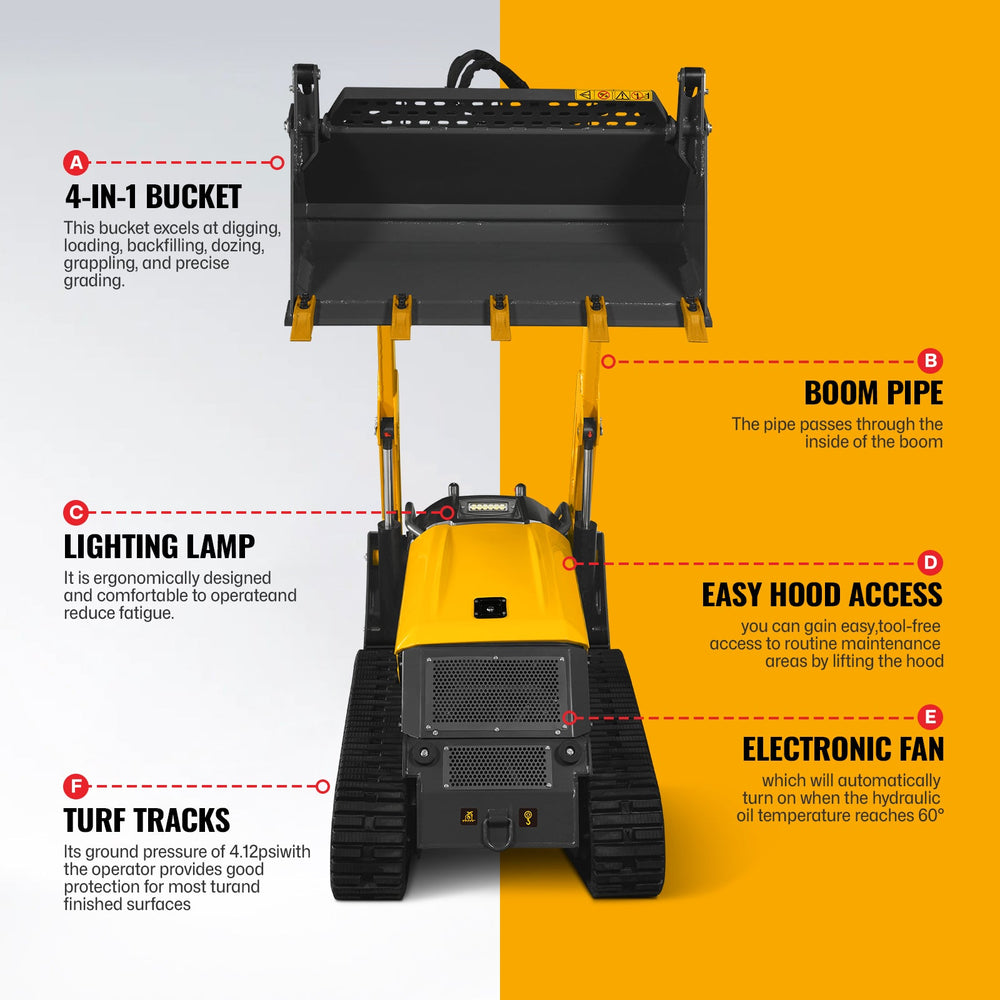

Features
- Excellent Performance: The STL1000 small track loader has a rated operating capacity (35%) of up to an astonishing 1000lb and excellent traction. Vertical lift loader arm has hinge pin height of 83.5 inches and reach of 19.2 inches (45°dump angle).

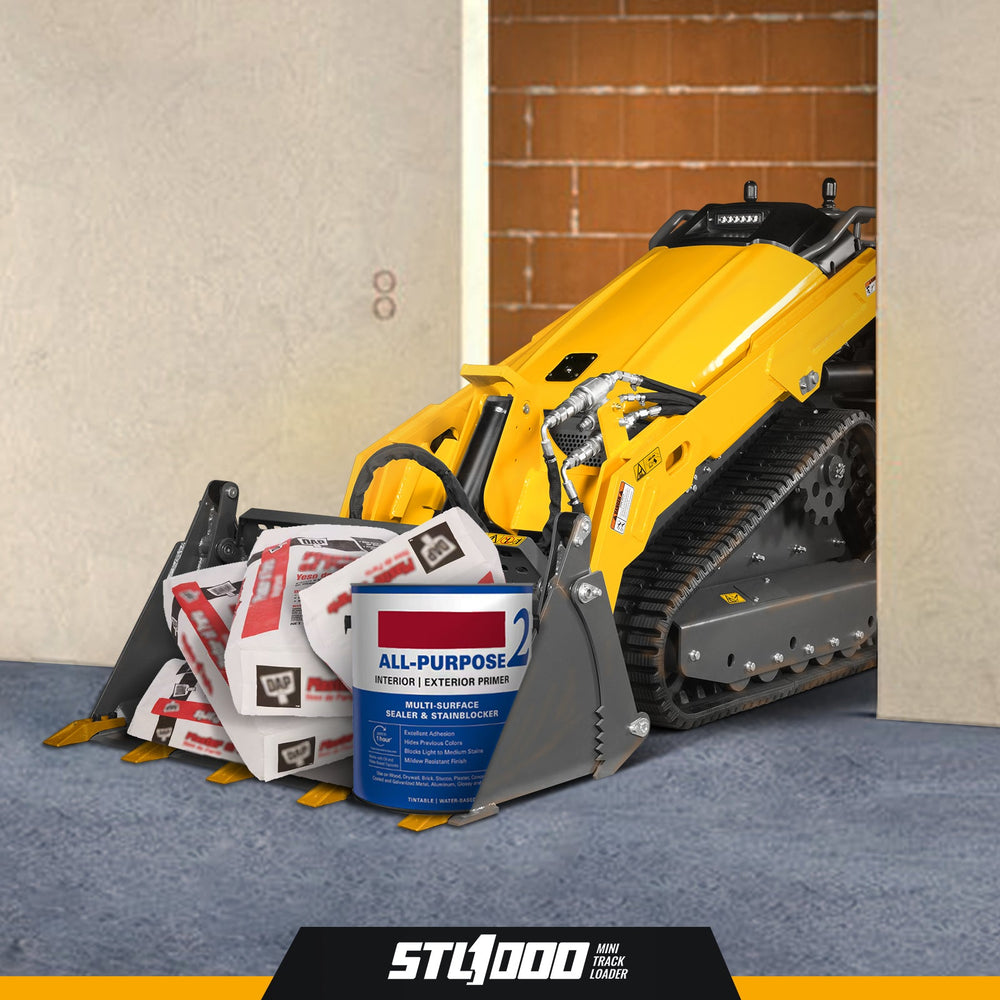

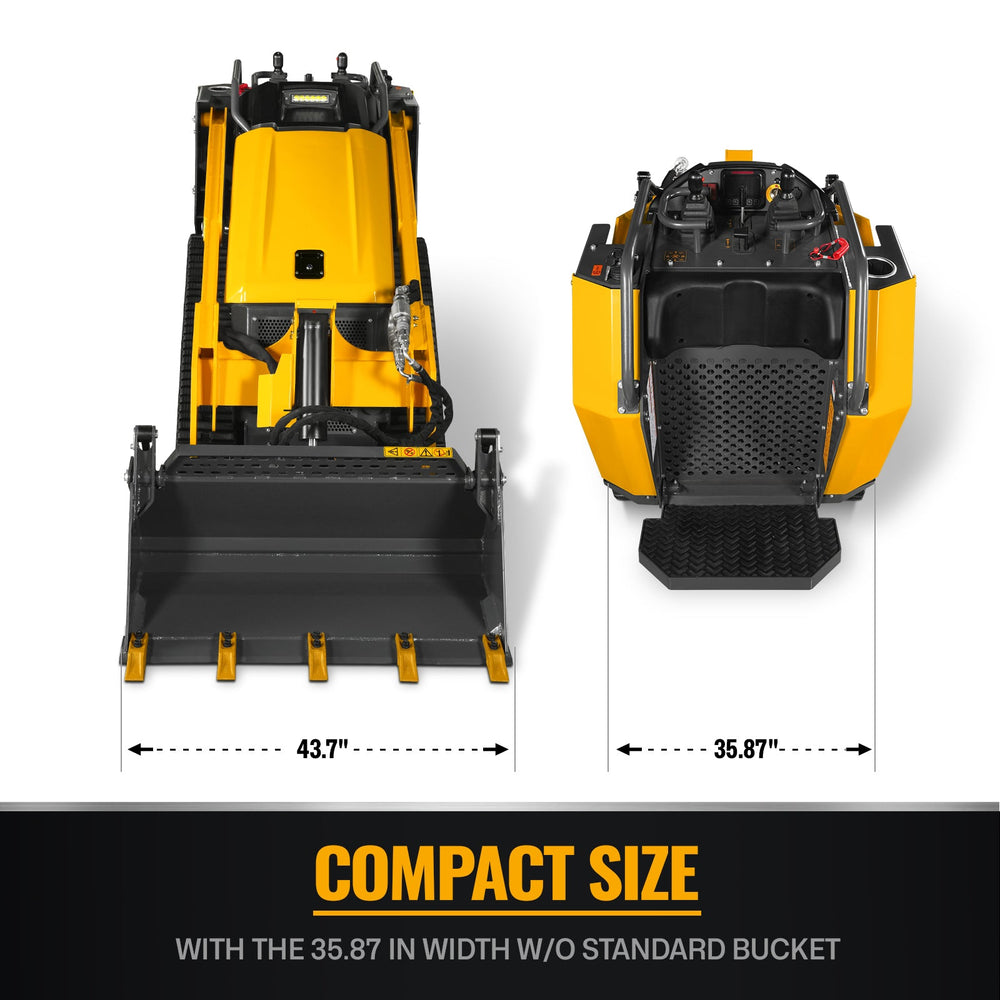

- Compact Size: With the 35.87 in width w/o standard bucket, STL1000 is designed to operate in confined areas where larger equipment cannot fit. The smaller size allows it to fit through tight doorways and are easy to load and transport on a trailer.
- Minimal Ground Disturbance: The STL1000 is equipped with turf tracks and allows you to drive on established roads without having to worry about surface damage and repair costs. Its ground pressure of 4.12psi with the operator provides good protection for most turf and finished surfaces.

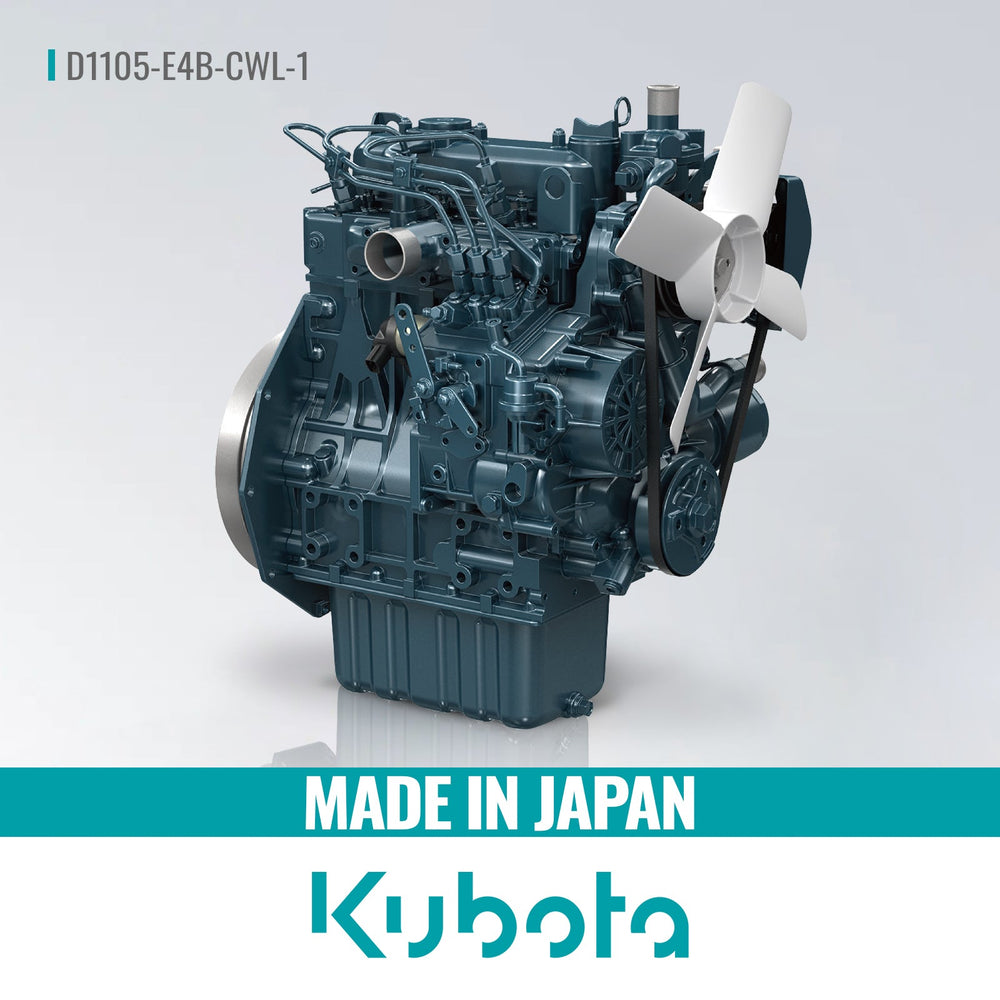

- Engine: The Kubota 18.2kW diesel engine is an established leader in its horsepower range, selected as the power source of choice by various industrial equipment manufacturers, allows for more torque where it matters so you get more done.
- Gear Pump: The Gear Pump of the Italian BONDIOLI & PAVESI brand: high volumetric efficiency, strong pressure bearing capacity, compact structure, and high reliability.
- Piston Pump: The Piston Pump of the Italian BONDIOLI & PAVESI brand can run at high speed, with a rated pressure of up to 350bar. The precise control of displacement enables the vehicle to travel in a straight line, with high reliability and long service life.
- Engine Shock Absorption: It uses high-quality rubber materials with good wear resistance and aging resistance to ensure long-term and efficient operation of the equipment. It has a low natural frequency and good vibration isolation effect. It can effectively absorb high-frequency and low-frequency vibrations generated by the equipment, reduce noise interference, and improve the stability of equipment operation. It is easy to install, and the shell can protect the rubber.

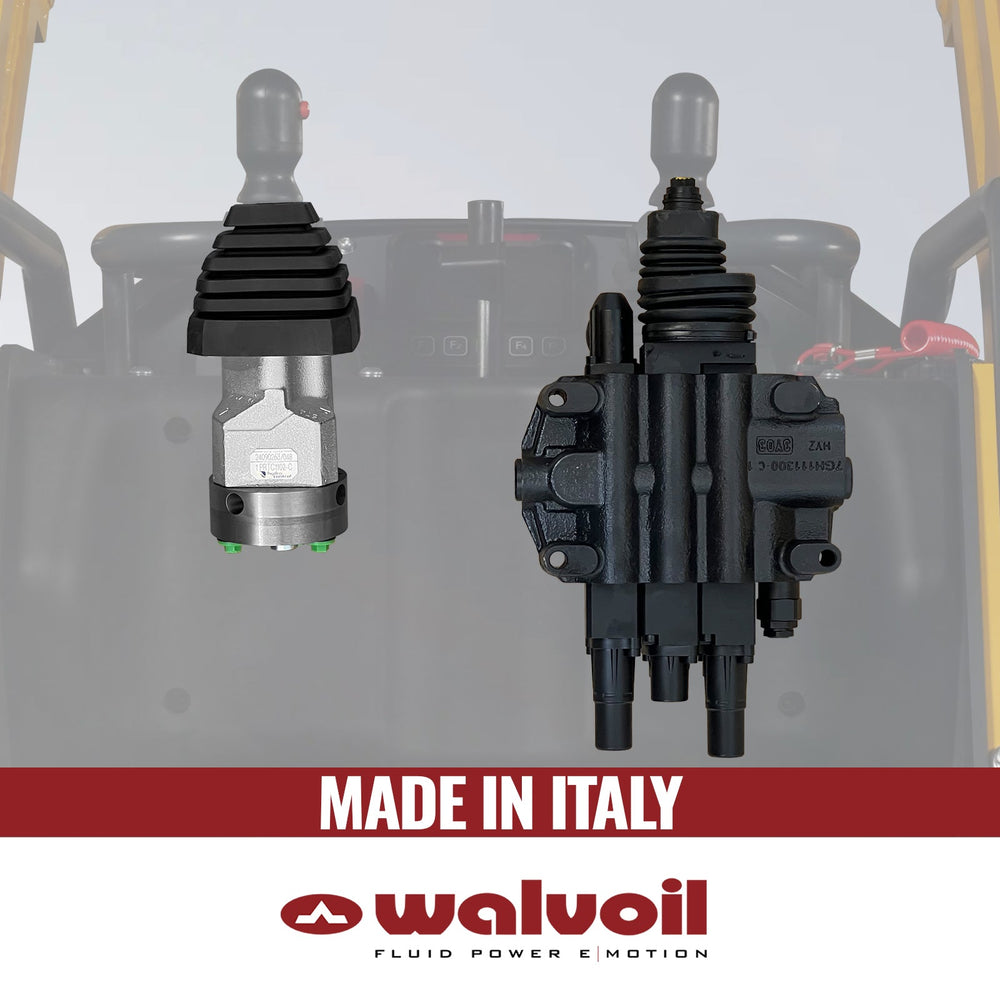

- Hydraulic pilot valve&Control valve: The Italian Walvoil brand Hydraulic pilot valve and Control valve can achieve good micro-operation performance. The pilot valve makes it easy to adjust the vehicle's travel speed. The moderate steering speed can ensure the safety of the driver and passengers. The control valve has excellent linkage of the boom and bucket movements, and has an integrated electromagnetic lock inside to effectively prevent misoperation of the boom and bucket. To prevent danger, the engine can only be started when the attachment handle is in the middle position.
- Quick Change Coupler: Made in Italy Quick Change Coupler allows to connect and disconnect quickly from any hydraulic circuit, without spillage and ensuring the best performance even under high temperature and pressure. Coupling has never been safer and faster.
- Hydraulic Motor: STL1000 uses high-pressure shaft seal to ensure good sealing performance, and does not require an oil drain pipe. It has high volumetric efficiency, good low-speed performance, and can provide high torque.

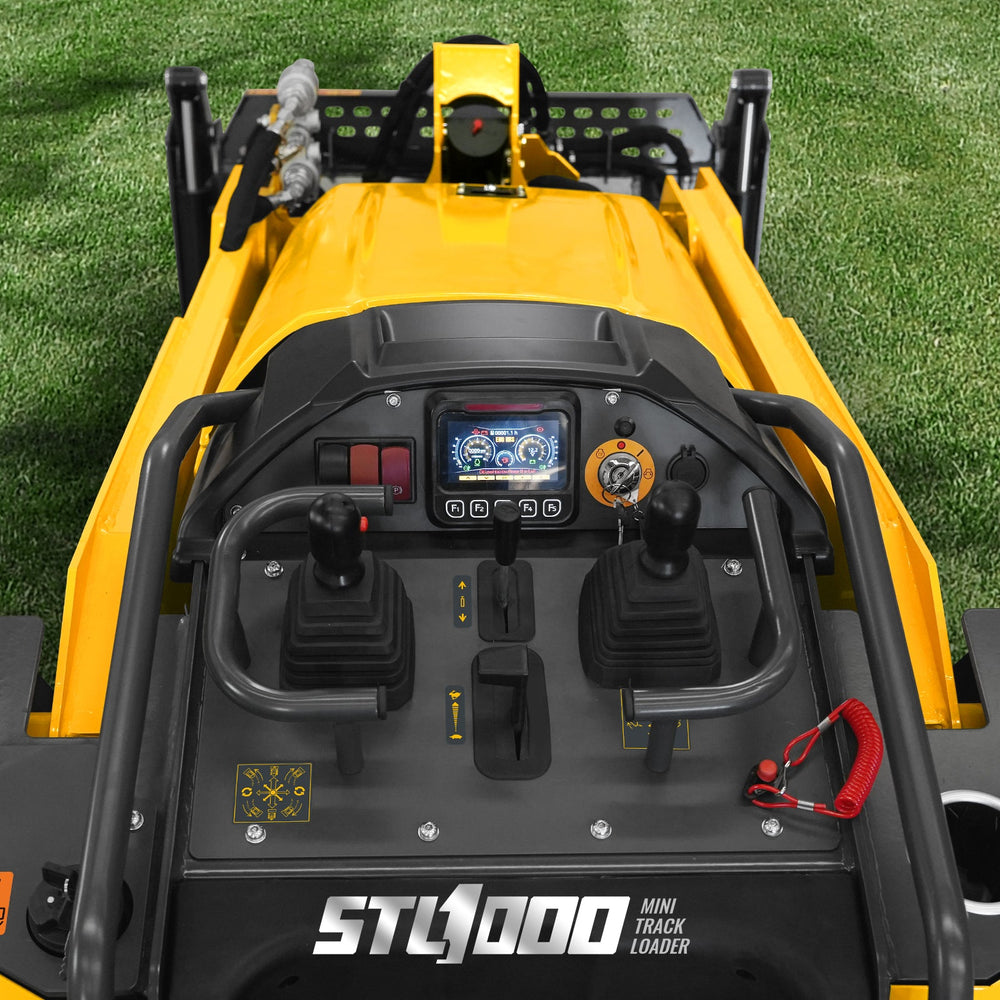

- IS0 Joystick Controls: The lS0 joystick control of the STL1000 mini track loader is ergonomically designed, making it comfortable to operate and reducing fatigue.
- Less Maintenance: With the grease type track tension system, the rollers of the STL1000 are sealed and filled with oil for continuous lubrication. There is no need for routine maintenance of the rollers, thus reducing maintenance time.
- Integrated Ride-on Platform: Integrated Ride-on Platform gives you a wider view to the sides of the machine as well as the bucket cutting edge or attachment, can improve the comfort of your working or traveling on the job site.
- Easy Hood Access: When you need to service your mini track loader, you can gain easy, tool-free access to routine maintenance areas by lifting the hood. Preventive maintenance becomes simple, and you'll be back on the job faster.

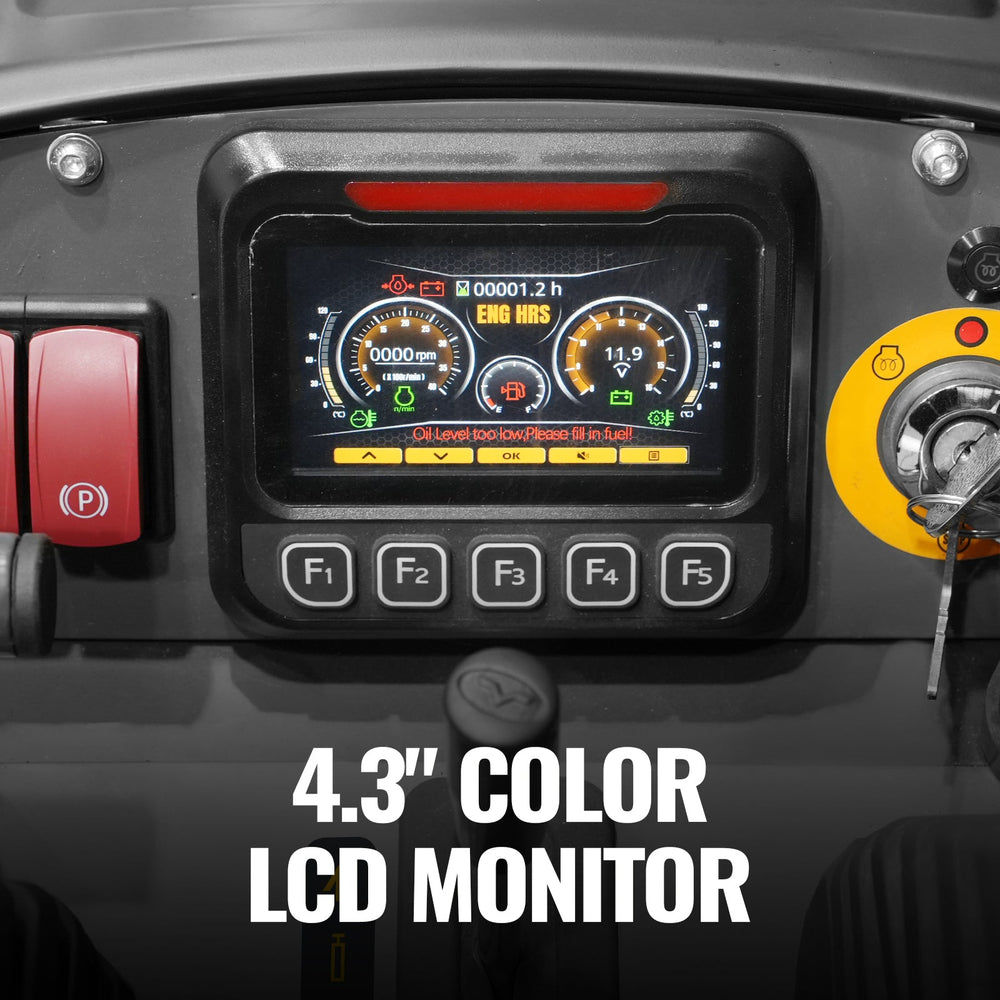

- LCD Monitor And Charging Port: STL1000 is equipped with a 4.3’’ Color LCD monitor and a 12 Volt charging port, which allows you to monitor the machine's usage at any time, making daily maintenance easier and improving the machine's efficiency.
- Pedal: The pedal under the operator's feet is spring-adjustable, and the pedal hardness can be changed according to preference to choose the comfort that suits oneself.
- Electronic Fan: There is also an electronic fan in front of our STL1000, which will automatically turn on when the hydraulic oil temperature reaches 60°. It can reduce the temperature of the machine, reduce failures, and increase the service life and working time of the machine.
- Safety Spring: The control panel comes with a safety spring, which the operator fixes on the hand. The emergency safety handle attaches to operator’s hand. If the safety handle disconnects during operation for any reason, the machine will shut off.

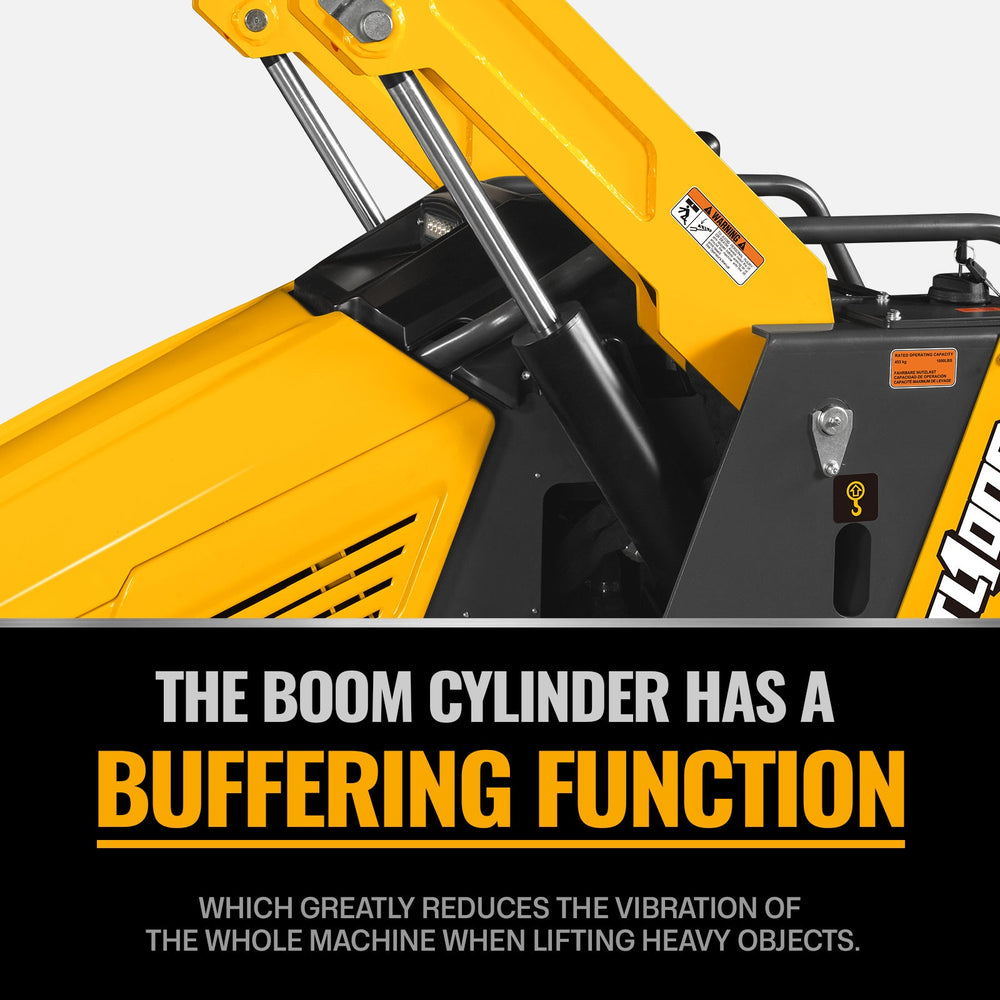

- Boom Cylinder: The boom cylinder of STL1000 has a buffer function, which can greatly reduce the vibration of the whole machine when lifting heavy objects and improve user comfort.
- Boom Cylinder Safety Card: The safety card can prevent it from accidentally falling when the boom is raised for maintenance, which greatly ensures the safety of the operator.
- Boom Pipe: The pipe passes through the inside of the boom. This design makes the appearance neat and tidy, and at the same time ensures that the pipe is not easily damaged or aged due to time.
- Safety: To ensure operational safety, when the operator stops operating the machine, press the stop button on the right and the parking brake will be activated, which can greatly protect safety.
- Lift Arm Bypass Control: The lift arm bypass switch is used to lower the lift arms when the engine is not running.
- Common Industry Interface (CII): The accessory mounting system uses CII, allows for smaller and more convenient connections to accessories. The pin-on attachment style can be locked at 90 degrees to make the connection more secure, and is equipped with greasable and serviceable pins.
Specifications
| Engine Model | KUBOTA D1105-E4B-CWL-1 |
| Type | Vertical, water-cooled, 4-cycle diesel |
| Total Displacement | 68 cu.in. |
| Number of cylinder | 3 |
| Brake Horse Power -Net intermittent without fan ISO 14396 | 18.2 kw/3000 rpm |
| Rated Speed | 3000 rpm |
| Max. Torque | 70.4Nm/2200 rpm |
| Low Idling Speed | 850-950 rpm |

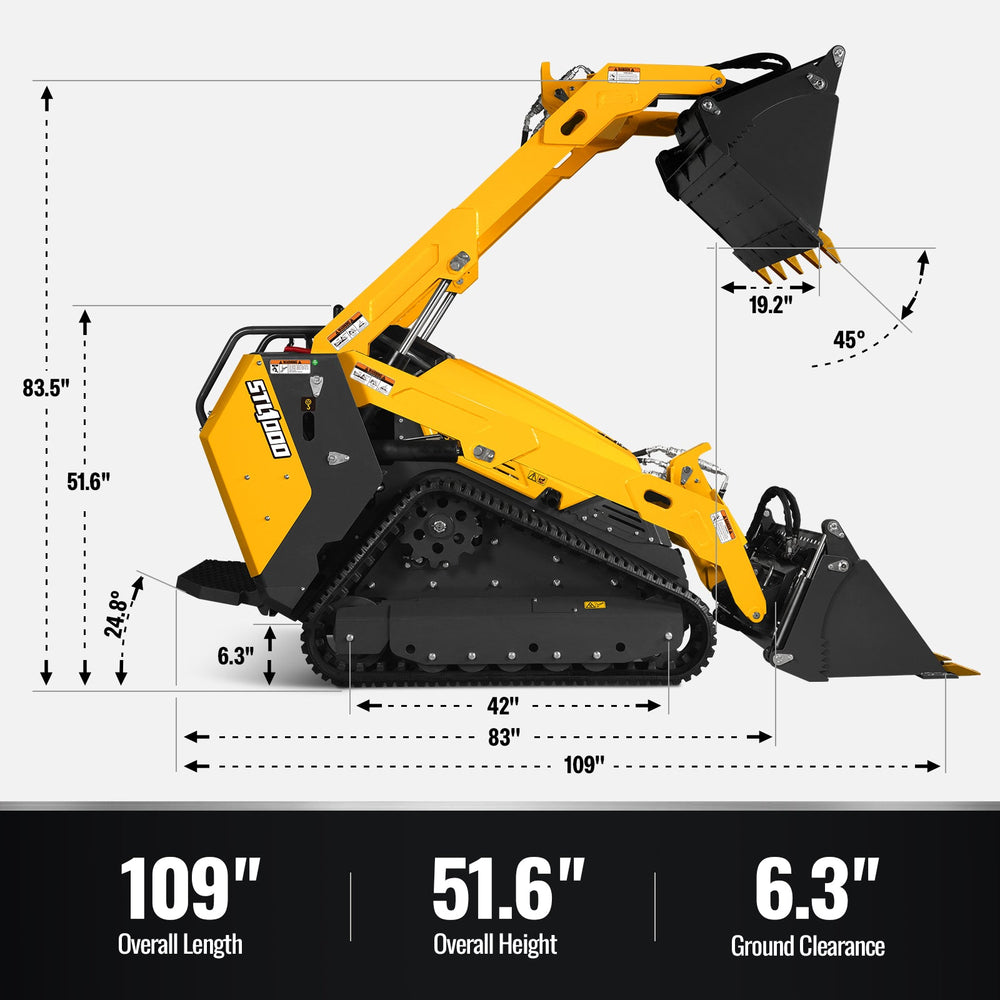

| Overall Length (With 4-In-1 Bucket Parallel To Ground) | 109 in |
| Overall Length (w/o 4-In-1 Bucket) | 83 in |
| Overall Height | 51.6 in |
| Overall Width With 4-In-1 Bucket | 43.7 in |
| Overall Width w/o 4-In-1 Bucket Bucket | 35.87 in |
| Weight With 4-In-1 Bucket (w/o Operator) lbs | 3206 lbs |
| Weight w/o 4-In-1 Bucket | 2895 lbs |
| Rated Operating Capacity (35%) | 1,000 lbs ROC |
| Tipping Load | 2,857 lbs |
| Wheelbase | 42 in |
| Hinge Pin Height At Max. Lift | 83.5 in |
| Reach At Max. Lift And 45° Dump | 19.2 in |
| Bucket Capacity | 6.53 cu.ft. |
| Track Width | 7.87 in |
| Ground Clearance | 6.30 in |
| Angle of Departure | 24.8° |
| Steering And Drive | Dual axis, pilot-operated joystick |
| Lift And Tilt | Dual axis, manual-operated joystick |
| Transmission | Hydrostatic track drive system |
| Attachment | One lever with dual direction detent |
| Attachment Mounting System | CII (Common Industry Interface) |

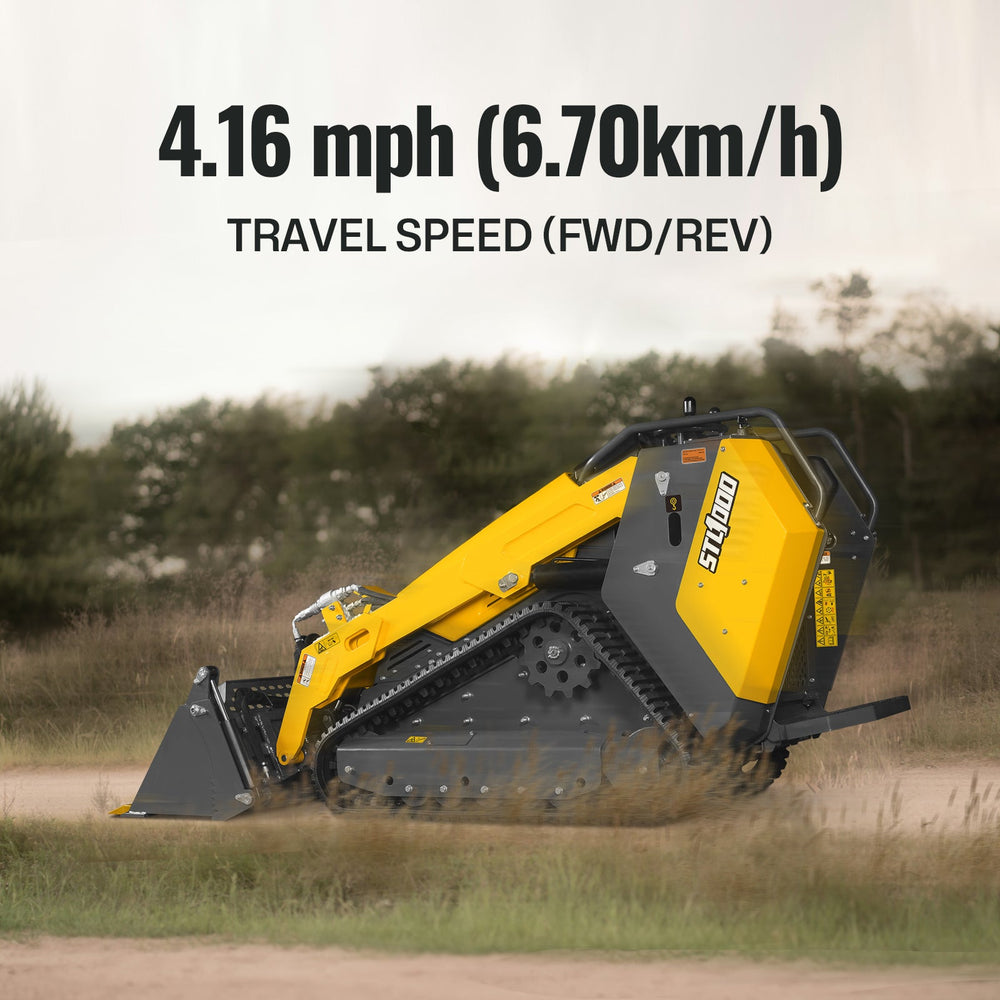

| Travel Speed (Fwd/Rev) | 4.16 mph (6.70km/h) |
| Ground Pressure (with Operator) | 4.12 psi (28.4kpa) |
| Battery Capacity | 12V, 55Ah |

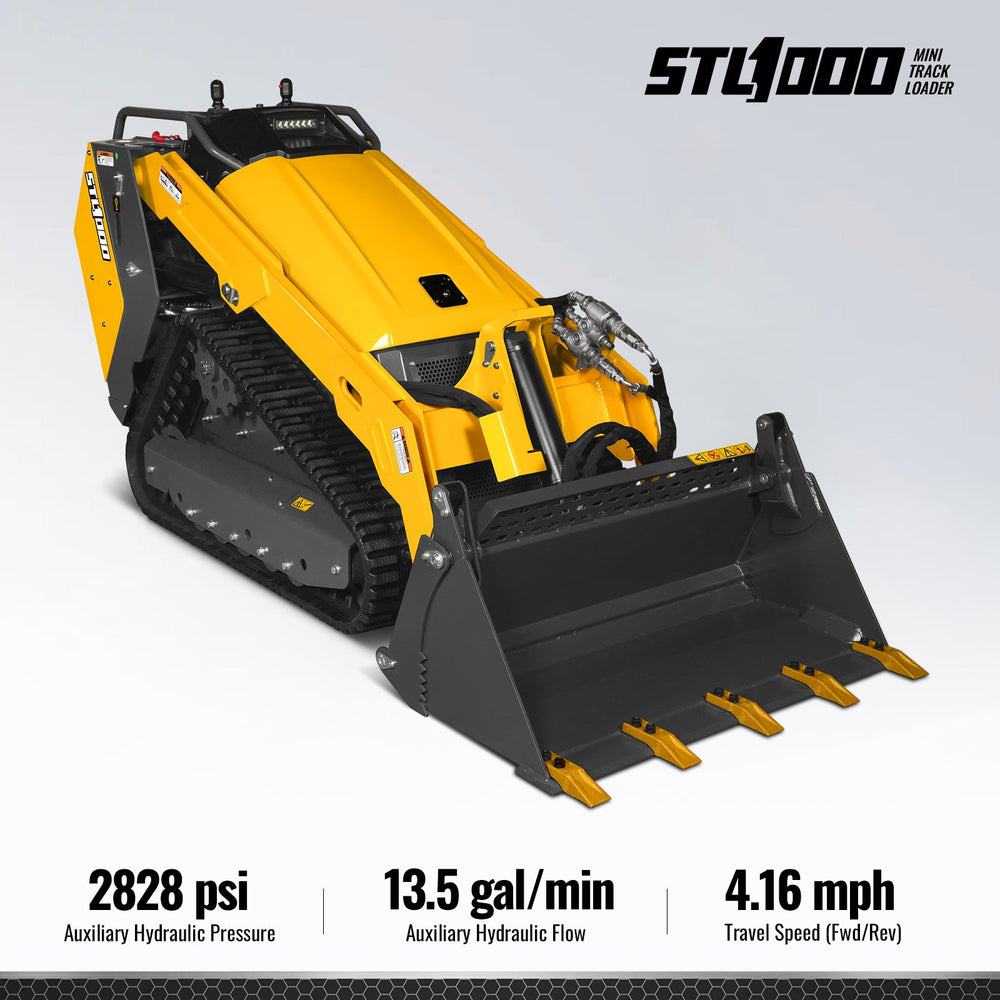

| Auxiliary Hydraulic Flow | 13.5 gal/min |
| Auxiliary Hydraulic Pressure | 2828 psi (19.5Mpa) |
| Fuel Tank Capacity | 8.32 gal |
| Hydraulic System | 5.54 gal |
| Package Method | Wood Case |
| Warranty for Machine | 1 Year |
| Warranty for Engine | 2-Year or 2,000-Hour Warranty, Whichever Comes First. |
| Packing Size | 87 x 38 x 59 in |
| Shipping Weight | 3087 lbs |
Warranty
This item comes with a factory warranty.
