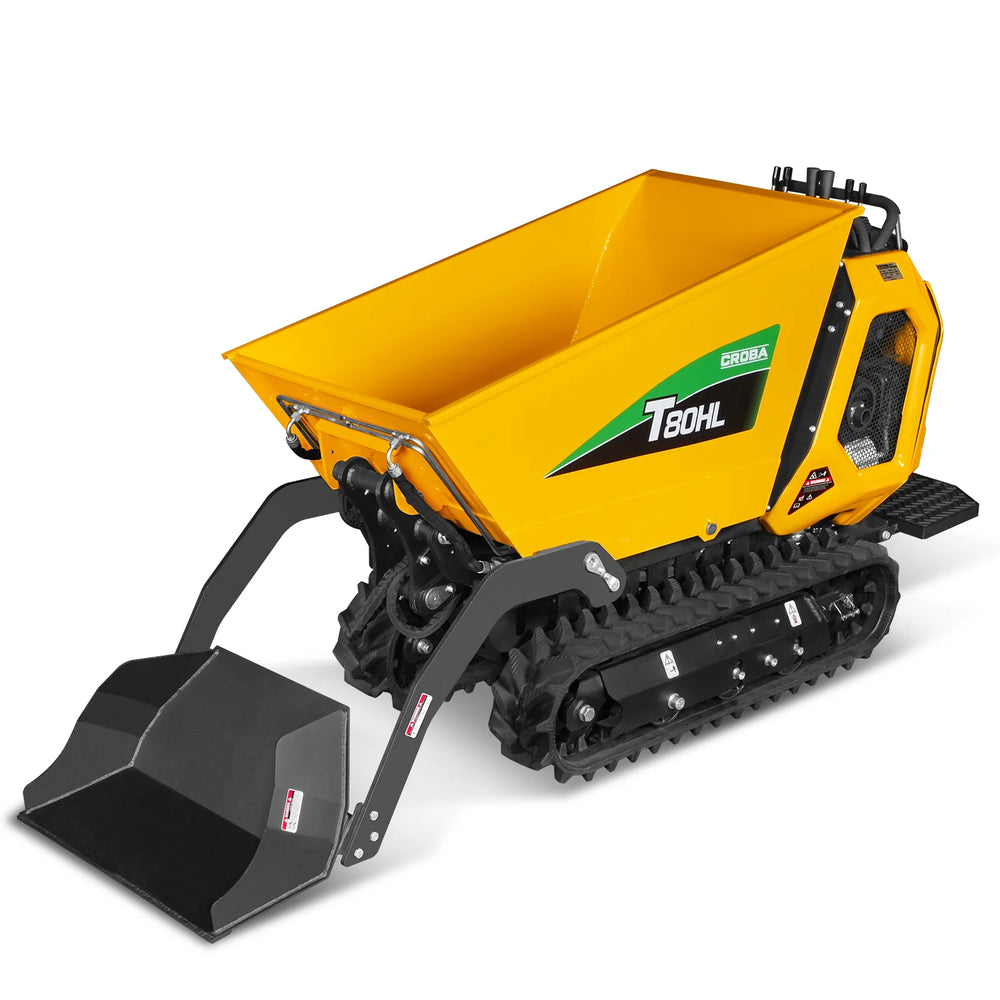

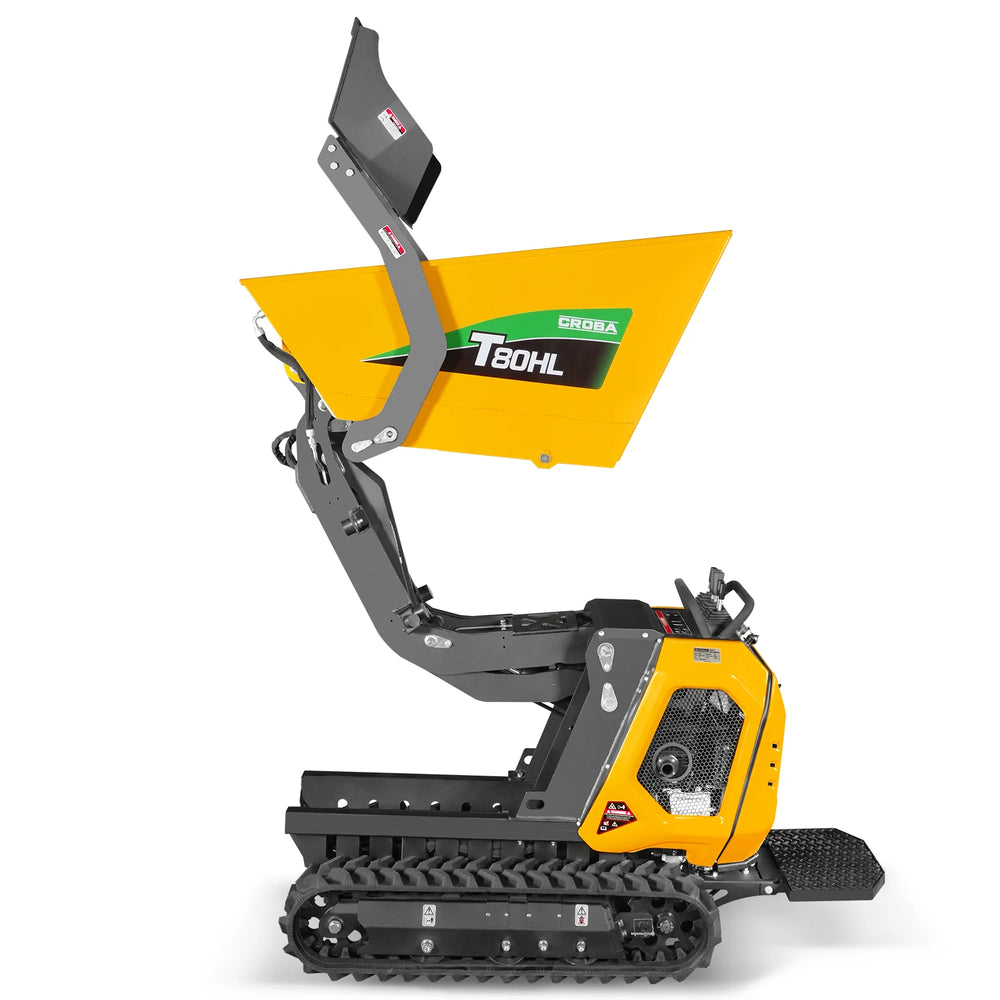

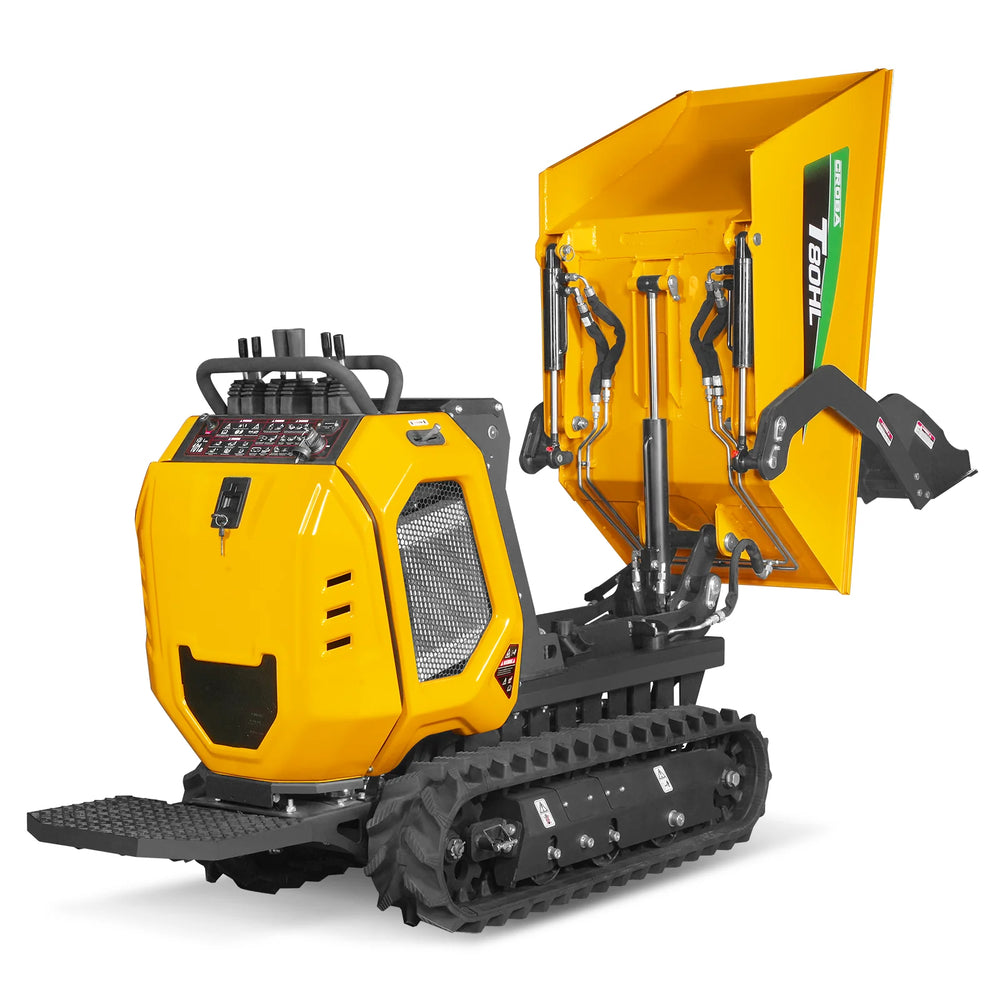

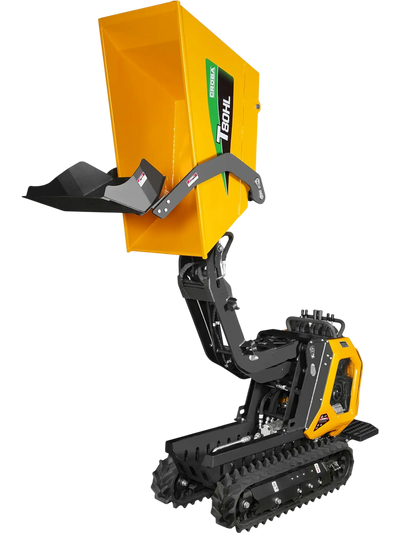

MechMaxx T80HL Mini Dumper 1100lbs 420cc Electric Start Gas Engine Stand-On Hydraulic Track Self-Loading Tipping Lifting New
Product Overview
- Two speed travelling speed: low speed to make sure the precision in operation and high speed at 2.7 mph allows for quicker travel around site.

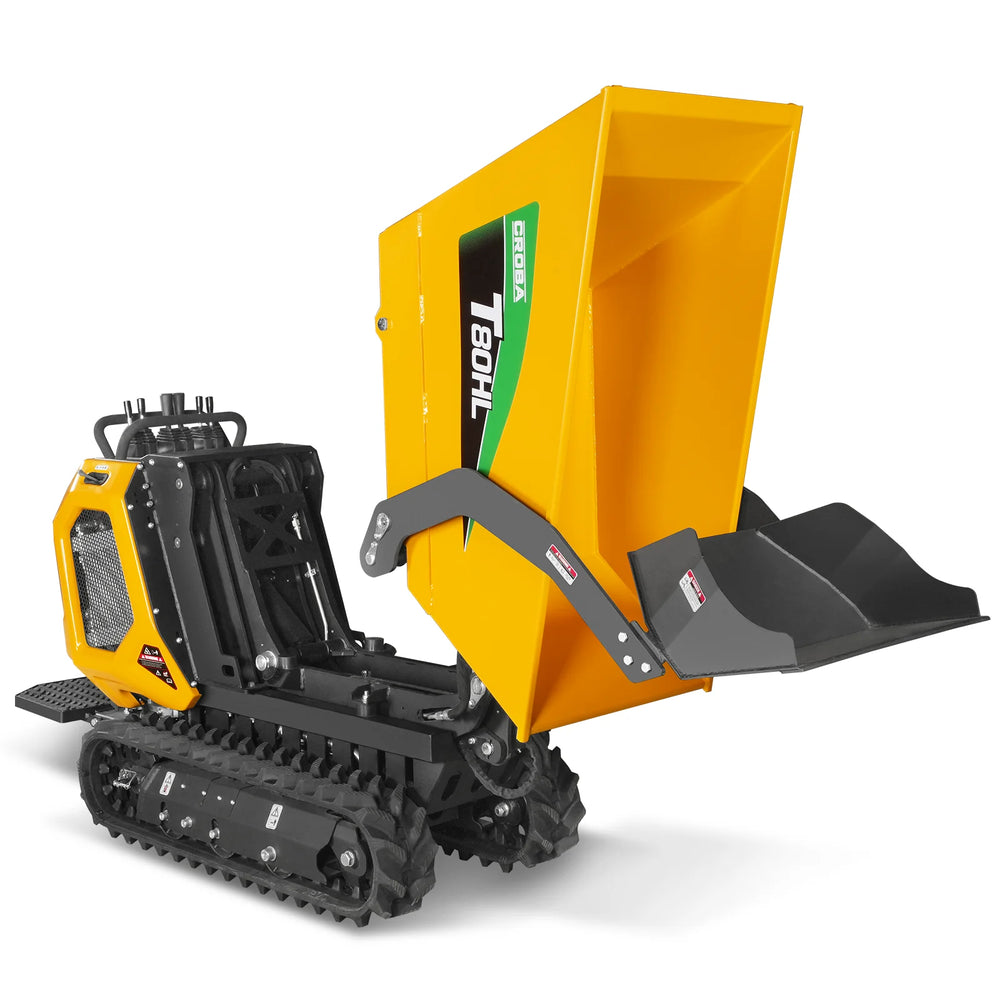

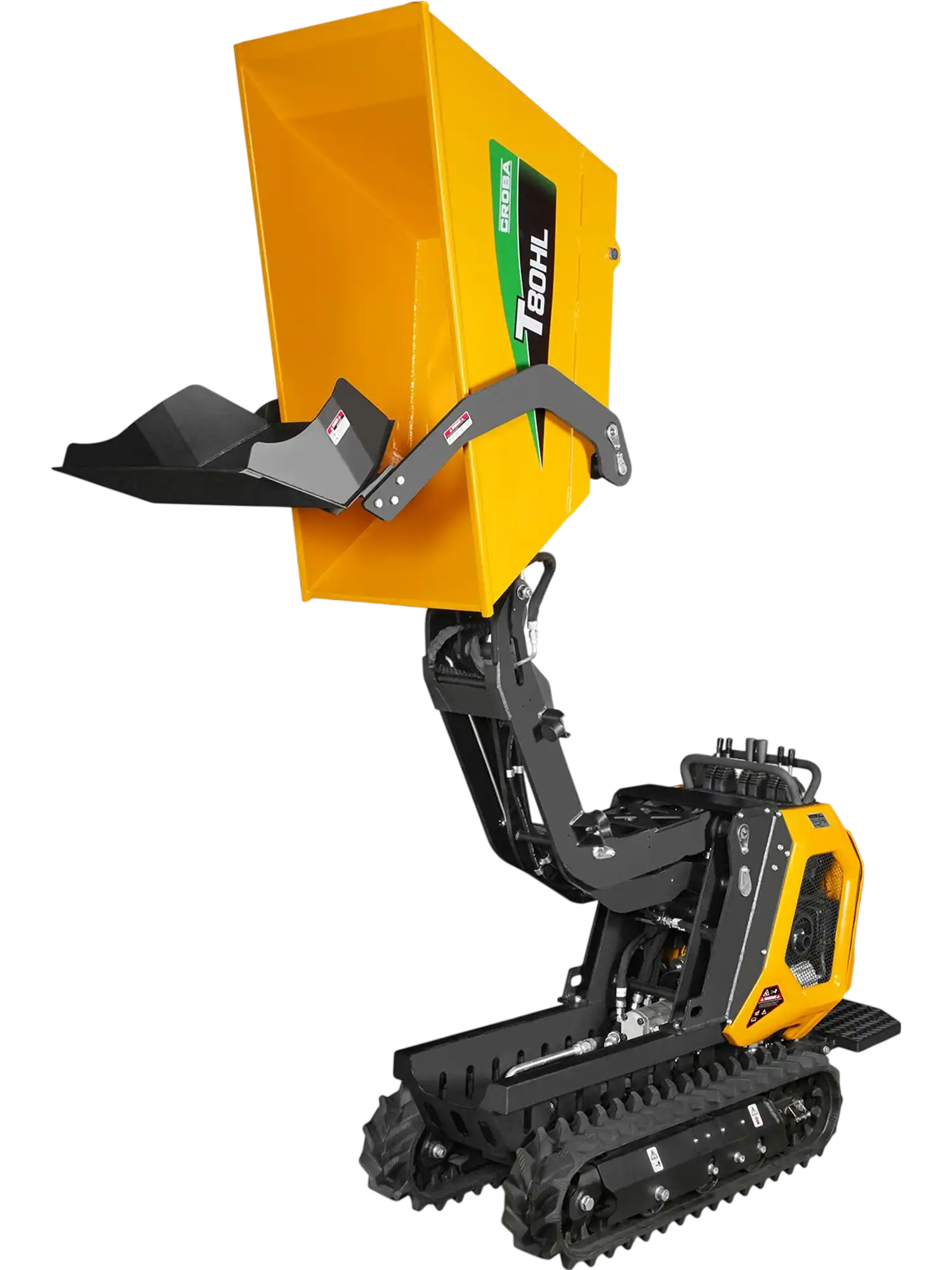

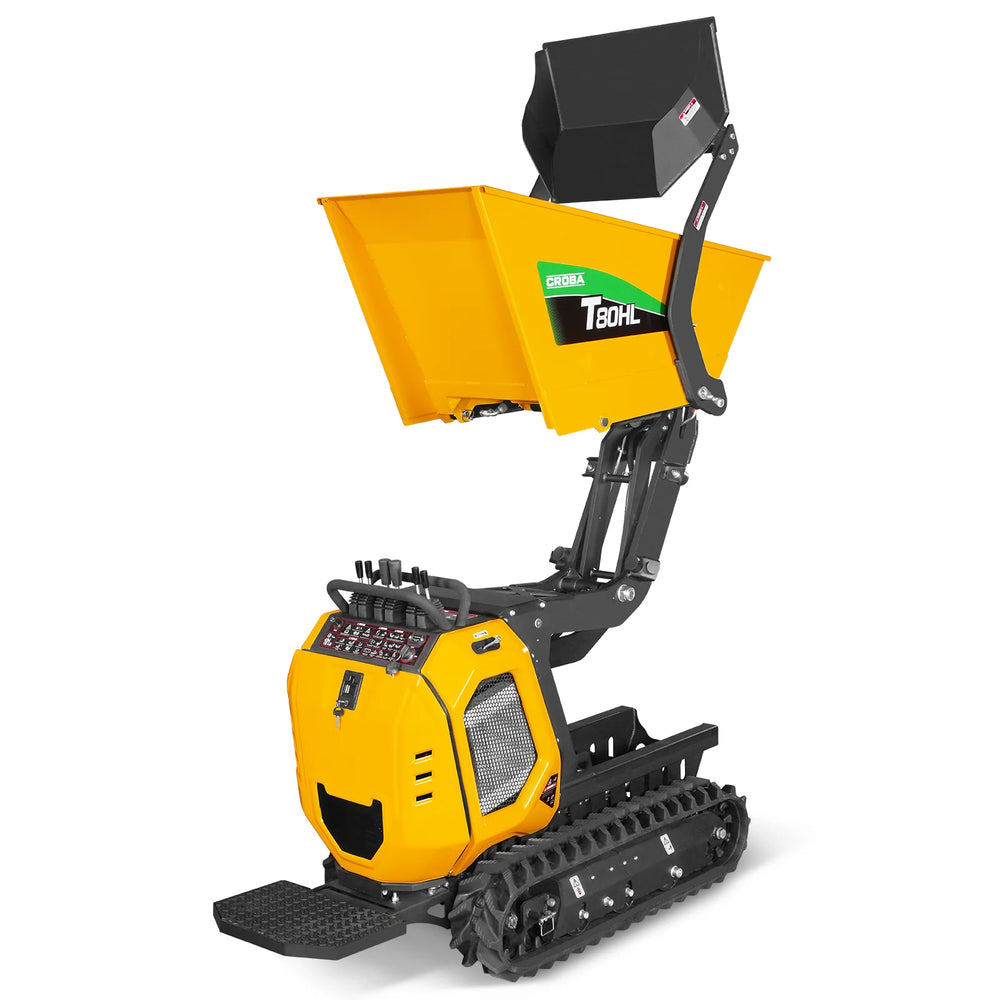

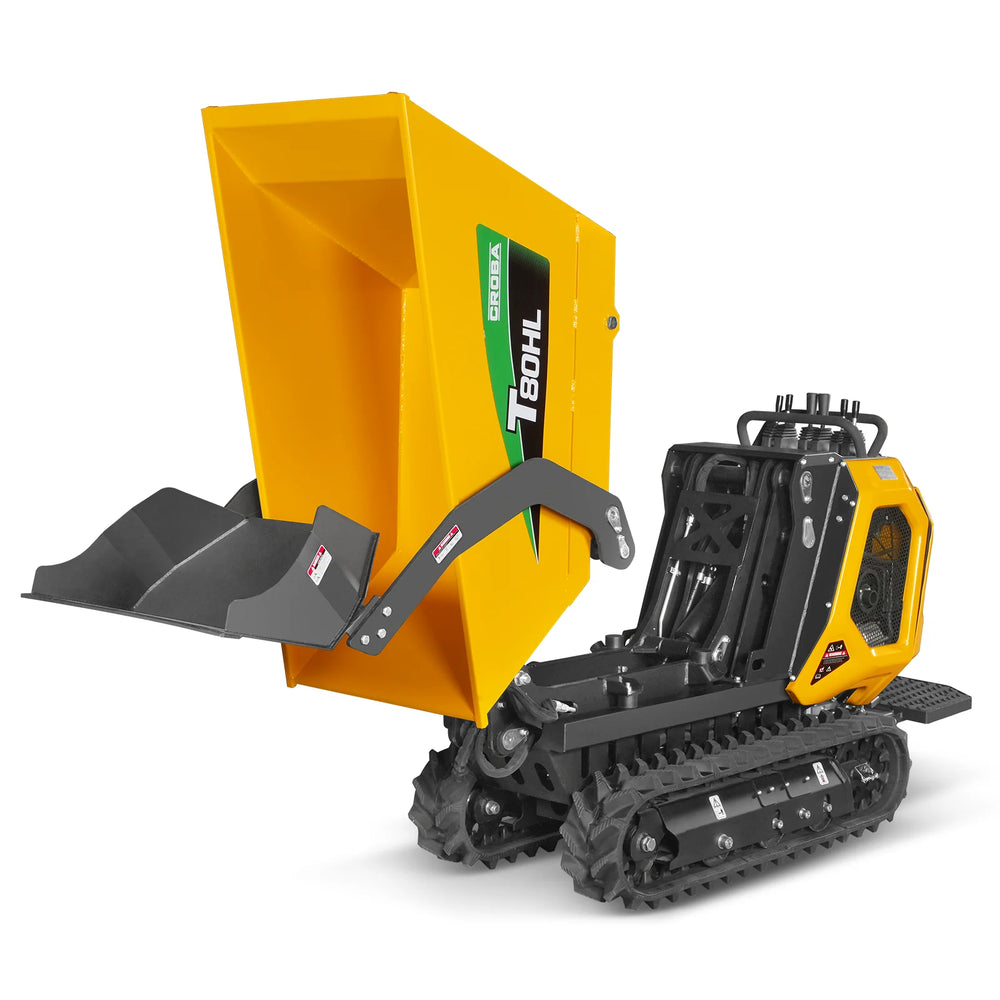

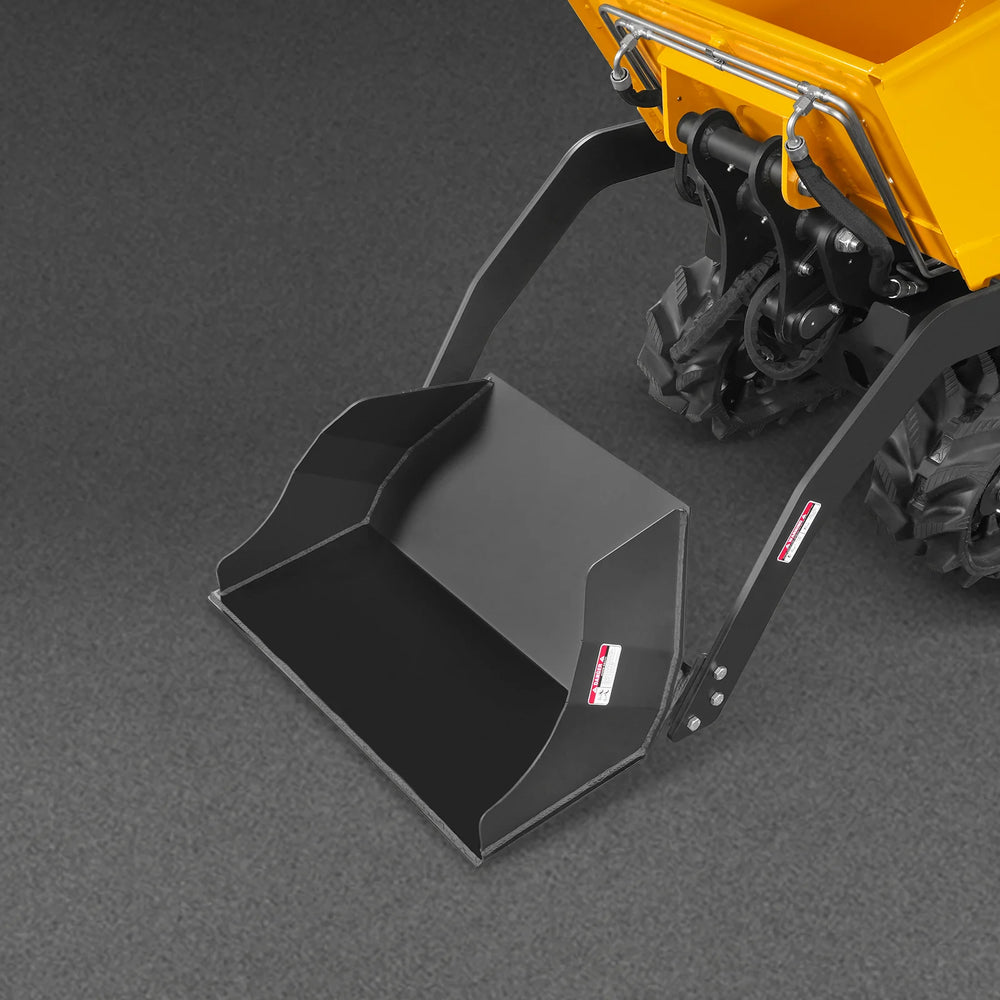

- 15hp gasoline engine provides more power for the machine and enhance the work performance in dumping and tracking. Its integrated self-loading shovel reduces manual labor, while the hydraulic lifting and tipping system ensures fast, controlled dumping.
- Machine width at 29in allows you to fit through any standard doorway or gate.
- 1100lbs loading capacity, fully Hydraulic system, Exclusive BONDIOLI&PAVESI hydraulic control valve for T80HL.
- Triple gear pump, 30% max gradeability, 26.5Nm/2500rpm max torque
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

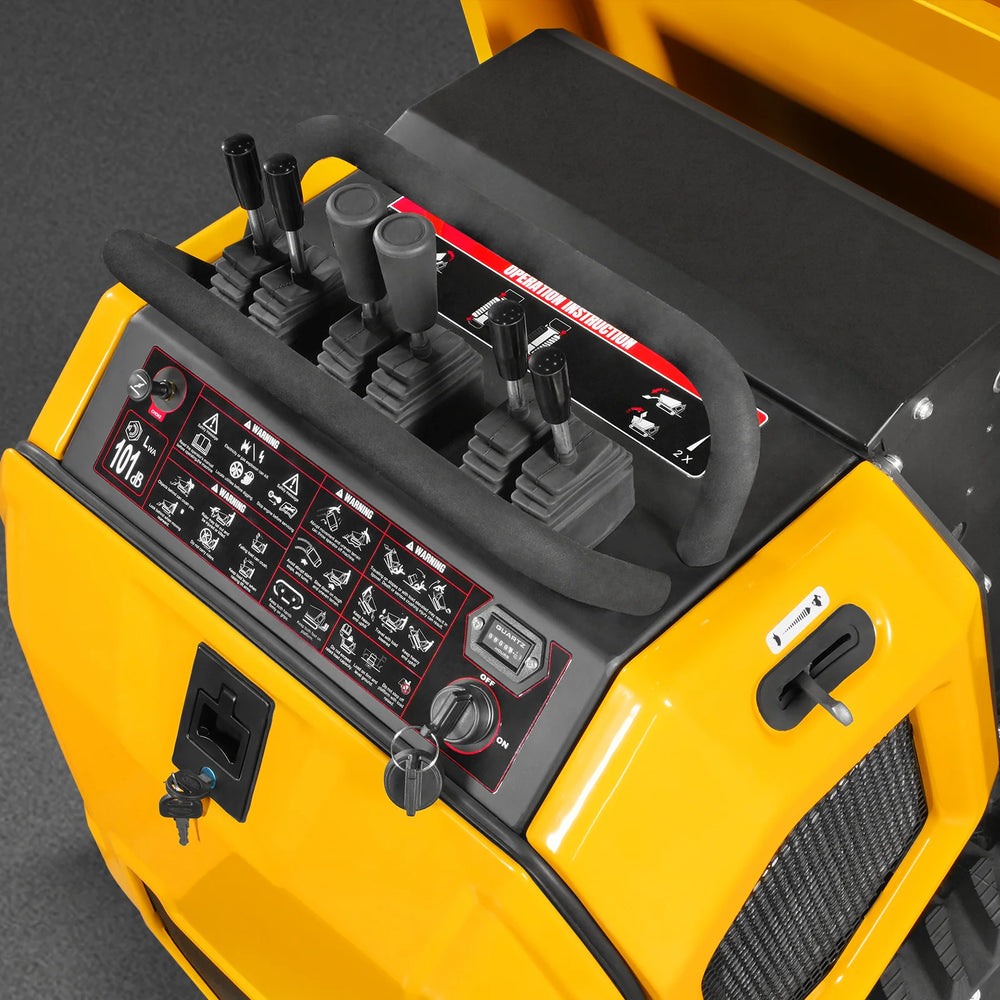

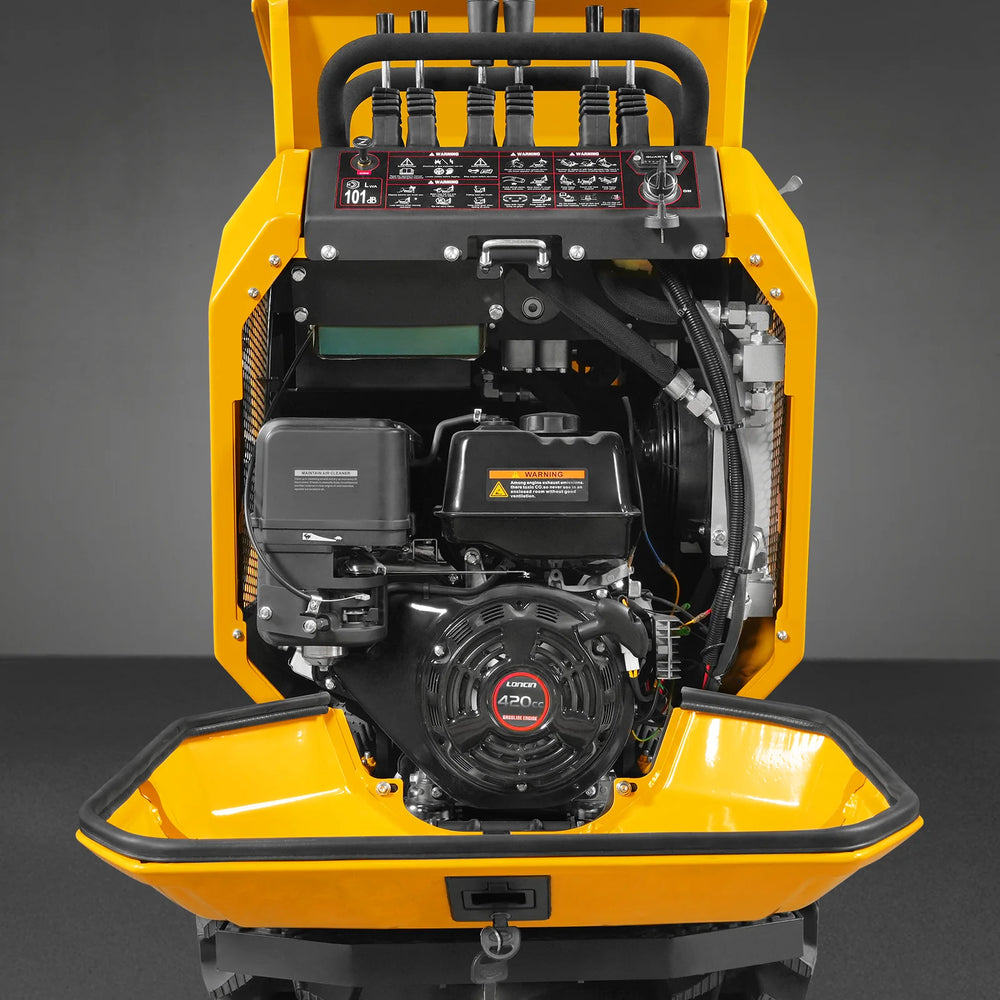

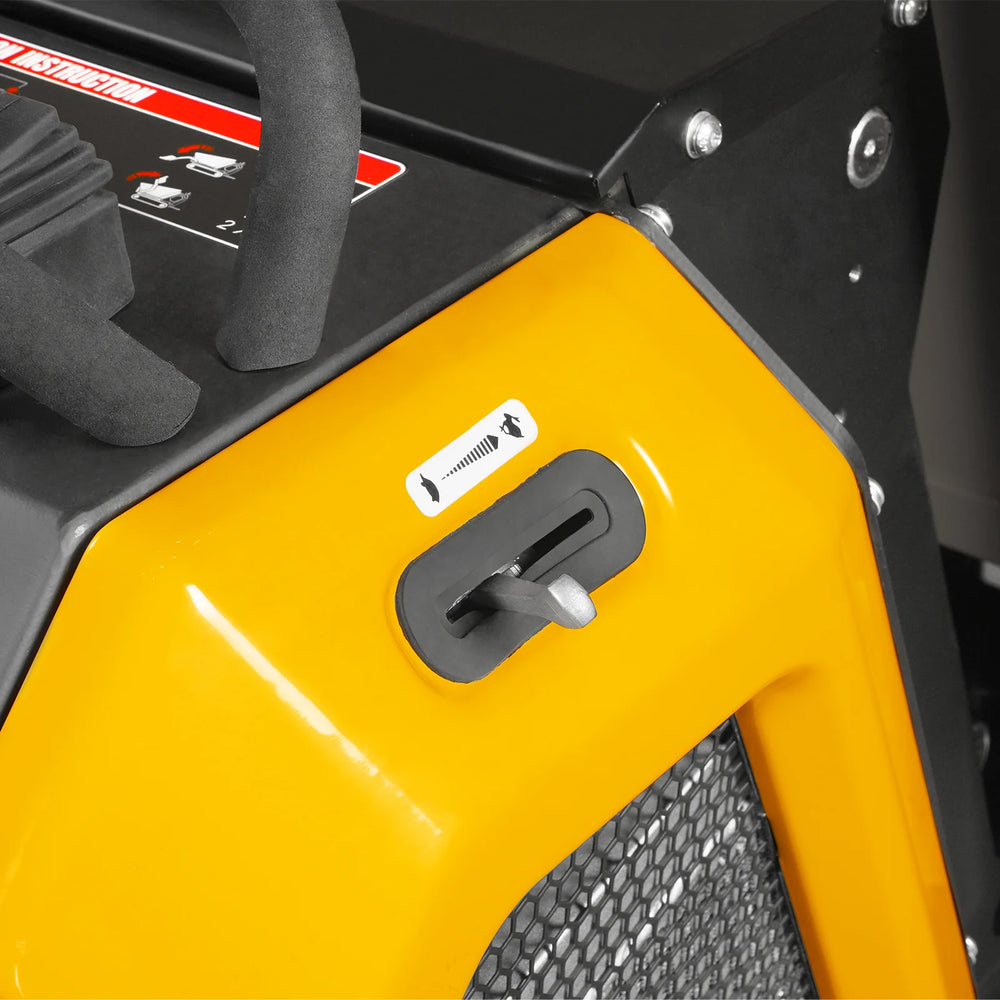

- Electric-Start Engine: The T80HL is equipped with a 15HP 420cc electric-start gasoline engine, with the start key and damper switch conveniently integrated into the control panel for intuitive operation.
- Control Valve Imported From Italy: High-quality control valves imported from Italy can extend the service life and effectively improve work efficiency.
- Load 1100lbs: With a safe load capacity of 1,100 lb and a 9.5 cu.ft. bucket capacity, the dump truck features a compact design for flexible use on small construction sites, farms, and yards.

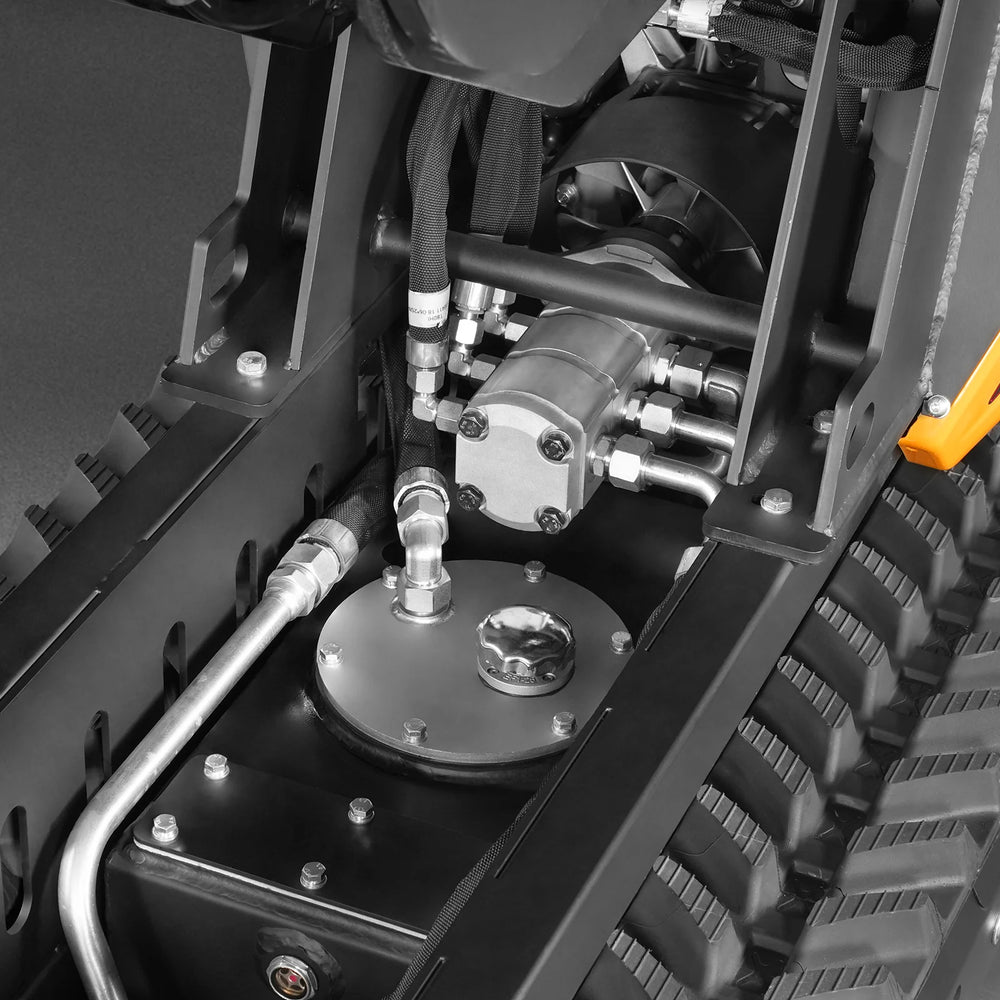

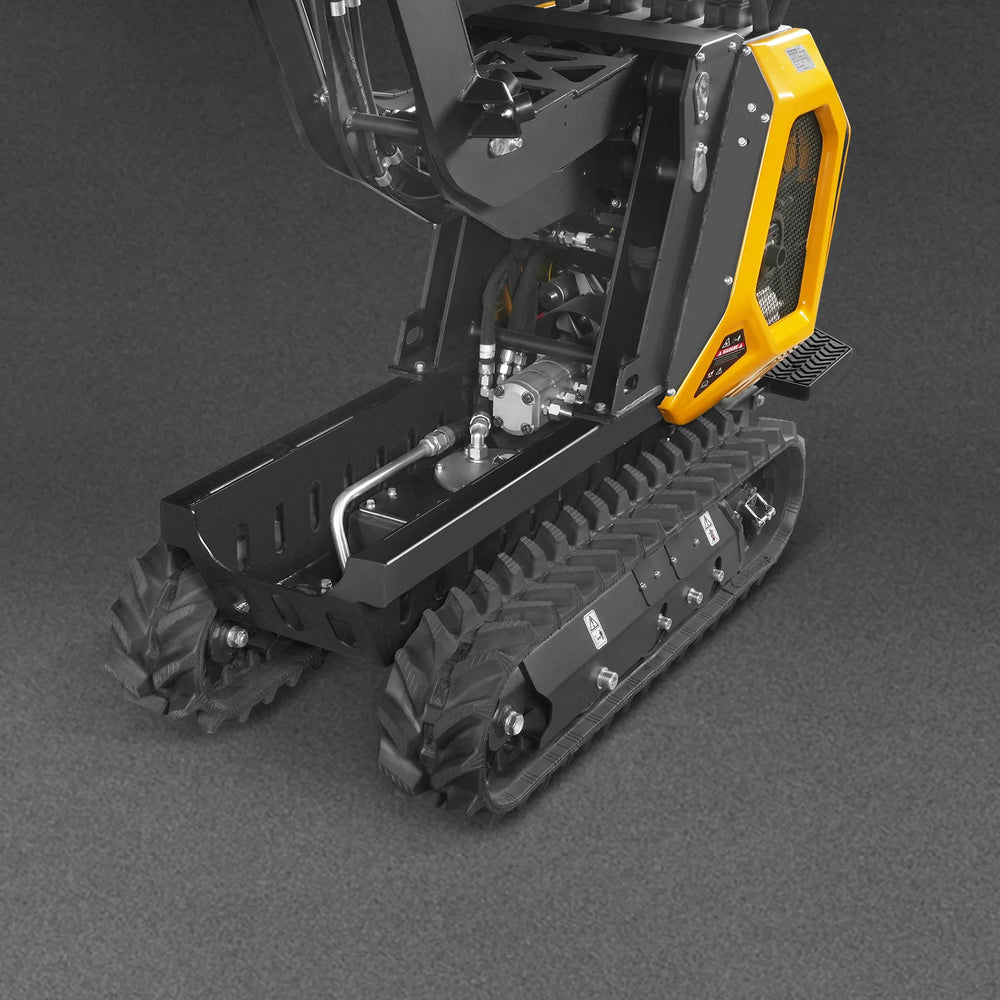

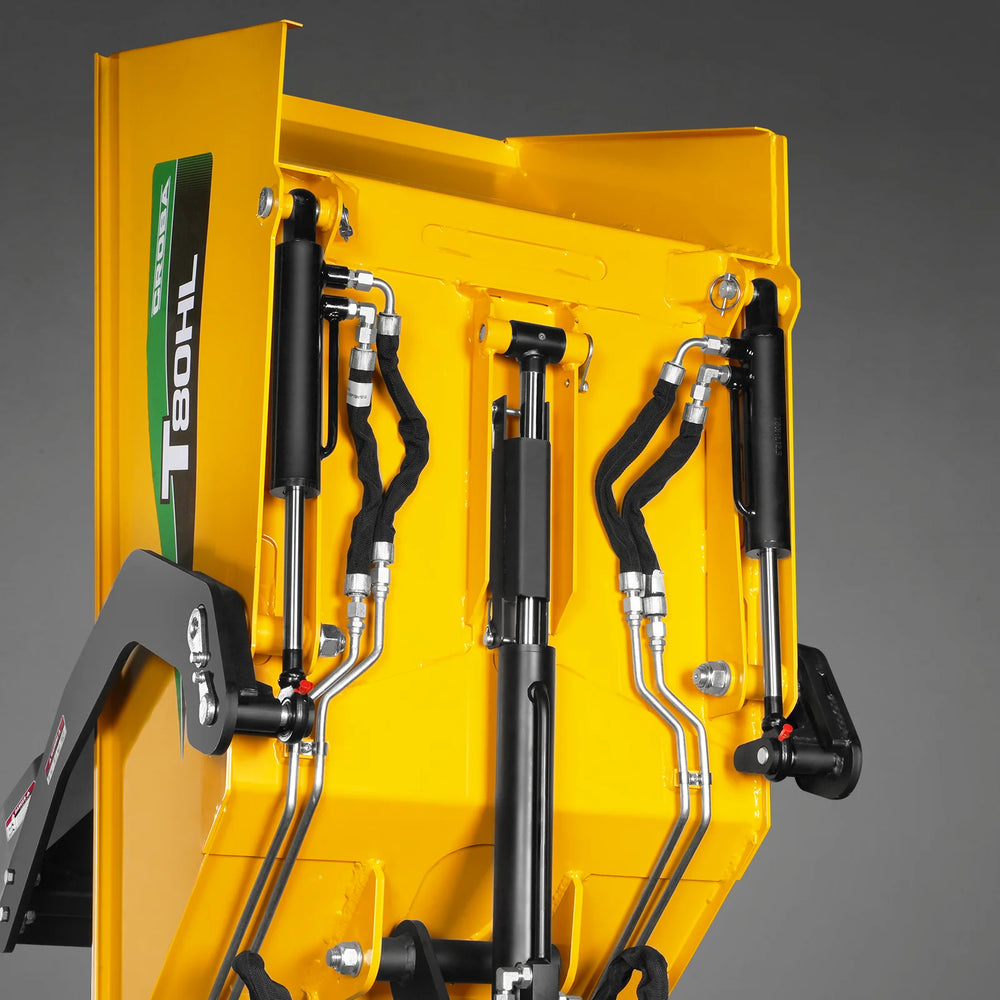

- Triple Gear Pump: The hydraulic system design of the triple gear pump can make the vehicle more stable when the hydraulic system is working.

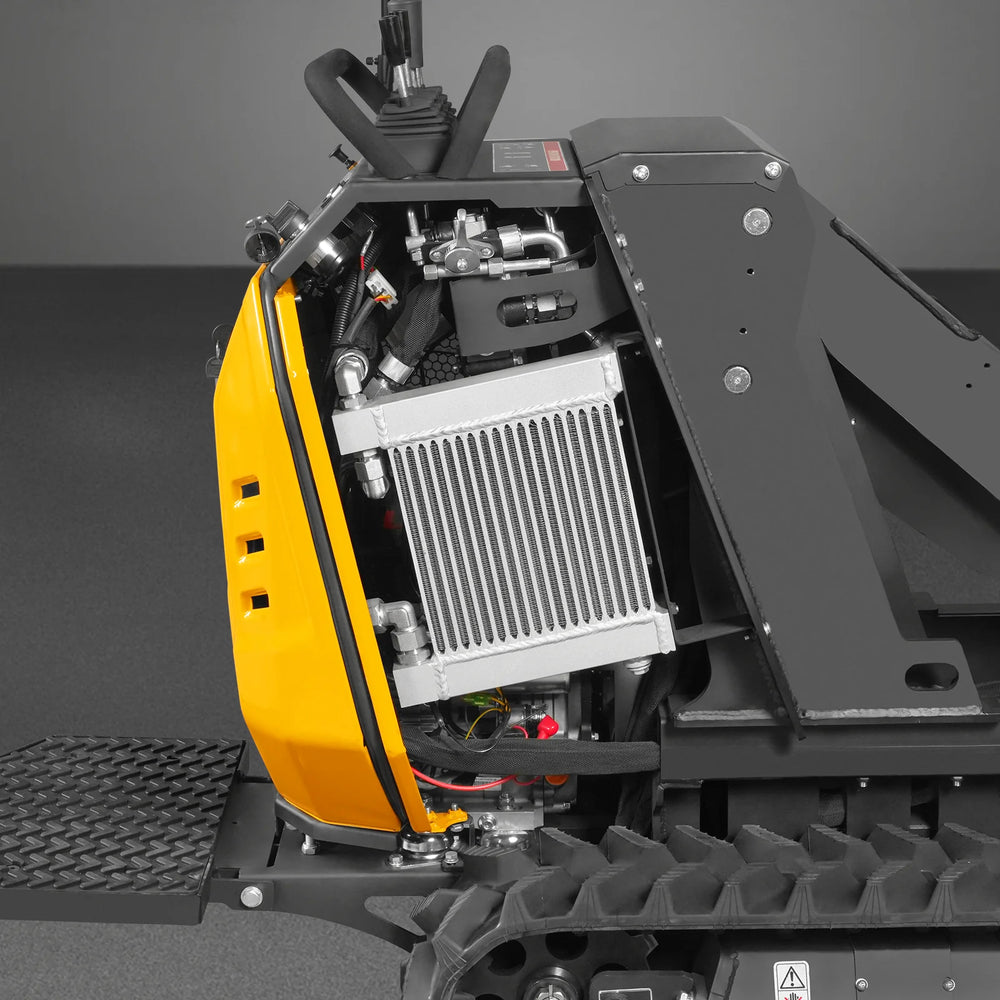

- Hydraulic Oil Radiator: The fully enclosed cabin design allows the operator to avoid noise during work. The hydraulic oil radiator and engine shaft end fan inside the cabin perfectly reduce the temperature of the console to within 104.0 °F.
- Timer: There is a timer at the control panel to meet customer needs to record the running time of the machine.
Specifications
| Engine Type | Single cylinder; 4 stroke; air cooled; OHV |
| Model Name | Loncin G420F(D) |
| Displacement/Horsepower | 420cc; 15HP |
| Engine Power | 9.0 kW / 3600 rpm |
| Start | E-start |
| Maximum Torque | 26.5 Nm/2500 rpm |
| Overall Length (w/o Shovel) | 85.5 in |
| Overall Length with Shovel | 112 in |
| Overall Height | 47 in |
| Lifting Overall Height | 98.5 in |
| Overall Width | 29 in |
| Max. Overall Height | 120 in |
| Max. dumping height | 65.4 in |
| Loading Capacity | 1102 lbs |
| Weight | 1631 lbs |
| Operating Weight | 1786 lbs |
| Wheelbase | 38.8 in |
| Bucket Capacity | 9.5 cu ft |
| Track Width | 7.09 in |
| Track Length | 51.2 in |
| Track Height | 11.8 in |
| Dump Front End Height | 33.3 in |
| Dump Back End Height | 43.3 in |
| Dump Width | 24.3 in |
| Console Height | 40.2 in |
| Platform Ground Clearance | 10.4 in |
| Working Type | Self Loading and Unloading |
| Transmission | Hydrostatic Track Drive System |
| Parking Brake | Yes |
| Operator Platform | Stand-on |
| Max.Travel Speed | 0-2.73 mph |
| Min. Travel Speed | 0-1.37 mph |
| Max. Gradeability | 30% |
| Ground Pressure (with Operator) | 2.9 psi |
| Battery Capacity | 12V 20Ah |
| Pump Type | Triple Gear Pump |
| Hydraulic pressure | 2900 psi |
| Fuel Tank Capacity | 1.72 gal |
| Hydraulic System | 6.13 gal |
