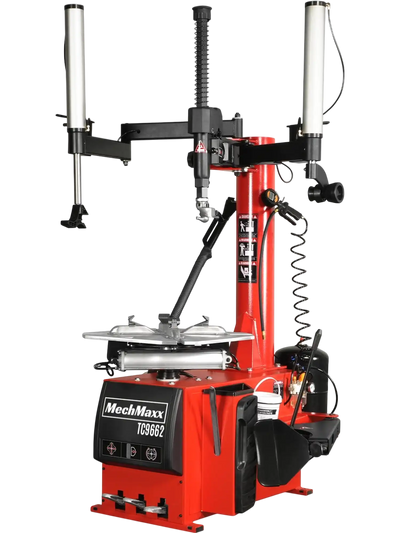

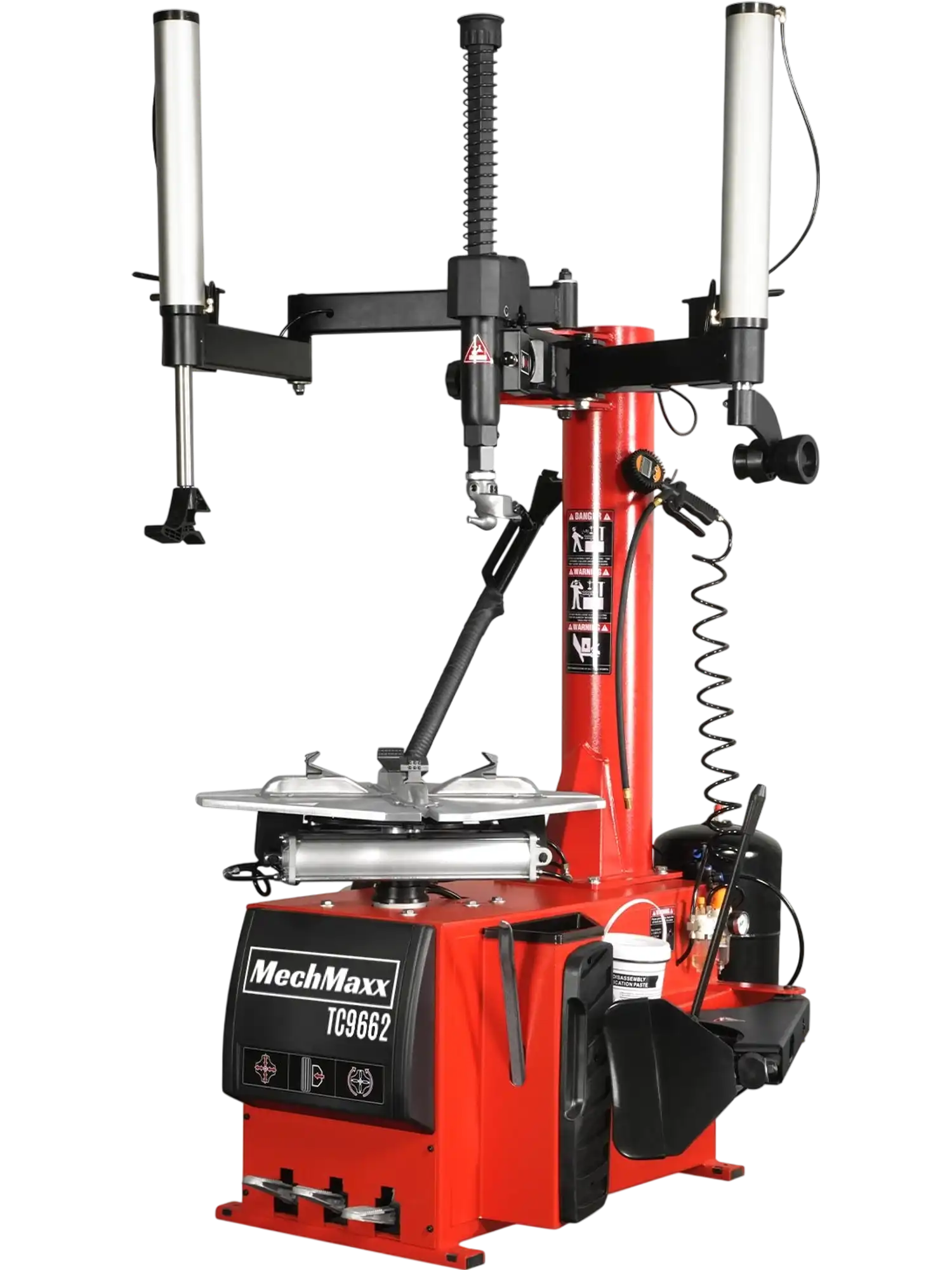

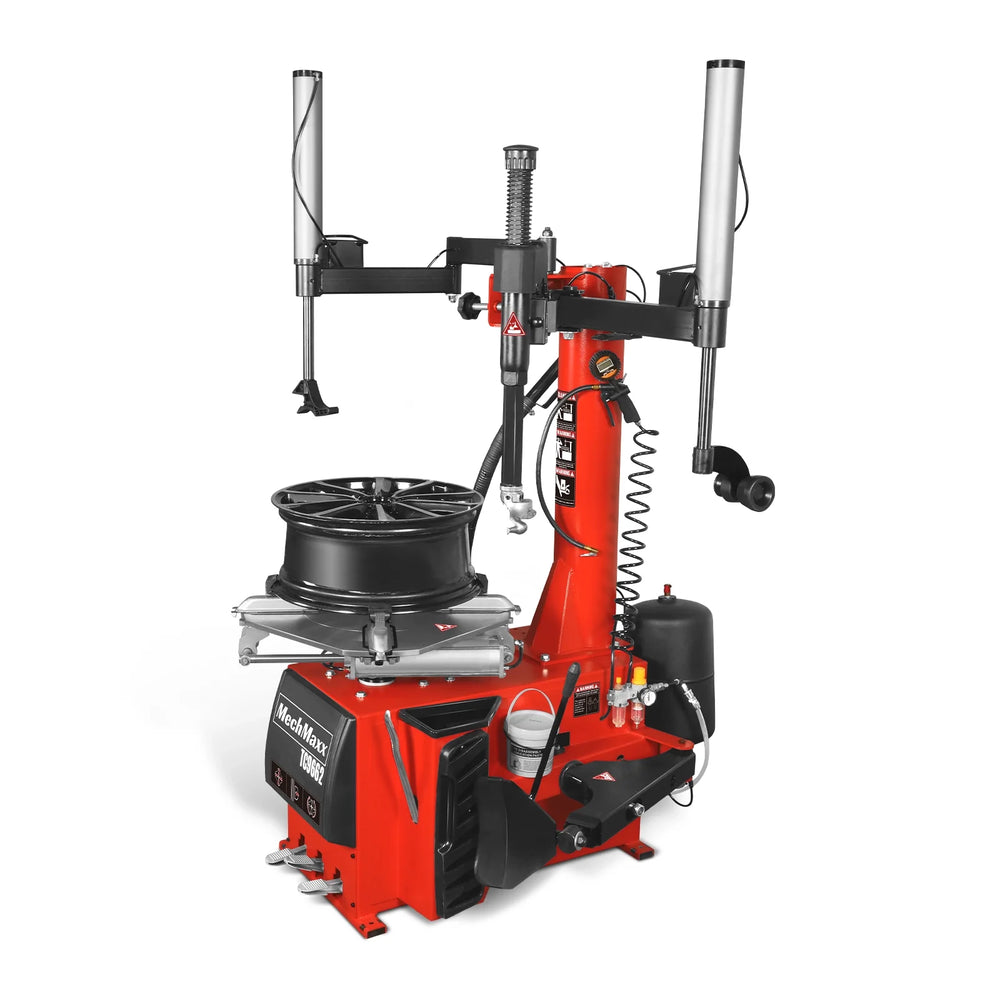

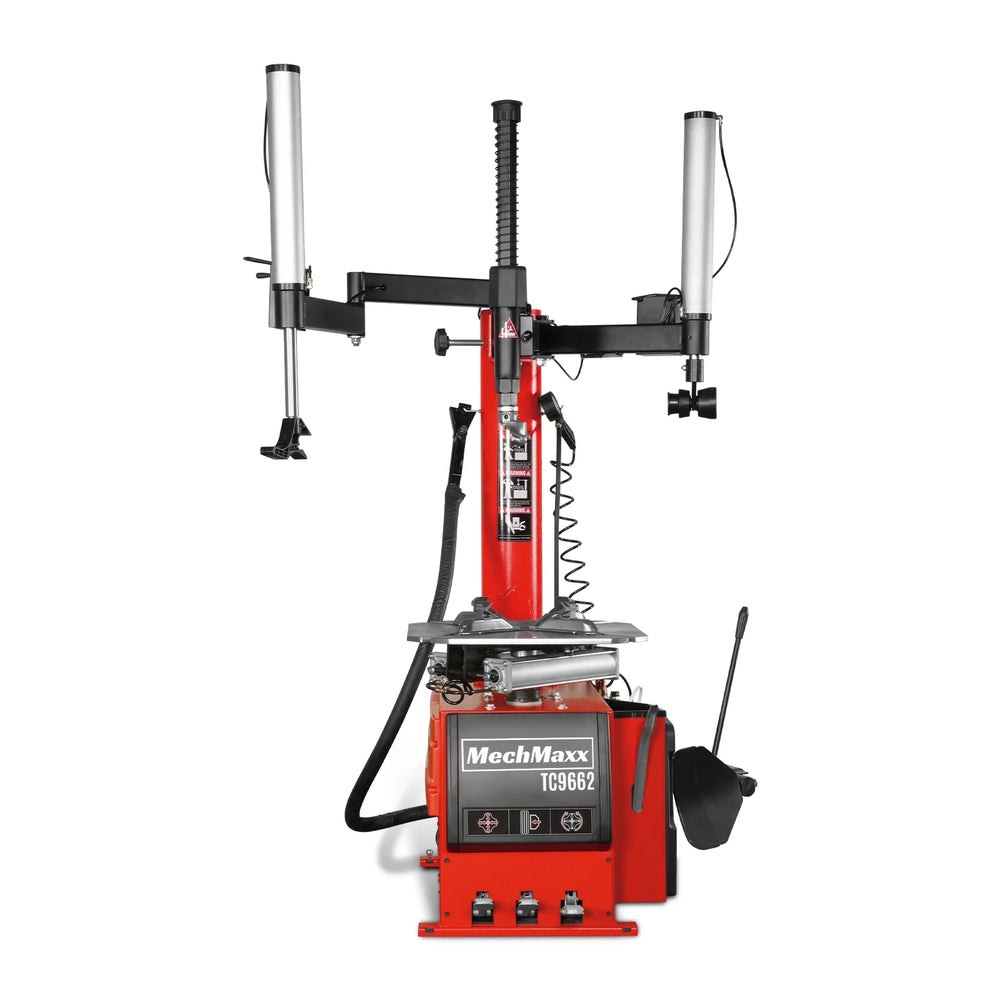

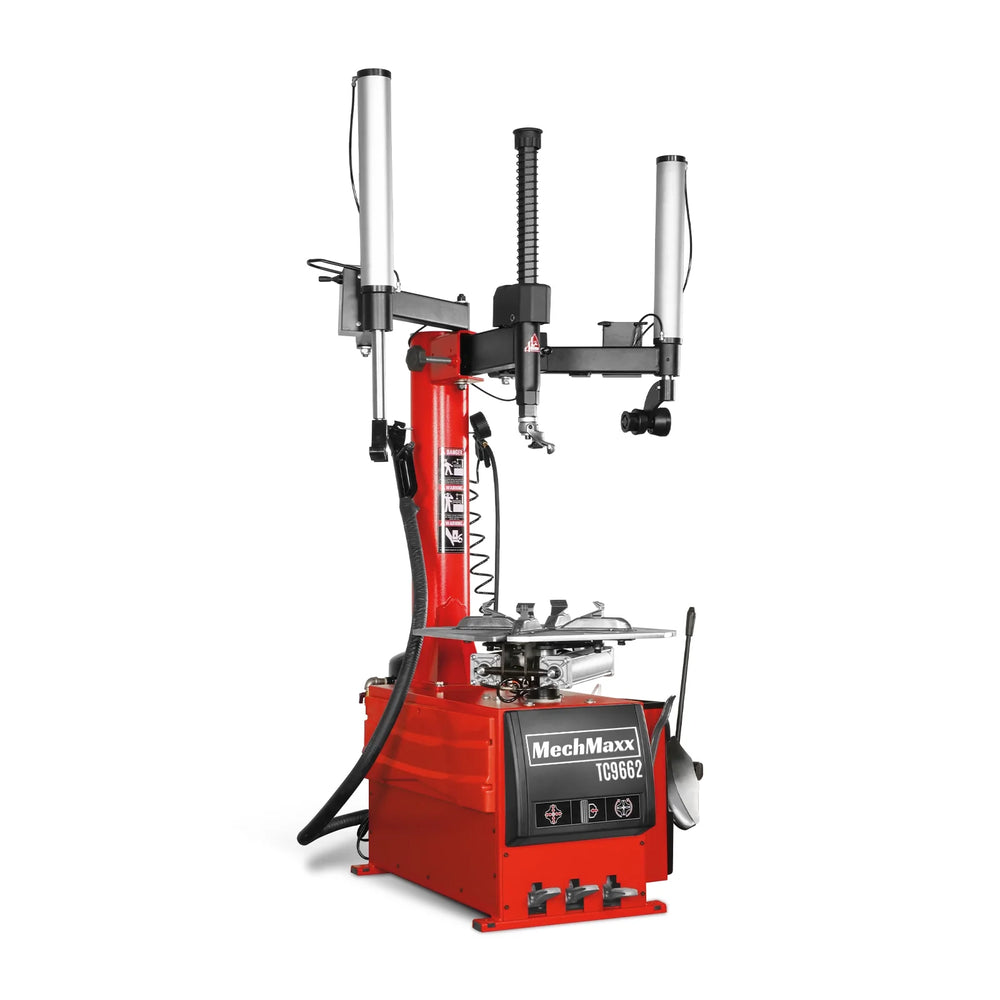

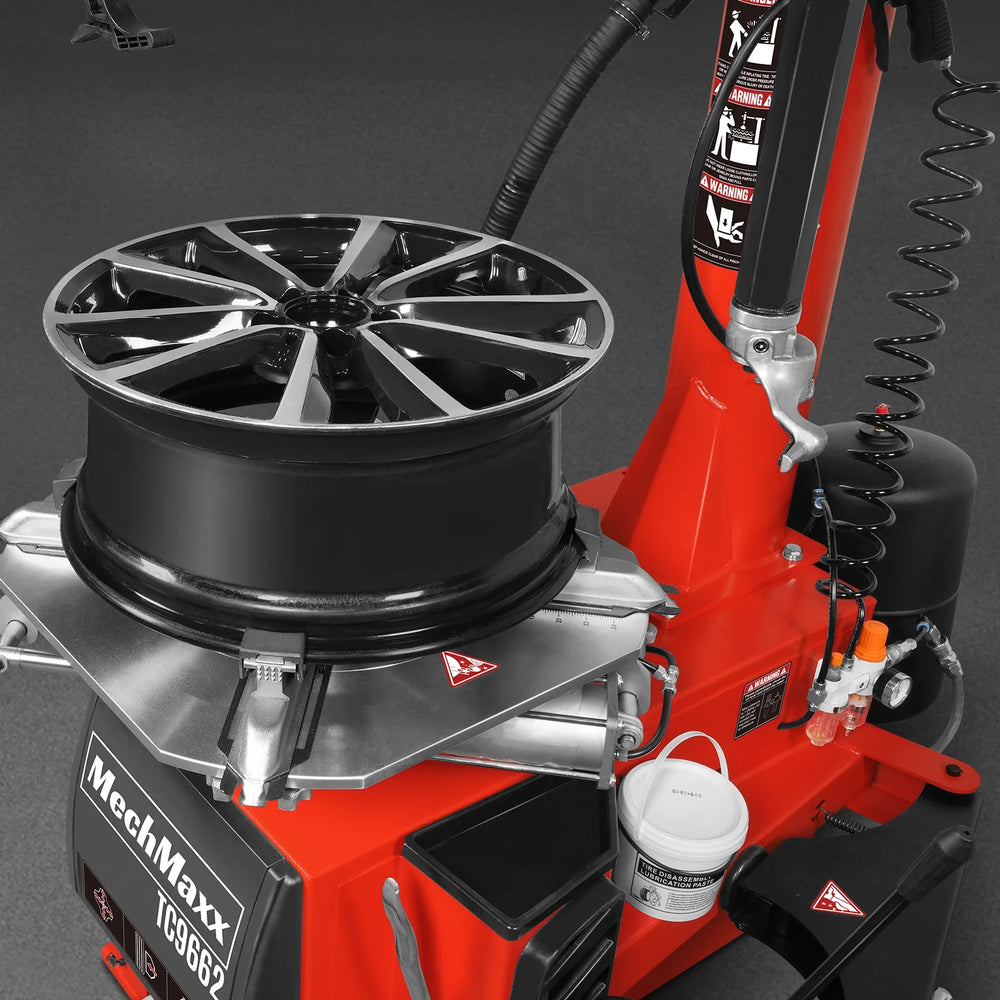

MechMaxx TC9662 Tire Changer 24" Rim Double Assist Arms Swing Arm Wheel Changer with Bead Blaster New
Product Overview
- Reliable and Efficient: This MechMaxx TC9662 tire changer is a fundamental machine for your small to medium-sized tire shop or general automotive service department. It performs rapid wheel service on most types of passenger wheels, as well as spare tires and trailer tires. Ideal for small personal operations, car enthusiasts, roadside tire shops, small businesses, race shops, or as a backup for more specialized tire machines.
- Double Assist Arm for Tough Tires: The classic double assist arm design provides additional power when mounting difficult tires by preventing the bead from rolling back over the mount tool. Each assist arm can work independently, and tire pressure can be adjusted individually, which is accurate and fast, saving time and effort. It comes with a drop-center cone, which holds the bead in the drop-center, further helping protect the tire during external clamping procedures.
- Quick and Damage-Free Tire Handling: The swing-arm design offers the ability to quickly and easily mount and dismount tires on most steel or alloy wheels without causing any damage. The powerful motor and maintenance-free gearbox ensure easy tire removal and installation.
- Bead Blaster for Stubborn Tires: This tire changer comes with a powerful bead blaster inflation system. The system efficiently shoots a burst of air into most stubborn tires, seating beads quickly without damaging the tire structure.
- Optional Motorcycle Adapter: When equipped with a motorcycle adapter (sold separately, SKU: 200020), this tire changer can also handle motorcycle tires.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

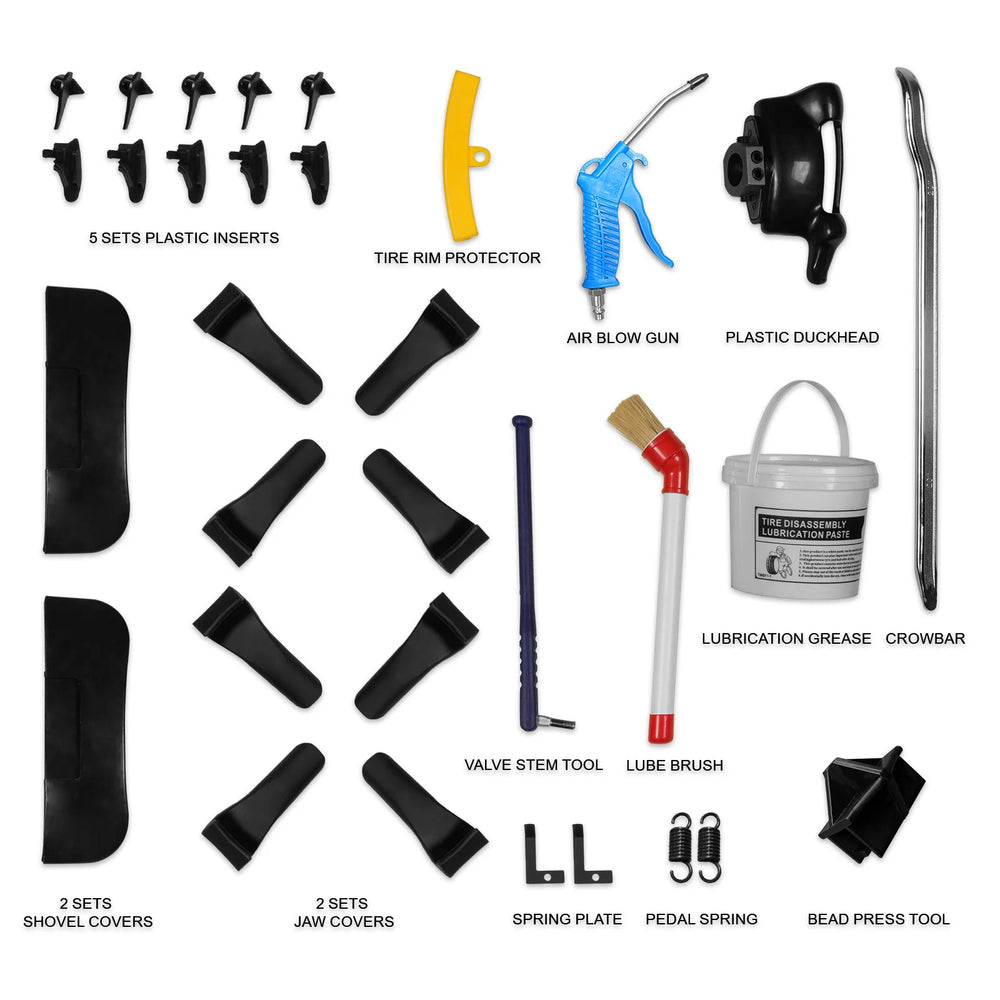

- Multiple Accessories Included: This machine comes with a variety of accessories, including 2 sets of Shovel Covers, 2 sets of Jaw Covers, 5 sets of Plastic Inserts, an Air Blow Gun, a Valve Stem Tool, a Lube Brush, Lubrication Grease, a Plastic Duckhead, a Crowbar, a Bead Press Tool, a Tire Rim Protector, a Spring Plate, and a Pedal Spring.

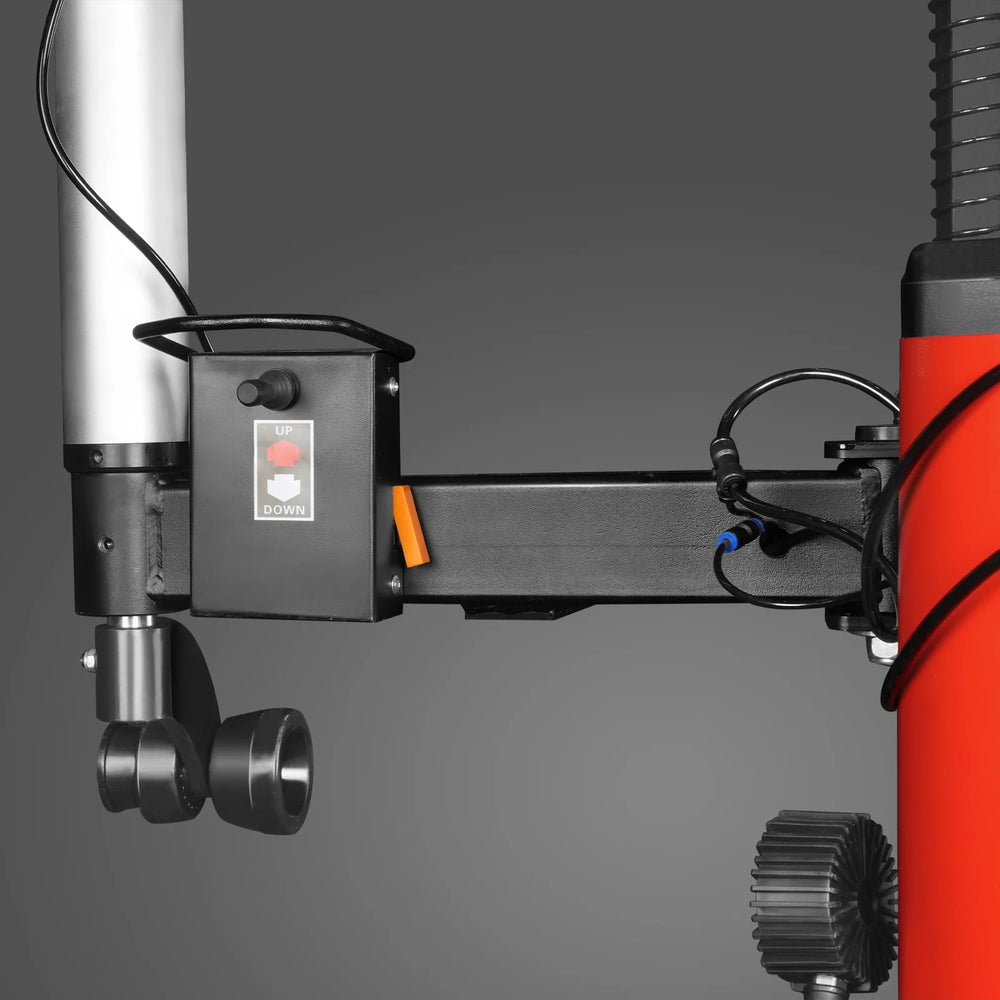

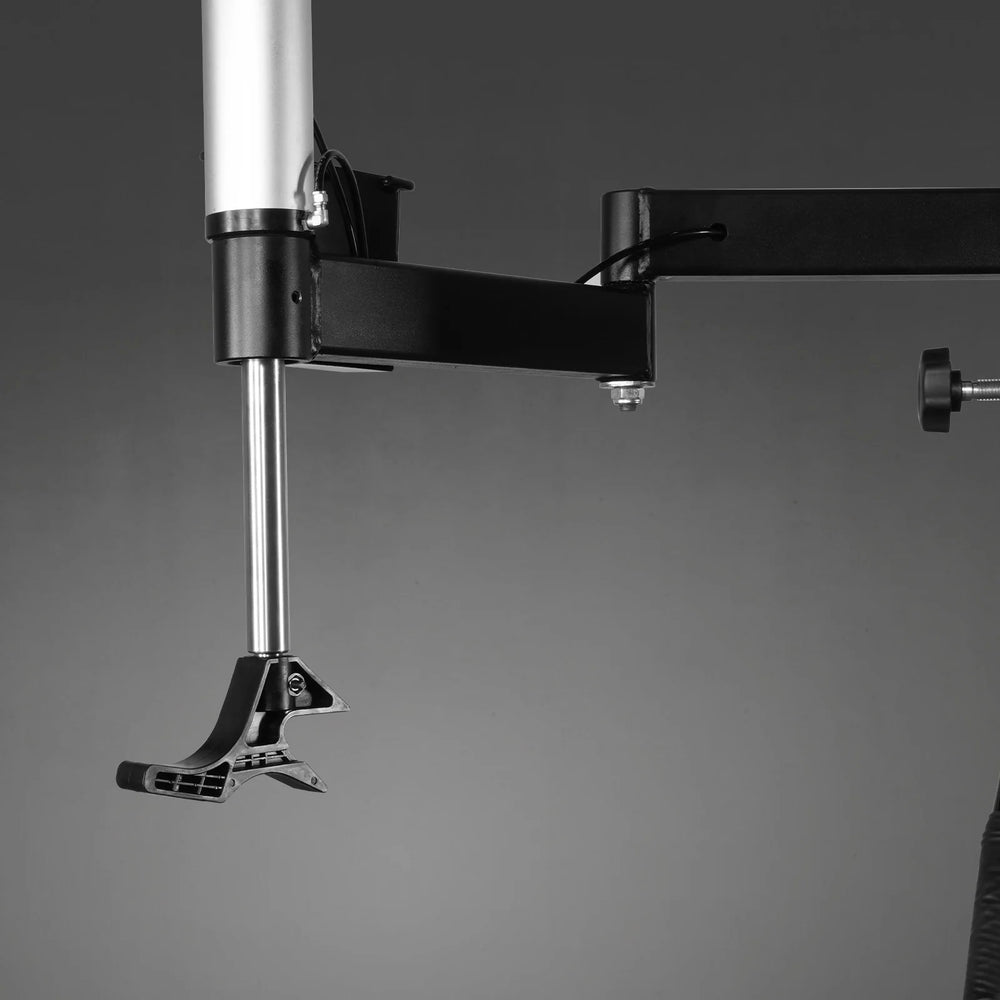

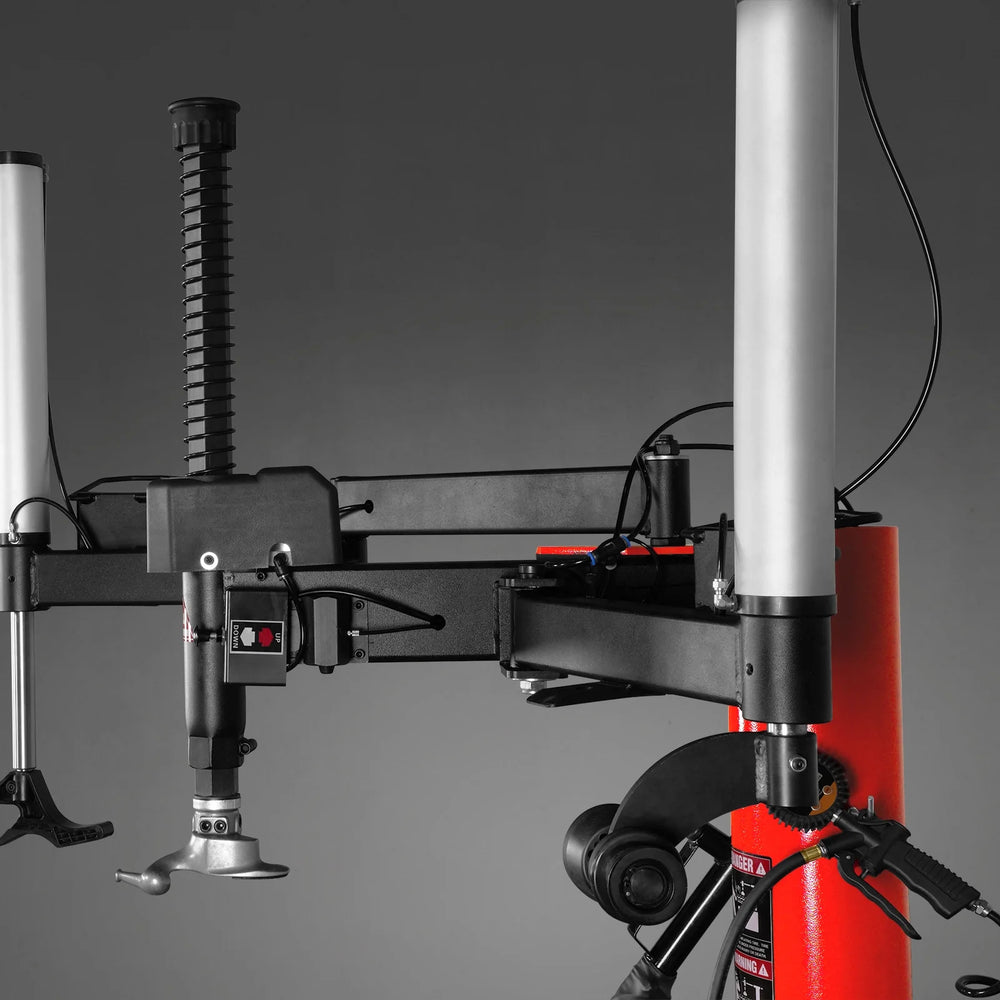

- Pneumatic Double Assist Arms: The pneumatic assist arms securely hold the tire bead, moving with the activated turntable. The bead is almost always seated effortlessly. The right side assist arm can be locked to the swing arm and pneumatically released. It is also equipped with double pressing rollers to accommodate various tire types. The traveling left side assist arm is equipped with a drop-center tool.

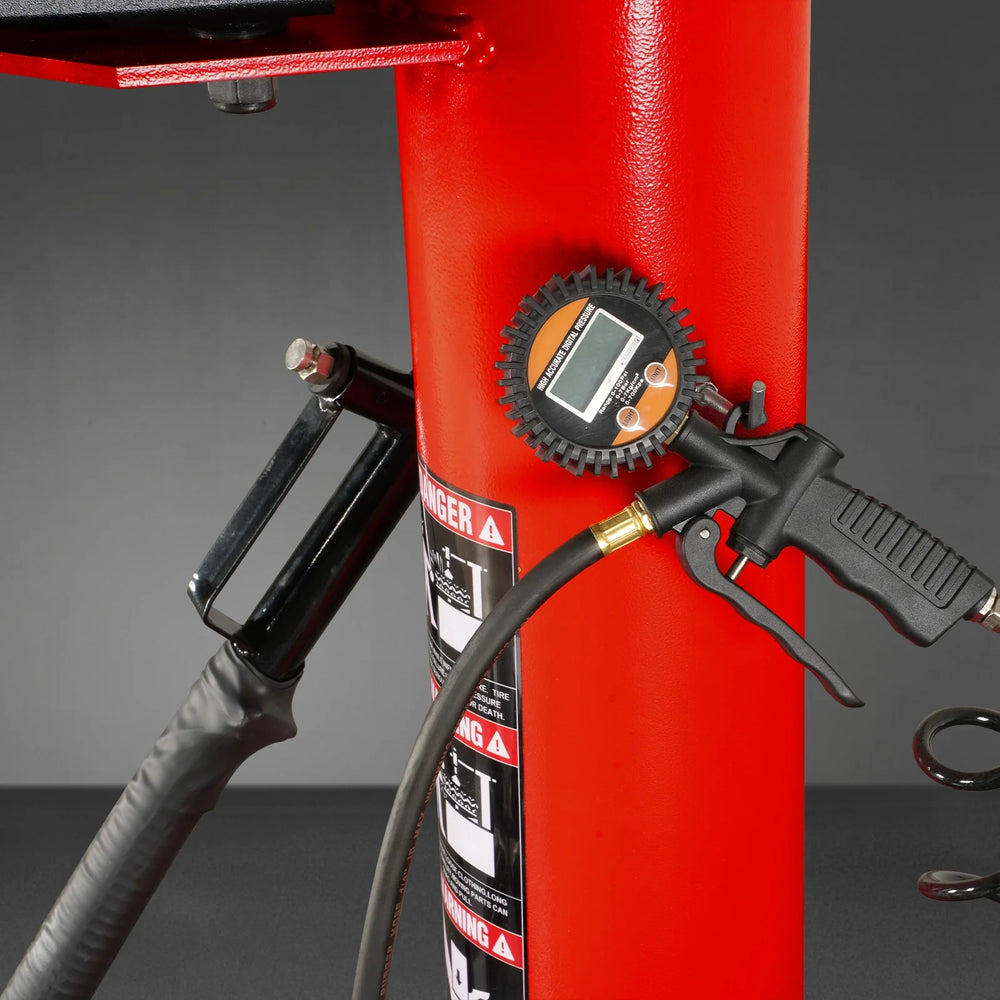

- Hand Held Bead Blaster System: Includes a hand-held bead blaster system that uses a powerful air blast to seat stubborn beads.
- Pneumatic Locked Shaft & Upgraded Stainless Steel Mount/Demount Head: The hex shaft is pneumatically locked, make the work efficient. The stainless steel mounting head is designed to prevent contact and avoid damage to both the rim and tire. The demount head has plastic protectors to minimize damage to wheels. A rigid 41mm hex bar support resists flexing on tough low-profile tires, keeping the mount/demount head stable during operations.

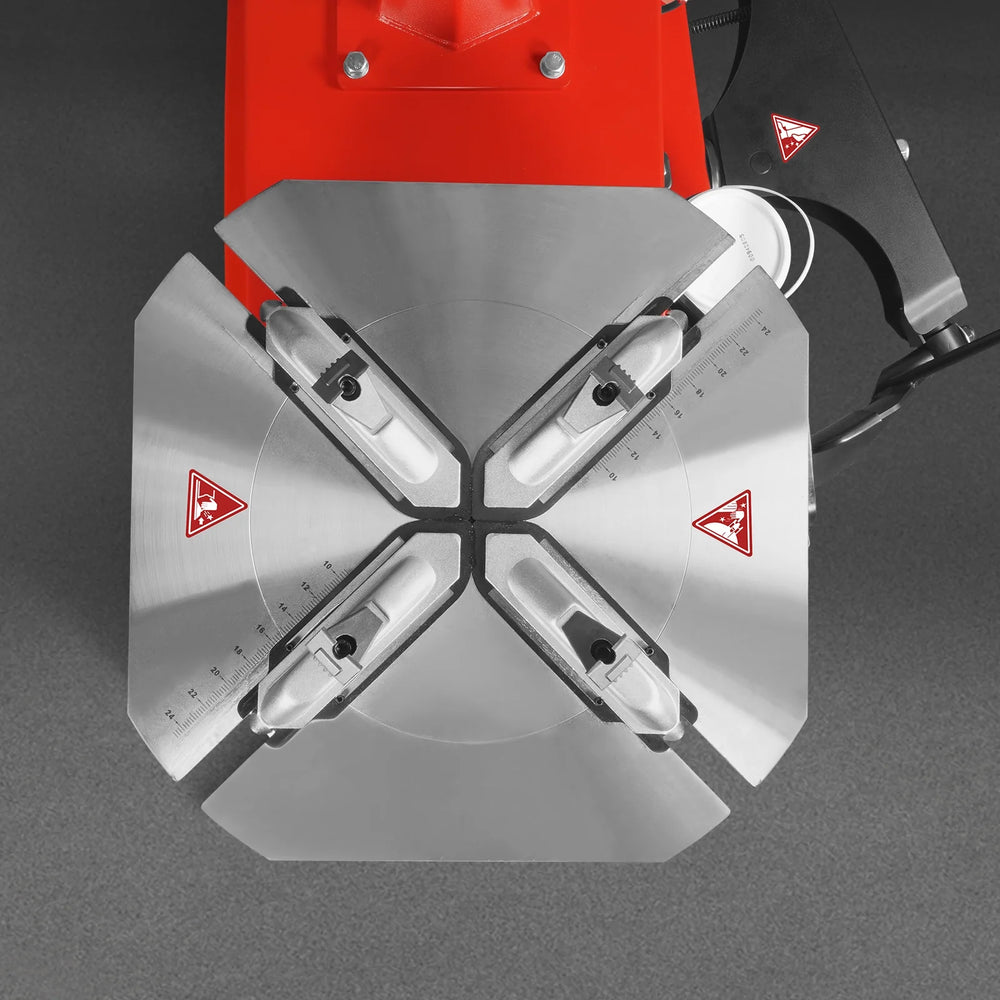

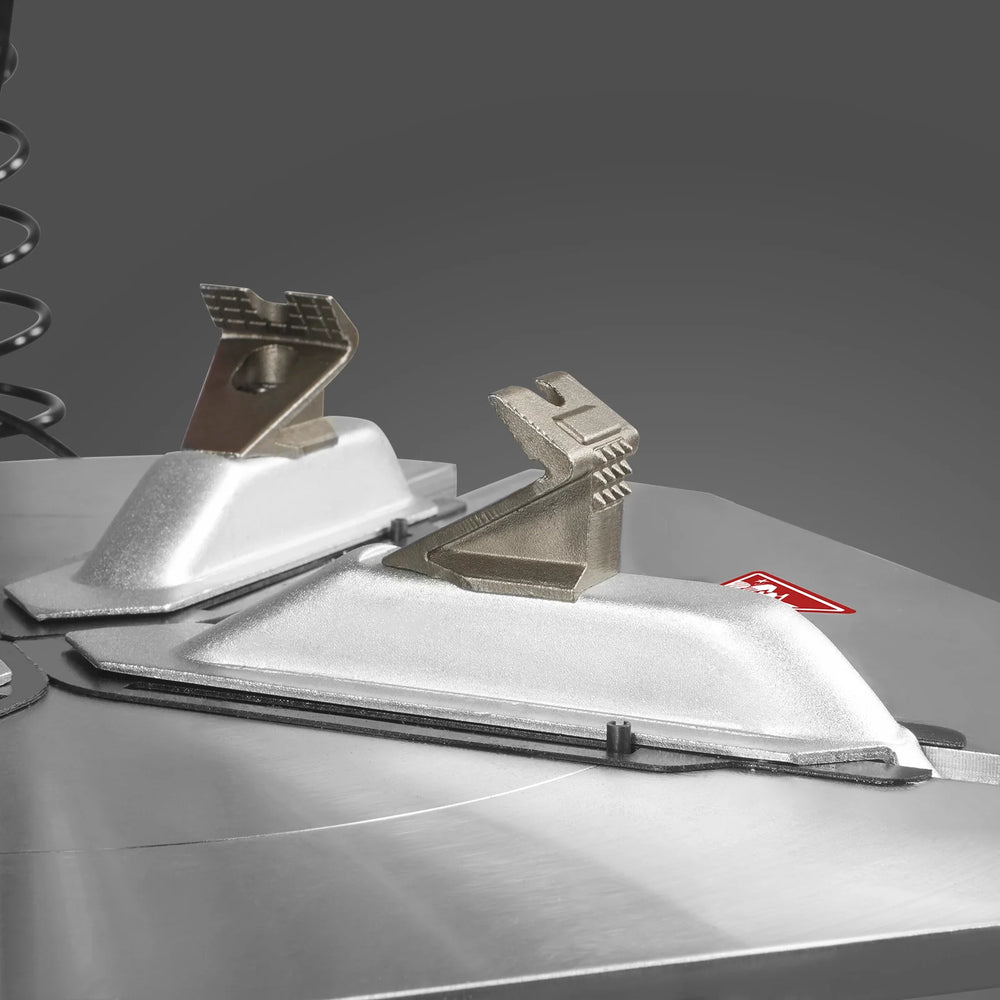

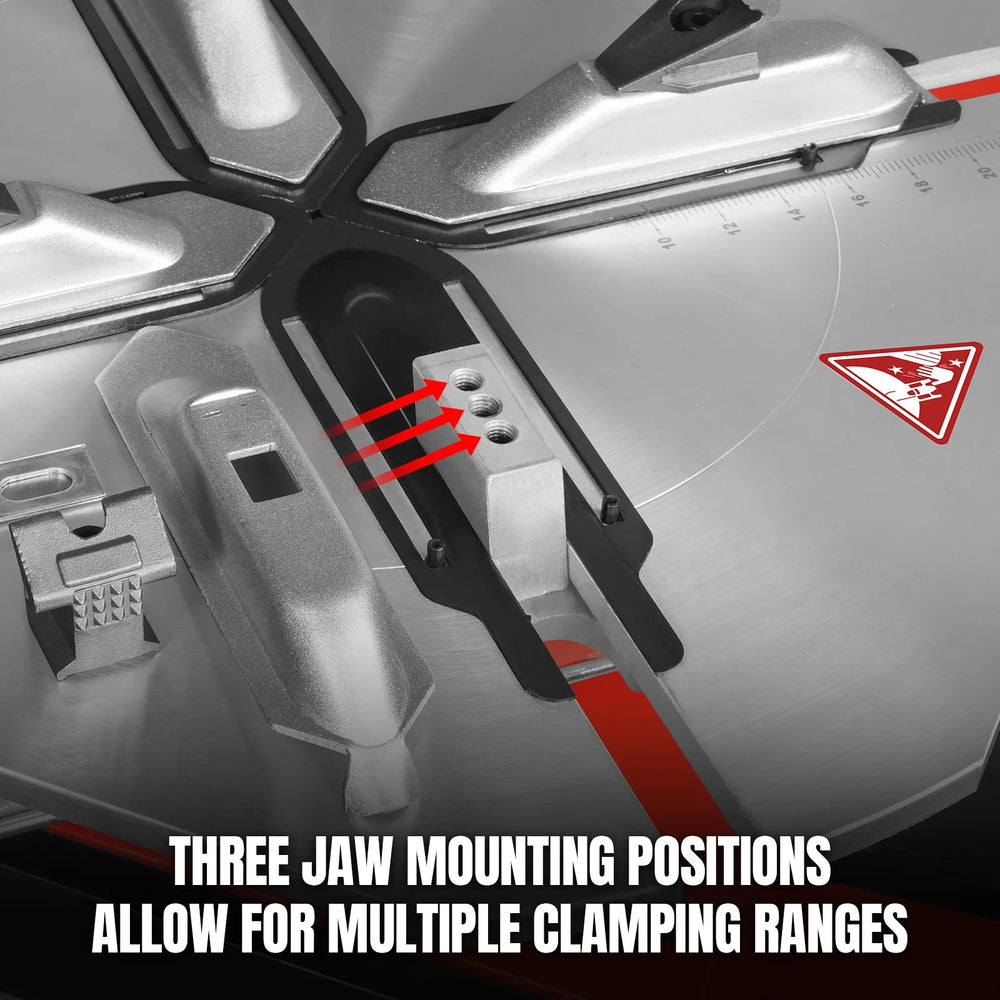

- High Strength Clamp: Dual multi-tooth jaw sets allow for both internal and external clamping. High-strength, rust-proof clamps provide a secure hold. Equipped with protective covers that prevent damage by placing plastic between the metal jaws and the wheels during internal clamping, avoiding marring or scratching.
- High-Torque Turntable & Durable Cylinder: The high-torque electric turntable efficiently spins tires to seat or remove beads. Fits tires from 10 to 24 inches, meeting a wide range of tire maintenance needs. Two-way rotation and high clamping force. The scientifically designed, durable aluminum cylinder provides powerful grip and long service life.
- Internal Reinforced Steel Tube: Reinforced steel tubes provide rigidity and strength during tire mounting and demounting.
- Copper Core Motor & Maintenance-free Gearbox: The motor features a strong copper rotor, high-quality bearings, thermal insulation, and durable steel frames. The maintenance-free gearbox is mounted between two steel plates to prevent flex during operation.
- Optional Motorcycle Rim Adapter (Sold Seperately, SKU: 200020): A motorcycle rim adapter set is required for motorcycle service. Built to be rugged and dependable, they guarantee added versatility to your work.
Specifications
| Voltage | 110v / 60hz / 1 phase |
| Help Arm | Double Assist Arms |
| Motor Power | 1.5 HP |
| Bead Blaster | Hand Held Bead Blaster |
| Inside Rim Clamp Range | 12-24 in |
| Hex Shaft Locked Type | Pneumatic |
| Outside Rim Clamp Range | 10-22 in |
| Mount Head | Stainless Steel & Plastic |
| Max Tire Diameter | 41 in |
| Inflator | Handheld |
| Rim Width | 3-15 in |
| Motorcycle Adapter | Sold Separately, SKU: 200020 |

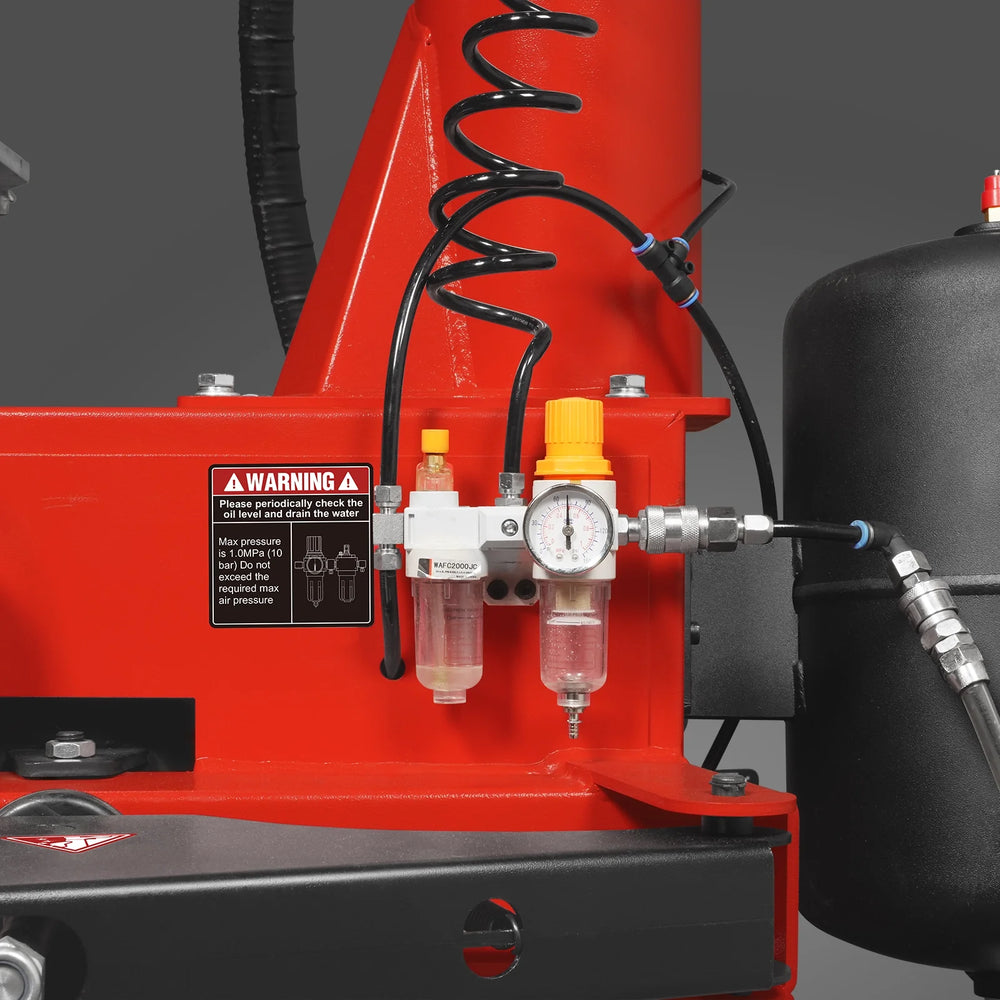

| Working Pressure | 117-145 psi (8-10 bar) |
| Packing | Plywood case |
| Bead Breaking Force | 5510 lbs |
| Packing Size (LxWxH) | 45 x 35 x 45 in |
| Type | Swing Arm |
| Weight (N.W/G.W.) | 514/597 lbs |
Warranty
This item comes with a factory warranty.
