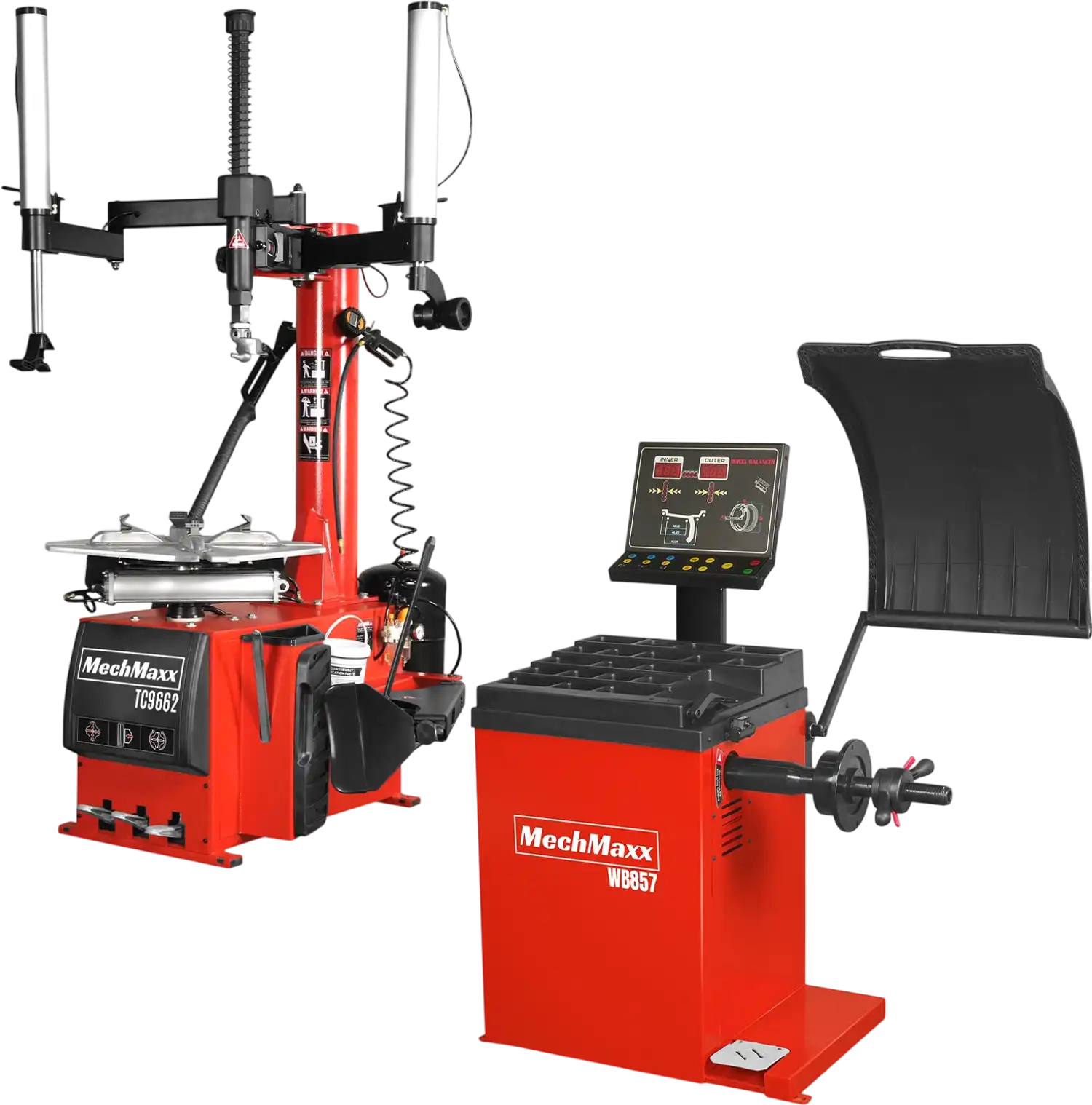

MechMaxx TC9662+WB857 Tire Changer 24" Rim Double Assist Arms Wheel Balancer Bundle New
Manufacturer: MechMaxx
SKU: 200038
Model Options
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 3,399.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
×
Factory Warranty
- This item comes with a factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

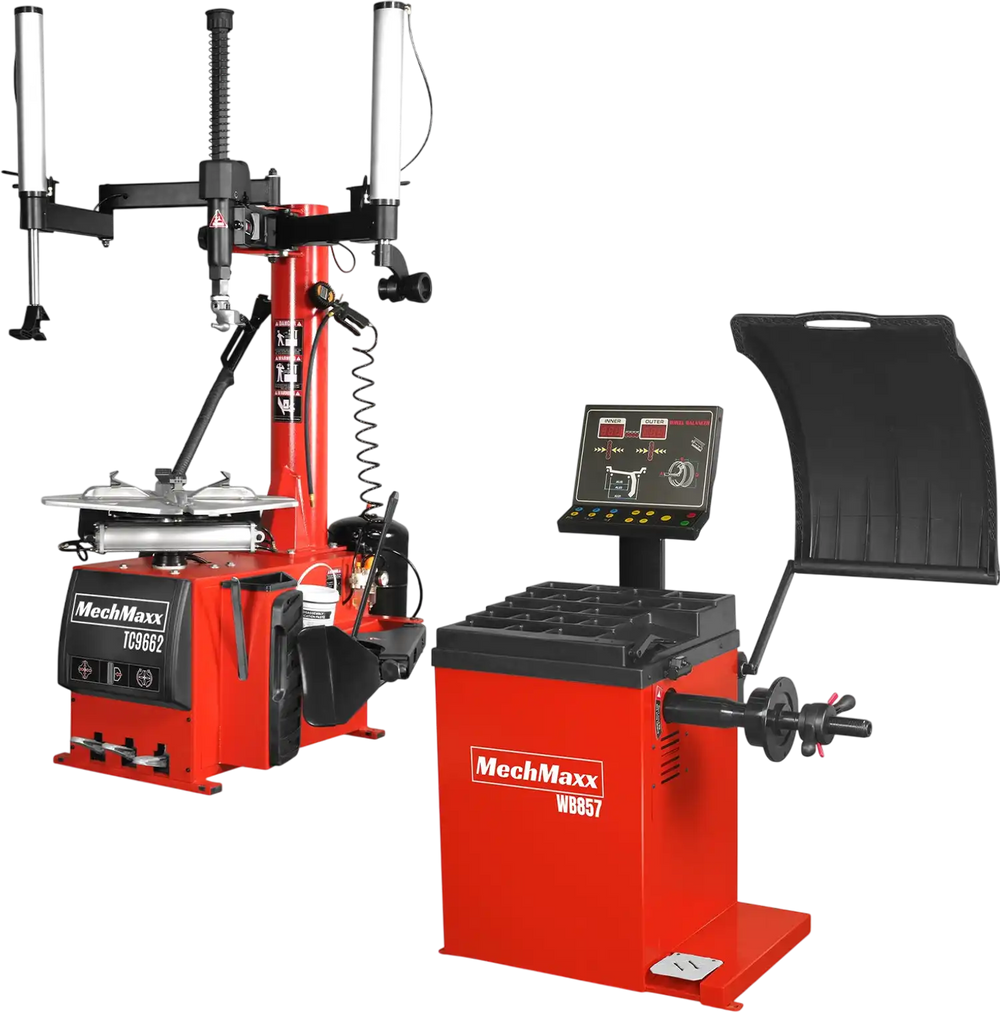

MechMaxx TC9662+WB857 Tire Changer 24" Rim Double Assist Arms Wheel Balancer Bundle New
Product Overview

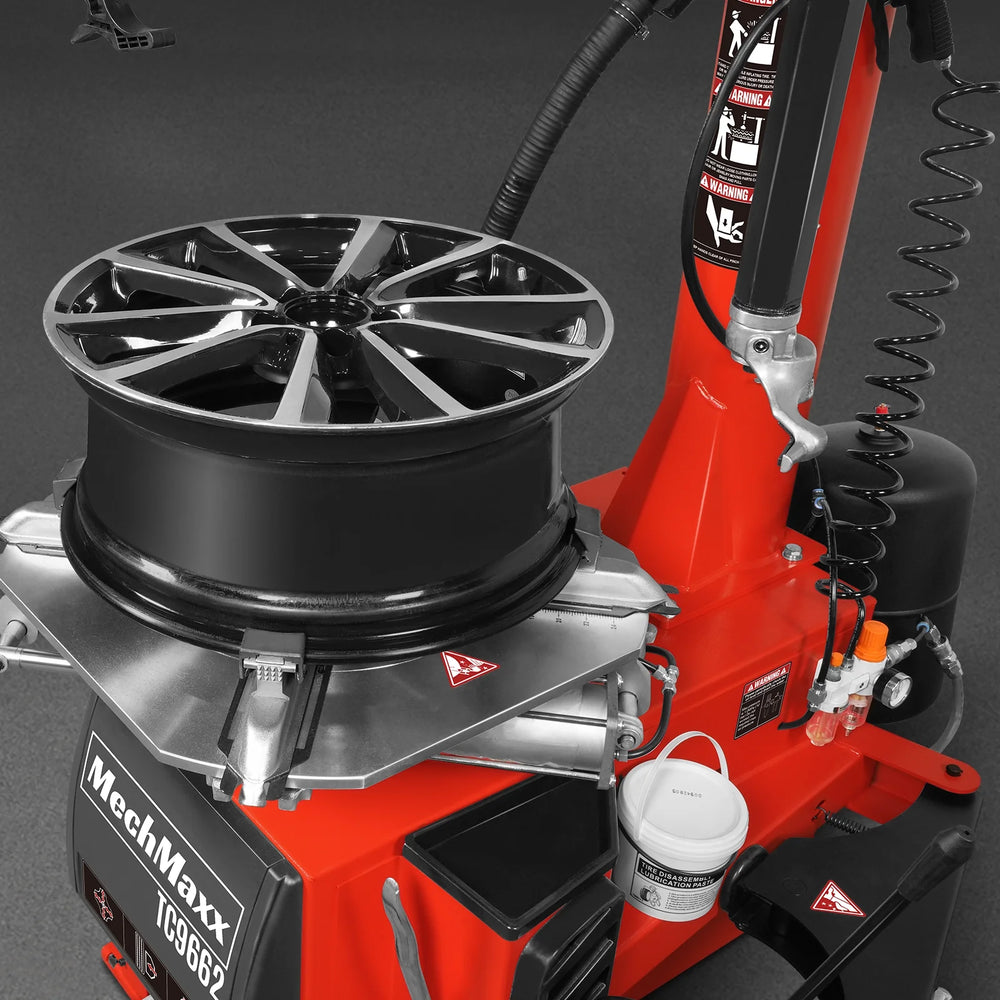

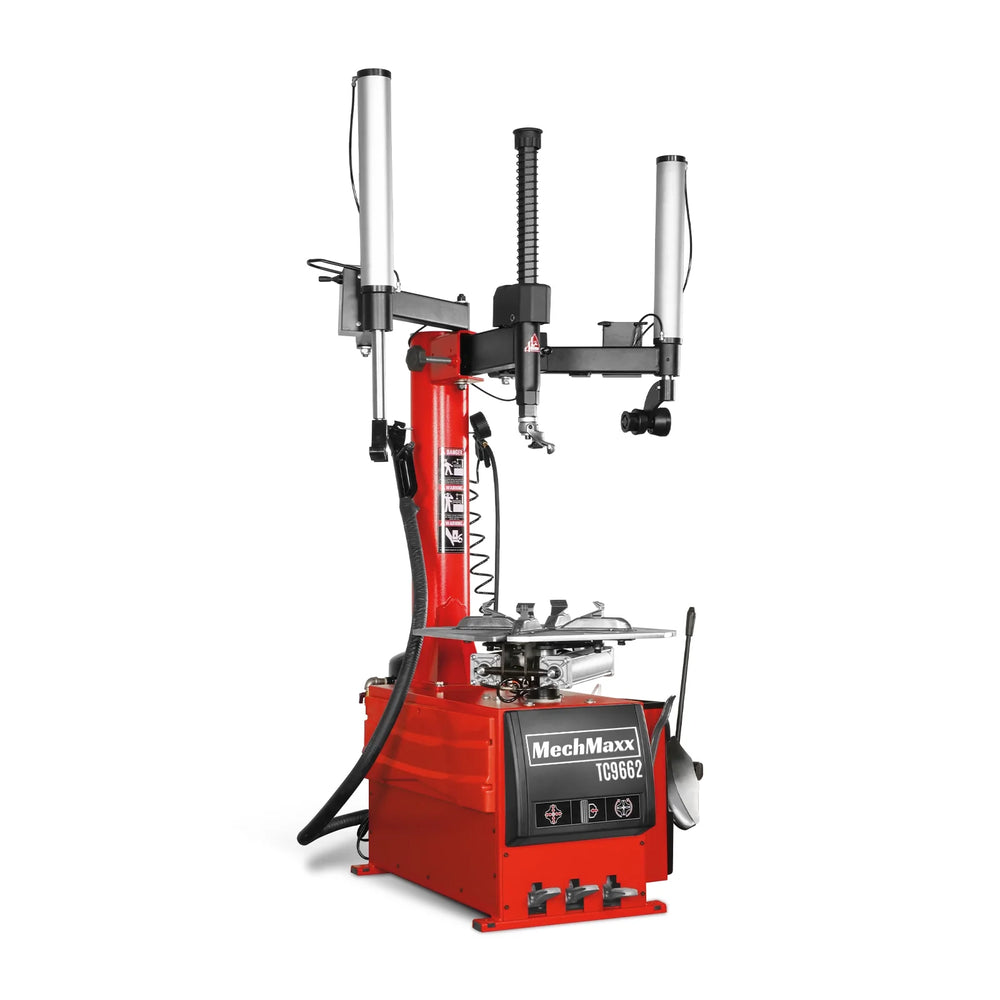

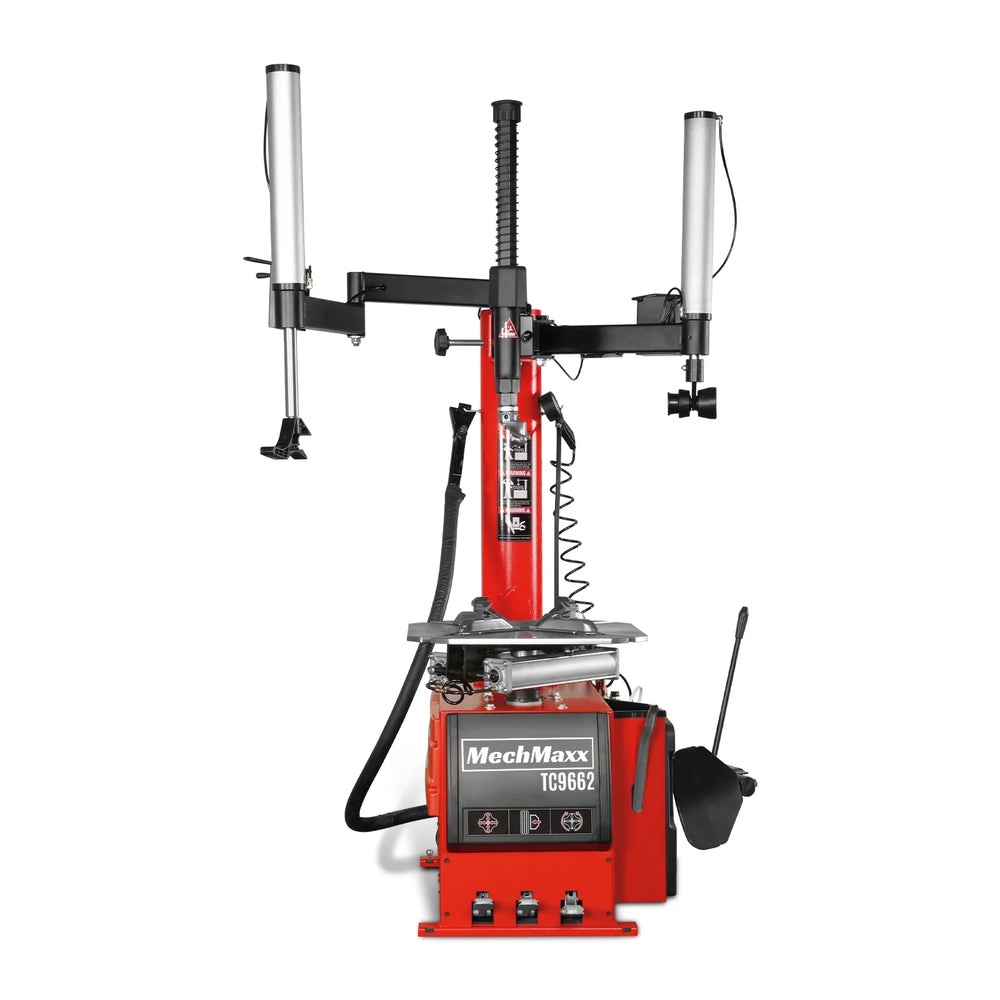

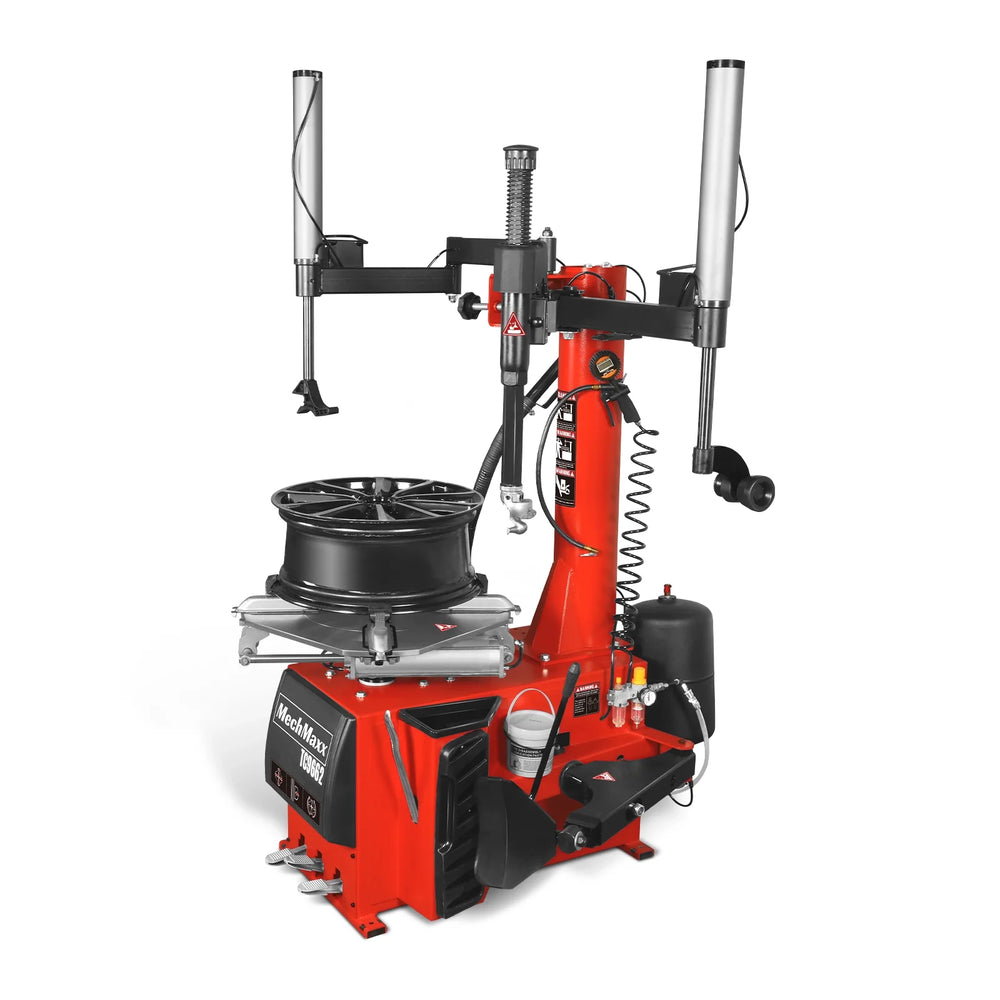

Tire Changer TC9662
- Reliable and Efficient: This MechMaxx TC9662 tire changer is a fundamental machine for your small to medium-sized tire shop or general automotive service department. It performs rapid wheel service on most types of passenger wheels, as well as spare tires and trailer tires. Ideal for small personal operations, car enthusiasts, roadside tire shops, small businesses, race shops, or as a backup for more specialized tire machines.
- Double Assist Arm for Tough Tires: The classic double assist arm design provides additional power when mounting difficult tires by preventing the bead from rolling back over the mount tool. Each assist arm can work independently, and tire pressure can be adjusted individually, which is accurate and fast, saving time and effort. It comes with a drop-center cone, which holds the bead in the drop-center, further helping protect the tire during external clamping procedures.
- Quick and Damage-Free Tire Handling: The swing-arm design offers the ability to quickly and easily mount and dismount tires on most steel or alloy wheels without causing any damage. The powerful motor and maintenance-free gearbox ensure easy tire removal and installation.
- Bead Blaster for Stubborn Tires: This tire changer comes with a powerful bead blaster inflation system. The system efficiently shoots a burst of air into most stubborn tires, seating beads quickly without damaging the tire structure.
- Optional Motorcycle Adapter: When equipped with a motorcycle adapter (sold separately, SKU: 200020), this tire changer can also handle motorcycle tires.
Wheel Balancer WB857
- Versatile and Accurate: The MechMaxx WB857 wheel balancer delivers accurate results across a variety of wheel types and is reliable in demanding shops. It features five distinct balancing modes, including options for tape-on weights on premium rims. This compact and capable equipment is perfect for increasing your tire-changing capabilities. It’s a great choice for a commercial shop aiming to expand to a wider range of tire types.
- Precision with Laser and LED Lighting: The laser line helps position the balancing weight precisely at the 12 o'clock position, increasing balancing accuracy. The LED inspection light ensures your lighting needs are met.
- Ergonomic Design: The ergonomic foot brake makes weight placement easy. The side-position brake holds wheels at precisely the 12 o'clock position for proper weight placement.
- Optional Motorcycle Adapter: When equipped with a motorcycle adapter (sold separately, SKU: 200021), this wheel balancer can also handle motorcycle tires.
- Optional Truck Cone Kit: When equipped with a truck cone kit (sold separately, SKU: 200022), this wheel balancer can also handle truck tires.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

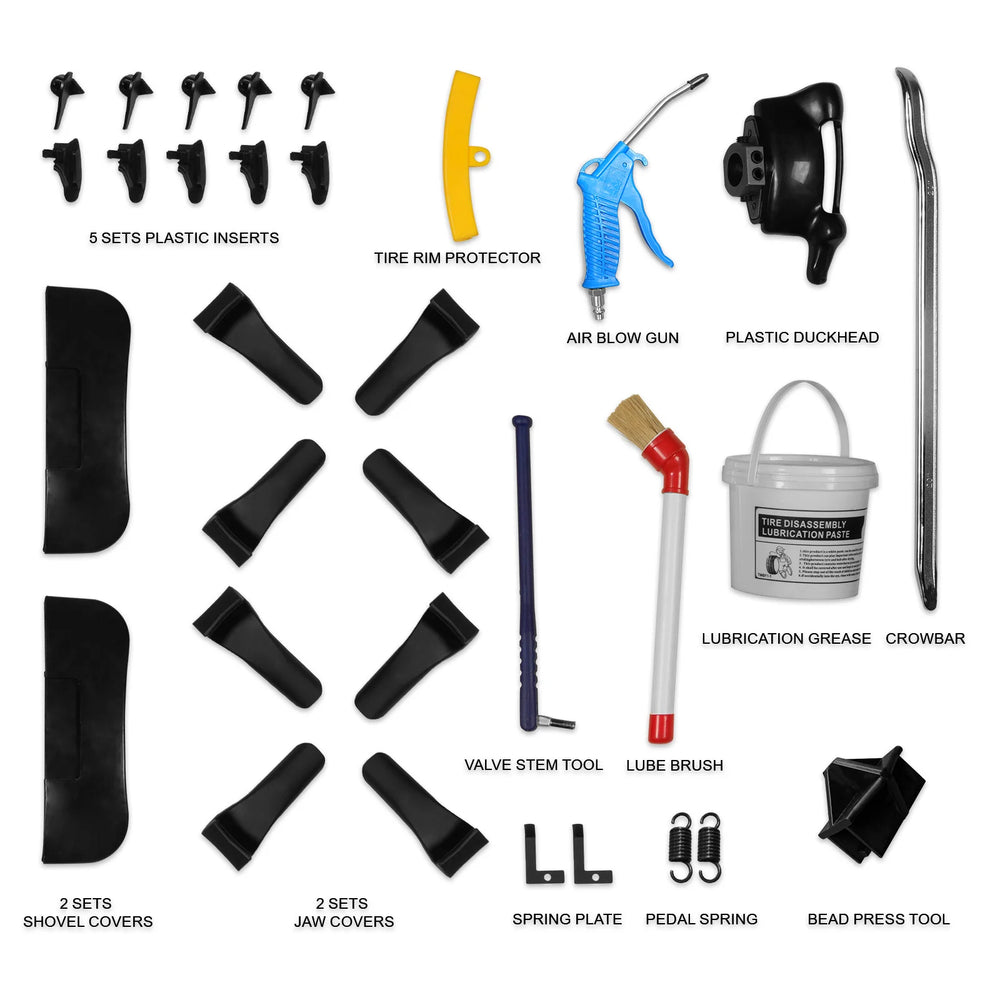

- Multiple Accessories Included: This machine comes with a variety of accessories, including 2 sets of Shovel Covers, 2 sets of Jaw Covers, 5 sets of Plastic Inserts, an Air Blow Gun, a Valve Stem Tool, a Lube Brush, Lubrication Grease, a Plastic Duckhead, a Crowbar, a Bead Press Tool, a Tire Rim Protector, a Spring Plate, and a Pedal Spring.

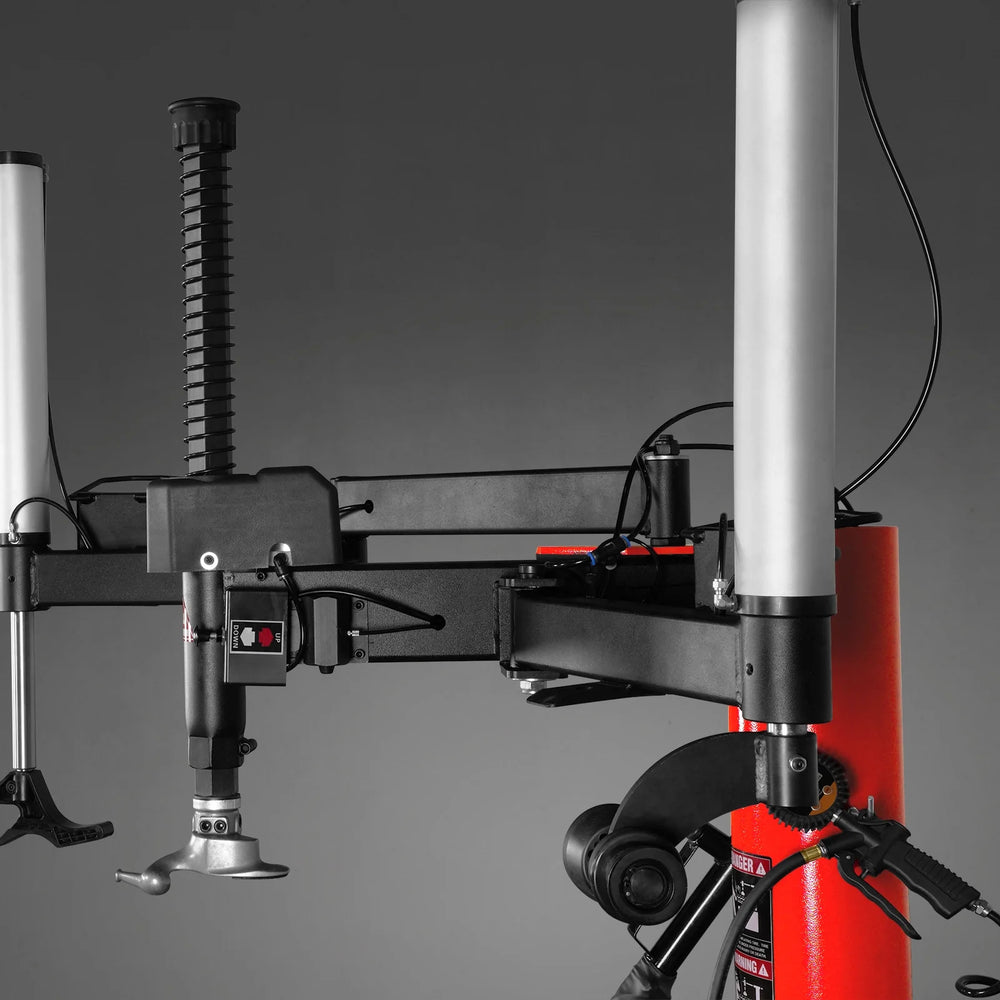

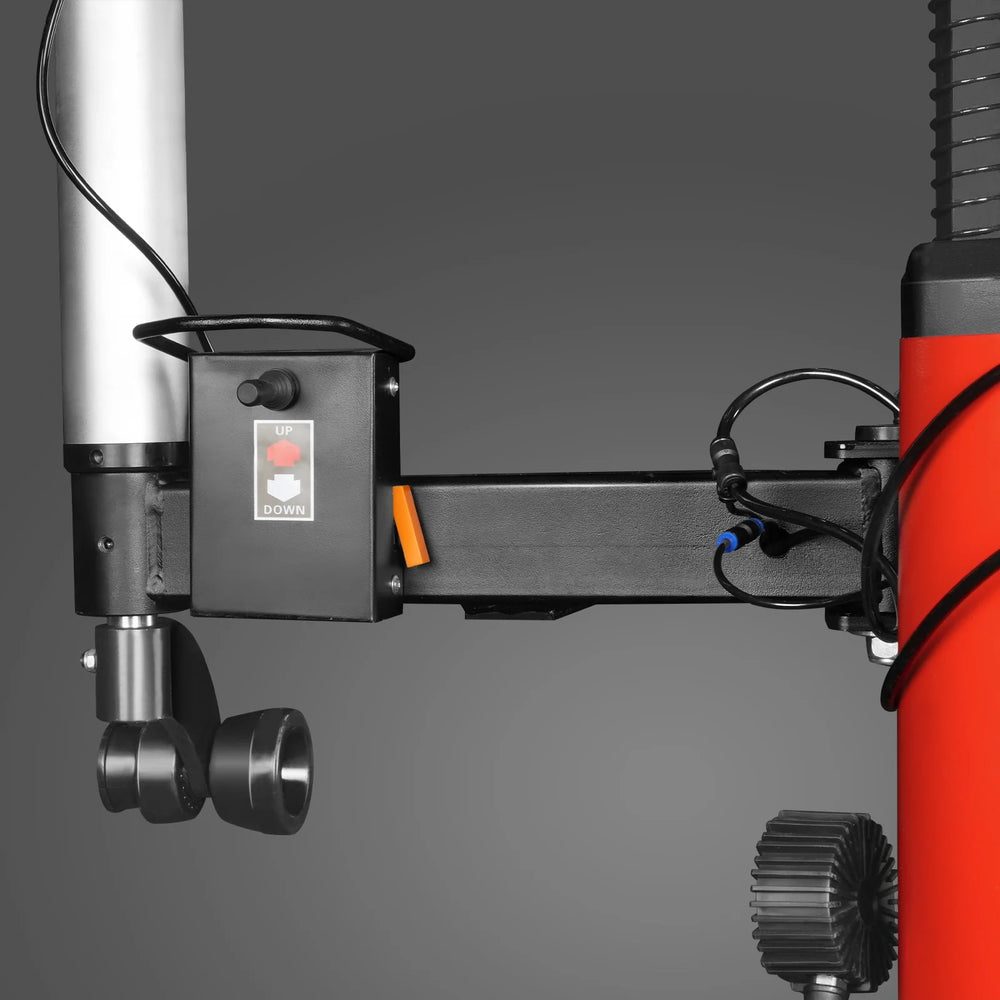

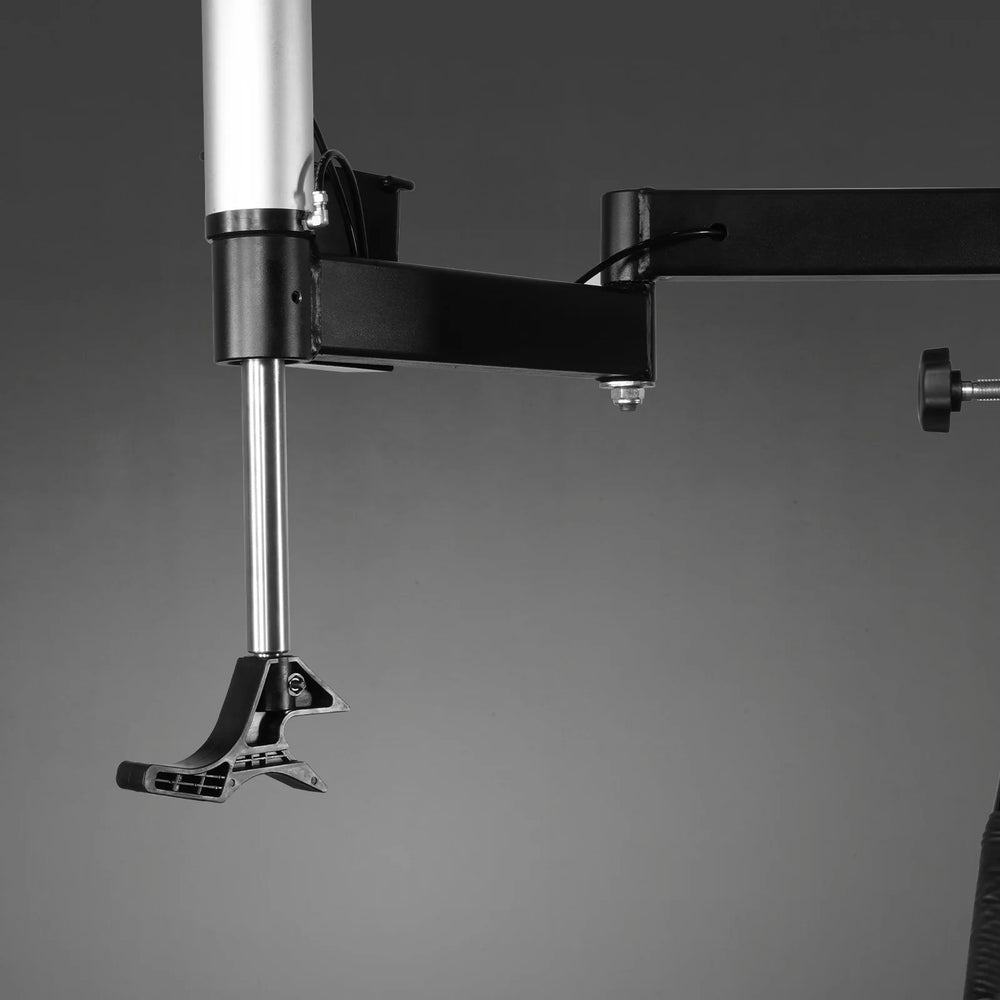

- Pneumatic Double Assist Arms: The pneumatic assist arms securely hold the tire bead, moving with the activated turntable. The bead is almost always seated effortlessly. The right side assist arm can be locked to the swing arm and pneumatically released. It is also equipped with double pressing rollers to accommodate various tire types. The traveling left side assist arm is equipped with a drop-center tool.
- Hand Held Bead Blaster System: Includes a hand-held bead blaster system that uses a powerful air blast to seat stubborn beads.
- Pneumatic Locked Shaft & Upgraded Stainless Steel Mount/Demount Head: The hex shaft is pneumatically locked, make the work efficient. The stainless steel mounting head is designed to prevent contact and avoid damage to both the rim and tire. The demount head has plastic protectors to minimize damage to wheels. A rigid 41mm hex bar support resists flexing on tough low-profile tires, keeping the mount/demount head stable during operations.

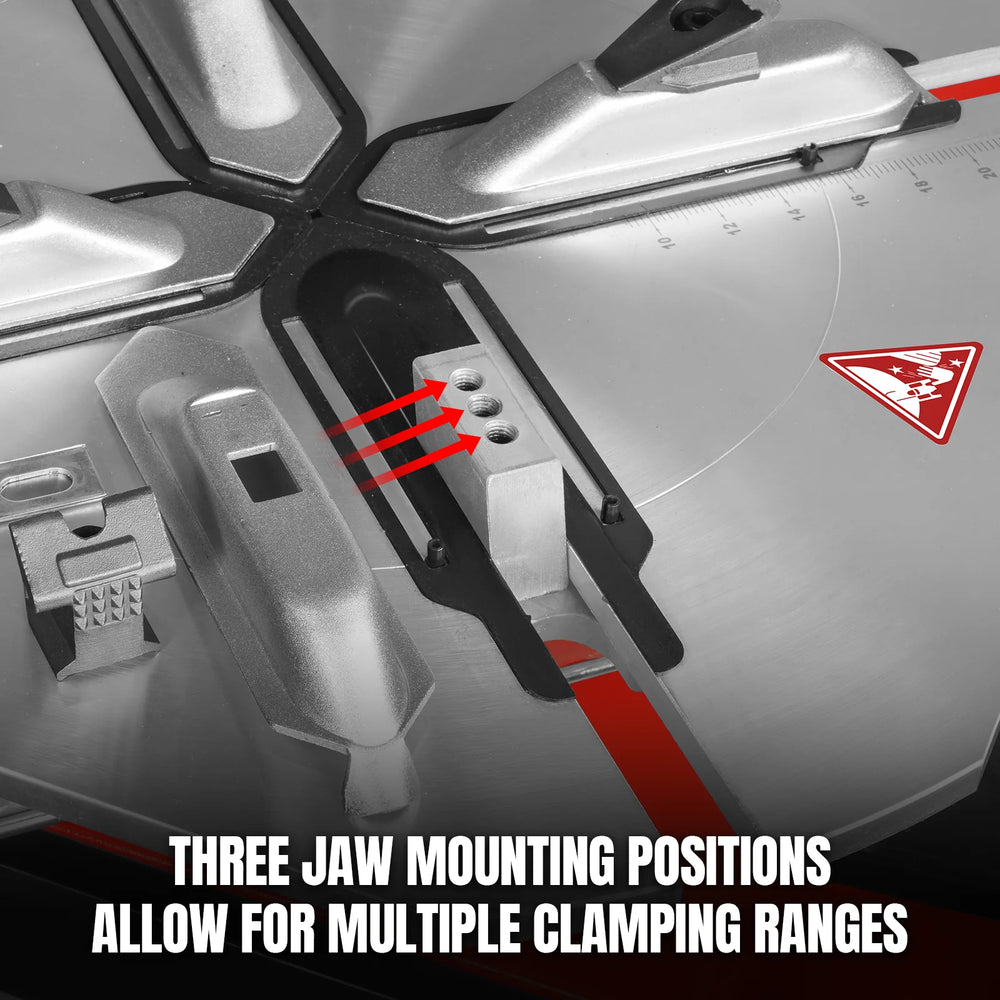

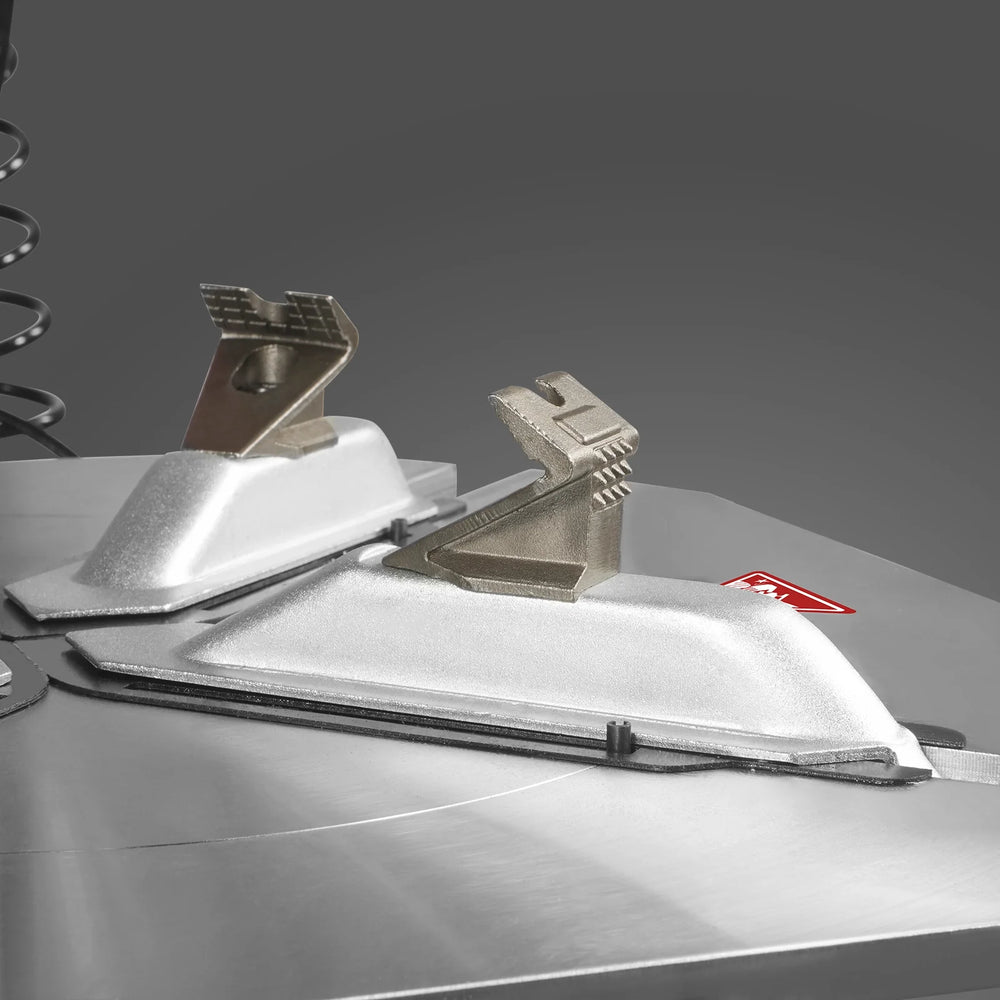

- High Strength Clamp: Dual multi-tooth jaw sets allow for both internal and external clamping. High-strength, rust-proof clamps provide a secure hold. Equipped with protective covers that prevent damage by placing plastic between the metal jaws and the wheels during internal clamping, avoiding marring or scratching.

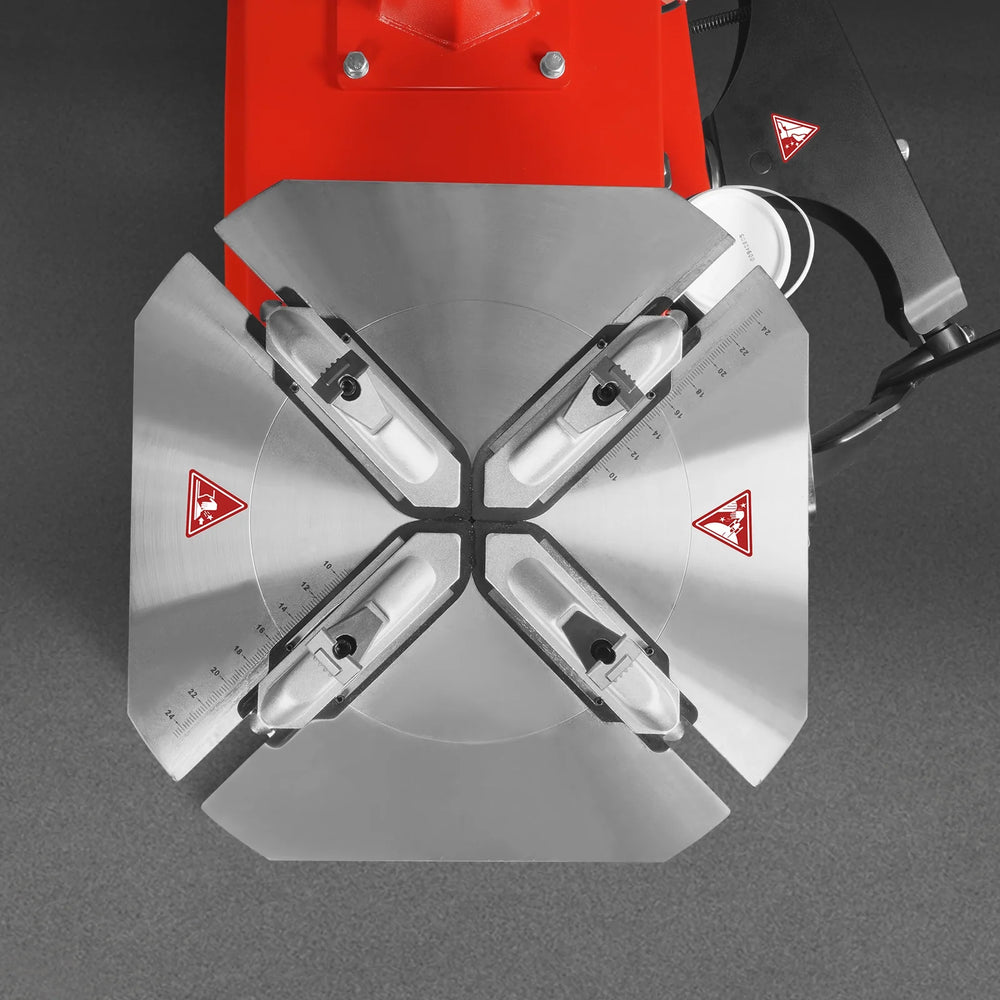

- High-Torque Turntable & Durable Cylinder: The high-torque electric turntable efficiently spins tires to seat or remove beads. Fits tires from 10 to 24 inches, meeting a wide range of tire maintenance needs. Two-way rotation and high clamping force. The scientifically designed, durable aluminum cylinder provides powerful grip and long service life.
- Internal Reinforced Steel Tube: Reinforced steel tubes provide rigidity and strength during tire mounting and demounting.
- Copper Core Motor & Maintenance-free Gearbox: The motor features a strong copper rotor, high-quality bearings, thermal insulation, and durable steel frames. The maintenance-free gearbox is mounted between two steel plates to prevent flex during operation.
- Optional Motorcycle Rim Adapter (Sold Seperately, SKU: 200020): A motorcycle rim adapter set is required for motorcycle service. Built to be rugged and dependable, they guarantee added versatility to your work.
- Multiple Accessories Included: This machine comes with multiple accessories. Including width measurement guage, 4 cones, 100g calibration weight, hammer plier and quick nut+pressure cup+rubber ring.
- Laser Guided & LED Illuminator: The laser guide ensures precise placement of balancing weights at the 12 o'clock position for improved accuracy. The LED inspection light provides ample lighting for your work.
- Foot Pedal Brake: The ergonomic foot brake allows for easy weight placement. The side-position brake holds the wheel precisely at the 12 o'clock position for accurate weight placement.
- Ergonomic Control Keypad: The ergonomic 40° tilted display ensures comfortable use. The panel features tire and wheel assembly graphics to simplify data entry and guide technicians through balancing. It also includes self-diagnosis and five balancing modes: static, dynamic, and three Alu modes for different alloy rim shapes.
- Hood Auto Start: The protection hood features an automatic stop/start function when raised or lowered for enhanced safety. The new design offers broader coverage for various tire shapes and sizes.
- 1.57in (40mm) Shaft: The 1.57in (40mm) shaft is rust-proof and high-precision, made from precision-machined, hardened steel for reliable performance.
- High-performance Microprocessor: The high-performance microprocessor ensures a fast seven-second cycle time, boosting productivity and reliability.
- High Precision Encoder: The high-precision encoder receives and transmits imbalance position signals.
- Powerful Motor: The high-performance motor delivers strong torque while operating quietly.
- Multi-size Cones & Quick Nut Cup Adaptor: Multi-size cones and a Quick Nut cup adapter make wheel mounting quick and easy, minimizing the risk of wheel damage. The quick-release nut significantly reduces setup time.
- Sturdy Base: Modern and functional design, lengthened body base provide more stability when working with big wheels.
- Optional Motorcycle Rim Adapter (Sold Seperately, SKU: 200021): To service motorcycles, you’ll need to purchase an motorcycle rim adapter. These durable and reliable adapters add versatility to your wheel balancer, ensuring it can handle a wide range of tire services.
Specifications
| Voltage | 110v / 60hz / 1 phase |
| Help Arm | Double Assist Arms |
| Motor Power | 1.5 HP |
| Bead Blaster | Hand Held Bead Blaster |
| Inside Rim Clamp Range | 12-24 in |
| Hex Shaft Locked Type | Pneumatic |
| Outside Rim Clamp Range | 10-22 in |
| Mount Head | Stainless Steel & Plastic |
| Max Tire Diameter | 41 in |

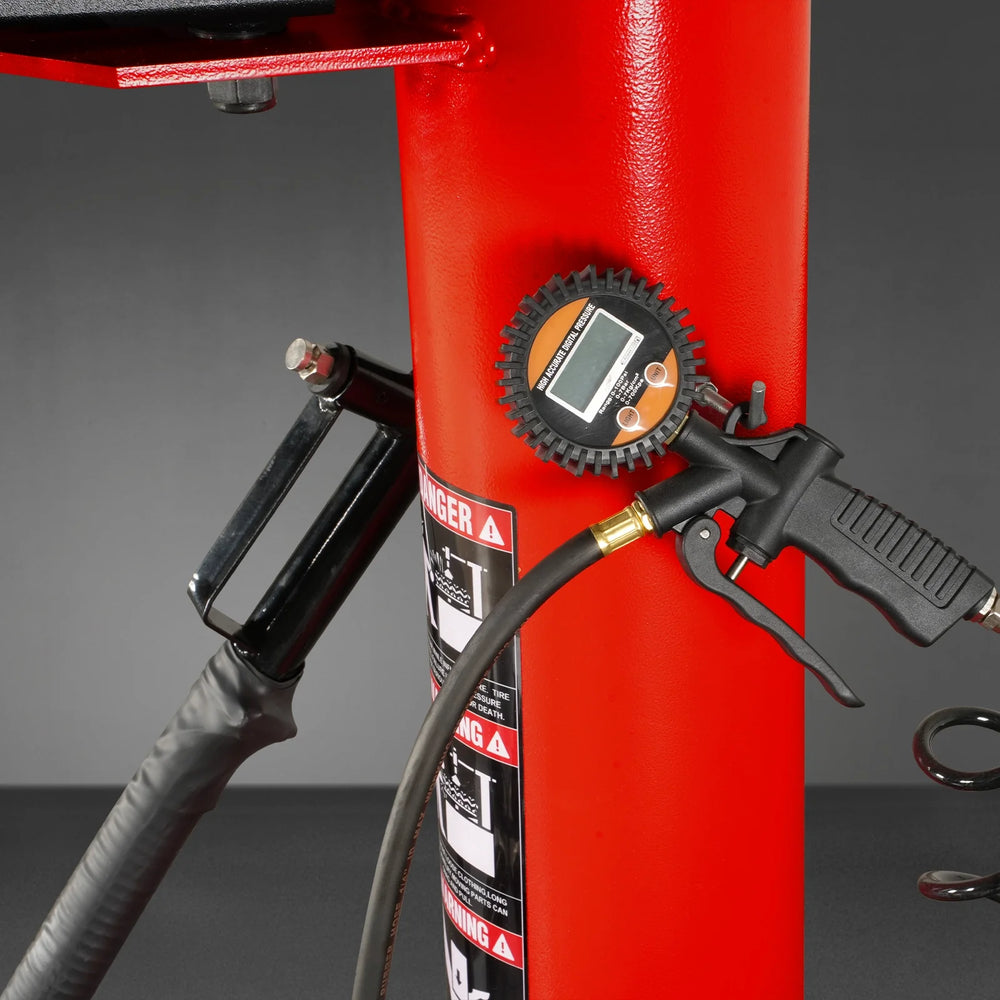

| Inflator | Handheld |
| Rim Width | 3-15 in |
| Motorcycle Adapter | Sold Separately, SKU: 200020 |
| Working Pressure | 117-145 psi (8-10 bar) |
| Packing | Plywood case |
| Bead Breaking Force | 5510 lbs |
| Packing Size (LxWxH) | 45 x 35 x 45 in |
| Type | Swing Arm |
| Weight (N.W/G.W.) | 514/597 lbs |
| Voltage | 110v / 60hz / 1 phase |
| Shaft Size | 40 mm |
| Motor Power | 1/3 HP |
| Calibration Wheel | Recommended 15 in steel rim wheel |
| Rim Diameter | 10-24 in |
| Motorcycle Adapter | Sold Separately, SKU: 200021 |
| Rim Width | 1.5-20 in |
| Truck Cone Kit | Sold Separately, SKU: 200022 |
| Max Tire Diameter | 40 in |
| Packing | Plywood case |
| Max Tire Weight | 154 lbs |
| Packing Size (LxWxH) | 35 x 24 x 44 in |
| Accuracy | ±1 gram |
| Weight (N.W/G.W.) | 207/269 lbs |
| Balancing Speed | 200 RPM |
Warranty
This item comes with a factory warranty.
