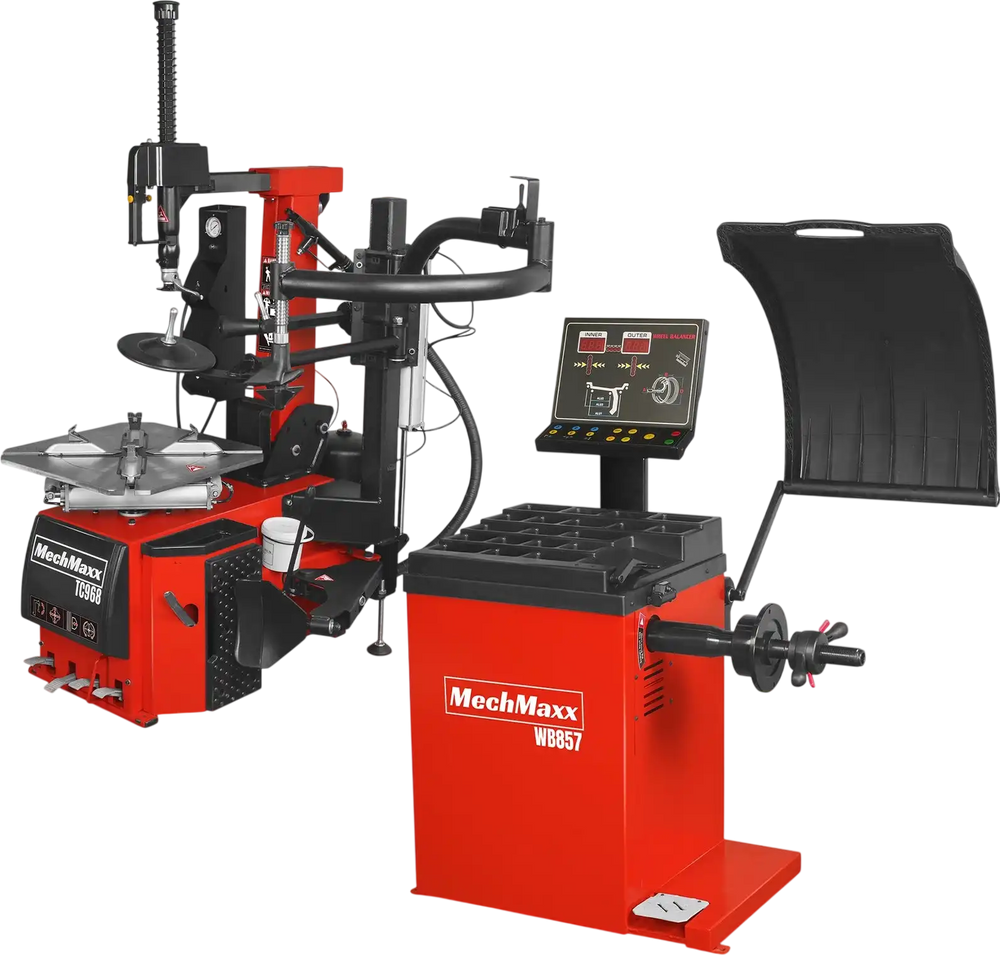

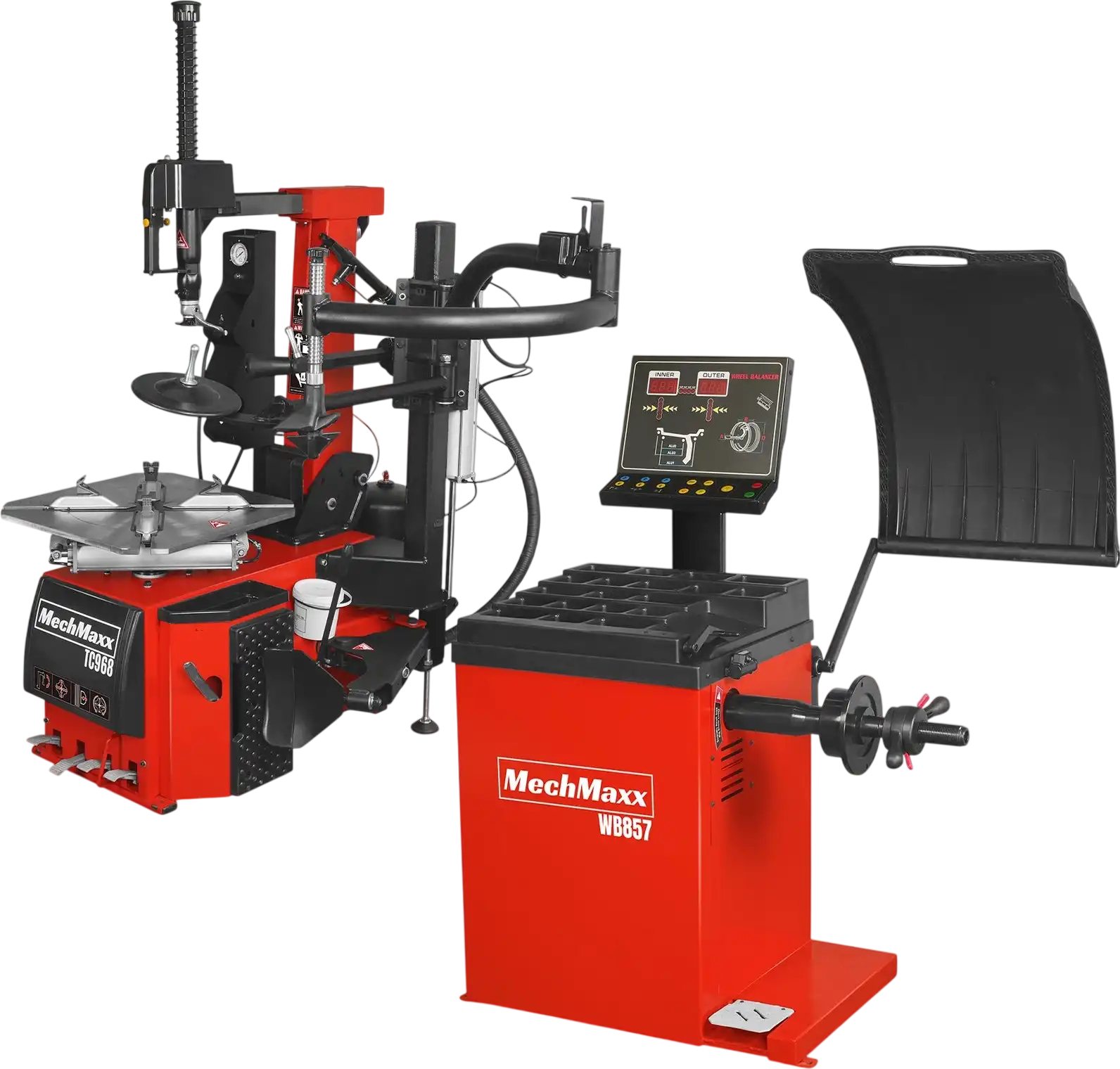

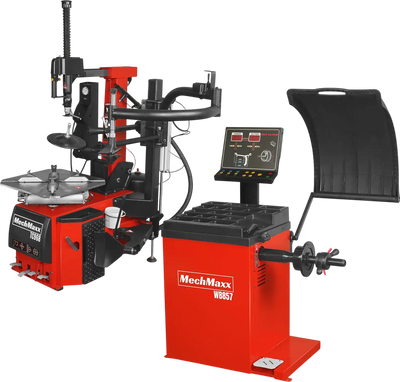

MechMaxx TC9682+WB857 Tire Changer High Performance Tilt Back Wheel Balancer Bundle New
Product Overview

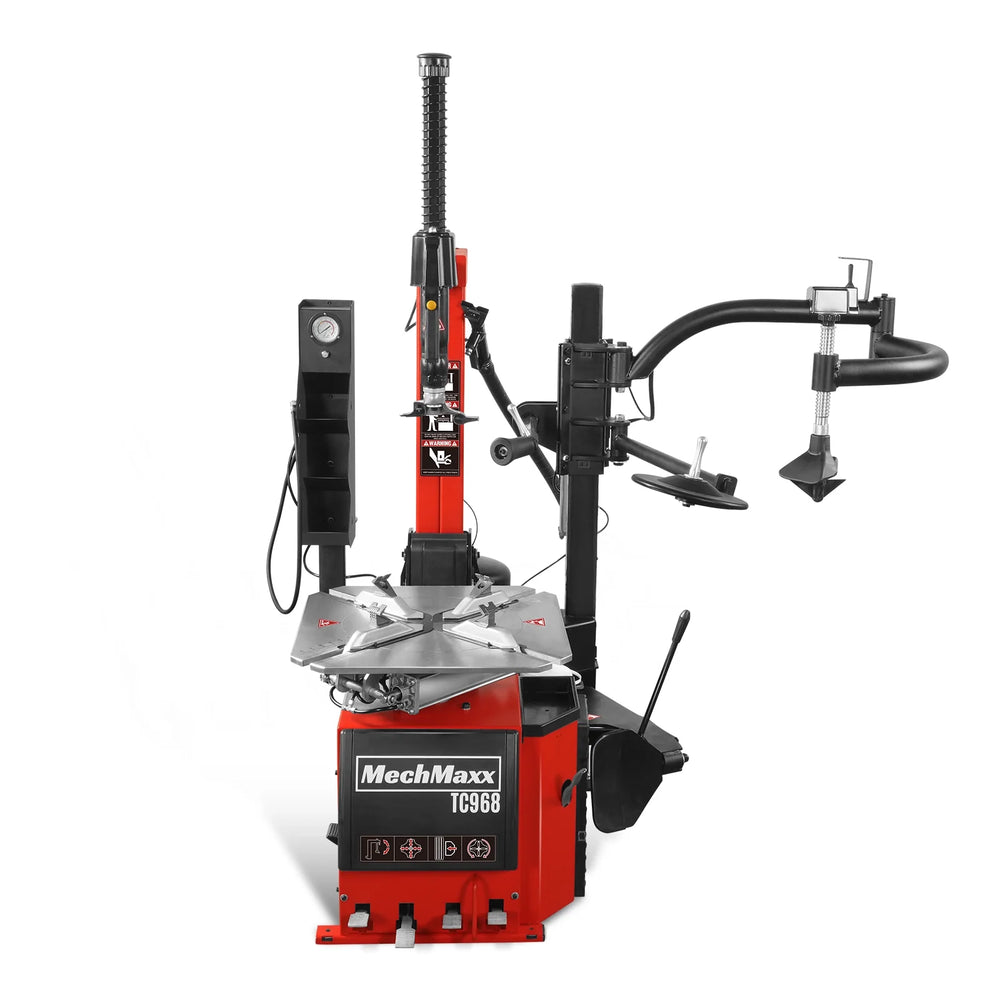

Tire Changer TC9682
- True Performance and Control: This MechMaxx TC9682 tire changer delivers true performance, unparalleled control, and increased efficiency. It features an adjustable tilt-back design, allowing the tire changer to easily maneuver the tire without strain or damage to the machine or the car's rims.
- Multi-Function Assist Arm: It features a multi-function assist arm to handle run-flat and low-profile tires. It comes with a drop-center cone, which holds the bead in the drop-center, further helping protect the tire during external clamping procedures. The bead roller assists in holding the tire bead down to lube both the tire and wheel. The disc holds tires in the up position to reduce the effort in second bead removal.
- Sturdy and Damage-Prevention Design: A sturdy body, rigid vertical shaft, and hardened-steel horizontal outrigger support arm eliminate flex during all tire service procedures, reducing the chance of expensive wheels getting damaged.
- Bead Blaster for Stubborn Tires: This tire changer comes with a powerful bead blaster inflation system. The system efficiently shoots a burst of air into most stubborn tires, seating beads quickly without damaging the tire structure.

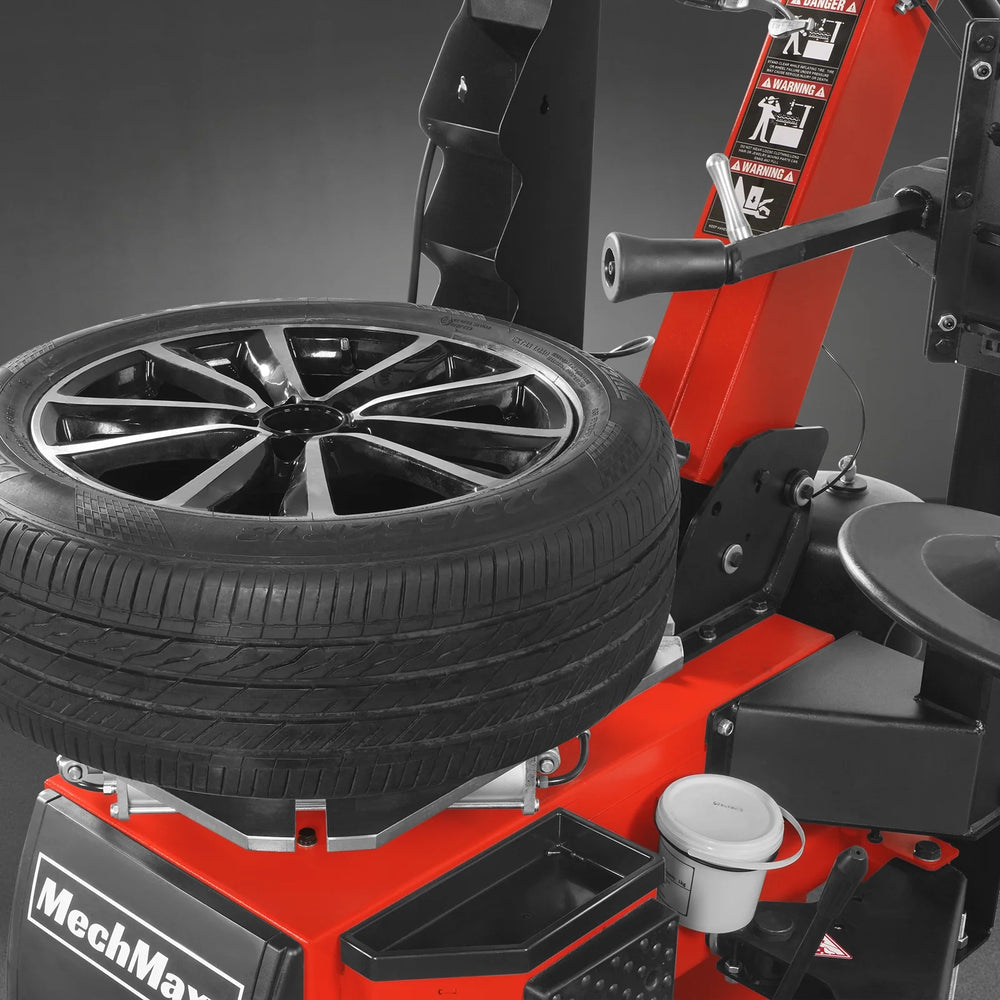

- Ample Storage Capacity: Large storage trays provide ample space for wheel weights, tools, and accessories on this tire changer.
- Versatile Tire Compatibility: It works with all types of tires, including run-flat, high-profile, and motorcycle tires with tubes. It covers the widest range of wheels and tires with ease, making it ideal for a commercial shop looking to expand to almost any tire.
- Optional Motorcycle Adapter: When equipped with a motorcycle adapter (sold separately, SKU: 200020), this tire changer can also handle motorcycle tires.
Wheel Balancer WB857
- Versatile and Accurate: The MechMaxx WB857 wheel balancer delivers accurate results across a variety of wheel types and is reliable in demanding shops. It features five distinct balancing modes, including options for tape-on weights on premium rims. This compact and capable equipment is perfect for increasing your tire-changing capabilities. It’s a great choice for a commercial shop aiming to expand to a wider range of tire types.
- Precision with Laser and LED Lighting: The laser line helps position the balancing weight precisely at the 12 o'clock position, increasing balancing accuracy. The LED inspection light ensures your lighting needs are met.
- Ergonomic Design: The ergonomic foot brake makes weight placement easy. The side-position brake holds wheels at precisely the 12 o'clock position for proper weight placement.
- Optional Motorcycle Adapter: When equipped with a motorcycle adapter (sold separately, SKU: 200021), this wheel balancer can also handle motorcycle tires.
- Optional Truck Cone Kit: When equipped with a truck cone kit (sold separately, SKU: 200022), this wheel balancer can also handle truck tires.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

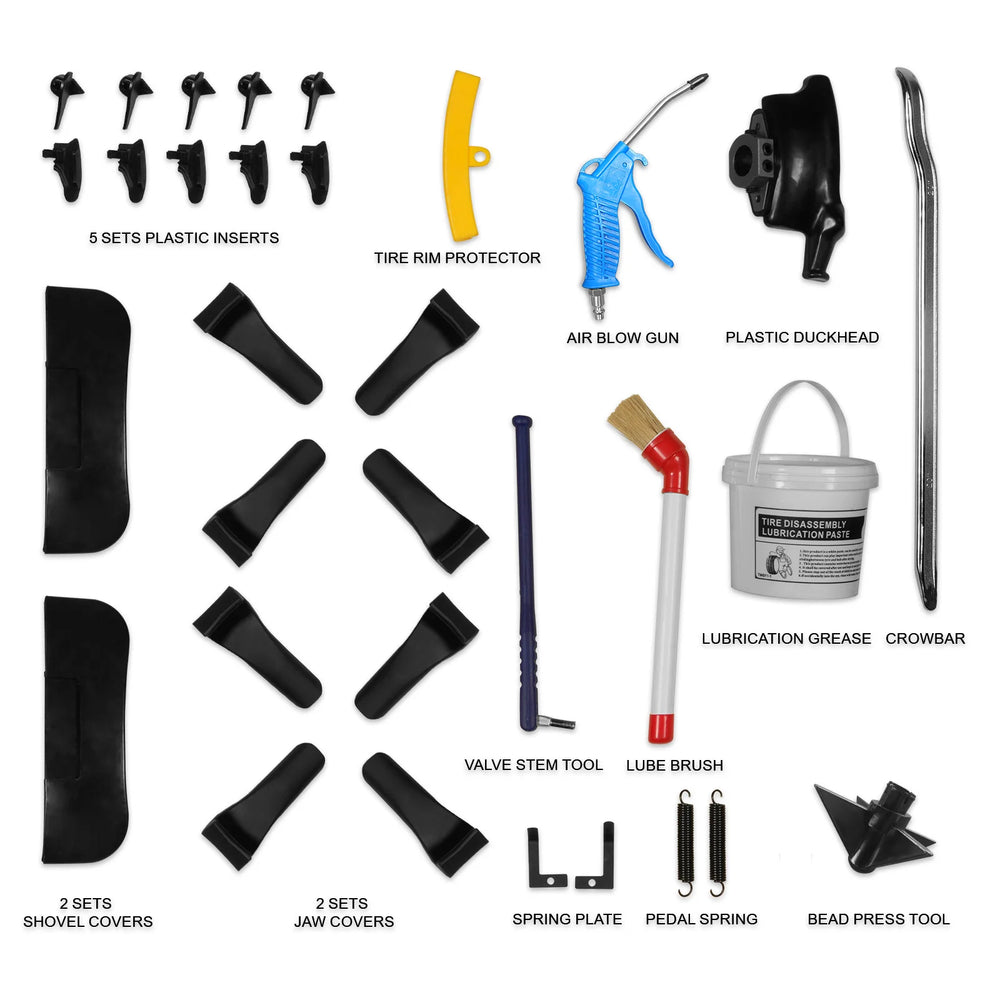

- Multiple Accessories Included: This machine comes with a variety of accessories, including 2 sets of Shovel Covers, 2 sets of Jaw Covers, 5 sets of Plastic Inserts, an Air Blow Gun, a Valve Stem Tool, a Lube Brush, Lubrication Grease, a Plastic Duckhead, a Crowbar, a Bead Press Tool, a Tire Rim Protector, a Spring Plate, and a Pedal Spring.

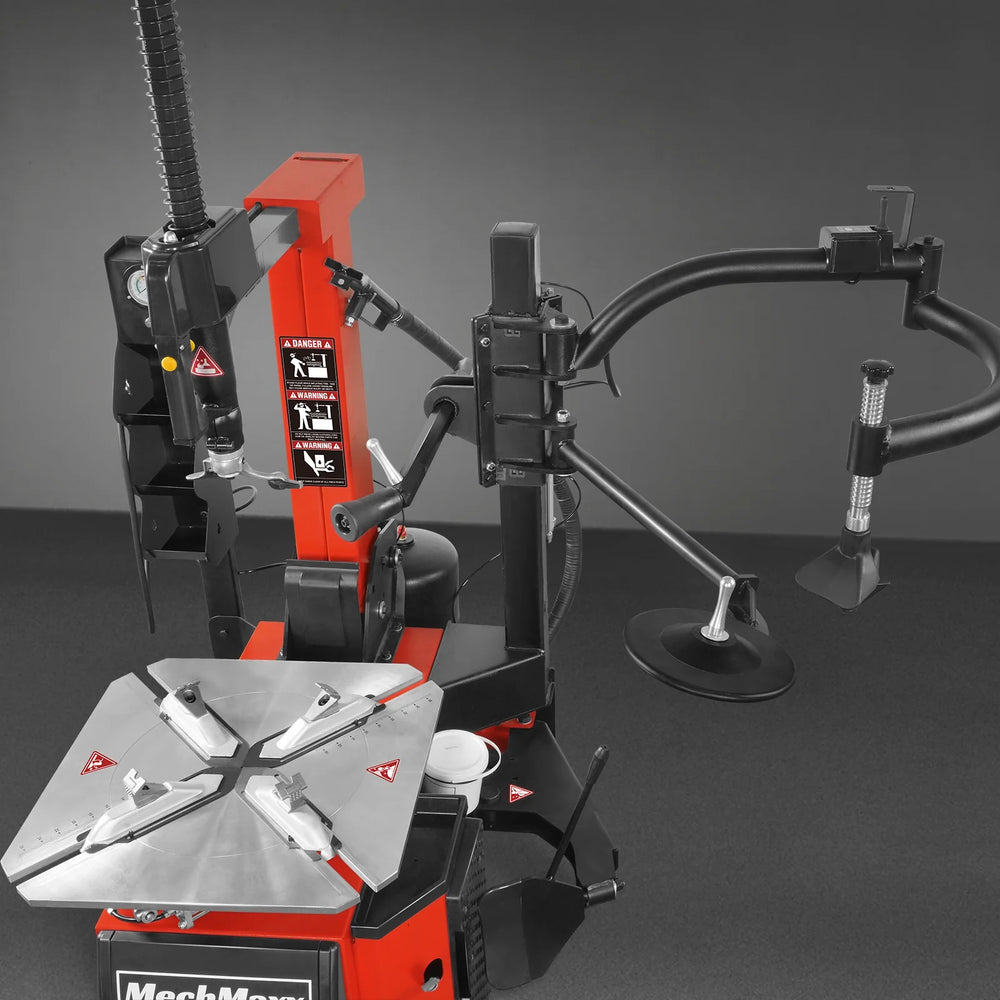

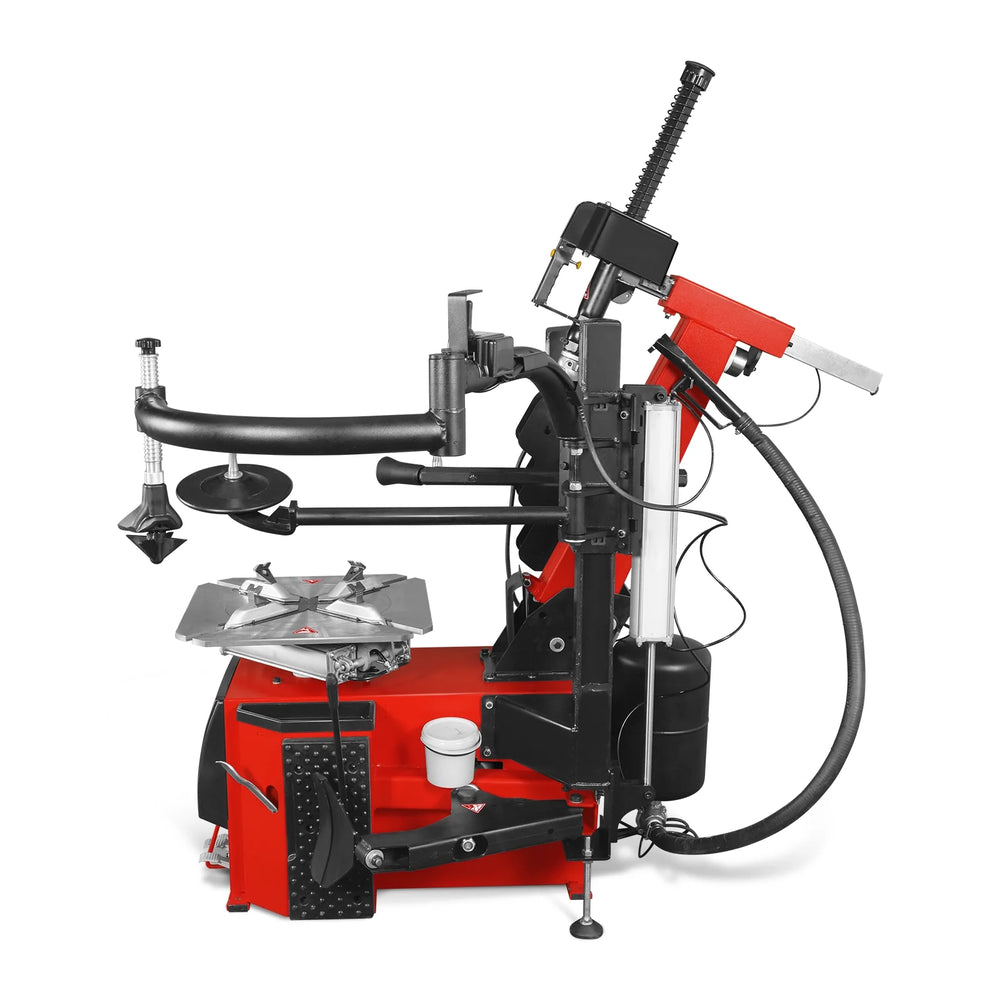

- Multi-Function Assist Arm: The powerful right-side assist arm features a multi-profile traveling drop-center tool for precise mounting. Bead roller assists in holding the tire bead down while lubing both the tire and wheel. Disc holds tires in the up position, reducing effort during second bead removal.

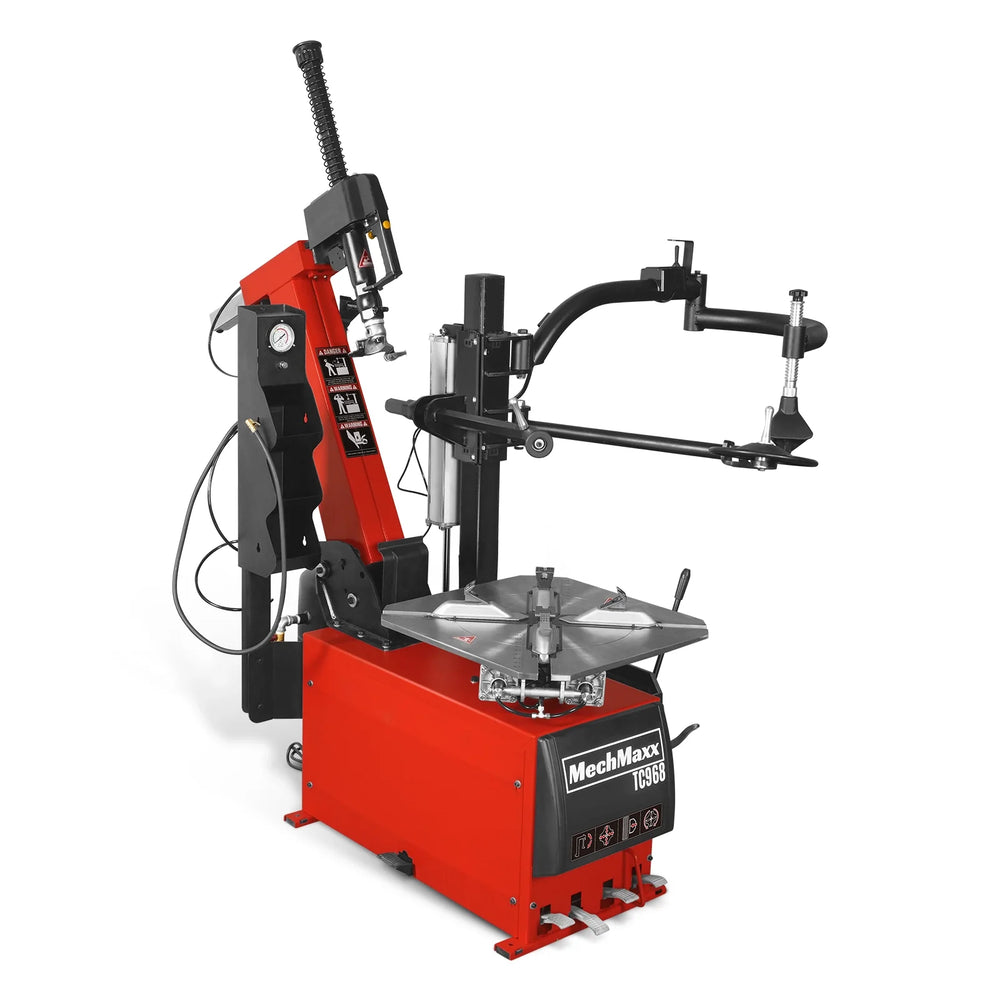

- Tilt-Back Tower: The foot-operated tilt-back tower increases ground clearance, allowing users to quickly and easily mount and dismount tires without worrying about moving arms or hitting the column. This design also allows for easier loading and locking of larger tires, while simplifying tire removal.
- Hand Held Bead Blaster System: Includes a hand-held bead blaster system that uses a powerful air blast to seat stubborn beads.
- Rigid Hex. Shaft & Hardened Arm & Reinforced Tower Base: The rigid spring-assisted hexagonal vertical tool shaft and hardened steel horizontal support arm maintain the perfect position of the mount/demount tool head. Smooth arm movement is ensured by high-quality sliding rollers. The large, reinforced tower base enhances the overall rigidity of the structure.

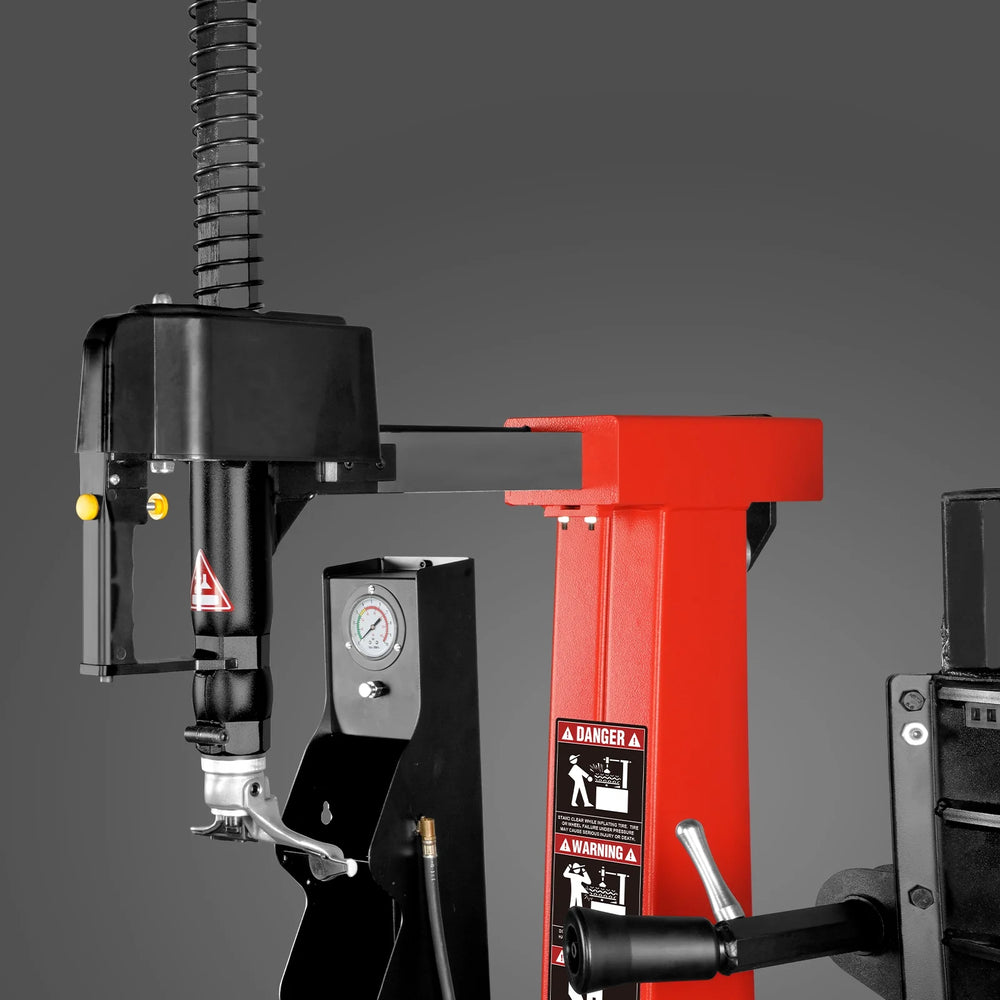

- Pneumatic Locked Shaft & Upgraded Stainless Steel Mount/Demount Head: Pneumatic locking and automatic tool adjustment ensure the proper distance from the rim. The stainless steel mounting head is designed to prevent contact and avoid damage to both the rim and tire. The demount head has plastic protectors to minimize damage to wheels. A rigid 41mm hex bar support resists flexing on tough low-profile tires, keeping the mount/demount head stable during operations.
- Foot-controlled Inflator & Tool Box: The foot-controlled tire inflator allows you to inflate tires effortlessly. An air pressure dump valve allows easy air release from the tire. This machine includes tool storage space to help maintain an organized and efficient workspace.

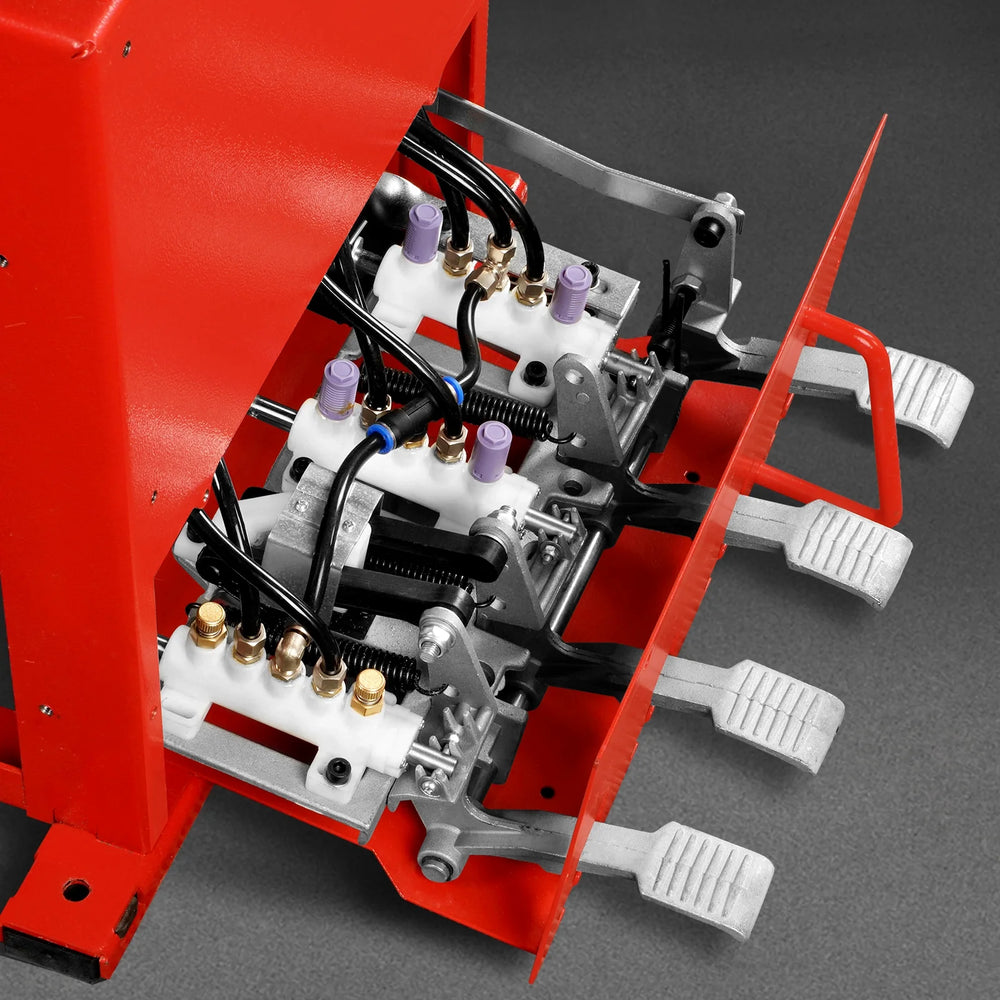

- Conveniently-placed Foot Pedals: Conveniently-placed foot pedals provide precise control throughout the tire changing process. The pedal assembly is removable for easy servicing.

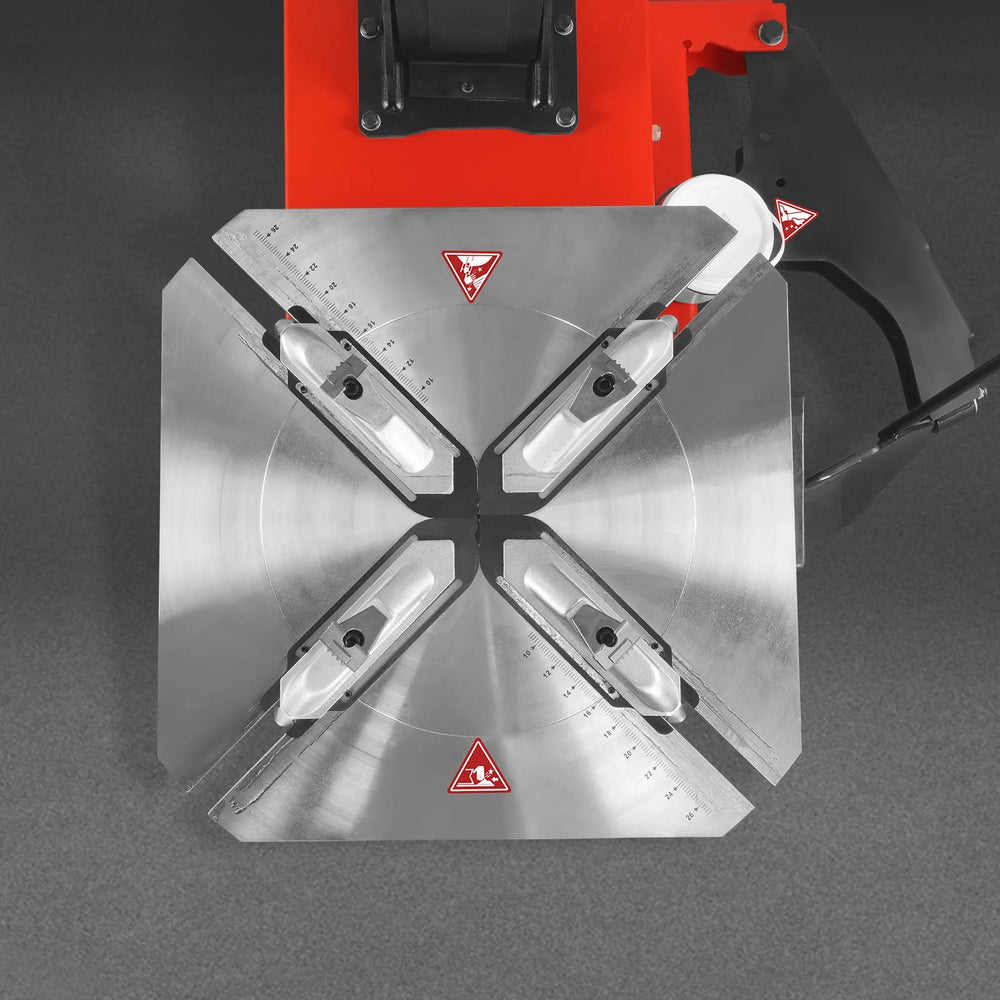

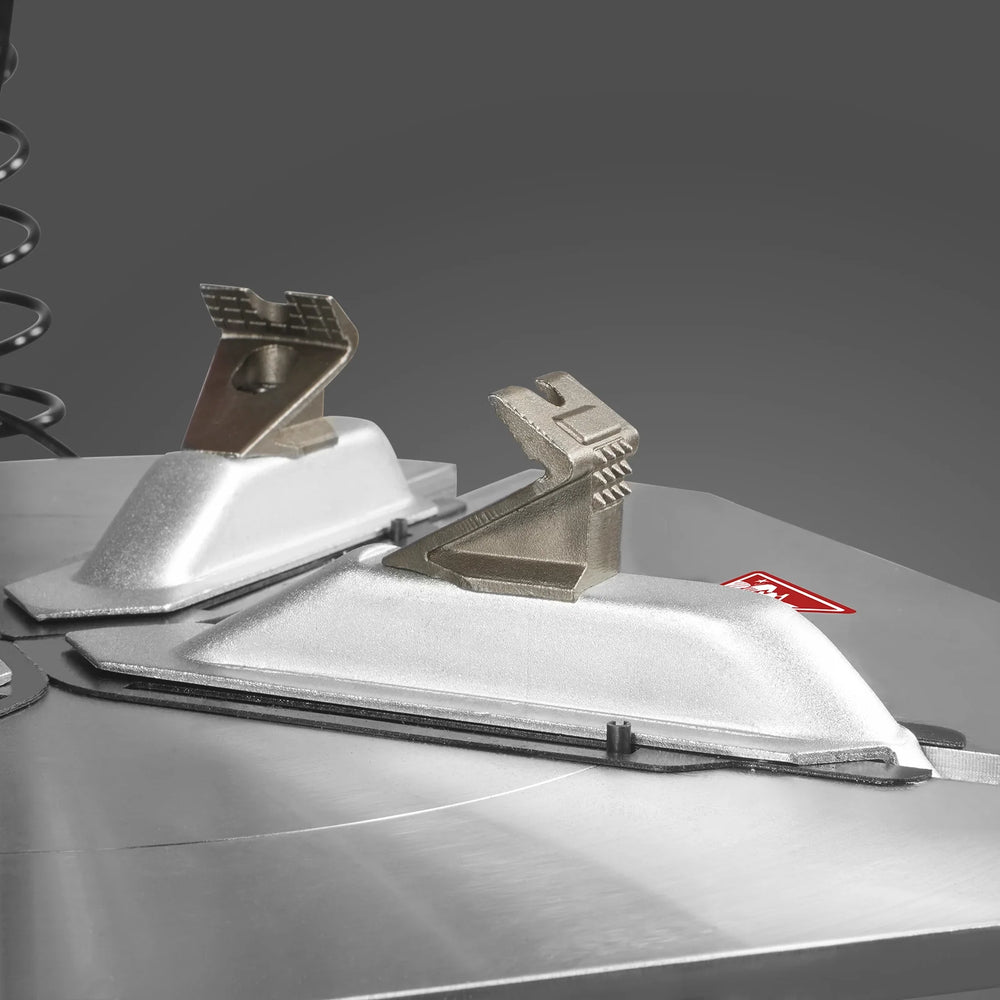

- High-Torque Turntable & Durable Cylinder: The high-torque electric turntable efficiently spins tires to seat or remove beads. Fits tires from 12 to 26 inches, meeting a wide range of tire maintenance needs. Two-way rotation and high clamping force. The scientifically designed, durable aluminum cylinder provides powerful grip and long service life.

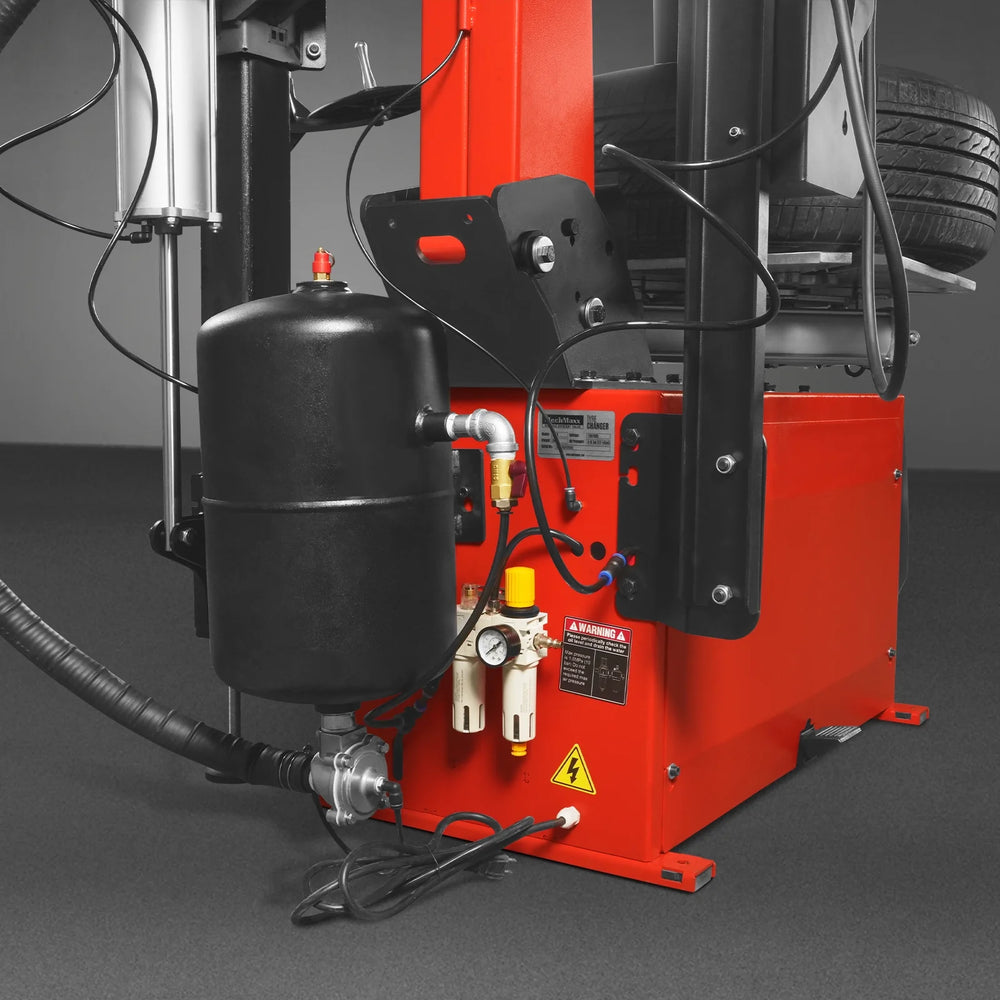

- High Quality Filter-regulaer: Explosion-proof filter, lubricator, and regulator. The high-quality filter-regulator (FRL) protects pneumatic components.
- Internal Reinforced Steel Tube: Reinforced steel tubes provide rigidity and strength during tire mounting and demounting.

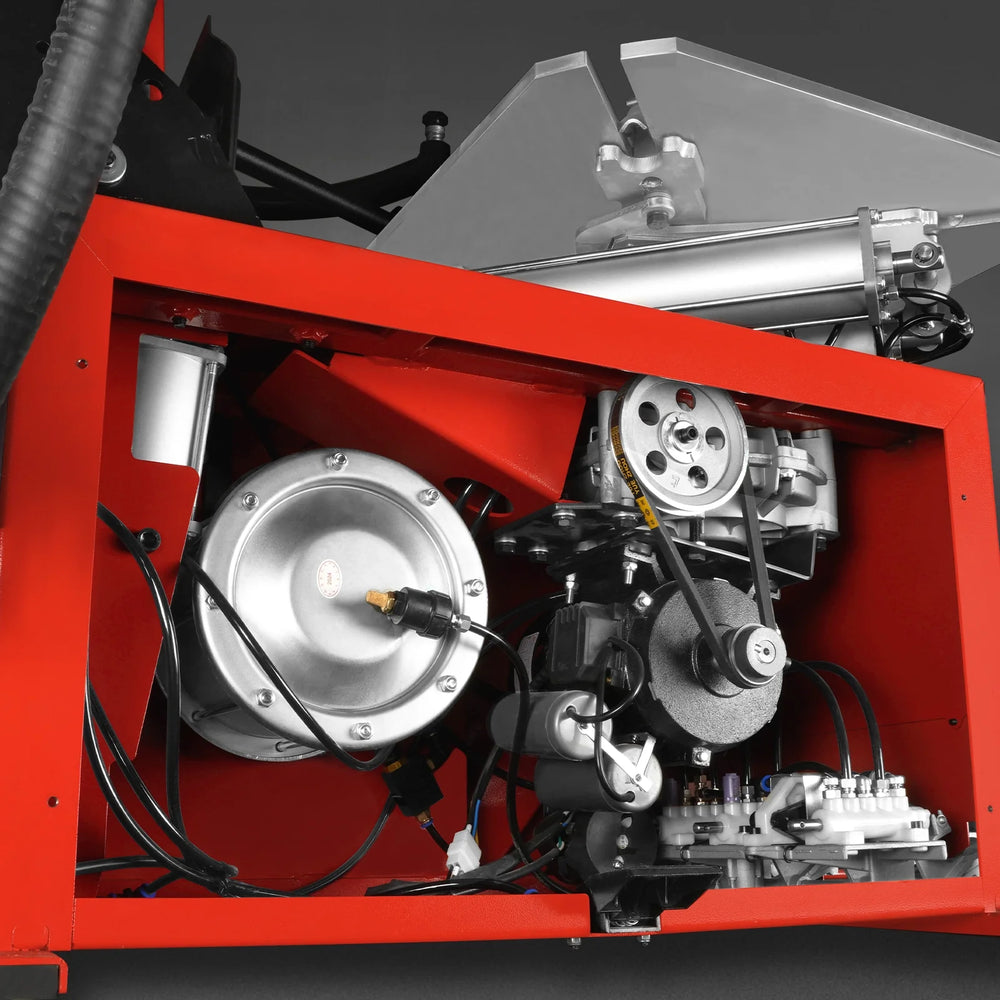

- Copper Core Motor & Maintenance-free Gearbox: The motor features a strong copper rotor, high-quality bearings, thermal insulation, and durable steel frames. The maintenance-free gearbox is mounted between two steel plates to prevent flex during operation.
- Multiple Accessories Included: This machine comes with multiple accessories. Including width measurement guage, 4 cones, 100g calibration weight, hammer plier and quick nut+pressure cup+rubber ring.
- Laser Guided & LED Illuminator: The laser guide ensures precise placement of balancing weights at the 12 o'clock position for improved accuracy. The LED inspection light provides ample lighting for your work.
- Foot Pedal Brake: The ergonomic foot brake allows for easy weight placement. The side-position brake holds the wheel precisely at the 12 o'clock position for accurate weight placement.
- Ergonomic Control Keypad: The ergonomic 40° tilted display ensures comfortable use. The panel features tire and wheel assembly graphics to simplify data entry and guide technicians through balancing. It also includes self-diagnosis and five balancing modes: static, dynamic, and three Alu modes for different alloy rim shapes.
- Hood Auto Start: The protection hood features an automatic stop/start function when raised or lowered for enhanced safety. The new design offers broader coverage for various tire shapes and sizes.
- 1.57in (40mm) Shaft: The 1.57in (40mm) shaft is rust-proof and high-precision, made from precision-machined, hardened steel for reliable performance.
- High-performance Microprocessor: The high-performance microprocessor ensures a fast seven-second cycle time, boosting productivity and reliability.
- High Precision Encoder: The high-precision encoder receives and transmits imbalance position signals.
- Powerful Motor: The high-performance motor delivers strong torque while operating quietly.
- Multi-size Cones & Quick Nut Cup Adaptor: Multi-size cones and a Quick Nut cup adapter make wheel mounting quick and easy, minimizing the risk of wheel damage. The quick-release nut significantly reduces setup time.
- Sturdy Base: Modern and functional design, lengthened body base provide more stability when working with big wheels.
- Optional Motorcycle Rim Adapter (Sold Seperately, SKU: 200021): To service motorcycles, you’ll need to purchase an motorcycle rim adapter. These durable and reliable adapters add versatility to your wheel balancer, ensuring it can handle a wide range of tire services.
Specifications
| Voltage | 110v / 60hz / 1 phase |
| Bead Blaster | Hand Held Bead Blaster |
| Motor Power | 1.5 HP |
| Hex Shaft Locked Type | Pneumatic |
| Inside Rim Clamp Range | 14-26 in |
| Mount Head | Stainless Steel & Plastic |
| Outside Rim Clamp Range | 12-24 in |
| Inflator | Foot-controlled |
| Max Tire Diameter | 43 in |
| Motorcycle Adapter | Sold Separately, SKU: 200020 |
| Rim Width | 3-15 in |
| Packing | 2 x Plywood case |
| Working Pressure | 117-145 psi (8-10 bar) |
| Machine Packing Size (LxWxH) | 40 x 30 x 45 in |
| Bead Breaking Force | 6170 lbs |
| Assist Arm Packing Size (LxWxH) | 51 x 16 x 17 in |
| Type | Tilt Back |
| Machine Weight (N.W/G.W.) | 518/545 lbs |
| Help Arm | Right-side Assist Arm |
| Assist Arm Weight (N.W/G.W.) | 146/174 lbs |
| Voltage | 110v / 60hz / 1 phase |
| Shaft Size | 40 mm |
| Motor Power | 1/3 HP |
| Calibration Wheel | Recommended 15 in steel rim wheel |
| Rim Diameter | 10-24 in |
| Motorcycle Adapter | Sold Separately, SKU: 200021 |
| Rim Width | 1.5-20 in |
| Truck Cone Kit | Sold Separately, SKU: 200022 |
| Max Tire Diameter | 40 in |
| Packing | Plywood case |
| Max Tire Weight | 154 lbs |
| Packing Size (LxWxH) | 35 x 24 x 44 in |
| Accuracy | ±1 gram |
| Weight (N.W/G.W.) | 207/269 lbs |
| Balancing Speed | 200 RPM |
Warranty
This item comes with a factory warranty.
