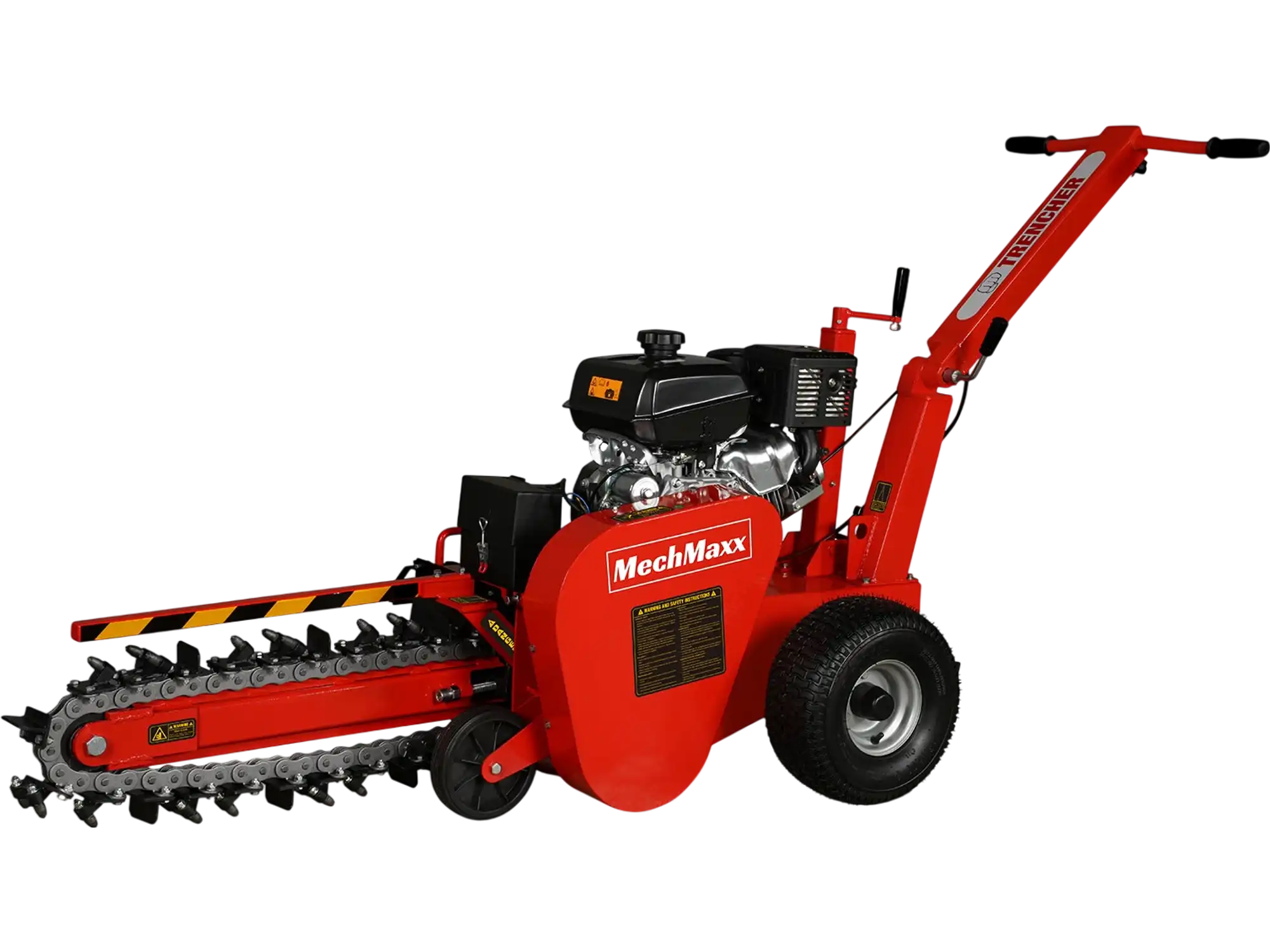

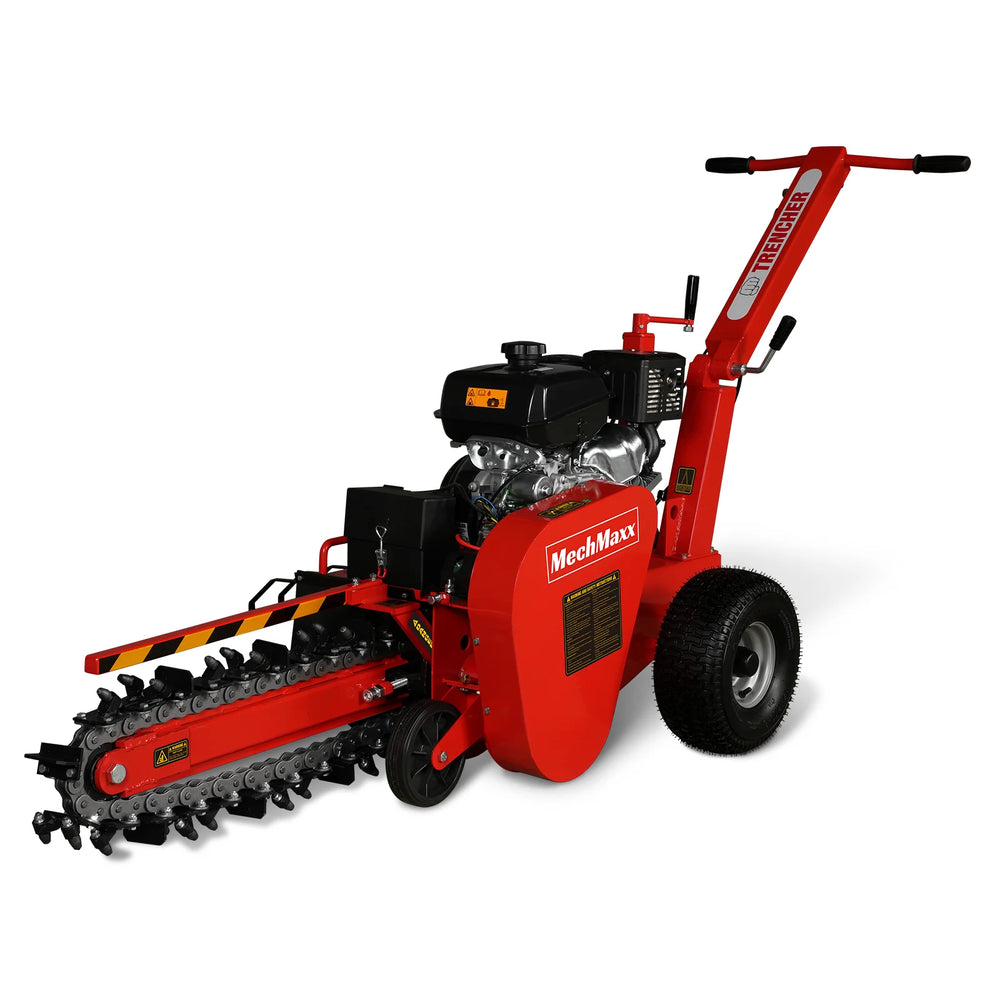

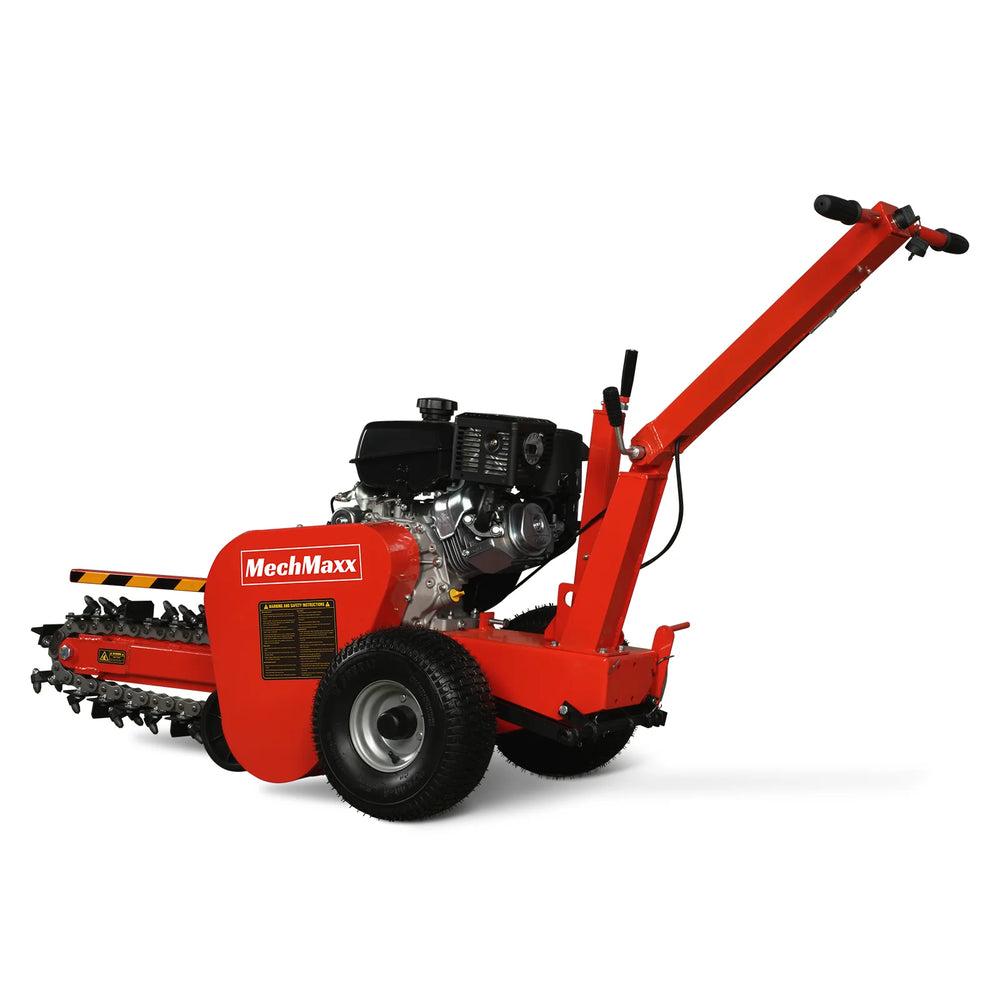

MechMaxx TCR1500 Mini Trencher 14HP 429cc KOHLER Electric Start 24" Ditching New
Product Overview

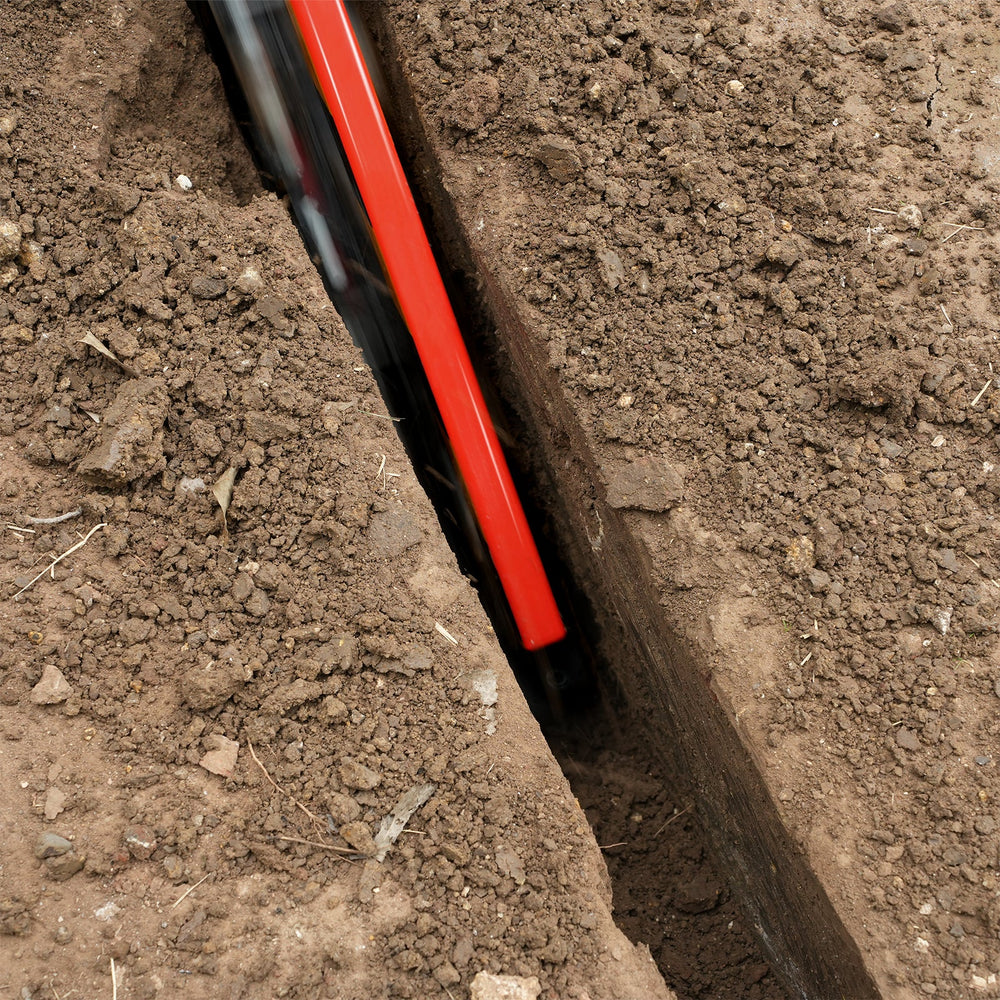

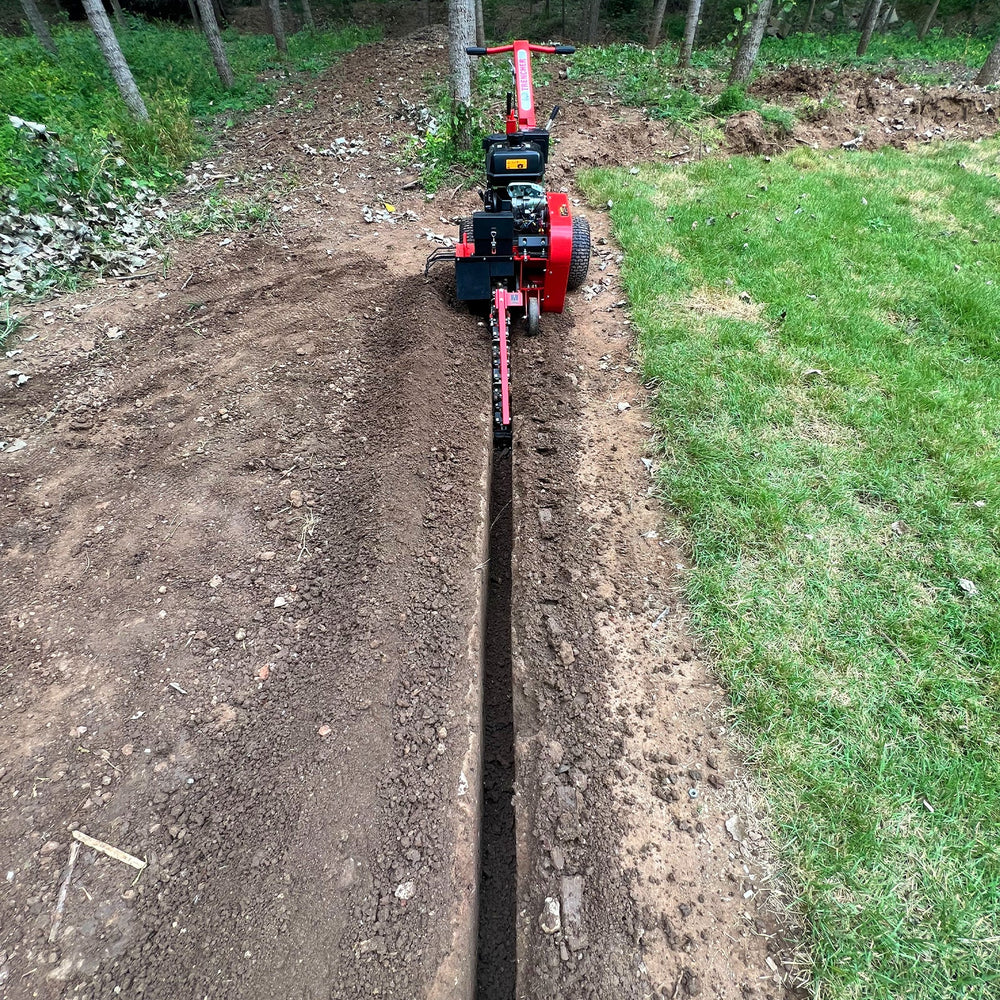

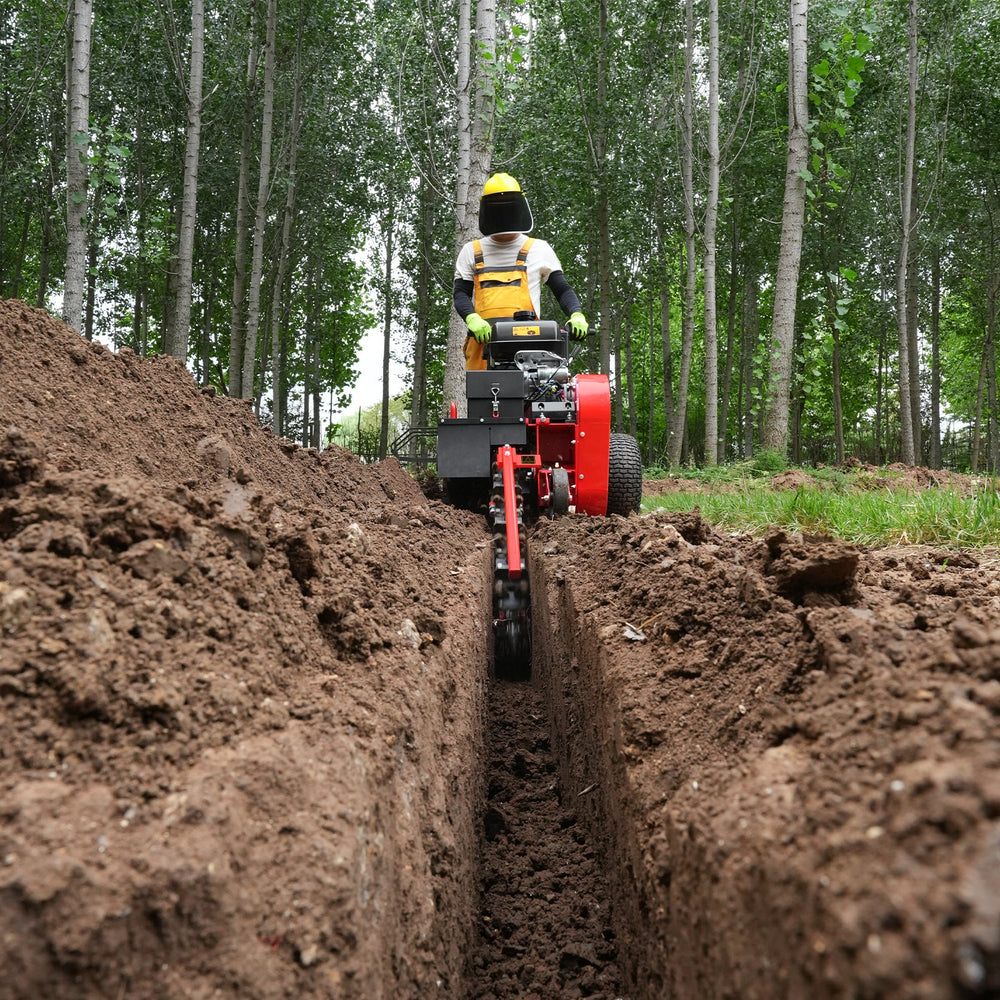

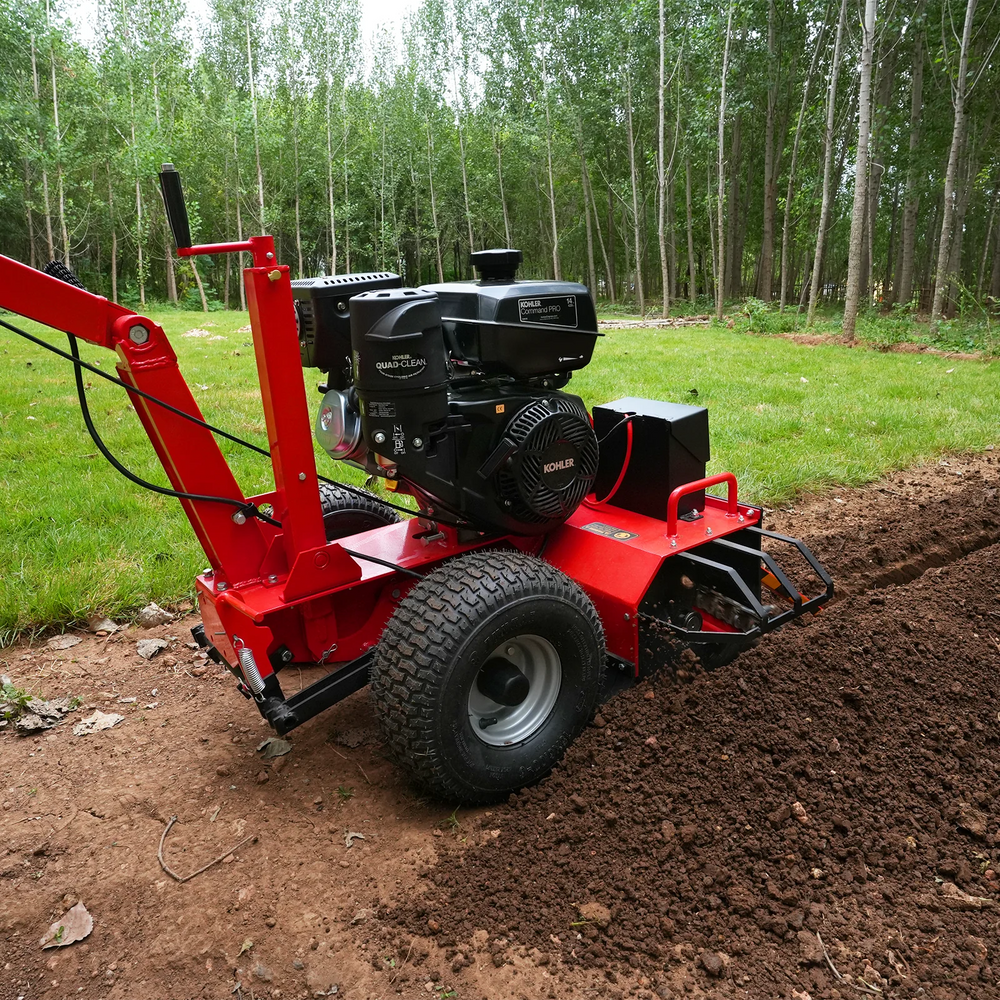

- Mini Trencher TCR1500 is powered by 429cc KOHLER gasoline engine, the trenching width is a practical 4 inch and the trenching depth can go anywhere up to 24 inch deep.
- This powerful engine is capable of ripping through even the most clay ridden ground.
- We upgraded it with a thread lifting lever, which can easily adjust the trench depth to anywhere. There's also a small wheel in front, so you can push the trencher to worksite easily.
Note！
- Please be careful with stones when using, as getting stones stuck will cause malfunctions.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

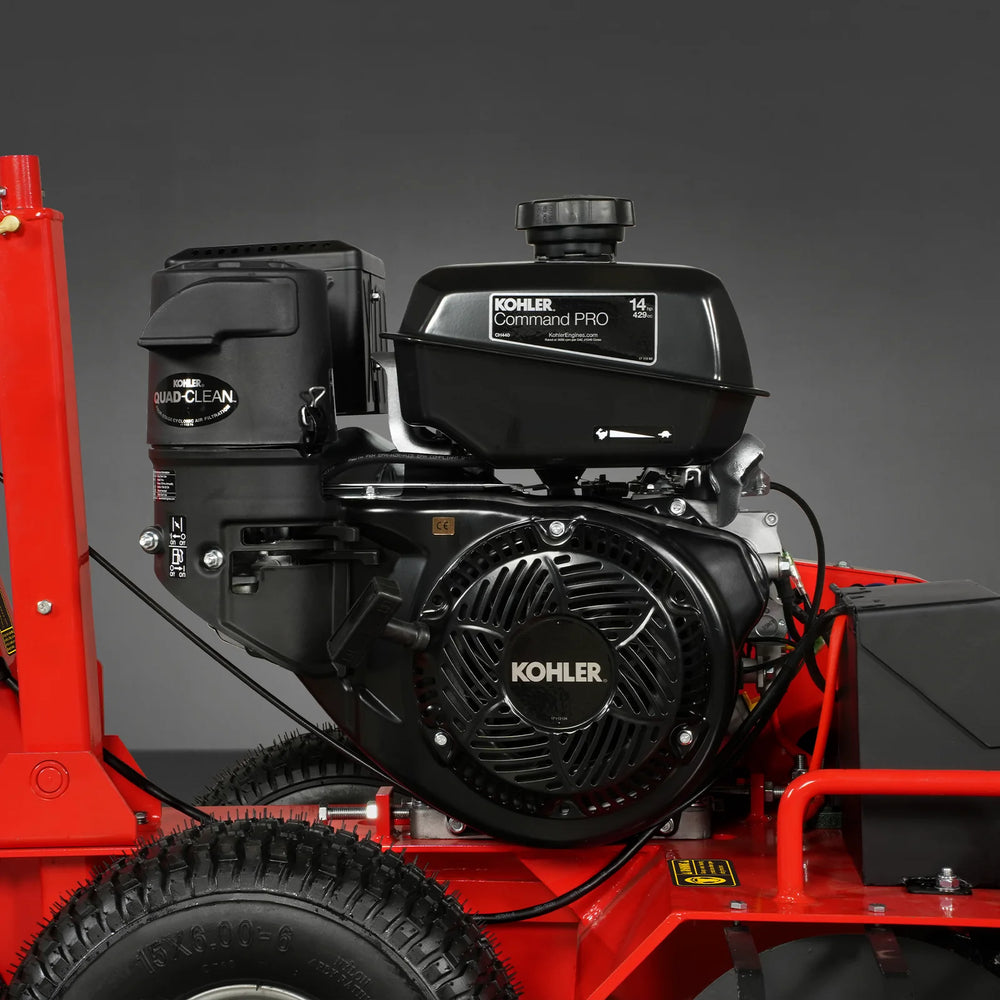

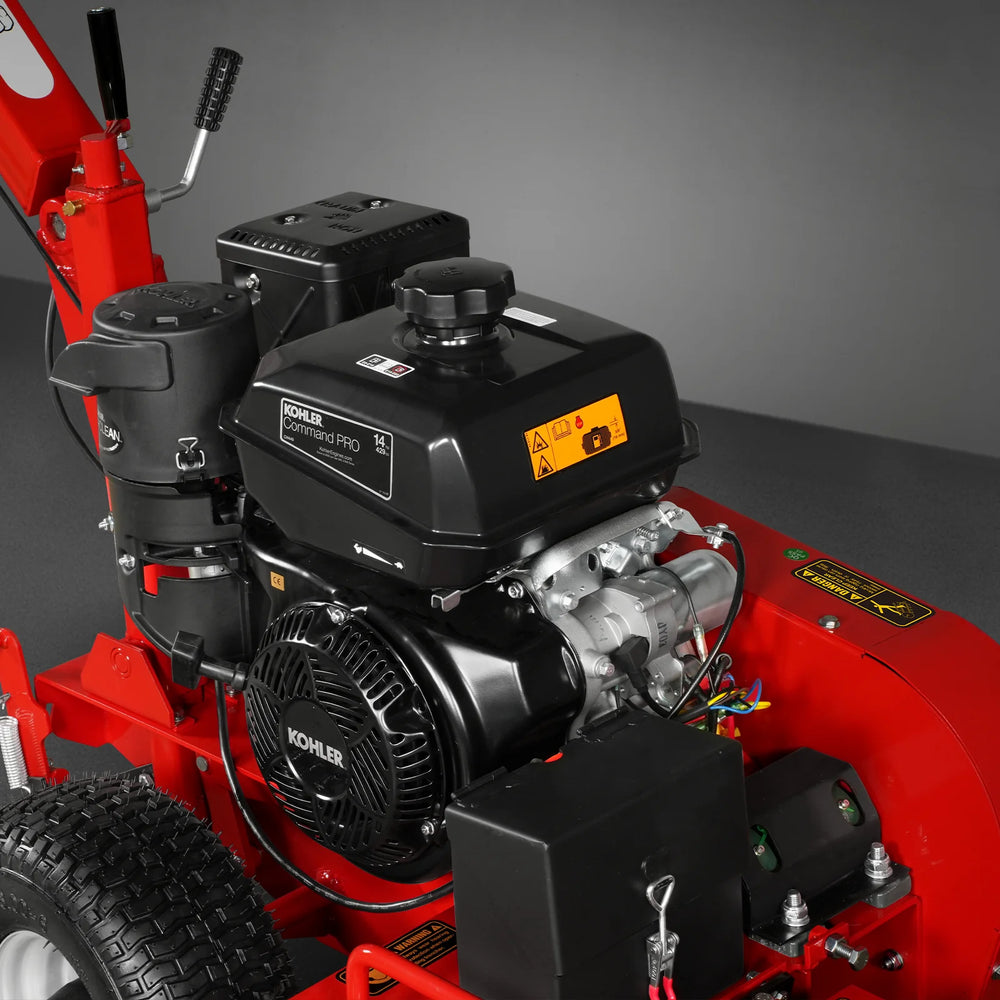

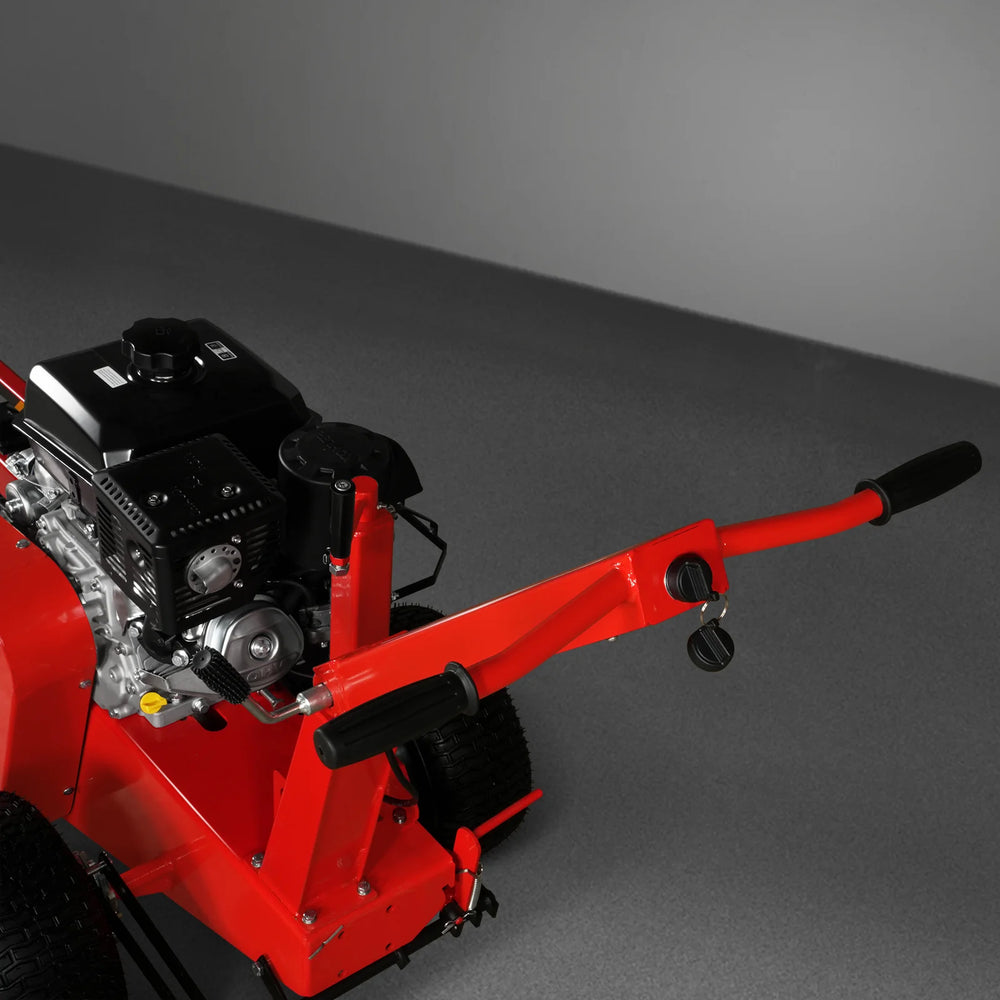

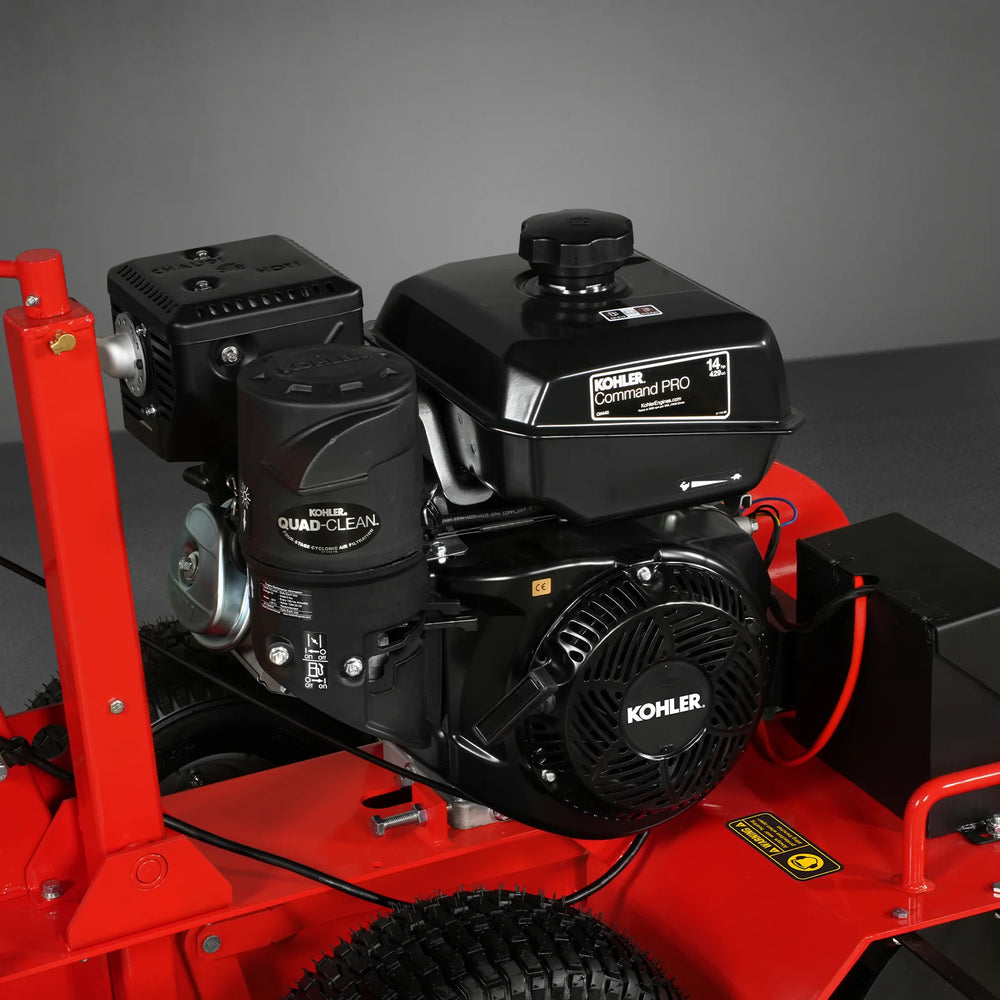

- Electric Start and Battery: The TCR1500 is powered by a 14hp 429cc electric start Kohler gasoline engine, and equipped with a 12V20Ah lead-acid battery. The starting key is located between the two handles.

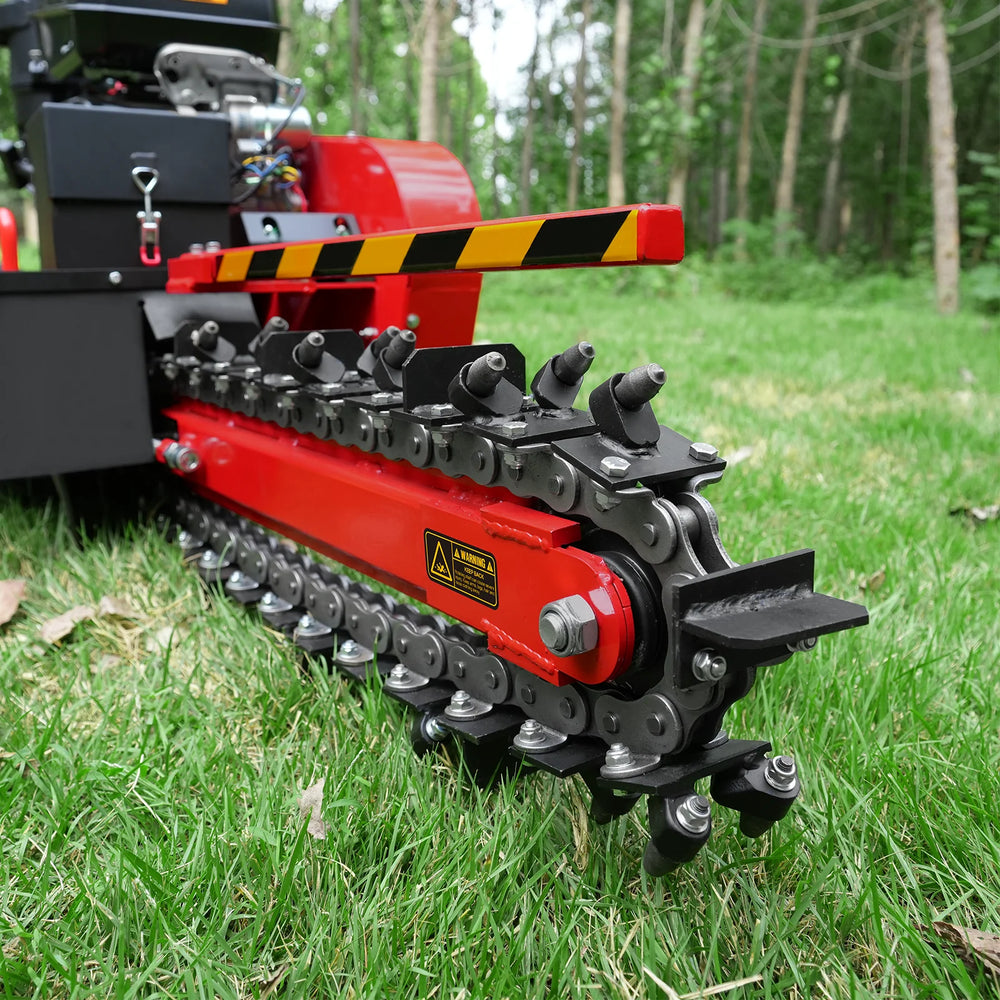

- Chain and Teeth: Chain length 81.5’’, chain plate is 4mm thick.27 tungsten carbide cutters and 9 moldboards are installed on the thickened chain.

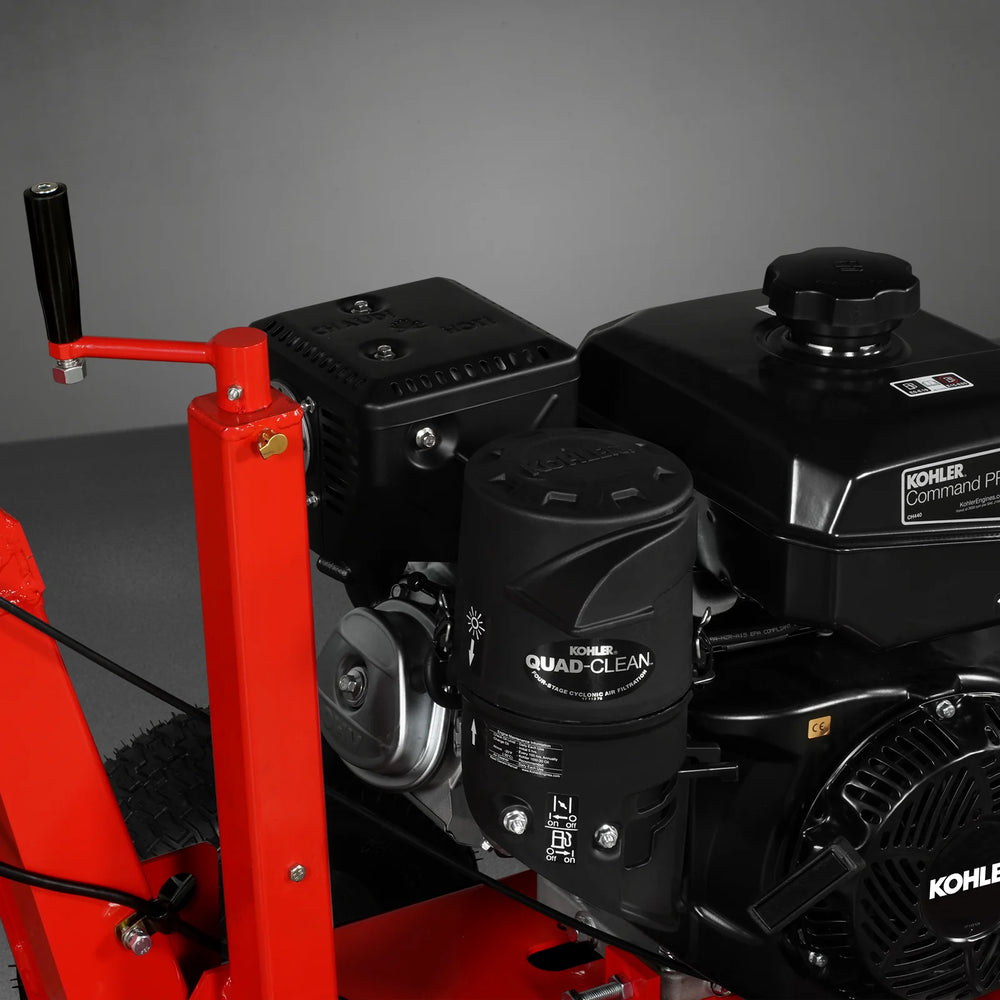

- Chain lifting: The design of the screw spiral lifting structure can fix the trenching depth at any depth within 24’’
Specifications
| Engine | KOHLER CH440 |
| Carbide Tip Material | YG11C Alloy |
| Certification(S) | EPA Phase III, CARB Phase III |
| Chain Length | 81.5 in |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
| Chain Speed | 574 ft / min |
| Displacement/ HP | 429 cc; 14 HP |
| Max. Trench Depth | 24 in |
| Start | E-Start |
| Max. Trench Width | 4 in |
| Belt | 2 x V-Belts |
| Wheelbase | 29 in |
| Belts Material | Kevlar |
| Tire | 15 x 6-6 Tubeless Tire |
| Clutch | Centrifugal Clutch |
| Assembled Weight | 402 lbs |
| Carbide Tip | 27 x Carbide Alloy High-Pressure Teeth |
| Gross Weight | 450 lbs |
| Scraper | 9 Pcs |
| Packing Size | 46 x 31 x 34 in |
| Tip Holder Material | 42CrMo |
Warranty
This item comes with a 1 year factory warranty.
