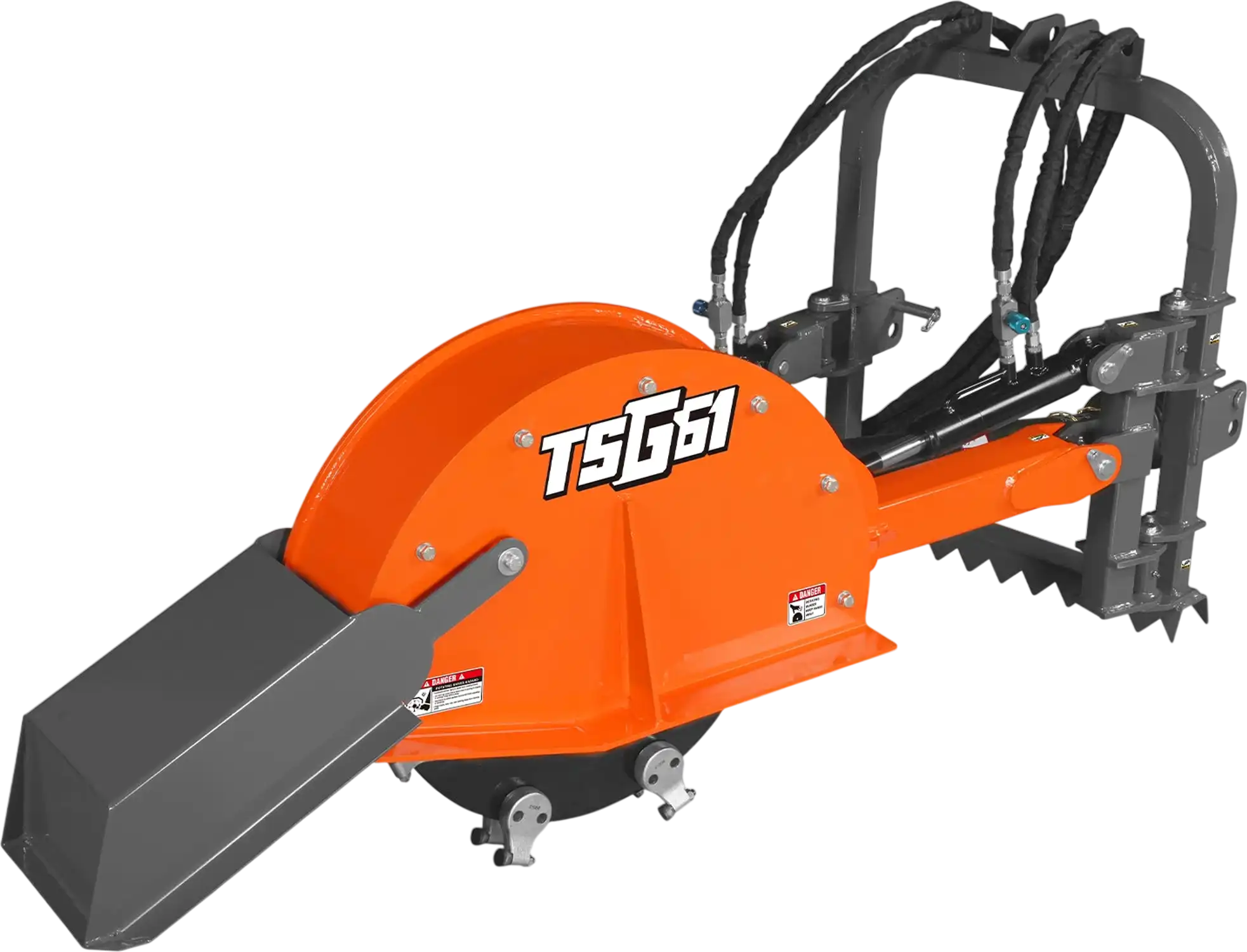

MechMaxx TSG61 Stump Grinder 24" Cutting Wheel Hydraulic Cylinders PTO Shaft Included Slip Clutch 35-60HP New
Product Overview
- Two hydraulic cylinders position the milling head with different cutting capabilities, which can be easily operated through the tractor cab.
- 16 carbide steel teeth housed in a 24-inch milling wheel designed to work under heavy working conditions while maintaining sharpness.
- It has a cutting depth of 18 inches above the ground and 12 inches below the ground to attack the toughest roots and different stump sizes.

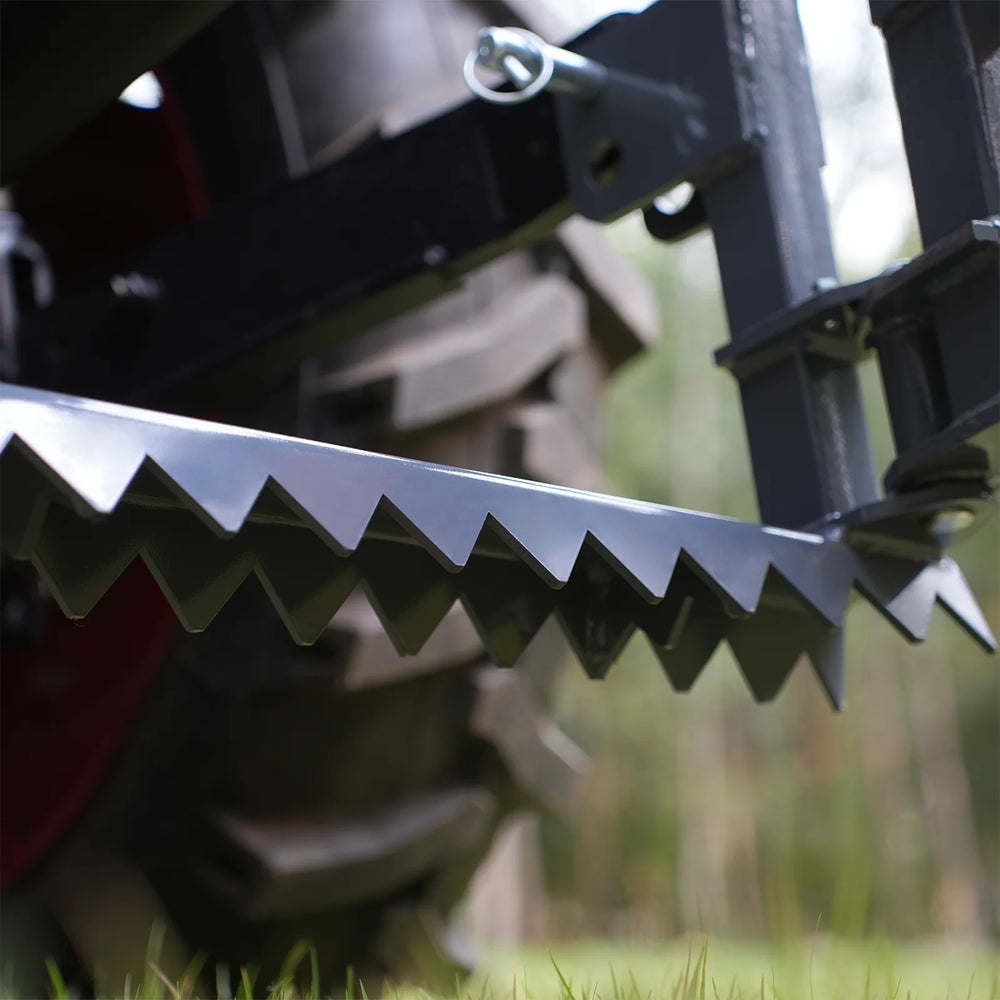

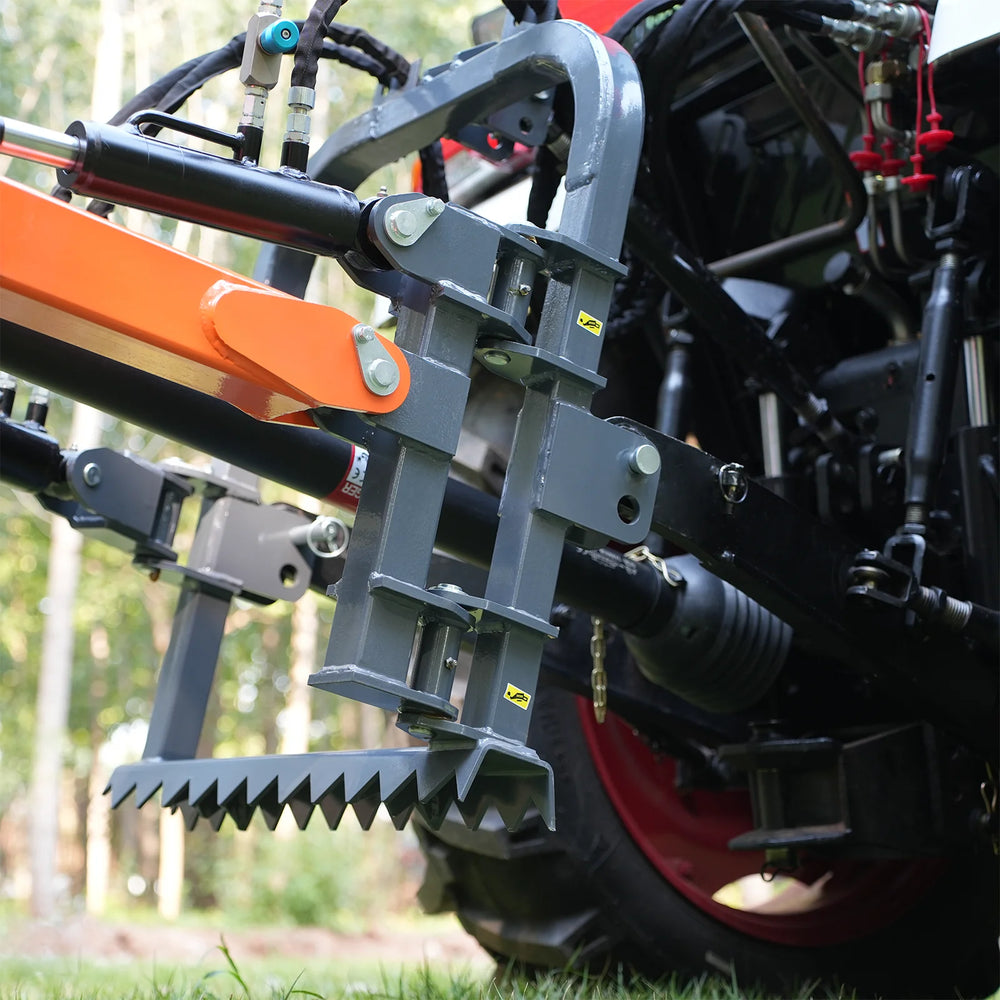

- Biting, stable support feet ensure you keep the platform safe and stable while sanding to reduce tractor vibration wear.
- PTO is driven by the included telescoping drive shaft for economical power transfer between tractor and grinder.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

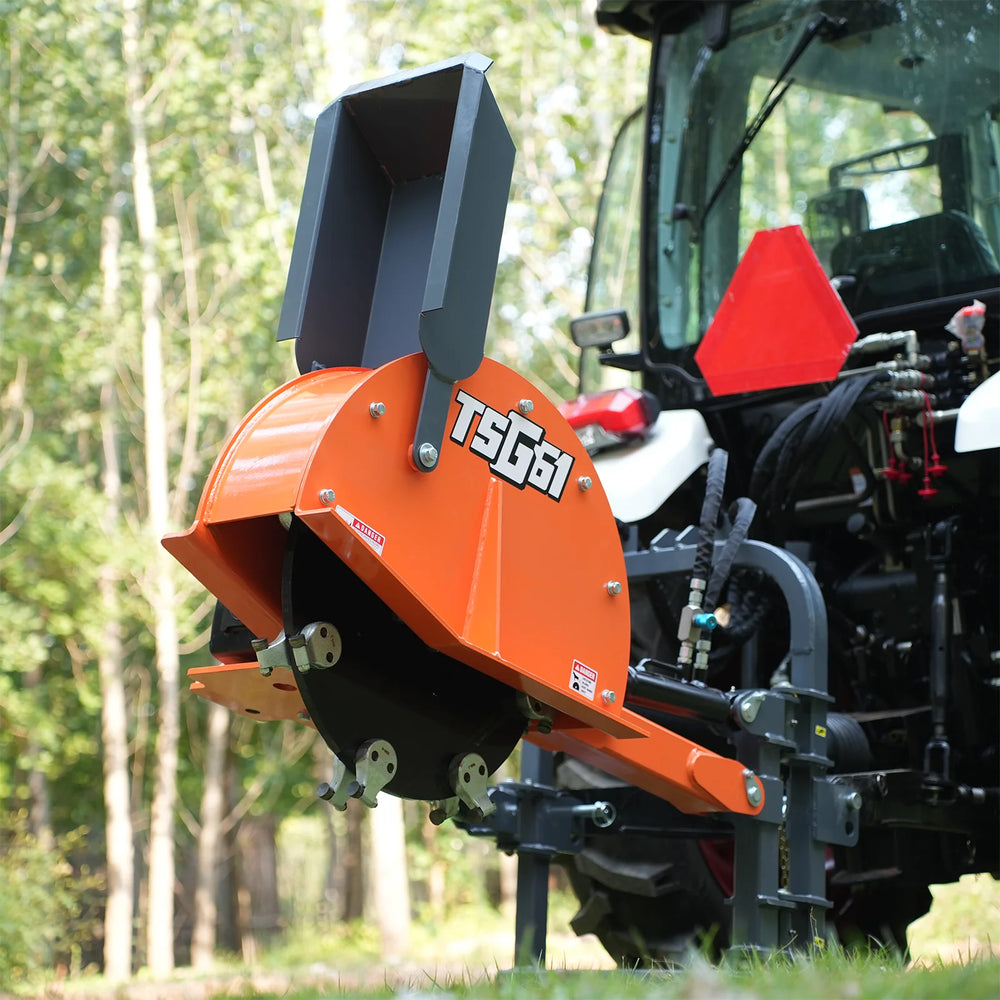

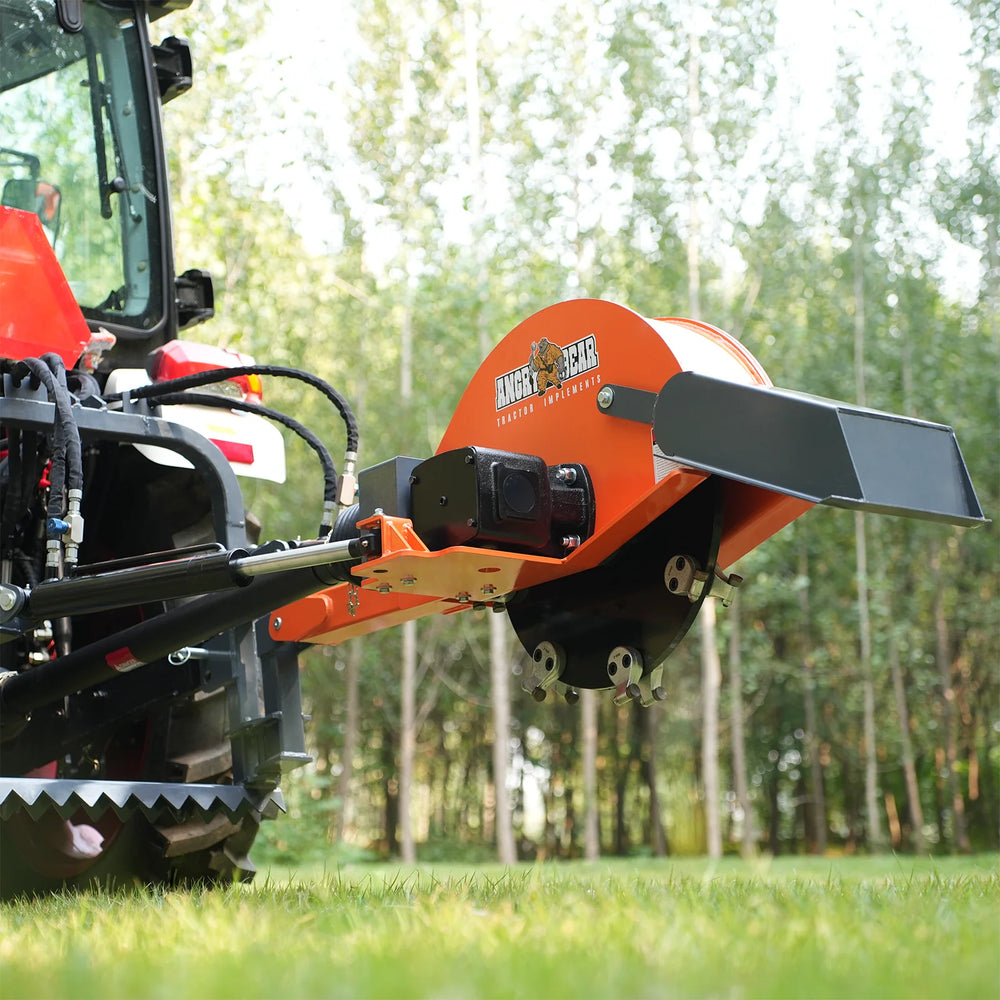

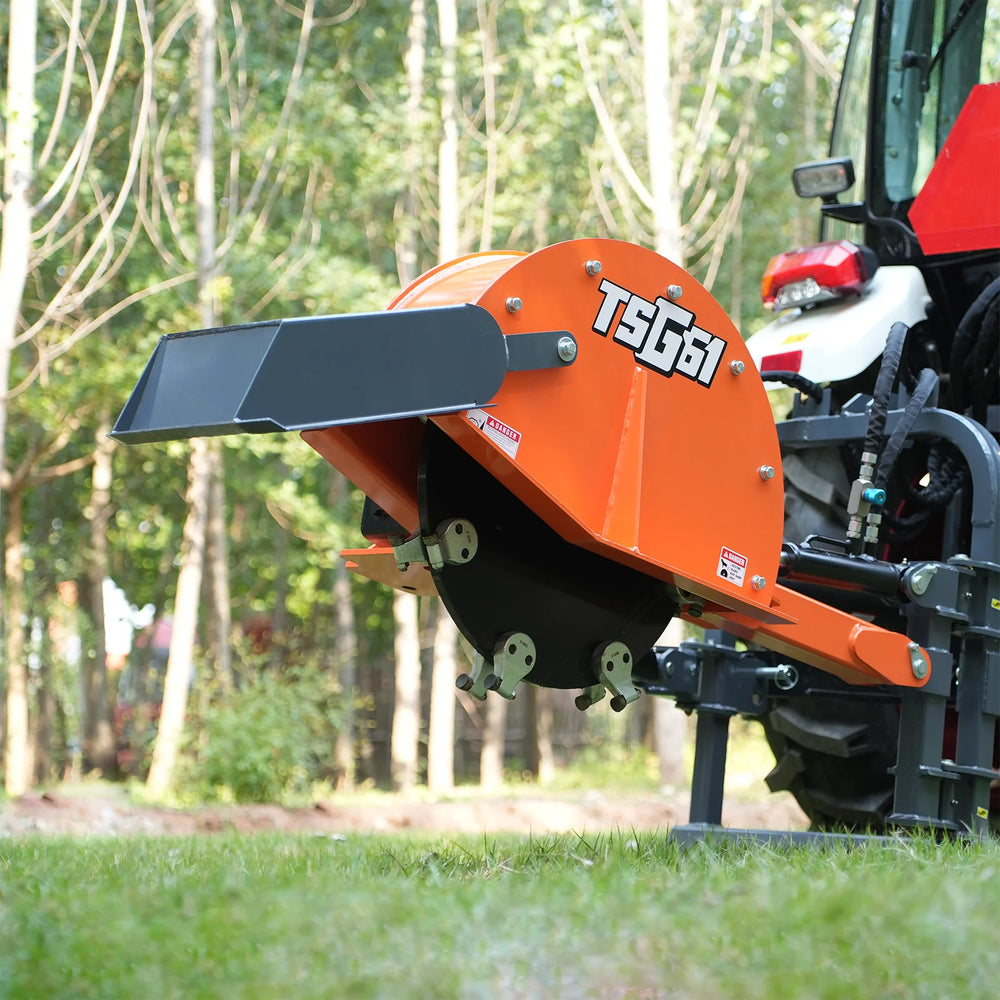

- 24’’ Flywheel Diameter: a large 24’’ diameter solid steel grinding flywheel This cutting-edge stump grinder features a 24-inch diameter cutting wheel, making it an indispensable tool for agricultural operations.

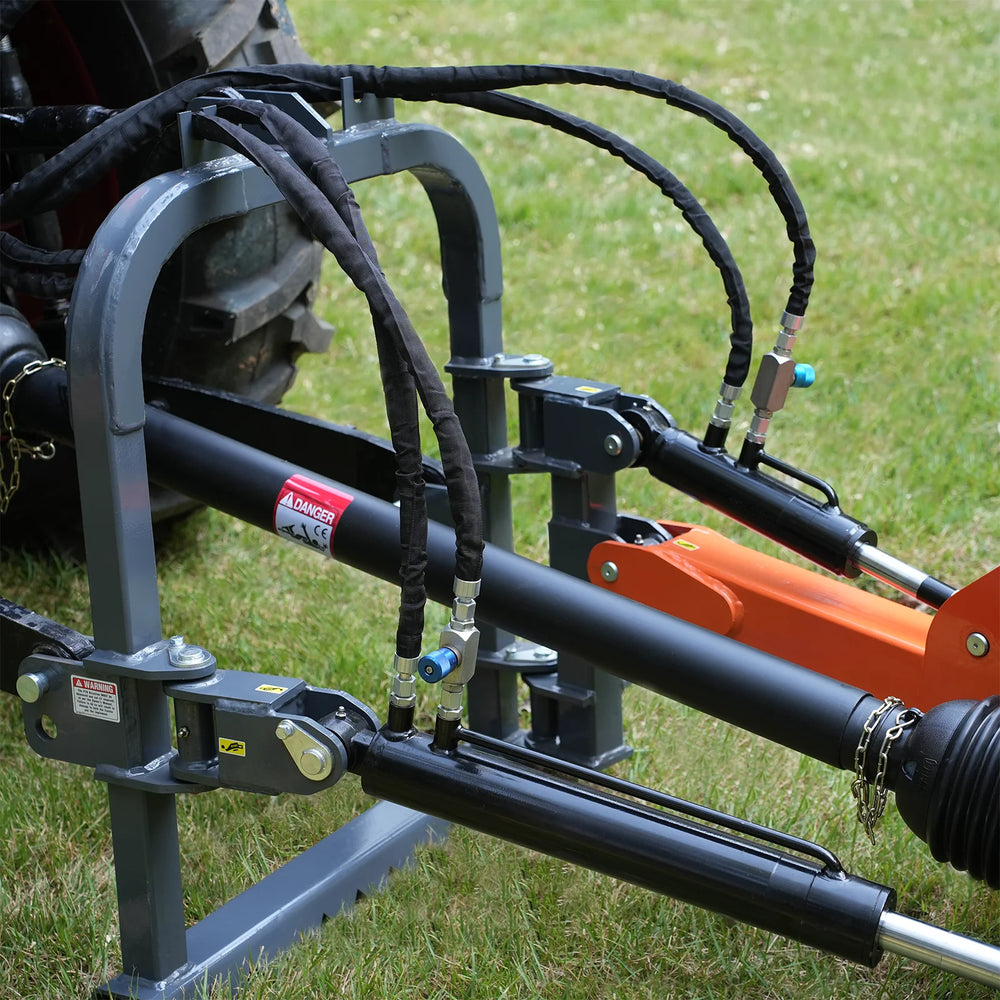

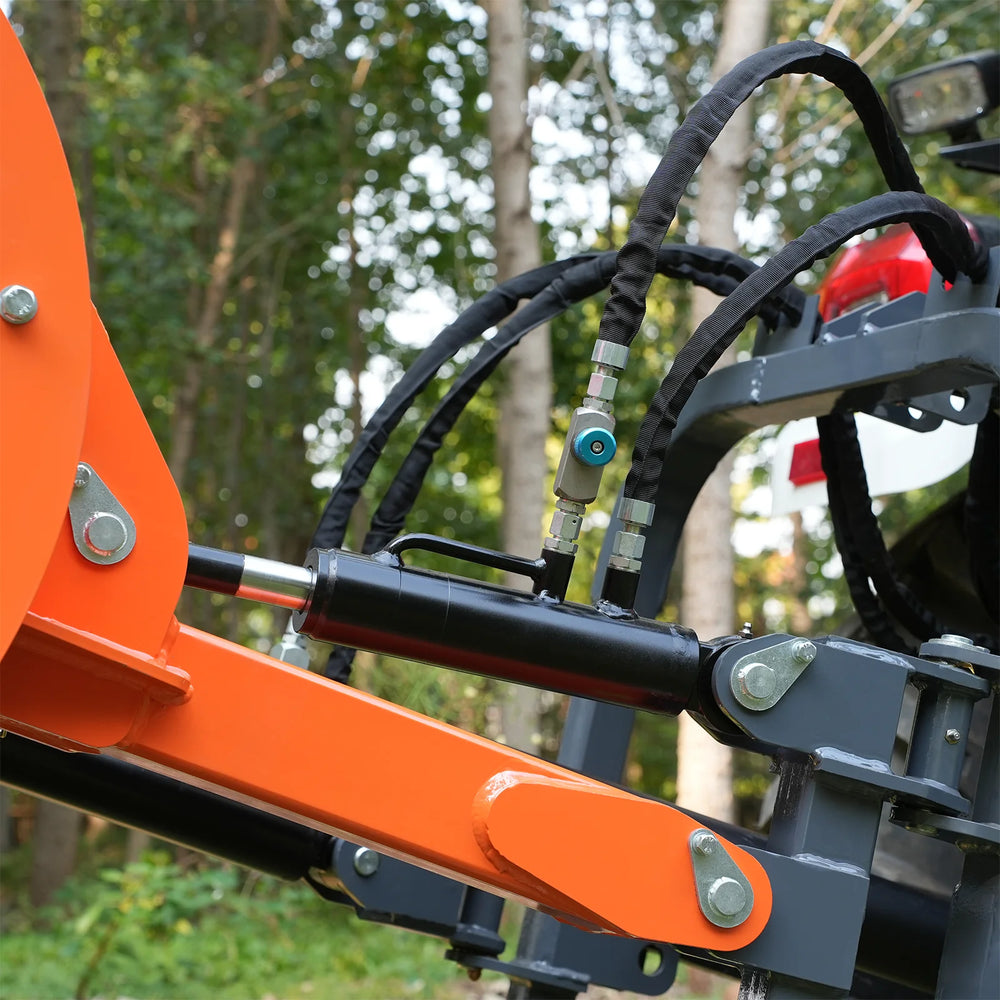

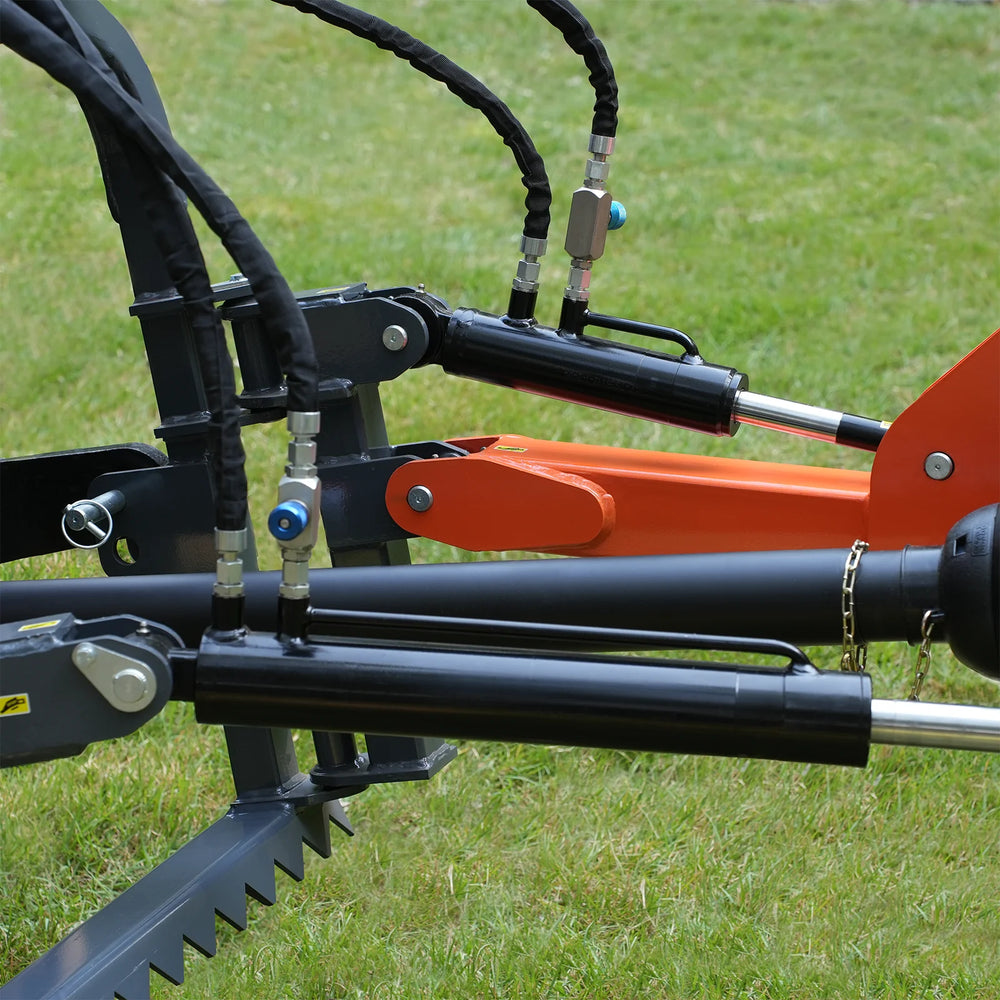

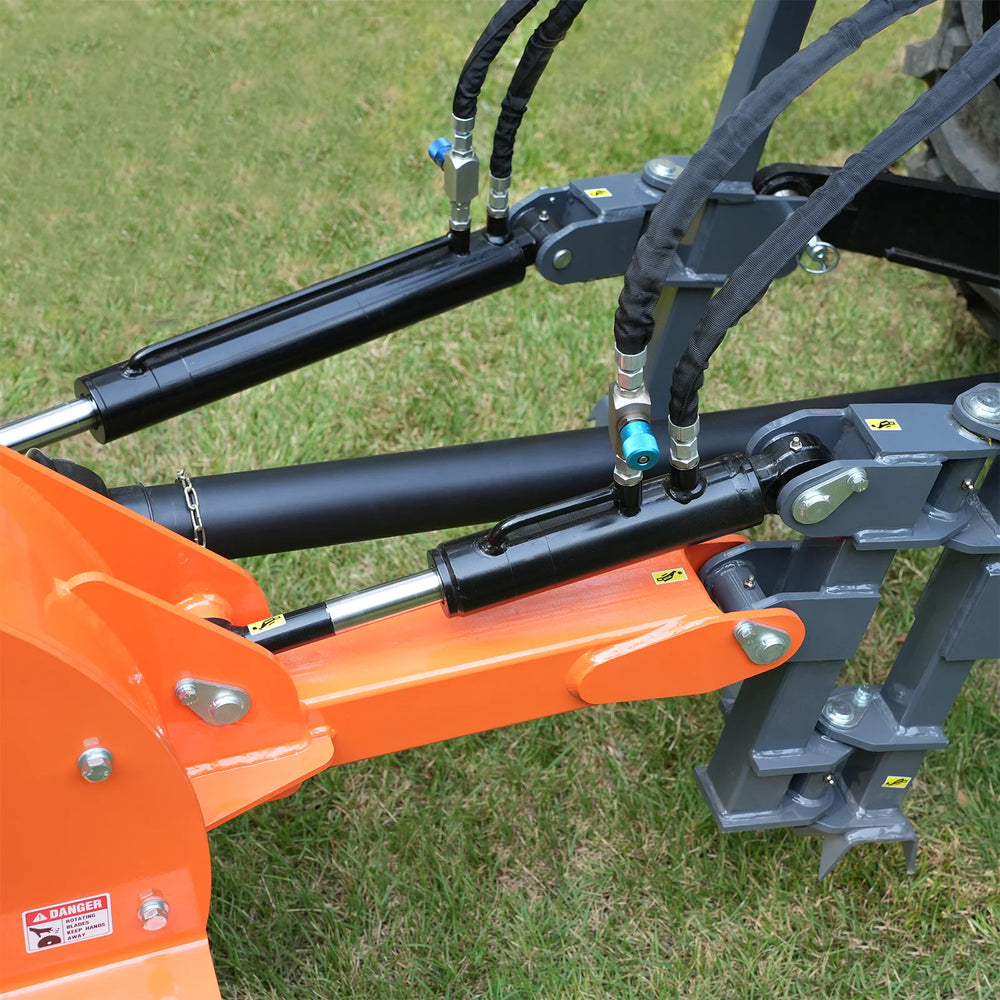

- Hydraulic Cylinder: Two hydraulic cylinders position the milling head with different cutting capabilities, which can be easily operated through the tractor cab.
- PTO Shaft: 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch. Compatible with reliable 540 rpm dedicated PTO drive power supply, ensuring efficiency and stable performance.
- PTO Required: Extremely sturdy stump grinder engineered to provide optimal performance when used with tractors with PTO power of 35-60HP.
- Cutting Height and Depth: Easily grinds above ground to a depth of 18 inches and underground to a depth of 12 inches to remove tree roots and prepare for grading or lawn.

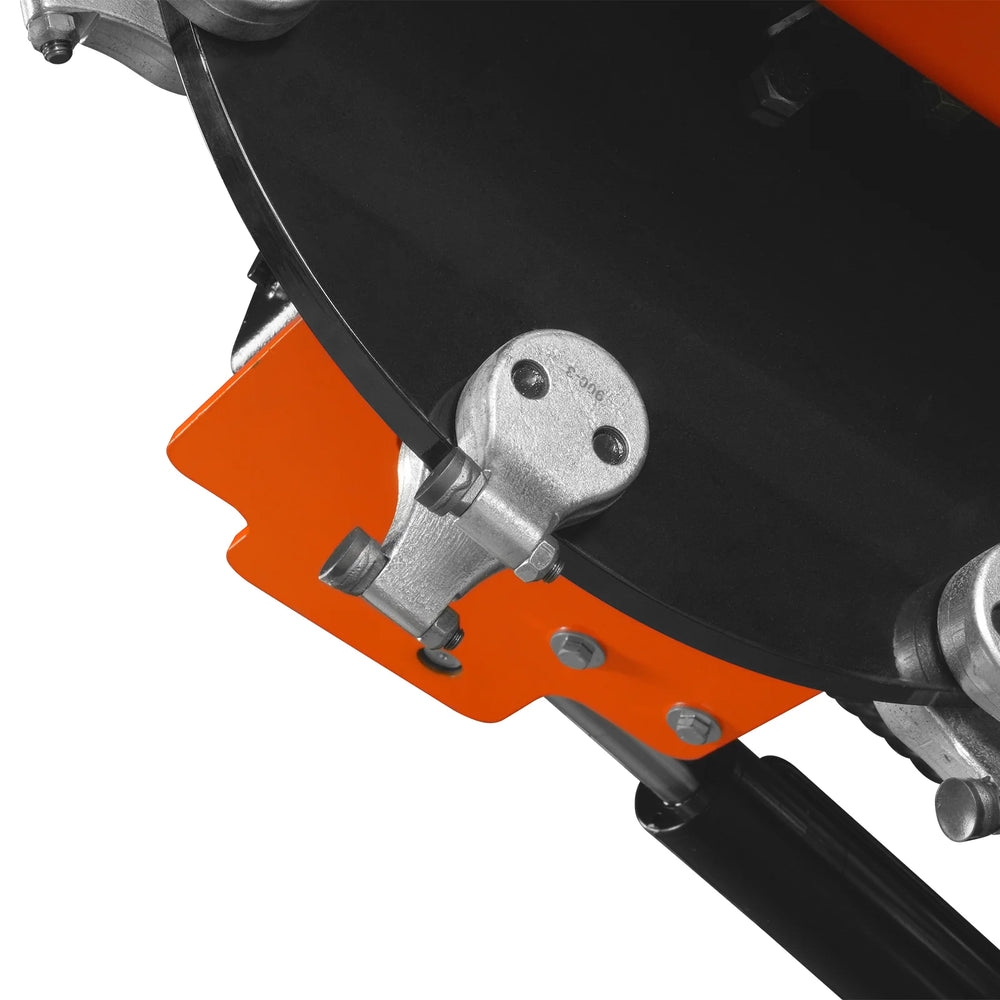

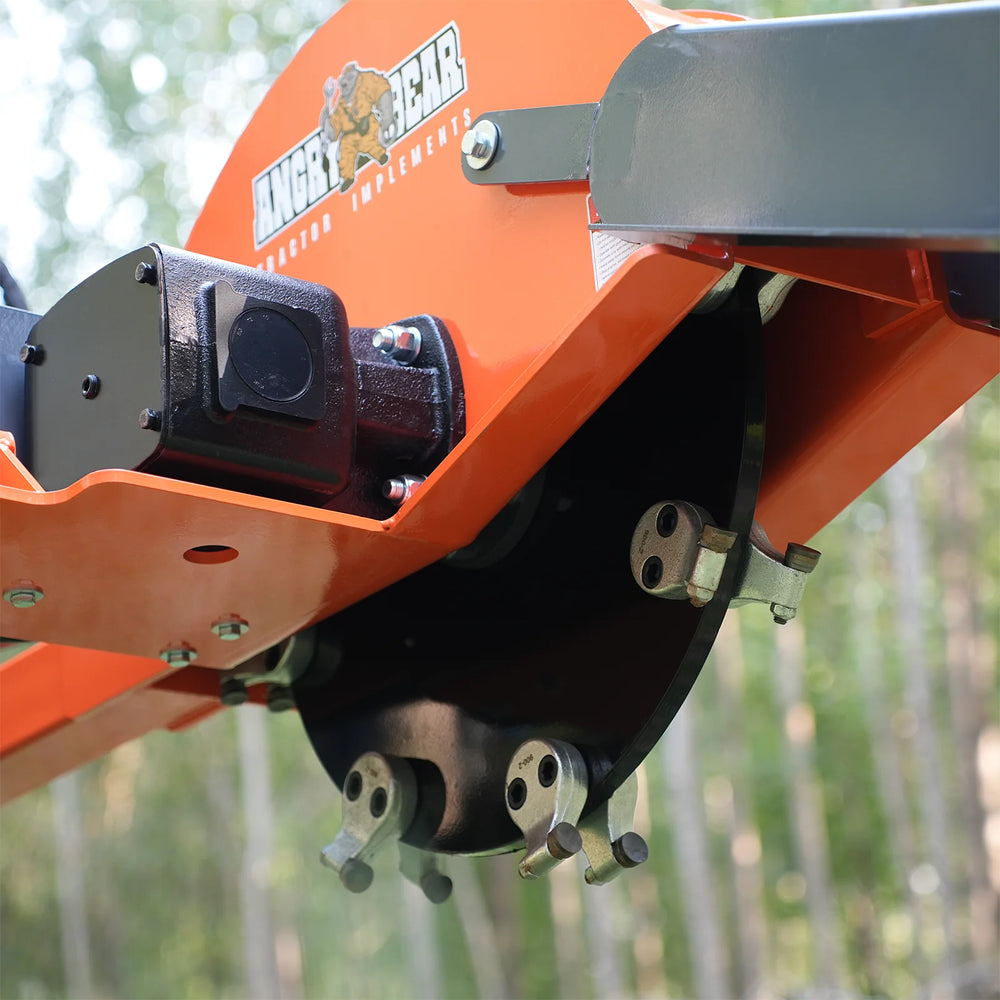

- 16 Carbide Steel Teeth: 16 carbide steel teeth housed in a 24-inch milling wheel designed to work under heavy working conditions while maintaining sharpness.
Specifications
| Engine Power Required | 35-60 HP |
| Cutting Depth Per Pass | 6 in |
| Hydraulic Flow Rate | 5-13 GPM |
| Swing Arc | 40° |
| Rotor Size | 24 in |
| Cutting Direction | Horizontal and vertical |
| Carbide Steel Bolt-On Teeth | 16 (Replaceable) |
| 3-Point Hitch | Category 1& 2 |
| Required PTO Speed | 540 RPM |
| PTO Shaft | 05B-LF-1600 With Slip Clutch 63-77 in |
| Hydraulic Hose Length | 6.6 ft |
| Dimensions (L x W x H) | 67 x 40 x 41in |

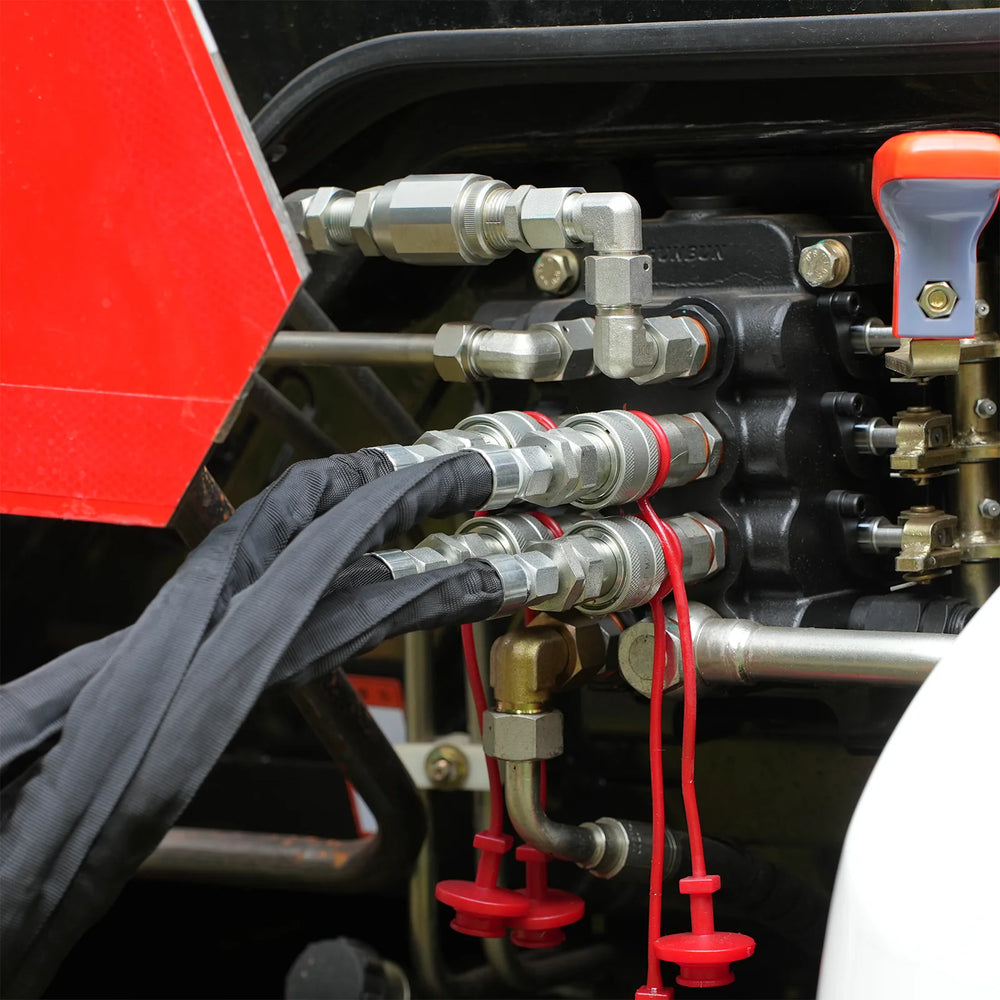

| Hydraulic Fittings Size | G1/2 in |
| Finish | Powder Coat Paint Galvanized Steel |
| Cutting Height Above | 18 in |
| Cutting Depth Below | 12 in |
| Weight (N.W./G.W.) | 635/778 lbs |
