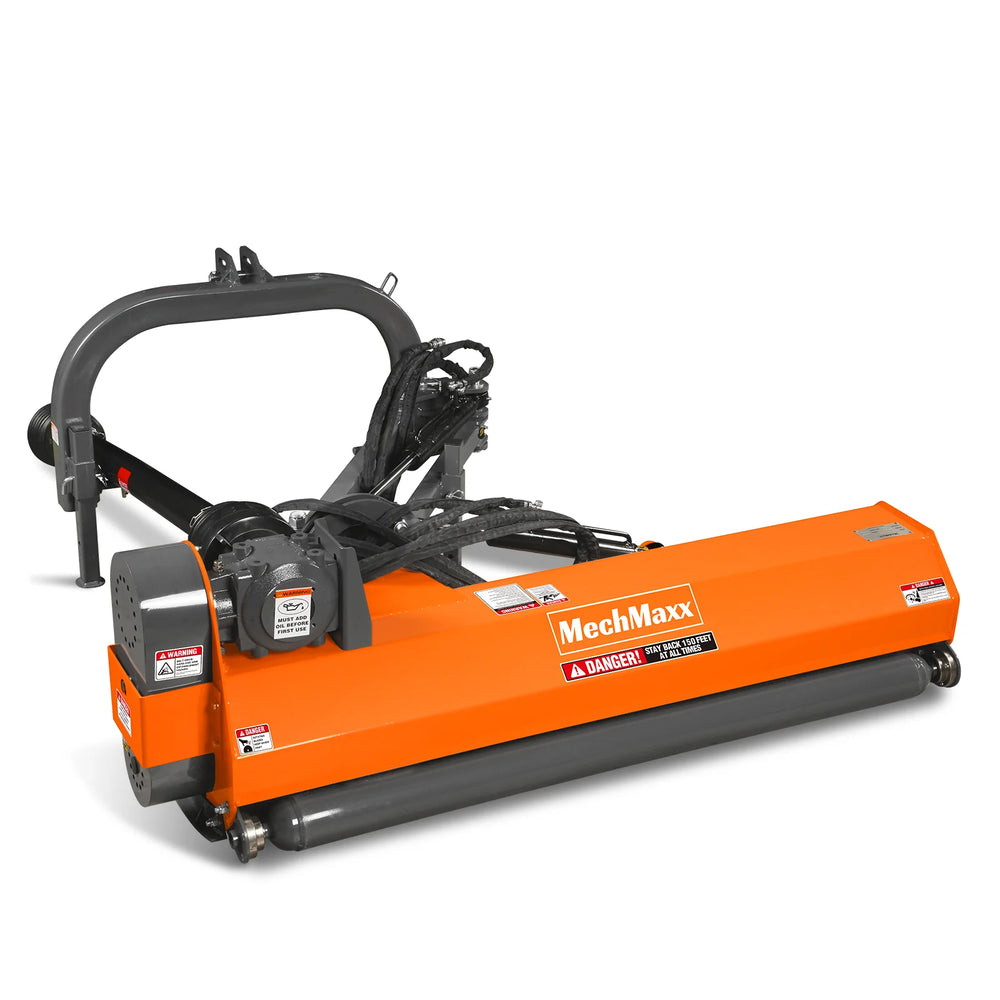

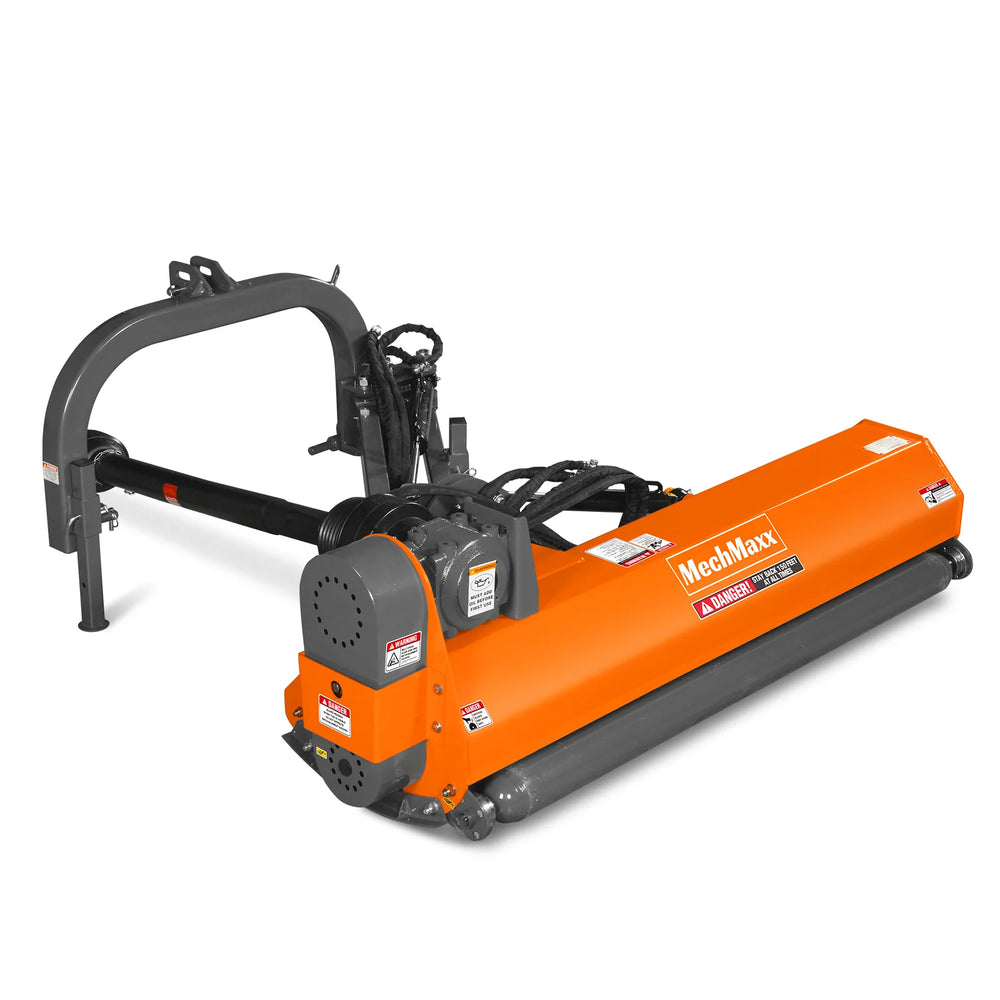

MechMaxx VAM 65 Flail Mower 65" Standard 3 Point Offset Ditch Bank 30-60HP New
Manufacturer: MechMaxx
SKU: 150145
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 2,999.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

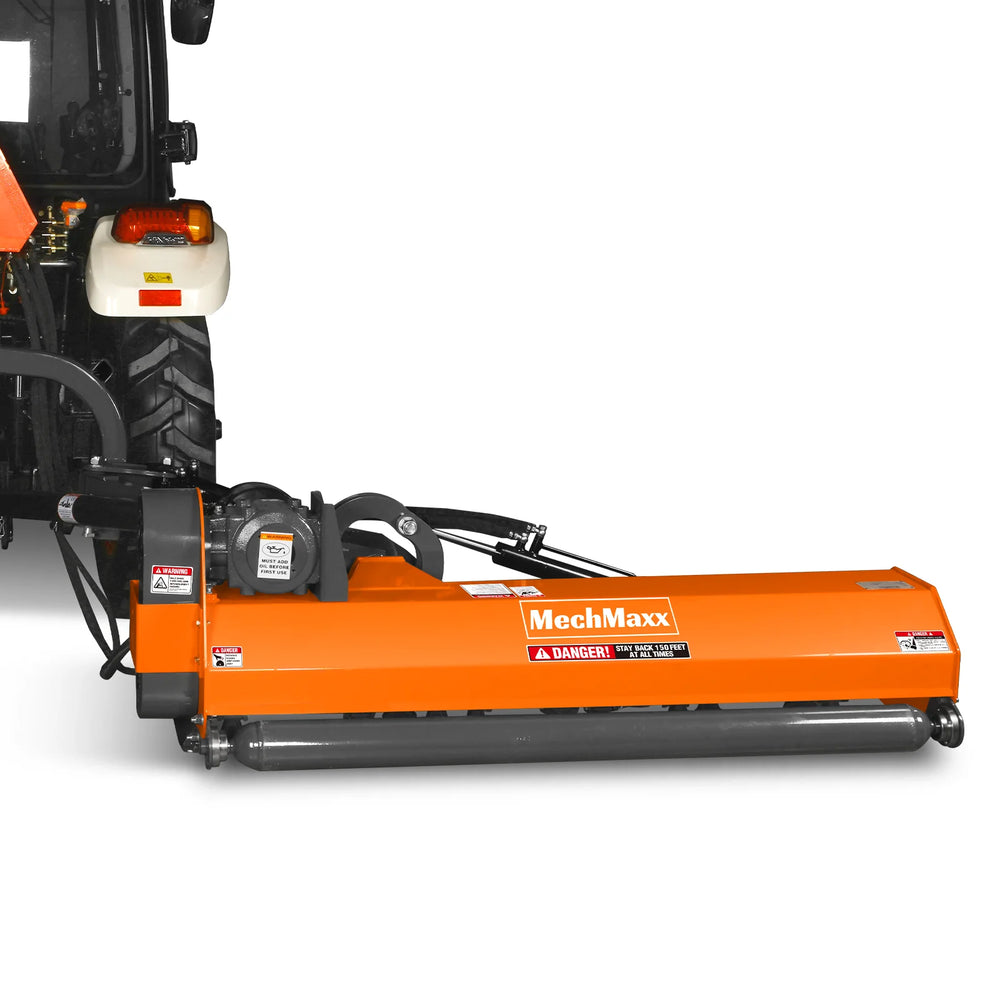

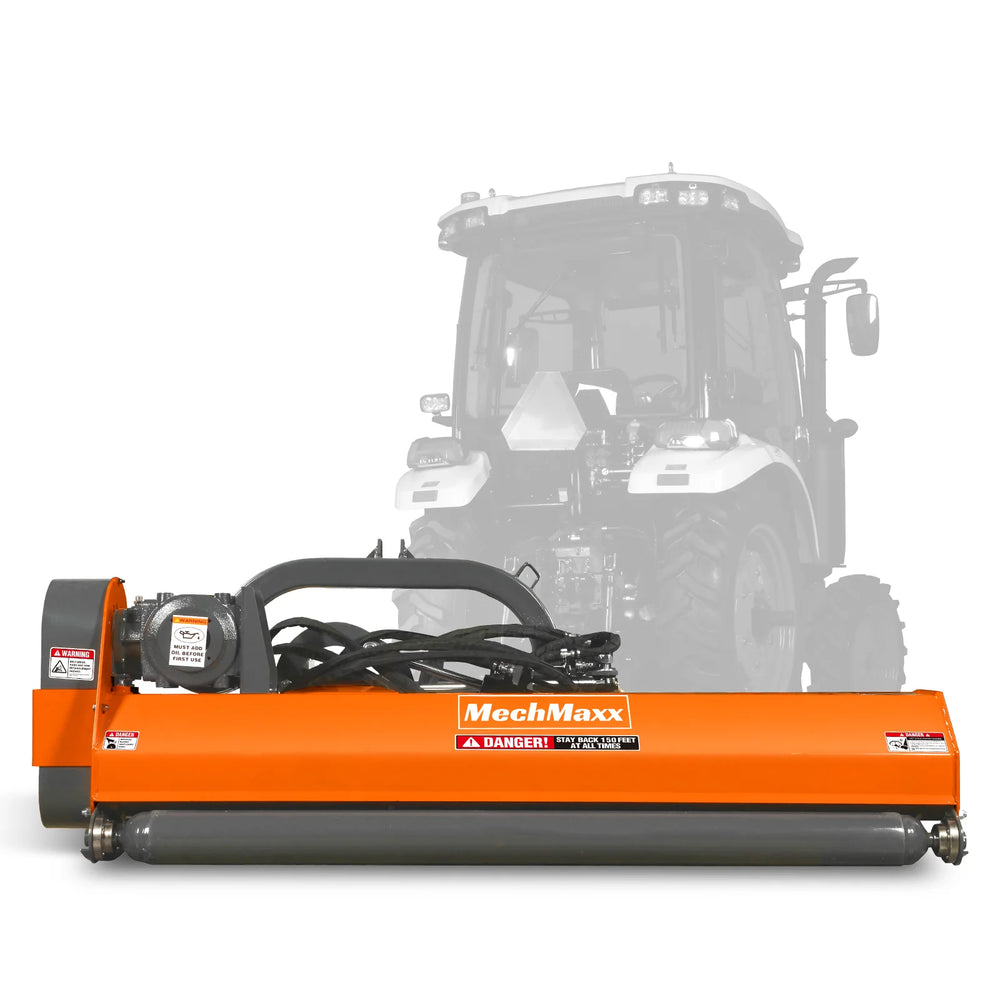

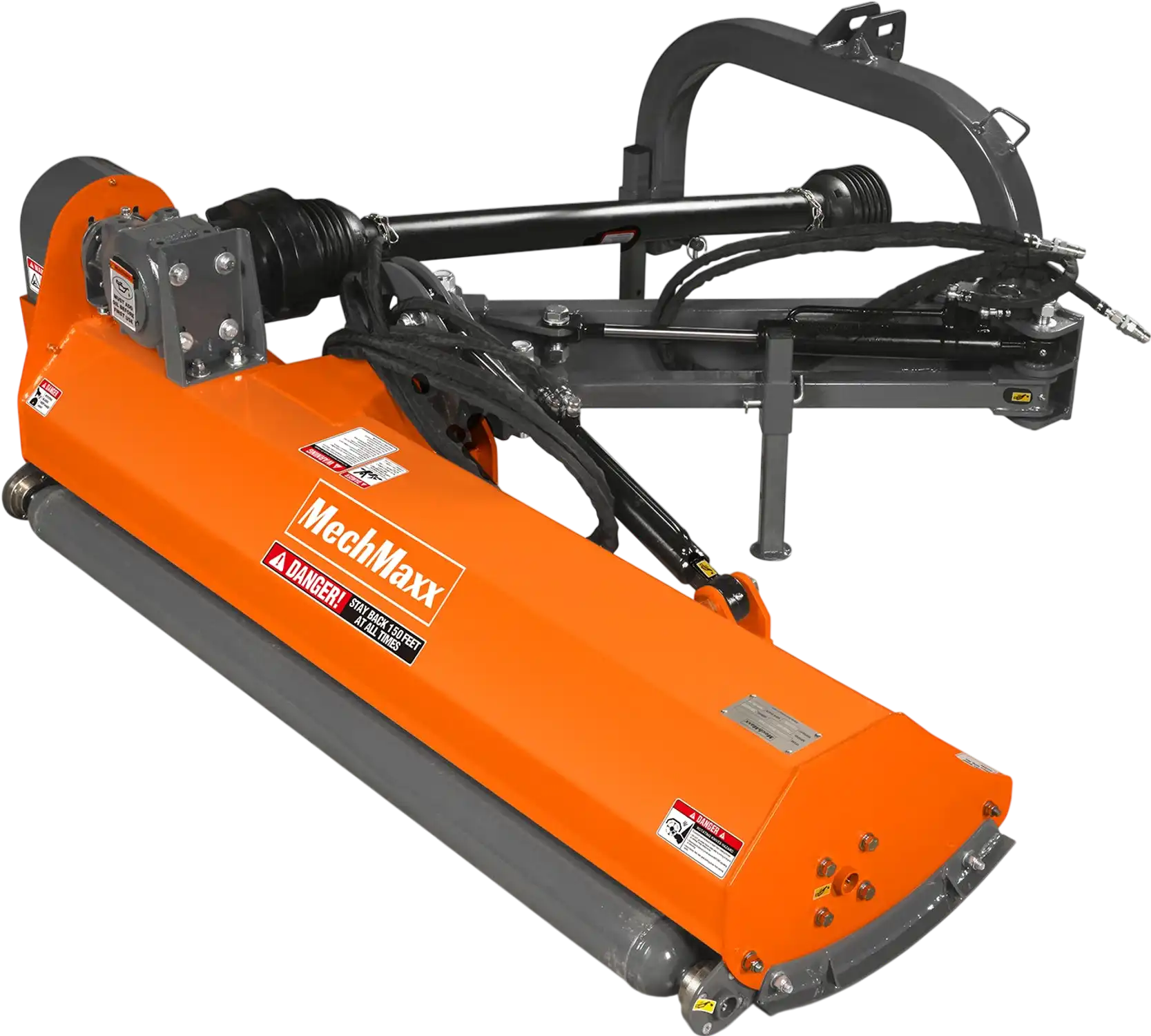

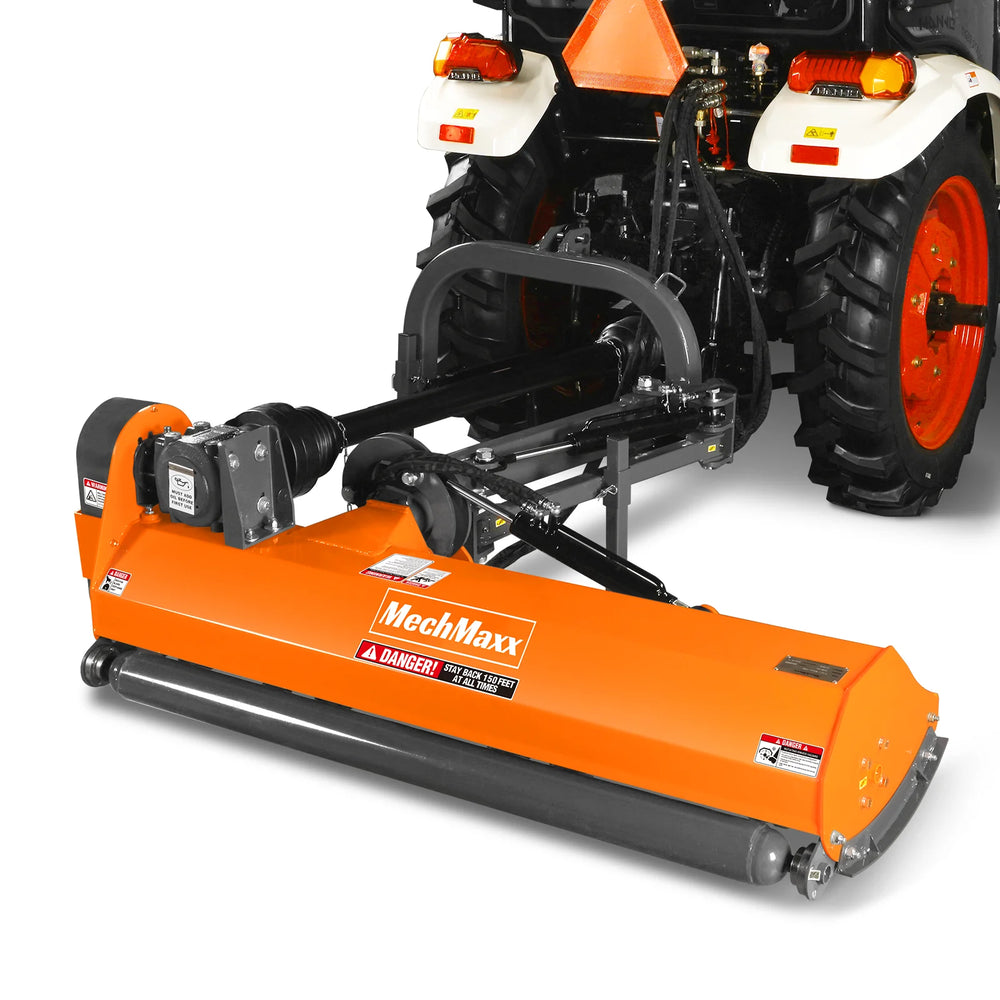

MechMaxx VAM 65 Flail Mower 65" Standard 3 Point Offset Ditch Bank 30-60HP New
Product Overview
- It can save time and economically cut plants in larger areas.
- The attachment has a flail hammer to help the mower push through dense debris.
- The included PTO drive shaft easily connects to your tractor and the belt drive allows for efficient power transfer.
- Offset category 1, 3 point knot
- It is recommended for 30-60 HP tractors.

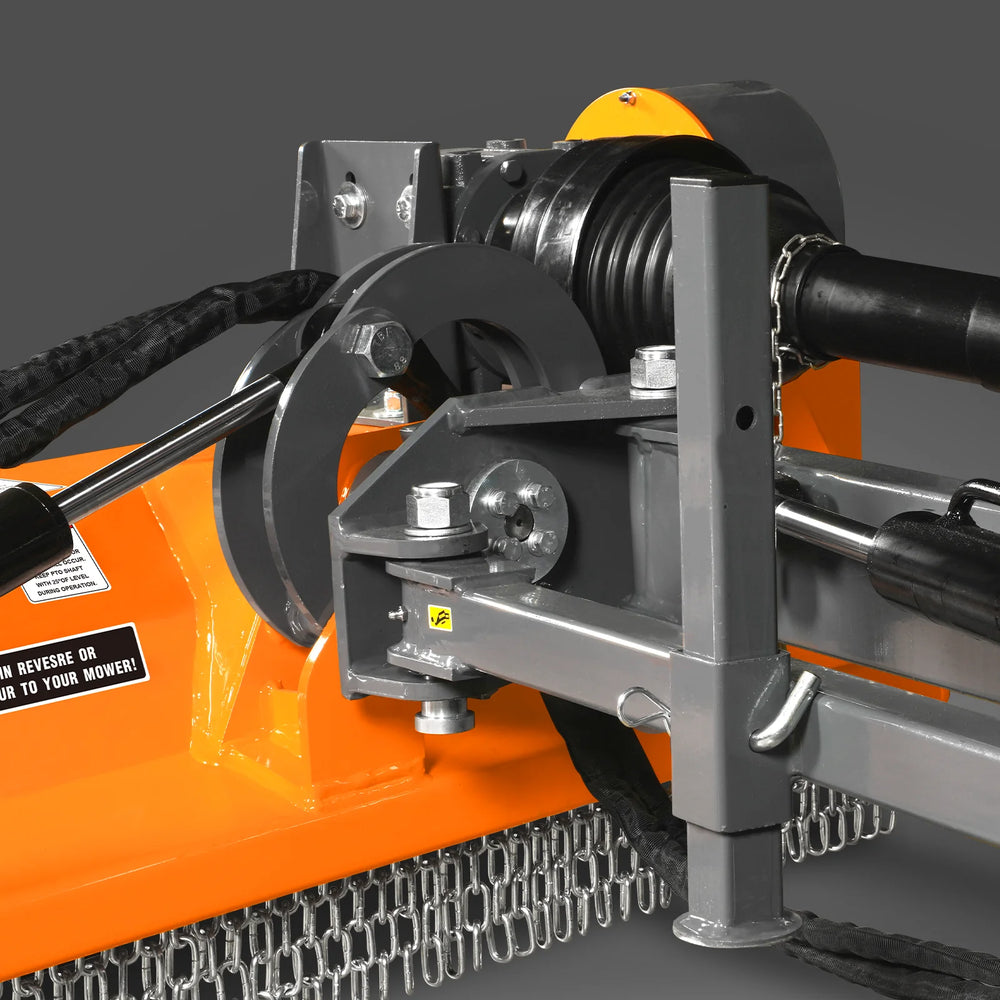

- Front safety chains keep out debris, sealed tapered roller bearings, and have brackets for easy storage when not in use.
- The VAM can only cut green or tender grass; it cannot cut tall grass, shrubs, vines, or thorny brambles.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

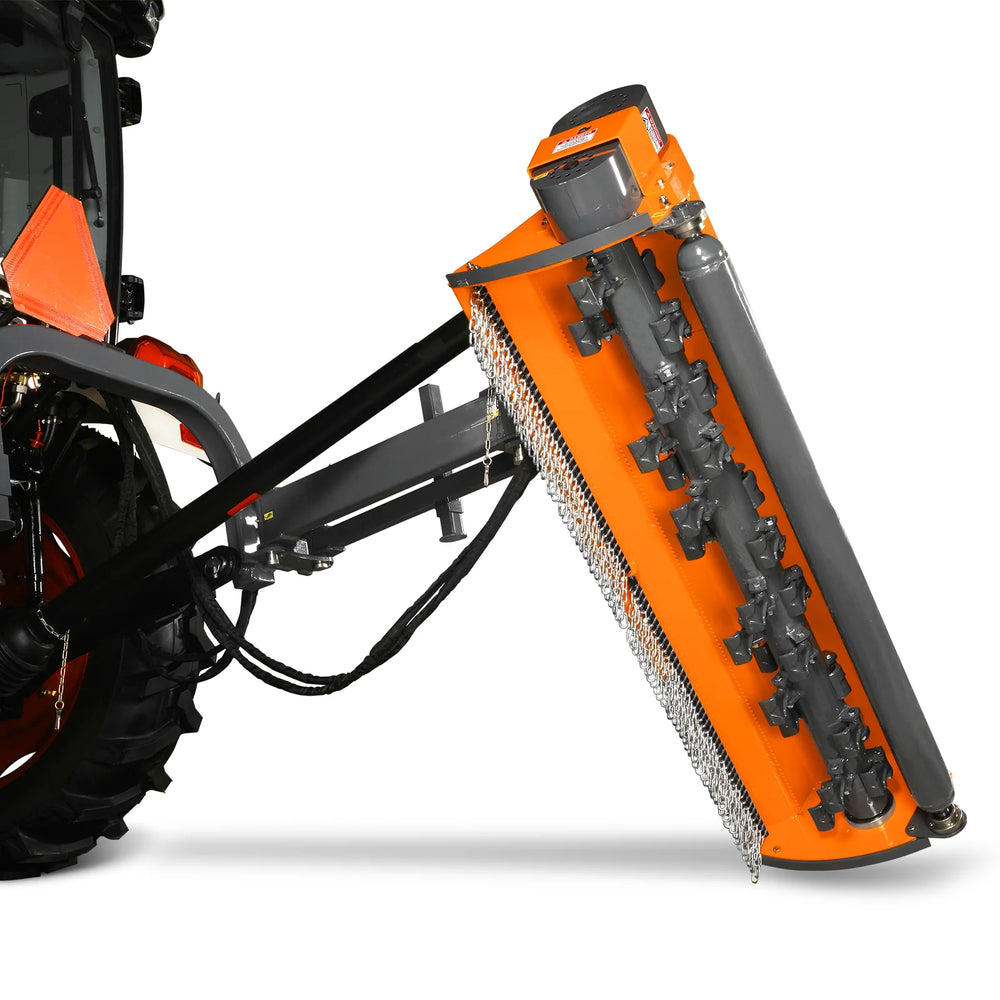

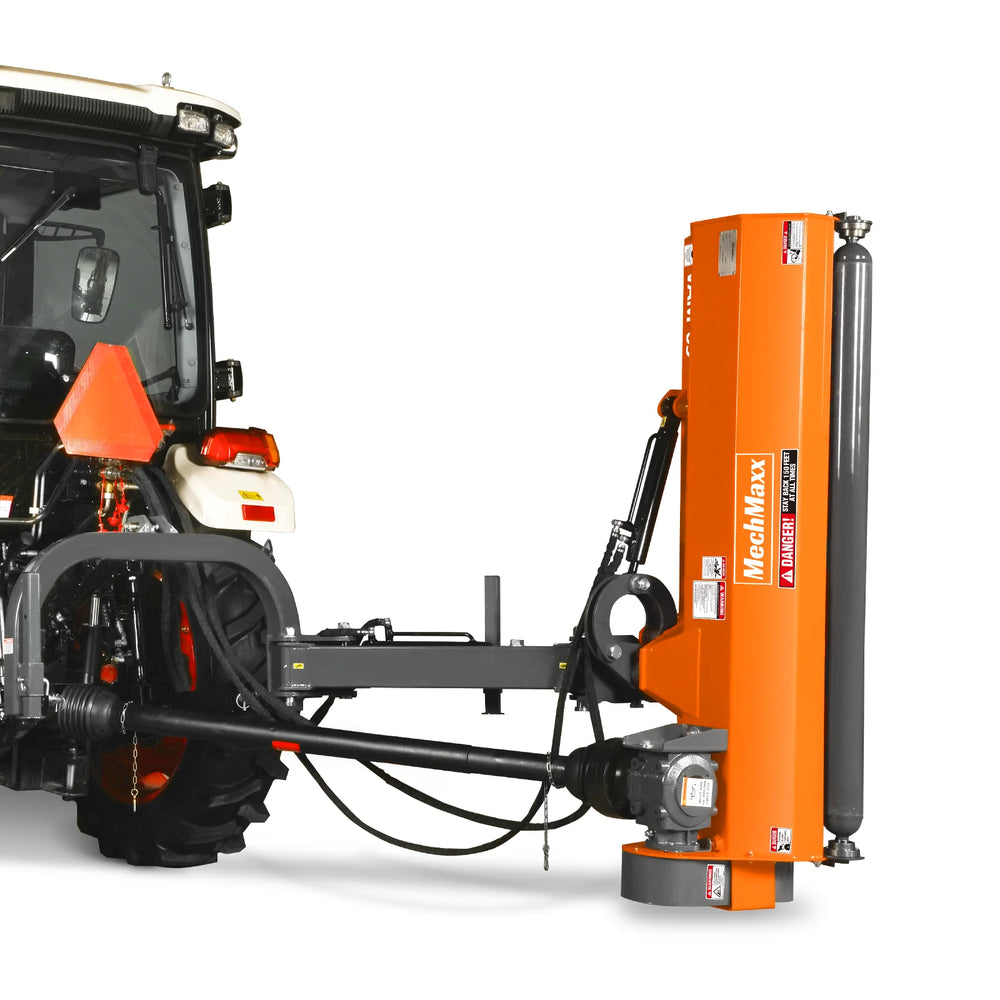

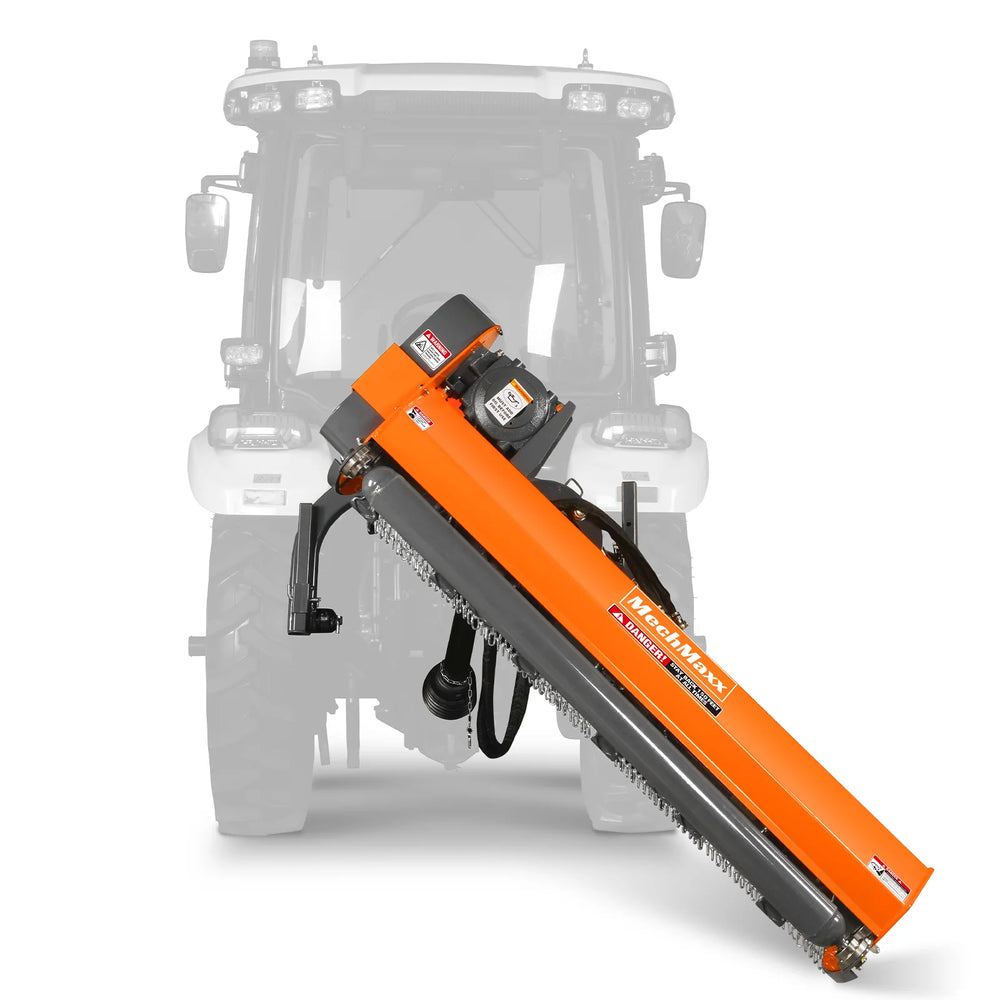

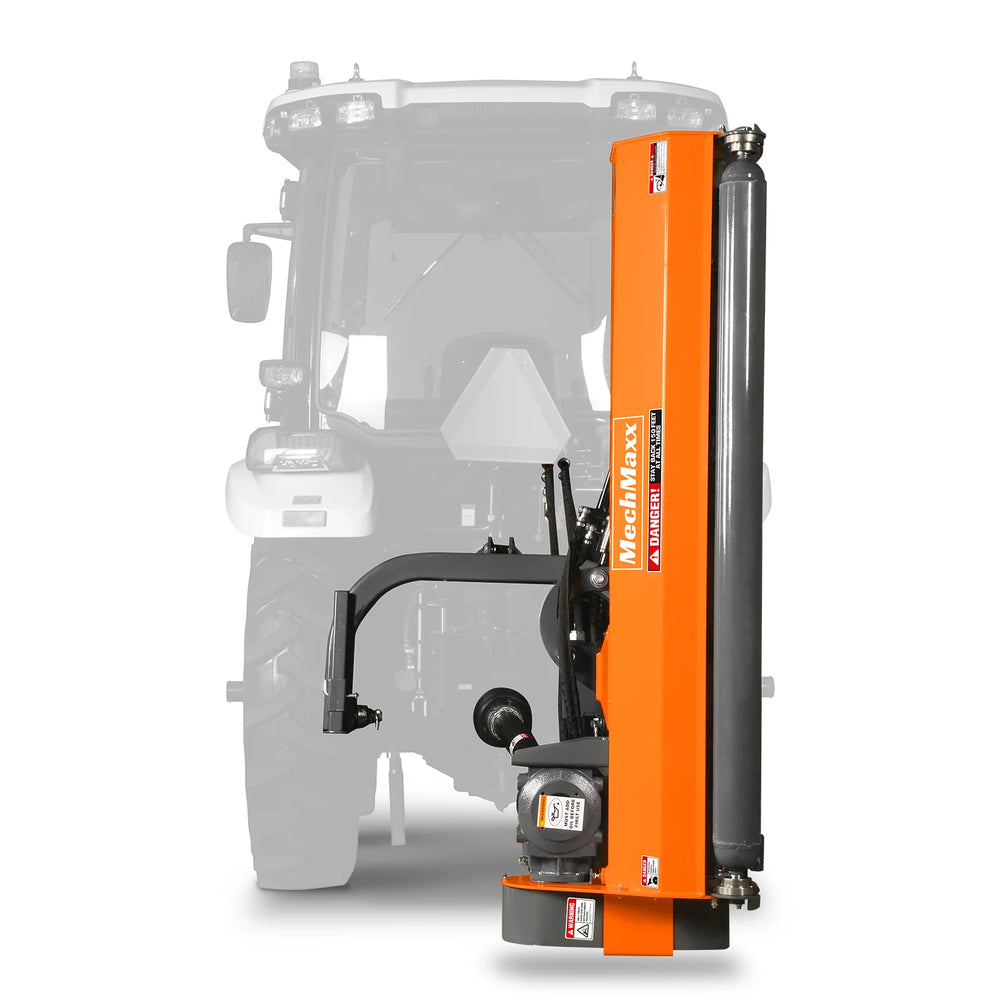

- Rotation Angle: Hydraulically controlled with 60°Tilt-Down Angle and 90°upwards tilt for versatile cutting capabilities
- PTO shaft(1- 3/8’’ Z6): Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T6-LF-63'' with shear bolt ; 63''-77''

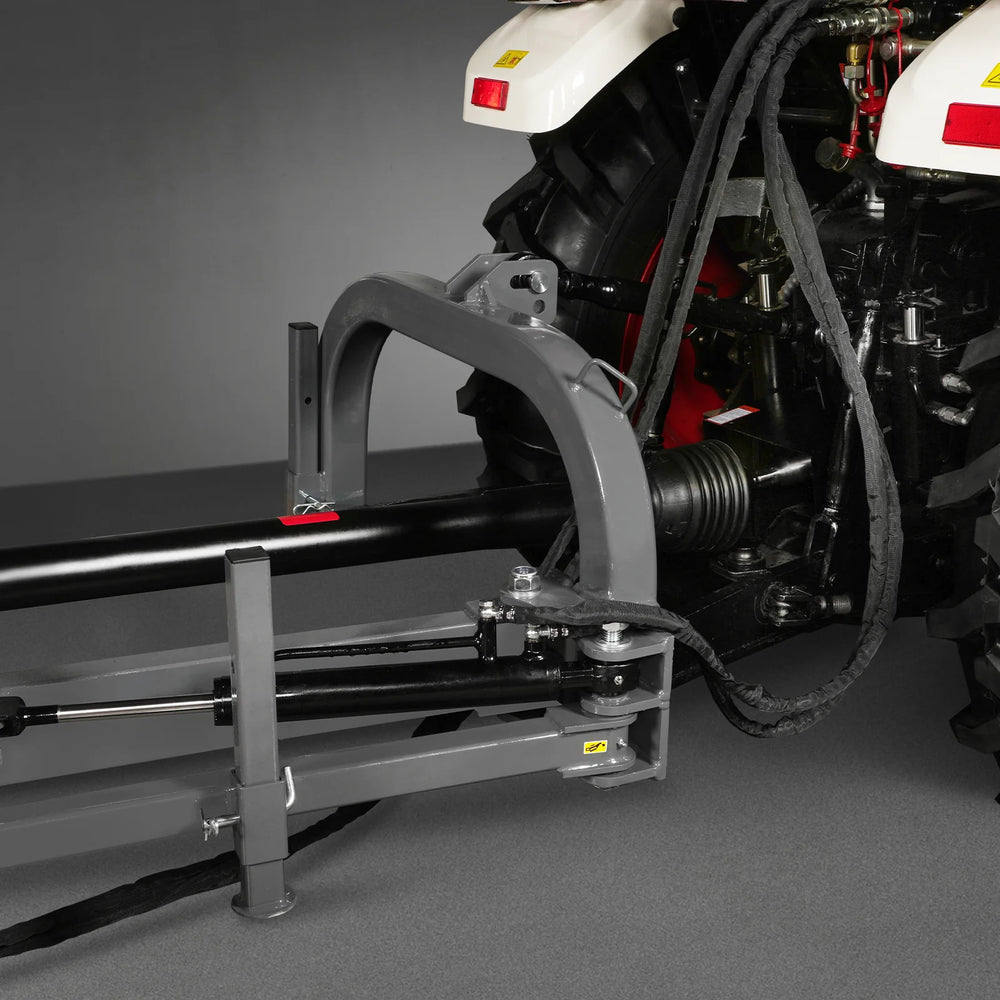

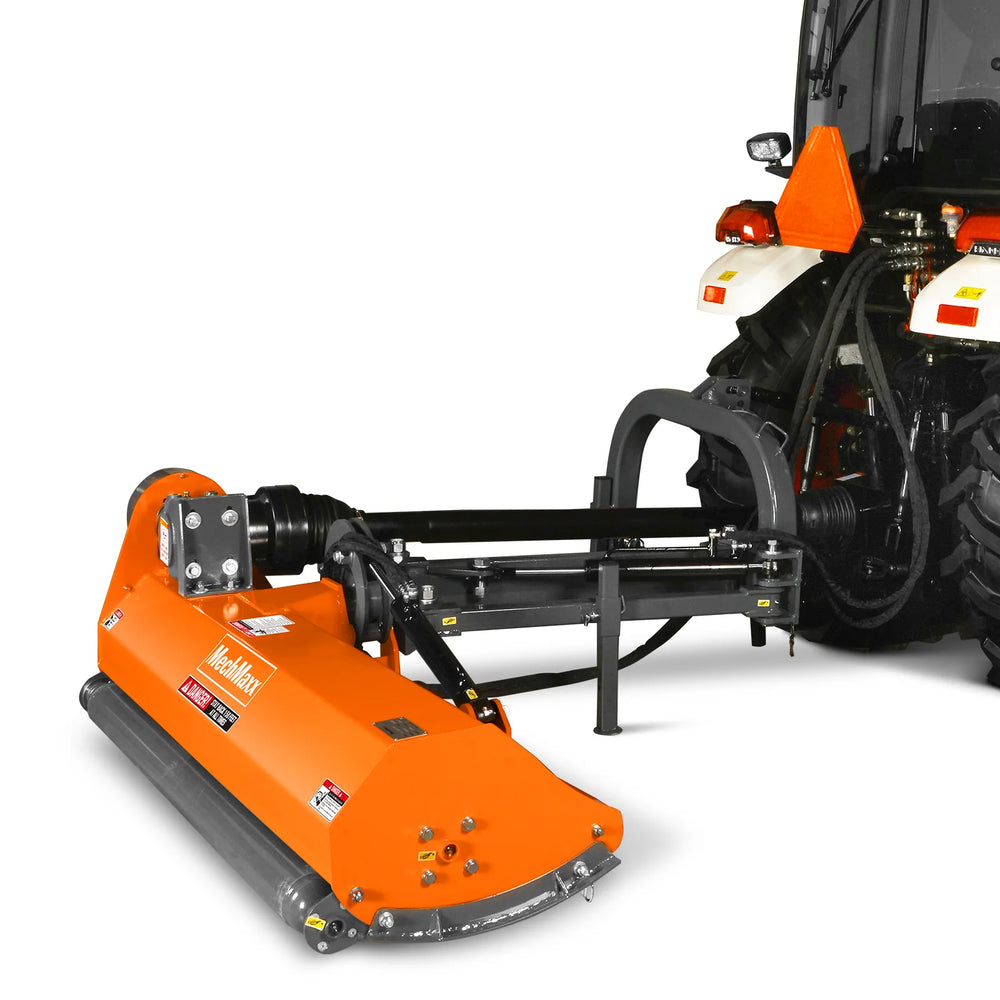

- Side Movement: Hydraulically controlled side to side movement & right side offset, adjustable cutting direction to cut distant overgrown areas.
Specifications
| Engine Power Required | 30-60 HP |
| Rotor Shaft Speed | 2356 rpm |
| Working Width | 65in |
| Hydraulic Fittings Size | G1/2 in |
| Overall Width | 72in |
| Hydraulic Hoses Quantity | 4 |
| Ground Clearance (Two Gears) | 0.5-0.6in |
| Drive Type | Belt Drive |
| Max. Cutting Diameter | Depends On The Type Of Grass |
| Spline End | 1.375in Z6 |
| Offset Distance From The Center (Maximum) | 85in |
| Driveline Shaft Length | T6-LF-63 With Shear Bolt ;63-77 in [05B-1600] |
| Tilt-Up Angle | 90° |
| PTO Shaft Speed | 540 rpm |
| Tilt-Down Angle | 60° |
| 3-Point Hitch | CAT 1 |
| Number Of Blades | 28 |
| Deck Thickness | 0.16in |
| Blade Type | Hammer |
| Side Plate Thickness | 0.25in |
| Size of Blades | 3.5 x 3.2 x 1.6in |
| Number of Belts | 3 |
| Blade Weight | 0.9 lbs |
| Belt Size | V Belt 17 x 991 |
| Blade Material | Cast Steel |

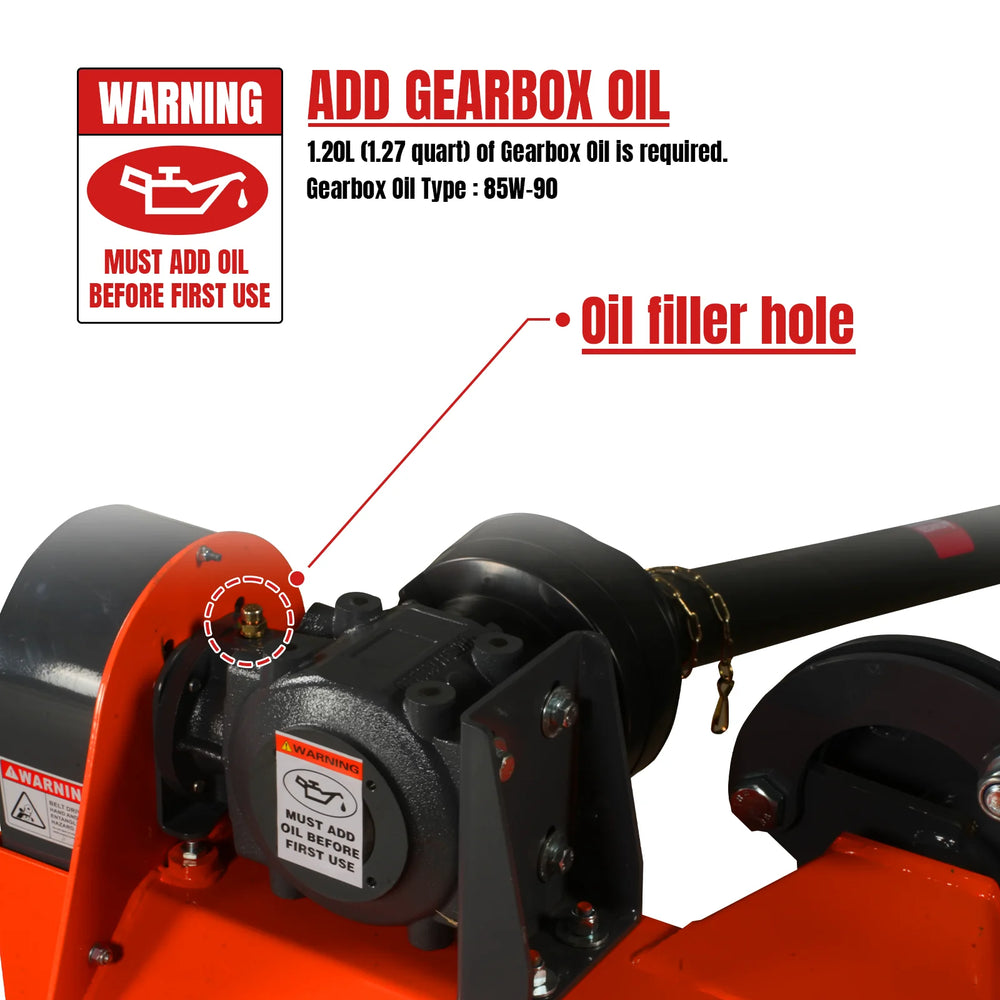

| Gearbox 0il Type | 85W-90 |
| Rotor Bearing | SKF Bearing |
| Dimensions (L x W x H) | 72 x 27.5 x 28 in |
| Rotor Diameter | 4.3in |
| Finsh | Powder Coating |
| Blade Swing Diameter | 14in |
| Rotor Thickness | 0.3in |
| Weight (N.W./G.W.) | 701/820 lbs |
Warranty
This item comes with a 1 year factory warranty.
