MechMaxx VAM72 Flail Mower 72" Heavy Duty Offset Ditch Bank 90° Tilt 70-100 HP Tractor 3-Point Hitch PTO Driven New
Product Overview

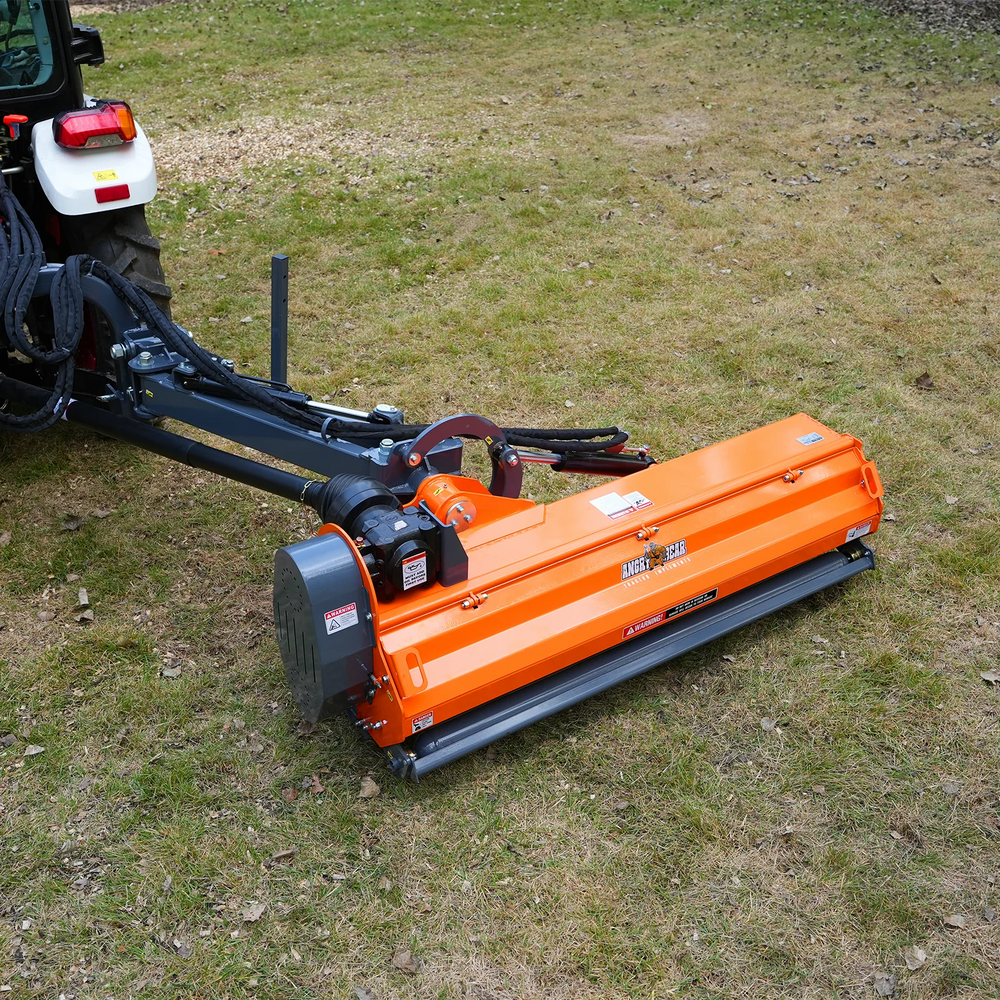

Our bank mowers are built to efficiently handle overgrown grass on ditches and embankments.

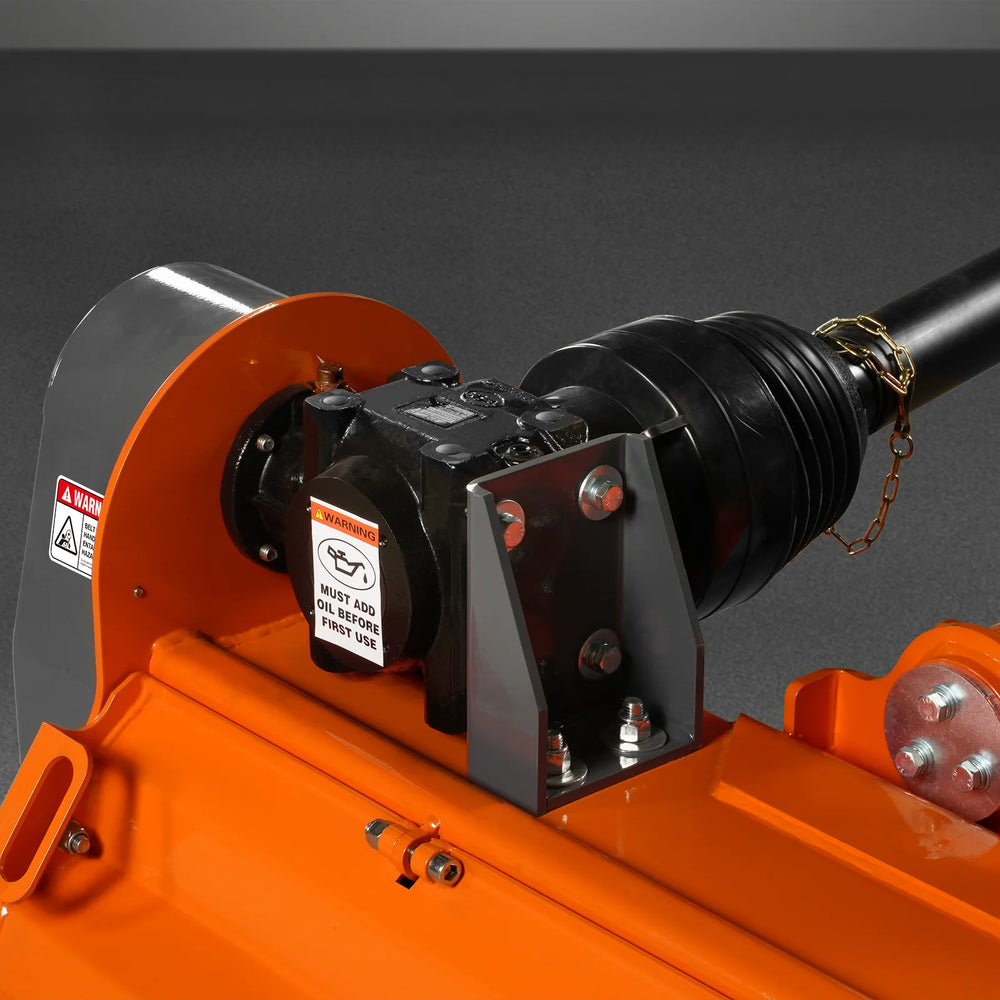

Powered by a 65HP gearbox for consistent performance, Equipped with forged hammer flail blades, Includes an adjustable rear opening panel for convenient maintenance accessthese mowers can cut and mulch material up to 3" in diameter in one pass. The finely shredded cuttings act as a fast-decomposing, micronutrient-rich fertilizer, nourishing your land. The trimmings drop directly to the ground, reducing debris. Plus, an adjustable rear roller provides precise cutting height control, ensuring a clean, even cut on uneven terrain.

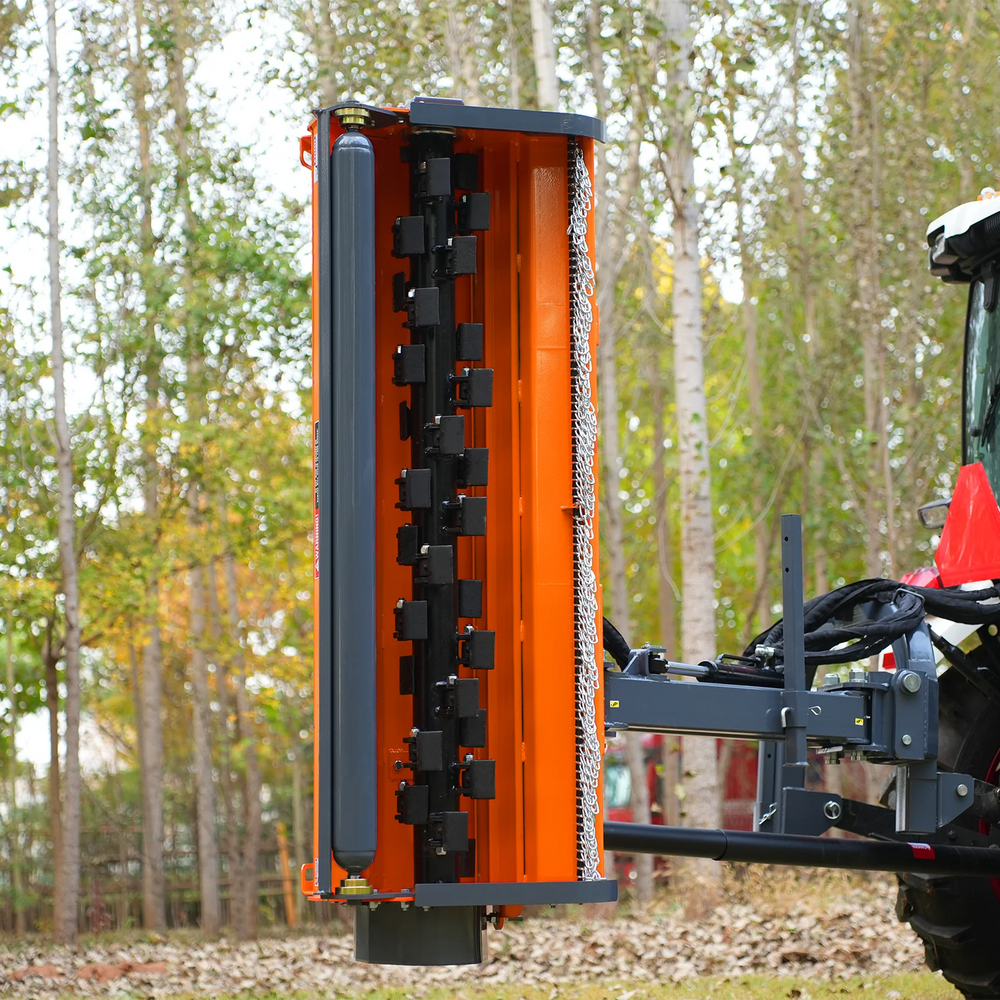

The 72" model, built for Category 2 tractors, pivots 90 degrees up and 55 degrees down, delivering a precise, clean cut every time. PTO shaft w/safety pin; dynamically balance tested for safe and reliable operation
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features
- Rotation Angle: Hydraulically controlled with 55°Tilt-Down Angle and 90°upwards tilt for versatile cutting capabilities.

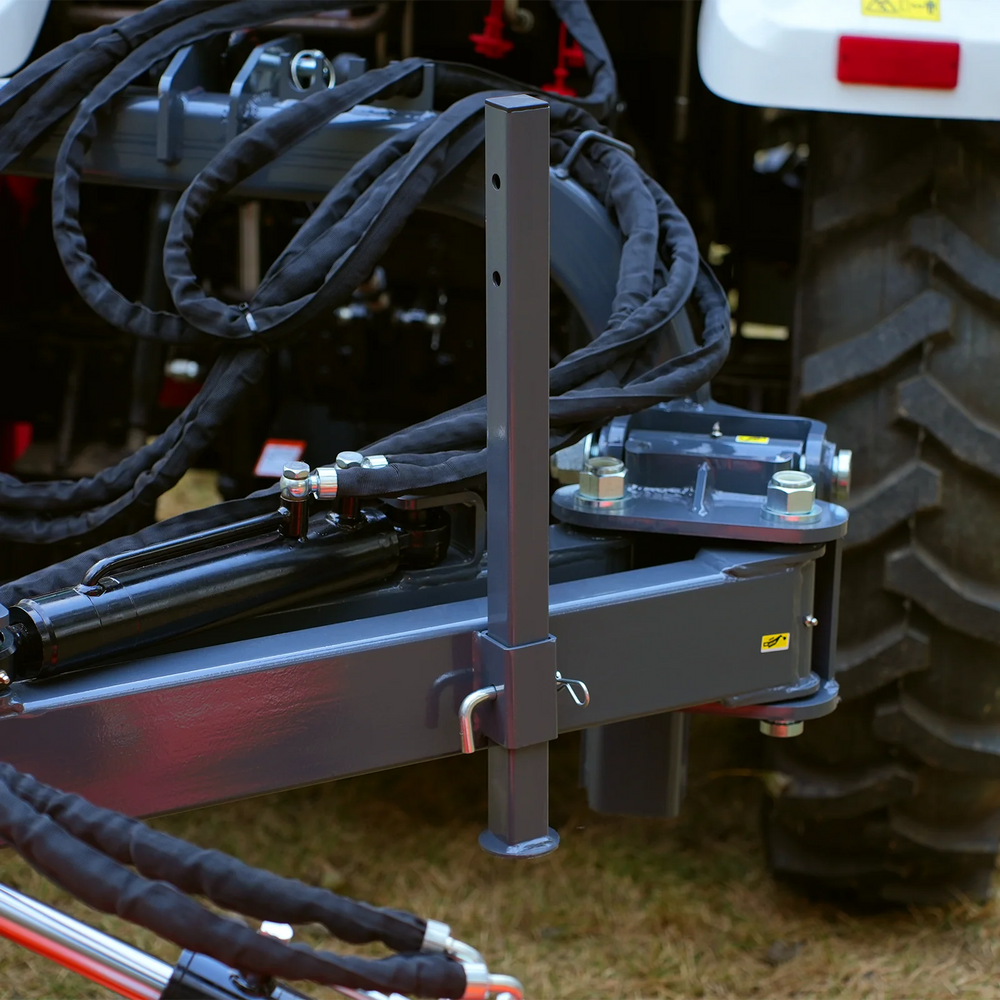

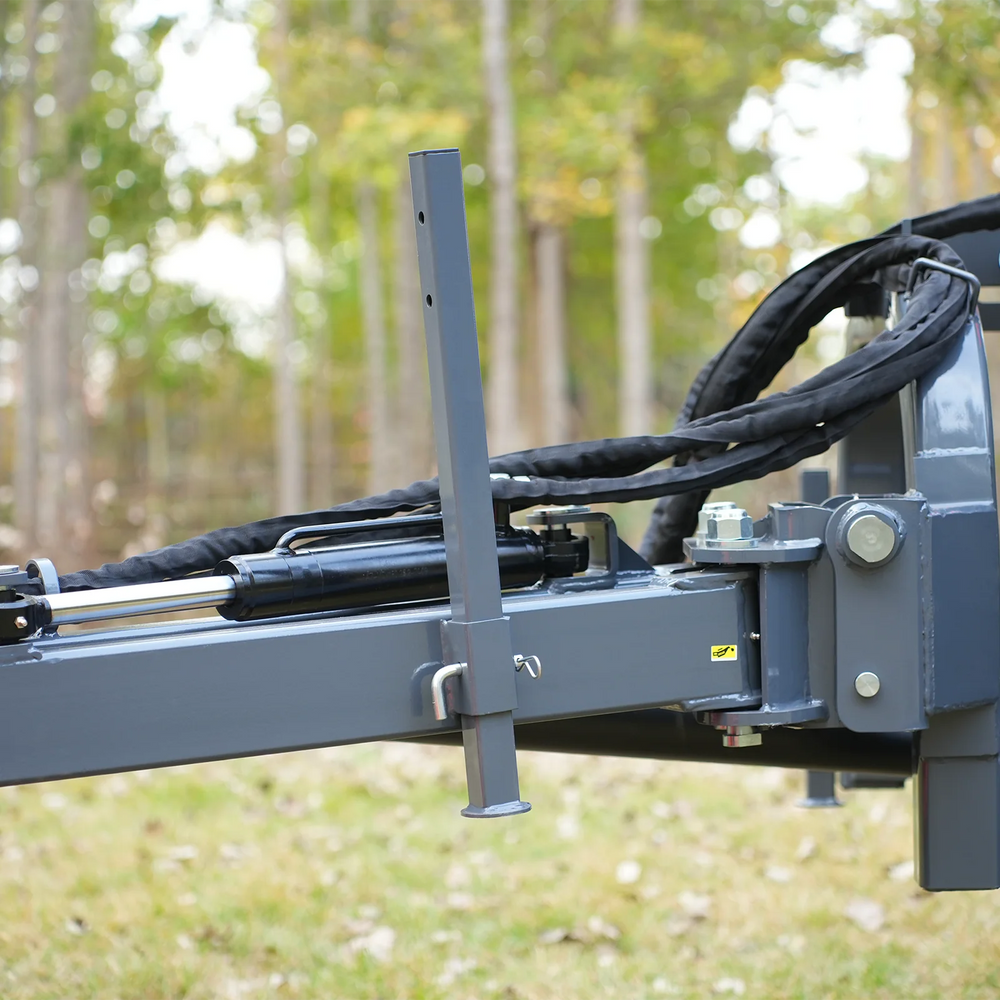

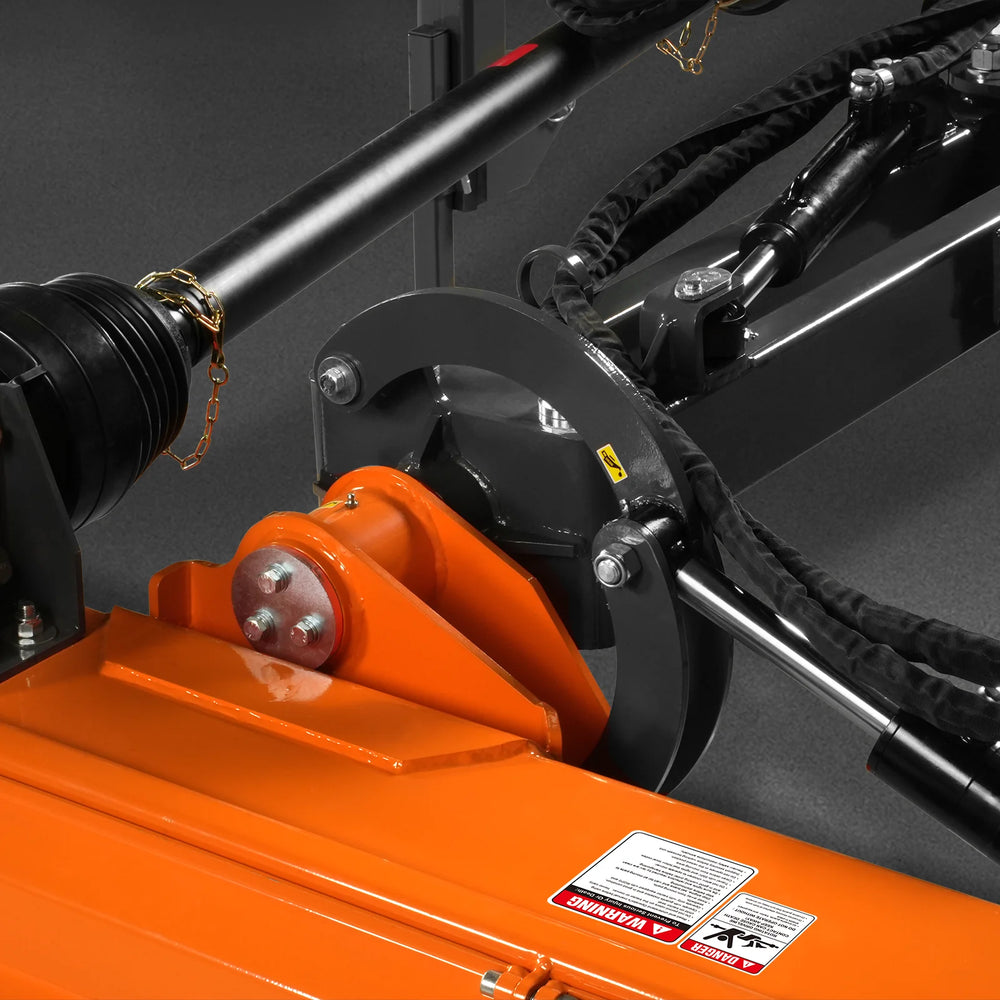

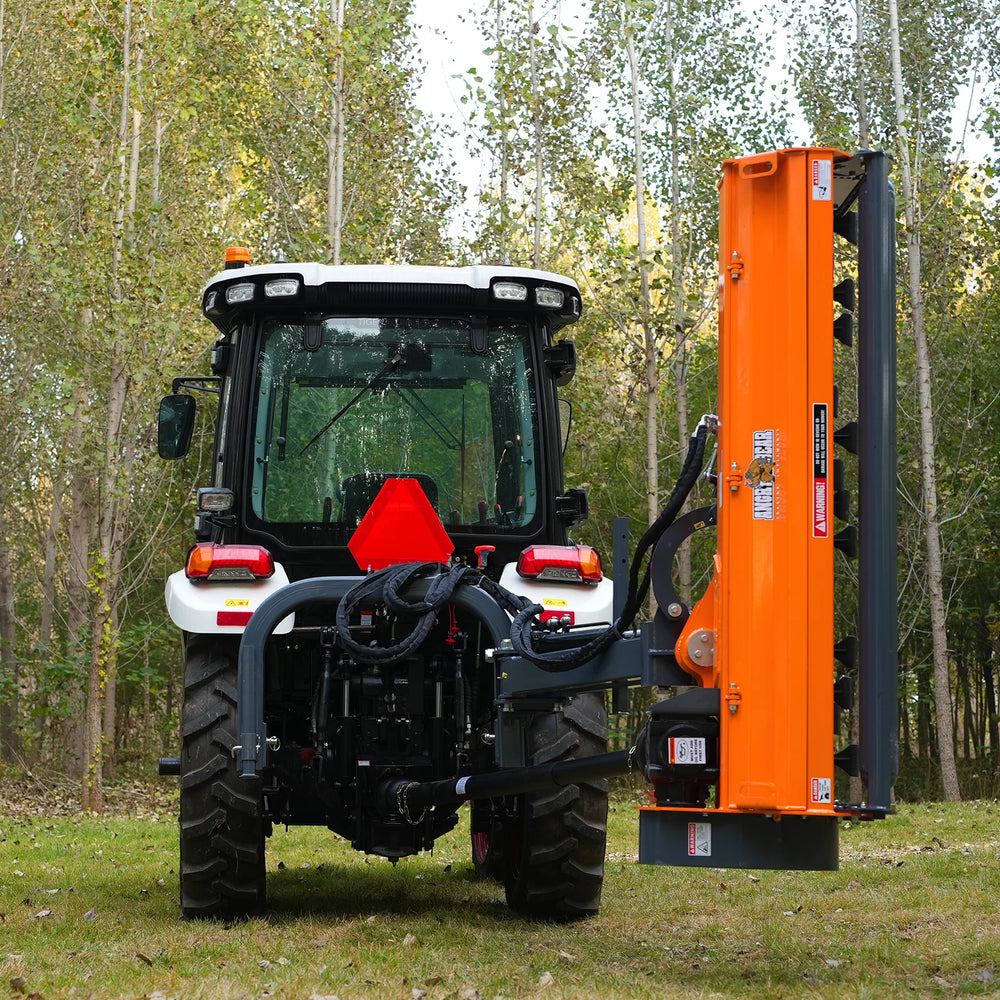

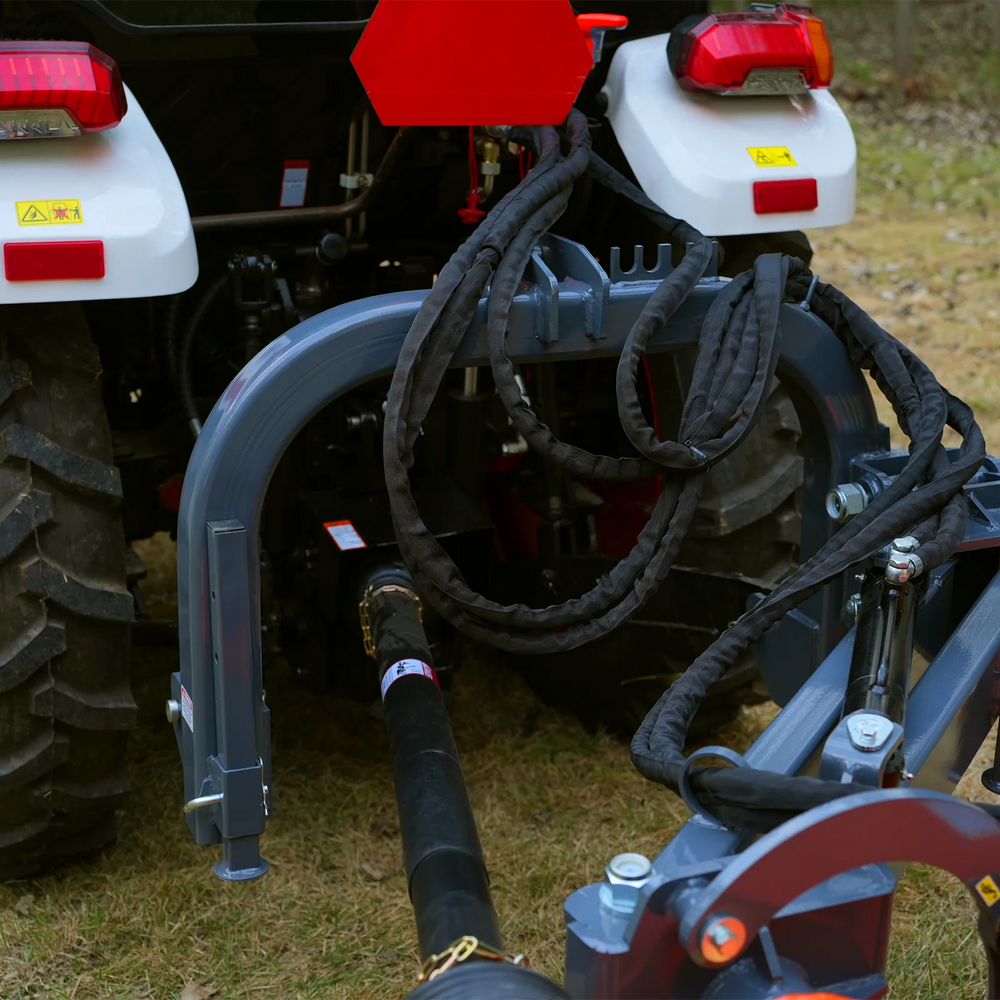

- Side Movement: Hydraulically controlled side to side movement & right side offset, adjustable cutting direction to cut distant overgrown areas.

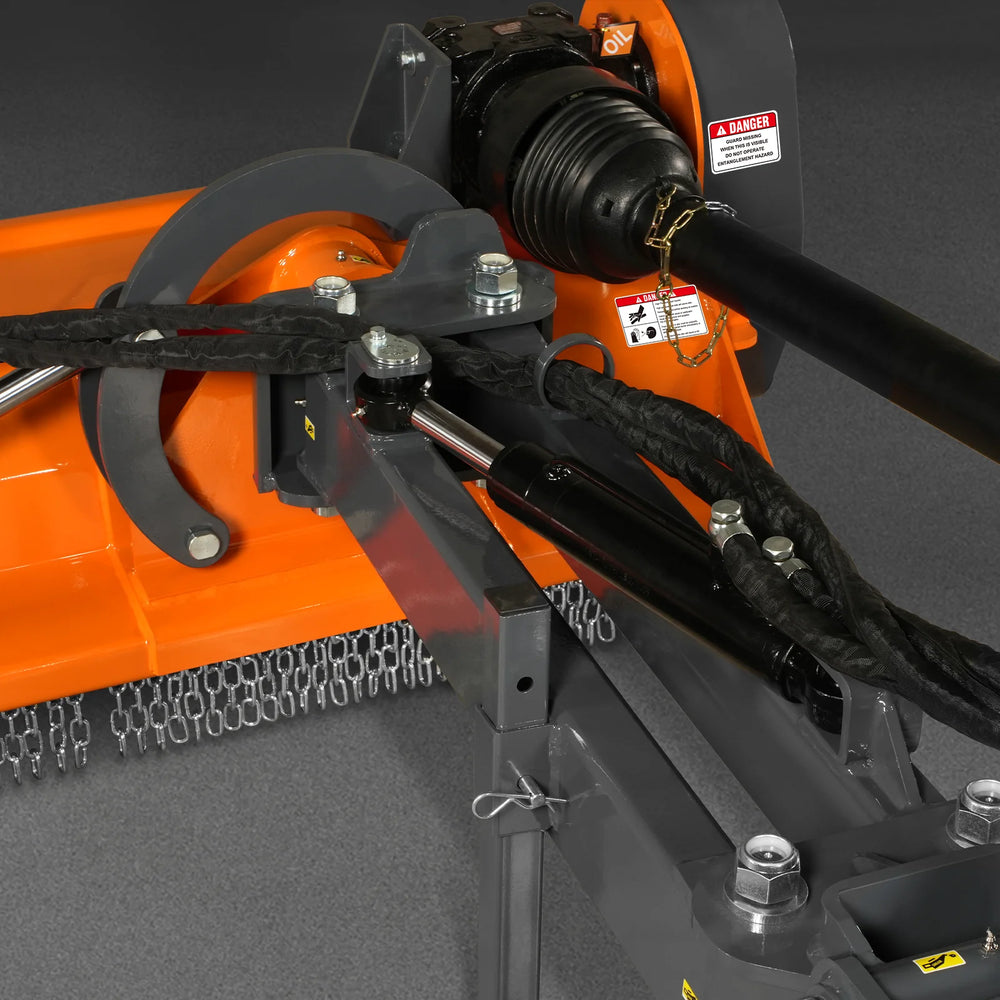

- PTO shaft(1- 3/8’’ Z6): Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T5-LF-63 With Shear Bolt ; 63in-106in
- SKF Shaft Bearing And Outside Rotor Bearing: We use Swedish brand SKF shaft bearings. The high-quality bearings of this type are required in applications with high loads and dynamic forces. These bearings run smoothly, quietly, and coolly. The bearings of the VAM mower are external, which is convenient for user maintenance and later repairs.

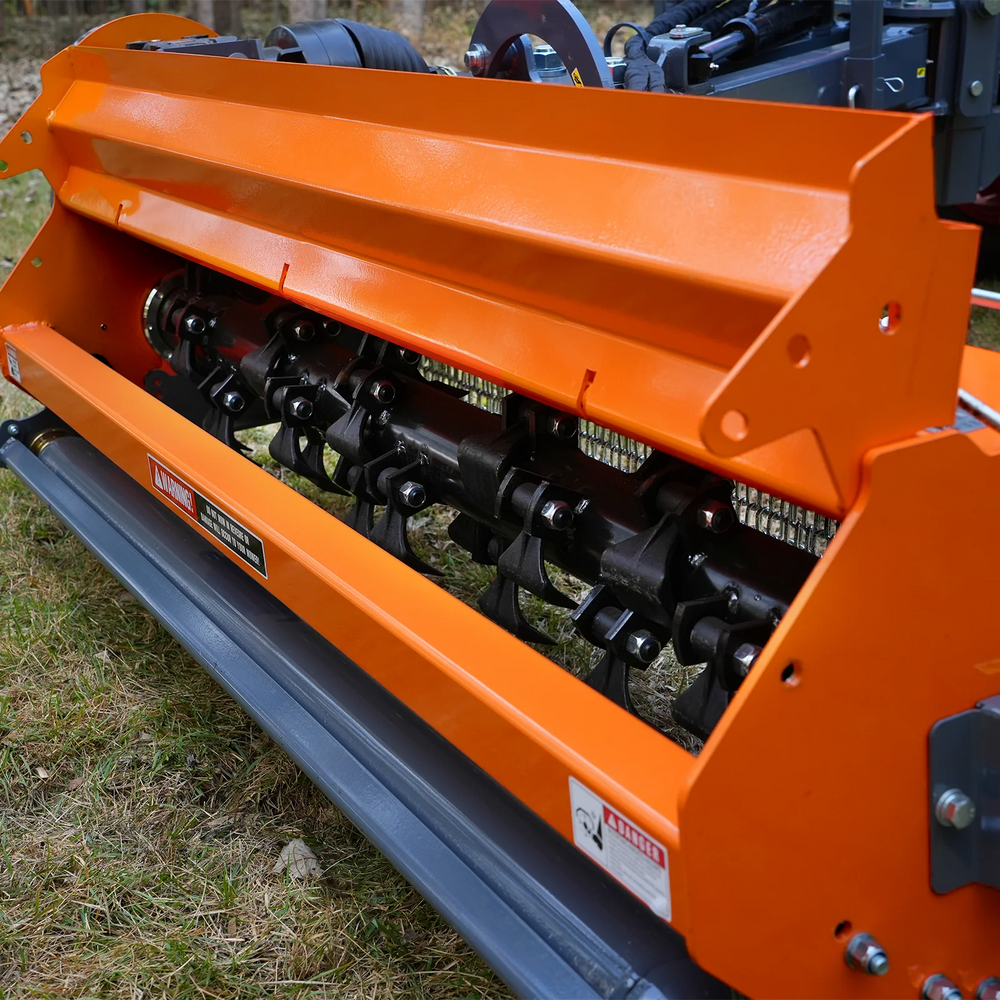

- Openable Back Cover: The VAM mower has an openable rear cover for easy replacement of the blade and clearing of blockages. The thickened shaft can improve mowing efficiency.
Specifications
| Engine Power Required | 70-100 Hp |
| Belt Adjustment | Bolt Tightening |
| Working Width | 72in |
| Working Efficiency | 450 cu.ft./Hr. |
| Overall Width | 79 in |
| PTO Shaft Speed | 540 rpm |
| Blade Ground Clearance (Four Gears) | 0.6-1.4-2.2-3 in |
| Deck Thickness | 2 in |
| Max. Cutting Diameter | Depends On The Type Of Grass |
| Side Plate Thickness | 0.25 in |
| Offset Distance from The Center (Maximum) | 90 in |
| Driveline Shaft Length | T5-LF-63 With Shear Bolt ; 63in-106in |
| Tilt-Up Angle | 90° |
| Spline End | 1.375in Z6 |
| Tilt-Down Angle | 55° |
| 3-Point Hitch | CAT 2 |
| Number Of Blades | 18 |

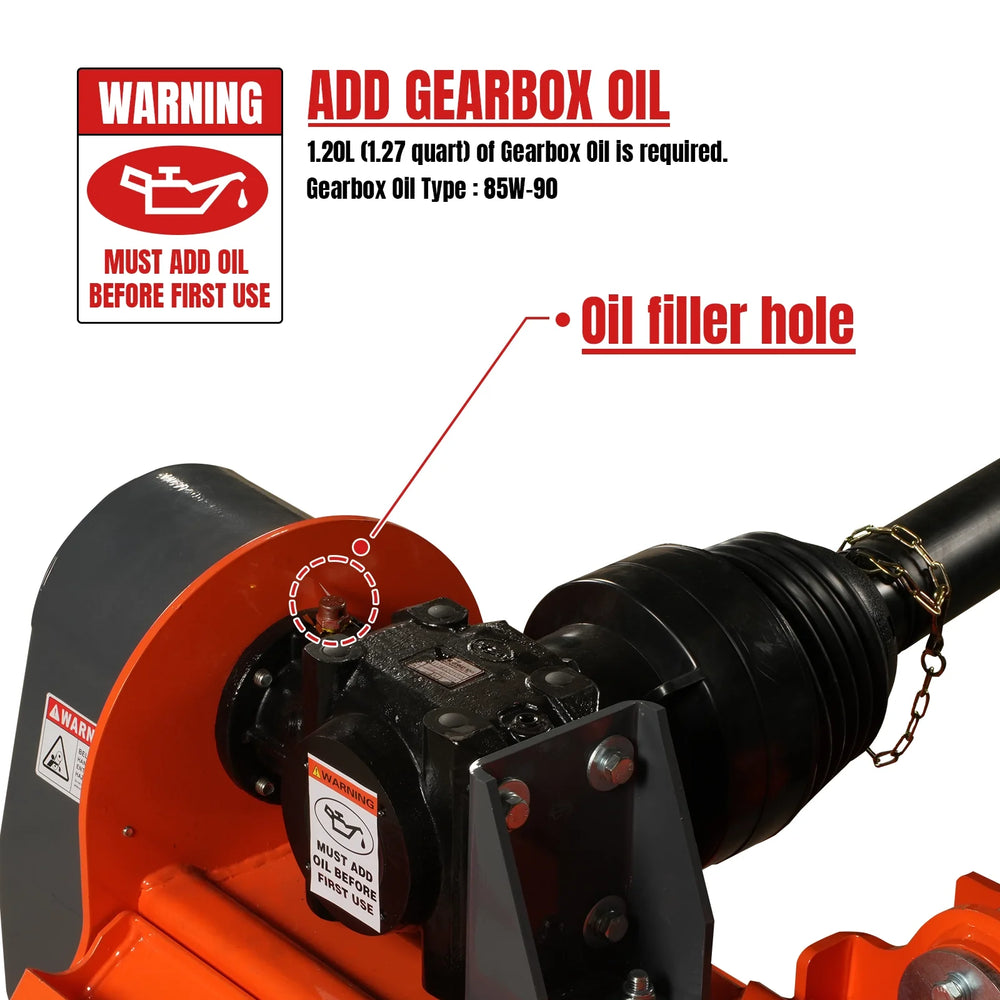

| Gearbox 0il Type | 85W-90 |
| Number of Belts | 4 |
| Finish | Powder Coating |
| Blade Type | Hammer |
| Blade Weight | 1.8 lbs |
| Shipping Box | 90x39x31 in |
| Blade Material | Cast Steel |
| Weight (N.W./G.W.) | 1235/1336 lbs |
Warranty
This item comes with a 1 year factory warranty.
