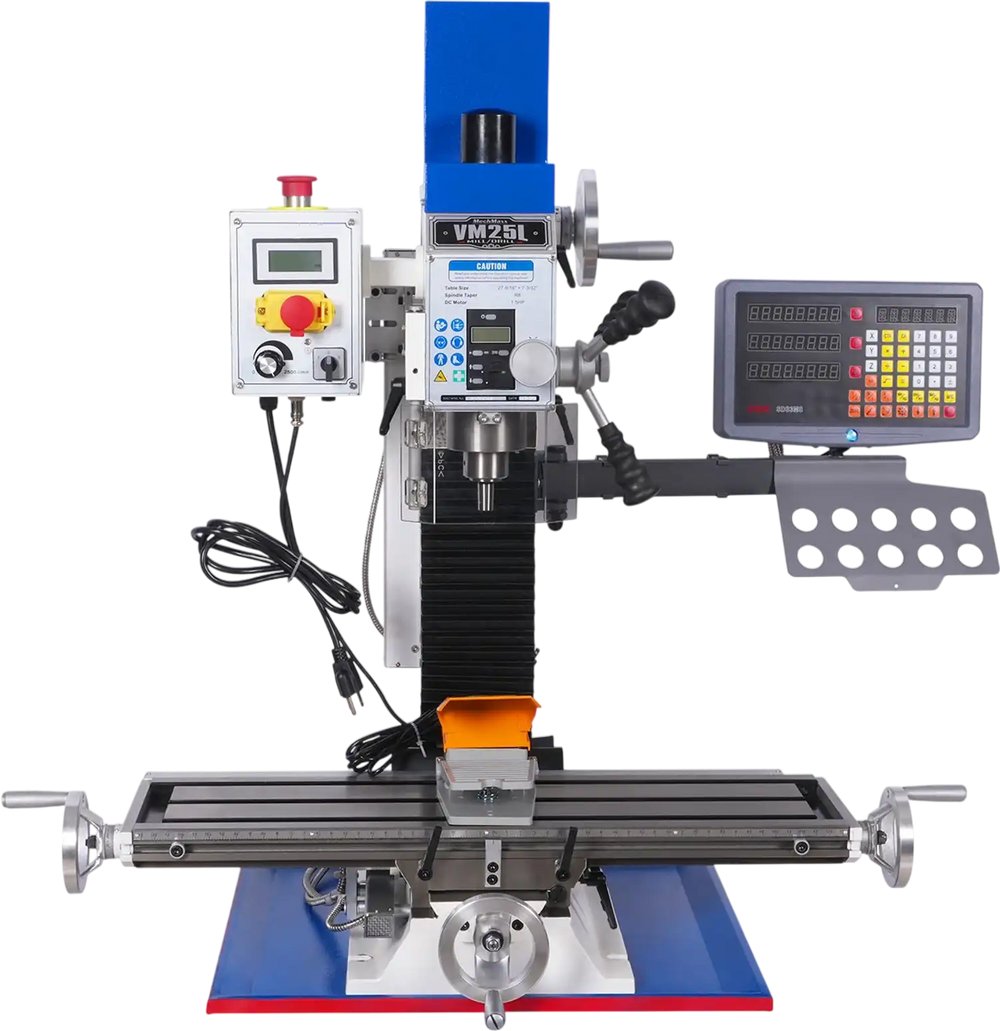

MechMaxx VM25LD Mill Drill Machine 1.5HP 7" x 27-1/2" Benchtop Mini Variable Speed R8 Spindle Brushless Motor 110V New
Manufacturer: MechMaxx
SKU: 500203
Model Options
QTY
or
(888) 999-1522
$ 3,067.05
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

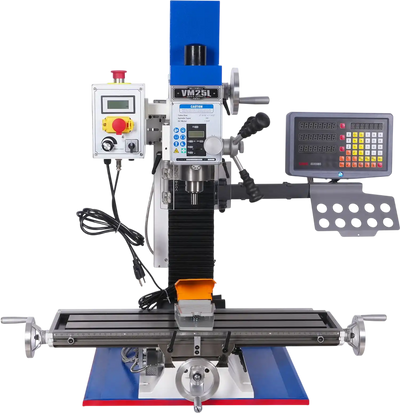

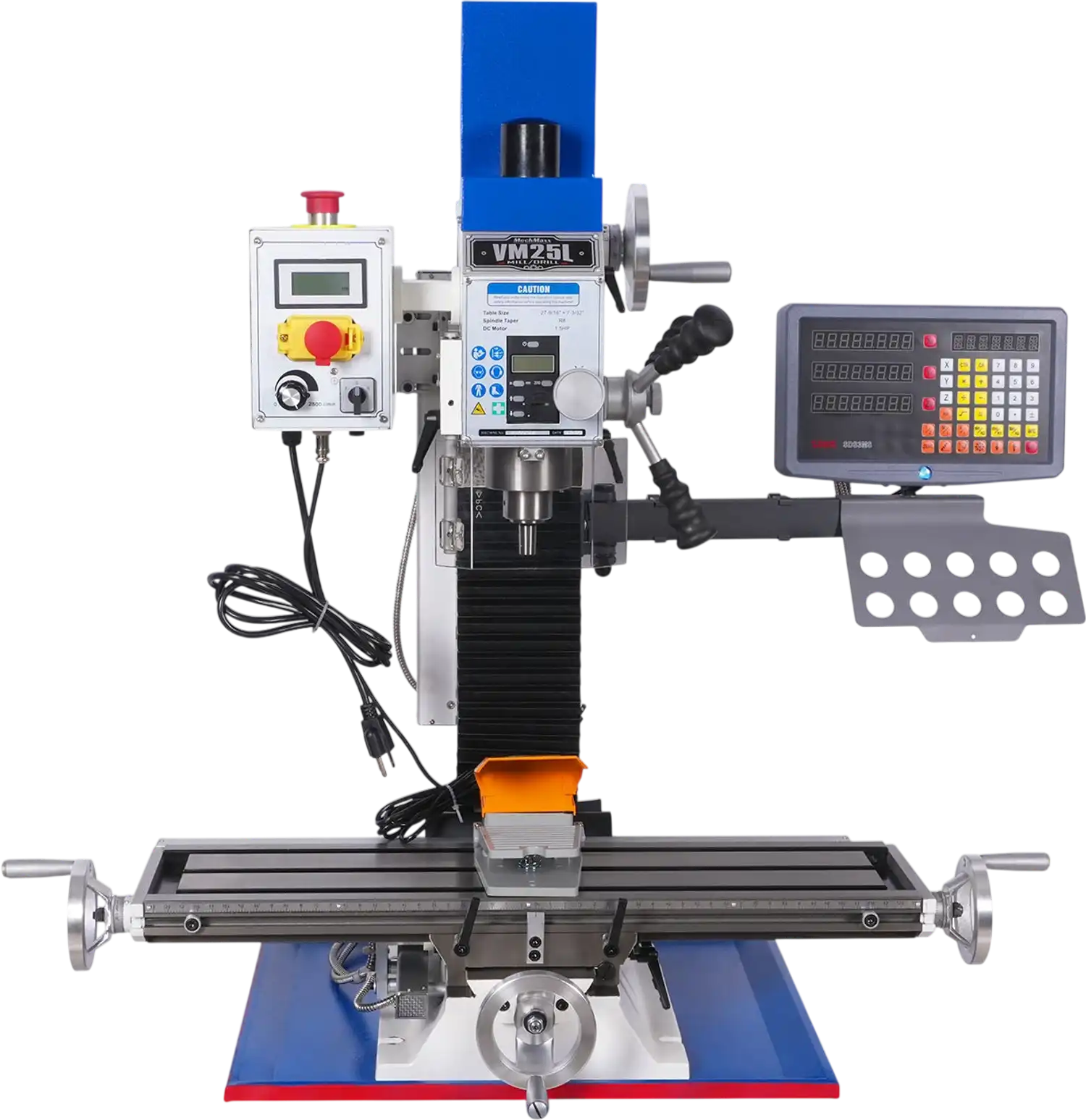

MechMaxx VM25LD Mill Drill Machine 1.5HP 7" x 27-1/2" Benchtop Mini Variable Speed R8 Spindle Brushless Motor 110V New
Product Overview
- 1.5 HP DC Brushless Motor: Low maintenance, smooth, and powerful motor for consistent operation.
- R8 Spindle Taper: Offers compatibility with a wide range of accessories, providing flexibility for various cutting tasks.
- ±90° Head Tilt: Allows for versatile angled cutting and precise milling operations.
- Large Table Size: 7" x 27-1/2" for handling larger workpieces and providing ample space for more complex tasks.
- Variable Speed Range: 0-2500 RPM, ensuring optimal performance across a wide variety of materials.

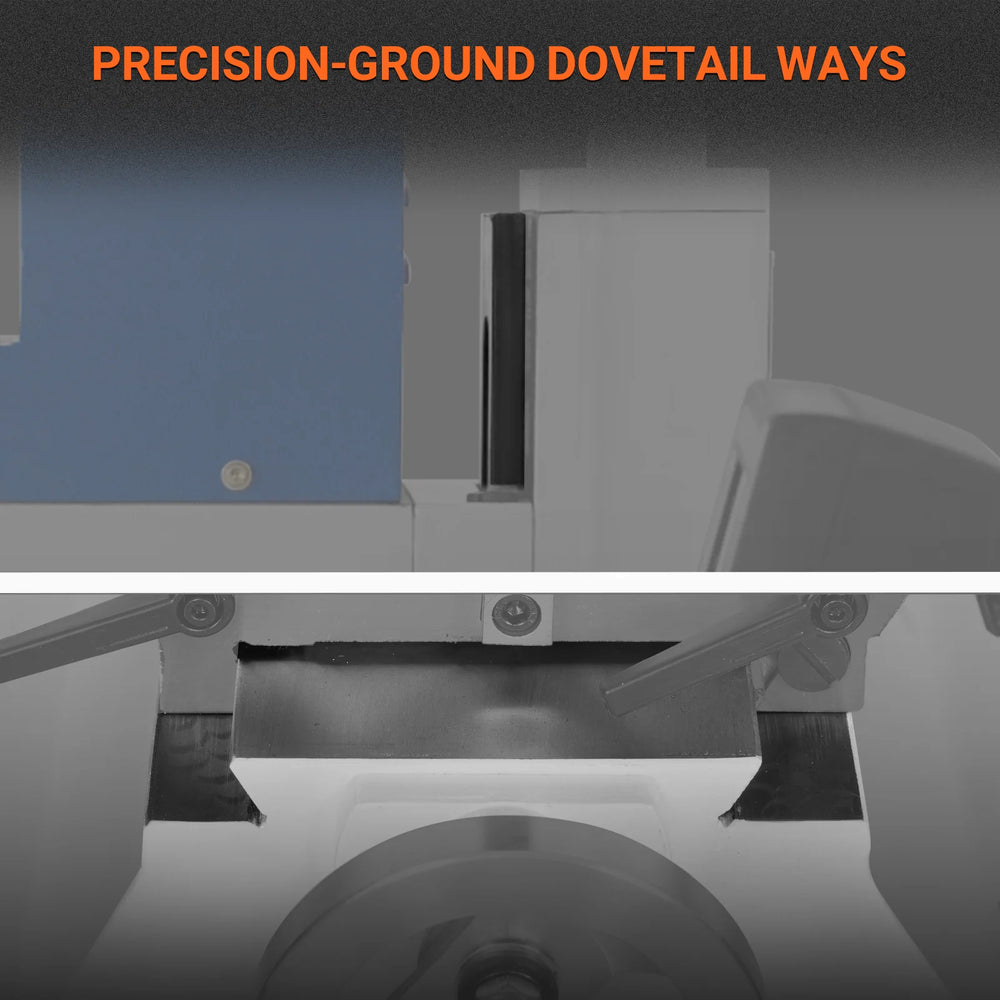

- Precision Ground Ways: For smooth and accurate movement, ensuring a more reliable machining process.
- Enhanced Safety Features: Chip guard, rubber chip guards, and built-in safety switch to ensure user safety during operation.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

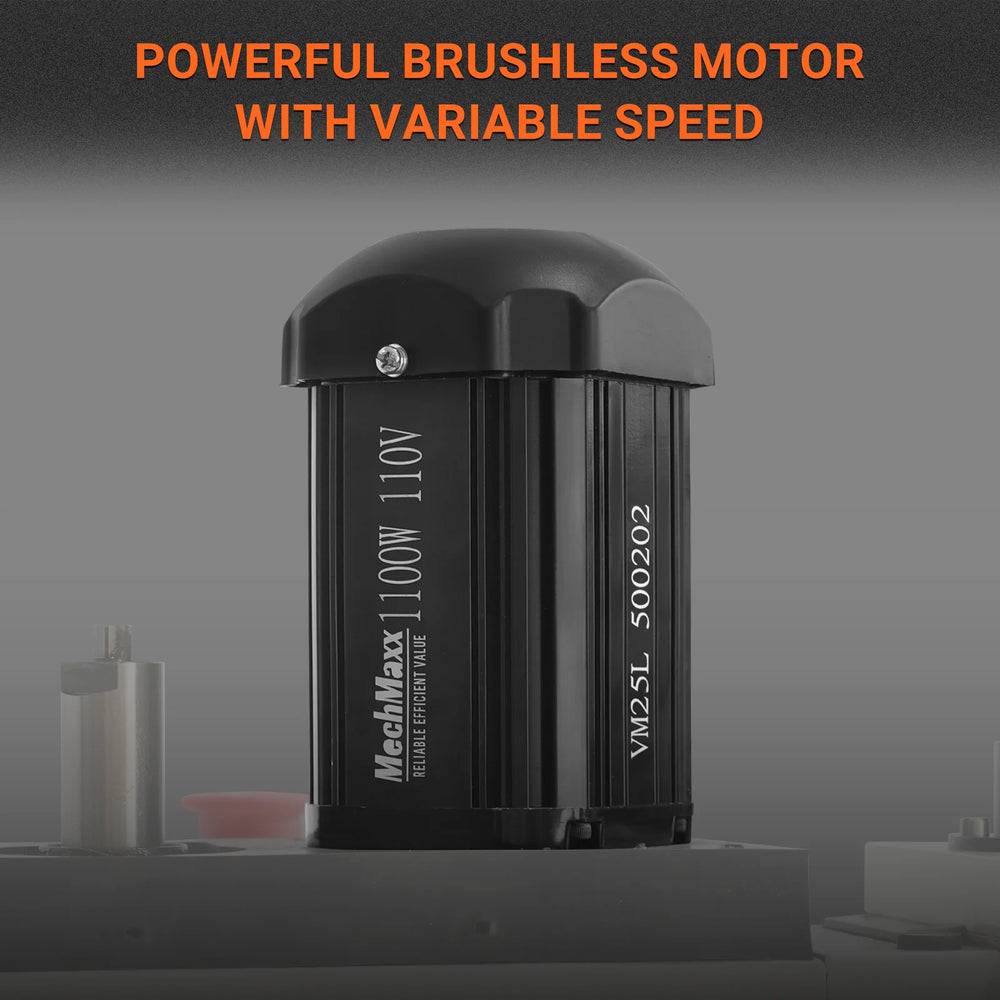

- Powerful Brushless Motor with Variable Speed: Powered by a 1.5HP brushless DC motor, the VM25LD delivers quiet, vibration-free operation. Seamlessly adjustable speed from 0 to 2500 RPM gives you full control for drilling, milling, or tapping.

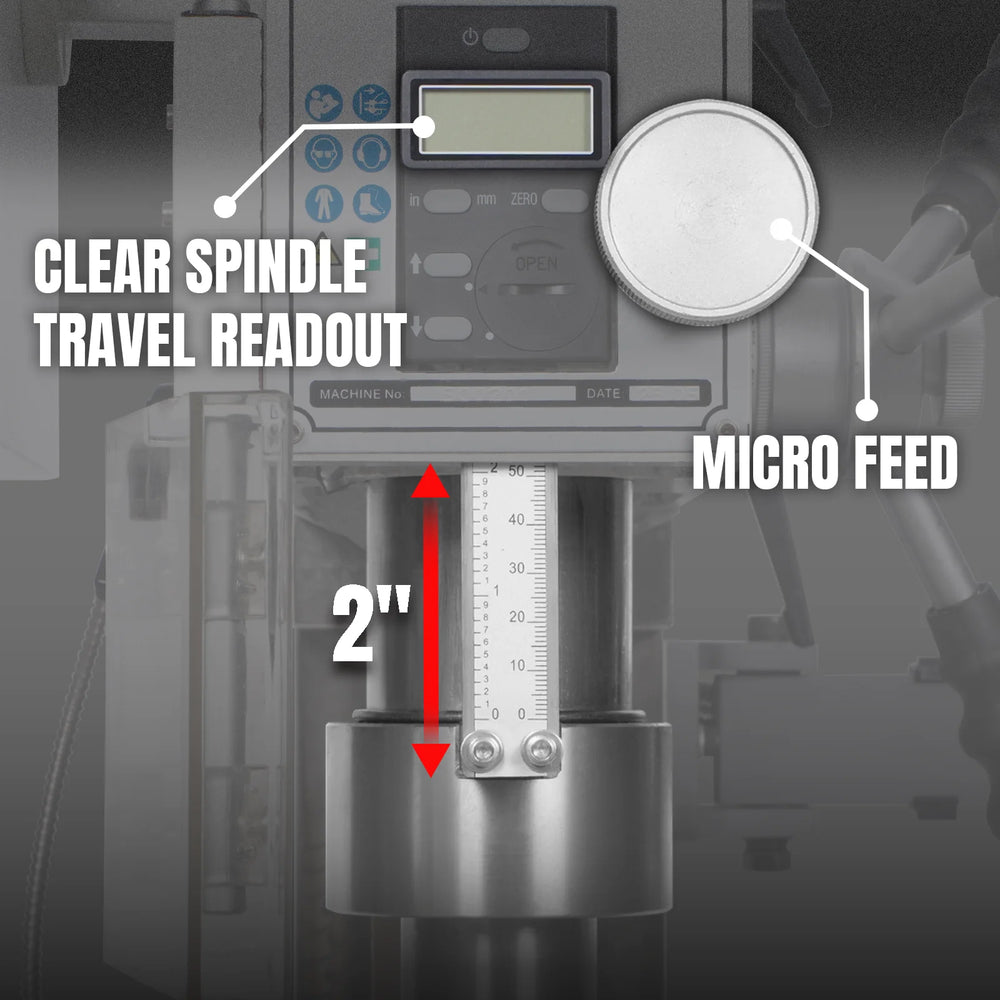

- Engineered for Precision Drilling: Fine-tune every move with the micro feed knob, and track progress in real time with the spindle travel scale. Accuracy meets convenience in every pass.

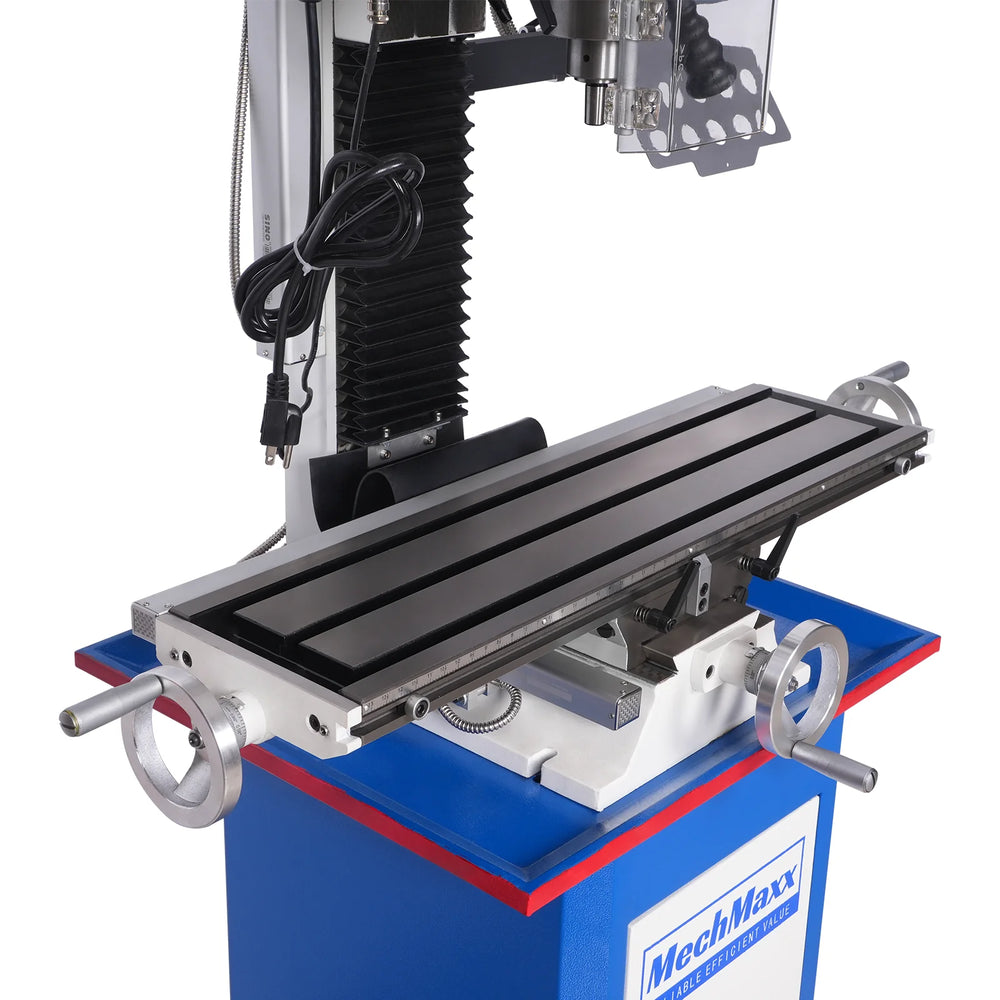

- Precision-Ground, One-Piece Table: Built from a single cast piece and precision-ground for flatness, the table offers exceptional rigidity and accuracy. Wide working surface with 3 x 3/8" T-slots makes fixture setup fast and reliable.

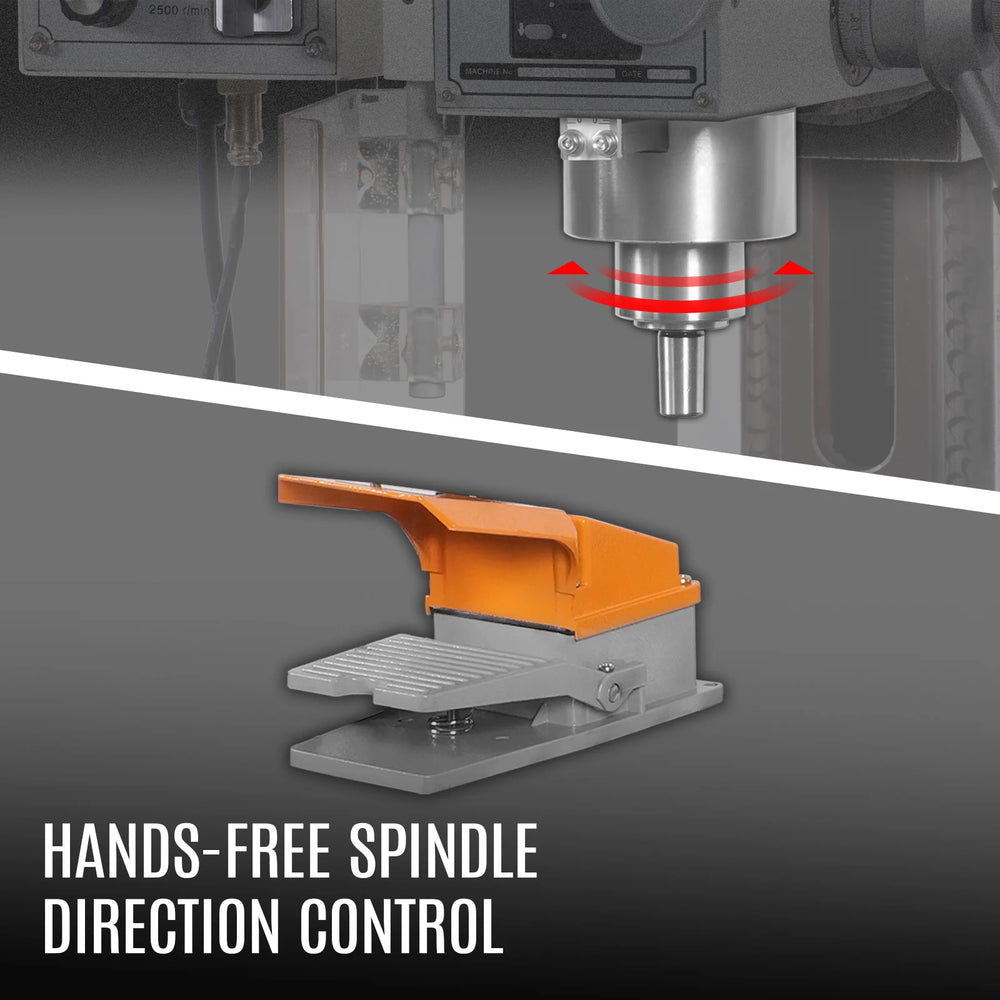

- Dual Control for Spindle Rotation: Switch spindle direction by foot or hand — perfect for tapping operations. The foot pedal leaves your hands free, while manual control ensures quick direction changes when needed.

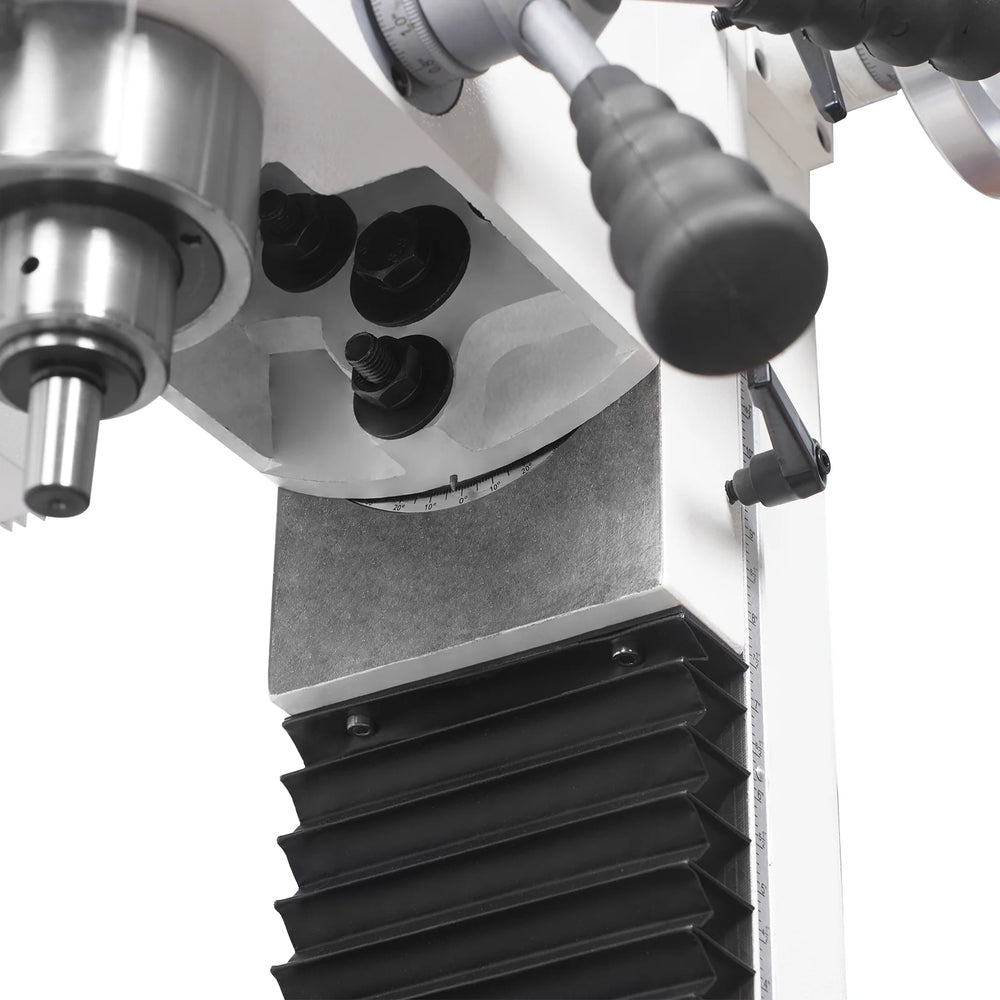

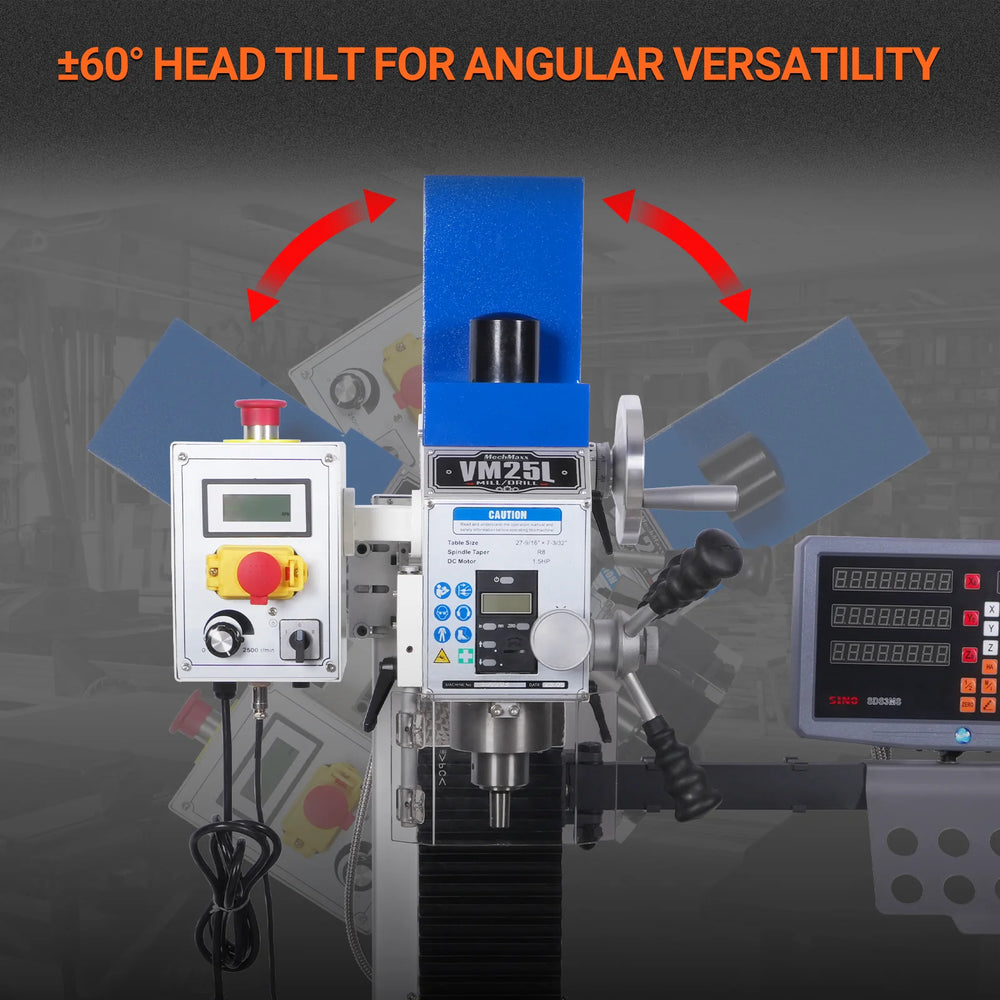

- ±60° Head Tilt for Angular Versatility: Adjust the head left or right up to 60 degrees for beveling, angle drilling, or chamfering. Ideal for complex setups — flexibility without repositioning your workpiece.

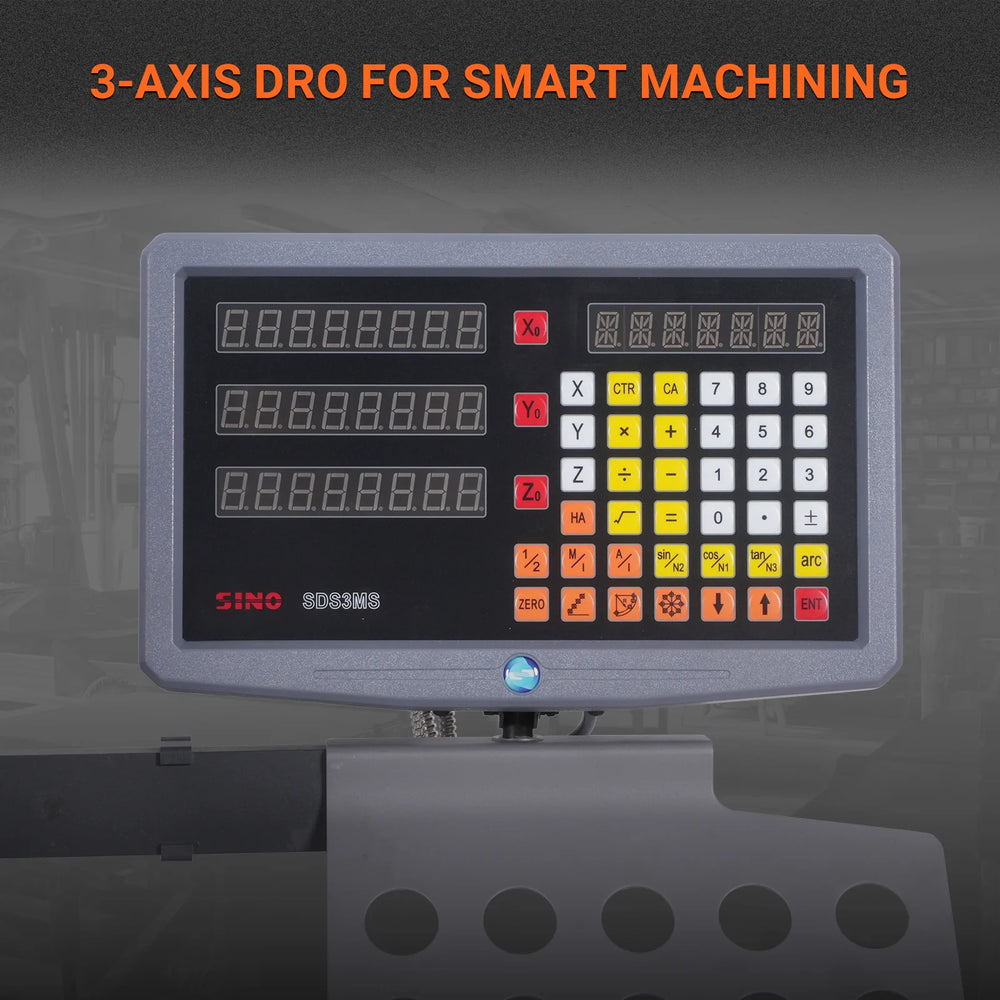

- 3-Axis DRO for Smart Machining: See exactly where you are — every time. The built-in digital readout provides accurate location tracking on all three axes, helping you reduce errors and speed up complex operations.

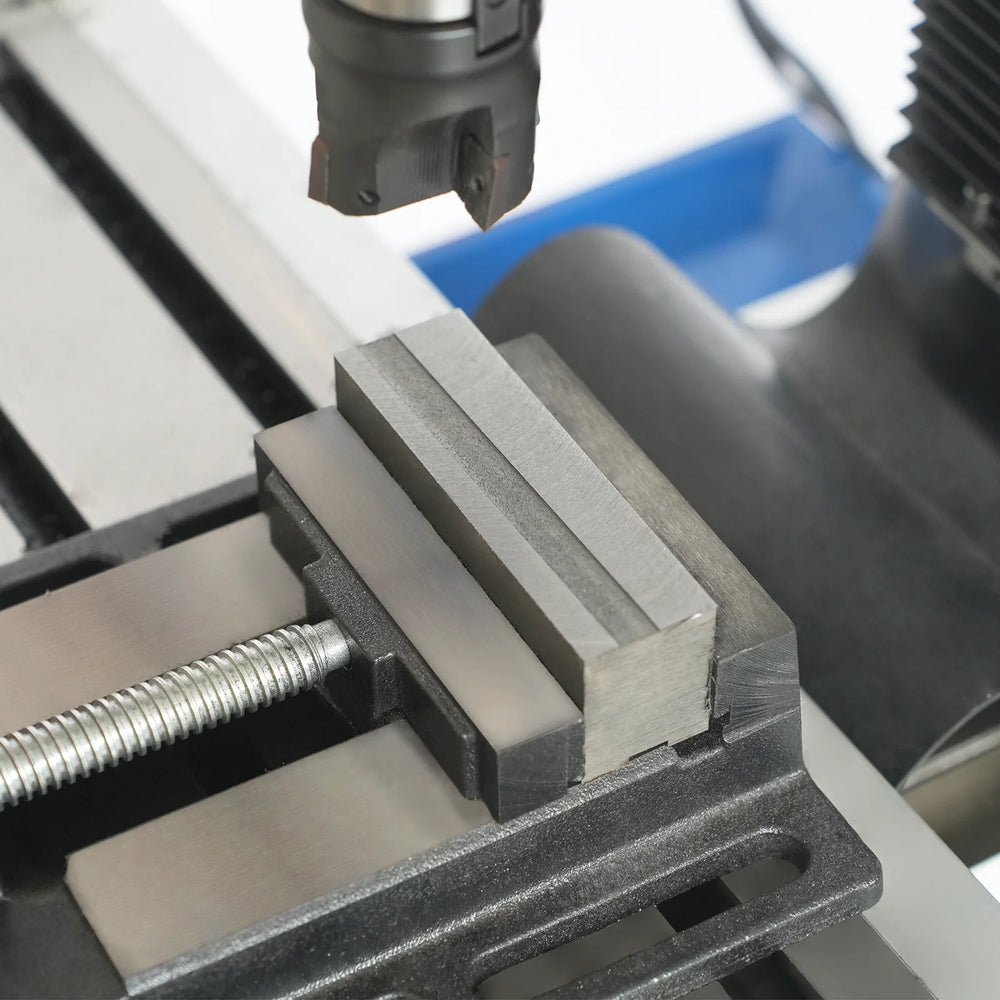

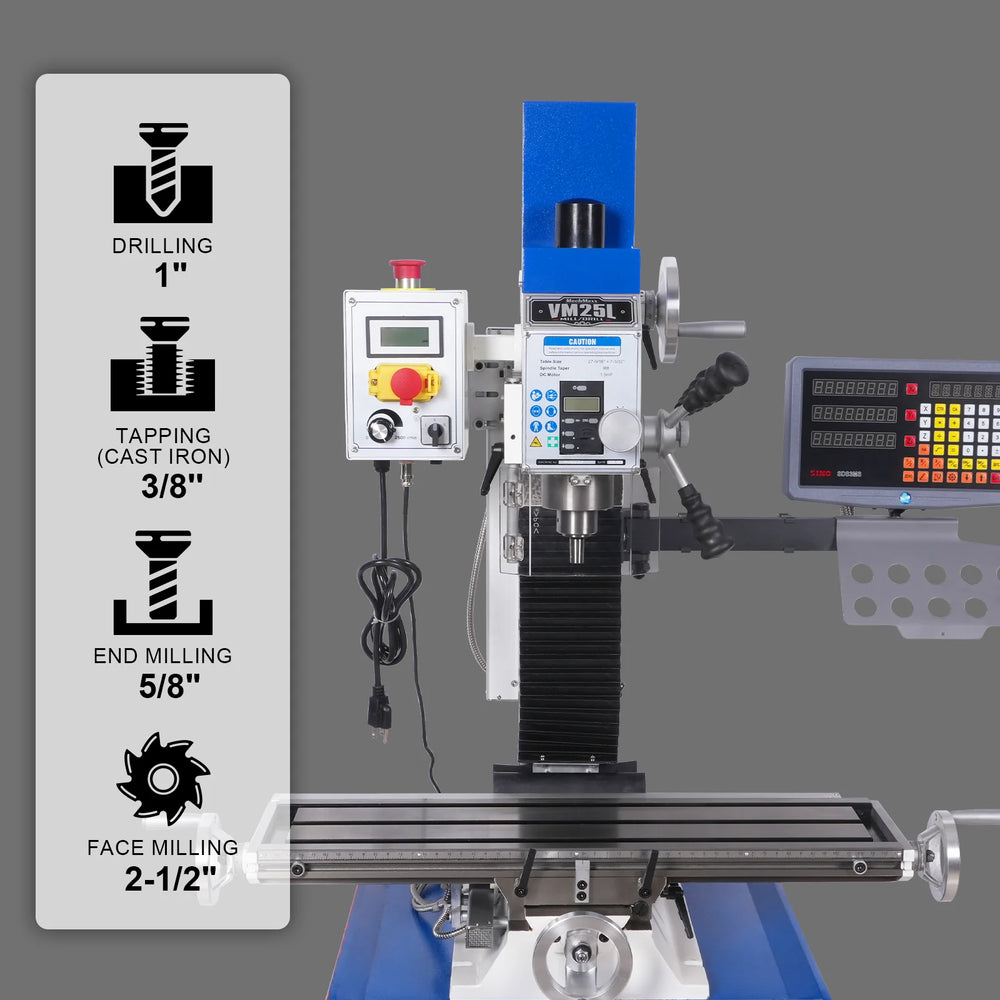

- Cutting Capacities You Can Count On: Handle a wide range of tasks with the VM25L: Drilling up to 1", Tapping (Cast Iron) up to 3/8", End Milling up to 5/8", and Face Milling up to 2-1/2". Compact yet capable — this machine gets real work done.

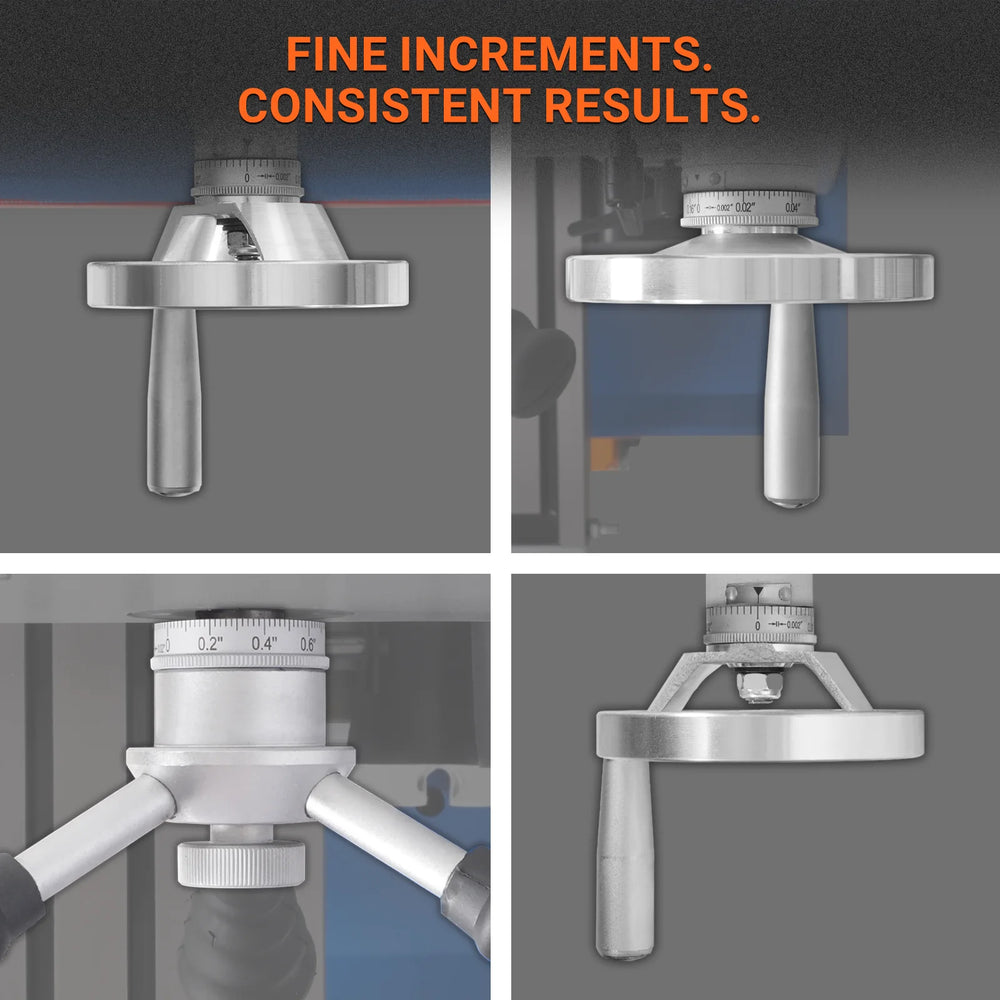

- Fine Increments. Consistent Results.: Graduated handwheels with precise scale markings help you make accurate, repeatable adjustments. Essential for fine milling operations and careful depth control.
- Depth Stop & Feed Locks: Adjustable depth stop ensures consistent hole depth, X-axis limiters prevent overtravel for safe and precise milling, and feed locks stabilize the axis during cutting — no drift, better finish.
Specifications
| Spindle Taper | R8 |
| Spindle Travel | 2"(50mm) |
| Quill Diameter | Ø2-3/8''(60mm) |
| Spindle Speed Range | 0-2500RPM |
| Number of Speed Steps | Variable |
| Drawbar Thread Size | 7/16"-20'' |
| Head Tilt Angle | ±90° |
| Spindle to Table Distance | 14-1/2"(370mm) |
| Spindle to Column Distance | 7-1/2"(190mm) |
| Drilling Capacity | 1''(25mm) |
| End Milling Capacity | 5/8"(16mm) |
| Face Milling Capacity | 2-1/2"(63mm) |
| Table Size | 7''x27-1/2"(180x700mm) |
| T-Slot Size / No. / Centers | 3 X 1/2''(12mm) |

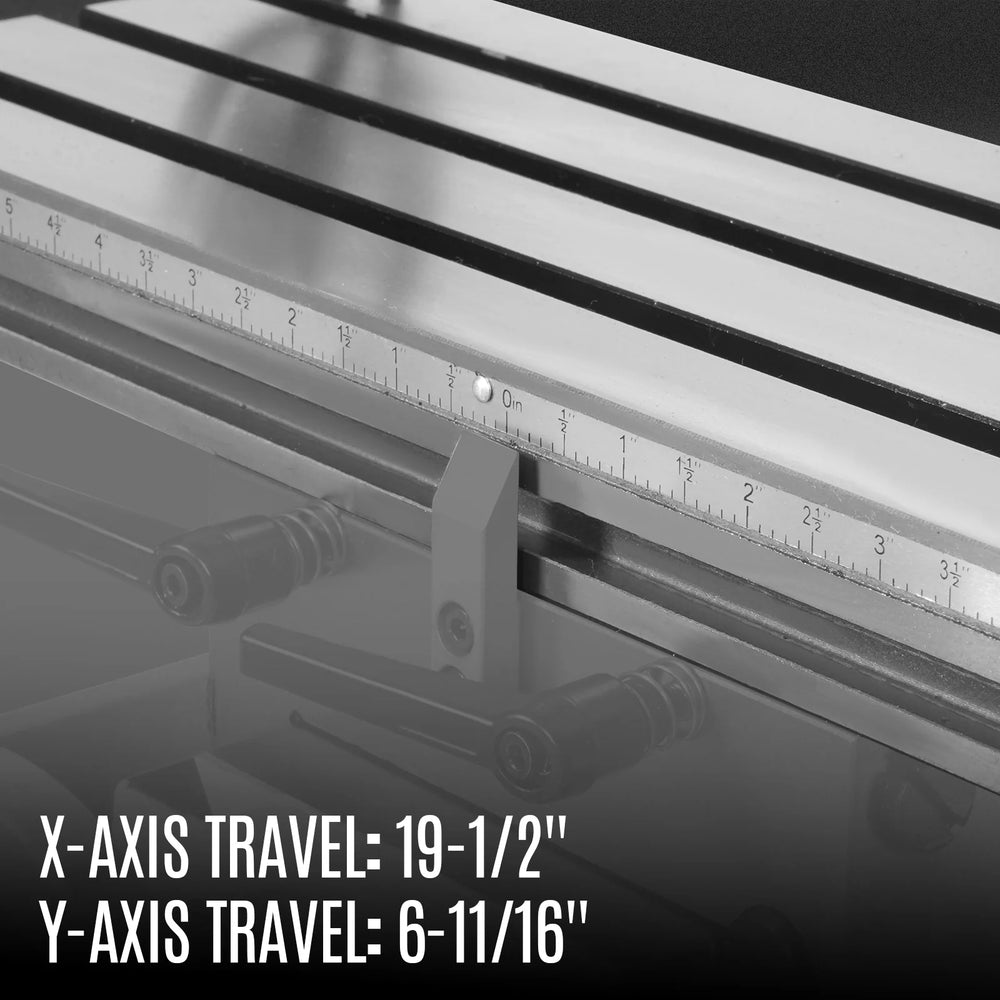

| X-Axis Travel | 19-1/2''(495mm) |
| Y-Axis Travel | 6-11/16''(170mm) |
| Z-Axis Travel | 12-5/8''(320mm) |
| Column Type | Square Column，Dovetail Slide |
| Drive Type | Belt |
| Motor Power | 1.5HP 110V Single-Phase Brushless |
| Motor Type | DC Brushless |
| Net / Gross Weight | 260/286lbs(118/130KG) |
| Overall Dimensions | 36''x22''x37''(922X549X935mm) |
| Base Size | 14''x11''(340X275mm) |
| Shipping Dimensions | 28''x29''x37''(710X730X920mm) |
