MechMaxx VM32LD Mill Drill Machine 8-1/4" x33" Industrial Benchtop Variable Speed Brushless Motor DRO R8 Spindle 2 HP 110V Compact New
Manufacturer: MechMaxx
SKU: 500205
Model Options
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 3,499.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
×
Factory Warranty
- This item comes with a factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
MechMaxx VM32LD Mill Drill Machine 8-1/4" x33" Industrial Benchtop Variable Speed Brushless Motor DRO R8 Spindle 2 HP 110V Compact New
Product Overview
- Powerful 2 HP Brushless Motor: Delivers smooth, reliable power for heavy-duty tasks, with low maintenance and quiet operation.

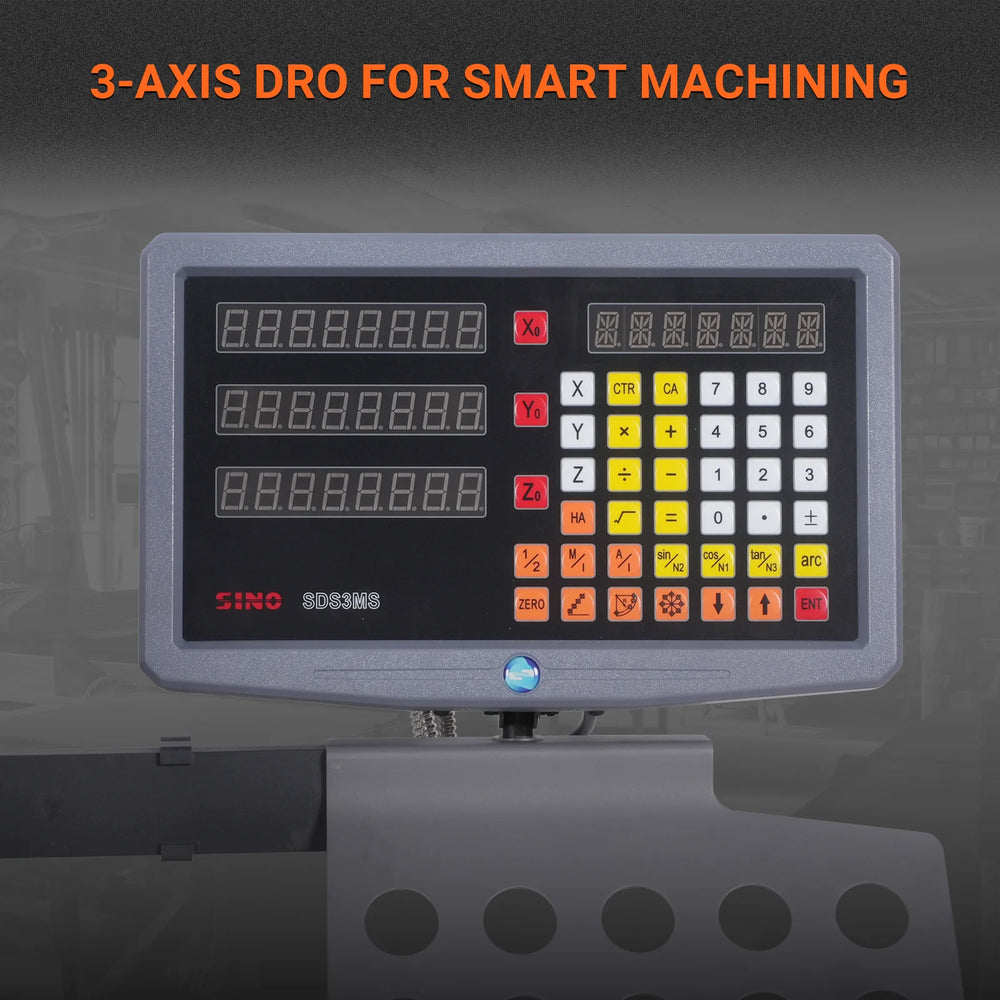

- 3-Axis DRO System for Enhanced Precision: Provides real-time digital measurements on X, Y, and Z axes, ensuring accurate adjustments and consistent results. The 3-axis DRO supports switching between inch and metric units. You can toggle between them via the function keys on the DRO operation panel.
- R8 Spindle with Versatile Cutting Capacity: Offers wide tool compatibility, capable of drilling up to 1-1/4" (32mm), end milling up to 3/4" (20mm), and face milling up to 3" (76mm).

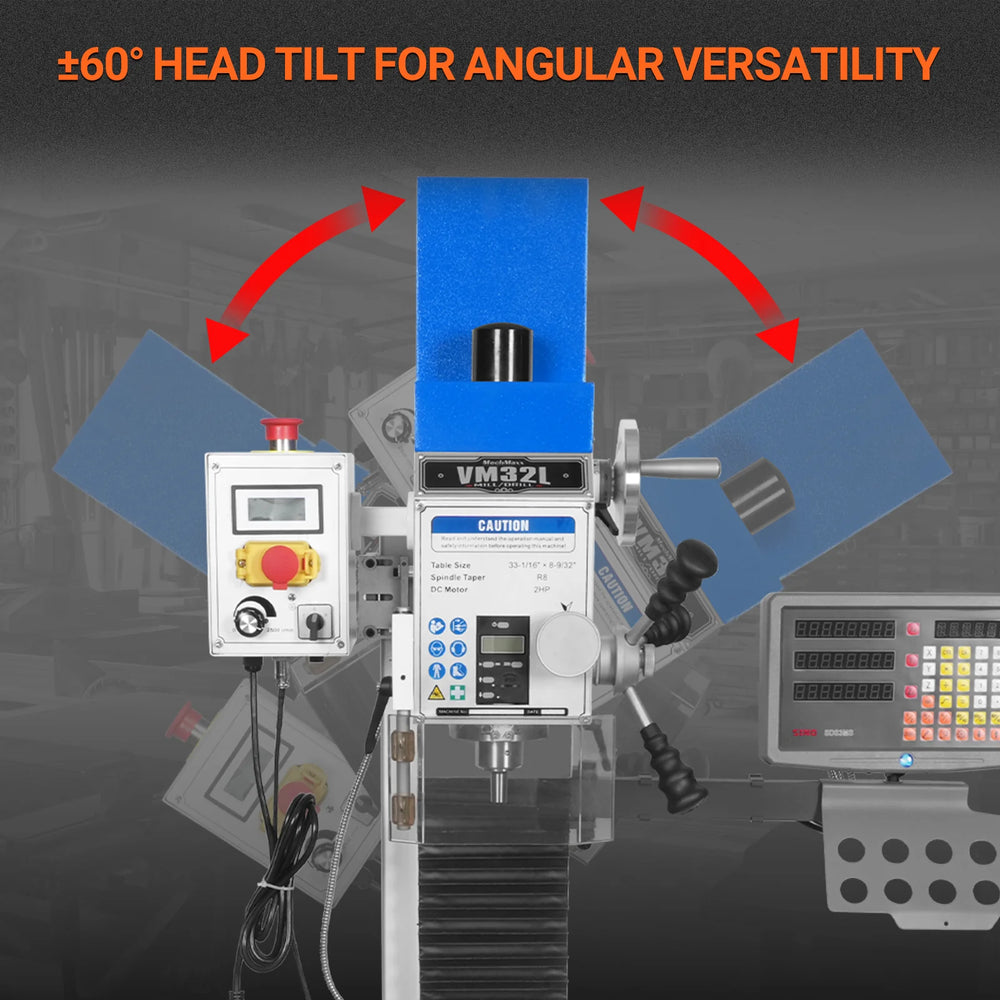

- ±60° Tilting Head for Flexible Operations: Allows for angled cuts and complex milling with a precise head tilt for versatility in machining.
- Generous Travel and Large Table Size: Features a 7-1/4" x 33" (180 x 700mm) table and large axis travel, enabling easy handling of larger workpieces and complex machining tasks.
- Durable and Stable Construction: Built with a square column and dovetail slide, ensuring increased rigidity and long-lasting precision during operation.
- 3-Axis DRO System: Provides real-time digital readouts for the X, Y, and Z axes, ensuring precise adjustments and better control for complex operations.
- The micrometer dials: The micrometer dials are graduated in inches, matching the leadscrew’s advancement precision. The leadscrew advances 0.02 of an inch.
-
Optical DRO System: The scales on the DRO of this machine are optical, which offers better precision stability and resistance to interference (such as dust and magnetic fields) compared to magnetic scales, making it well-suited for garage shop and DIY metalworking applications.
Brand new
Factory warranty
Manufacturer direct shipping from CA, NJ, IL, & TX
Authorized MechMaxx dealer
Features

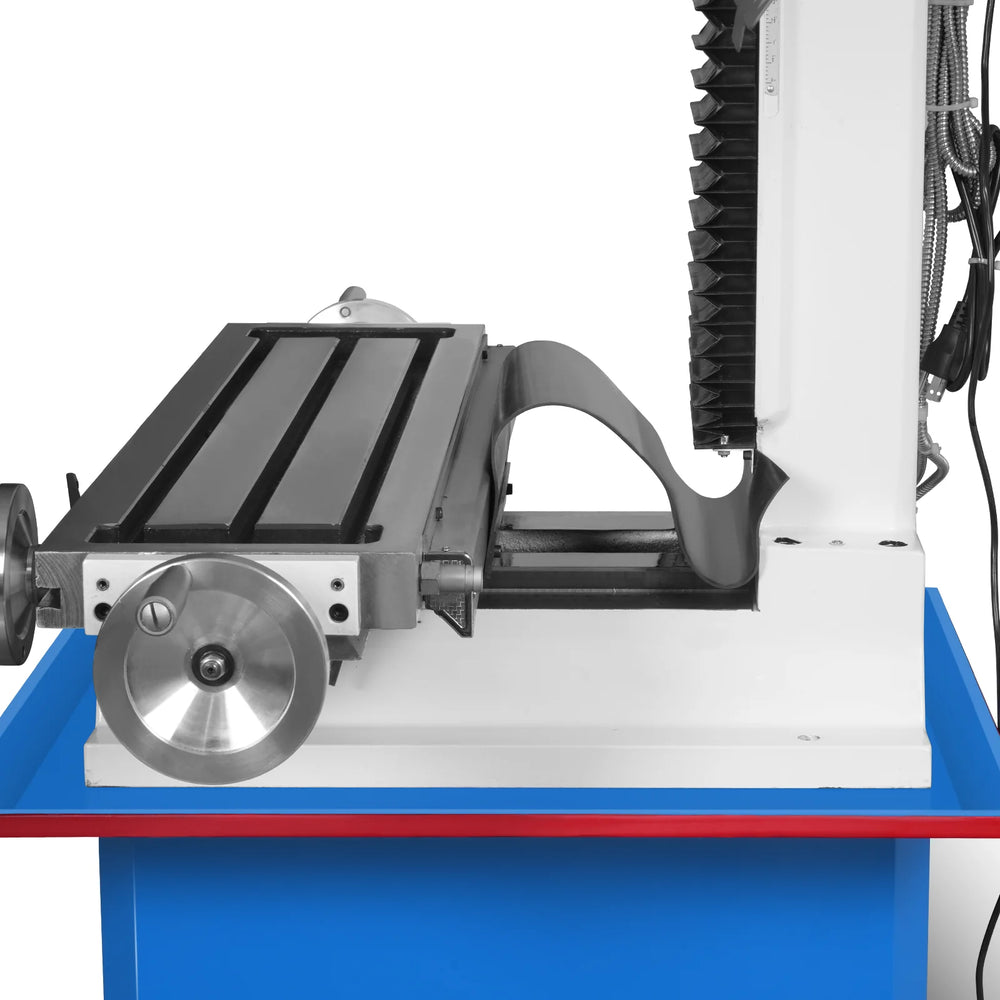

- Precision-Ground, One-Piece Table: Built from a single cast piece and precision-ground for flatness, the table offers exceptional rigidity and accuracy. Wide working surface with 3 x 3/8" T-slots makes fixture setup fast and reliable.

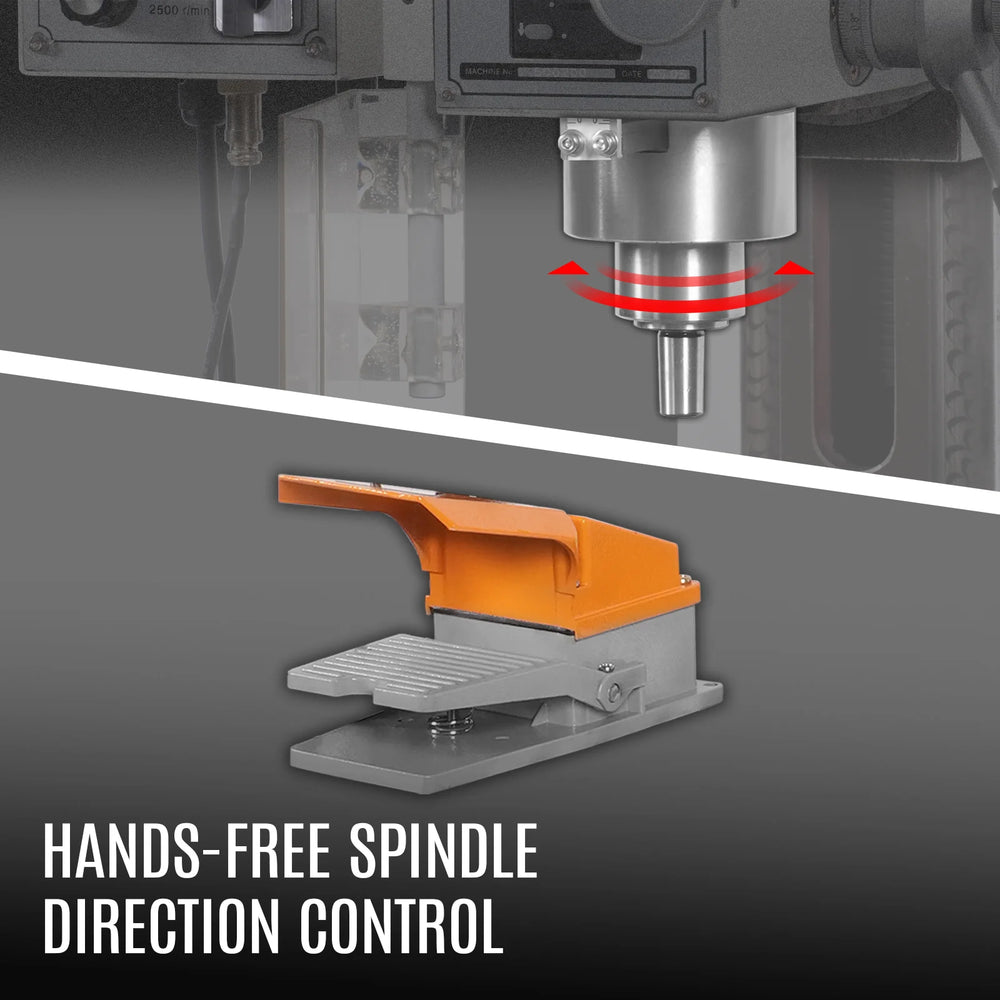

- Dual Control for Spindle Rotation: Switch spindle direction by foot or hand — perfect for tapping operations. The foot pedal leaves your hands free, while manual control ensures quick direction changes when needed.

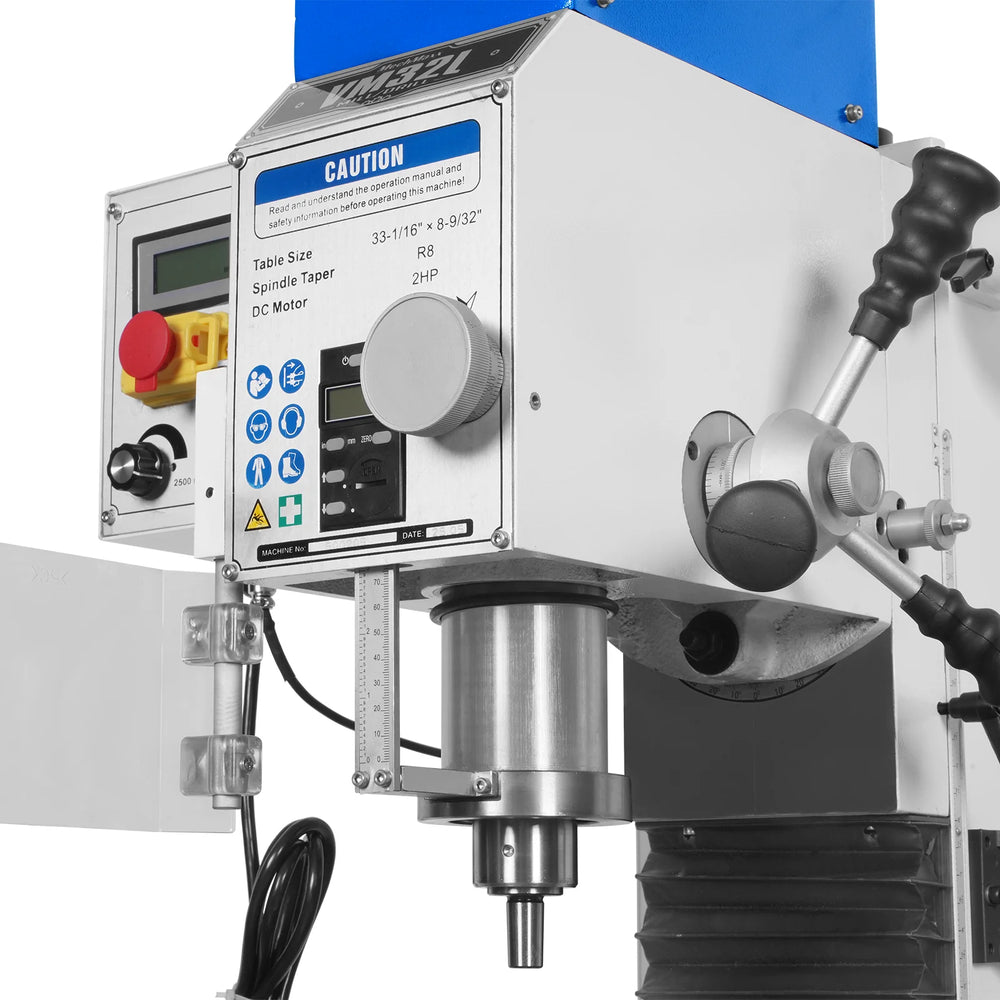

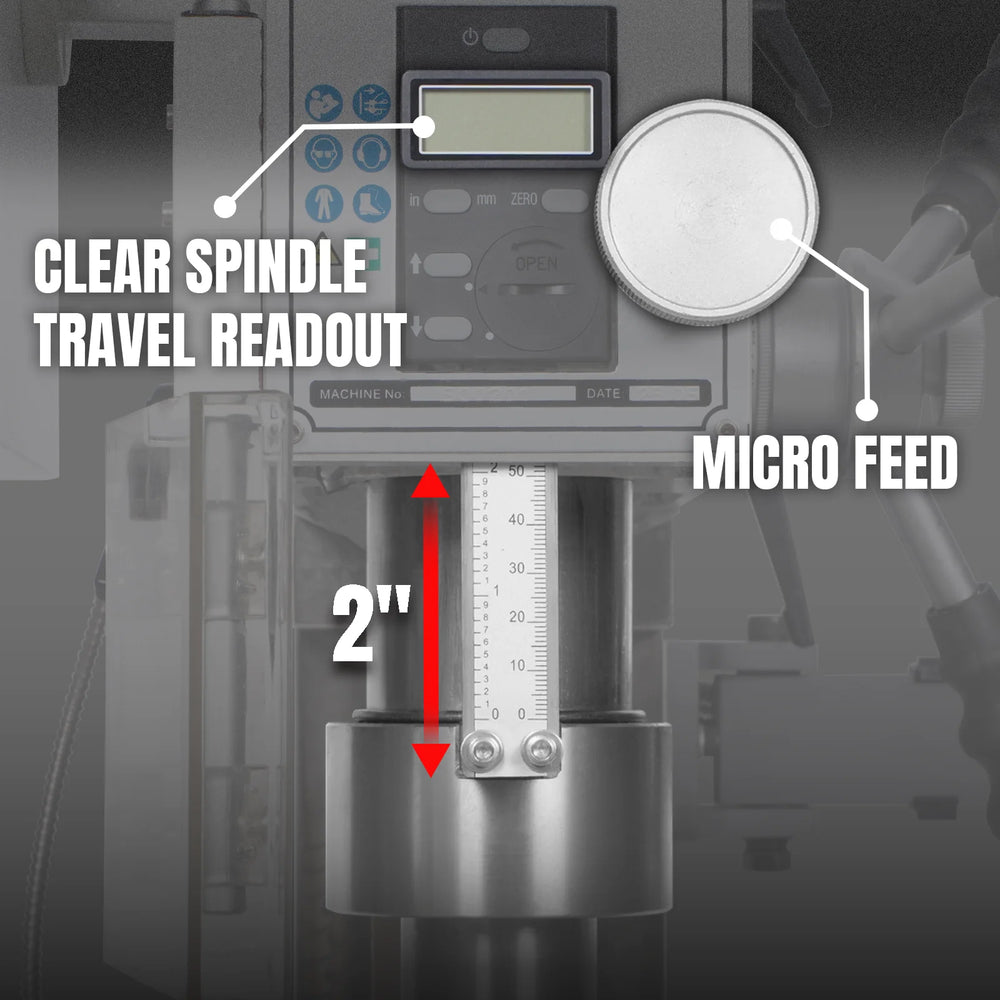

- Engineered for Precision Drilling: Fine-tune every move with the micro feed knob, and track progress in real time with the spindle travel scale. Accuracy meets convenience in every pass.

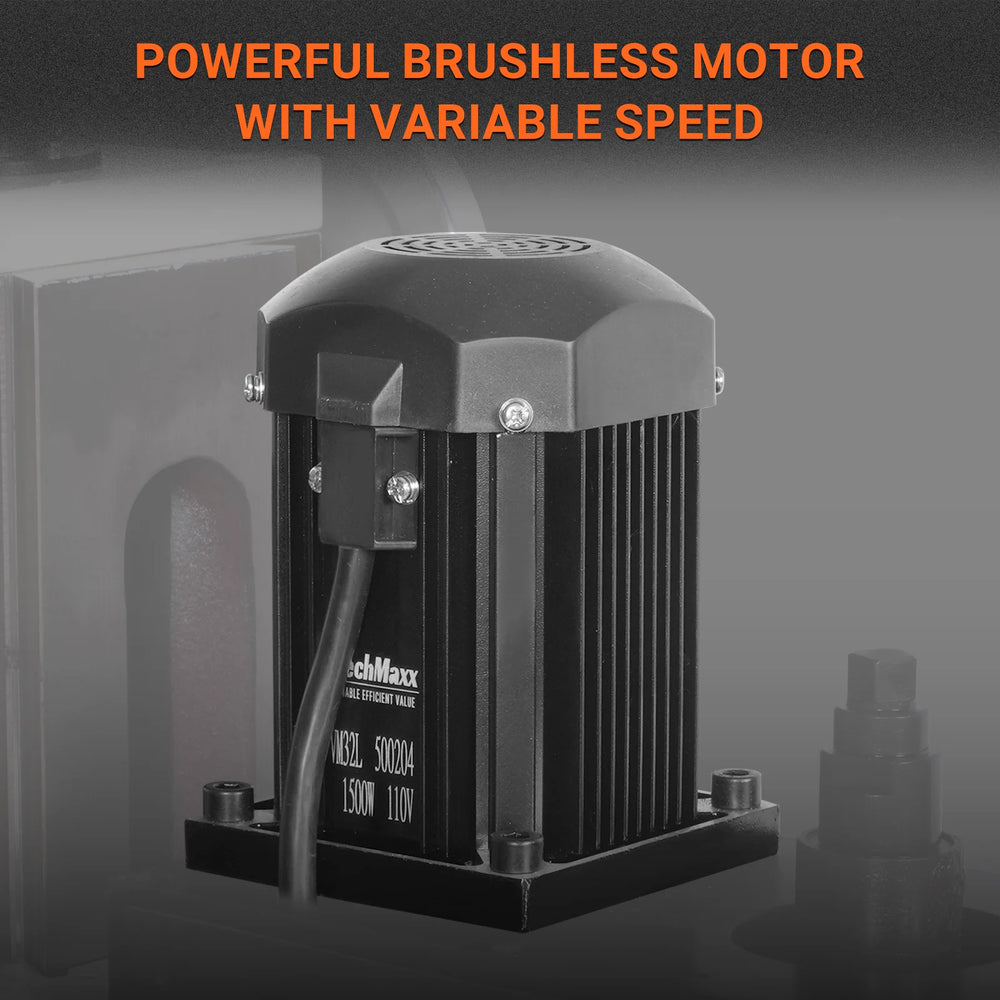

- Powerful Brushless Motor with Variable Speed: Powered by a 2HP brushless DC motor, the VM32LD delivers quiet, vibration-free operation. Seamlessly adjustable speed from 0 to 2500 RPM gives you full control for drilling, milling, or tapping.
- Depth Stop & Feed Locks: Adjustable depth stop ensures consistent hole depth, X-axis limiters prevent overtravel for safe and precise milling, and feed locks stabilize the axis during cutting — no drift, better finish.
- 60° Rotation for Versatile Machining: Adjust the head left or right up to 60 degrees for beveling, angle drilling, or chamfering. Ideal for complex setups — flexibility without repositioning your workpiece.

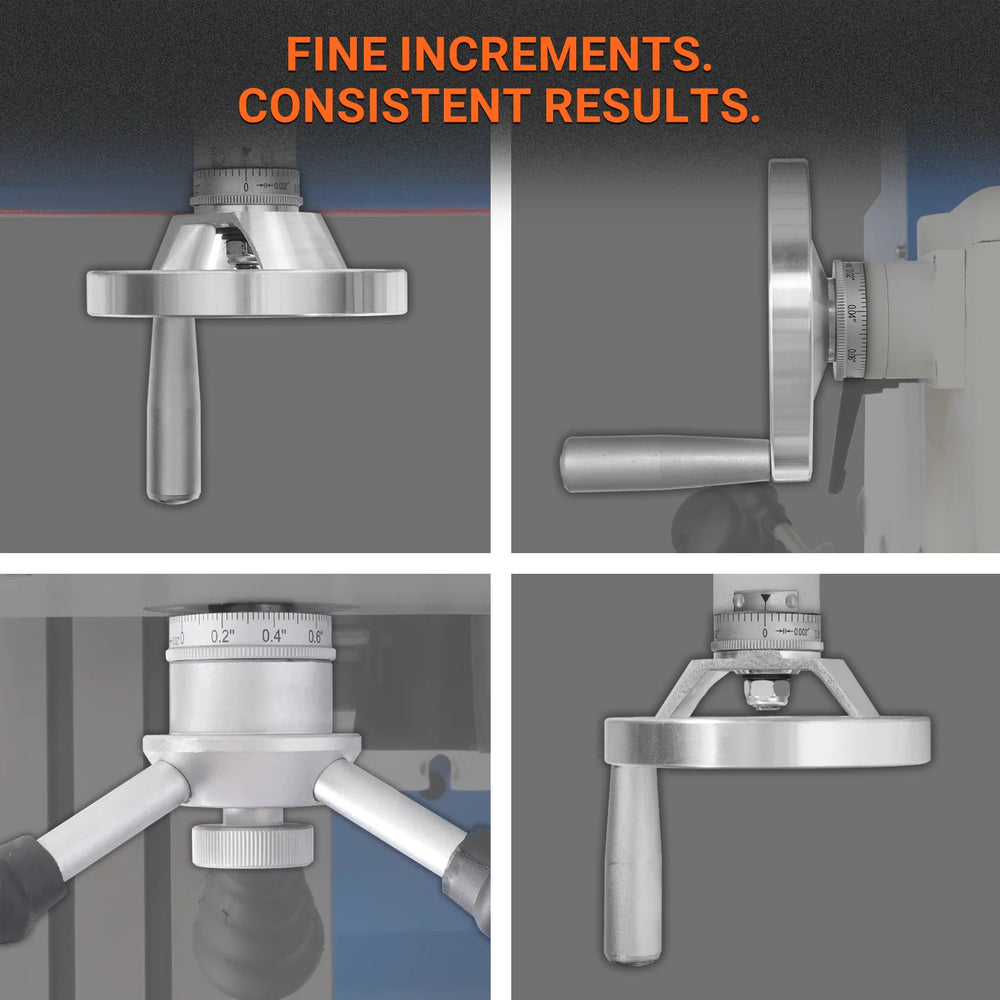

- Graduated Handwheels for Precise Control: Graduated handwheels with precise scale markings help you make accurate, repeatable adjustments. Essential for fine milling operations and careful depth control.

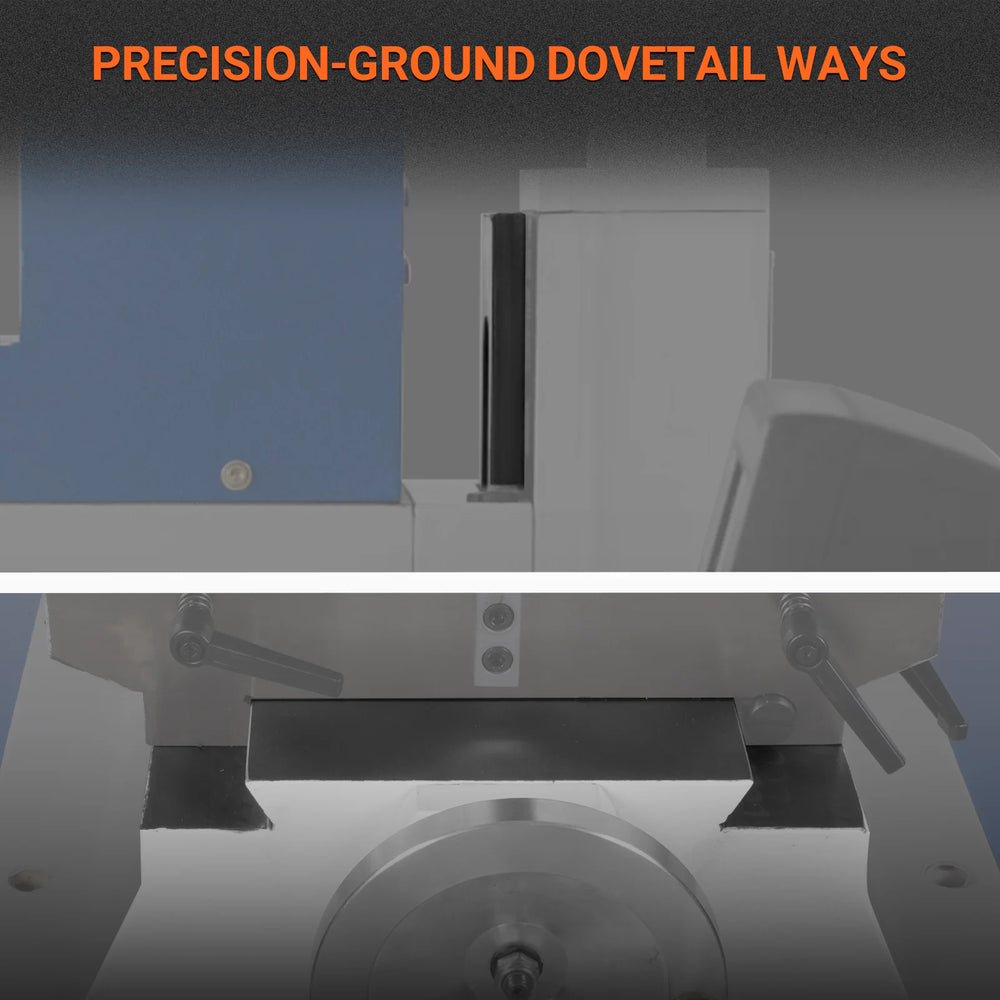

- Precision-Ground Dovetail Ways: Built with hand-scraped dovetail ways and adjustable tapered gibs, this machine delivers outstanding rigidity, surface contact, and wear resistance. Perfect for heavy loads and precise milling operations.
- Cutting Capacities You Can Count On: Handle a wide range of tasks with the VM32LD: Drilling up to 1", Tapping (Cast Iron) up to 3/8", End Milling up to 5/8", and Face Milling up to 2-1/2". Compact yet capable — this machine gets real work done.
Specifications
| Spindle Taper | R8 |
| Spindle Travel | 2"(50mm) |
| Quill Diameter | Ø2-3/4''(70mm) |
| Spindle Speed Range | 0-2500RPM |
| Number of Speed Steps | Variable |
| Drawbar Thread Size | 7/16"-20'' |
| Head Tilt Angle | ±90° |
| Spindle to Table Distance | 18-1/2"(470mm) |
| Spindle to Column Distance | 8-1/4"(210mm) |
| Drilling Capacity | 1-1/4"(32mm) |
| End Milling Capacity | 3/4"(20mm) |
| Face Milling Capacity | 3''(76mm) |
| Table Size | 8-1/4"x33''(210x840mm) |
| T-Slot Size / No. / Centers | 3 X 9/16''(14mm) |

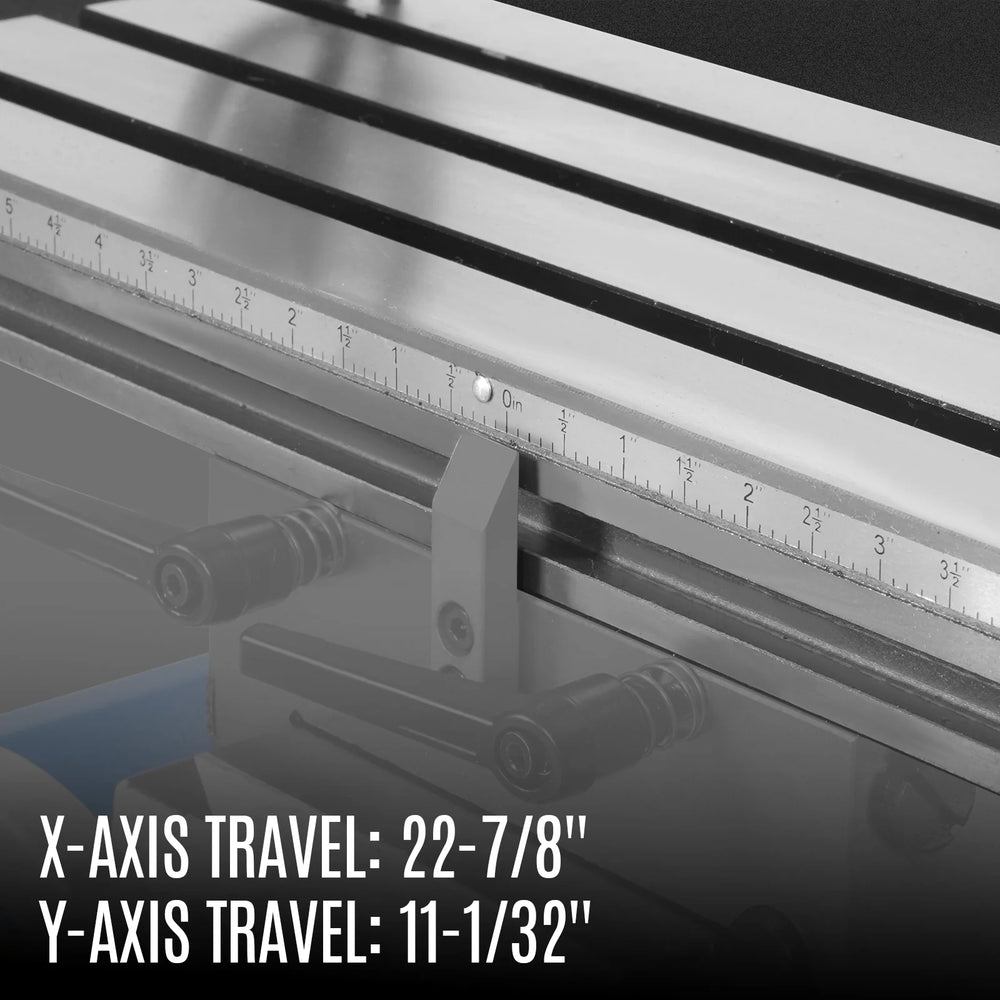

| X-Axis Travel | 22-7/8''(580mm) |
| Y-Axis Travel | 11-1/32''(280mm) |
| Z-Axis Travel | 18-1/2''(470mm) |
| Column Type | Square Column，Dovetail Slide |
| Drive Type | Belt |
| Motor Power | 2HP 110V Single-Phase Brushless |
| Motor Type | DC Brushless |
| Net / Gross Weight | 462/528lbs(210/240KG) |
| Overall Dimensions | 45''x28''x47''(1130X710X1190mm) |
| Base Size | 21''x15''(535X380mm) |
| Shipping Dimensions | 44''x29''x46''(1100X730X1160mm) |
Warranty
This item comes with a factory warranty.
