Mega Compressor MP-6580V2 Air Compressor 2 Stage 80 Gallon 5 HP 175 PSI 208/230V Single Phase Electric Start New
Product Overview

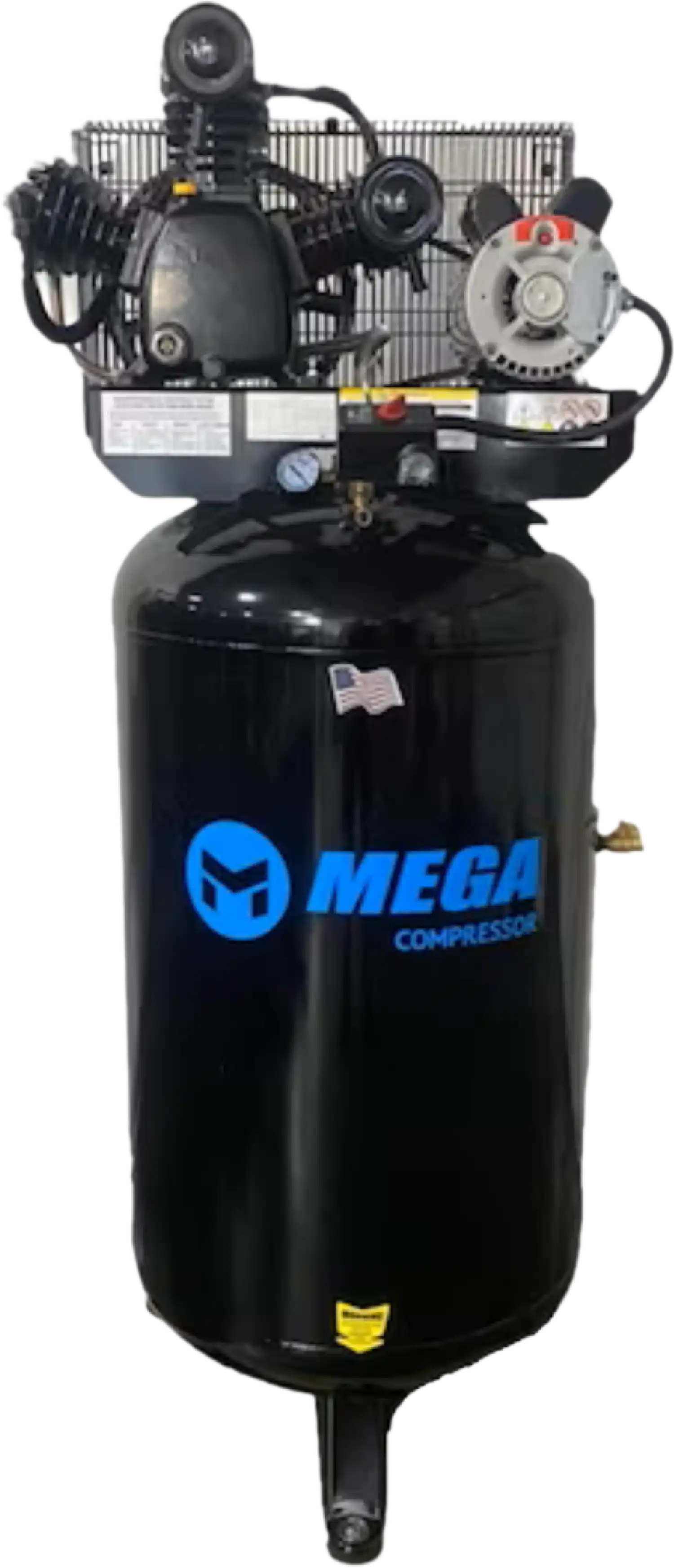

The MEGA Compressor 80-Gal., 5 HP, vertical air compressor (MP-6580V2) is ideal for a small shop, automotive enthusiast or serious DIY user. This compressor has high air flow of 14.5 CFM at maximum 175 PSI to power a wide variety of air tools for grinding, sanding or painting. The heavy-duty, cast-iron, two-cylinder pump is oil lubricated for a long life. The durable, 80-Gal., ASME-certified tank is a vertical design for space saving in the shop or garage.
1 year factory warranty
Ships directly from Mega Compressor out of TX and TN
Authorized Mega Compressor dealer
Features
- MEGA Two-Stage Air Compressor
- Perfect for DIY projects to the professional air compressor user
- Heavy-Duty 5-HP Induction Motor
- 208/230-volt single-phase motor runs at 3450 RPM
- Provides maximum performance and efficiency
- Delivers 18 CFM @ 90 PSI; 14 CFM @ 175 PSI (Max)
- Plenty of power to run a wide range of air tools
- Tackle airbrushing, drilling, sanding and bolting/wrenching
- Cast Iron V-Twin Oil Lubricated Pump
- Thermally stable cast iron cylinder body
- Aluminum head and machine cast iron valve plate
- Aluminum pump head helps dissipate heat for longer pump life
- "W" Design
- Minimizes vibration, improves cooling, extends compressor life
- One-Piece Cast Iron Crankcase
- Durable automotive-style ball bearings
- Stainless steel reed valves for increased volumetric efficiency
- 80-Gallon Vertical Tank
- Fully enclosed belt guard protects you and the belt
- Easy-access manual drain simplifies routine maintenance
- Easy Viewing Oil Sight Glass On Pump
- Easily check compressors pump oil level
- Conveniently accessible oil fill for fast maintenance
Specifications
| Type | Air Compressor Stationary |
| Power Type | Electric |
| Voltage | 208/230 Volt AC |
| Phase | 1-Phase |
| Magnetic Starter | No |
| Amp Draw | 21 |
| Recommended Breaker | 30 Amp Breaker |
| Pump RPM | 1100 |
| Pump Type | Two-Stage |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| HP | 5 HP |
| CFM Displaced | 18 CFM @ 90 PSI |
| CFM Delivered | 14.5 CFM @ 175 PSI |
| Max. PSI | 175 PSI |
| Motor RPM | 3450 RPM |
| Overload Protection | Yes |
| Splash Lubrication | Yes |
| Pump Oil Capacity | 34 oz. |
| Tank Capacity | 80 Gallons ASME |
| Tank Orientation | Vertical |
| Tank Outlet | 1/2 Inch |
| ASME Certification | Yes |
| Product Dimensions | 34 x 32 x 74 in. |
| Shipping Weight | 508 lb. |
Package Contents
Mega Compressor Electric Vertical Air Compressor
User Manual
Warranty
This item comes with a 1 year factory warranty.
Manuals & Documentation
Customer Reviews
Customer Reviews

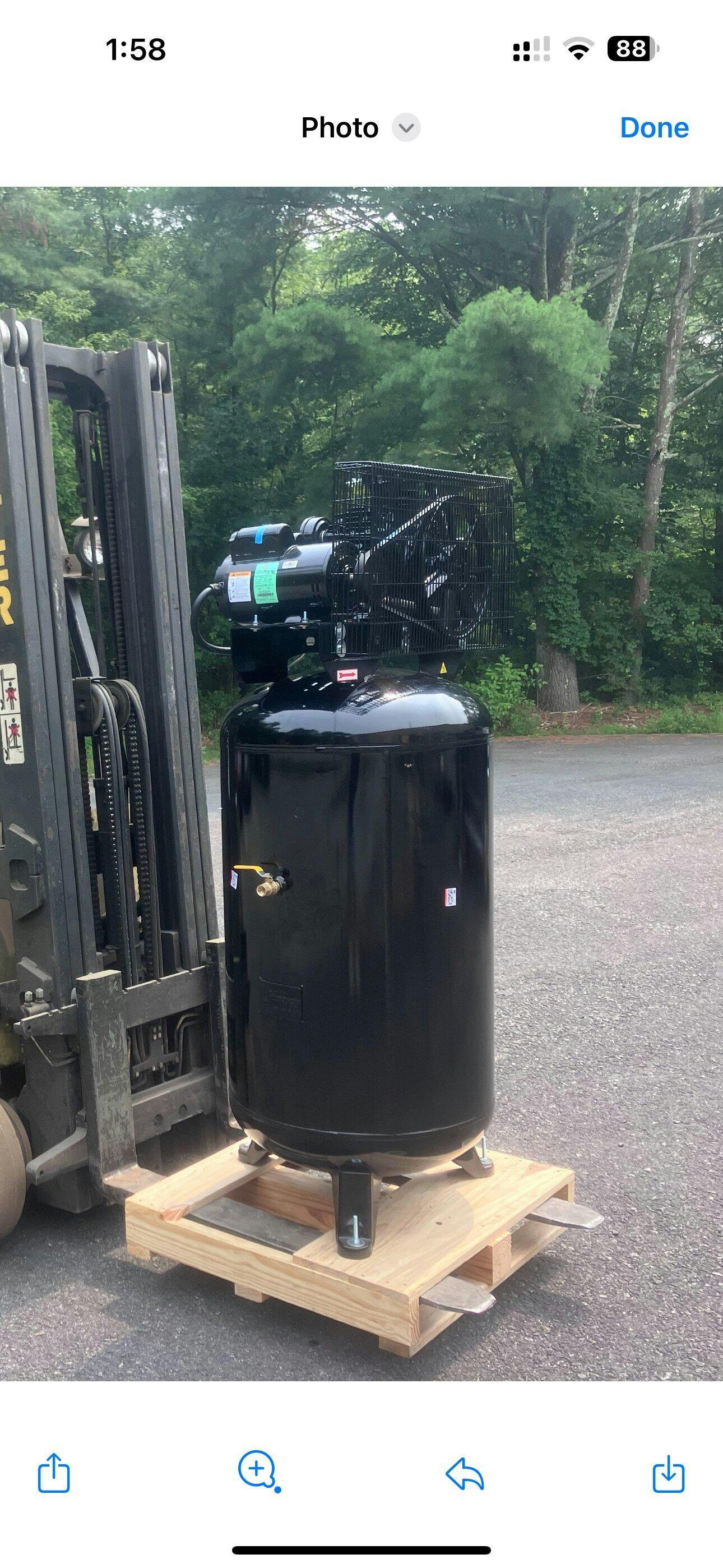

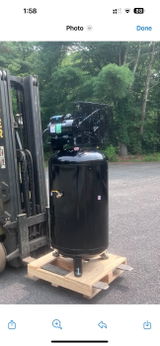

Works good with all my airtools.pleasantly not incredibly Loud. Buddies are envious!
It's a pretty good unit for the price. Delivered without any damage. Not terribly loud. Took a while to set up without a forklift because of the weight. Time will tell how it holds up. It even came with a free sample of rusty water in the tank. I installed a drain extension to the bottom of the tank, would give it five stars if Mega had included this extension.
I like it. It maintains airflow and pressure under heavy usage and it’s more quiet than most others.
We ordered this MEGA 80 Gallon Compressor and installed it at our shop. It is running great! Smooth ordering process, delivery and overall experience!
Had this compressor for about 3 weeks now running Monday-Friday, so far so good for the price I highly recommend
