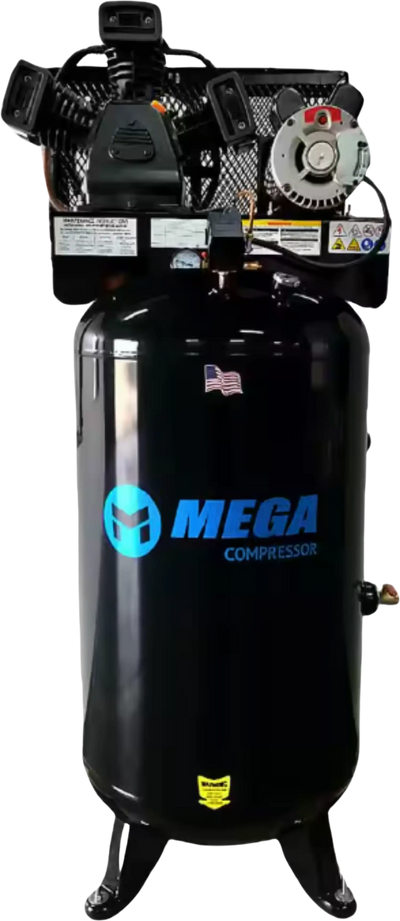

Mega Compressor MP-6580VC Air Compressor Single Stage 80 Gallon 5 HP 150 PSI 208/230V Single Phase Electric Start New
Manufacturer: Mega Compressor
SKU: MP-6580VC
QTY
or
(888) 999-1522
$ 1,499.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 3-5 Business Days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Mega Compressor MP-6580VC Air Compressor Single Stage 80 Gallon 5 HP 150 PSI 208/230V Single Phase Electric Start New
Product Overview
The MEGA Compressor 80-Gal., 5 HP, vertical air compressor (MP-6580VC) is ideal for a small shop, automotive enthusiast or serious DIY user. This compressor has high air flow of 18 CFM at 90 PSI and a maximum 150 PSI to power a wide variety of air tools for grinding, sanding or painting. The heavy-duty, cast-iron, single stage pump is oil lubricated for a long life. The durable, 80-Gal., ASME-certified tank is a vertical design for space saving in the shop or garage.
1 year factory warranty
Ships directly from Mega Compressor out of TX and TN
Authorized Mega Compressor dealer
Features
- MEGA Single-Stage Air Compressor
- Perfect for DIY projects to the professional air compressor user
- Heavy-Duty 5-HP Induction Motor
- 208/230-volt single-phase motor
- Provides maximum performance and efficiency
- Delivers 18 CFM @ 90 PSI: Max 150 PSI
- Plenty of power to run a wide range of air tools
- Tackle airbrushing, drilling, sanding and bolting/wrenching
- Cast Iron V-Twin Oil Lubricated Pump
- Thermally stable cast iron cylinder body
- Aluminum head and machine cast iron valve plate
- Aluminum pump head helps dissipate heat for longer pump life
- "W" Design
- Minimizes vibration, improves cooling, extends compressor life
- One-Piece Cast Iron Crankcase
- Durable automotive-style ball bearings
- Stainless steel reed valves for increased volumetric efficiency
- 80-Gallon Vertical Tank
- Fully enclosed belt guard protects you and the belt
- Easy-access manual drain simplifies routine maintenance
- Easy Viewing Oil Sight Glass On Pump
- Easily check compressors pump oil level
- Conveniently accessible oil fill for fast maintenance
Specifications
| Type | Air Compressor Stationary |
| Power Type | Electric |
| Voltage | 208/230 Volt AC |
| Phase | 1-Phase |
| Magnetic Starter | No |
| Amp Draw | 18 |
| Recommended Breaker | 30 Amp Breaker |
| Pump Type | Single-Stage |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| HP | 5 HP |
| CFM Displaced | 20 CFM @ 40 PSI |
| CFM Delivered | 18 CFM @ 90 PSI |
| Max. PSI | 150 PSI |
| Motor RPM | 3450 RPM |
| Splash Lubrication | Yes |
| Tank Capacity | 80 Gallons ASME |
| Tank Orientation | Vertical |
| Tank Outlet | 3/4 Inch |
| ASME Certification | Yes |
| Product Dimensions | 34 x 32 x 74 in. |
| Shipping Weight | 508 lb. |
Package Contents
Mega Compressor Electric Vertical Air Compressor
User Manual
Warranty
This item comes with a 1 year factory warranty.
