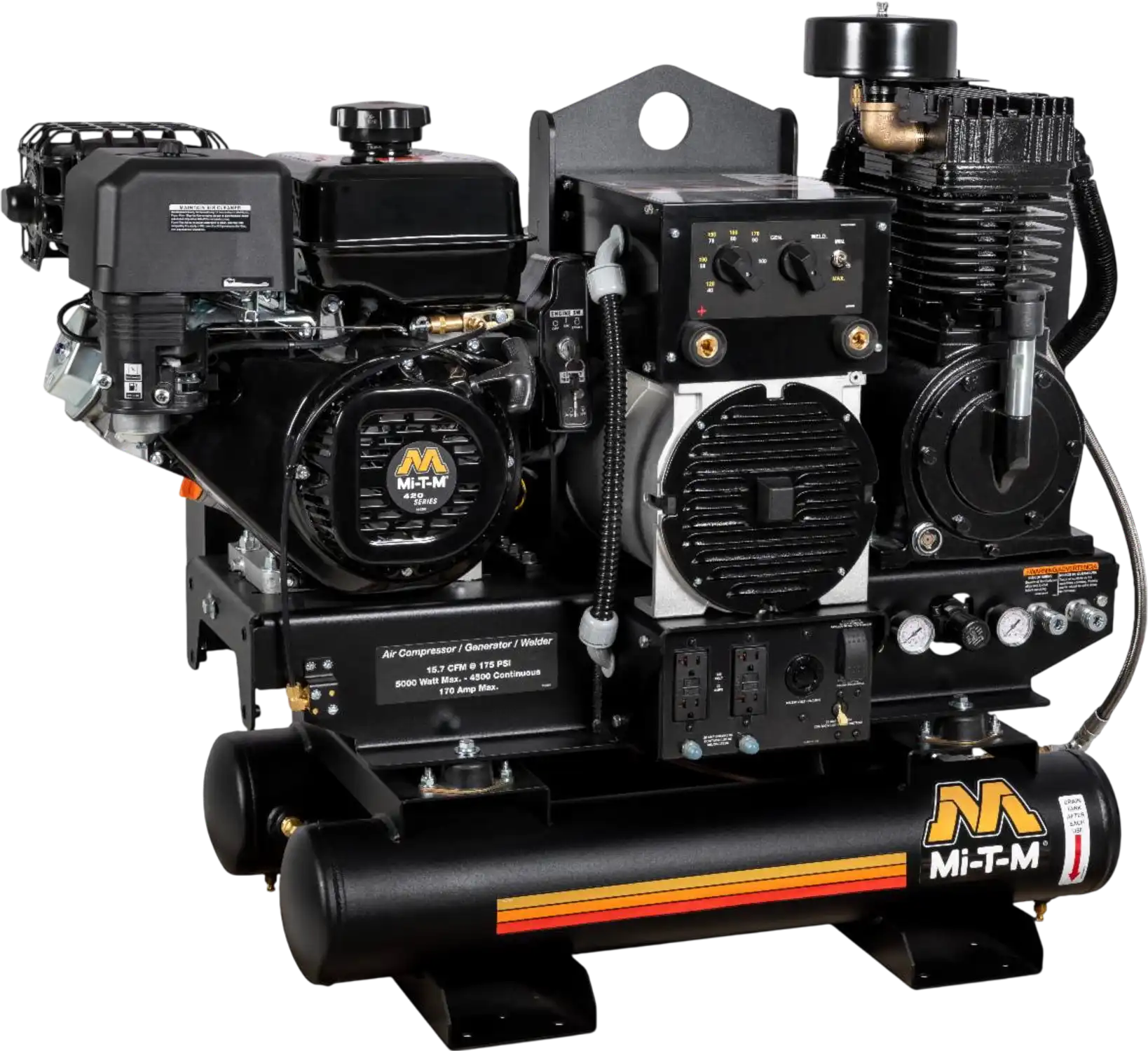

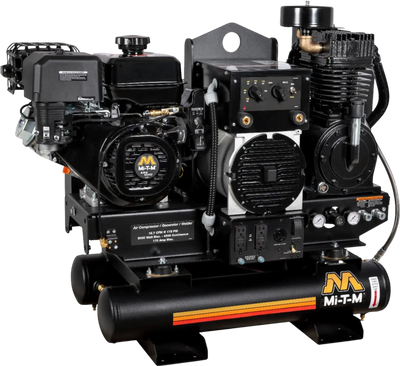

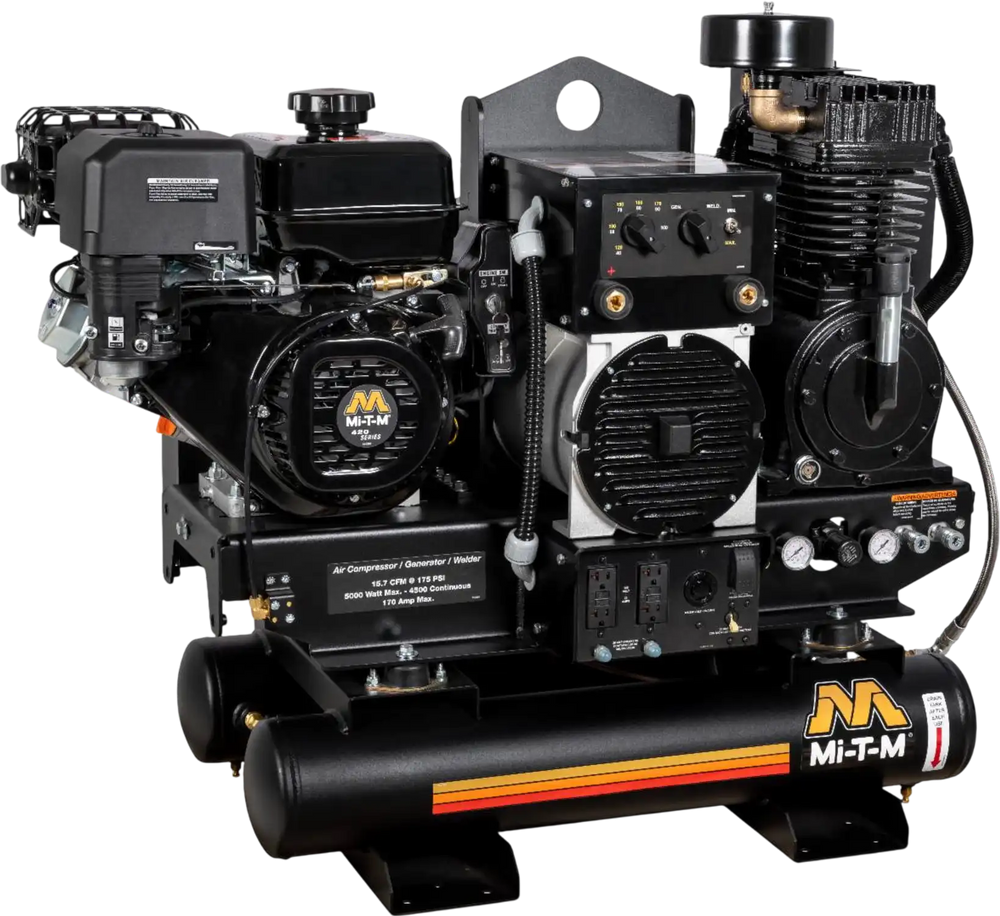

Mi-T-M Air Compressor Generator Welder Combo 14 HP 8 Gal. 175 PSI 5000W 170A New
Manufacturer: Mi-T-M
SKU: AGW-SM14-08M
QTY
or
(888) 999-1522
$ 5,890.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Built to Order, Ships in (est) 2-3 weeks
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 3 year engine, 2 year alternator, and 2 year pump exchange warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year engine, 2 year alternator, and 2 year pump exchange warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Mi-T-M Air Compressor Generator Welder Combo 14 HP 8 Gal. 175 PSI 5000W 170A New
Product Overview
A great addition to any work truck, this Mi-T-M combo unit brings together a two-stage air compressor, 5000W generator, and 170A max welder in one tank-mounted package. It features a 14 HP gasoline engine and delivers up to 16.4 CFM at 90 PSI. The integrated generator provides up to 5000 watts max AC output, while the welder offers up to 170A working range. Its cast iron pump, powder coated tanks, and maintenance-focused components are built for demanding jobsite use.
Brand new
3 year engine warranty
Manufacturer direct shipping from IA
Authorized Mi-T-M dealer
Plug Types
×2
20 Amp GFCI Standard Receptacle
(20A-GFCI)
×1
125v/250v 20 Amp Twist Lock
(L14-20R)
Plug Types
×2
20 Amp GFCI Standard Receptacle
(20A-GFCI)
×1
125v/250v 20 Amp Twist Lock
(L14-20R)
Features
- Splash lubricated compressor pump
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight indicator
- Brush-type 2 pole 120V/240V alternator
- Total harmonic distortion (THD) less than 6%
- 100% copper windings
- Amperage selection switch, 170A maximum
- Powder coated ASME coded receiver tanks
- 16-gauge powder coated belt guard
- Regulator and two gauges for tank and outlet pressure
- Manual drain valves for proper maintenance
- 16-1/2" fly wheel
Specifications
| Product Type | Air Compressor, Generator, Welder |
| Engine | 14 HP Mi-T-M OHV |
| Fuel Tank Capacity | 1.85 gal |
| Air Flow @ 90 PSI | 16.4 CFM |
| Air Flow @ 175 PSI | 15.7 CFM |
| Max Pressure | 175 PSI |
| Max Regulator Pressure | 150 PSI |
| Tank Configuration | 2 x 4 gal tanks (8 gal. total) |
| Generator Max AC Output | 5000 W |
| Generator Rated AC Output | 4500 W |
| Alternator Wattage Continuous On Load @ 90 PSI | 3000 W |
| Alternator Wattage Continuous On Load @ 175 PSI | 2500 W |
| Frequency | 60 Hz |
| Voltage | 120V/240V |
| Max Amps | 41.5A at 120V, 20.8A at 240V offload |
| Continuous Amps | 37.5A at 120V, 18.8A at 240V offload |
| Receptacles | 2 x 120V 20A GFCI duplex, 1 x 120V/240V 20A twist lock |
| Welder Output | 150A at 100% (10 minute run time) |
| Welder DC Voltage Working Range | 50-170A |
| Weight | 550 lbs |
| Dimensions | 47.25 x 23 x 28.25 in |
Package Contents
AGW-SM14-08M Air Compressor Generator Welder Combo Unit
User Manual
Warranty
This item comes with a 3 year engine, 2 year alternator, and 2 year pump exchange warranty.
