MotoAlliance Agricultural Kit Six-Piece Hydraulic System New
Manufacturer: MotoAlliance
SKU: IP4999_6_PIECE_HYDRO_KIT
Kit Configuration
QTY
or
(888) 999-1522
$ 1,404.99
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year limited warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year limited warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
MotoAlliance Agricultural Kit Six-Piece Hydraulic System New
Product Overview

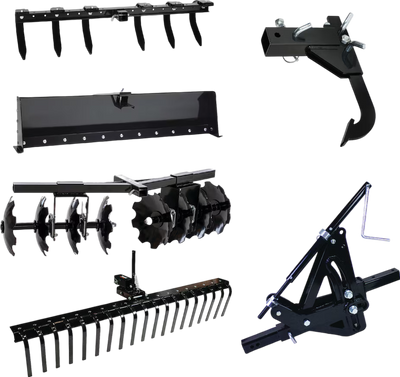

Get six Impact Implements together to create one amazing hydraulic system and save money versus buying each individually. This agricultural kit includes the 1-point hydraulic lift system, cultivator, grading blade with box ends, rake with tipper latch, middle buster, and disc plow harrow.
Brand new
1 year limited warranty
Manufacturer direct shipping from MN
Authorized MotoAlliance Dealer
Features
- 1-Point Hydraulic Lift System: Made of heavy duty 14-gauge tube steel construction, it offers approximately 1,100 lbs of pushing force and 800 lbs of pulling force. Hydraulic lift provides an additional 10" of fine adjustments; fits 2" hitch receiver.
- 3-Position Blade with Box Ends: The 52" grading blade has 12-degree angle adjustment in either direction; reversible/replaceable cutting edge.
- Landscape Rake with Latch: Features nineteen 10" x 1" replaceable spring steel tines. Use it to clear brush, rake woodland trails, knock down gopher mounds, and more.
- Cultivator: Features a 49" cutting path and six adjustable and replaceable cutting-edge tines. Spring steel tines cut through prepped soil, do not bend or warp, and leave deep furrows for seeding.
- Middle Buster: Perfect for potato plowing, opening furrows, digging trenches and more. Rigid drop shank with a cutting tine of 16" x 5.5" and cutting edge of 3" x 1" x 3/8".
- Disc Plow Harrow: Features an integrated weight tray, (8) 12" notched hardened steel cutter disc blades. 54" of cutting width and two heavy duty roller bearings per axle, with a 15-degree blade angle of attack.
Specifications
| 1-Point Hydraulic Lift System | |
| Amp Draw of Pump | 5A-30A, depending on load |
| Weight | 52 lbs |
| Grading Blade with Box Ends | |
| Dimensions | 52" (W) x 12" (H) |
| Weight | 42 lbs |
| Landscape Rake | |
| Tines | 10″(H) x 1″ (W) |
| Dimensions | 62″ (W) x 10.75″ (H) x 7.75″ (D) |
| Weight | 32 lbs |
| Cultivator | |
| Cutting Path | 49" |
| Tines | 2″ (W) x 12.5″ (H) |
| Dimensions | 50″ (W) x 12.5″ (H) |
| Weight | 40 lbs |
| Middle Buster | |
| Tines | 16″ (W) x 5.5″ (H) |
| Tine Edges | 3″ (L) x 1″ (W) x 3/8″ (D) |
| Dimensions | 16″ (W) x 9.75″ (H) |
| Weight | 40 lbs |
| Disc Plow Harrow | |
| Cutting Width | 54" |
| Blade Angle of Attack | 15-degrees |
| Dimensions | 55” (L) x 15” (H) |
| Weight | 120 lbs |
Package Contents
6-Piece Hydraulic System Agricultural Kit
1-Point Lift System
Rake with Tipper Latch
Cultivator
Middle Buster
Blade with Box Ends
Disc Plow / Harrow
Installation Instructions
Warranty
This item comes with a 1 year limited warranty.
