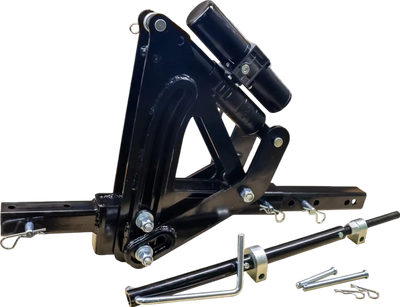

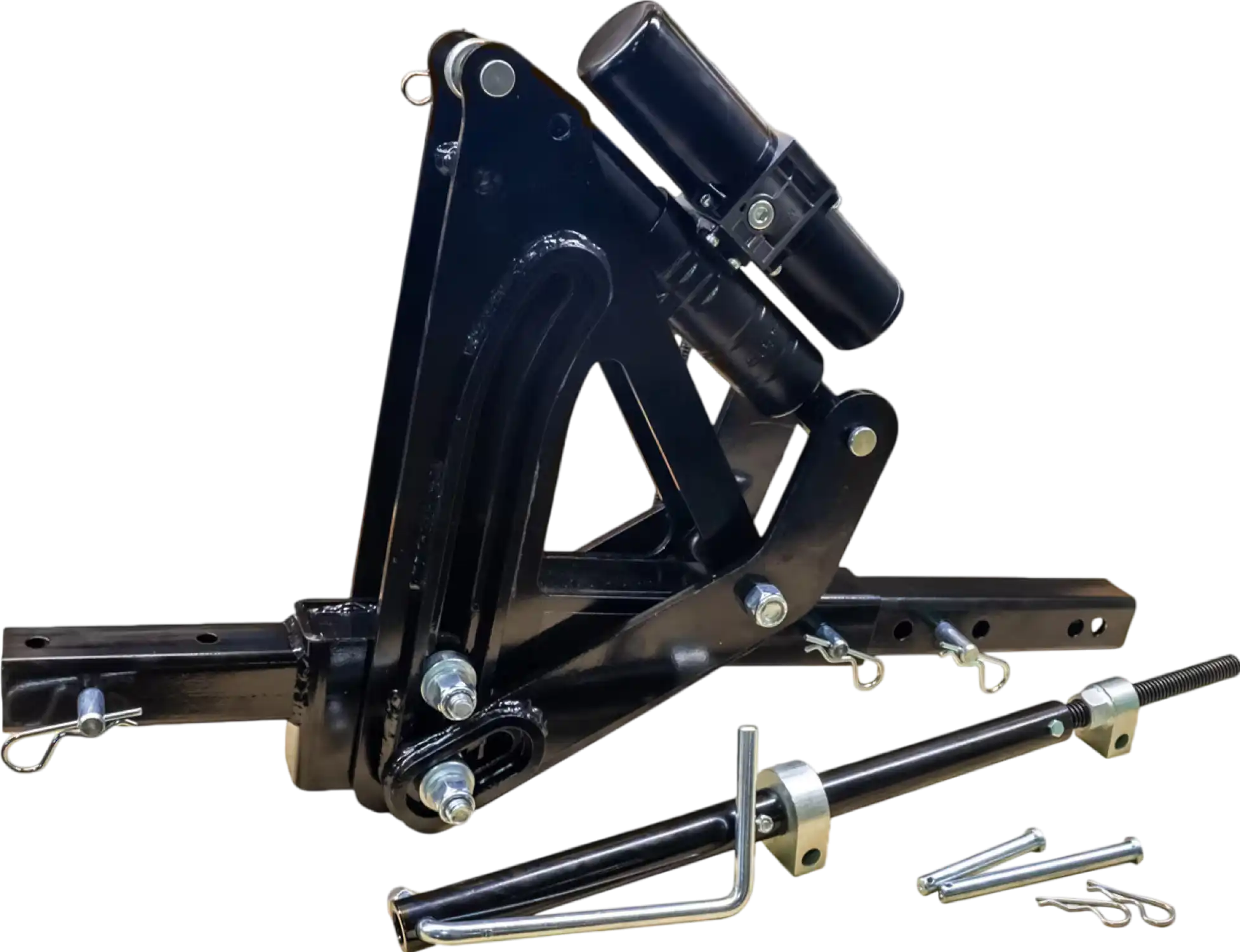

MotoAlliance Hydraulic One-Point Lift System for ATV/UTV/Lawn Tractor New
Product Overview
The patented HD One-Point Lift System turns your ATV, UTV, or lawn tractor into an all-purpose work machine with the patented ground engagement angle to get the full use of every implement. The powerful hydraulic lift system is wired through the onboard electrical system and operates with an up/down control switch. Quick-attach, durable attachment accessories go on and off the ATV/UTV/Lawn Tractor easily with a single hitch pin, and the patented lift is heavy duty enough to raise heavy implements well off the ground for long travel. The one-point lift system is easy to adjust and installs into a 2" hitch style receiver already installed on your machine.
Brand new
1 year limited warranty
Manufacturer direct shipping from MN
Authorized MotoAlliance Dealer
Features
- Heavy duty steel construction
- Approximately 1,100 lbs of pushing force and 800 lbs of pulling force
- Hydraulic lift for 10" of adjustments
- Amp draw of pump 5A-30A, depending on load
- Single hitch pin (included) attachment for quick and easy accessory changes
- Requires a 2" hitch receiver (not included) installed on machine
Specifications
| Uses | ATV, UTV, SxS, Garden Tractor, Lawn Tractor |
| Push Force | Approx. 1,100 lbs |
| Pulling Force | Approx. 800 lbs |
| Dimensions | 19" x 4" x 24" |
| Weight | 49.9 lbs |
Package Contents
HD One-Point Lift System
Installation Instructions
Warranty
This item comes with a 1 year limited warranty.
