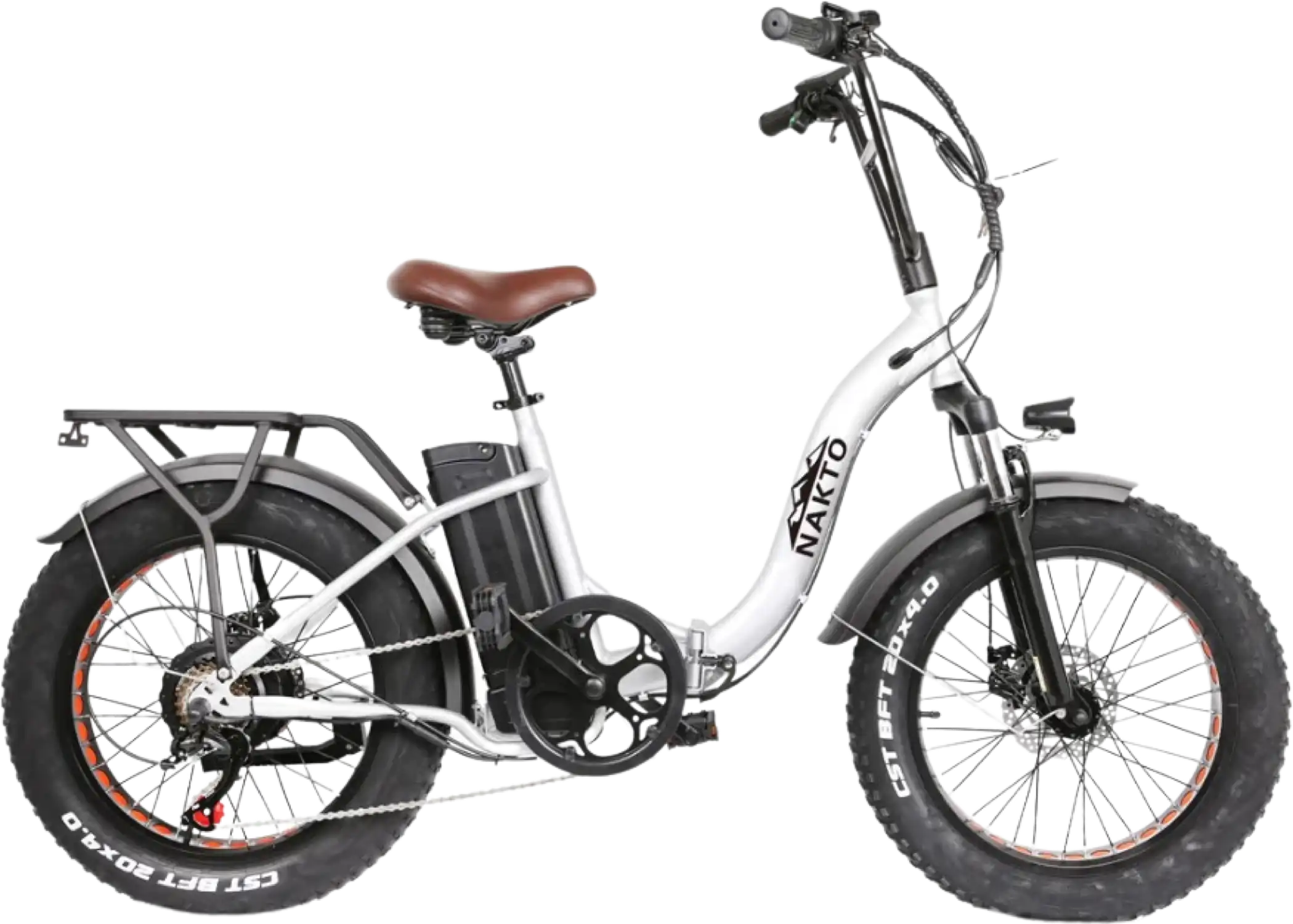

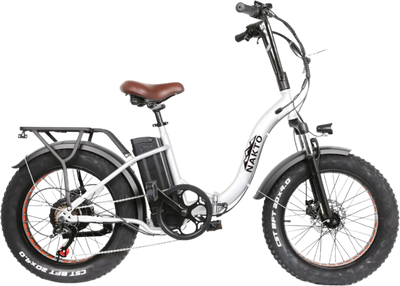

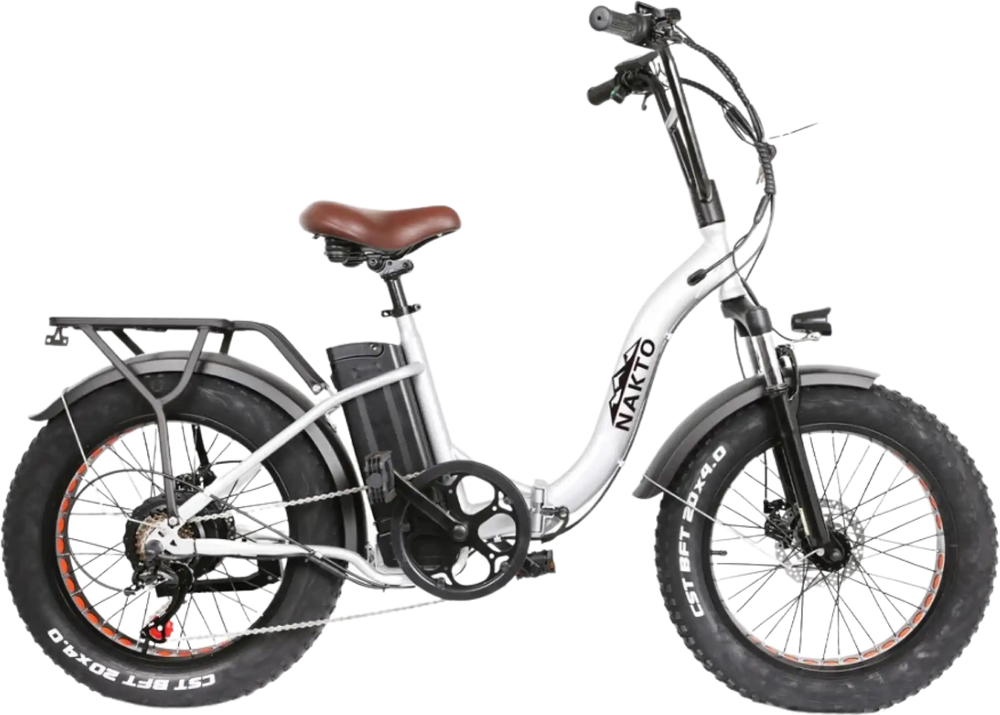

Nakto Folding OX Electric Fat Tire Bike 20" 500W Motor with Peak 750W 20 MPH 60 Mile Range 48V Li-ion Battery New
Manufacturer: Nakto
SKU: A020100025
QTY
or
(888) 999-1522
$ 999.00
$ 875.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Nakto Folding OX Electric Fat Tire Bike 20" 500W Motor with Peak 750W 20 MPH 60 Mile Range 48V Li-ion Battery New
Product Overview
NAKTO Folding OX is equipped with a large 48V battery, 500W motor with 750W peak, front and rear disc brakes, and a front suspension fork. As a fat tire electric bike, it is very outstanding. Not only that, the most attractive part is the foldable frame and only 20-inch tires. The 20-inch tires greatly reduce the weight, and the foldable design greatly reduces the volume and can be easily put into any car. It does not take up space. NAKTO Folding OX is your best choice to go out camping, fishing, or hunting.
1 year limited warranty
Brand new in box
Ships directly from Nakto out of CA
Authorized Nakto dealer
Features
- Battery- Located on the down tube of the eBike for better weight distribution. Delivers a range on a single charge up to 22 miles.
- Rear Geared Motor- Rear hub motor delivers up to 500W of peak power and 52Nm torque ensuring controlled acceleration.
- LCD Display- The LCD screen gives you all the information you care about before your next exploration with peace of mind.
- Pedal Assist System- The pedal assist system gives you power with each pedal stroke. 5 levels at your disposal to help getting where you want to go.
- Capability- It’s fully equipped to get you out there for long periods, and its highly-versatile design allows you to do so in various ways. Multi-speed? Pedal assist? Twist Throttle? Fat Tire? Yes. All of that and so more.
- Step-thru Frame- Ultra-low stand over height design makes it ability to accommodate smaller riders. Allows riders of all sizes to get farther back on the bike when the terrain demands it.
- Ultra-Fat Tires- Equipped with ultra-fat tires from CST making it a perfect choice for trail riding, as well as the beach or boardwalk.
- Foldable- It doesn't take up much space for storage thanks to its folding frame. Folds into half can be ease of transport as it is compact enough to fit into almost every car.
- Motor- 500W brushless geared hub motor with max torque of up to 52Nm
- Range- A fully charged battery can last up to 22miles and 4 hours to juice up fully
- User-Friendly- Sometimes the simplest solution brings the most comfort. Comfortable suspension, intuitive twist grip throttle and cushy saddle are all standard.
- Hi-Rise Handlebar- The position of the hi-rise handlebar put your wrists and back in the most natural position while riding.
- Front Suspension- The front suspension takes a large majority of the rider's weight. It can gently moderate the speed of the compression and rebound to smooth out the ride.
- Padded Saddle- The well-sculpted seat is covered with a thick layer of foam that will ultimately bring a pleasurable riding experience.
- Twist Throttle- Propels you and your bike forward by twisting the throttle, especially for additional boost up hills or when accelerating.
- Battery- 48V/10A Li-ion battery on frame for better weight distribution
- Pedal Level- variable speed levels from level 1 to level 5 to provide a smoother assistance
- Performance- Exploring around town quickly and easily can be both fun and safe. Its powerful rear hub geared brushless motor meshes seamlessly with Shimano gears to make easy work of any journey. A reliable mechanical disc brake ensures you can stop in all weather with low maintenance.
Specifications
| Pedals | Yonghua PA66, foldable |
| Shifters | Shimano Tourney TZ |
| Rear Dearailleur | Shimano, RD-TZ50-GS |
| Brakes | Shimano, front and rear mechanical disc brake, steel |
| Brake Levers | Steel, silver |
| Chain | Rust resistant |
| Cranket | Lide 52*152 |
| Bottom Bracket | Integral bottom bracket |
| Rims | Aluminum alloy |
| Hubs | 52Nm / 500W motor, integrated into the rear wheel, geared brushless hub |
| Spokes | Carbon steel, silver |
| Types | Kenda or CST, 26 × 4" |
| Front-light | LED light |
| Weight | 66 lbs |
| Overall size | 68" x 24" x 43" |
| Wheel size | 20" x 4" |
| A - Seat tube length | 18" |
| B - Seat-post diameter | 1" |
| C - Saddle height | 33" - 38" |
| D - Handlebar height | 39.4" |
| E - Handlebar width | 22.8" |
| F - Crank length | 6.7" |
| G - Wheelbase | 45.6" |
| Motor | 52Nm / 500W motor |
| Pedal Assist Levels | 0-5 level |
| Display | 861 LCD display |
| Battery | Tianneng 48V/10A, removable, supports up to 22miles |
| Drive Mode | 5-level Pedal-assist and Full Twist Throttle |
| Frame | NAKTO steel step-thru frame |
| Fork | Trama 82B sprung fork, 60mm travel |
| Handlebars | Hi-rise cruiser bar, aluminum alloy, 25.2" width |
| Stem | Steel |
| Seat post | Aluminum alloy dropper post, seat-height adjustability, 1" diameter |
| Saddle | Comfort padded in brown, 2 damping spring |
| Maximum Speed | 28 MPH |
Package Contents
E-Bike
Battery
Owner’s Manual
Warranty
All Nakto electric bikes are covered under manufacturer's 1 year warranty for the original owner against all manufacturing defects
