Ducted Convertible central split systems offer climate control for multiple rooms and areas, utilizing a network of air ducts (existing or field designed) using a single set of equipment. Ideal for whole house climate control. In this setting a single set of equipment will properly condition a large area with many rooms, under the same comfort settings.
2 year limited factory warranty
Brand new
Ships directly from Pioneer out of FL
Authorized Pioneer dealer
Features

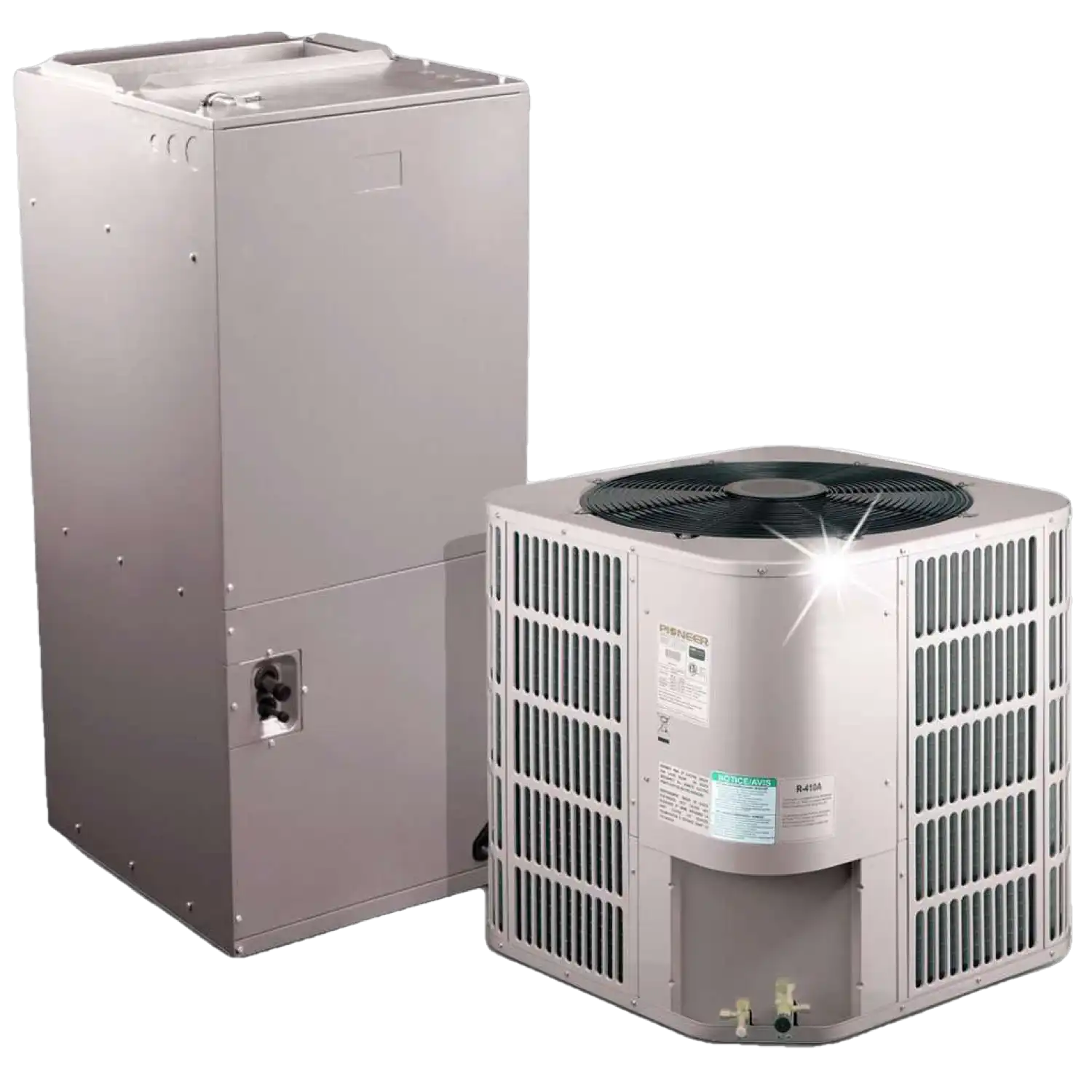

Ultra High Efficiency Inverter+ central ducted split heat pump system
Cooling capacity: 47,000 BTU/H with 17.5 SEER efficiency
Heating capacity: 46,500 BTU/H with 9.5 HSPF efficiency
Central Ducted Air Conditioning & Heating System
Variable Speed DC Inverter Operation Mode
Includes Electric Strip Heater
Specifications
Manufacturer's Warranty
2 Yr Consumer Limited
Power Supply
208~230v, 60Hz, 1Ph
Rated Cooling Capacity
47,000 BTU
Cooling SEER
17.5 BTU
Rated Heating Capacity
46,500 BTU
Heating HSPF
9.5 BTU
Refrigerant Type
R410a
Suitable Area
1,600 sq.ft
Estimated Annual Operating Costs
Cooling - $338 / Heating - $988
Indoor Unit Data
Model
DC048GMFI18HT2
Air Flow
1,560 CFM
Sound Level
67db
Net Dimensions (WxDxH)
22" x 24" x 54.5"
Carton Dimensions (WxDxH)
25" x 27.6" x 55.8"
Net / Gross Weight
160lbs. / 180lbs.
Outdoor Unit Data
Model
YD048GMFI18MR2
Sound Level
79db
Net Dimensions (WxDxH)
29.2" x 29.2 x 33.2"
Carton Dimensions (WxDxH)
30.2" x 30.2" x 34.5"
Net /Gross Weight
201lbs./211lbs.
Package Contents

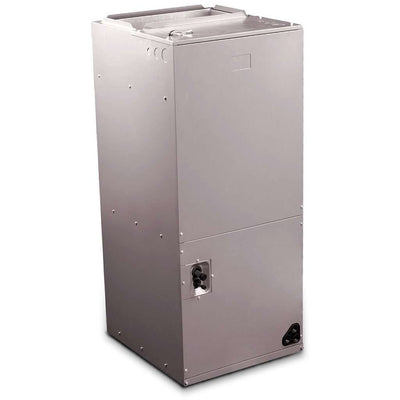

Indoor Unit
Outdoor Unit

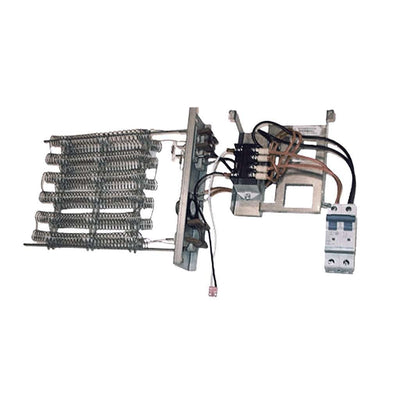

Electric Strip Heater
Installation Manual
User’s Manual
Manufacturer Warranty
Warranty
This item comes with a 2 year limited parts warranty and 5 years on the compressor
Saw this HVAC system for less on factorypure than the company website. It was delivered timely and in good condition. Had installed by my hvac guy and looks good. I'll update this review once i've ran in for a while.
