Pioneer WYS009AMFI19RL 9000 BTU 19.5 SEER 115V Ductless Mini-Split Air Conditioner Heat Pump System Full Set New

  • Model: Pioneer
  • SKU: WYS009AMFI19RL
Pioneer WYS009AMFI19RL 9000 BTU 19.5 SEER 115V Ductless Mini-Split Air Conditioner Heat Pump System Full Set New

Extended Warranty Options

  • Details
  • Details
  • Details
Warranty has been added in!
79800
Out Of Stock
Ships Same or Next Day
If ordered by 12PM EST
  • Free Shipping Options Available
  • Price Match On Most Items
  • Manufacturer Direct
  • Exceptional Customer Service
  • Free Replacement Shipping
To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.

Manufacturer Refurbished Brand new in original box & manufacturer direct
Manufacturer Refurbished Includes all original accessories
Manufacturer Refurbished Authorized Pioneer dealer
Manufacturer Refurbished Free same or next day shipping

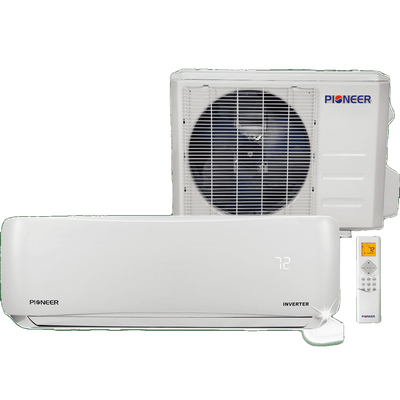

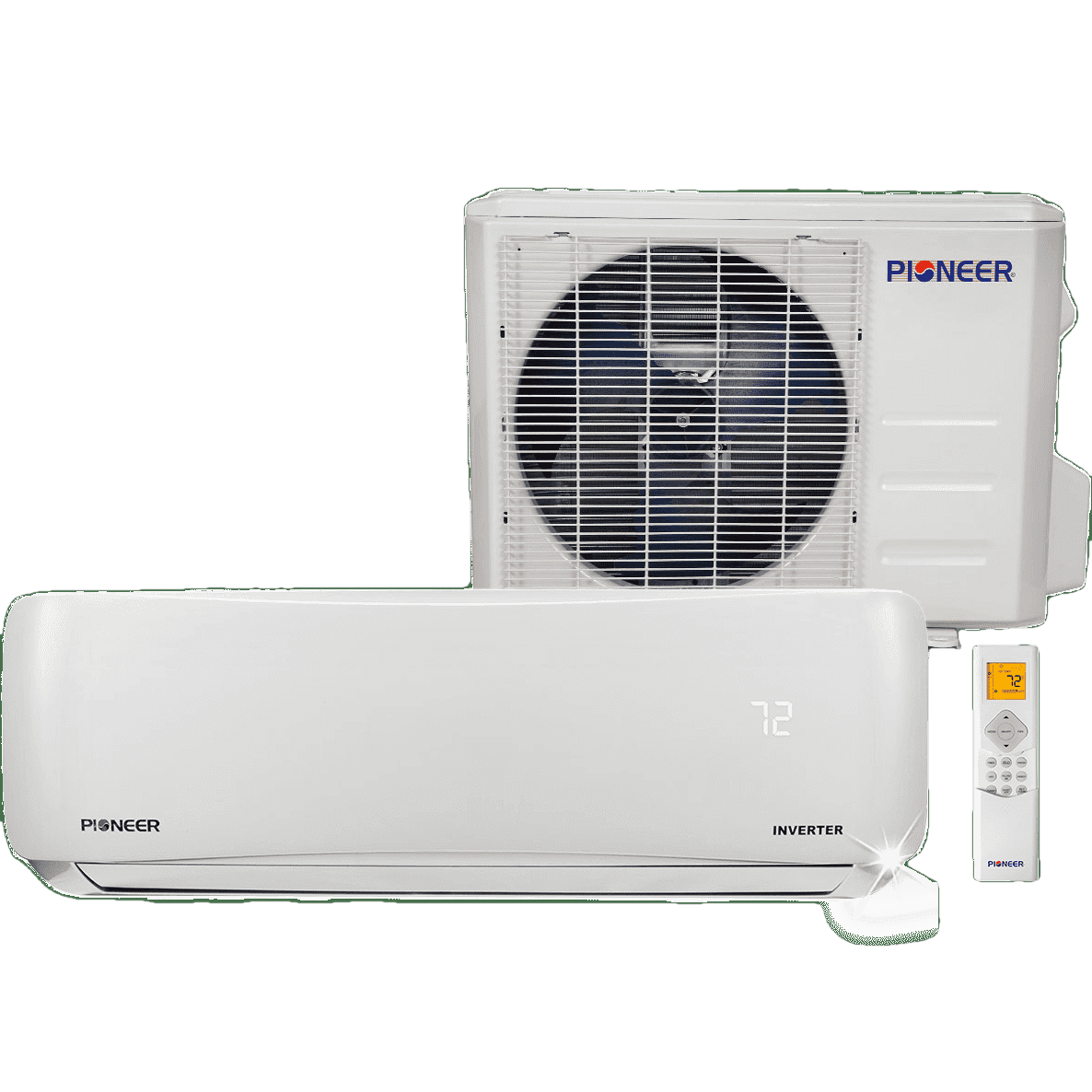

 Pioneer WYS009AMFI19RL Mini Split

The Pioneer WYS009AMFI19RL Mini Split is one of the most efficient and effective single-zone mini-splits on the market. This 9,000 BTU model is great for year-round comfort is home additions and rooms up to 400 square feet. If you’re looking for quiet, efficient cooling and heating without the use of inefficient ducts, then look no further than this Pioneer 9000 BTU Mini Split.

Use the included remote control to set your ideal room temperature. You can also turn on oscillation, change the angle of airflow, or set the programmable timer.

Note: This Pioneer mini-split system requires professional installation by an HVAC professional.

Installation Kit Included

This affordable Pioneer mini-split comes with all the needed parts for installation, making it an even more cost-effective option. Sixteen-foot refrigerant lines are included with purchase so you won't need to spend extra money for proper operation. Note: Professional installation is required.

Efficient Year-Round Comfort

Mini-splits efficiency ratings are measured by seasonal energy efficiency ratio (SEER), which measures how much cooling a system puts out for each unit of energy it consumes. With a SEER value of 19, you’ll struggle to find a more efficient model. A variable speed rotary compressor and inverter technology regulate the amount of energy output; only the amount of energy needed to meet your set temperature will be used. Heat pumps also transfer warm and cold air as opposed to creating it with coils.

Low Noise Cooling

Since the loudest parts of this 115-volt mini-split are located outside, you’ll hardly hear it running. It’s extremely quiet on any fan speed but also includes a Sleep function for even quieter operation as you sleep.

Multiple Modes for Year-Round Use

Features:

  • Auto Restart: If a power outage occurs while it’s in use, it will turn back on with the original settings once power is restored.
  • Three Fan Speeds: Choose between low, medium, and high fan speeds depending on your needs or noise desires.
  • Programmable Timer: Set your AC to turn on or off up to 24 hours in advance.
  • Angled AirFlow: You can angle this mini-split AC to direct air where you need it vertically and horizontally.
  • Wall-Mounted Design: Save ground space other air conditioners may take thanks to its compact design and wall-mounted interior unit.
  • Cool: Adjusts BTU output to cool rooms up to 400 square feet
  • Heat: Adds variable warmth to your room all winter
  • Dry: If you have excess moisture in your room, use this dehumidify mode to remove up to 50 pints of moisture from your room
  • Fan: Choose one of three fan speeds to circulate air and conserve energy when you don't need Cool mode
  • Auto: This model selects a mode (heat, cool, or dry) based on your set and ambient room temperatures.

What's In The Box:

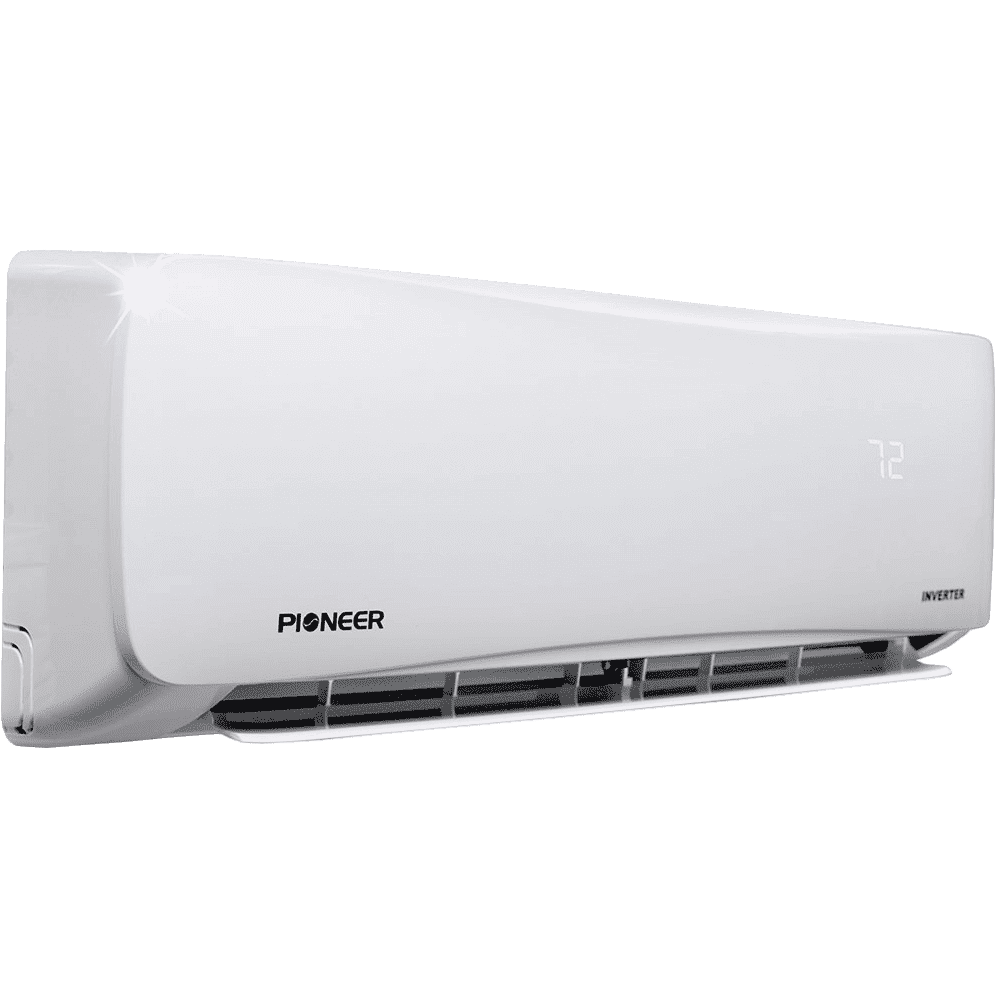

  • Indoor Unit (Model WS009AMFI19HLD)

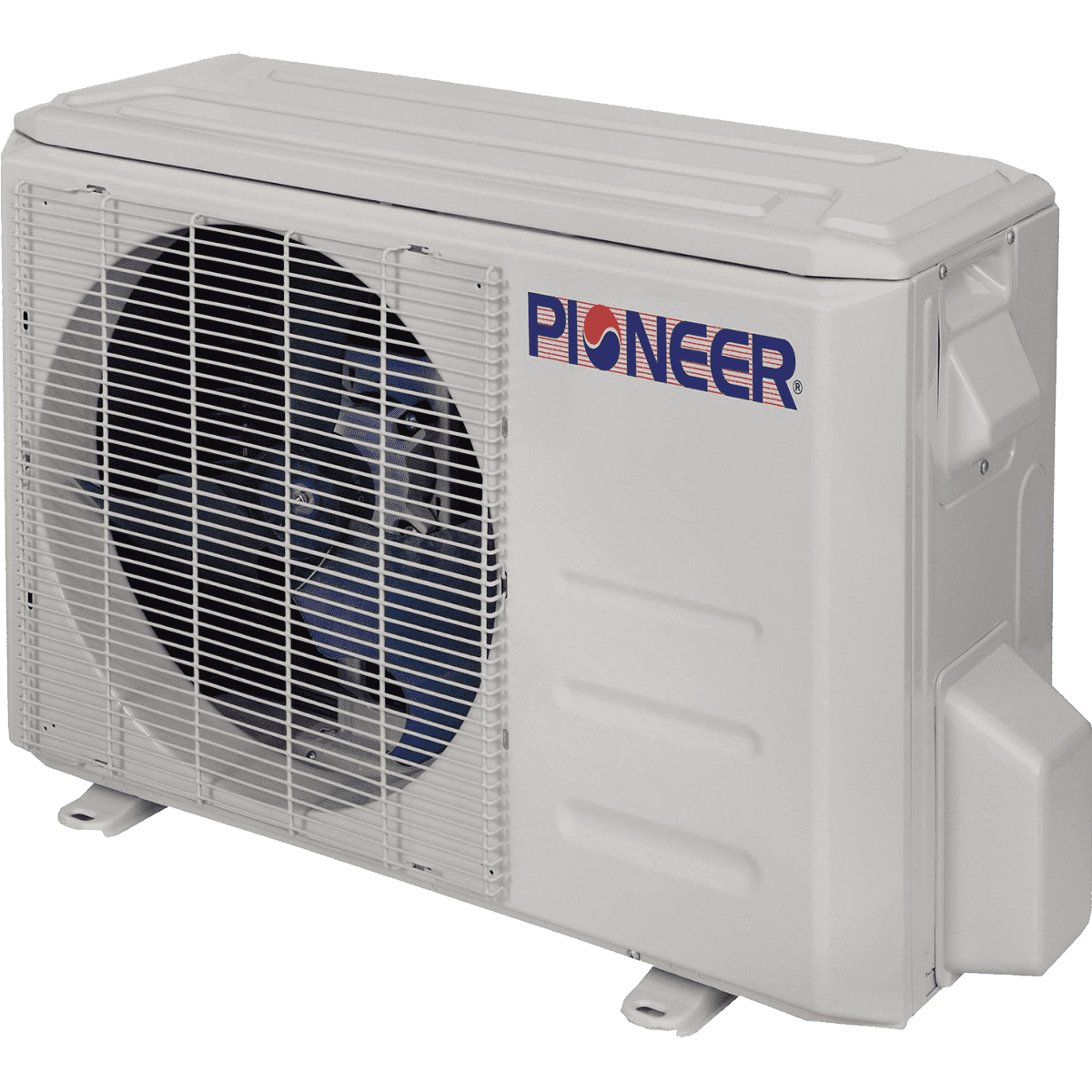

  • Outdoor Unit (Model YN009AMFI19RPD)

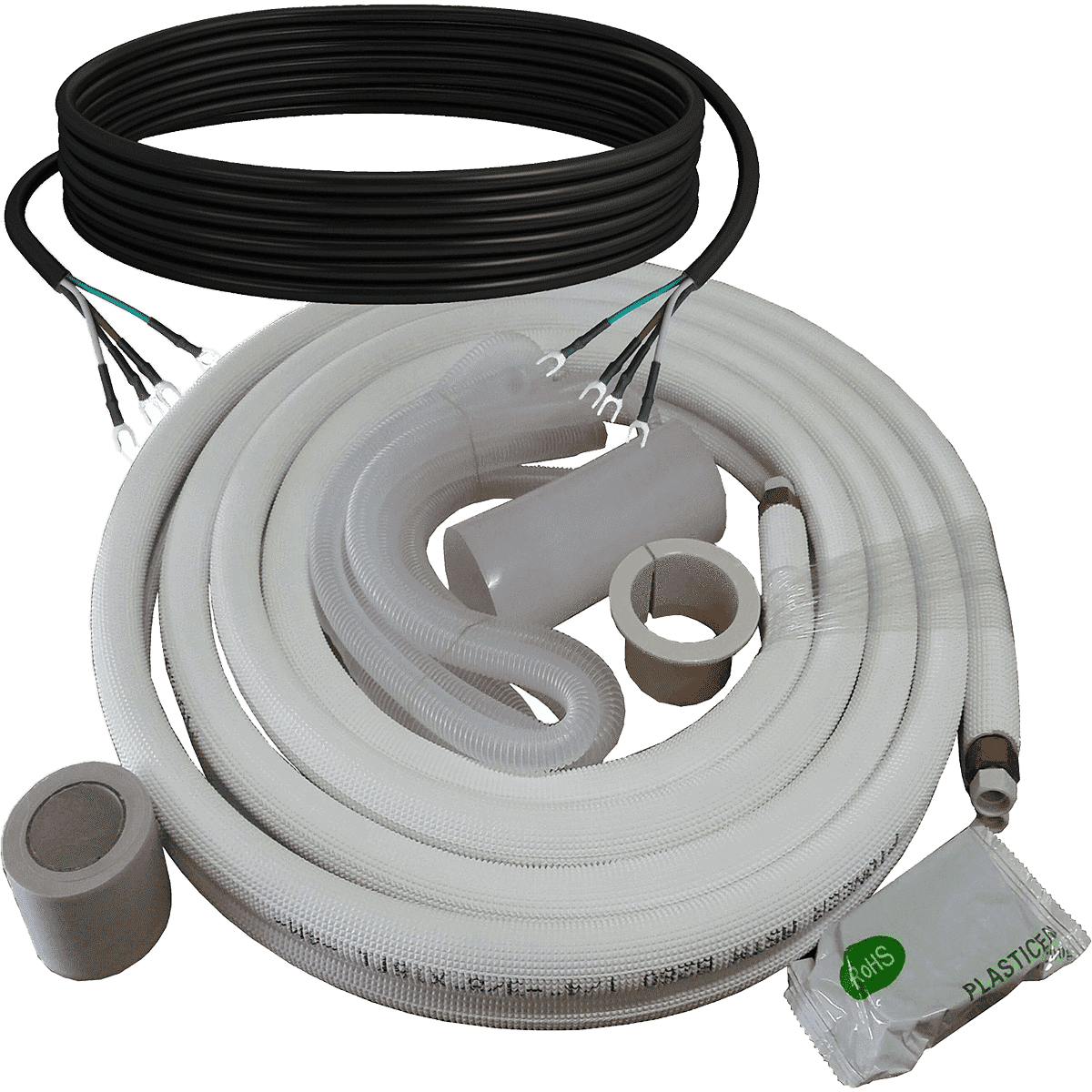

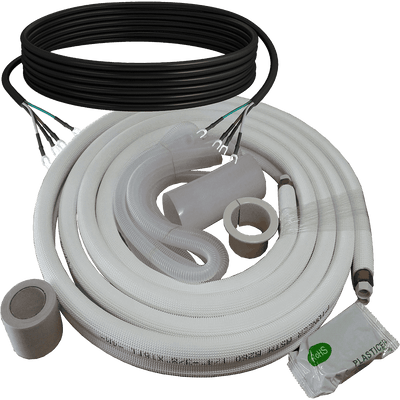

  • 16-foot Refrigerant Lines

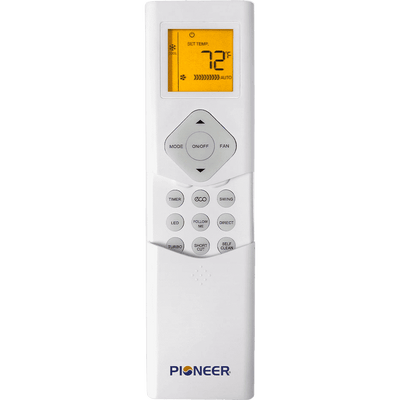

  • Remote Control
  • Owner's Manual

Specifications:
Number of Zones 1
Energy Efficiency Ratio (EER) 11.5
Seasonal Energy Efficiency Ratio (SEER) 19.5
Heating Seasonal Performance Factor (HSPF) 10
Installation Type Professional Installation
Wi-Fi Capable Yes
Total Cooling Capacity 9000 BTUs
Total Heating Capacity 10,000 BTUs
Automatic Mode Yes
Maximum Cubic Feet per Minute (CFM) 247 CFM
Fan-Only Mode Yes
Number of Fan Speeds 3
Minimum Operating Temperature - Cooling 32 degrees F
Maximum Operating Temperature - Cooling 122 degrees F
Heat Mode Yes
Minimum Operating Temperature - Heating 5 degrees F
Maximum Operating Temperature - Heating 86 degrees F
Dehumidifier Mode Yes
Compressor Type Rotary
Outdoor Unit Height 21.875 in.
Outdoor Unit Width 30.375 in.
Outdoor Unit Depth 11.875 in.
Outdoor Unit Weight 67 lbs.
Mounting Type Wall
Indoor Unit Height 11.375 in.
Indoor Unit Width 28.5 in.
Indoor Unit Depth 7.375 in.
Indoor Unit Weight 16.5 lbs.
Maximum Height Difference 33 ft.
Remote Control Yes
Programmable Timer Yes
Auto-Restart Yes
Refrigerant Type R-410A
Minimum Indoor Noise Level 24.5 dB
Maximum Indoor Noise Level 39 dB
Maximum Outdoor Noise Level 56 dB
Refrigerant Connection Type Flare
Line Length 80 ft.
Liquid Line O.D. 0.25 in.
Suction Line O.D. 0.375 in.
Air Filter Yes
Adjustable Louvers Yes
Automatic Oscillation Yes
Maximum Cooling Wattage 1087 W
Maximum Cooling Amperage 6.8 Amps
Maximum Heating Wattage 1100 W
Maximum Heating Amperage 8.1 Amps
Voltage 110-120 V
Factory Precharge 16 ft.
Color White

Manufacturer's Warranty:

5-Year Limited Compressor Warranty, 2-Year Limited Parts Warranty

    Perfect For Areas Up To: 400 Sq. Ft.
