Pioneer WYS009GMFI19RL 9000 BTU 18 SEER 230V Ductless Mini-Split Air Conditioner Heat Pump System Full Set New
- Manufacturer: Pioneer
- SKU: WYS009GMFI19RL

Select Bread as your payment option at checkout
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping

![]() |
Brand new in original box & manufacturer direct |
![]() |
Includes all original accessories |
![]() |
Authorized Pioneer dealer |
![]() |
Free same or next day shipping |

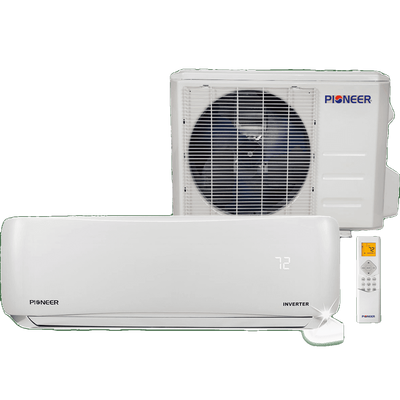

Pioneer WYS009GMFI19RL Mini Split
The Pioneer WYS009GMFI19RL Mini Split is one of the most efficient and effective single-zone mini-splits on the market. This 9,000 BTU model is great for year-round comfort is home additions and rooms up to 400 square feet. If you’re looking for quiet, efficient cooling and heating without the use of inefficient ducts, then look no further than this Pioneer 9000 BTU Mini Split.

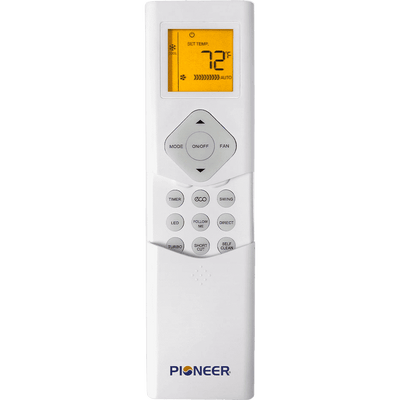

Use the included remote control to set your ideal room temperature. You can also turn on oscillation, change the angle of airflow, or set the programmable timer.
Note: This Pioneer mini-split system requires professional installation by an HVAC professional.

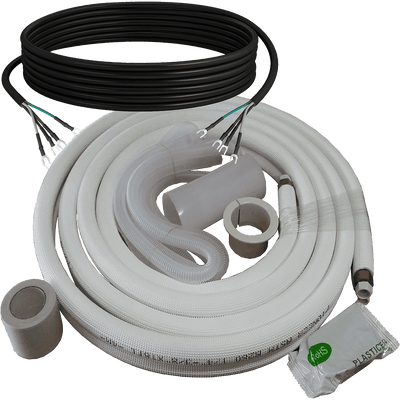

Installation Kit Included
This affordable Pioneer mini-split comes with all the needed parts for installation, making it an even more cost-effective option. Sixteen-foot refrigerant lines are included with purchase so you won't need to spend extra money for proper operation. Note: Professional installation is required.
Efficient Year-Round Comfort
Mini-splits efficiency ratings are measured by seasonal energy efficiency ratio (SEER), which measures how much cooling a system puts out for each unit of energy it consumes. With a SEER value of 18, you’ll struggle to find a more efficient model. A variable speed rotary compressor and inverter technology regulate the amount of energy output; only the amount of energy needed to meet your set temperature will be used. Heat pumps also transfer warm and cold air as opposed to creating it with coils.
Low Noise Cooling
Since the loudest parts of this 115-volt mini-split are located outside, you’ll hardly hear it running. It’s extremely quiet on any fan speed but also includes a Sleep function for even quieter operation as you sleep.
Multiple Modes for Year-Round Use
Features:
- Auto Restart: If a power outage occurs while it’s in use, it will turn back on with the original settings once power is restored.
- Three Fan Speeds: Choose between low, medium, and high fan speeds depending on your needs or noise desires.
- Programmable Timer: Set your AC to turn on or off up to 24 hours in advance.
- Angled AirFlow: You can angle this mini-split AC to direct air where you need it vertically and horizontally.
- Wall-Mounted Design: Save ground space other air conditioners may take thanks to its compact design and wall-mounted interior unit.
- Cool: Adjusts BTU output to cool rooms up to 400 square feet
- Heat: Adds variable warmth to your room all winter
- Dry: If you have excess moisture in your room, use this dehumidify mode to remove up to 50 pints of moisture from your room
- Fan: Choose one of three fan speeds to circulate air and conserve energy when you don't need Cool mode
- Auto: This model selects a mode (heat, cool, or dry) based on your set and ambient room temperatures.
What's In The Box:
- Indoor Unit (Model WS009GMFI19HLD)
- Outdoor Unit (Model YN009GMFI19RPD)
- 16-foot Refrigerant Lines
- Remote Control
- Owner's Manual
Specifications:
Number of Zones | 1 |
---|---|
Energy Efficiency Ratio (EER) | 11.5 |
Seasonal Energy Efficiency Ratio (SEER) | 18 |
Heating Seasonal Performance Factor (HSPF) | 10 |
Installation Type | Professional Installation |
Wi-Fi Capable | Yes |
Total Cooling Capacity | 9000 BTUs |
Total Heating Capacity | 10,000 BTUs |
Automatic Mode | Yes |
Maximum Cubic Feet per Minute (CFM) | 247 CFM |
Fan-Only Mode | Yes |
Number of Fan Speeds | 3 |
Minimum Operating Temperature - Cooling | 32 degrees F |
Maximum Operating Temperature - Cooling | 122 degrees F |
Heat Mode | Yes |
Minimum Operating Temperature - Heating | 5 degrees F |
Maximum Operating Temperature - Heating | 86 degrees F |
Dehumidifier Mode | Yes |
Compressor Type | Rotary |
Outdoor Unit Height | 21.875 in. |
Outdoor Unit Width | 30.375 in. |
Outdoor Unit Depth | 11.875 in. |
Outdoor Unit Weight | 67 lbs. |
Mounting Type | Wall |
Indoor Unit Height | 11.375 in. |
Indoor Unit Width | 28.5 in. |
Indoor Unit Depth | 7.375 in. |
Indoor Unit Weight | 16.5 lbs. |
Maximum Height Difference | 33 ft. |
Remote Control | Yes |
Programmable Timer | Yes |
Auto-Restart | Yes |
Refrigerant Type | R-410A |
Minimum Indoor Noise Level | 24.5 dB |
Maximum Indoor Noise Level | 39 dB |
Maximum Outdoor Noise Level | 56 dB |
Refrigerant Connection Type | Flare |
Line Length | 80 ft. |
Liquid Line O.D. | 0.25 in. |
Suction Line O.D. | 0.375 in. |
Air Filter | Yes |
Adjustable Louvers | Yes |
Automatic Oscillation | Yes |
Maximum Cooling Wattage | 1087 W |
Maximum Cooling Amperage | 6.8 Amps |
Maximum Heating Wattage | 1100 W |
Maximum Heating Amperage | 8.1 Amps |
Voltage | 220-240 V |
Factory Precharge | 16 ft. |
Color | White |
Manufacturer's Warranty:
5-Year Limited Compressor Warranty, 2-Year Limited Parts Warranty
