Pioneer WYS012AMFI19RL 12000 BTU 19.5 SEER 115V Ductless Mini-Split Air Conditioner Heat Pump System Full Set New
- Model: Pioneer
- SKU: WYS012AMFI19RL
Select Bread as your payment option at checkout
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping
|Brand new in original box & manufacturer direct|
|Includes all original accessories|
|Authorized Pioneer dealer|
|Free same or next day shipping|
Pioneer WYS009AMFI19RL Mini Split
Efficient year-round comfort is as simple of the press of a button using the Pioneer WYS12AMFI19RL. The affordable mini-split model uses up to 12,000 BTUs of cooling and heating power per hour, making it an ideal option for rooms up to 500 square feet. An impressive SEER rating of 17.2 shows the efficient and money-saving design created by Pioneer.
Nearly Silent Operation
Since the loudest parts of this 115-volt mini-split are located outside, you’ll hardly hear it running. It’s extremely quiet on any fan speed but also includes a Sleep function for even quieter operation as you sleep.
Installation Kit Included

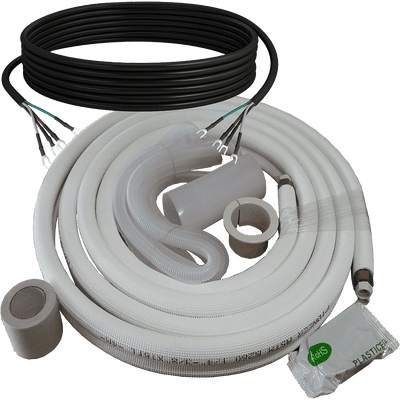

Unlike most brands, Pioneer mini-splits come with an installation kit included with purchase. Most kits have to be purchased separately, adding additional costs. Each kit includes 16-foot refrigerant lines. Note: Professional installation is required.
This Pioneer 12,000 BTU mini-split provides comfort regardless of the temperature in your area. Use the mode that best meets your need:
- Cool: Set your room temperature down to 62 degrees F. Its 12,000 BTUs easily cools rooms up to 500 square feet. There are 3 fan speeds in this mode.
- Heat: During cold winter months, the heat pump can switch to warm rooms when you need it. There are 3 fan speeds in this mode.
- Dry: Remove excess moisture from your room during humid conditions if needed.
- Fan: Use the fan-only mode to disperse air around your room during mild conditions. There are 3 fan speeds in this mode.
- Auto Restart: If a power outage occurs while it’s in use, it will turn back on with the original settings once power is restored.
- Three Fan Speeds: Choose between low, medium, and high fan speeds depending on your needs or noise desires.
- Programmable Timer:Set your AC to turn on or off up to 24 hours in advance.
- Angled AirFlow: You can angle this mini-split AC to direct air where you need it vertically and horizontally.
- Wall-Mounted Design: Save ground space other air conditioners may take thanks to its compact design and wall-mounted interior unit.
Rooms up to 500 square feet will remain efficiently, affordably comfortable all year thanks to this 12,000 BTU Pioneer mini-split.
What Customers Love
- Affordable Cooling and Heating: Not only are they affordable up front and come with installation kits, but energy-saving designs allow for savings over time.
- Precise Temperature Control: Set your ideal room temperature and other settings since it has a fully-functional remote, multiple modes, and timer.
Things to Consider
- Optional Wi-Fi Control: This ductless air conditioner from Pioneer can be operated from anywhere when you connect it to your smartphone or tablet using the Pioneer USB WiFi Dongle. The accessory plugs directly into the air conditioner and provides users with monitoring, remote control, scheduling, and more.
- Professional Installation: A professional is required to install this model and connect the outdoor to indoor units.

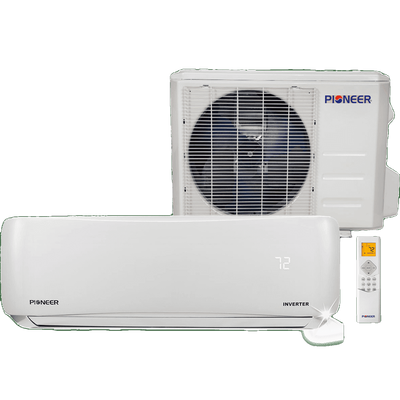

What's In The Box:

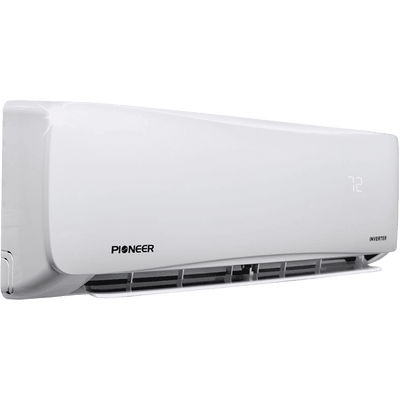

- Indoor Blower Unit (Model WS012AMFI19HLD)

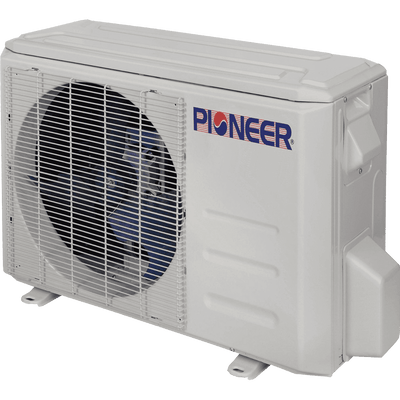

- Outdoor Compressor Unit (Model YN012AMFI19RPD)
- Installation Kit
- Remote Control
- Owner's Manual
|Number of Zones||1|
|Energy Efficiency Ratio (EER)||11|
|Seasonal Energy Efficiency Ratio (SEER)||19.5|
|Heating Seasonal Performance Factor (HSPF)||9.5|
|Installation Type||Professional Installation|
|Total Cooling Capacity||12000 BTUs|
|Total Heating Capacity||12000 BTUs|
|Maximum Cubic Feet per Minute (CFM)||294 CFM|
|Number of Fan Speeds||3|
|Minimum Operating Temperature - Cooling||32 degrees F|
|Maximum Operating Temperature - Cooling||122 degrees F|
|Minimum Operating Temperature - Heating||5 degrees F|
|Maximum Operating Temperature - Heating||86 degrees F|
|Outdoor Unit Height||21.875 in.|
|Outdoor Unit Width||30.375 in.|
|Outdoor Unit Depth||11.875 in.|
|Indoor Unit Height||11.625 in.|
|Indoor Unit Width||31.5 in.|
|Indoor Unit Depth||7.375 in.|
|Indoor Unit Weight||18.5 lbs.|
|Maximum Height Difference||33 ft.|
|Minimum Indoor Noise Level||24 dB|
|Maximum Indoor Noise Level||40.5 dB|
|Maximum Outdoor Noise Level||54 dB|
|Refrigerant Connection Type||Flare|
|Line Length||80 ft.|
|Liquid Line O.D.||0.25 in.|
|Suction Line O.D.||0.5 in.|
|Maximum Cooling Wattage||1488 W|
|Maximum Cooling Amperage||8.87 Amps|
|Maximum Heating Wattage||1491 W|
|Maximum Heating Amperage||8.93 Amps|
|Factory Precharge||16 ft.|
5-Year Limited Compressor Warranty, 2-Year Limited Parts Warranty
