Pioneer WYS012GMFI19RL 12000 BTU 19.5 SEER 230V Ductless Mini-Split Air Conditioner Heat Pump System Full Set New
- Manufacturer: Pioneer
- SKU: WYS012GMFI19RL

Select Bread as your payment option at checkout
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping

![]() |
Brand new in original box & manufacturer direct |
![]() |
Includes all original accessories |
![]() |
Authorized Pioneer dealer |
![]() |
Free same or next day shipping |

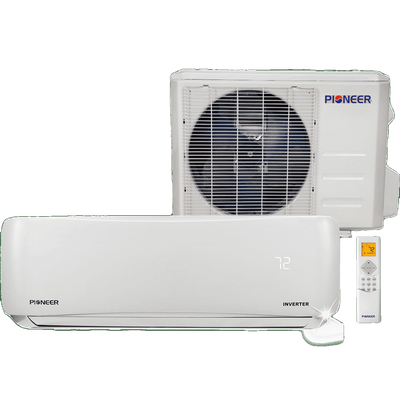

Pioneer WYS012GMFI19RL Mini Split
Using 12,000 BTUs of power per hour, the Pioneer WYS012GMFI19RL is ideal for rooms, home additions, and other spaces up to 500 square feet. Featuring 5 operating modes, it provides year-round comfort to any space. Known for its near-silent operation and money saving design it’s the all-in-one unit for your heating and cooling needs.
Note: This is a 230-volt mini-split AC. Professional installation is required.
Affordable and Money-Saving Design
Designed for efficiency and money-saving operation, it’s one of the most affordable 12,000 BTU models on the maket. Utilizing advanced inverter technology, it only uses the amount of energy required to maintain your set room temperature, as opposed to turning it on and off like other types of ACs. An efficient rotary compressor and quality parts add to its efficient operation.
Its carefully crafted features helped it to earn a 17 SEER and 11 EER. While these impressive numbers show efficiency, it also proves this model will save you money during operation. Additionally, an installation kit is included with purchase to help you save even more money since most brands require this to be purchased separately.
All Year Comfort
During the warm summer months select the cool mode to lower indoor temperatures. Just because outdoor temperatures drop in the winter, doesn’t mean your temperature inside has to. Engaging heat mode will ensure you remain comfortable. Fan-only will provide circulating air during seasons in between, while dry mode dehumidifies by removing up to 60 pints of excess moisture per day.
Program Your Ideal Settings
This Pioneer 12,000 BTU mini split is easy to set and maintain your ideal room temperature. Just use the fully-functional remote control:
- Select a Mode: Choose between cool, heat, fan-only, and dry mode. You can also program this model to Auto mode, which selects a mode based on your set temperature.
- Set Your Room Temperature: Use the remote to adjust your set room temperature.
- Set the Programmable Timer: Set your Pioneer mini-split to turn on or off up to 7 hours in advance, ensuring it only runs when needed.
- Adjust Your Airflow: You can direct the cool or warm air exactly where you need it most with vertical and horizontal louver adjustments.
Silent Operation
With the compressor located outside, the only noise created indoors is from the air blowing into the room. The Sleep function and low fan speed also help create a quiet indoor atmosphere.
Features:
- Auto Restart: If a power outage occurs while it’s in use, it will turn back on with the original settings once power is restored.
- Three Fan Speeds: Choose between low, medium, and high fan speeds depending on your needs or noise desires.
- Programmable Timer:Set your AC to turn on or off up to 24 hours in advance.
- Angled AirFlow: You can angle this mini-split AC to direct air where you need it vertically and horizontally.
- Wall-Mounted Design: Save ground space other air conditioners may take thanks to its compact design and wall-mounted interior unit.
- Rooms up to 500 square feet will remain efficiently, affordably comfortable all year thanks to this 12,000 BTU Pioneer mini-split.
- Sleep Function: Turn on this for quiet operation as you sleep. It will maintain a comfortable temperature while using a low fan speed for the quietest operation possible.
- Large Setting Range: Set your AC anywhere from 62 to 90 degrees F.
- Long Refrigerant Lines: Long 16-foot refrigerant lines allow you to use it in multiple locations.
-
What Customers Love
- Affordable Cooling and Heating: Not only are they affordable up front and come with installation kits, but energy-saving designs allow for savings over time.
- Precise Temperature Control: Set your ideal room temperature and other settings since it has a fully-functional remote, multiple modes, and timer.
Things to Consider
- Optional Wi-Fi Control: This ductless air conditioner from Pioneer can be operated from anywhere when you connect it to your smartphone or tablet using the Pioneer USB WiFi Dongle. The accessory plugs directly into the air conditioner and provides users with monitoring, remote control, scheduling, and more.
- Professional Installation: A professional is required to install this model and connect the outdoor to indoor units.
What's In The Box:

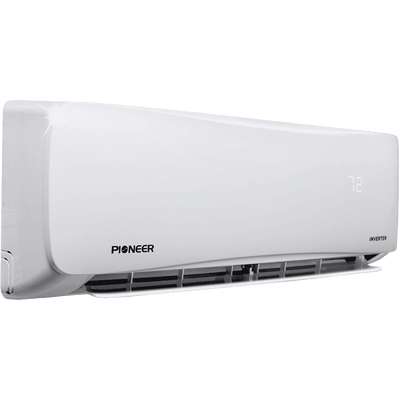

- Pioneer WS012GMFI19HLD Indoor Unit

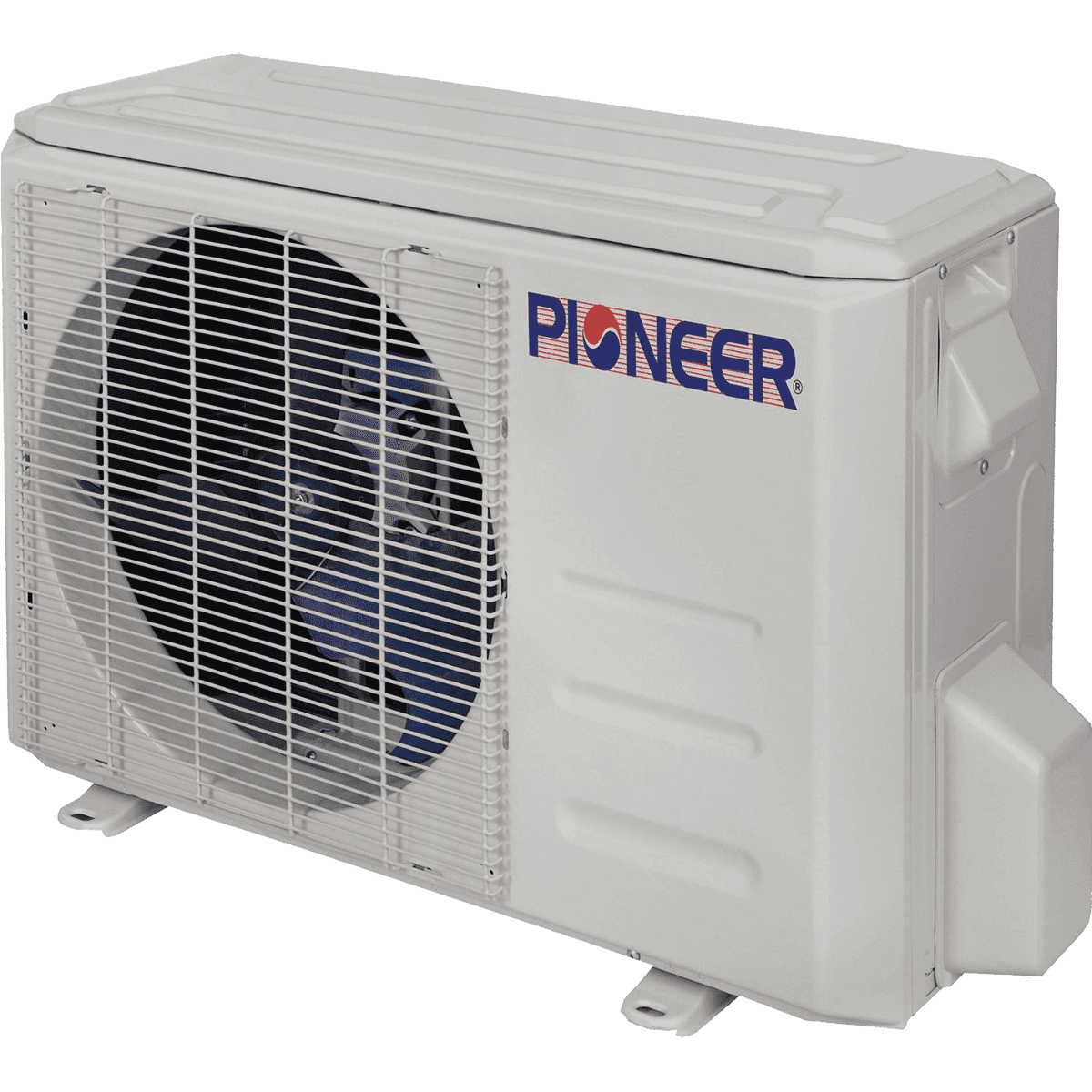

- Pioneer YN012GMFI19RPD Outdoor Unit

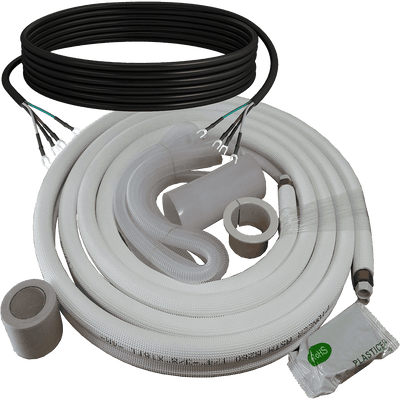

- Installation Kit
- Remote Control
- Owner's Manual
Specifications:
Number of Zones | 1 |
---|---|
Energy Efficiency Ratio (EER) | 11.3 |
Seasonal Energy Efficiency Ratio (SEER) | 19.5 |
Heating Seasonal Performance Factor (HSPF) | 10 |
Installation Type | Professional Installation |
Wi-Fi Capable | Yes |
Total Cooling Capacity | 12,000 BTUs |
Zone Cooling Capacity | 12,000 BTUs |
Total Heating Capacity | 12,000 BTUs |
Automatic Mode | Yes |
Maximum Cubic Feet per Minute (CFM) | 294 CFM |
Fan-Only Mode | Yes |
Number of Fan Speeds | 3 |
Minimum Operating Temperature - Cooling | 32 degrees F |
Maximum Operating Temperature - Cooling | 122 degrees F |
Heat Mode | Yes |
Minimum Operating Temperature - Heating | 5 degrees F |
Maximum Operating Temperature - Heating | 86 degrees F |
Dehumidifier Mode | Yes |
Compressor Type | Rotary |
Outdoor Unit Height | 21.875 in. |
Outdoor Unit Width | 30.375 in. |
Outdoor Unit Depth | 11.875 in. |
Mounting Type | Wall |
Indoor Unit Height | 11.625 in. |
Indoor Unit Width | 31.5 in. |
Indoor Unit Depth | 7.375 in. |
Indoor Unit Weight | 18.5 lbs. |
Maximum Height Difference | 33 ft. |
Remote Control | Yes |
Programmable Timer | Yes |
Auto-Restart | Yes |
Refrigerant Type | R-410A |
Minimum Indoor Noise Level | 25 dB |
Maximum Indoor Noise Level | 40.5 dB |
Maximum Outdoor Noise Level | 57 dB |
Refrigerant Connection Type | Flare |
Line Length | 80 ft. |
Liquid Line O.D. | 0.25 in. |
Suction Line O.D. | 0.5 in. |
Air Filter | Yes |
Adjustable Louvers | Yes |
Automatic Oscillation | Yes |
Maximum Cooling Wattage | 1523 W |
Maximum Cooling Amperage | 4.5 Amps |
Maximum Heating Wattage | 1510 W |
Maximum Heating Amperage | 4.3 Amps |
Voltage | 220-240 V |
Factory Precharge | 16 ft. |
Color | White |
Manufacturer's Warranty:
5-Year Limited Compressor Warranty, 2-Year Limited Parts Warranty
