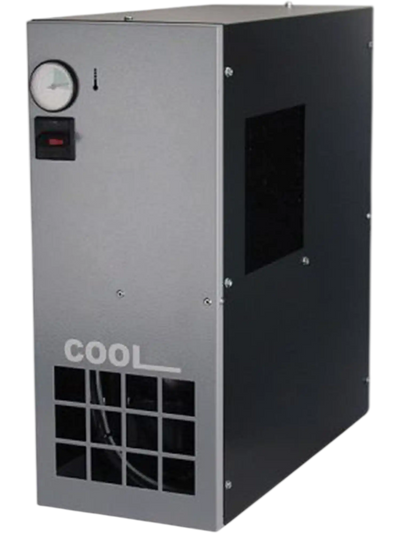

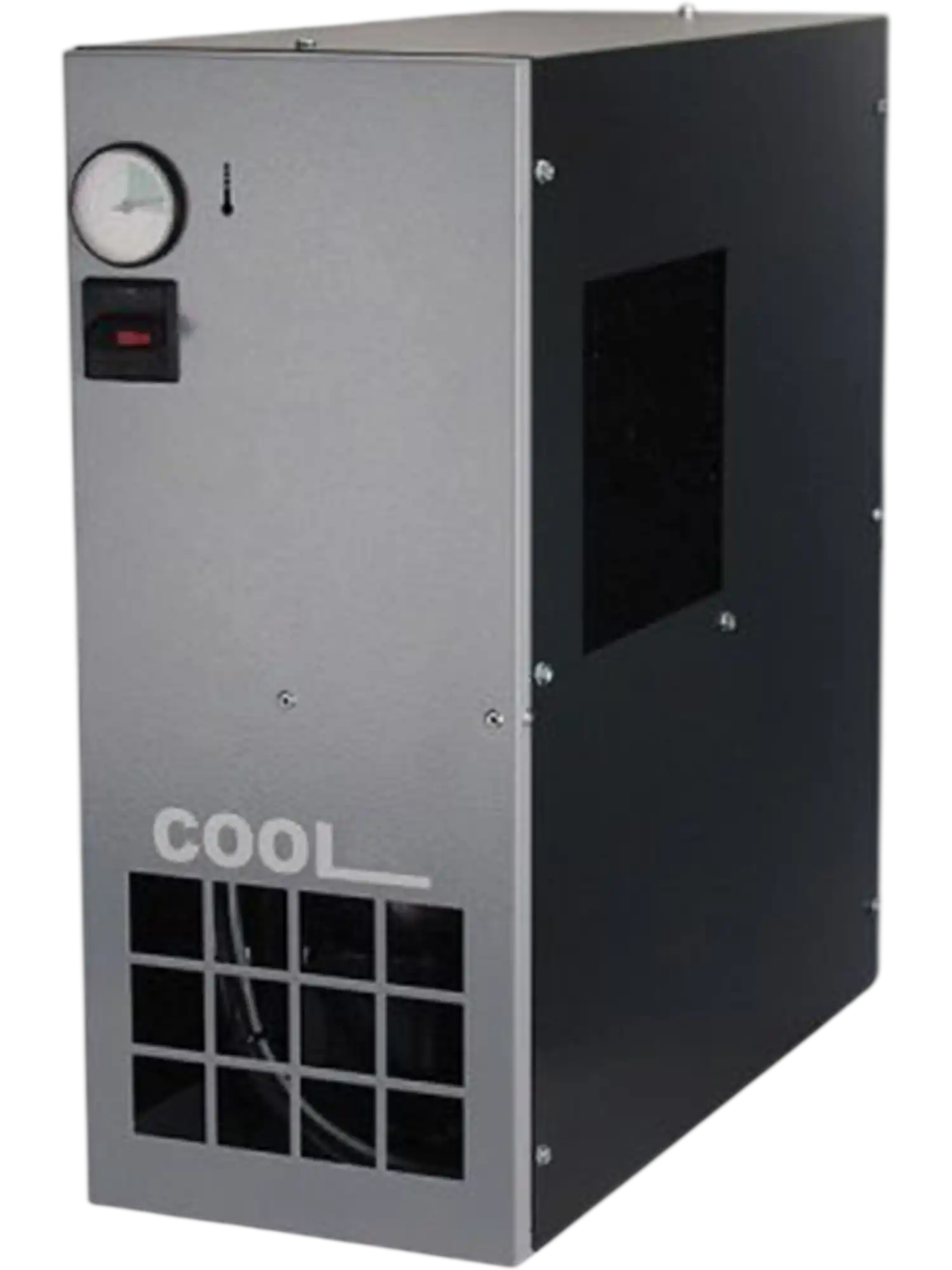

Quincy Compressor COOL 35 Non-Cycling Refrigerated Air Dryer 35 SCFM 1/2" NPT 115/1/60 New
Manufacturer: Quincy Compressor
SKU: 4102003586
QTY
or
(888) 999-1522
$ 1,907.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Quincy Compressor COOL 35 Non-Cycling Refrigerated Air Dryer 35 SCFM 1/2" NPT 115/1/60 New
Product Overview
The Quincy Compressor COOL 35 non-cycling refrigerated air dryer provides 35 SCFM capacity with a 50°F pressure dew point. Its heat exchanger combines high thermal exchange with low load loss to help maintain consistent dew points. An integrated moisture separator and timer drain remove moisture from the system. The hot gas bypass valve maintains refrigeration capacity across load conditions while keeping evaporator pressure constant. With a 1/2" NPT connection and 115/1/60 electrical requirements, this dryer has a working pressure of 232 PSI and an operating temperature of 122°F.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- 35 SCFM capacity
- 50°F pressure dew point
- 122°F operating temperature
- 232 PSI working pressure
- 115/1/60
- R134a refrigerant
- The Quincy Compressor COOL 35, 35 SCFM, Non-Cycling Refrigerated Air Dryer utilizes a high thermal exchange and low load loss heat exchanger in order to maintain consistent dew points.
- Moisture is then removed from the system by an integrated moisture separator and timer drain.
- The COOL Series dryer features a refrigerant compressor driven by an electric motor, air cooled condenser, heat exchanger, integrated water separator, refrigerant filter, and capillary tube.
- The hot gas by-pass valve injects hot gas from compressor discharge into the suction and liquid separator, which keeps refrigeration capacity in all load conditions and maintains constant pressure in the evaporator.
Specifications
| Capacity | 35 SCFM |
|---|---|
| Pressure Dew Point | 50°F |
| Operating Temperature | 122°F |
| Working Pressure | 232 PSI |
| Electrical | 115/1/60 |
| Refrigerant | R134a |
|---|---|
| Connection | 1/2" NPT |
Warranty
This item comes with a 1 year factory warranty.
