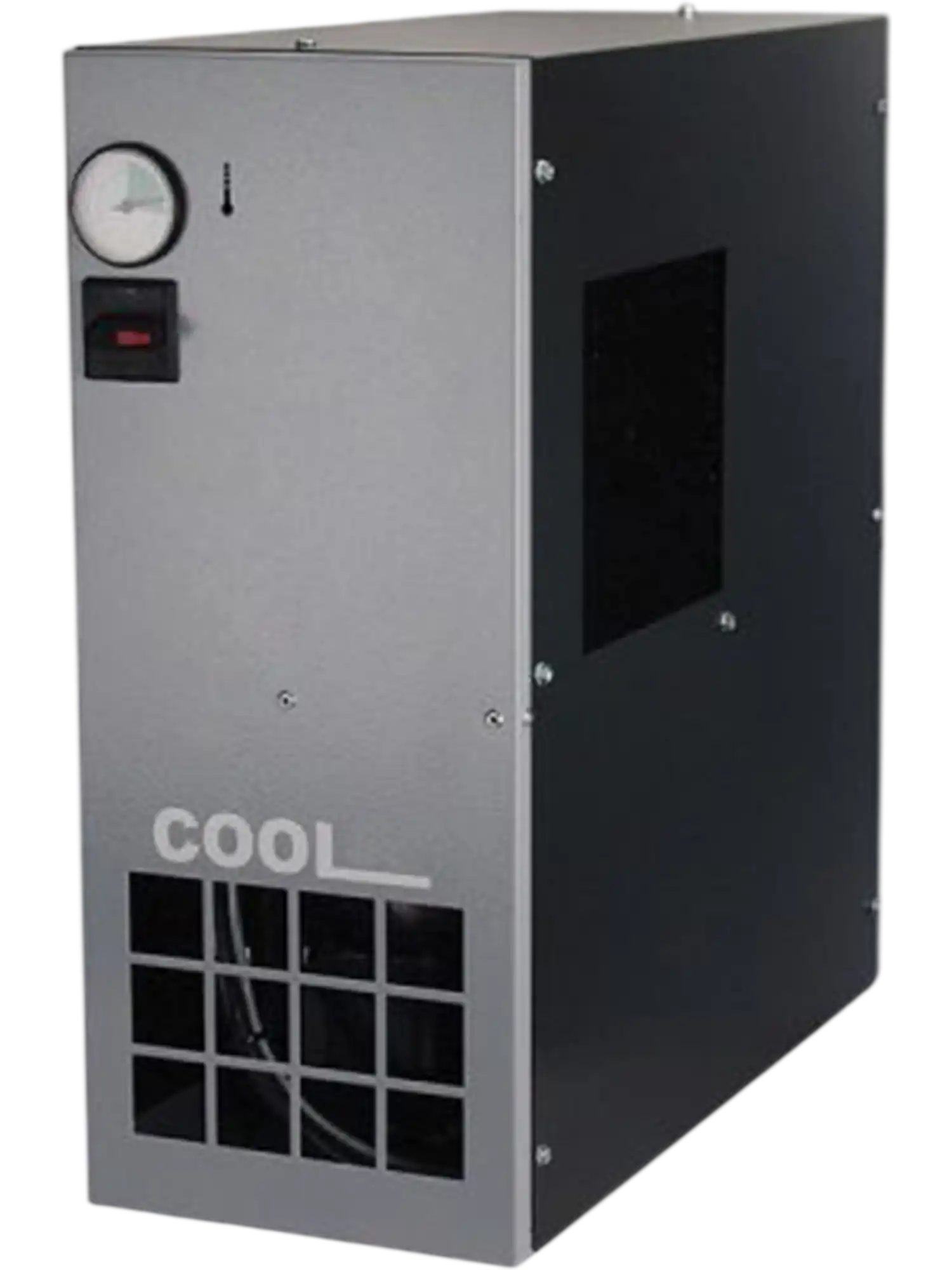

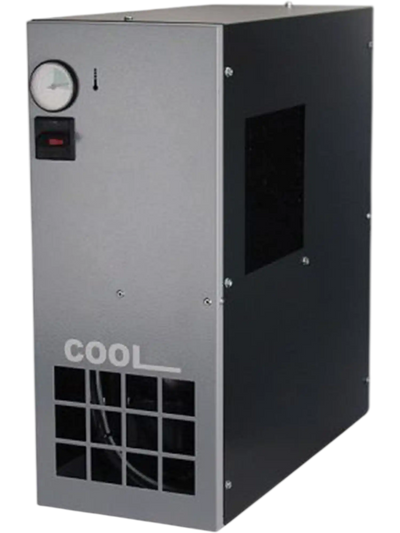

Quincy Compressor COOL 75 Non-Cycling Refrigerated Air Dryer 75 SCFM 3/4" NPT 115/1/60 New
Manufacturer: Quincy Compressor
SKU: 4102003589
QTY
or
(888) 999-1522
$ 2,725.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Quincy Compressor COOL 75 Non-Cycling Refrigerated Air Dryer 75 SCFM 3/4" NPT 115/1/60 New
Product Overview
The Quincy Compressor COOL 75 non-cycling refrigerated air dryer offers 75 SCFM capacity with a 3/4" NPT connection. It provides a 50°F pressure dew point, with a 122°F operating temperature and 232 PSI working pressure. An integrated moisture separator and timer drain remove moisture from the system. Operating on a 115/1/60 power supply, the refrigeration system uses R134a refrigerant and includes an electric motor-driven compressor, air-cooled condenser, heat exchanger, refrigerant filter, and capillary tube. A hot gas bypass valve maintains refrigeration capacity across load conditions while keeping evaporator pressure constant.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- 75 SCFM capacity
- 50°F pressure dew point
- 122°F operating temperature
- 232 PSI working pressure
- 115/1/60
- R134a refrigerant
- Moisture is then removed from the system by an integrated moisture separator and timer drain.
- The COOL Series dryer features a refrigerant compressor driven by an electric motor, air cooled condenser, heat exchanger, integrated water separator, refrigerant filter, and capillary tube.
- The hot gas by-pass valve injects hot gas from compressor discharge into the suction and liquid separator, which keeps refrigeration capacity in all load conditions and maintains constant pressure in the evaporator.
Specifications
| Capacity | 75 SCFM |
|---|---|
| Connection | 3/4" NPT |
| Pressure Dew Point | 50°F |
| Operating Temperature | 122°F |
| Working Pressure | 232 PSI |
| Power Supply | 115/1/60 |
|---|---|
| Refrigerant | R134a |
Warranty
This item comes with a 1 year factory warranty.
