Quincy Compressor QGS 20 S Rotary Screw Air Compressor, Tank Mounted, w/ Dryer, 230V 3-Phase, 20 HP, 132 Gallon, 60.8 CFM New
Manufacturer: Quincy Compressor
SKU: 4152022000
QTY
or
(888) 999-1522
$ 20,229.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Quincy Compressor QGS 20 S Rotary Screw Air Compressor, Tank Mounted, w/ Dryer, 230V 3-Phase, 20 HP, 132 Gallon, 60.8 CFM New
Product Overview

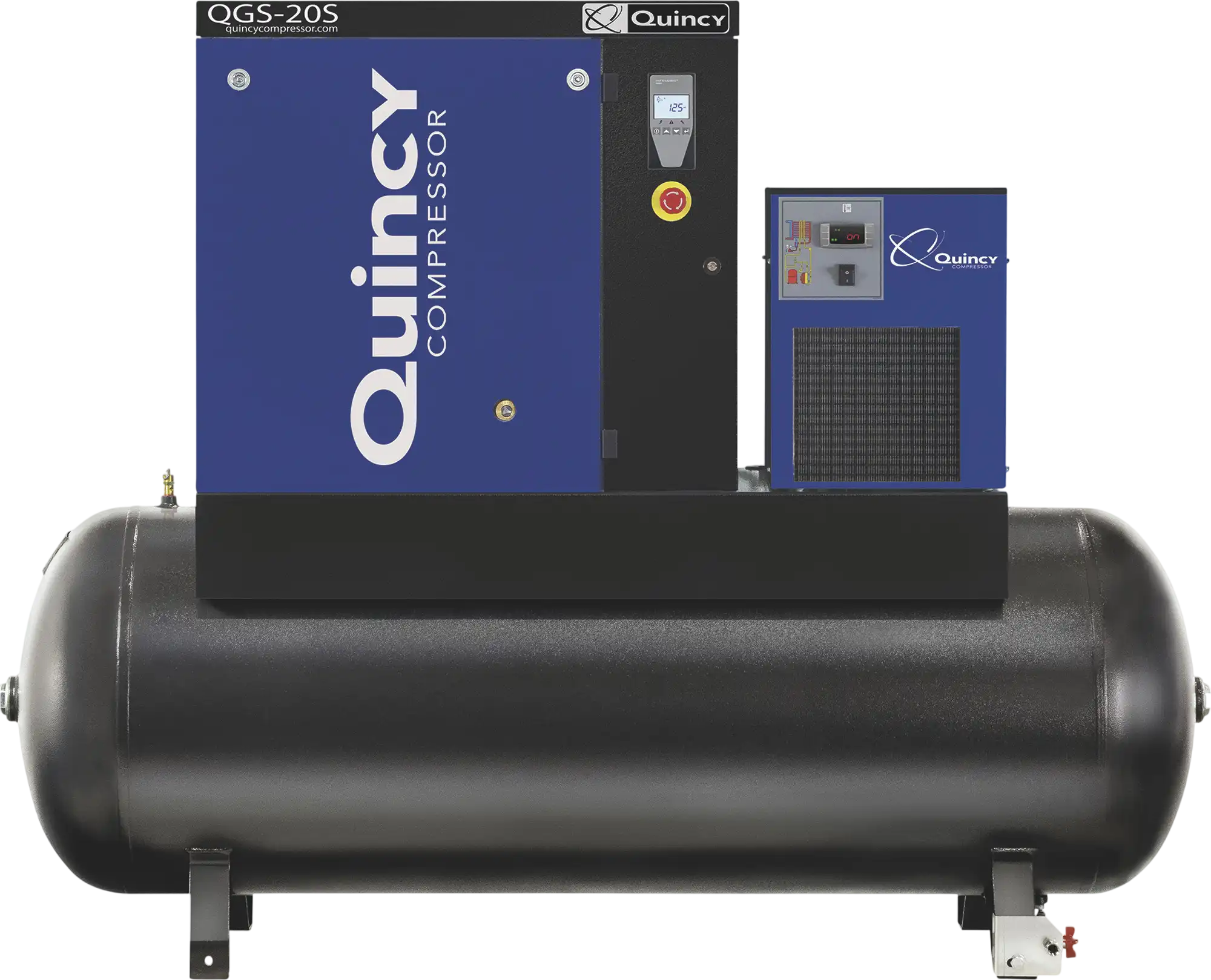

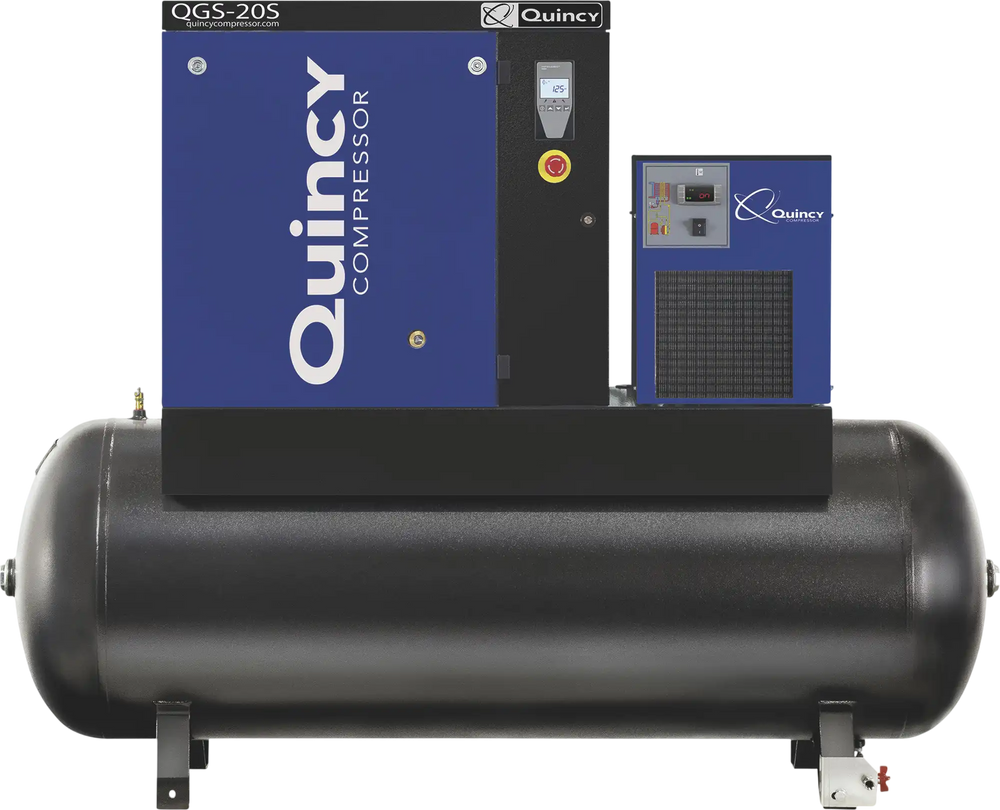

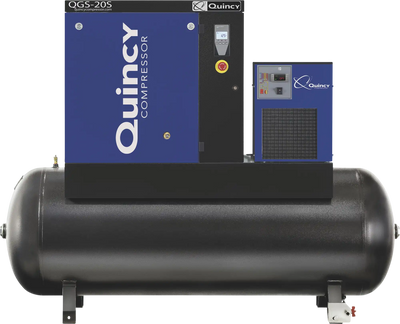

The Quincy Compressor QGS 20 S rotary screw air compressor delivers 60.8 CFM at 125 PSI for applications requiring high volumes of compressed air. Its 20 HP motor runs on 230V three-phase power, while the oil-injected twin screw airend supports continuous 100% duty cycle operation. This tank-mounted configuration includes a dryer and a horizontal receiver tank. A standard quiet enclosure helps keep operating sound at 71 dB. Full electronic controls with InfoLogic2 software provide added flexibility and make operation easier.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- 60.8 CFM @ 125 PSI
- Continuous 100% duty cycle operation
- High-efficiency intake filter
- TEFC electric tri-voltage motor (208V, 230V, 460V)
- Oil-injected twin screw airend
- Standard quiet enclosure
- Factory-filled 8000 hr premium synthetic fluid
- Further sound reduction for even quieter operation
- Full electronic controls with InfoLogic2 software, enabling more flexibility and easier operation
- 125 PSI
- 120-gallon ASME certified receiver tank
- With dryer
- Quiet operation at 71dB
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 12 months parts/12months labor |
| Ship Weight | 793.0 LB |
| Horsepower | 20 HP |
| Air Tank Size | 132 Gal |
| Volts | 230 |
| Max. PSI | 125 |
| Amps | 49 |
| Motor Phase | 3 |
| Air Outlet Size | 3/4 in. NPT |
|---|---|
| Drain Type | Manual |
| Tank Orientation | Horizontal |
| Product Weight | 793.0000 lb |
| Dimensions L X W X H (in.) | 76.2 x 25.2 x 57.8 in |
Package Contents
(1) Quincy QGS 20 S rotary screw air compressor
Warranty
This item comes with a 12 months parts/12months labor warranty.
