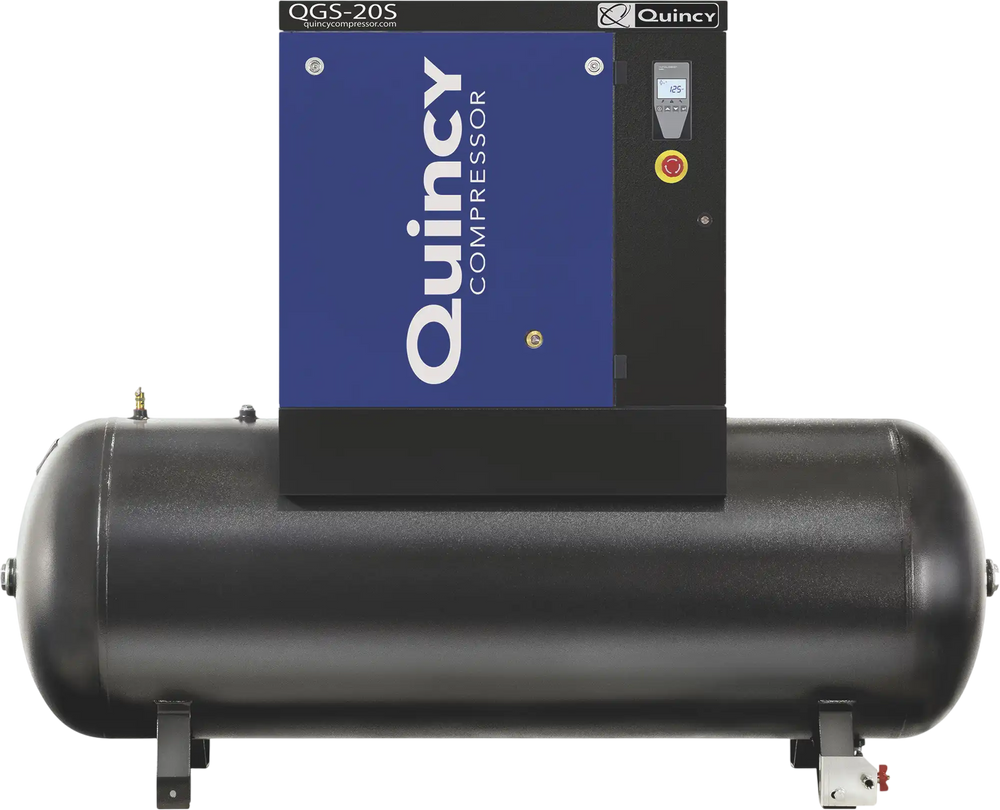

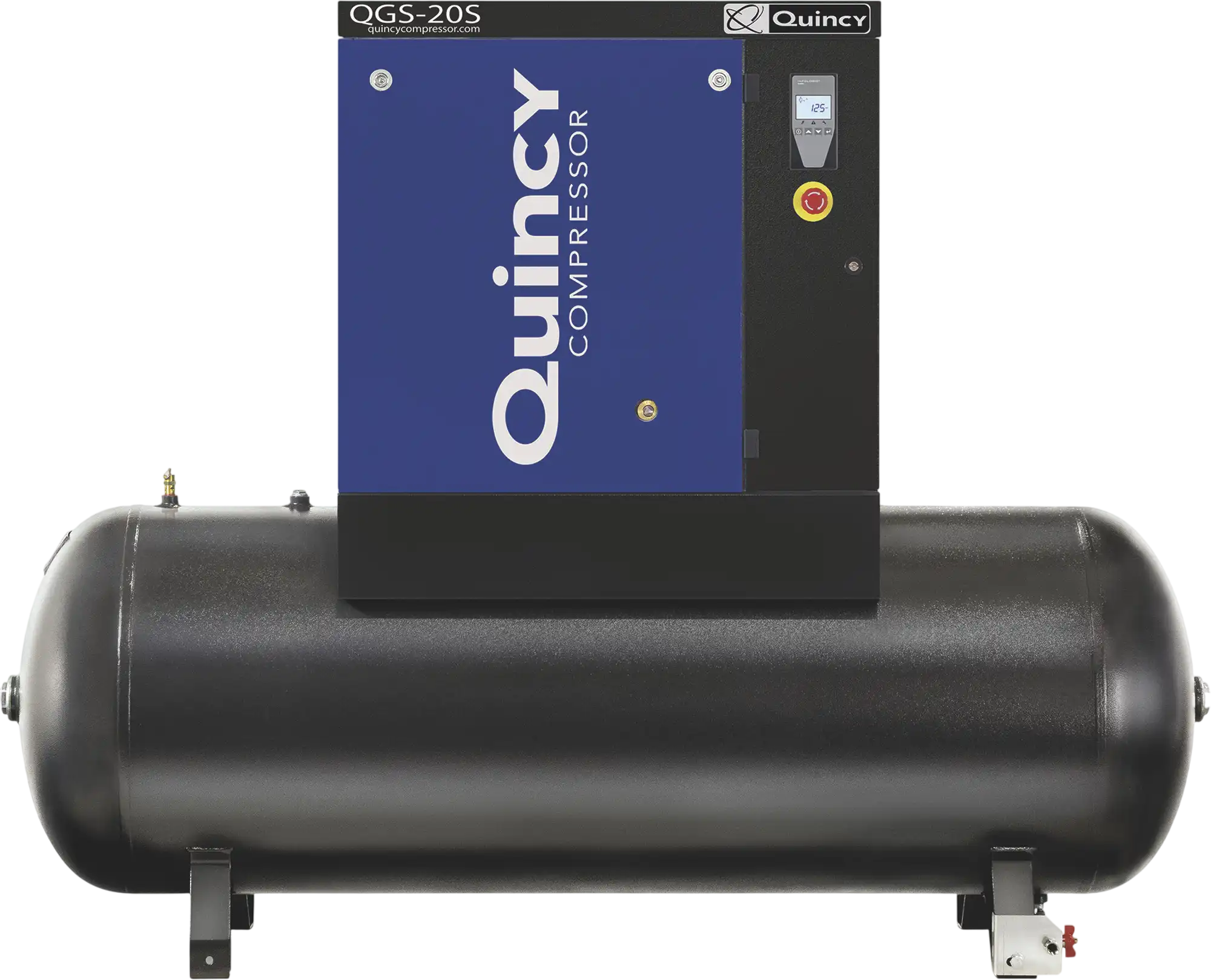

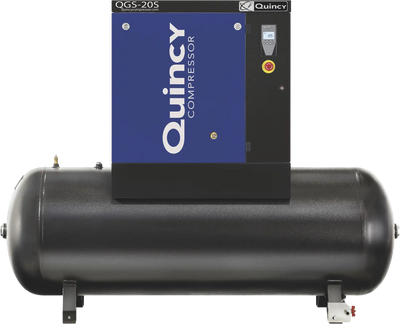

Quincy Compressor QGS-20 Tank Mounted Rotary Screw Compressor 20 HP, 230V 3-Phase, 132 Gallon, 60.8 CFM New
Product Overview
The Quincy Compressor QGS-20 tank-mounted rotary screw air compressor delivers 60.8 CFM at 125 PSI for applications requiring high volumes of compressed air. Its 20 HP motor and oil-injected twin screw airend support continuous, 100% duty cycle operation. This 230V, 3-phase configuration includes a 132-gallon horizontal tank with a manual drain and a 3/4" NPT air outlet. A standard quiet enclosure helps keep operating sound at 71 dB, while full electronic controls with InfoLogic2 software provide flexibility and easier operation. A high-efficiency intake filter and factory-filled 8,000-hour premium synthetic fluid round out the equipment.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- 60.8 CFM @ 125 PSI
- Continuous 100% duty cycle operation
- High-efficiency intake filter
- TEFC electric tri-voltage motor (208V, 230V, 460V)
- Oil-injected twin screw airend
- Standard quiet enclosure
- Factory-filled 8000 hr premium synthetic fluid
- Further sound reduction for even quieter operation
- Full electronic controls with InfoLogic2 software, enabling more flexibility and easier operation
- 125 PSI
- Pressure change kit available up to 175 PSI
- Quiet operation at 71dB
Specifications
| Brand | Quincy Compressor |
|---|---|
| Horsepower | 20 HP |
| Air Tank Size | 132 Gal |
| Volts | 230 |
| Max. PSI | 125 |
| Amps | 49 |
| Motor Phase | 3 |
| Air Outlet Size | 3/4 in. NPT |
| Drain Type | Manual |
|---|---|
| Tank Orientation | Horizontal |
| Product Weight | 720.0000 lb |
| Dimensions L X W X H (in.) | 76.2 x 25.2 x 57.8 in |
Package Contents
(1) Quincy QGS-20 rotary screw air compressor
Warranty
This item comes with a 12 months parts/12months labor warranty.
