Quincy Compressor QGS 20 TM-3 Rotary Screw Air Compressor 20 HP 120 gallon New
Manufacturer: Quincy Compressor
SKU: 4152026525
QTY
or
(888) 999-1522
$ 21,720.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

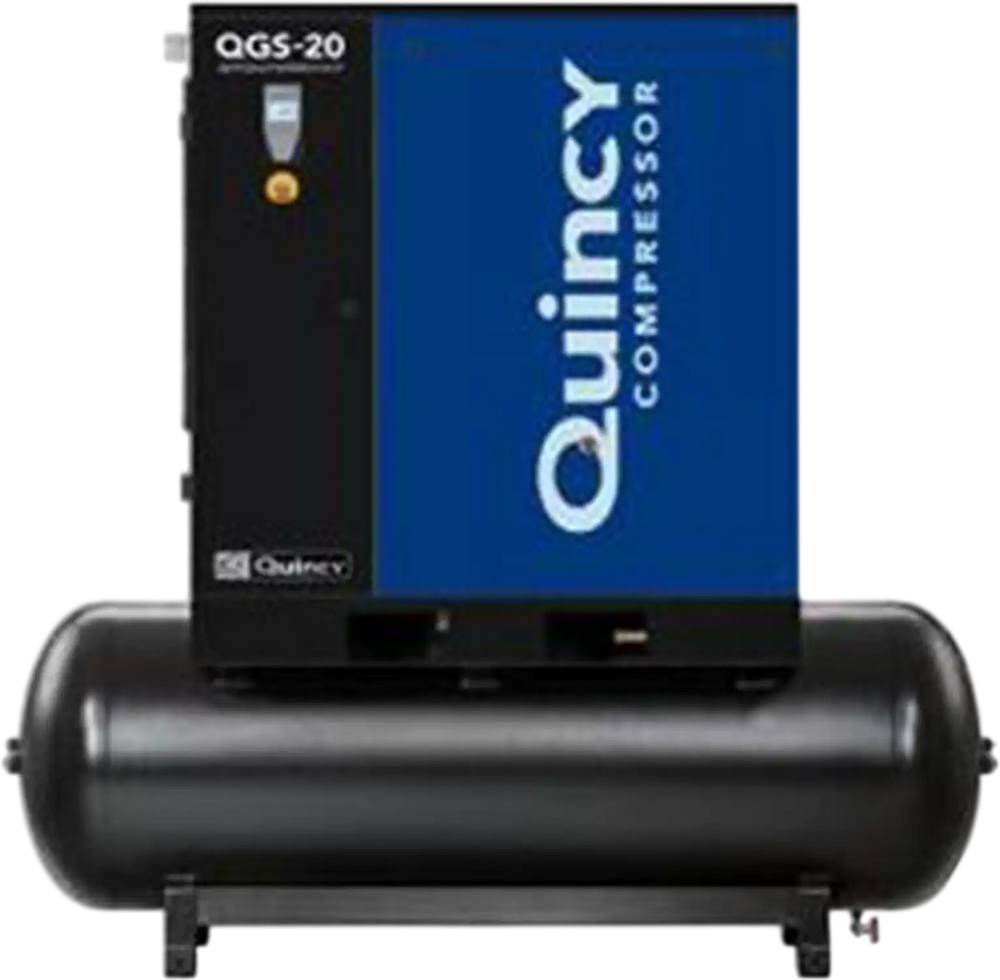

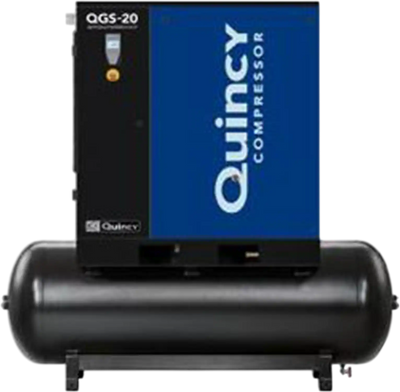

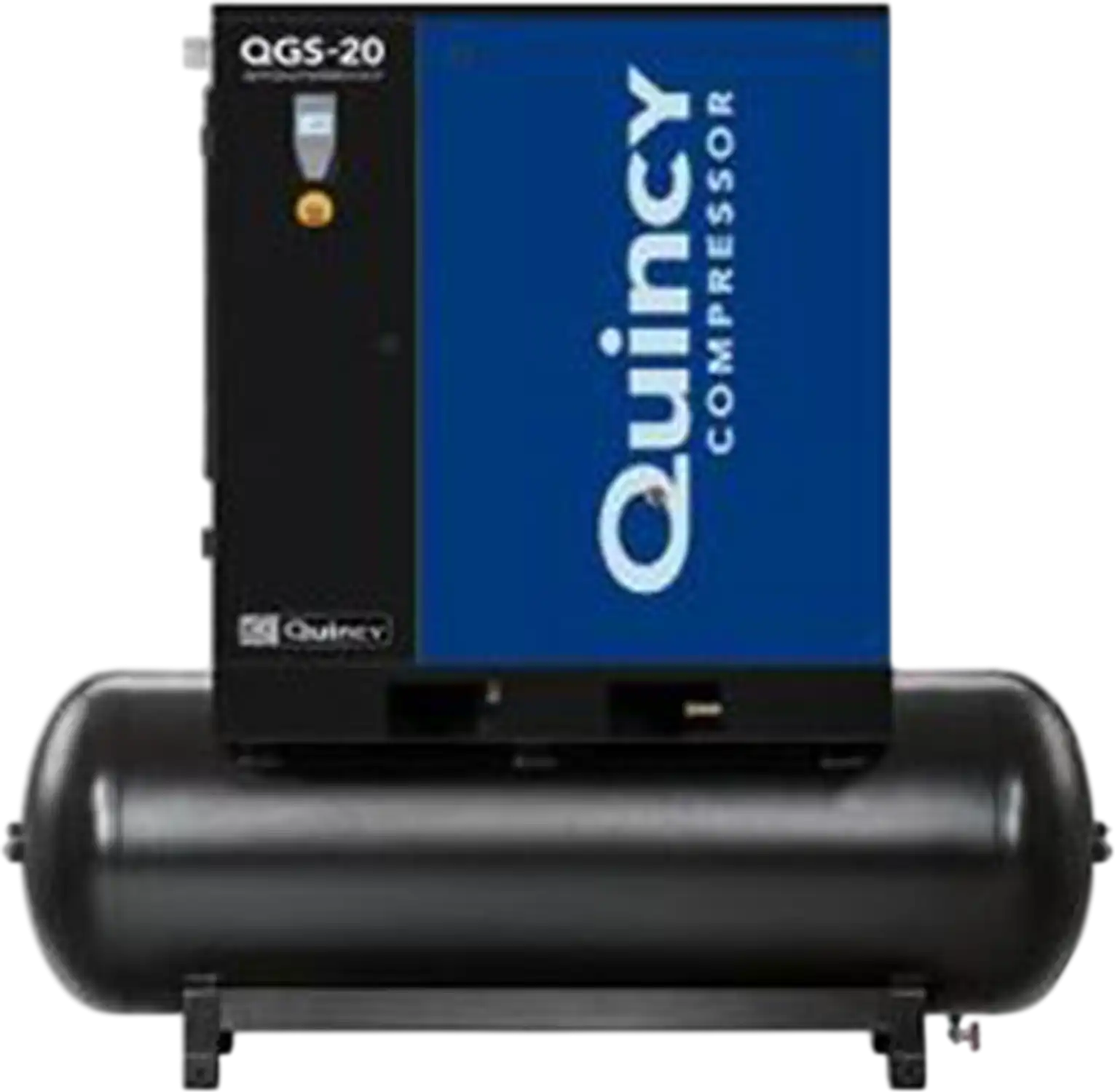

Quincy Compressor QGS 20 TM-3 Rotary Screw Air Compressor 20 HP 120 gallon New
Product Overview
The Quincy Compressor QGS 20 TM-3 rotary screw air compressor combines 20 HP power with a 120-gallon tank-mounted configuration. It delivers 82.2 CFM at a pressure rating of 125 psig and features a TEFC drive motor. A Wye-Delta starter and tri-voltage 208-230/460/3/60 electrical configuration round out its power specifications. The belt-driven design includes an automatic tensioning device that simplifies maintenance and supports long belt life. A low-sound enclosure, air-cooled aftercooler, and factory-filled QuinSyn-Plus fluid rated for 8,000 hours complete the package.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- 82.2 CFM capacity
- 125 psig pressure rating
- Wye-Delta starter
- 208-230/460/3/60 (tri-voltage)
- Low sound enclosure
- The QGS series from 5 to 30 HP are belt driven and include an auto tensioning device that provides ease of maintenance and a long belt life, while the 40 to 100 HP compressors come with a gear driven transmission.
- All models feature a TEFC drive motor, air-cooled after cooler, low sound enclosure, and 8,000 hours of factory-filled QuinSyn-Plus fluid, with options for a horizontal air receiver and a mounted 39°F dewpoint refrigerated air dryer.
Specifications
| Power | 20 HP |
|---|---|
| Mounting | 120 gallon tank mount |
| Capacity | 82.2 CFM |
| Pressure Rating | 125 psig |
| Starter | Wye-Delta starter |
| Voltage | 208-230/460/3/60 (tri-voltage) |
|---|
Warranty
This item comes with a 1 year factory warranty.
