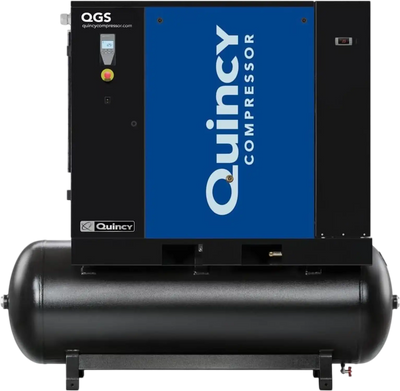

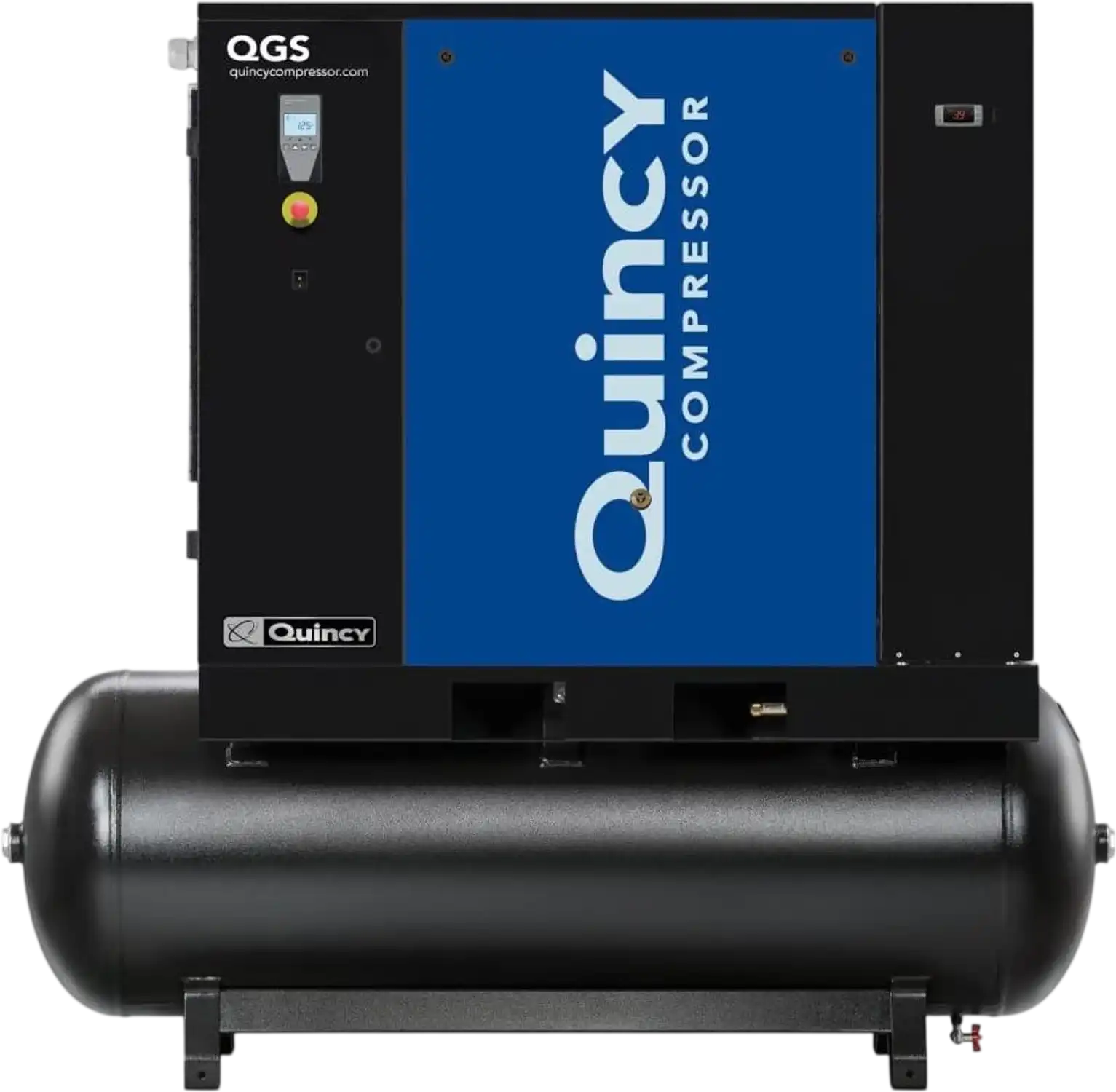

Quincy Compressor QGS 20 TMD-3 Rotary Screw Air Compressor 20 HP 132 Gal 125 Max PSI with Dryer New
Product Overview
The Quincy Compressor QGS 20 TMD-3 rotary screw air compressor pairs a 20 HP motor with a 132-gallon horizontal tank for stationary commercial use. Its oil-injected twin-screw pump supports a 100% continuous duty cycle and delivers 82.2 CFM at its maximum operating pressure of 125 PSI. An integrated refrigerant air dryer helps reduce corrosion by providing clean, dry air for your system, with a filter and aftercooler also included. The Infologic2 Basic microprocessor controller offers programmable auto-restart and remote start/stop, while the display provides pressure, temperature and dewpoint readings. A full sound enclosure supports a 67 dB sound rating, and hinged doors, detachable panels and a spin-on fluid filter simplify maintenance access.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Unit Is Too Large For Liftgate Service, Shipping Dock Or Forklift Required
- Quincy QGS Highly Efficient & Advanced Rotary Screw Compressor
- 100% continuous duty cycle with oil-injected twin screw pump
- Rated for 8,000 hours with premium synthetic lubrication; low oil carryover protects component

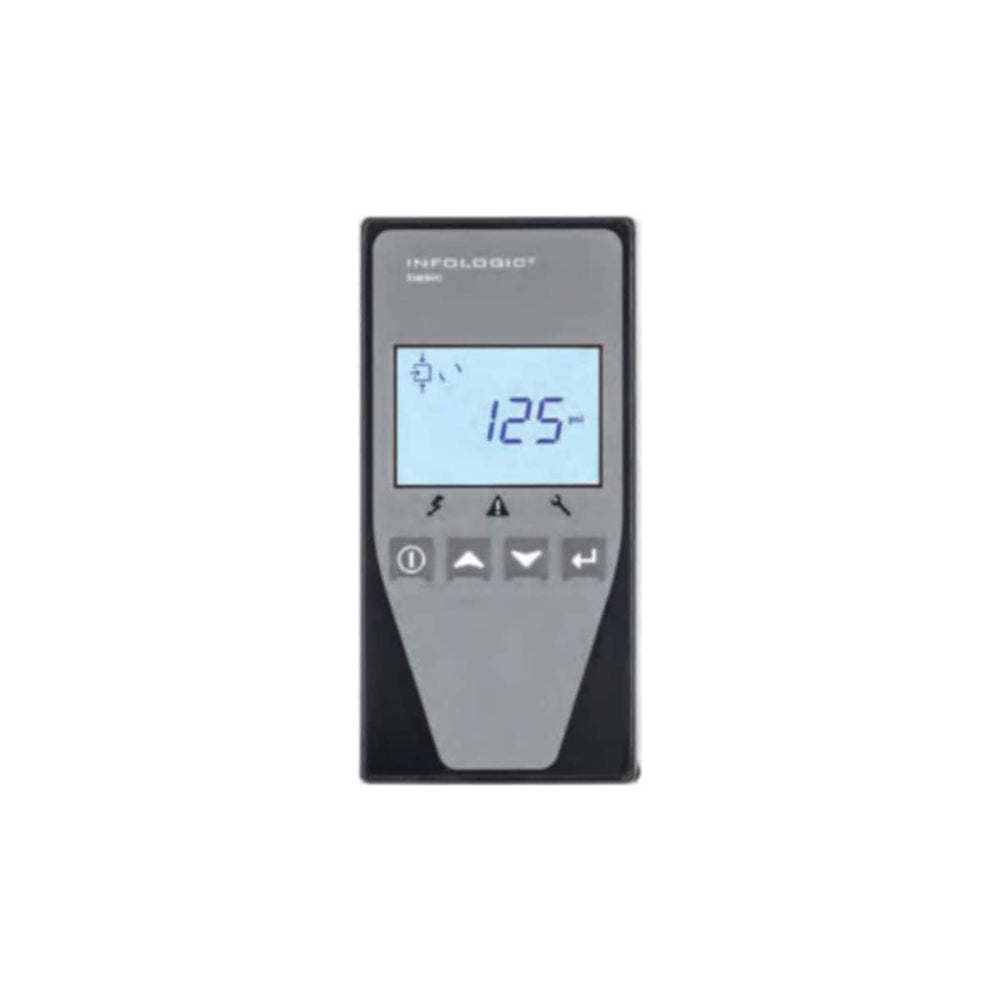

- Infologic2 Basic Microprocessor Controller
- Network up to six QGS 20 to 30 HP units
- Completely programmable auto-restart and remote start/stop
- Convenient Display Panel
- Includes auto run, general alarm and power-on LED's
- Pressure display, temperature and dewpoint display
- Motor start limit; max & min temperature default settings
- Integrated Refrigerant Air Dryer: Reduces corrosion and provides clean, dry air for your system
- Quiet Operation
- Full sound enclosure for extra low noise levels
- Rotary screw technology provides a quiet solution and greatly reduces vibration
- TEFC Electric Motor (IP 55 Wash Down)
- Protects the motor from dirt, moisture and weather
- Wye-Delta reduced voltage start for industrial applications
- Increased Maintenance Simplicity
- Fast and easy out of box installation
- Hinged doors and detachable panels for quick access
- Constant view fluid monitoring and spin-on fluid filter simplifies maintenance
- Extended 3 Year Factory Warranty Available: Must register with Quincy & use Quincy Maintenance Kits
- True Blue 5-Year Warranty with Quincy Authorized Start-Up: Covers airend, motor, separator reservoir and cooler/heat exchanger
Specifications
| CFM | 82.2 |
|---|---|
| Height | 72.2 in. |
| Length | 74 in. |
| Product Weight | 1296 lbs. |
| Width | 30.7 in. |
| Filter Included | Yes |
| After Cooler Included | Yes |
| Air Dryer Included | Yes |
| CFM Rated @ | 125 PSI |
| Duty Cycle | 100 % |
| Electronic Drain Valve Included | No |
| Engine Low Oil Shutdown | Yes |
| Lubrication Type | Oil Lubricated |
| Mounting Type | Stationary |
| Oil Sight Glass Included | Yes |
| Pressure Gauge Included | Yes |
| Tank Orientation | Horizontal |
| Tank Outlet Size | 1" |
| Tank Size | 132 |
|---|---|
| Tank Type | Hot Dog |
| Decibel Rating (dB) | 67 |
| Drive Type | Belt Drive |
| Electrical Phases | 3 |
| Fuel Type | Electric |
| Grade | Commercial |
| Horsepower | 20 |
| Maximum Operating Pressure (PSI) | 125 |
| Stages | Single-Stage |
| Voltage | 208, 230, 460 |
| Certifications | ASME |
Package Contents
Air Dryer Included
Pressure Gauge Included
Filter Included
Warranty
This item comes with a 1 year factory warranty.
