Quincy Compressor QGS Rotary Screw Air Compressor 208/230/460V 3-Phase, 30 HP, 113.8 CFM, 132 Gallon New
Manufacturer: Quincy Compressor
SKU: 4152026533
QTY
or
(888) 999-1522
$ 25,347.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

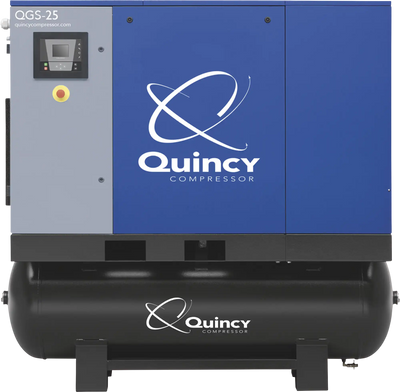

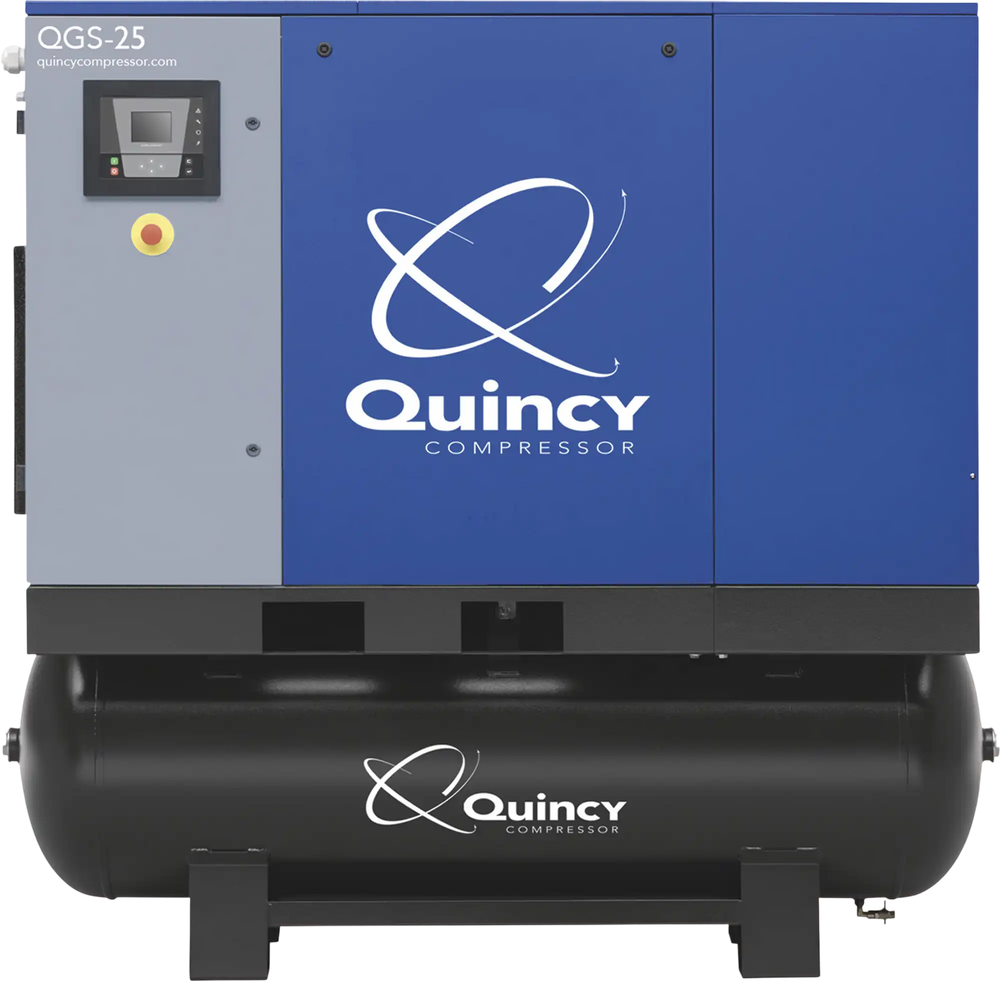

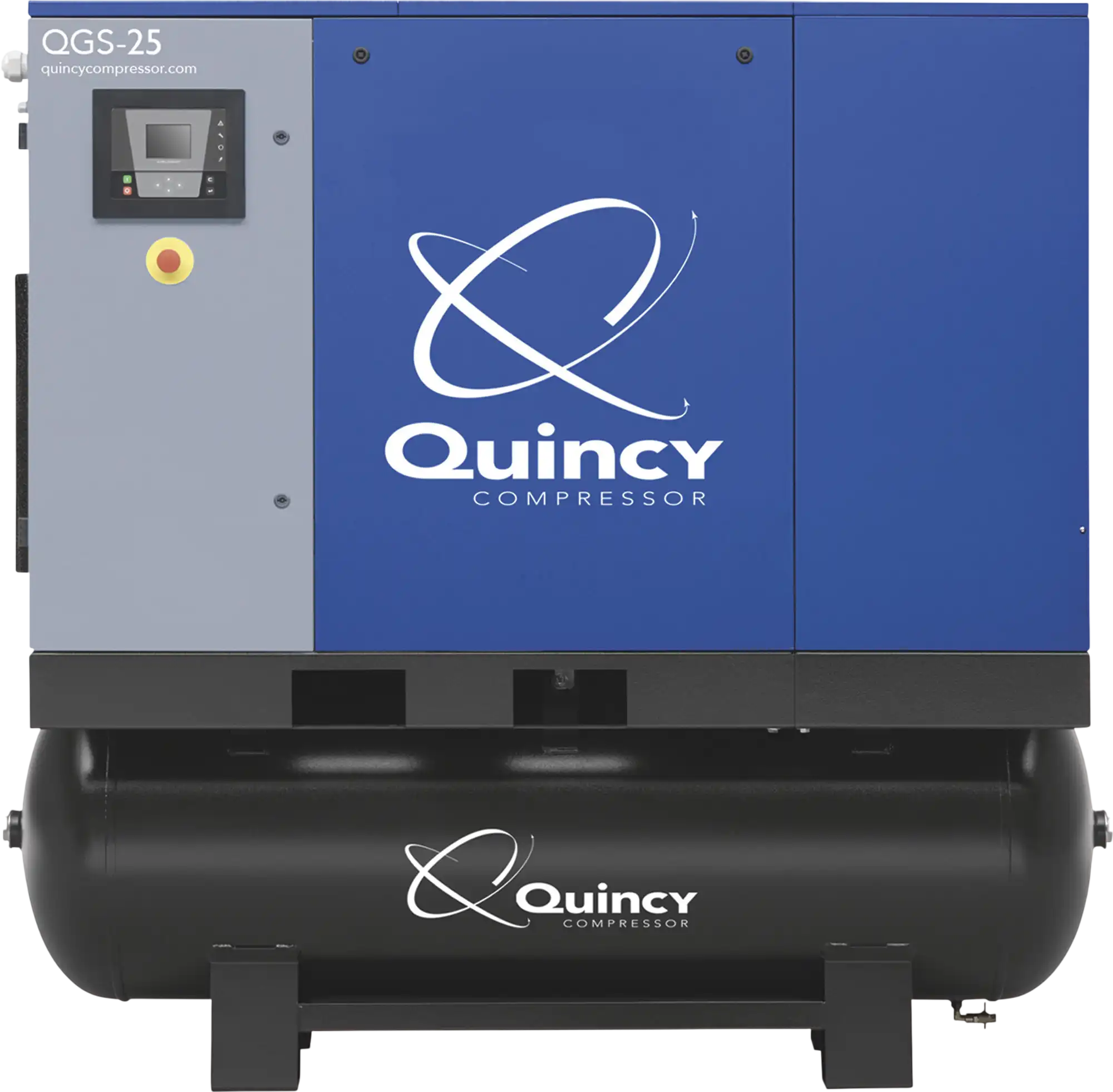

Quincy Compressor QGS Rotary Screw Air Compressor 208/230/460V 3-Phase, 30 HP, 113.8 CFM, 132 Gallon New
Product Overview
The Quincy Compressor QGS 30 TM-3 rotary screw air compressor pairs a 30 HP oil-injected twin screw compressor with a 132-gallon horizontal ASME-certified tank. Designed for a 100% duty cycle, this three-phase unit supports 208/230/460V power and a maximum pressure of 125 PSI. Its low-sound canopy and 68 dBA sound level help reduce sound fatigue in work areas. A high-efficiency intake filter and low oil carryover help protect connected tools, while the compressor arrives factory-filled with 8,000-hour premium synthetic fluid. InfoLogic microprocessor controls provide intuitive operation, and a 1" NPT discharge connector provides the air outlet connection.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- 113.8 PSI @ 125 PSI
- High-efficiency intake filter
- TEFC electric motor (IP 55 wash down)
- 3-phase unit is capable of running on 208/230-460 voltage
- Long life V-belt drive
- 1in. NPT discharge air connector
- Factory-filled 8,000-hour premium synthetic fluid
- 68 dBA for reduced sound fatigue in work area installations
- Designed for 100% duty cycle
- No transfer of vibration
- Low oil carryover protects tools
- ASME certified tank
- InfoLogic microprocessor controls for intuitive, easy-to-use operation
- UL and cUL control panel compliant
- Fuse protected circuits
- Low sound canopy
- Overall dimensions: 78.7in.L x 28.7in.W x 75.6in.H
- Turnkey solution: power in/air out
- Clean appearance with few connections
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 1484.0 LB |
| Horsepower | 30 HP |
| Air Tank Size | 132 Gal |
| Volts | 460 |
| Max. PSI | 125 |
| Motor Phase | 3 |
| Air Outlet Size | 1 in. NPT |
|---|---|
| Drain Type | Manual |
| Tank Orientation | Horizontal |
| Dimensions L X W X H (in.) | 73.0 x 31.0 x 48.0 in |
Package Contents
(1) 30 HP, 208/230/460V, 3-phase oil-injected twin screw compressor, mounted on 132-gallon horizontal ASME tank
Warranty
This item comes with a 1 year limited warranty.
