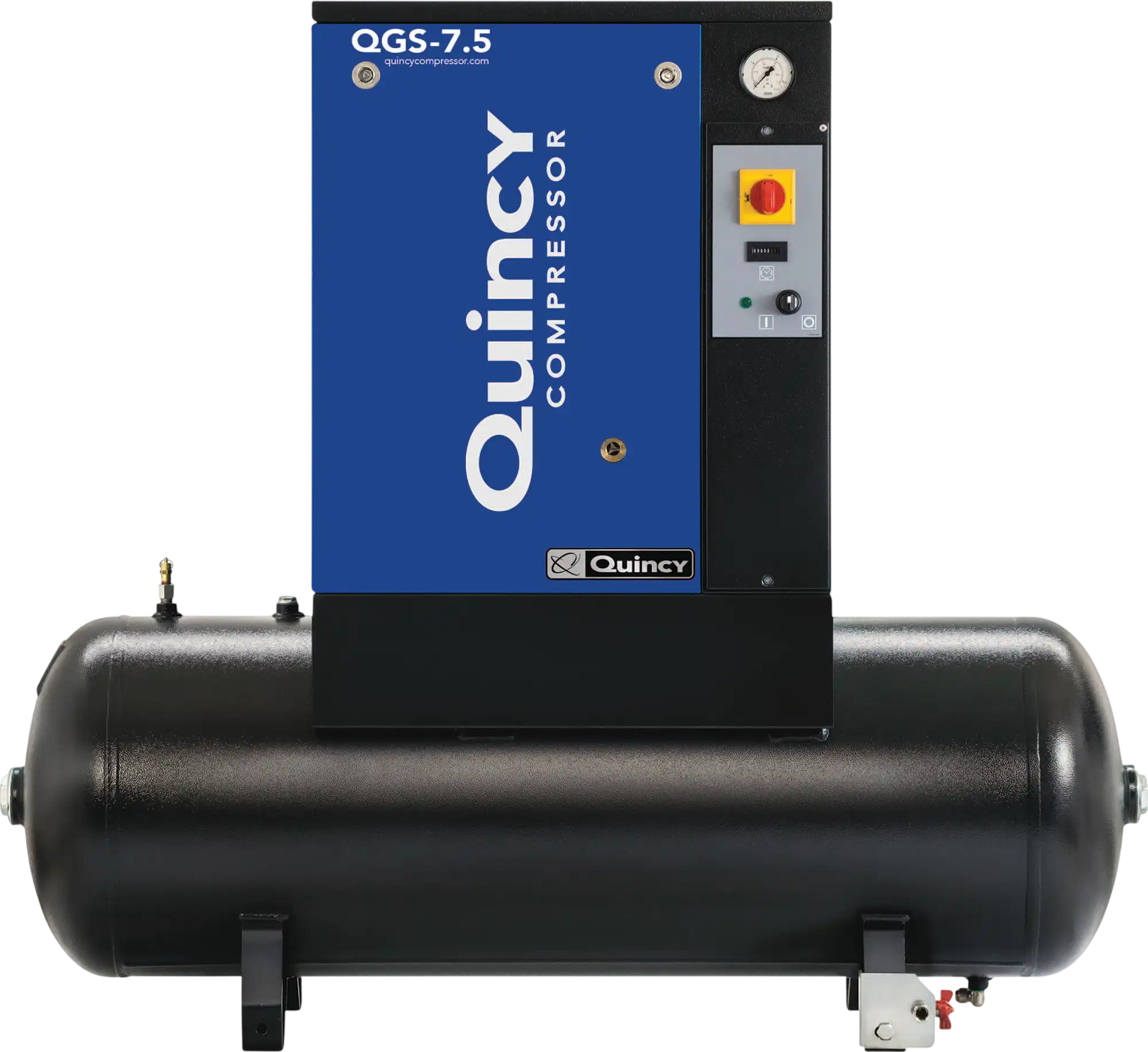

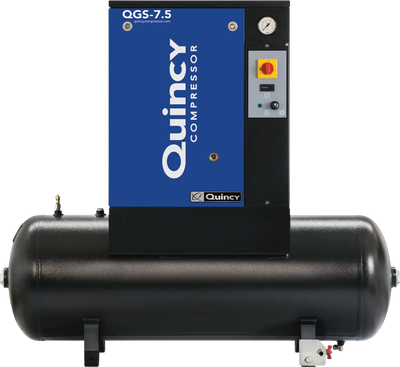

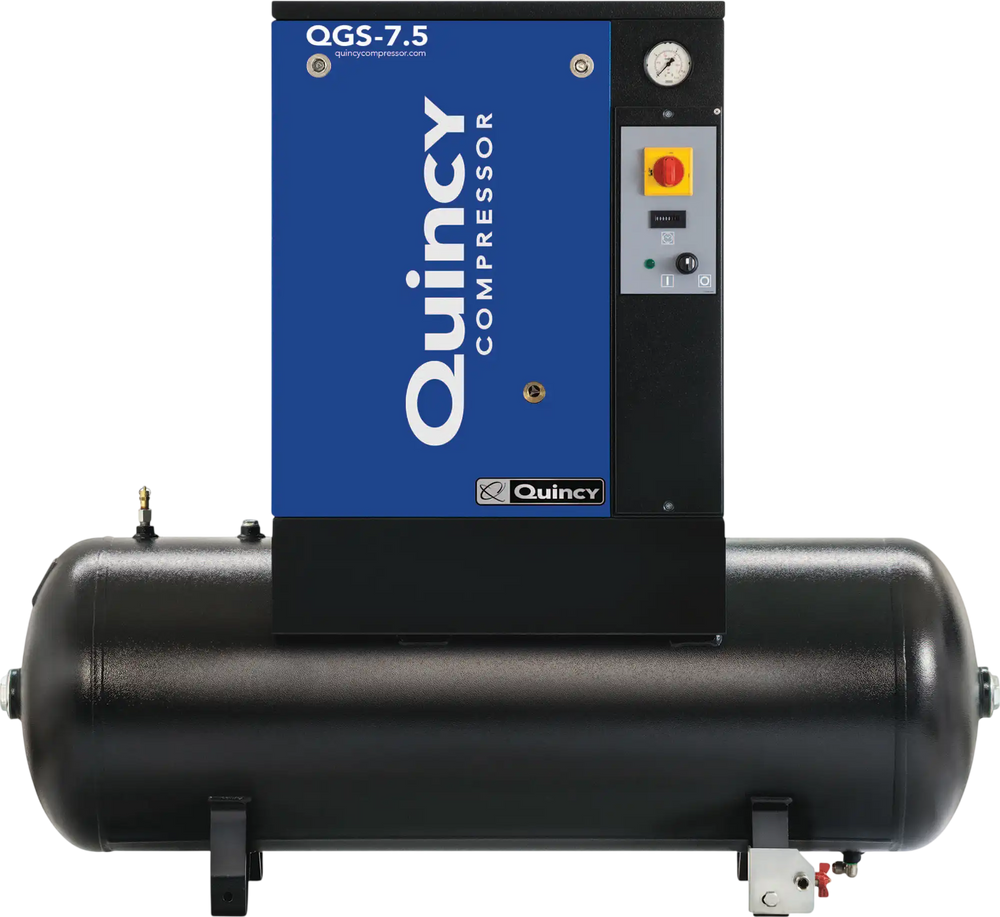

Quincy Compressor QGS Rotary Screw Air Compressor 230 Volt, Single Phase, 7.5 HP, 21.2 CFM, 60 Gallon New
Product Overview
The Quincy Compressor QGS rotary screw air compressor combines a 7.5 HP, 230V single-phase motor with an oil-injected twin screw pump mounted on a 60-gallon horizontal ASME-certified tank. Delivering 21.2 CFM with a maximum pressure of 150 PSI, it is designed for a 100% duty cycle to support continuous operation. A low-sound canopy and 64 dBA sound level help reduce sound fatigue in the work area, while a footprint of less than 13 square feet offers installation flexibility. The package includes a TEFC motor, V-belt drive and factory-filled 8,000-hour premium synthetic fluid, with low oil carryover to help protect connected tools. Simple start/stop control, fuse-protected circuits and a 1/2" NPT discharge connector round out this turnkey power-in, air-out package.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- High-efficiency intake filter
- TEFC electric motor (IP 55 wash down)
- Long life V-belt drive
- 1/2in. NPT discharge air connector
- Factory-filled 8,000-hour premium synthetic fluid
- 64 dBA for reduced sound fatigue in work area installations
- Designed for 100% duty cycle
- No transfer of vibration
- Low oil carryover protects tools
- ASME certified tank
- Simple, efficient start/stop control
- UL and cUL control panel compliant
- Fuse protected circuits
- Low sound canopy
- Less than 13 sq. ft. space required
- Turnkey solution: power in/air out
- Clean appearance with few connections
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 468.0 LB |
| Horsepower | 7.5 HP |
| Air Tank Size | 60 Gal |
| Volts | 230 |
| Max. PSI | 150 |
| Air Outlet Size | 1/2 in. NPT |
|---|---|
| Tank Orientation | Horizontal |
| Dimensions L X W X H (in.) | 56.0 x 22.0 x 49.4 in |
Package Contents
(1) 7.5 HP, 230V, 1-phase oil-injected twin screw compressor, mounted on 60-gallon horizontal ASME tank
Warranty
This item comes with a 1 year limited warranty.
