Quincy Compressor QGS Rotary Screw Air Compressor w/ Dryer, 200/208, 230, 460 Volt, 3 Phase, 5 HP, 16.6 CFM, 60 Gallon New
Manufacturer: Quincy Compressor
SKU: 4152051914
QTY
or
(888) 999-1522
$ 11,948.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Quincy Compressor QGS Rotary Screw Air Compressor w/ Dryer, 200/208, 230, 460 Volt, 3 Phase, 5 HP, 16.6 CFM, 60 Gallon New
Product Overview

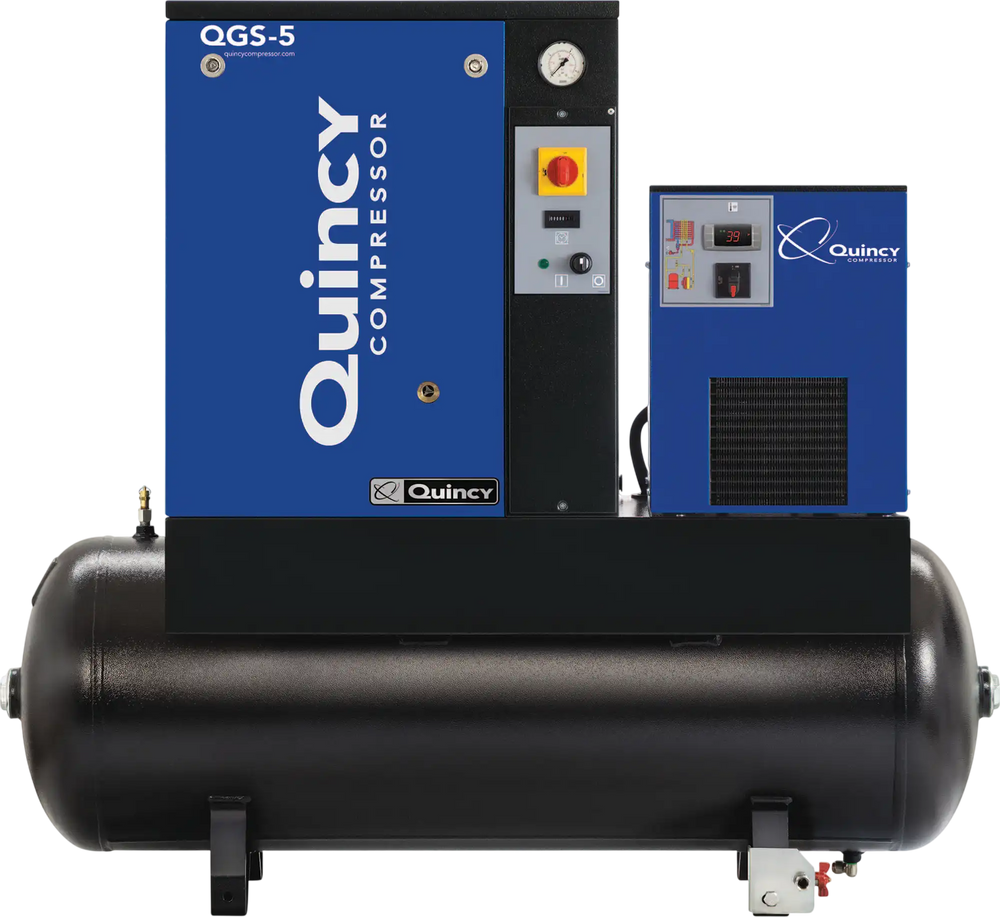

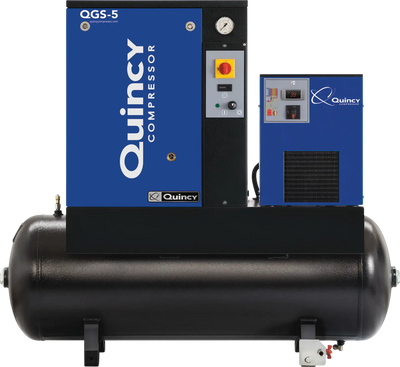

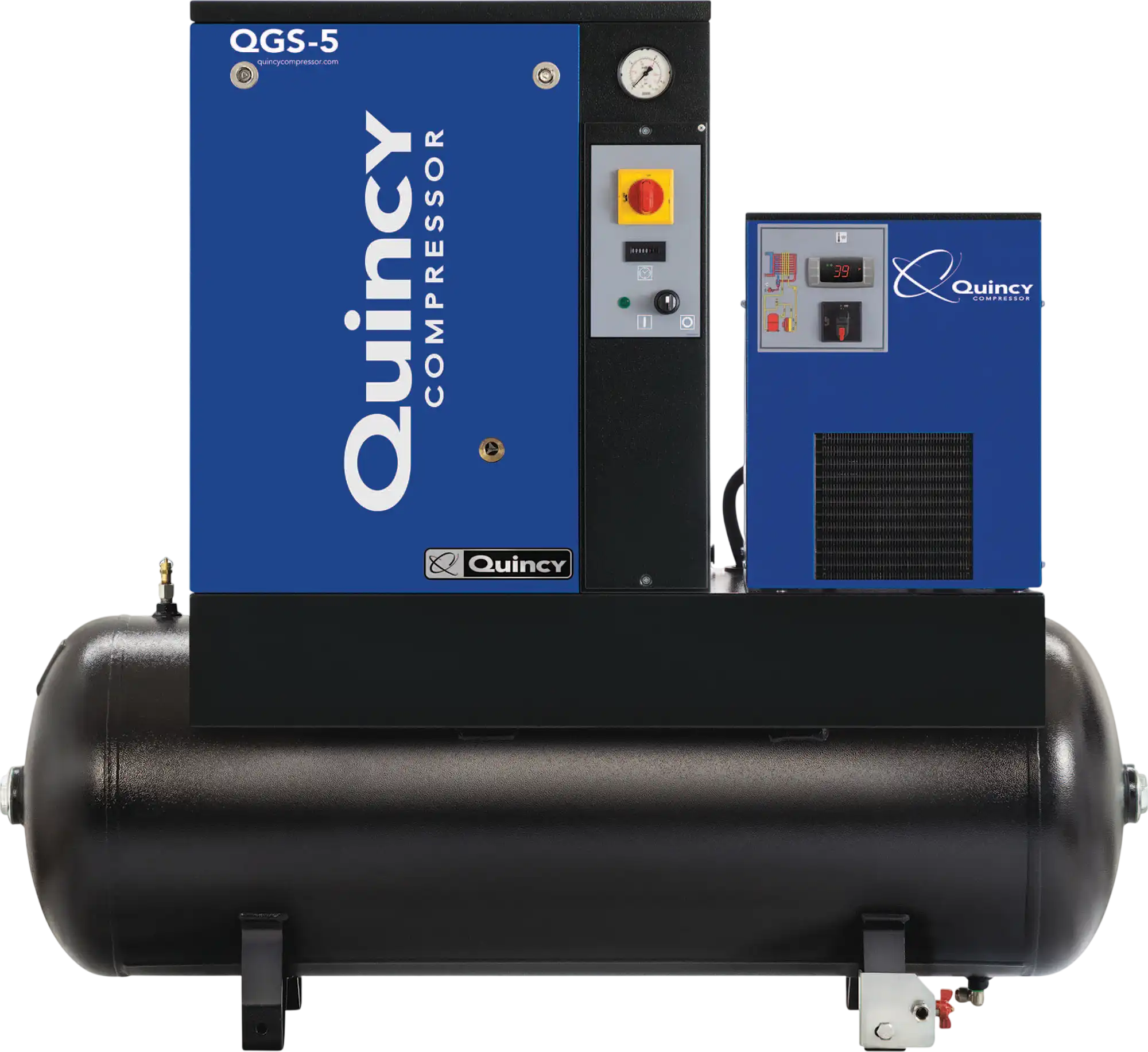

The Quincy Compressor QGS 5 TMD-3 rotary screw air compressor combines a 5 HP oil-injected twin screw compressor, an integrated refrigerated air dryer and a 60-gallon horizontal ASME-certified tank. Designed for a 100% duty cycle, it supports continuous operation with simple start/stop control. The dryer chills compressed air to condense and remove moisture, airborne dirt and oil, while low oil carryover helps protect connected tools. A low-sound canopy and 62 dBA operating sound level help reduce sound fatigue in the work area, and the package requires less than 13 sq. ft. of space. A TEFC electric motor, long-life V-belt drive and factory-filled 8,000-hour premium synthetic fluid round out the package.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- High-efficiency intake filter
- TEFC electric motor (IP 55 wash down)
- Long life V-belt drive
- 1/2in. NPT discharge air connector
- Factory-filled 8,000-hour premium synthetic fluid
- 62 dBA for reduced sound fatigue in work area installations
- Designed for 100% duty cycle
- No transfer of vibration
- Low oil carryover protects tools
- Integrated refrigerated air dryer purifies compressed air by chilling it to condense and remove moisture, airborne dirt and oil
- ASME certified tank
- Simple, efficient start/stop control
- UL and cUL control panel compliant
- Fuse protected circuits
- Low sound canopy
- Less than 13 sq. ft. space required
- Turnkey solution: power in/air out
- Clean appearance with few connections
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 12 months parts/12months labor |
| Ship Weight | 468.0 LB |
| Horsepower | 5 HP |
| Air Tank Size | 60 Gal |
| Volts | 460 |
| Max. PSI | 150 |
| Air Outlet Size | 1/2 in. NPT |
|---|---|
| Tank Orientation | Horizontal |
| Dimensions L X W X H (in.) | 56.0 x 22.0 x 50.0 in |
Package Contents
(1) 5 HP, 200/208V, 230V, 460V, 3-phase oil-injected twin screw compressor with refrigerated air dryer, mounted on 60-gallon horizontal ASME tank
Warranty
This item comes with a 1 year limited warranty.
