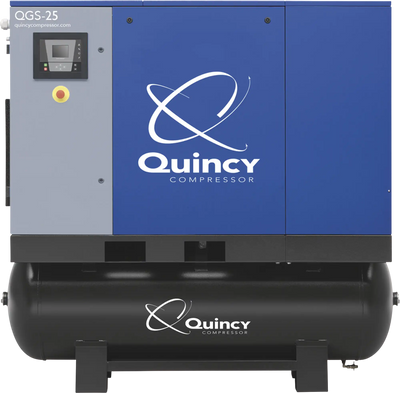

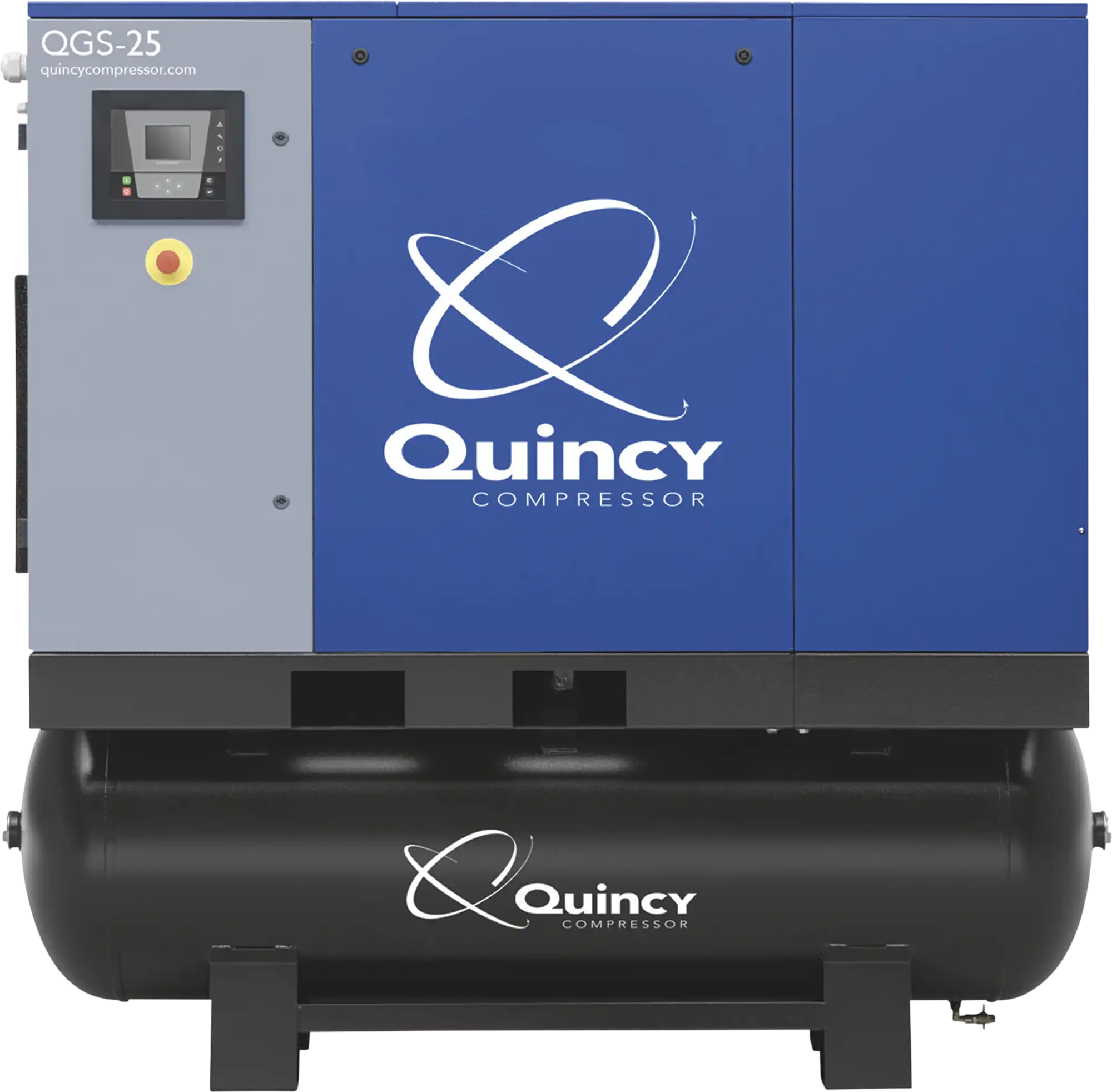

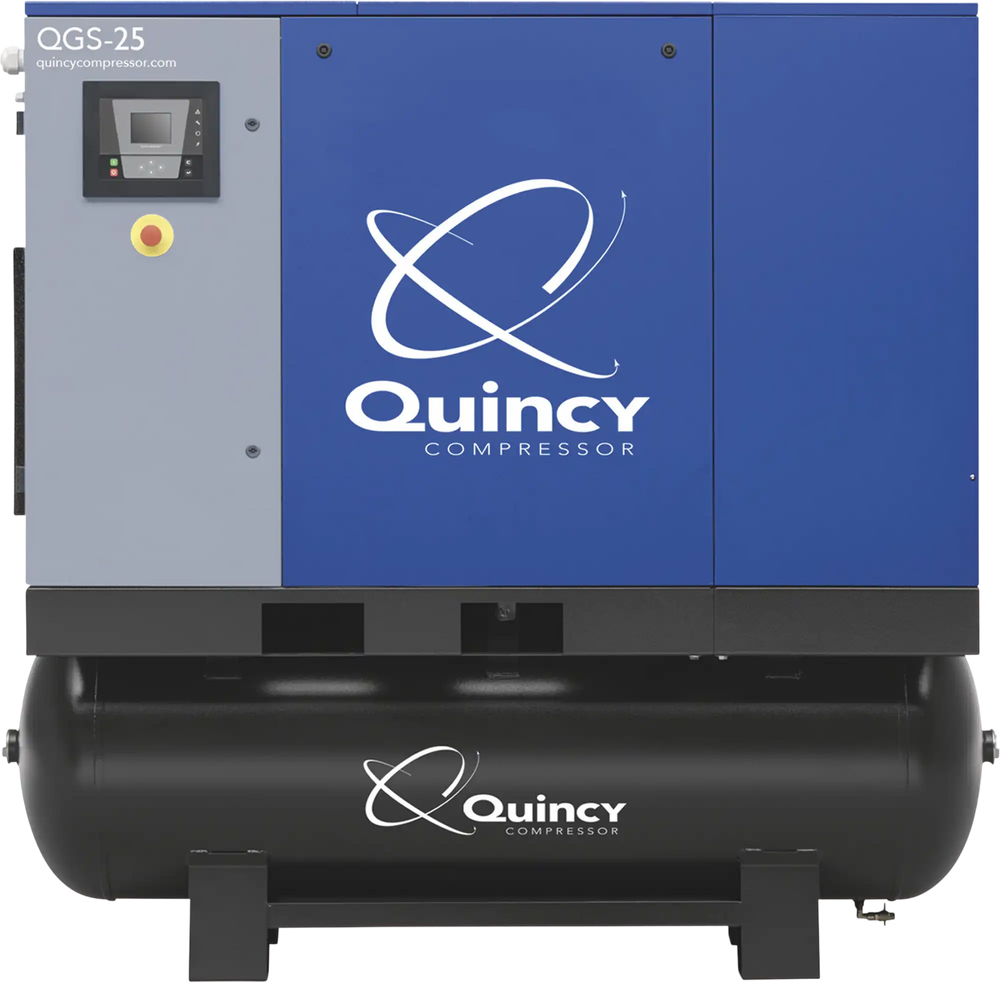

Quincy Compressor QGS Rotary Screw Air Compressor with Dryer 30 HP, 125 PSI, 132-Gal. Tank, 113.8 CFM, 460V, 3-Phase New
Manufacturer: Quincy Compressor
SKU: 4152026593
QTY
or
(888) 999-1522
$ 29,204.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-4 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Quincy Compressor QGS Rotary Screw Air Compressor with Dryer 30 HP, 125 PSI, 132-Gal. Tank, 113.8 CFM, 460V, 3-Phase New
Product Overview
The Quincy Compressor QGS rotary screw air compressor pairs a 30 HP oil-injected twin screw compressor with an integrated refrigerated air dryer and a 132-gal. horizontal ASME-certified tank. Delivering 113.8 CFM at 125 PSI, this 3-phase unit is designed for a 100% duty cycle to support continuous operation. The dryer chills compressed air to condense and remove moisture, airborne dirt and oil, while low oil carryover helps protect connected tools. A low-sound canopy and 68 dBA sound level help reduce sound fatigue in work area installations. InfoLogic microprocessor controls simplify operation, and the compressor comes equipped with a TEFC electric motor, V-belt drive and factory-filled 8,000-hour premium synthetic fluid.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- 113.8 CFM @ 125 PSI
- High-efficiency intake filter
- TEFC electric motor (IP 55 wash down)
- 3-phase unit is capable of running on 208/230-460 voltage
- Long life V-belt drive
- 1in. NPT discharge air connector
- Factory-filled 8,000-hour premium synthetic fluid
- 68 dBA for reduced sound fatigue in work area installations
- Designed for 100% duty cycle
- No transfer of vibration
- Low oil carryover protects tools
- Integrated 230V refrigerated air dryer purifies compressed air by chilling it to condense and remove moisture, airborne dirt and oil
- ASME certified tank
- InfoLogic microprocessor controls for intuitive, easy-to-use operation
- UL and cUL control panel compliant
- Fuse protected circuits
- Low sound canopy
- Overall dimensions: 73in.L x 31in.W x 48in.H
- Turnkey solution: power in/air out
- Clean appearance with few connections
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 1435.0 LB |
| Horsepower | 30 HP |
| Air Tank Size | 132 Gal |
| Volts | 460 |
| Max. PSI | 125 |
| Motor Phase | 3 |
| Air Outlet Size | 1 in. NPT |
| Drain Type | Manual |
|---|---|
| Tank Orientation | Horizontal |
| Product Weight | 1365.0000 lb |
| Dimensions L X W X H (in.) | 75.0 x 31.0 x 72.0 in |
Package Contents
(1) 30 HP, 208/230/460V, 3-phase oil-injected twin screw compressor with refrigerated air dryer, mounted on 132-gallon horizontal ASME tank
Warranty
This item comes with a 1 year limited warranty.
