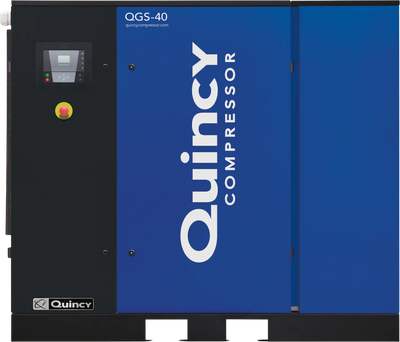

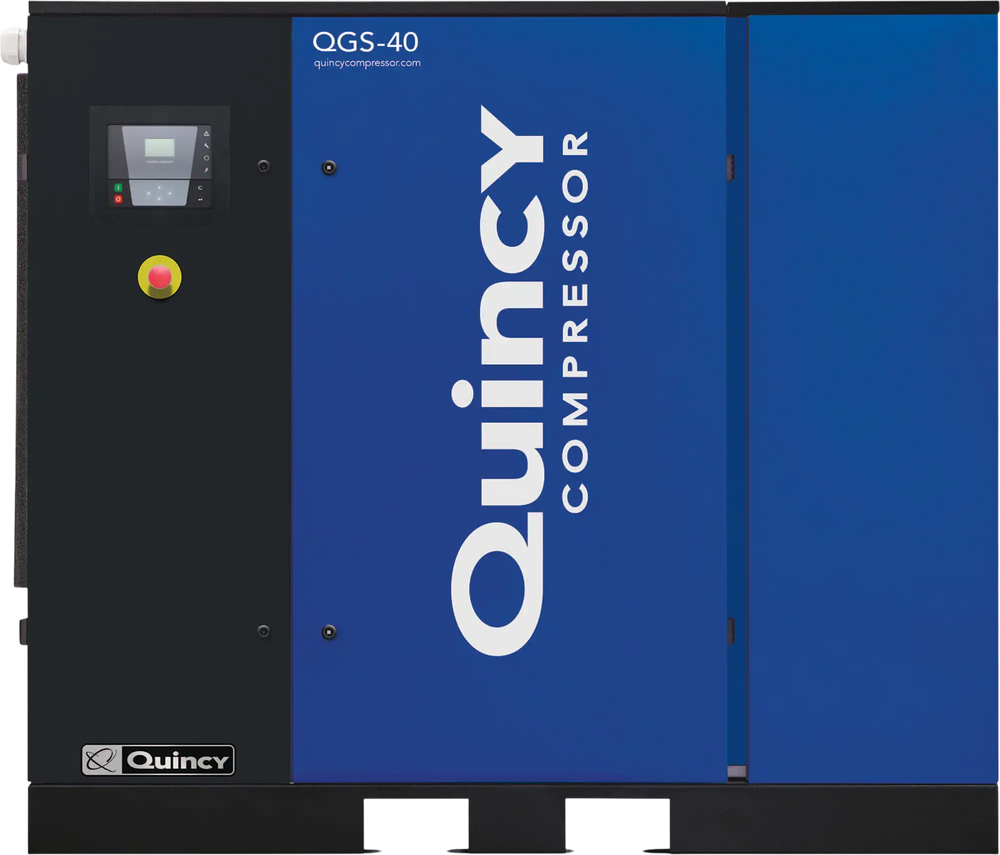

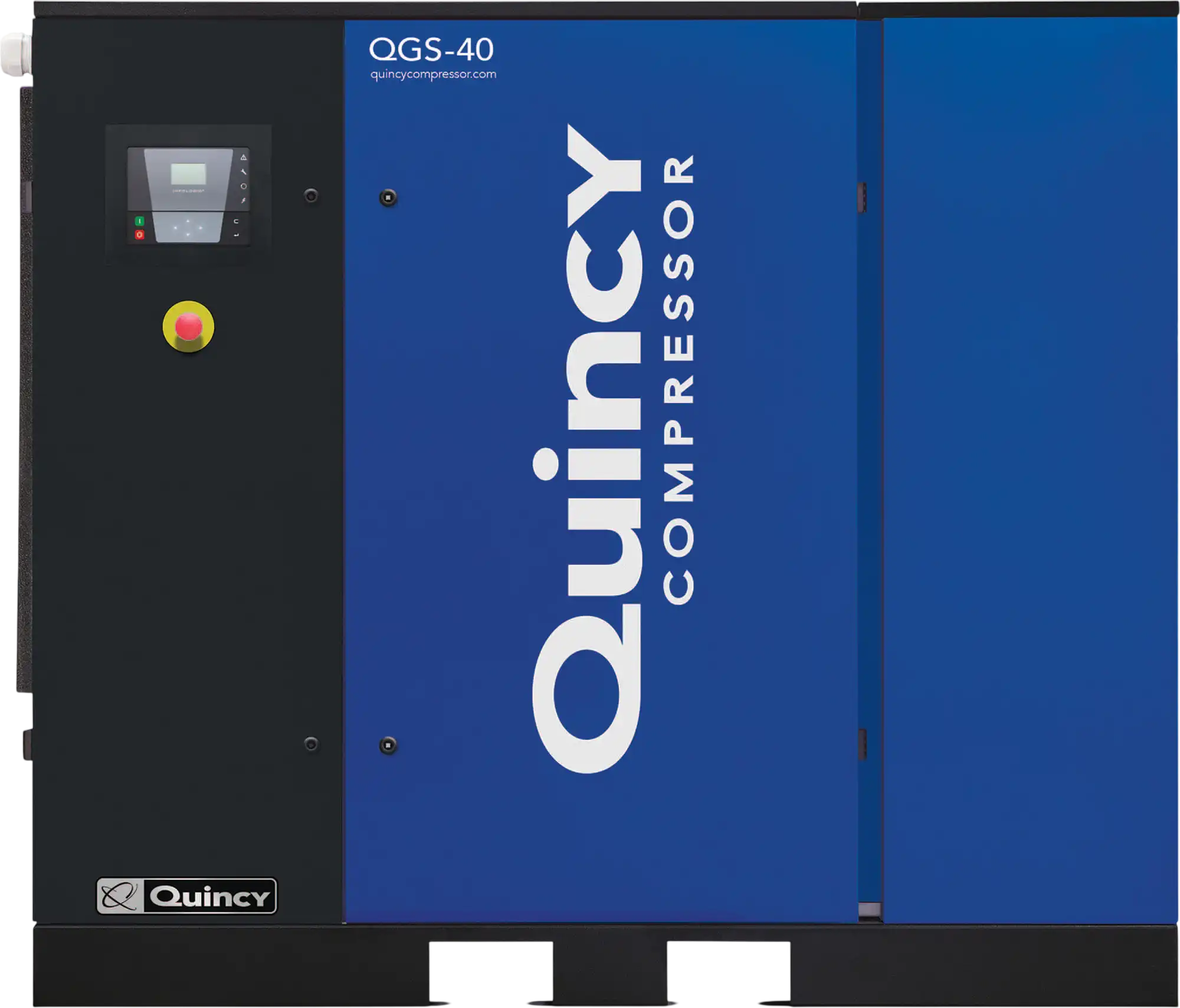

Quincy Compressor QGS Rotary Screw Air Compressor with Dryer 40 HP, 230/460 Volt, 3 Phase, 177 CFM, No Tank New
Product Overview
The Quincy Compressor QGS rotary screw air compressor delivers 177 CFM with a 40 HP motor, a 100% duty cycle and a maximum pressure of 125 PSI. Its low-sound enclosure helps keep operating noise at 68 dB, while the gear-drive design supports efficient operation without belt-related downtime. An integrated 230V refrigerated air dryer chills compressed air to condense and remove moisture, airborne dirt and oil. InfoLogic microprocessor controls simplify operation, with browser-based status viewing, performance trending and selectable run timers for added oversight. The receiver tank is sold separately, and this compressor is not available for sale in CA, OR or WA.
Brand new
1 year factory warranty
Manufacturer direct shipping from AL & NC
Authorized Quincy Compressor dealer
Features
- Extremely quiet rotary screw compressor operates at 68dB
- 40 HP motor
- 177 CFM
- 100% duty cycle
- Air cooled, 230V/460V/3 phase
- Gear-drive for peak efficiencies and no unplanned downtime
- Modular cooling system for increased longevity and reliability
- InfoLogic microprocessor controls for intuitive, easy-to-use operation
- Integrated 230V refrigerated air dryer purifies compressed air by chilling it to condense and remove moisture, airborne dirt and oil
- Receiver tank not included, sold separately
- 125 PSI max.
- Low sound enclosure
- Color microprocessor control
- Browser-based online compressor status visualization
- Automatic restart after a power failure
- Remote start-up
- Performance trending
- Intelligent unload cycle
- Selectable run timers standard
- Load/no load with auto dual control
Specifications
| Brand | Quincy Compressor |
|---|---|
| Manufacturer's Warranty | 1 year limited warranty |
| Ship Weight | 1497.0 LB |
| Horsepower | 40 HP |
| Volts | 460 |
| Max. PSI | 125 |
| Amps | 160 |
| Motor Phase | 3 |
| Air Outlet Size | 1/4 in. NPT |
|---|---|
| Drain Type | Ball Valve |
| Dimensions L X W X H (in.) | 72.0 x 30.75 x 62.25 in |
Package Contents
(1) QGS rotary screw air compressor with air dryer
Warranty
This item comes with a 1 year limited warranty.
